Precision M6400 Owner's Lounge *Part 2*

Wow.....all the best, and keep us posted :thumbup:

Sent from my GT-N7000 using Tapatalk 2



Well, that was unexpected (the card not working). Here's hoping for the M7820..



ok, got m7820
have to cut some metal off from 2800/3800m heatsink to fit its inductor
then it worked!
strange thing is dont see dell boot up logo with loading bar anymore
in bios(a12), ofcourse shows unknown vid card
pass the diagnosis, not yet test it under win7 or im gonna failed my final exam



Well, keep us updated. At least is the 1st good news, bravo!

Sent from my GT-N7000 using Tapatalk 2



so far so good
clean install win7 ultimate 64
installed m7820 driver from official m6500 driver download, gpuz read all spec
but i think the heatsink still have problem contacting the die, idle 48~50c, but run 3d will quickly bump to 70+c and when reach 78+c core clock will throttle down from 700 to 500mhz....
while fan control well, 50+c low/60+c medium/70+c full, not bad, i expected maybe fan will lose control run 100% all the time

going home next week to use my power drill cut more metal off from heatsink



Now we know m7820 can be used for m6400, hooray!

Sent from my GT-N7000 using Tapatalk 2



Spoiler



So, I presume you've ran some games to verify and it was all working? That's great news, thanks a lot.

I guess it's better to find one with its cooler to avoid the cooler modding..

But, those cards look so similar, you'd expect them to go this one extra mile and standardize the component placement as well and thus have only one cooler type.. I mean, really. How hard would that be?



nope

Spoiler

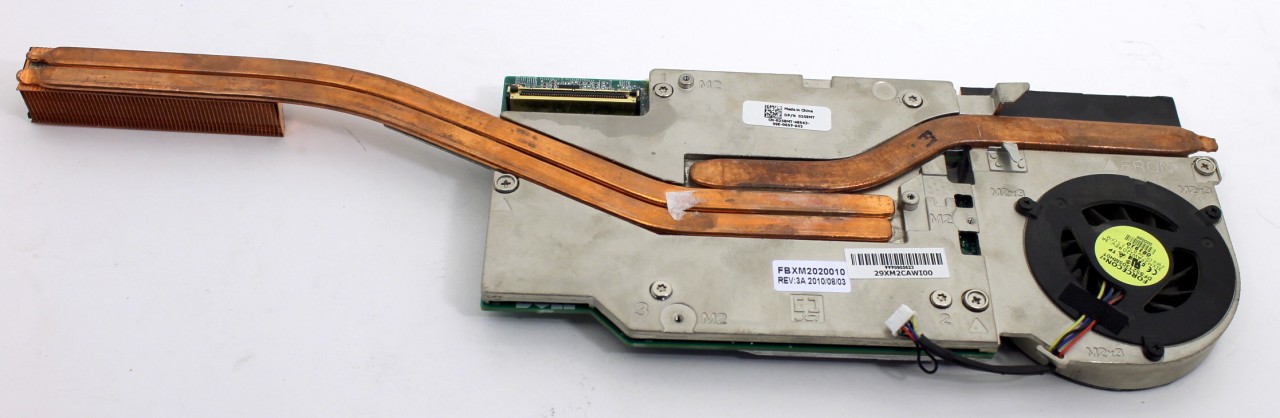

there are 4 types of vga cooler for m6400/6500
1.fx2700 single pipe

2.fx3700m/m7740/m7820 dual pipe

3.q5000m triple pipe with copper fin(but id rather call it dual pipe, the tiny pipe is for power phase only)


4.so......fx2800/3800m triple pipe with copper fin is the most powerful one

btw original m6400 comes with cpu fan 5v 0.38a/gpu fan 5v 0.28a, while m6500 cpu/gpu both 5v 0.5a, so if u want to run cooler and dont care about noise & dust, upgrade to m6500 fan!

.



Nope for the game tests or for the cooler note?

Thanks for the detailed cooler analysis, was not aware there were so many of them. But, that would mean that my FX-3700M cooler is directly compatible with the M7820 one? Which is good news..
