M6800 Owners' Thread

Discussion in 'Dell Latitude, Vostro, and Precision' started by billxt95, Nov 1, 2013.

Page 135 of 146
  1. dougyj01

    dougyj01 Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    1
    Trophy Points:
    6
    Im using a COVET and mine has issues because i bought as a "shell" with just case, motherboard, and screen, had issues with speakers, touchpad, but that hopefully will be solved with new palmrest on order. Besides that its lvds so stuck on gpu options, Get a normal m6800 edp so you can have more options. Touch screen itself works beautifully, although it does introduce some fuzz, and will need calibrating because color is weird.

    dougyj01, May 12, 2020
    #1341
  2. TheQuentincc

    TheQuentincc Notebook Evangelist

    Reputations:
    85
    Messages:
    678
    Likes Received:
    215
    Trophy Points:
    56
    TheQuentincc, Jul 1, 2020
    #1342
  3. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41
    Could someone help me with the BIOS chip or chips location on the M6800 motherboard please?

    Geraout, Jul 4, 2020
    #1343
  4. TheQuentincc

    TheQuentincc Notebook Evangelist

    Reputations:
    85
    Messages:
    678
    Likes Received:
    215
    Trophy Points:
    56
    They are located between ram slot and chipset, on the side of the dock connector, there is two SOP8 eeprom, one is 8MB and the other is 4MB.

    Last edited: Jul 4, 2020
    TheQuentincc, Jul 4, 2020
    #1344
  5. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41

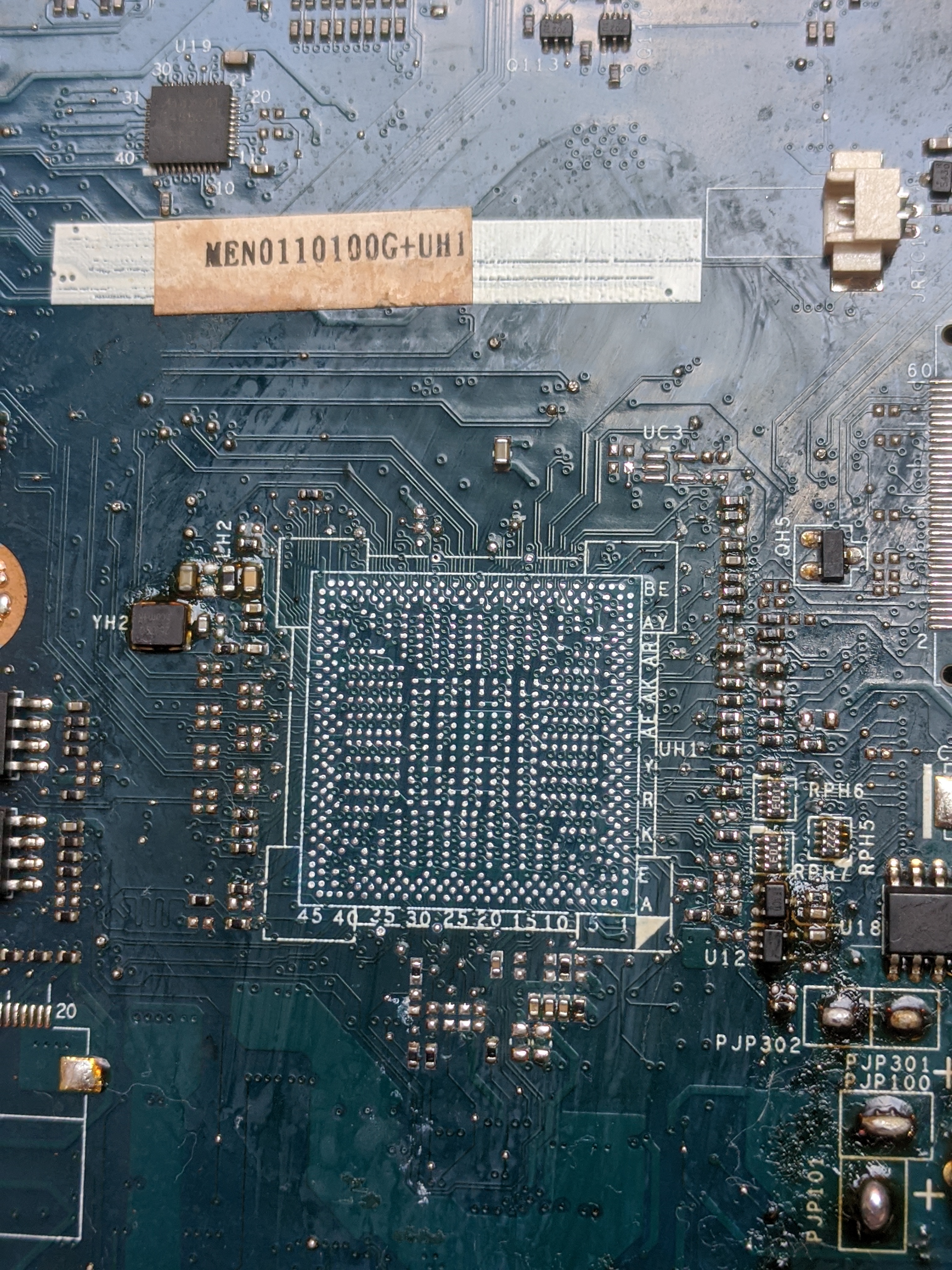

    Thankyou. Pic attached:


    Attached Files:

    Geraout, Jul 5, 2020
    #1345
  6. TheQuentincc

    TheQuentincc Notebook Evangelist

    Reputations:
    85
    Messages:
    678
    Likes Received:
    215
    Trophy Points:
    56
    yes that's these two :)

    TheQuentincc, Jul 5, 2020
    #1346
  7. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41
    Is the picture OK for you? I can take another if needed.

    Geraout, Jul 5, 2020
    #1347
  8. TheQuentincc

    TheQuentincc Notebook Evangelist

    Reputations:
    85
    Messages:
    678
    Likes Received:
    215
    Trophy Points:
    56
    that's fine, thanks you :)

    TheQuentincc, Jul 5, 2020
    #1348
  9. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    Does anyone know if the M6800 can be upgraded to a 120Hz screen, or higher than 1080P panel with the eDP model? As well, can you use the iGPU with eDP enabled?

    Mastermind5200, Aug 23, 2020
    #1349
  10. TheQuentincc

    TheQuentincc Notebook Evangelist

    Reputations:
    85
    Messages:
    678
    Likes Received:
    215
    Trophy Points:
    56
    No, it's either four channel LVDS/40pins or two channel eDP/30pins and both of them are capped to 1080/60Hz

    TheQuentincc, Aug 24, 2020
    #1350
