M6800 Owners' Thread

Hi guys. I have a request: could any of you check in your M6800 the Dell P/N for the mic module (without cam)? I have recently bought the laptop without any mic or cam and I want to buy a mic module. Sadly, I cannot find it anywhere, because many Dell parts aren't labelled for the Precision series.

You can find the part number in your System configuration under Product Support: http://www.dell.com/support/home/us/en/04/product-support/servicetag. Alternatively, you can read it directly from the mic module. All you need to to it to pry up the top edge of the display bezel with a credit card like this: https://www.dropbox.com/s/dx23abaps8jrobw/20150427_003944.jpg?dl=0

Watch out though, you can easily damage the bezel's hitches. Do it gently.

EDIT: For anyone interested I've got a response from the Dell Support:
- mic module: Y1JDX
- cam module: 767N9



If anyone is interested - you can use FreeSync with M6100, just disable switchable graphics and instal latest Catalyst drivers and voila.

Gpu will be recognized as Radeon 8950 and FreeSync will work ;-)

Also if you need more CAD oomph you can just plug in FirePro W8100 via eGPU


Sent from my C1905 using Tapatalk



I will give this a try when I get the chance. I am currently using a Huawei card.



Anyone here has a M6800 with a touch screen? I got one from parts people but the touch screen doesn't work and one of the WLAN or WWAN cable came in the wrong size and wrong connector.

Does the touch screen need any special drivers? Am I missing something here?



^^ no as far as I know the touch screen needs no special drivers. support for touch screens is native to current windows versions so it should be plug and play.



You are right. Looks like a loose connector. Got it fixed and now the touch screen is working. I love the matt screen.



Any chance you can translate the russian text to english for us?



After installing the MC7304 to install these drivers http://www.mediafire.com/download/rza4lgjr4hbw8p4/QMI_Driver_v5.10.1405.4105.zip
Run this program http://huawei.mobzon.ru/soft/Huawei_Modem_Terminal.rar and connect it to the modem by selecting from the drop-down list number of the COM port, which you can see in Device Manager in the section "ports COM and LPT" in device "DM port"
Test connection command ati, if (roughly) it does NOT appear
ati
--------------------------------
Recieve: ati
Recieve: Manufacturer: Sierra Wireless, Incorporated
Recieve: Model: MC7304
Recieve: Revision: SWI9X15C_05.05.42.00 r23236 carmd-fwbuild1 2014/07/16 18:41:28
Recieve: IMEI: 35685305014****
Recieve: IMEI SV: 14
Recieve: FSN: J3425200080310
Recieve: +GCAP: +CGSM
Recieve: OK
---------------------------------- then select in Huawei_Modem_Terminal another COM port until you see the above answer to ati command

To check the current VID/PID and remember just in case:
AT!ENTERCND="A710" ...this is to allow input of password protected command
AT!UDINFO?
-----------------------------
Recieve: AT!UDINFO?
Recieve: VID: 0x1199 ...your factory VID
Recieve: APP PID: 0x68A2 ...your factory PID
Recieve: BOOT PID: 0x68A2
Recieve: Interface: QMI
Recieve: Manufacturer: Sierra Wireless, Incorporated
Recieve: Product: MC7304
Recieve: OK
-------------------------------
Change VID/PID:
AT!ENTERCND="A710" ...this is to allow input of password protected commands
AT!UDVID=413C
AT!UDPID=81A8,81A8
AT!RESET
Now

However, most likely, modem will fully work even without the above actions, that is, with default VID/PID (1199/68A2) because any blockings based on the "white list" in this laptop no.
Put QMI_Driver_v5.10.1405.4105.zip from folder "QMI Drivers" and QMI_Skylight_Generic_b4130.zip (win8 not necessarily) from folder "QMI watchers" https://www.mediafire.com/folder/290rf47wkzmrq/Sierra#290rf47wkzmrq and ready.
You can try to take QMI drivers/watchers from folder "New" (QMI_Driver_v6.04.4208.0003.zip and Skylight_Generic_Build4260_32/64bit.zip

I changed VID/PID purely for aesthetic reasons )



@yegg55 thanks mate!

I also see that you have a GTX 970M 6GB in your M6800! Did you use the Nvidia or AMD/ATI heatsink? What modifications did you do to your heatsink? Did you use the Clevo X-bracket and screws or swapped to a Dell X-bracket and used the original screws on the heatsink?

I'm about to start my work on installing a GTX 980M 8GB in my M6800 and would appreciate your experience, input and advice.



I used what was, that is AMD heatsink. However, due to the greater height of the chip N16E-GT-A1 (than AMD M6100) had to increase the thickness of thermal pads of 0.5, 1, and even 1.5 mm. Here I suggest that you not be lazy and check the pairing of the cooled elements and the thermal pads. If you have a Nvidia heatsink, then there is no need to put thicker thermal pads.
Or not to suffer with the adjustment of the thickness of thermal pads, TRY to apply it http://www.ebay.com/itm/261572214077

Yes, AMD heatsink requires a small modification (cutting). Just like Nvidia heatsink, IMHO. You will immediately become clear what needs to be cut down as soon as you align the card and heatsink. It took me about one hour together with a trip to the store for this:

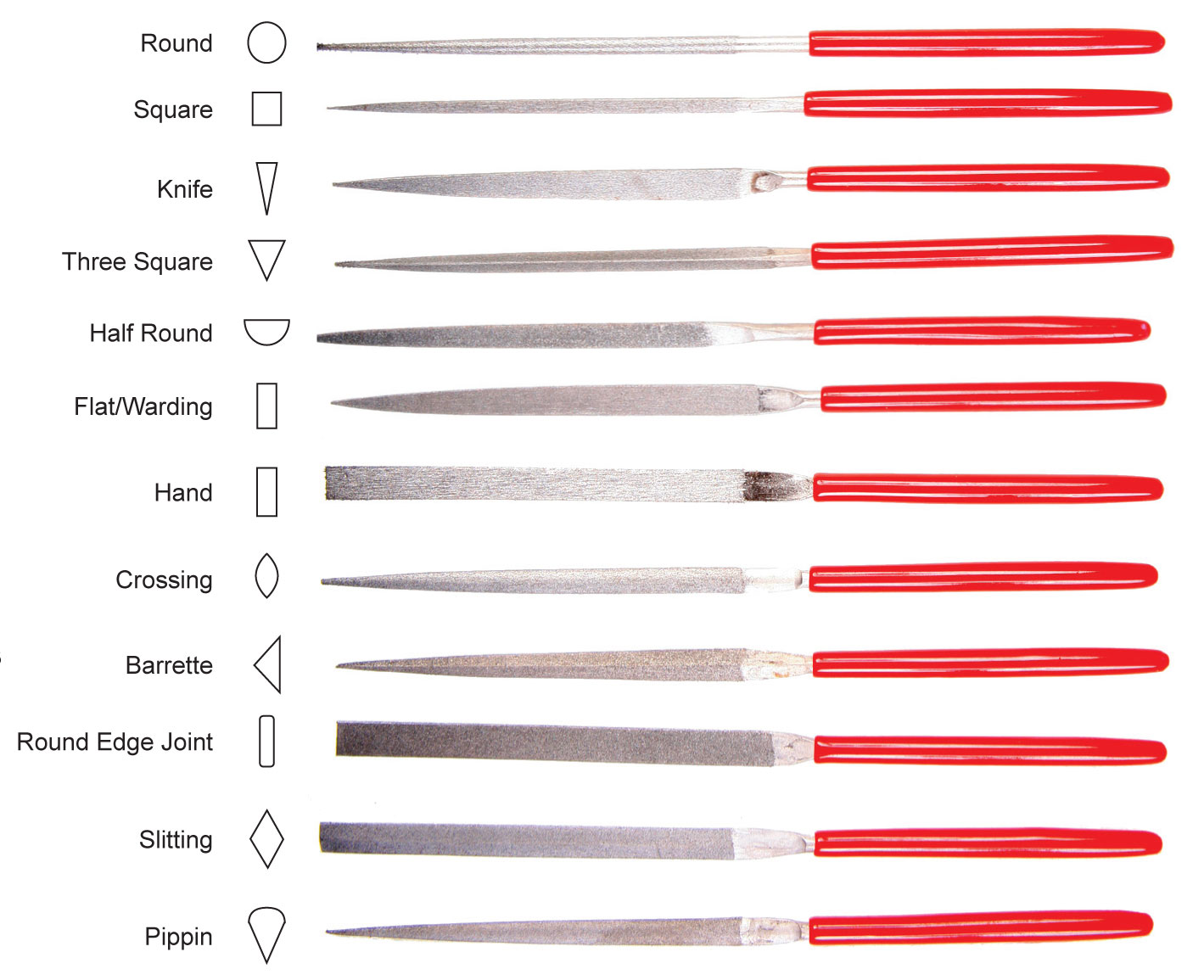

Spoiler: needle files set

I suggest you to use when cutting sticky paper tape to avoid any scratches.

I did exactly: "swapped to a Dell X-bracket and used the original screws on the heatsink". Use a hair dryer.

Now, if all went well, just need to modify and install Nvidia driver. 'll talk about this later, of course, if necessary.
