M6800 Owners' Thread

Greetings! I saw that people were able to put mxm cards into their M6800s. I used to have an HP Elitebook 8760w, maybe you've seen me on here asking me questions about that too. Anyways.. I noticed that these laptops have both LVDS and eDP displays, the LVDS I don't think will work with the 10 series cards. (The newer ones having the eDP displays.) Are there any known restrictions that I missed with installing a GTX 980m into this laptop? Another thing I had, is it possible to disable the onboard graphics? Are the thermal pads 1.5 MM?



I believe there are three GPU heatsink variations for the M6800; one AMD and two NVIDIA. The more common NVIDIA heatsink has a piece that "juts out" by the VRMs on the card and it will not fit Maxwell cards because it actually hits one of the VRMs on these cards (the placement has changed a bit since Kepler to make room for one extra one). The less common NVIDIA heatsink is basically flat on the side that touches the card and will work fine. You'll need to either source that one (the part number is the same so you have to rely on pictures — what you are looking for is an unobstructed/flat "L-shaped" bit of copper on the side away from the heat pipes). Or, use a dremel or something to cut off the offending bit on the more common one.

Yes, you can disable the Intel graphics, just turn graphics switching off in the BIOS.



Alright thank you for that information. I have a feeling that the AMD one won't be compatable with the NVIDIA ones at all. There shouldn't be too much of a difference with 3 vs 4th gen Intel CPUs. Do you think the M6700 would be a better option over the M6800? I've noticed that some of the motherboards on the M6700 have LVDS and eDP on the motherboard.



The systems are largely similar. M6700 has both LVDS and eDP on the board, you are right, but generic eDP panels do not fit without hassle (modern panels have screw holes and such in different positions). The eDP port is for a 1080p Samsung 120Hz "3D" display that was available at that time. It is the case that you can fit a Maxwell card in a M6700 with NVIDIA heatsink without any worries.



There were some Nvidia drivers where the gtx 980m just installed with no modding......does anyone recollect which ones those were? It would be useful in helping a friend set his up and having an easy to install driver on hand.....
Edit; Never mind I find them on the page preceding this one......

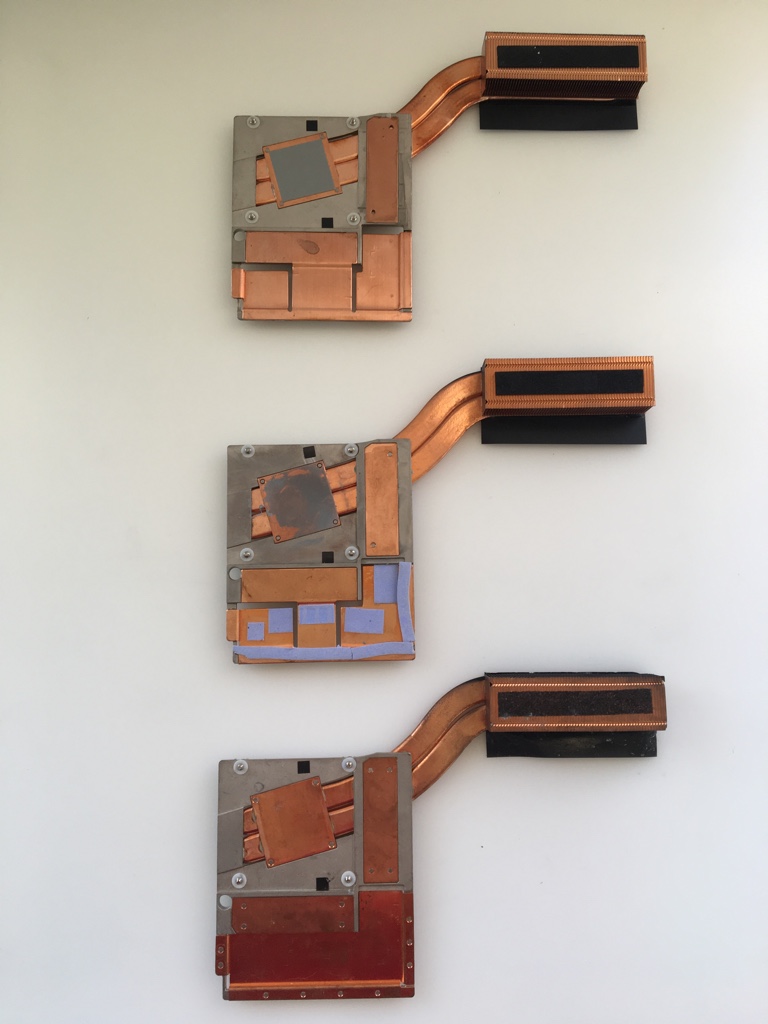

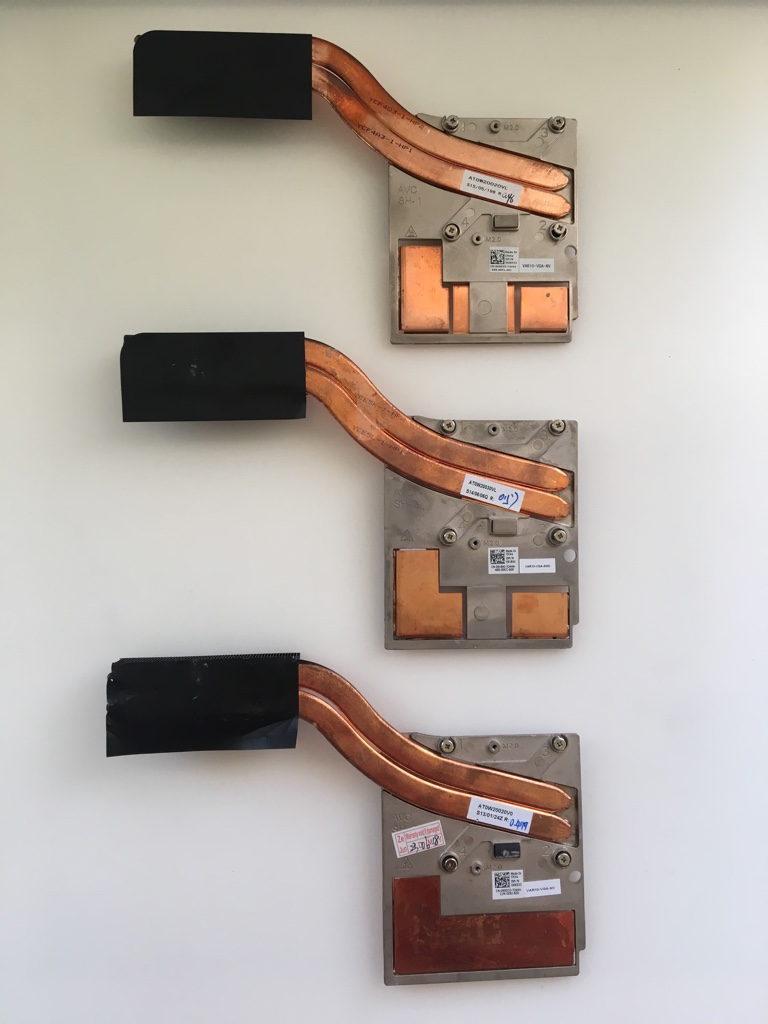

These are the 3 Heatsinks that fit into the M6800.
The last one is the one you need to fit a Pascal card.Hard to find and expensive as well,but worth it IMHO.
The one in the middle is the AMD one and the one in the top the Standard Nvidia one.I hope that helps.



Hi,you are totally right,they won’t be compatible.Like I did post earlier,it is better to have the right heatsink for the card you want to install.

I have an nvidia Tesla M6 running in one of my M6800 with an EDP panel without problems.Performance is close to an M5000M /GTX 980M.My only drawback is that I can not connect to an external video source due to the Tesla limitations( it is a server card).

The EDP screen is just great,more vivid colors than my other M6800 with LVDS Lcd.

Kind regards.



I received my new panel and it confuses me a bit......I see the connector that fastens to the motherboard (It's labeled LVDS or whatever that acronym is) but there is also a white connector that I don't have anything to plug it in.....Can anyone shed any light on this?



Could you post a picture please?
Thanks



not a good pic but you get the general idea ..... edit...... I figured it out.... it's an M6700 screen assembly the moron sold as an M6800 one ......so the question is can this work on an M6800 or do I have to, yet again, return it and start over ....
