E6520 Owner's Thread

Discussion in 'Dell Latitude, Vostro, and Precision' started by pbdavey, Mar 29, 2011.

Thread Status:
Not open for further replies.
Page 68 of 137
  1. undrdg

    undrdg Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    i don't know if this has been answered yet. but can the 6520 handle 16 gb of ram? I run sharepoint 2010 with visual studio. Currently have 8gb of ram. will it handle 2 8gb sodimm?

    undrdg, Nov 29, 2011
    #671
  2. Zee Haa

    Zee Haa Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    In the manual I found the max. memory size is 8GB. :-(

    Zee Haa, Nov 29, 2011
    #672
  3. undrdg

    undrdg Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    weird. many manual say 8gb max because of only 2 sodimm slots. My macbook pro also says 8gb max but it has been proven you can add 16gb with 2x8gb sodims. just wondering if anyone has tried it?

    undrdg, Nov 29, 2011
    #673
  4. Umpire

    Umpire Notebook Enthusiast

    Reputations:
    13
    Messages:
    46
    Likes Received:
    0
    Trophy Points:
    15
    Umpire, Nov 29, 2011
    #674
  5. ahaug

    ahaug Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    I have an E6520 with a WXGA screen with Intel Integrated Graphics. I am used to a WUXGA on my former computer. What must be done to convert this to a WUXGA?
    I tried changing the LCD to a WUXGA and it also turned green. Do I need a different cable?

    ahaug, Nov 30, 2011
    #675
  6. Scott_RC-TEK

    Scott_RC-TEK Notebook Deity

    Reputations:
    970
    Messages:
    829
    Likes Received:
    13
    Trophy Points:
    56
    The chipset will support up to 16GB, but you must use a quad core processor.

    Scott-

    Scott_RC-TEK, Nov 30, 2011
    #676
  7. Scott_RC-TEK

    Scott_RC-TEK Notebook Deity

    Reputations:
    970
    Messages:
    829
    Likes Received:
    13
    Trophy Points:
    56

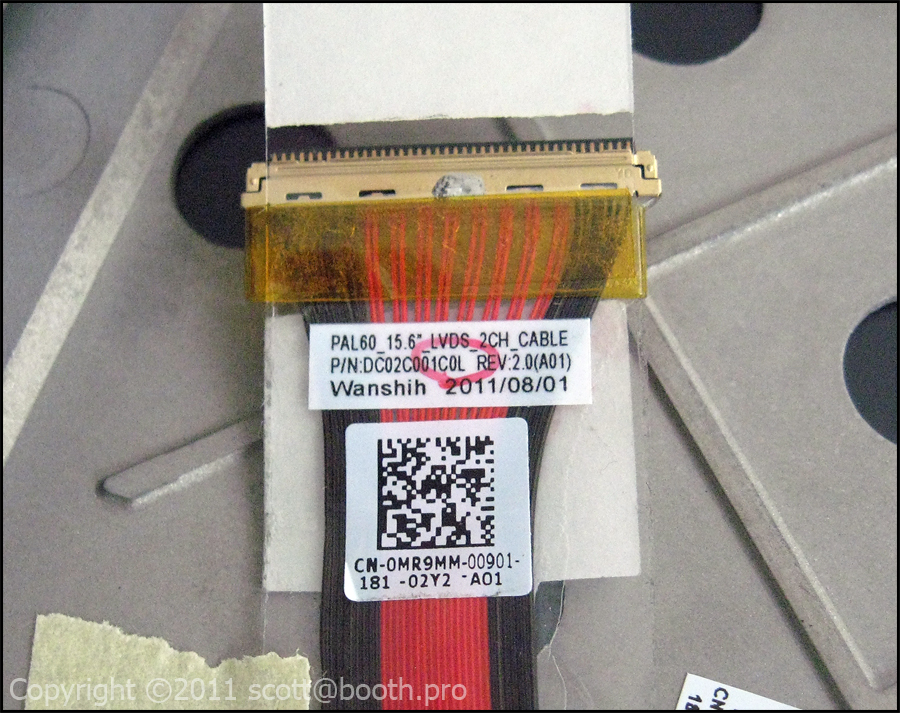

    What is the part number of your cable? The one below is the FHD cable for comparison.

    Scott

    [​IMG]

    Scott_RC-TEK, Nov 30, 2011
    #677
  8. ahaug

    ahaug Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    I have a DC02001A3OL cable. The WUXGA screen I was trying was an LP156WF1. Would the cable fix the problem?

    ahaug, Nov 30, 2011
    #678
  9. Scott_RC-TEK

    Scott_RC-TEK Notebook Deity

    Reputations:
    970
    Messages:
    829
    Likes Received:
    13
    Trophy Points:
    56
    So, to confirm, the part number below the scan code is or is not "0MR9MM"? That is the important number.

    Scott

    Scott_RC-TEK, Nov 30, 2011
    #679
  10. ahaug

    ahaug Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    No, mine is a T38GJ. Seems strange that there are 2 different 40 pin cables.

    ahaug, Nov 30, 2011
    #680
