Dell part numbers / OEM for 7530 FHD panels

I have just purchased a new 7530 but unfortunately the panel is a 45% gamut.

Short of contacting Dell, I'm having a real struggle to find out who the OEM is for the 72% gamut Ultrasharp 1080 panel or even getting a Dell FRU.

Also, is there 1080 panels outside of Dell's standard line up that I should be looking at?

Finally and more importantly, can anybody please recommend reputable supplier in the UK / EU?

Thanks



The two panels I've seen thus far being used in the 7530 (not sure about 7540) are the LG LP156WF6, and the AUO B156HAN06.0. Both are 1080p 60 Hz, 6-bit+FRC, 100% sRGB (i.e. 72% NTSC) panels.

If you want a noticeable upgrade over what you currently have, you might consider a 1080p 144 Hz 8-bit panel.



Hi!

According to this website: https://snlookup.com/dell-precision-7530-laptop-notebook-p264596
plus all the info i've gathered so far about 7530, these are the stock panels used by Dell with matching real-photos and references in this forum where available:

391-BDRF : 15.6" FHD IPS 1920x1080 AG, Non-touch, 45% color gamut LCD

• P/N: 4XK13------>LCD,15.6FHD,IPS,AG,EDP1.2,LGD

• P/N: P4D7H----->Liquid Crystal Display,15.6FHD,In Plane Switching,AG,EDP1.2,Au Optronics Corp

4XK13--->LP156WF6 (SP)(M3)

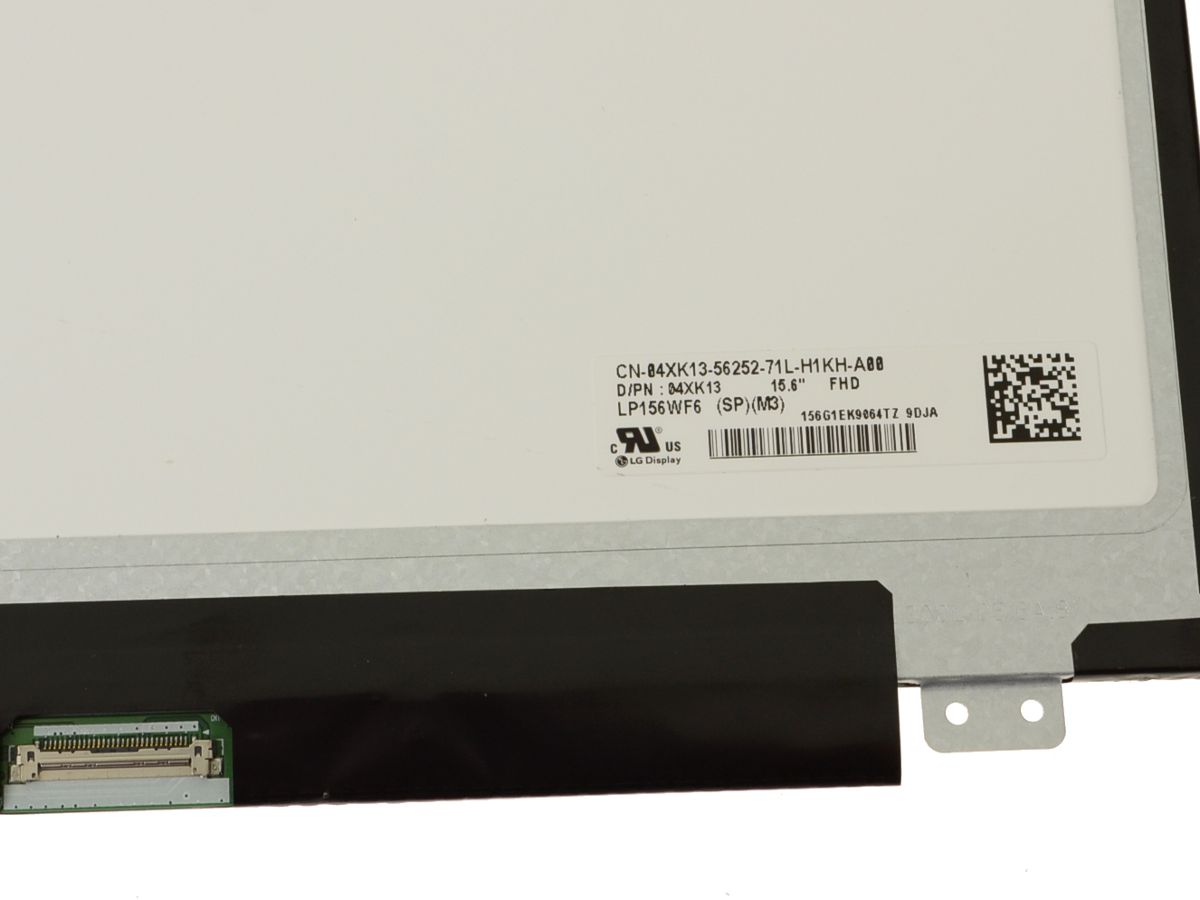

https://img2.parts-people.com/products/4XK13c1.JPG
https://www.parts-people.com/index.php?action=item&id=26311

P4D7H--->B156HAN06.3
https://www.ebay.com/itm/GENUINE-De...-Matte-B156HAN06-3-P4D7H-/113893611399?_ul=BR

391-BDRI : 15.6" UltraSharp FHD IPS, 1920 x1080 AG, NT, w/Prem Panel Guar 72% color gamut LCD

• P/N: 5HFMV----->LCD,15.6FHD,AG,EDP1.3,LGD

• P/N: JR8P3------>Liquid Crystal Display,15.6FHD,AG,EDP1.3,Au Optronics Corp

5HFMV--->LP156WF6 (SP)(P2) (LGD0540)

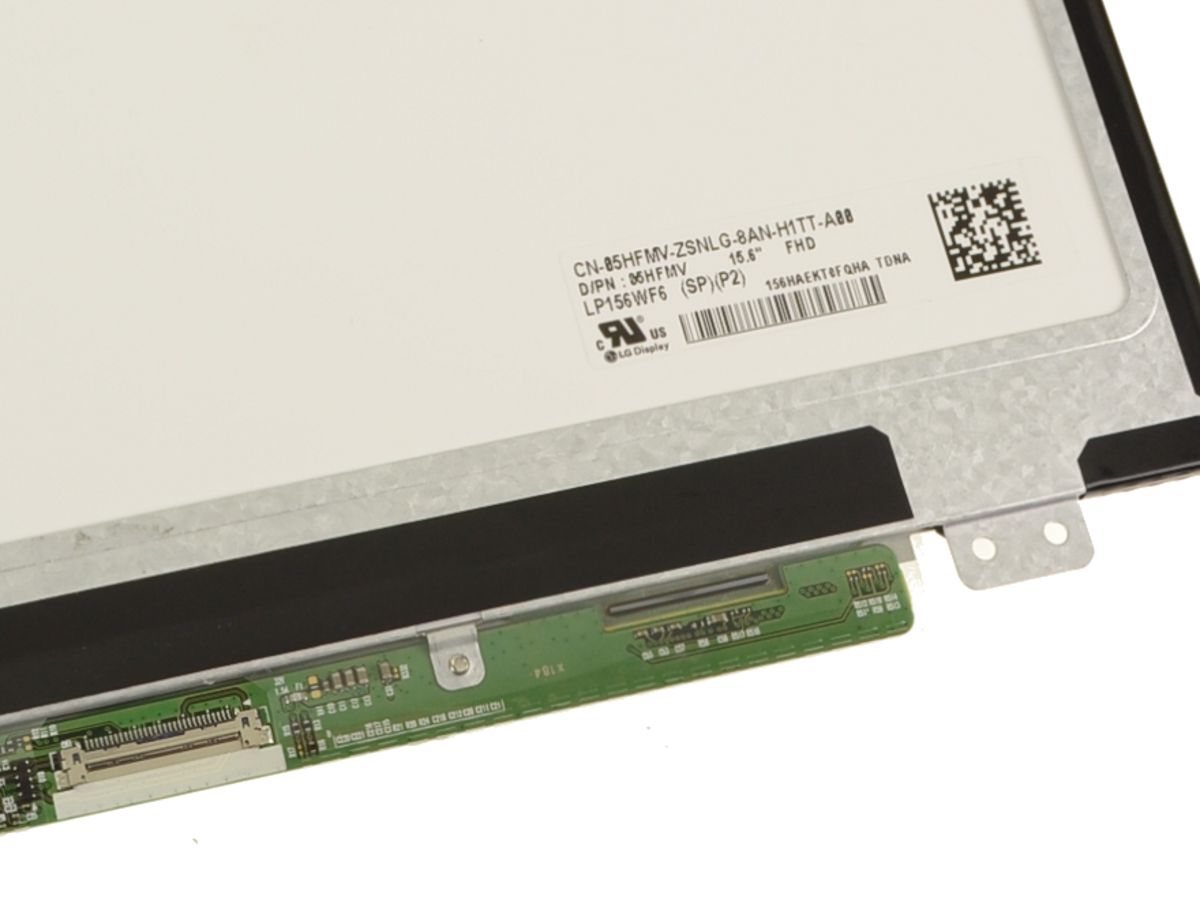

https://img2.parts-people.com/products/5HFMVc1.JPG
https://www.parts-people.com/index.php?action=item&id=29420
http://forum.notebookreview.com/thr...30-owners-thread.820539/page-97#post-10796482

JR8P3---> B156HAN06.0 (AUO60ED)
http://forum.notebookreview.com/thr...0-owners-thread.820539/page-254#post-10937787
https://github.com/linuxhw/EDID


391-BDRG : 15.6" UltraSharp UHD IGZO, 384 0x2160 AG, w/Prem Panel Guar 100% color gamut LCD

• P/N: 43N80------->LCD,15.6UHD,IPS,AG,EDP,SHARP

43N80--->LQ156D1JW02 (SHP1430)

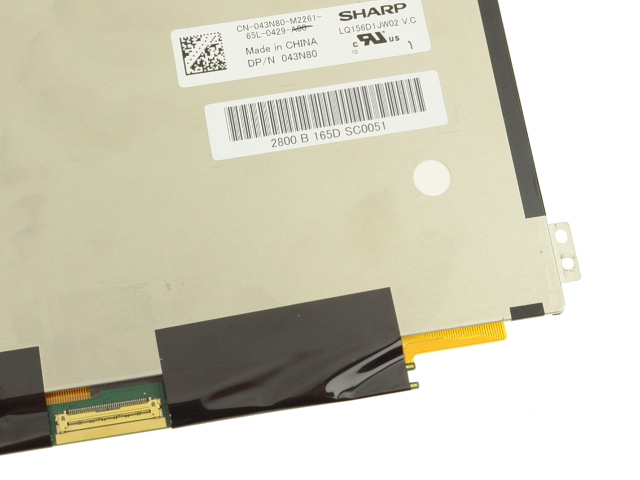

https://img2.parts-people.com/products/43N80c1.JPG
https://www.parts-people.com/index.php?action=item&id=23044
http://forum.notebookreview.com/thr...30-owners-thread.820539/page-98#post-10796603

391-BDRH : 15.6" UltraSharp FHD IPS, 1920 x1080 Touch, Cam/Mic, w/Prem Panel Guar 72% color gamut

• P/N: HXMYH------>INFO,SWSI,LCD,15.6,TCH

About touch panel, in this post http://forum.notebookreview.com/thr...0-owners-thread.820539/page-265#post-10947847 we found out that it was a 'normal' panel (5HFMV) with a digitizer attached on it. So maybe @Div033 can confirm HXMYH if he enters his service tag number in this page: https://www.dell.com/support/home/us/en/04?~ck=mn

Unfortunately, i wasn't able to find color gamut info about:
P/N: 10NPP------>Liquid Crystal Display, 15.6" Full HD resolution, In Plane Switching, matte, anti-glare, eDP v1.2 interface, Legend

10NPP--->LP156WFC (SP)(R1)
https://img2.parts-people.com/products/10NPPc1.JPG
https://www.parts-people.com/index.php?action=item&id=29624

At 72% NTSC, "parts-people" suggests this other compatible one:

• C3MWM--->LP156WF6 (SP)(B1)----->LCD,15.6FHD,IPS,EDP1.3,AG,LGD

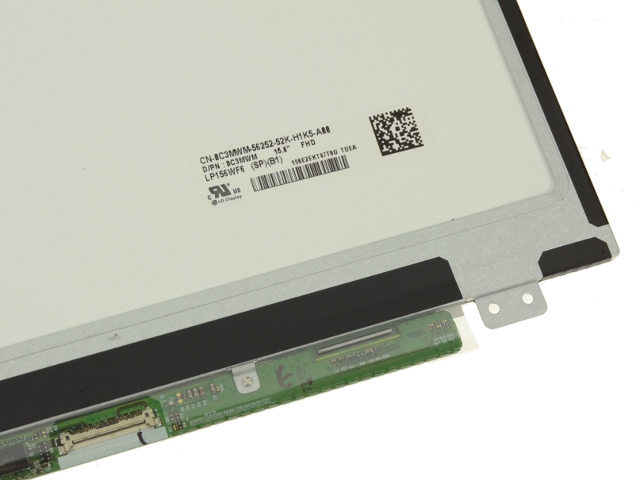

https://img2.parts-people.com/products/C3MWMc1.JPG
https://www.parts-people.com/index.php?action=item&id=18799

So if you want to be 100% sure to get a FHD 72% Ntsc edp 30pins panel certified by Dell for your 7530, check the following:

P/N: 5HFMV------->LP156WF6 (SP)(P2) (LGD0540)
P/N: JR8P3-------->B156HAN06.0 (AUO60ED)
P/N: C3MWM----->LP156WF6 (SP)(B1) (LGD046F)

For these, i think you can contact a dell sales rep via chat or phone and ask for a quote (in uk there should be this possibility).

But keep in mind that all the above 3 panels are 6-bit, so you may experience 'bandind issues'.
See these for further info:
http://forum.notebookreview.com/thr...30-owners-thread.820539/page-72#post-10785854
http://forum.notebookreview.com/thr...0-owners-thread.820539/page-201#post-10882922
http://forum.notebookreview.com/thr...0-owners-thread.820539/page-265#post-10947663
http://forum.notebookreview.com/thr...40-owners-thread.830037/page-19#post-10949718

Only on 7540 Dell started to offer FHD 60hz 100% sRGB 8-bit panel !
As far as i know, these are what Dell are currently using on 7540:

• P/N: 1PVM5----->LGD061A

http://forum.notebookreview.com/thr...40-owners-thread.830037/page-50#post-10973774
http://forum.notebookreview.com/thr...40-owners-thread.830037/page-53#post-10975665

• P/N: CT3C7----->CMN1510

https://i.postimg.cc/bY5PXMnX/uXQwh2q.png

But i have no idea if they will fit inside 7530 !

Like @Ionising_Radiation stated in his post, if you're able to find NV156FHM-N4B (BOE0726), you would get a better overall screen.

It's FHD 144Hz 100% sRGB 8-bit panel !!

@arcticjoe was able to do this on his 7530, check this post:
http://forum.notebookreview.com/thr...0-owners-thread.820539/page-283#post-10973779
As you can see down the page, another user tried to install the same exact panel on his 7540 but it didn't fit !



Thank you so much for the replies, that's excellent information.

I'm going to go down the 8 bit panel route I think. Should look vastly superior to what I've got now ( hopefully).

I've just came back to Windows from owning a 15" rMBP for the past 4 years so have been spoiled by a fairly decent display panel.

Once again, thank you
