*** Official Clevo P775DM2/3(-G)/P75xDM2(-G) (Sager NP9152/NP9172) WINGMAN 2.0/BATMAN 3.0 Lounge ***

The 3K 120 Hz screens are the TN ones, which should be compatible with the 775. Eurocom offers those... for a hefty price...

Hadriel



For those who must have super fast response TN is your way to go.



Any info if there will be 5ms TN panel with FullHD resolution?



I just got confirmation from Dream machines the 120hz gsync screen is not an LG and is not IPS, he doesn't know any more than that though .



Are the screens not the same as the p87? If so theres a lot of info on that thread regarding the coming options.



for some reason I can't get my machine over 17k in firestike? that's with it overclocked to 45x across the cores and an 150 oc on the gpu both core and count



What are your temperatures?

Sent from my SM-G935F using Tapatalk



Have you checked that your cpu isn't power limited? I had to manually set my power limit to 95w in the bios because it kept going back to 43w or something, you can check it in the clevo cpu oc app.



My guess is you're seeing throttling or a power limit as above. Pull it back to 4.2 and see what you score.



Currently using this as an actual laptop. It's faring just fine to be honest.... temps are perfect. I definitely wouldn't game with it on my lap but for general use it's fine.

Check for feeling in your feet every 20 minutes or so though



I've been playing the division maxed out with it on my lap for the last few nights and my knees haven't melted yet! I actually really enjoy using it like that.



How is the sound of these with the 1070 and a proper repaste? Is it bearable? Low-pitch?



Depends on how large is your room

Larger room will make sound of laptop higher/more echo


Also depends on your fan control setting, you can tweak the setting to have faster fan for more cooling



Wait, how did you repasted it ?



I don't even have one. I'm just asking how does a p775 with a gtx1070 and a good paste is sound-wise!



nothing above 80 degrees hwinfo doesn't show any throttling and it's the overclock fan setting could do max fans but i'm happy with 80 for benchmarking



#

this was the best run I managed look at the details http://www.3dmark.com/fs/10219367 surely I should be hitting easily 17000



you can request a better quality paste from the retailers ? or repsted it yourself (can't imagine that)



It's the physics score that is a bit low and dropping the overall score, if the cpu is power limited it will drop clocks even at reasonable temps. Have a look in the cpu oc app in control centre at what your power limits are at, should be 95w.



My retailer uses kryonaut paste (Obsidian in Portugal), you can request at some retailers. But is it that hard to dissasemble?

But ok, forget the repaste. How is the sound profile from this with a gtx1070? There isnt yet a review that i could find for it, only the dm1. I'm guessing it will be a bit better?



yeah it was. This was the last score with temps of 68 for gpu max and 79 for cpu. Think there's more room there for a higher score. http://www.3dmark.com/fs/10223515



You take bottom panel off and remove screws on the heatsink. Then carefully lift the heatsink up.



The sticks have pull tabs and are placed the in the right areas to lift.



How s the sound on P775?

From my understanding, it has a very good DAC inside and it should also have pretty good speakers, not to mention DSPs !



My system is yet to arrive so I can't speak to the sound quality of the headphone jack. ...however in the audiophile world, ESS Sabre is a respected name.

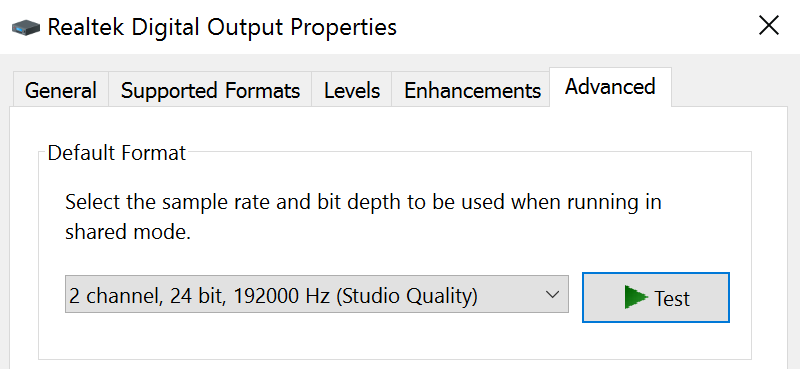

I can't find any specific model info on if it's a 24 or 32 bit Dac or if it supports 192khz or higher. Maybe only Clevo knows?

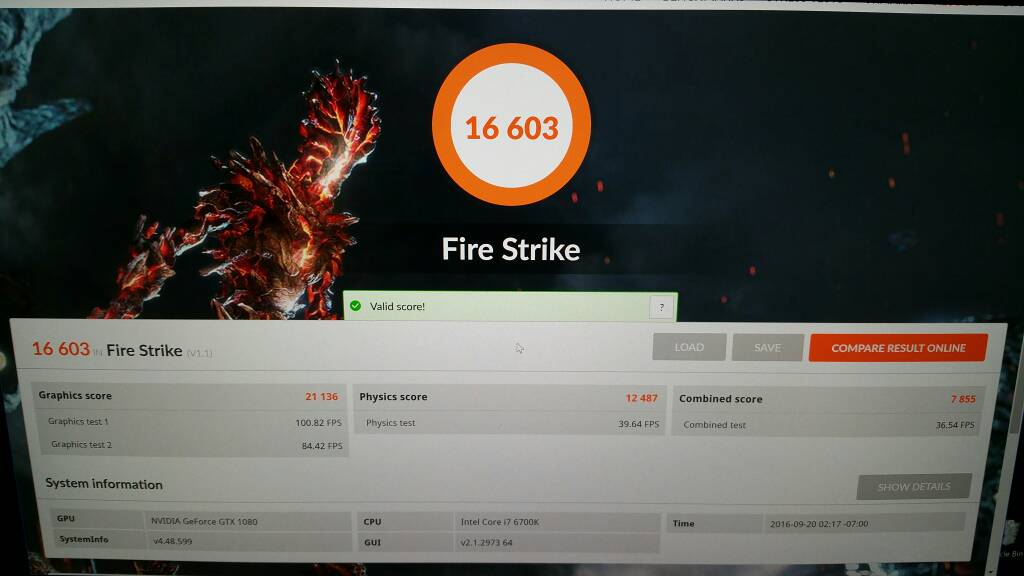

Firestrike Score (Stock) from straight out of the box. Haven't touched anything yet. Getting some base numbers and temps before diving into repasting.

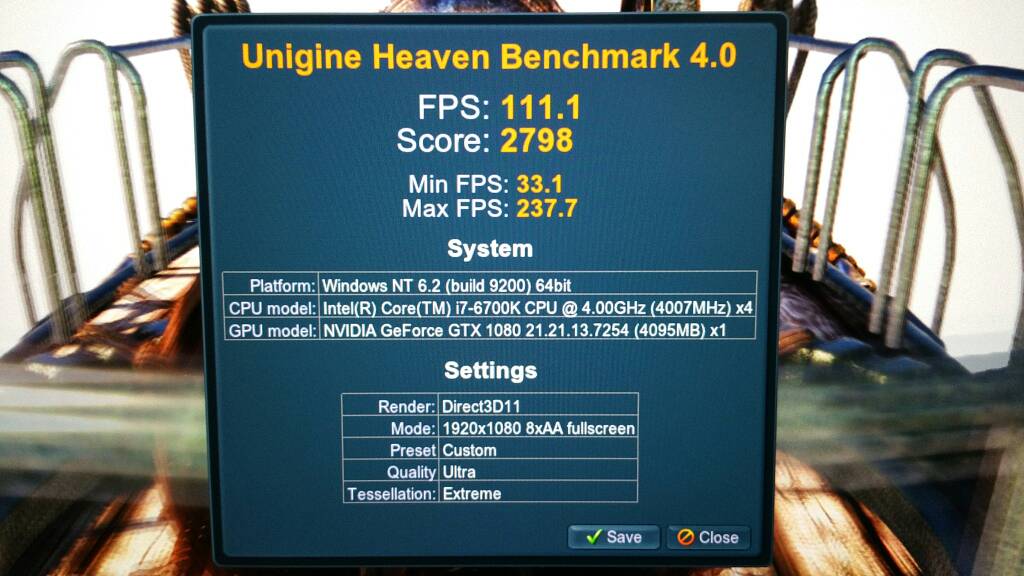

What are your Unigine Heaven scores a 1920x1080 resolution and maxed everything?



::iunlock::



This is a run with +150mhz on GPU and 4.2Ghz on all cores, -110mv on CPU and Overclock fan profile. Repasted with Gelid Extreme.



In the mp9873/p870dm3 the tps65131 is used to drive the DAC but the chip is on the other side and requires a teardown of the chassis to get to.



So we can't use the ESS chip for music ?

How does your P775 feel like ?



Man, the new deal included with the p775dm3-g with Gears of War 4 is quite enticing. I'd pick up the stock p775dm3-g (s) config with a 1070 if the 1440p 120hz screen were available. So, in a slight attempt to address grumblings with the cooling--why not physically cut the heatsink and make it separate for the cpu and gpu? Would cutting it, and removing a small piece of the middle to give each side space and allow a better fit not work? Keep in mind I'm just theory-crafting and would never do this (as we shouldn't have this many cooling issues anyway, hah).



In theory you shouldn't be pushing both CPU and GPU at the same time in gaming or real world applications, having them connected is thought to improve cooling.

Especially as they head at different temperatures, and their coolers do a better job at cooling both at the same time.

It's practically a win - win situation for cooling.




How is noise with a P775? Wondering if it's bad, really bad or fine compared to other laptops? Pushing it to work on max fans would be hard to think of, so normal usage noise shouldn't be too much to handle, no? Some people called it pretty silent, but my Acer is dead silent in normal work, I'm a bit worried that a P775 would be a bit noisy.



It's the second most powerful laptop in the world...I'm expecting it to be loud
Hopefully not like a GT80 with cooler boost button pressed though....



I'm also interested in the fan noise while it's idle, on load and gaming

Sent from my Nexus 6P using Tapatalk



That's simply the chip feeding the dack with power. Since that's the only easy part to get to without tearing it all down then that's what I have given you.



Here is another run with F1 fan...



::iunlock::



I'll be writing an in depth review with lots of pictures of the 775. I'll also be repasting with many different pastes, along with testing contact psi with the IHS/die and heat sink etc... stay tuned



Can't understand at all what's going on ;_;

DACs are fed with datastream from the CPU and then they output analogue signals to the AMP stage.

What is the ESS chip doing in P775?



Ahh! I'd say that's up to snuff!



Realtek analog output -------------------v
Realtek digital output -> ESS -> some sort of mixer -> output jack, at least that's what it seems like in the P870DM3.



His statement was not very clear to me either, but I think the "tps65131" he referenced (which seems to provide power) was the only audio related component/chip he knows about, as the other audio components (presumably including the ESS DAC) are difficult to see (without teardown) based on its location on the other side of the motherboard. From this, I presume the ESS is still being used for headphone audio/music.

Anyone can feel free to correct me if I'm wrong of course.



@Georgel The ESS DAC in the P775DM3 and P750DM2 takes the SPDIF output from the Realtek ALC892 and convert it to an analog signal that goes through an amp. Check the service manual for full schematics of how this works.



http://www.notebookcheck.net/Euroco...-Sky-X7E2-X9E2-gaming-notebooks.175094.0.html



Right now I'm testing the CPU and recording data with Under Volting...the CPU Temps are Excellent and UV values are holding strong.

I will be posting the results shortly.

Testing in progress as we speak....

So far so good....excellent actually.



Excellent to know! I can't wait for the screens to be readily available, I'm pretty much sold. Another question, does the top panel/hinges lay even with the body when closed? My p770dm-g top panel is about 2 mm hanging over the left of the base and therefore 2 mm inside the right of the base. No damage, just how it was produced. It gives me enough OCD to ask. XD Thanks for your work iunlock!



The 775 closes flush and the hinges does not stick out. I'm majorly OCD as well, no worries!



What is the Max OC you've been able to obtain so far using MSI AB?

Any screen shots?

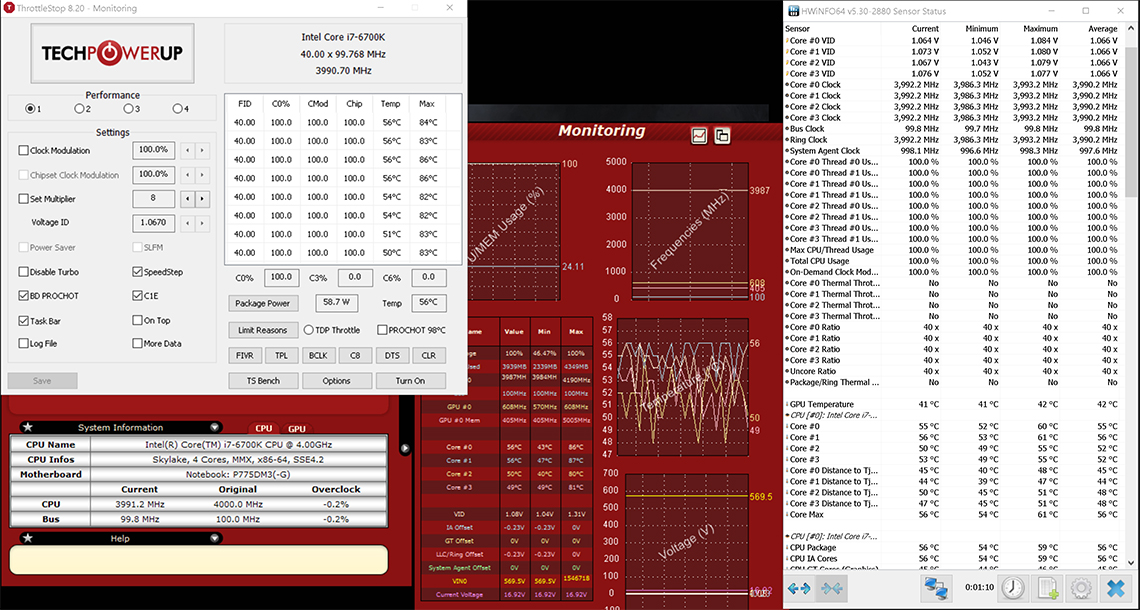

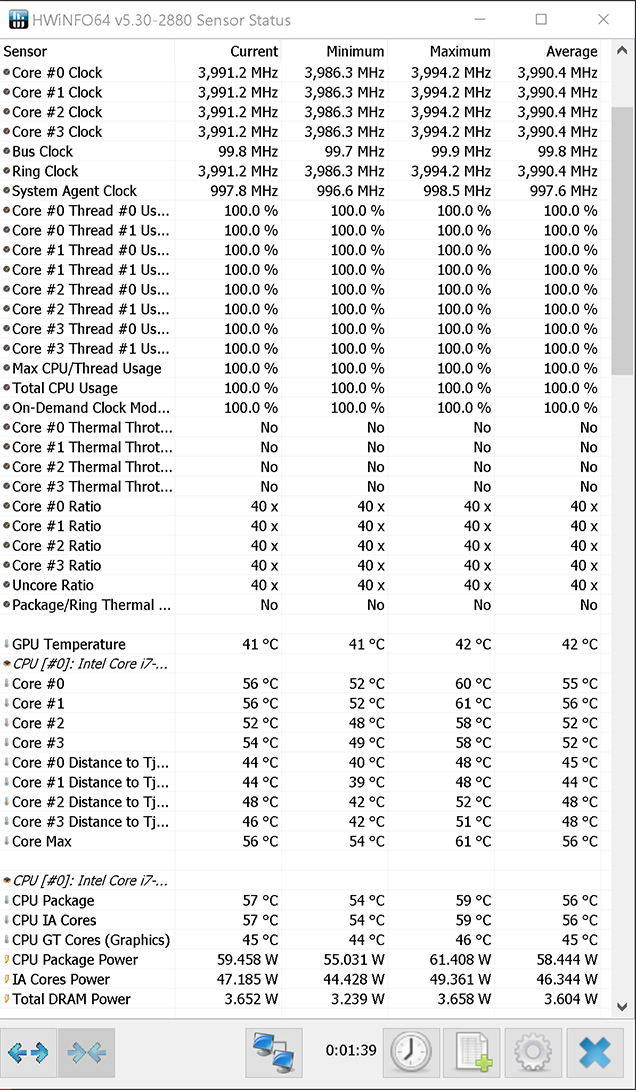

After some adjusting, these are my temps while:

• Running OCCT

• Under Volting to -225mv on both the Core and Cache
• F1 Fan ON

Check out the Temps, VID and Package Power.... Great MPG...

CPU Avg:

• Core #0: 55C

• Core #1: 56C

• Core #2: 52C

• Core #3: 52C

VID Avg:

• 1.066V

CPU Package Power:

• 58.444W

::iunlock::



Just got mine, still installing stuff, but first impression is that idle is SILENT. Like, nothing.

When the fans get going they're definitely a little more...."whooshy" than I'm used to, but not terrible. Going to play with undervolting with the MYTH control center (is that just the rebranded Clevo control center?) and see how things shake out.



That's great! Please post up your under volt and temps when able. It would also be great if you could post it here to keep things organized.

Cheers!
