Official Coffee Lake Refresh Thread/BIOS for ALL Clevo Laptops - RTX CARDS NOW SUPPORTED

Increase the power limits.



Got my 8700k cpu today so hopefully @John@OBSIDIAN-PC will be able to assist me with the BIOS flashing part and vBios and isolation of the cpu pins. Will post a few benchmarks here once i get my laptop running on the 8700k out of curiosity



Laptop Modell?

Fastest Customizable Gaming Notebooks & Mobile Workstations | CLEVO System Integrator



Let's see if we can get some time to do your little project

Sent from my Mi Note 2 using Tapatalk



Clevo P775DM3-G

And meet the store in person and you eheh



Any specific reason on why the BIOS has the ME also?

The BIOS on the P775DM3-G is 5MB (the backup) while the modified bios is 8MB and extracting the BIOS from the bin file it stays at 6Mb without ME.

Any specifics why? Is it safe to flash the 8Mb modded bios on my P775DM3-G even though it is 5Mb (the dump is 5Mb).


Thanks



Your P775DM3 is ready with support for 8th Gen
Nice addition with the 144hz screen and the GTX1080... all ready
Going out today! Have fun
And i hope you enjoyed meeting us



Here goes my feedback on meeting @John@OBSIDIAN-PC and his store in person. Went there with my girlfriend and he is totally a guy that is down to earth. Very nice guy with LOADS of knowledge and a true friend. He did help me with my laptop in less than 2 days.

Isolating the pins on the CPU is a f*cking pain in the ass since the pins are half a square milimiter and cutting the tape to fit... Jesus that was even worse.
Anyway we did isolate the pins on the CPU and flashing the BIOS and GPU was kinda easy thing to do (with John's knowledge of course). Just use a clamp to pin the BIOS and flash it and the gpu can be flashed on nvflash on windows with OP's tools, nothing fancy.

So @John@OBSIDIAN-PC took his own free time to dedicate it to my laptop and test everything properly and in less than 2 days I got it all flashed like you would expect and we GOT POST with the 8700k.

Im a very happy customer for OBSIDIAN and totally recommend it to everyone in case you need a trust worthy store. As a customer I'm happy I did buy JOHN LCD of 144Hz for my laptop and my next laptop will be from him for sure. When I needed support for a BIOS/EC flash that went wrong John promptly helped me and o couldn't be happier with his way of being and professionalism with the whole process.

So tomorrow I will receive my P775DM3-G with the 8700k and will post a few benchmarks as soon as I get my hands on it.

For you @John@OBSIDIAN-PC my words are a big big thank you for being such a true human being and a great professional. Keep it up buddy



And their fan control software is the best out there easily worth double the asking price

Absolutely necessary in my opinion to tame the hotter and hungrier CPUs compared to the "automatic" profile which ramps up the CPU fan so slowly that it's sufferring thermal throttle before the fan even reaches half speed.

The only gripe I have with it is that it doesn't support my older EM series Clevos!



All their software pieces are really worth every penny! Yeah too bad John can't provide support for every model out there! He does a lot already so..



Raising the power and current limits.



simple and to the point xD

Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk



Thank you for your kind words, it was actually a fun thing to do and to give new life to the DM3!

Thanks, to be honest it would be SUPER easy to add support for the EM... really... it would, if only i had one laying around.... without one for testing i just can´t do it
Oh.... wait.... i think i know someone with a P170SM, maybe it´s the same?
Gonna check it later today!



You're welcome! We'll meet up again so i can buy you lunch
Even for your own P775DM3-G



Why waste words?



Here it is guys:


now to test it with games and some benchmarks

@John@OBSIDIAN-PC has such a kind heart that he even modified the BIOS for his own background on boot (which i love to be honest) and so i could continue using his software too!

We need more people like him so i can keep my faith in human kind!

Thank you a lot John! You are AWESOME!



No problem man, you were super nice!
Have fun and enjoy my tools too

Sent from my Mi Note 2 using Tapatalk



I just regret i didn't get this machine from your store but that's another story as you know

Thanks a bunch for this

Btw @John@OBSIDIAN-PC

Got G-sync working on your 144Hz LCD again eheh



oh? whats that 9900K folder on the desktop about?



Funny thing: Its the folder name from OP's google drive! hahaha

this one: https://drive.google.com/file/d/1dh68HxTGrkWv6_zR78hxRBed1TvZ2cP4/view

taken from the OP (Open Post)

i didn't went for the 9900k since the temperatures can go a lot higher than the 8700k and in games the performance difference is minimal



Strangely enough I often see in some game tests the 9900K falling slightly behind the 9700K and 8700K at the same clocks. It seems Hyper-Threading actually hurts the 9900K in some games.



yep but thats nothing new gamers have been disabling HT since the pre-haswell days to get higher fps in certain games. cant beat the 9900k in productivity and efficiency though!

Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk



The thing is that if it were just a general HT issue, the 8700K would lose performance as well in those games, but it doesn’t. Only the 9900K runs worse.



After a day and half playing with it here goes a little feedback:

I did buy the LCD from Obsidian-PC: AUO B173HAN03.1 (144hz LCD with g-sync).

The LCD with the latest drivers wasn't detecting that it had g-sync with the 6700k and the 1.06.12 BIOS from Clevo (g-sync wasn't working at all, didnt matter how many drivers i tried).

With the OP's BIOS, g-sync is working with said LCD at 144Hz and its a total beauty so i made 2 upgrades in one lol.

anyway here go some benchmarks i made so far:

CPU-Z validation:

https://valid.x86.fr/ukzzh0

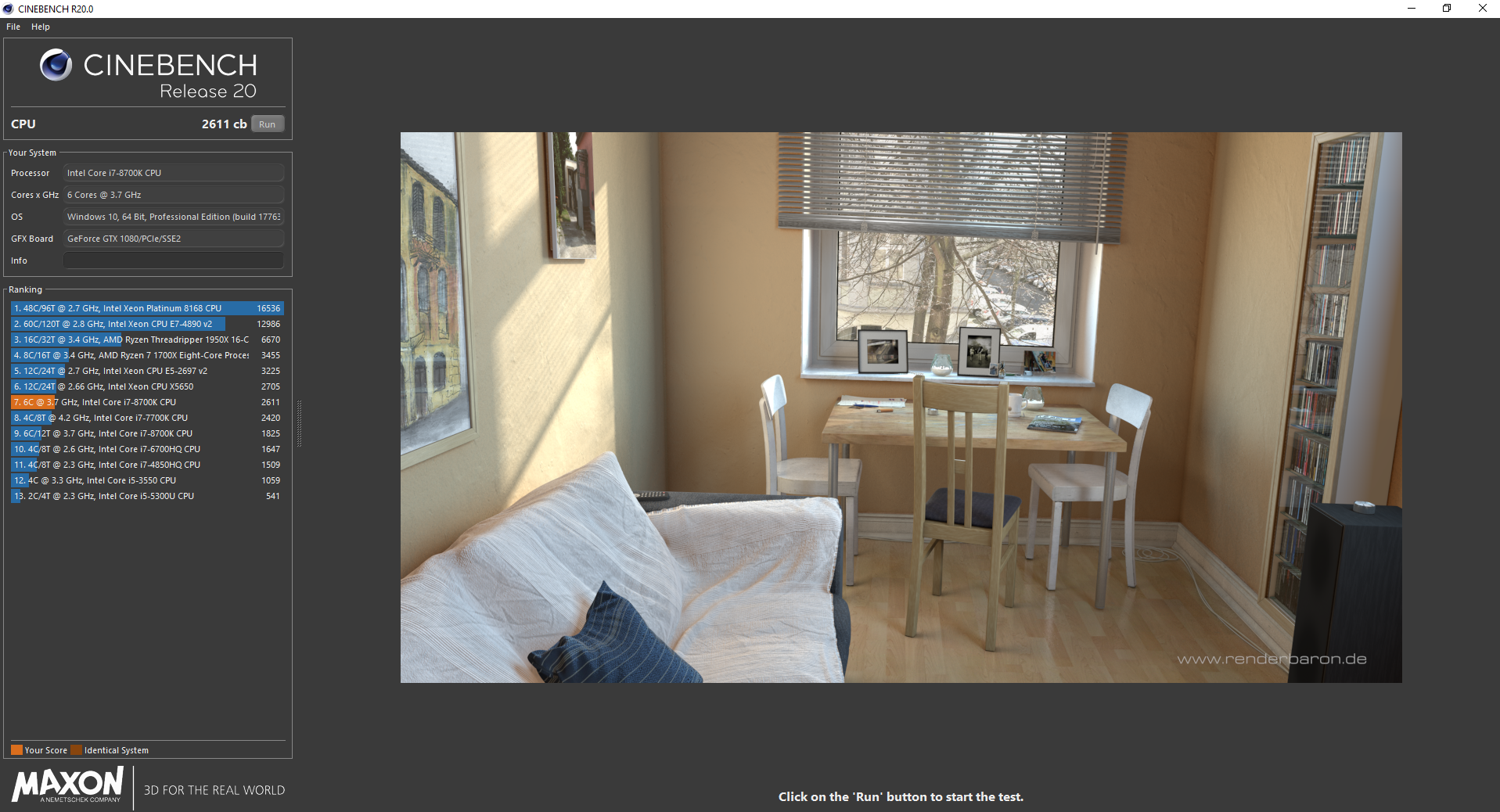

Cinebench r20:

Spoiler

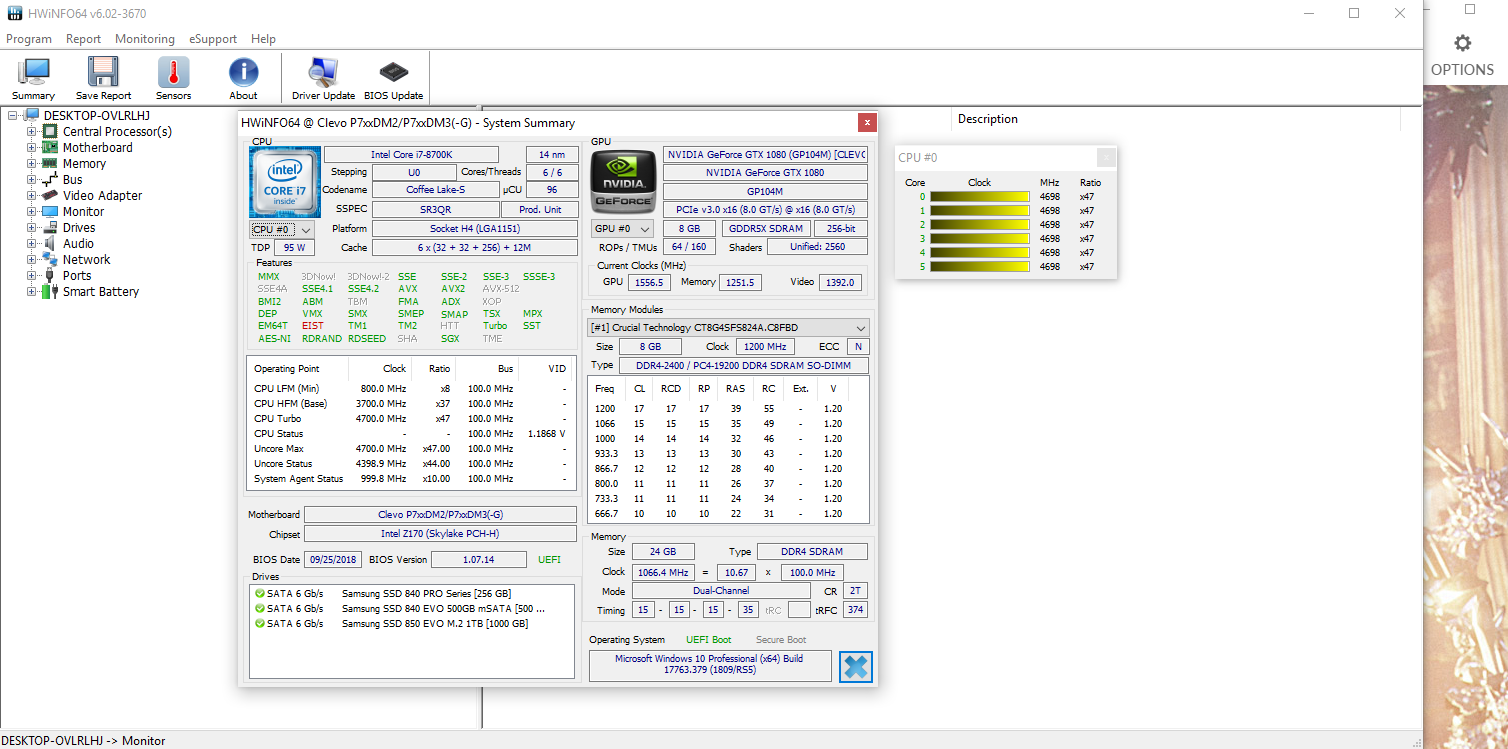

HWInfo:

Spoiler

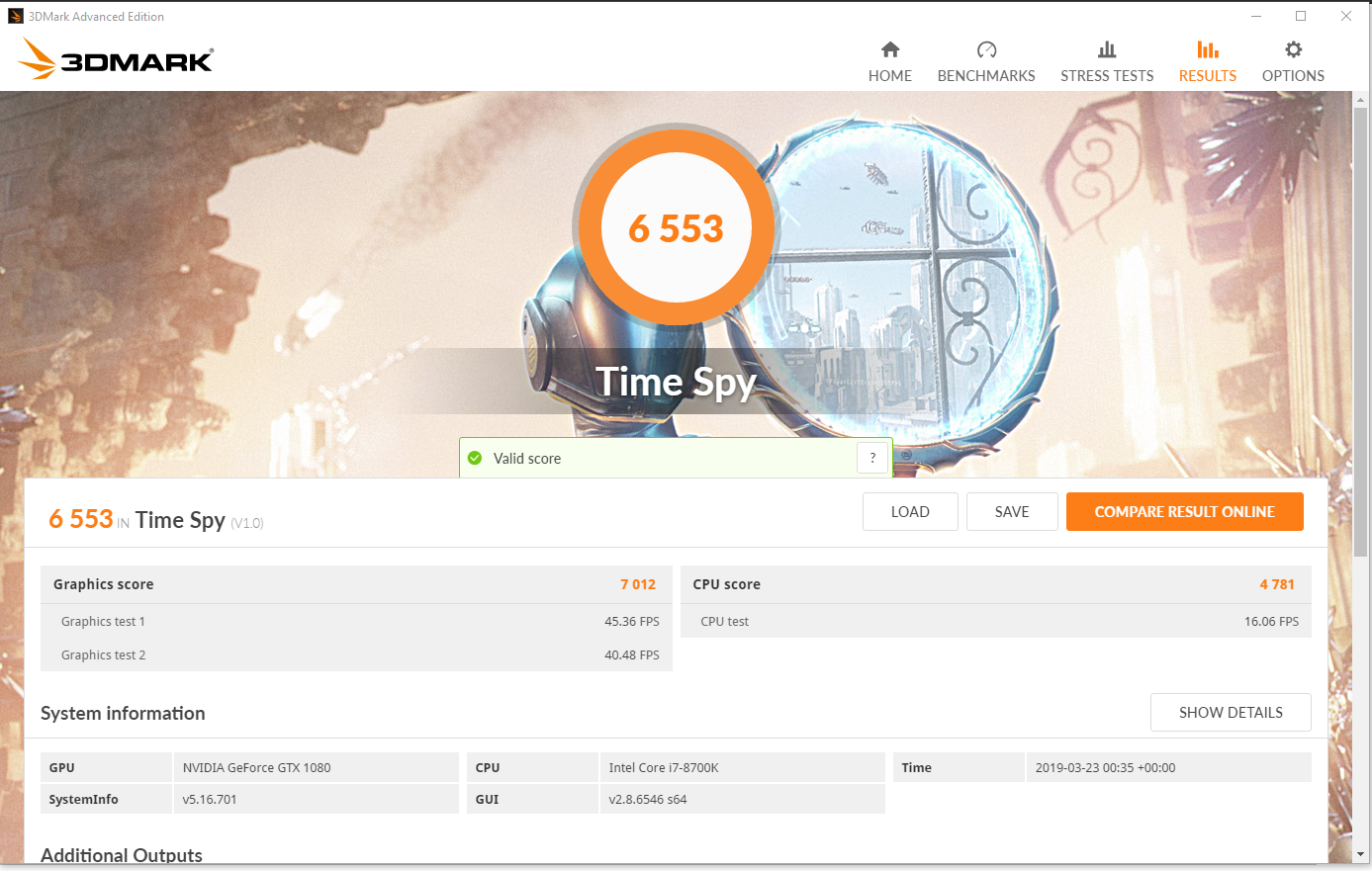

3DMark Time Spy:

Spoiler

Firestrike Extreme:

Spoiler

https://i.imgur.com/3mEF0Ws.png

Let me know if you want another benchmark being done

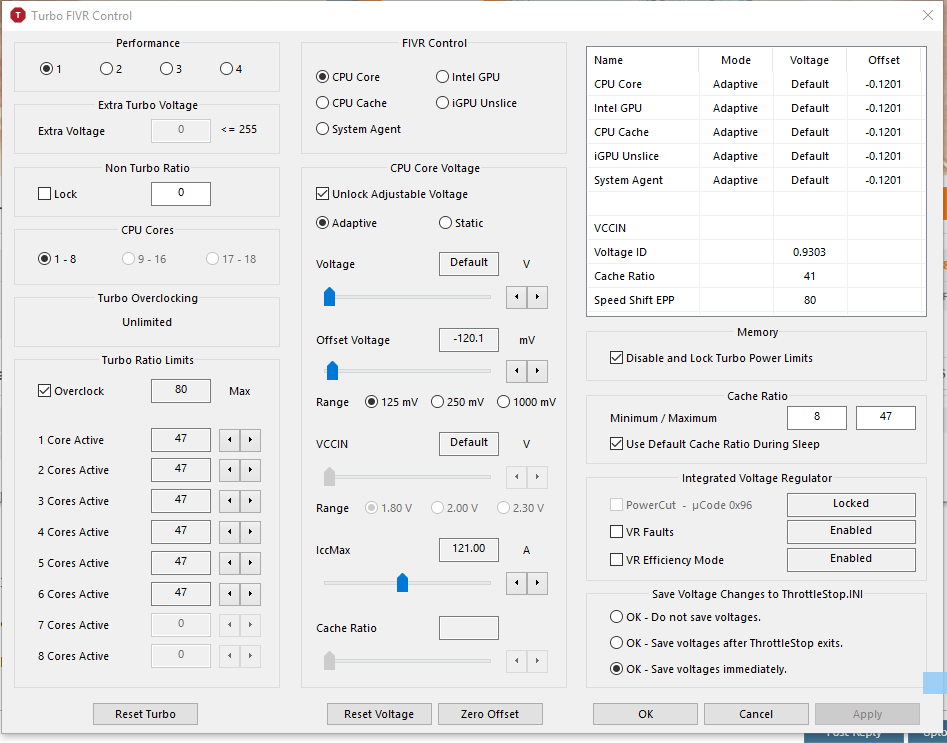

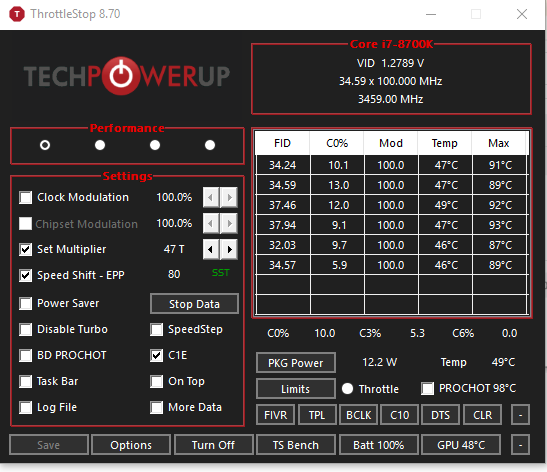

All tests were done with the following settings in Throttlestop:
https://imgur.com/a/N1c83RV



Something is wrong with the performance. Re-run benchmarks but with stock clocks. Add in Cinebench R15 (click Show more versions) and 3Dmark Firestrike.



Well now I rebooted it and the computer doesn't start at all for some reason. Power button gets light and Powers off right away. Tried to reset CMOS and nothing. On monday I'm headed to obsidian to reflash the BIOS because I don't have a spi programmer



How to reset bios in Blind.
http://forum.notebookreview.com/thr...enix-has-arisen.781814/page-968#post-10710964



Yeah I did try that and the power blinks, and turns off after 2 seconds. I contacted @John@OBSIDIAN-PC and on monday I'll get to the store to reflash the BIOS. might as well buy a spi programmer and learn how to flash it on my own next time lol



The thing goes like: press power, button of power lights up, keyboard too and goes off after 3 or 4 seconds. CMOS reset doesn't work and fn+d+power neither and fn+b+power (bios blind flash/recovery) doesnt work either



And ThrottleStop show wrong. Half the threads Yeah, something ain't correct.



Just noticed it. Can it be related to windows? I didn't format after flashing the modified BIOS. I might as well format (on monday after coming from obsidian since now it doesn't even power on) and test it. Weird stuff yeah



All cores show up in FIVR. Maybe HT is disabled/lack in Bios.



I had Some weird similor bios problems too with P751dm-g.
Only mine ran into a black screen boot loop.
I tried the same things but nothing seemed to work.
After leaving it alone for a couple of days I suddenly could make it start.
Another tip is to let the boot loop run for a while to let it find the right bios settings but you dont experience this so....



Disabled HT for gaming.



I actually have 4 x P775DM3-G with GTX 1080 in stock for spares lol.
Guess it's time for me to build something like this for myself.
We kinda went with your instructions but I rather do my own BIOS and I'm not 100% happy with the pin isolation.

So don't worry it's always fixable, we will sort that. And in the meanwhile I'll do one for myself, slowly,

Quick test, put the 6700K back. Report


Edit: ok you already know what you did... You flashed something you shouldn't muahahaha
Come to Papa again... Come running to my hairy harms lol
I'll be here waiting on Monday



@John@OBSIDIAN-PC are planning to mod your own bios for z170 and z270 with support for 8th and 9th gen? Pin mode is in fact pain in ass. Also whole procedure with programmator is not piece of cake.

I and i guess lots of clevo owners would be very interested in such product

Hoping for the best!



I will never be in the BIOS selling business or even share modded ones that I make.
I can make guides and sell parts, even occasionally help forum members.
We can receive units to do the upgrades too, that's it.
BIOS as always been a sensitive thing for everyone, for modders, stores, brands etc.
Also I run a shop and everything I do might come back to bit my brand in the ass.
That's why I now have a "personal website" link in my signature, whatever I post in the personal website, guides and downloads will never be something users can take for granted as an "OBSIDIAN-PC" product.

We have a serious problem at the moment, we get our mail and chat flooded with requests for support (including BIOS stuff) from non-clients.


Sent from my Mi Note 2 using Tapatalk



I hope @John@OBSIDIAN-PC doesn't EVER release a modified BIOS for the public in general. Look what happened to @Prema. Some asshole stole his work and started selling it claiming it was his own work.

People can't have nice things and if you want a BIOS from @John@OBSIDIAN-PC.. Buy a computer from him.. That's what I'll do as appreciation for his work!



That's why you do your homework first; research the hardware. Understand the differences between the system integrators. Bare bones is just that. The BIOS is one of the most important elements of the hardware. It is for that reason I will gravitate towards the EVGA and ASUS desktop motherboards over the MSI.



I personally like gigabyte motherboards more, even though I use asus more but the fan control and fan xpert are complete trash compared to gigabytes implementation. MSI motherboards have almost always given me problems so I agree with you there lol.



This is exactly what I'm trying to stop, I'm sure @dsanke understands this. He asked me to upload the bios's and I agreed because I believe that no matter what people should be able to utilize the laptops they have to their full ability (and it didn't sit right with me that I have a perfectly working p870dm-g running a 8700k whilst others are stuck with a crappy 6700k).

I believe people can have nice things but with boundaries in place and I think it should always be this way, you shouldn't have to pay for an unlocked bios. But that's just my opinion

This is one of the main reasons I upload all my modifications here, not for the fame but so it can help others lol.



@ joluke and as we are aware - that is why prema is not not available for everyone. And in my opinion it's fine. That's why i also called it "product".

Buying whole new machine just because available BIOS is not plug and play - that is just ridiculous. As we all know - this machines are not ice creams. They cost lots and can brake. People here lives all around world. Justifying everything because of software is silly. Most of peps will take something close to em. That is why making software for clevo machines around world is great in business perspective.

@John@OBSIDIAN-PC anyway, it was just a though from customer point of view. I guess you know better as guy on the other side.



I totally salute you for that! Im the same and I would do the same.

BUT it's hard to separate myself from my brand, that's the only reason.
Whatever I do can damage my brand/company, it's really not a pride thing, it's not a money thing, it's the people that work with or for me that I care, my brand IS them. And I need to make good decisions for them, I already made too many bad ones.

I'm a sucker and an awful business man I hate it to the gut, that's why business decisions are made mostly by my partner who does most of managing.

I just like to create stuff, code stuff, design stuff, build PCs whatever. BUT i need to learn the lesson, I can't use company hours to code free stuff, I can't give away free stuff, I can't have my staff do support for non-clients.

Releasing BIOS like you did is fine when you are doing a community service AS IS on your own terms and name. NOT when you are here representing a company where you need to think about your team first.

I will always try to do and release stuff that reaches the most amount of people, but with a decent amount of planning and thinking.


Sent from my Mi Note 2 using Tapatalk



Making Software for Clevo Computers is really an awful business strategy.... Trust me on that.

You can't have a serious company depending on the income from that. We keep doing it because we sell the laptops and we believe it makes our product better along with the BIOS and assembly techniques and testing.

We never expected people to buy our laptops because of the software, we expect people to come to us because of everything extra we do, we try to go to the extreme in everything and software is just one part of it.

In resume whatever "extra" stuff I do, I'm just saying I would need to be 100% sure it would not take company time and it would not be linked to the company. I Probably should already have a non company representative account so I can post on my behalf... That's probably the way to go when I think about it.

Sent from my Mi Note 2 using Tapatalk



I'm still kind of sad that I'm stuck with ancient firmware because the vendor won't support secondary owners, and the BIOS files provided kindly by dsanke leave my machine stuck on a black screen. From asking around, it looks like Origin never issued a firmware update of any kind after shipping the machines. So I remain 'stuck' with a 6700K in my P750DM2G, until the machine eventually stops working.

I wish I could understand whether I'm doing something wrong, though. I'm unclear on what might be lost (if anything) by trying to apply the stock Clevo BIOS to this machine, as well.



I agreed with you and your point of view. That's why i always share my work or credit my research if i was helped with approbation. I even recently share how to mod a bios for all p870 and near future clevo still using Ami bios.
I discuss with Dsanke who explain me how to edit the bios to make available the rtx without the need to .inf driver mod but the problem we still don't know how prema did to make it work in a bios update file. I can't test because i dont have rtx right know.
I always share my work but more i share the tutorial how to do everything from ourself for self education and proudness because i totally don't care about my name credited or not even if my research stolen or not. I didnt continue to buy alienware systems because of their lock policies and not freedom upgrade. I see clevo is going to the same road so maybe this p870 will be my last clevo because even if i understand their need of ingrow business, they forgot other brands are still good and comparable with locked policies. And mostly the clevo buyers are modder or overclocker. Before i wasnt asking myself if i could upgrade gpu or display or extra mod, now at each new clevo less and less are plug&play upgradeable.
Then about the bios mod section, i totally agree of sharing knowledge but even if i totally respect Prema great work, i don't agree about is method of beeing able to have his bios work. His activity seem illegal, for example he mod the clevo bios freeshare work. To have his mod, the major way is to buy to a sellor list where this is unfair competition compared to others companies. Because if we ask the majority of people, even myself, i would prefer buying a prema bios clevo, than clevo locked bios. Then to access his bios, you have to buy from a prema reseller list, you cant receive it just by asking or downloading for free, at least from a majority. So he mod, even taking a lot of time but the access of his work is restricted, the easy way to have it is to buy a clevo to his partner list, so it's like assuming we pay his work and company make profit of his work and name. So again at least in europe is not legal. But who cares about legality on this forum...the eyes are closed and free sharing work in a forum is dying slowly. Hopefully there are still some good members who share their discovering and this make me stay on this forum to thanks them to enjoy more our clevo, help by members knowledges. Free knowledges for education purpose.



Odd that it leaves with black screen did you flash the proper gpu vbios located in the files?

Sent from my SM-N960F using Tapatalk



I wouldn't mind paying for an unlocked bios with features. I Got my P870DM-G Bios modded by someone on the MSI Forums for like 20$ with all features unlocked since I couldn't get my hands on the Prema Bios which is unfortunate, however he has the rights to share his own work how he sees fit. Unfortunately Clevo does not seem to want to acknowledge its high end platforms customer base and what they want. I Personally would love to see an updated P570WM on the LGA 2066 Platform... With MXM no longer becoming a standard form factor and being plug and play like it was designed to be its becoming near impossible for MXM Laptops to become upgradable (remember the MSI GT80 Return Program because of a change in form factor) I personally wish the design was still the same to keep systems like the M17X R4 and M18X R2 still Around with GTX 1080. Without awesome mods like @dsanke bios mod for 8700k and 9900k support all our older DM2/3 and KM Models would still be stuck running 6700k and 7700k as clevo refuses to add its own bios updates which enables support. Without Having a community behind these system they will undoubtedly die out which is why I don't like how Premas Bios is Private as these are great systems and we would all love to tap into the full potential of them. However as I said before he is his own person and may do as he wishes. I'm not even against paying someone for the work and time they put into the project but again it's not available for purchase only through resellers unfortunately. Clevo themselves are not helping their own systems much either by changing the form factor and not even sticking it. The 2080 has issues like lacking an NVLink Connector and has a default lower TDP than the 1080 MXM did but Clevo themselves couldn't even place things like VRMs in the same place or make the card even close to compatible with old heatsinks... That's not user friendly... Their are killing their own systems! MXM Used to be so Plug and Play look at 680M and 980M VRMs are in the same place the die is in the same place Ram same place to allow for easy upgrades. What's the point of updating your form factor to a larger size but not even using it effectively? Then you have companies like MSI that have no idea what they are doing with their MXM Form Factor releasing all these wonky looking cards that can't be interchanged with each at all the 1080 die was in a totally different position! The 2080 is a totally new design to. Finally we have comapnies like Dell - _- they claim that MXM never took off (because companies Dell stopped using it - _-) so they decided to make DGFF and back out of the current MXM Systems that are on the Market! Great... - _- So only Dells gpus will work on their systems and if we look at something like an M17X R4 which can handle up to a 1070... We probably will never see that again Dell can make the GPUs work for older systems but after 2 or 3 generations why bother when you could just say "oh didn't work/didn't fit" or "ran to hot in testing so won't be compatible" and since it's DGFF you have 0 other options to replace it with. They control what upgrades you will receive and be able to use. If people stopped Using PCI-E X16 or we started having specific company form factors everywhere dop you think motherboards would be still loaded with PCI=E Slots? No so it's dumb to create DGFF and make things even more complicated for people in the upgradable market space. Alienware/Dell is a Large Company so they system of course got alot of traction as being an upgradable system compared to a Clevo so I'm somewhat hoping it does sell well for new people entering this market so we hopefully see MXM or some other UNIVERSAL Form Factor in most laptops again but I doubt we will ever see that since everyone wants these thin and lights these days. Thin Laptops have improved alot but a 2080 MAX-Q is still just GTX 1070 levels of Performance and lacks any relative cooling capacity for any "real" overclocks to increase performance. I dont have an issue with people owning thin and lights but would like companies to still continue manufacturing for both markets DTR and Thin and Lights, however most companies including Clevo are more interested in producing whats the latest trend to maximize on Profit, which is understandable from a business perspective, however they will not beat companies like MSI or ASUS in the fan bases they have. If I had to choose between an ASUS BGA Book and Clevo BGA Book I'd take the ASUS I've used ASUS Mobos in Desktops since my first custom desktop (besides the Dual Xeon Build in my Sig) and would stick to ASUS still, and I'm sure im not the only one which is where companies like Clevo will lose badly I think. Back to the Topic of your post though (Kinda got carried away lol..) without a Community Backing these Systems they would;n't have lasted as long as they Have which is why i think the Projects and Mods people do on these Systems Should be Shared with the Community like @Mr. Fox GTX 1080 Mod for the DM-G and like @dsanke 8700k/9900k Bios for the P870 Lineup @AHMED KARAM and im sure many others (only one IK who has the mod I could name off the top of my head) and his 4th Fan mod to the P870TM or @tanzmeister SLI GTX 1070 with the MSI Cards in a P870DM-G I could go on and on... without threads like these how else would we be able to know how to things like these working or even know if its do-able and worth spending the money on trying?



That was long but true

Fastest Customizable Gaming Notebooks & Mobile Workstations | CLEVO System Integrator



Yes, I did. The only BIOS that works in it is the backup that I took initially. Even programming with the hardware programmer causes a black screen at boot. I tried multiple times, no dice. What I have *not* done is to flash the EC because, based on this experience, the likelihood would be that the laptop breaks, and fixing the EC looks well beyond my capabilities and certainly lies outside my comfort zone. Since I'm also located in upstate NY, there doesn't appear to be a reasonably close and friendly expert that I could refer to in case things went wrong.
