Nahimic 3 on "unsupported systems"

i have uploaded same song. i used stereo mix to record and volume was %100 so it can be loud.

from 00.00-00.42 i turned on surround and sound has problem
from 00.42-01.26 i turned off surround
from 01.26-02.16 i turned on surround again but this time sound was good.

as i said this problem occurs sometimes, not everytime i turn on surround.

also do you have any idea about volume goes up and down continuously? it also occur sometimes.

i also realized that "NahimicSvc32.exe" sometimes cause high cpu load. do you think there is any relation between surround sound issue and high cpu load issue?



I see what you mean, Right try completely removing Nahimic and the Realtek driver (Use latest DDU for this and do so in safe mode) then use something like rapr ( https://archive.codeplex.com/?p=driverstoreexplorer ) to make sure you remove all Nahimic and Realtek Audio drivers for the Windows 10 driver store.

Then reinstall the latest build and see how that goes. Also a tip if you can make a continues play with Surround sound On and Off within 30 seconds to insure that we are not breaking rules here or the DMCA. Else just send me a PM with a link.

Give the above a shot.

My NahmicSvc32/64.exe is not showing high CPU usage so it might be something conflicting there.

If that fails to work try turning down the Hz and or Bits to see if that helps.



i re-installed the modded realtek driver and nahimic using ddu and rapr as you said but the problem still exist. however i found the cause of the problem. it occurs due to high cpu usage of "NahimicSvc32.exe".
when i play a media, cpu usage of NahimicSvc32.exe gradually increase until it reaches its max (%90-%95). but it does not affect the sound.
however, if i pause and resume the media that problem occurs due to high cpu usage of NahimicSvc32.exe. this is why the sound problem occurs randomly.
now i am trying to fix the cpu usage problem. if i cannot solve the issue, i am planning to format my pc.



Ok thanks for the update on the issue.

Sent from my LLD-L31 using Tapatalk



Realtek_UAD_6.0.1.8642_MSI_Nahimic_UWP_mod ( ONLINE )

Made By: hacktrix2006

Disclaimer: This Driver Modification is for MSI Systems listed below! Myself nor NotebookReview will not be liable for any damage caused if this is installed on other branded systems!

Package includes:
Realtek UAD 6.0.1.8642
Nahimic 1.2.11.0 UWP
Realtek Audio Console 1.2.171.0 UWP

UAD *299* MSI supported models
Nahimic 3 280+

SHA-1: 9E51E4AE41E508E981FAE1584216946389AF8E90

Code:

GT76_Titan_8SE                          GE73VR_7RE                              GL72MVR_7RFX                             GP72MVR_7RFX                           GS73VR_6RF                              GV62VR_7RF
GT76_Titan_8SF                          GE73VR_7RF                              GL72M_7RDX                               GP72MVR_7RGX                           GS73VR_6RG                              GV62_7RC
GT76_Titan_8SG                          GE73_7RC                                GL72M_7REX                               GP72M_7RDX                             GS73VR_7RF                              GV62_7RD
G25VR_7RE                               GE73_7RD                                GL72VR_7RFX                              GP72M_7REX                             GS73VR_7RG                              GV62_7RE
GE62MVR_6RF                             GE73_Raider_8SF                         GL72_6QE                                 GP72VR_6RF                             GS73_6RE                                GV62_8RC
GE62MVR_6RG                             GE73_Raider_8SG                         GL72_6QF                                 GP72VR_7RFX                            GS73_7RE                                GV62_8RD
GE62MVR_7RG                             GE73_Raider_RGB_8RE                     GL72_6RD                                 GP72_6QD                               GS73_Stealth_8R                         GV62_8RE
GE62VR_6RF                              GE73_Raider_RGB_8RF                     GL72_6RE                                 GP72_6QE                               GS73_Stealth_8R                         GV72VR_7RF
GE62VR_7RF                              GE75_Raider_8RE                         GL72_7QF                                 GP72_6QF                               GS73_Stealth_8R                         GV72_8RC
GE62_6QC                                GE75_Raider_8RF                         GL72_7RDX                                GP72_6RD                               GS73_Stealth_8R                         GV72_8RD
GE62_6QD                                GE75_Raider_8SE                         GL72_7RD                                 GP72_6RE                               GT62_6RD                                GV72_8RE
GE62_6QE                                GE75_Raider_8SF                         GL72_7REX                                GP72_7QF                               GT62_6RE                                P65_Creator_8RD
GE62_6QL                                GE75_Raider_8SG                         GL72_7RE                                 GP72_7RDX                              GT63_Titan_8RE                          P65_Creator_8RE
GE62_6RD                                GF62VR_7RFX                             GL72_8RE                                 GP72_7RD                               GT63_Titan_8RF                          P65_Creator_8RF
GE62_6RE                                GF62_7RD                                GL73_7RD                                 GP72_7REX                              GT63_Titan_8RG                          PE60M_6RD
GE62_7RD                                GF62_7RE                                GL73_7RE                                 GP72_7RE                               GT65_Titan_8SE                          PE60M_6RE
GE62_7RE                                GF62_8RC                                GL73_8RC                                 GP73_7RD                               GT65_Titan_8SF                          PE60M_7RD
GE63VR_7RE                              GF62_8RD                                GL73_8RD                                 GP73_7RE                               GT65_Titan_8SG                          PE60M_7RE
GE63VR_7RF                              GF62_8RE                                GL73_8RE                                 GP73_Leopard_8RC                       GT72VR_6RD                              PE60_6QD
GE63_7RC                                GF63_8RB                                GP62MVR_6RF                              GP73_Leopard_8RD                       GT72VR_6RE                              PE60_6QE
GE63_7RD                                GF63_8RC                                GP62MVR_7RFX                             GP73_Leopard_8RE                       GT72VR_7RD                              PE60_6RD
GE63_Raider_8SF                         GF63_8RD                                GP62MVR_7RF                              GP73_Leopard_8RF                       GT72VR_7RE                              PE60_6RE
GE63_Raider_8SG                         GF72VR_7RFX                             GP62MVR_7RGX                             GP73_Leopard_8SF                       GT72_6RD                                PE60_7RD
GE63_Raider_RGB_8RE                     GF72_7RD                                GP62M_6RD                                GS43VR_6RE                             GT73VR_6RE                              PE60_7RE
GE63_Raider_RGB_8RF                     GF72_7RE                                GP62M_6RE                                GS43VR_7RE                             GT73VR_6RF                              PE62VR_7RF
GE72MVR_6RG                             GF72_8RC                                GP62M_7RDX                               GS63VR_6RF                             GT73VR_7RE                              PE62_7RD
GE72MVR_7RG                             GF72_8RD                                GP62M_7RD                                GS63VR_6RG                             GT73VR_7RF                              PE62_7RE
GE72VR_6RF                              GF72_8RE                                GP62VR_6RF                               GS63VR_7RF                             GT75VR_7RE                              PE62_8RC
GE72VR_7RF                              GF73_8RC                                GP62VR_7RFX                              GS63VR_7RG                             GT75_Titan_8RF                          PE62_8RD
GE72_6QC                                GF73_8RD                                GP62VR_7RF                               GS63_6RE                               GT75_Titan_8RG                          PE70_6QD
GE72_6QD                                GL62M_6RD                               GP62_6QD                                 GS63_7RE                               GT83VR_6RE                              PE70_6QE
GE72_6QE                                GL62M_6RE                               GP62_6QE                                 GS63_Stealth_8RC                       GT83VR_6RF                              PE70_6RD
GE72_6QL                                GL62M_7RC                               GP62_6QF                                 GS63_Stealth_8RD                       GT83VR_7RE                              PE70_6RE
GE72_6RD                                GL62M_7RDX                              GP62_6QG                                 GS63_Stealth_8RE                       GT83VR_7RF                              PE70_7RD
GE72_6RE                                GL62M_7RD                               GP62_6RD                                 GS63_Stealth_8RF                       GT83_Titan_8RF                          PE70_7RE
GE72_7RD                                GL62M_7REX                              GP62_6RE                                 GS65_Stealth_Thin_8RE                  GT83_Titan_8RG                          PE72_7RD
GE72_7RE                                GL62M_7RE                               GP62_7QF                                 GS65_Stealth_Thin_8RF                                                          PE72_7RE
GL62_6QE                                GL62VR_7RFX                             GP62_7RDX                                GS65_Stealth_Thin_8SE                                                          PE72_8RC
GL62_6QF                                GP62_7RD                                GP63_7RE                                 GS65_Stealth_Thin_8SF                                                          PE72_8RD
GL62_6RD                                GP62_7REX                               GP63_Leopard_8RC                         GS65_Stealth_Thin_8SG                                                          PL60_6RD
GL62_6RE                                GP62_7RE                                GP63_Leopard_8RD                                                                                                        PL60_6RE
GL62_7QF                                GP62_8RC                                GP63_Leopard_8RE                                                                                                        PL60_7RD
GL62_7RDX                               GP62_8RD                                GP63_Leopard_8RF                                                                                                        PL60_7RE
                                        GP63_7RD                                GP63_Leopard_8SF                                                                                                        PL62_7RC
                                        GL62_7RD                                                                                                                                                        PL62_7RD
                                        GL62_7REX                                                                                                                                                       PL62_7RE
                                        GL62_7RE                                                                                                                                                        PS42_8M
                                        GL62_8RE                                                                                                                                                        PS42_8RB
                                        GL63_7RD                                                                                                                                                        PS42_Modern_8RC
                                        GL63_7RE                                                                                                                                                        PS63_Modern_8M
                                        GL63_8RC                                                                                                                                                        PS63_Modern_8RC
                                        GL63_8RD                                                                                                                                                        PS63_Modern_8RD[/CENTER]

- Uninstall Realtek UAD, including Nahimic UWP app then reboot.

- BIOS -> disable secure boot.

- Disable driver signature enforcement. Hold down the Shift key while you click the “Restart” option -> Select “Troubleshoot” -> Advanced options -> Startup Settings -> select “Disable driver signature enforcement” option.

- Temporarily disable AV software.

- Copy to desktop then Right-click/Run as administrator "Realtek_UAD...mod.exe".

- When prompted (3x) select "Install driver software anyway"

- Realtek installer, select "No, I will restart my computer later" to continue with RTK Audio Console & Nahimic installation

- Check Start Menu to ensure Realtek Audio Control UWP and Nahimic 3 has been installed.

- Finally, reboot.

***[IMPORTANT]****
If your Headphones are not picking up, disable Auto-Jack Detection in the Realtek Audio Control Panel UWP application and re-enable it. This is a known bug.
***[IMPORTANT]****

**USE Windows Auto Driver Update.zip Only if you have drivers being over wrote by Microsoft**
** Else its not needed, Download for driver is right at the top



I try to install it on the GE73VR 7RF and nahimic 3 does not recognize the realtek chip. Same with the driver before. Different Hardware id?



Whats the device ID of the chip? Also Driver enforcement is off via the method outlined in my post?

Also are you running 1803+ Build of Windows 10 64bit?



I do all steps as you explain in your guide.
I have no access atm to the GE73.



No problem, once you do if you could give me the Device ID for it i will then check it against my list. I have done the same as normal and if it was working for the other times then technically i should work on the latest build.



@hacktrix2006

when doing future Realtek Nahimic UAD driver mods, it is not necessary to edit/mod the HDXMSI.inf file.
the only INF files that are required to mod are just the "extension" INF files - AVoluteNH3Ext.inf & HDX_MsiExt_AVO_RTK.inf. The realtek uad driver setup program can just use the HDXRT.inf file if no specific hardware device id is found in HDXMSI.inf file, since it makes no difference between using either HDXMSI.inf or HDXRT.inf.



Will give that a test run and see how it goes if it still works after that will insure it in newer updates.

Thanks for the pointer.

Sent from my LLD-L31 using Tapatalk



Has anyone tried this on a GT80S and succeed?



@Rengsey R. H. Jr. The chances are yes it will work however, if your unsure throw me your Audio Codec ID and i will let you know so long as you follow the instructions on the posts where the driver links are i.e ones made by me it should work without issue, however i am just about to test @epguy3 's suggestion with a new driver if it works i will be uploading that and posting the new one here.



Realtek_UAD_6.0.1.8644_MSI_Nahimic_UWP_mod ( ONLINE )

Made By: hacktrix2006

Disclaimer: This Driver Modification is for MSI Systems listed below! Myself nor NotebookReview will not be liable for any damage caused if this is installed on other branded systems!

Package includes:
Realtek UAD 6.0.1.8644
Nahimic 1.2.11.0 UWP
Realtek Audio Console 1.2.172.0 UWP

UAD *299* MSI supported models
Nahimic 3 280+

SHA1: 760C8CAA9BFD015834A79DDAC31E84791FEC5990

Code:

GT76_Titan_8SE                          GE73VR_7RE                              GL72MVR_7RFX                             GP72MVR_7RFX                           GS73VR_6RF                              GV62VR_7RF
GT76_Titan_8SF                          GE73VR_7RF                              GL72M_7RDX                               GP72MVR_7RGX                           GS73VR_6RG                              GV62_7RC
GT76_Titan_8SG                          GE73_7RC                                GL72M_7REX                               GP72M_7RDX                             GS73VR_7RF                              GV62_7RD
G25VR_7RE                               GE73_7RD                                GL72VR_7RFX                              GP72M_7REX                             GS73VR_7RG                              GV62_7RE
GE62MVR_6RF                             GE73_Raider_8SF                         GL72_6QE                                 GP72VR_6RF                             GS73_6RE                                GV62_8RC
GE62MVR_6RG                             GE73_Raider_8SG                         GL72_6QF                                 GP72VR_7RFX                            GS73_7RE                                GV62_8RD
GE62MVR_7RG                             GE73_Raider_RGB_8RE                     GL72_6RD                                 GP72_6QD                               GS73_Stealth_8R                         GV62_8RE
GE62VR_6RF                              GE73_Raider_RGB_8RF                     GL72_6RE                                 GP72_6QE                               GS73_Stealth_8R                         GV72VR_7RF
GE62VR_7RF                              GE75_Raider_8RE                         GL72_7QF                                 GP72_6QF                               GS73_Stealth_8R                         GV72_8RC
GE62_6QC                                GE75_Raider_8RF                         GL72_7RDX                                GP72_6RD                               GS73_Stealth_8R                         GV72_8RD
GE62_6QD                                GE75_Raider_8SE                         GL72_7RD                                 GP72_6RE                               GT62_6RD                                GV72_8RE
GE62_6QE                                GE75_Raider_8SF                         GL72_7REX                                GP72_7QF                               GT62_6RE                                P65_Creator_8RD
GE62_6QL                                GE75_Raider_8SG                         GL72_7RE                                 GP72_7RDX                              GT63_Titan_8RE                          P65_Creator_8RE
GE62_6RD                                GF62VR_7RFX                             GL72_8RE                                 GP72_7RD                               GT63_Titan_8RF                          P65_Creator_8RF
GE62_6RE                                GF62_7RD                                GL73_7RD                                 GP72_7REX                              GT63_Titan_8RG                          PE60M_6RD
GE62_7RD                                GF62_7RE                                GL73_7RE                                 GP72_7RE                               GT65_Titan_8SE                          PE60M_6RE
GE62_7RE                                GF62_8RC                                GL73_8RC                                 GP73_7RD                               GT65_Titan_8SF                          PE60M_7RD
GE63VR_7RE                              GF62_8RD                                GL73_8RD                                 GP73_7RE                               GT65_Titan_8SG                          PE60M_7RE
GE63VR_7RF                              GF62_8RE                                GL73_8RE                                 GP73_Leopard_8RC                       GT72VR_6RD                              PE60_6QD
GE63_7RC                                GF63_8RB                                GP62MVR_6RF                              GP73_Leopard_8RD                       GT72VR_6RE                              PE60_6QE
GE63_7RD                                GF63_8RC                                GP62MVR_7RFX                             GP73_Leopard_8RE                       GT72VR_7RD                              PE60_6RD
GE63_Raider_8SF                         GF63_8RD                                GP62MVR_7RF                              GP73_Leopard_8RF                       GT72VR_7RE                              PE60_6RE
GE63_Raider_8SG                         GF72VR_7RFX                             GP62MVR_7RGX                             GP73_Leopard_8SF                       GT72_6RD                                PE60_7RD
GE63_Raider_RGB_8RE                     GF72_7RD                                GP62M_6RD                                GS43VR_6RE                             GT73VR_6RE                              PE60_7RE
GE63_Raider_RGB_8RF                     GF72_7RE                                GP62M_6RE                                GS43VR_7RE                             GT73VR_6RF                              PE62VR_7RF
GE72MVR_6RG                             GF72_8RC                                GP62M_7RDX                               GS63VR_6RF                             GT73VR_7RE                              PE62_7RD
GE72MVR_7RG                             GF72_8RD                                GP62M_7RD                                GS63VR_6RG                             GT73VR_7RF                              PE62_7RE
GE72VR_6RF                              GF72_8RE                                GP62VR_6RF                               GS63VR_7RF                             GT75VR_7RE                              PE62_8RC
GE72VR_7RF                              GF73_8RC                                GP62VR_7RFX                              GS63VR_7RG                             GT75_Titan_8RF                          PE62_8RD
GE72_6QC                                GF73_8RD                                GP62VR_7RF                               GS63_6RE                               GT75_Titan_8RG                          PE70_6QD
GE72_6QD                                GL62M_6RD                               GP62_6QD                                 GS63_7RE                               GT83VR_6RE                              PE70_6QE
GE72_6QE                                GL62M_6RE                               GP62_6QE                                 GS63_Stealth_8RC                       GT83VR_6RF                              PE70_6RD
GE72_6QL                                GL62M_7RC                               GP62_6QF                                 GS63_Stealth_8RD                       GT83VR_7RE                              PE70_6RE
GE72_6RD                                GL62M_7RDX                              GP62_6QG                                 GS63_Stealth_8RE                       GT83VR_7RF                              PE70_7RD
GE72_6RE                                GL62M_7RD                               GP62_6RD                                 GS63_Stealth_8RF                       GT83_Titan_8RF                          PE70_7RE
GE72_7RD                                GL62M_7REX                              GP62_6RE                                 GS65_Stealth_Thin_8RE                  GT83_Titan_8RG                          PE72_7RD
GE72_7RE                                GL62M_7RE                               GP62_7QF                                 GS65_Stealth_Thin_8RF                                                          PE72_7RE
GL62_6QE                                GL62VR_7RFX                             GP62_7RDX                                GS65_Stealth_Thin_8SE                                                          PE72_8RC
GL62_6QF                                GP62_7RD                                GP63_7RE                                 GS65_Stealth_Thin_8SF                                                          PE72_8RD
GL62_6RD                                GP62_7REX                               GP63_Leopard_8RC                         GS65_Stealth_Thin_8SG                                                          PL60_6RD
GL62_6RE                                GP62_7RE                                GP63_Leopard_8RD                                                                                                        PL60_6RE
GL62_7QF                                GP62_8RC                                GP63_Leopard_8RE                                                                                                        PL60_7RD
GL62_7RDX                               GP62_8RD                                GP63_Leopard_8RF                                                                                                        PL60_7RE
                                        GP63_7RD                                GP63_Leopard_8SF                                                                                                        PL62_7RC
                                        GL62_7RD                                                                                                                                                        PL62_7RD
                                        GL62_7REX                                                                                                                                                       PL62_7RE
                                        GL62_7RE                                                                                                                                                        PS42_8M
                                        GL62_8RE                                                                                                                                                        PS42_8RB
                                        GL63_7RD                                                                                                                                                        PS42_Modern_8RC
                                        GL63_7RE                                                                                                                                                        PS63_Modern_8M
                                        GL63_8RC                                                                                                                                                        PS63_Modern_8RC
                                        GL63_8RD                                                                                                                                                        PS63_Modern_8RD[/CENTER]

- Uninstall Realtek UAD, including Nahimic UWP app then reboot.

- BIOS -> disable secure boot.

- Disable driver signature enforcement. Hold down the Shift key while you click the “Restart” option -> Select “Troubleshoot” -> Advanced options -> Startup Settings -> select “Disable driver signature enforcement” option.

- Temporarily disable AV software.

- Copy to desktop then Right-click/Run as administrator "Realtek_UAD...mod.exe".

- When prompted (2x) select "Install driver software anyway"

- Realtek installer, select "No, I will restart my computer later" to continue with RTK Audio Console & Nahimic installation

- Check Start Menu to ensure Realtek Audio Control UWP and Nahimic 3 has been installed.

- Finally, reboot.

***[IMPORTANT]****
If your Headphones are not picking up, disable Auto-Jack Detection in the Realtek Audio Control Panel UWP application and re-enable it. This is a known bug.
***[IMPORTANT]****

**USE Windows Auto Driver Update.zip Only if you have drivers being over wrote by Microsoft**
** Else its not needed, Download for driver is right at the top


I would like to thank the following people for whom have helped

J95, for firstly getting me back into the modding scene and showing me the new ropes, i love you bro for that (Bromance)

LeftEyeNine, Falkentyne, felix3650, asm1, Bazgrim, ixende, mnomaanw, MrBeer, arke yyci, Beemo, senso, Eflatun,
HitZ2976, Ivan994, For testing and putting trust in me.

epguy3, For testing as well as suggesting improvements.

JeanLegi, For testing as well as putting the word out their.

Now i can't forget thanks to MSI and Nahimic for causing me to get someone to hold my beer after putting the challenge forward!



@hacktrix2006 i will test it out later tonight. The first post didn’t work for me. I will try the new steps.



Just use the new driver in post above yours I try and keep them upto date, however it's a driver a month run for me.

However good luck it should work well just make sure that old realtek drivers and Nahimic 2 is fully uninstalled before installing the modded drivers. Also driver signature enforcement off is the most important step.

Sent from my LLD-L31 using Tapatalk



O.k. i followed the steps and it got installed, even both the Realtek and Nahimic shows in the start menu. Now , do i go back enable secure boot upon restarting the laptop ?

Edited: the effects only works on my wireless headphone, not my desktop speaker. Is there a way to re-optimized?



Yep you can re-enable secure boot if you wish. As for your Desktop speaker which jack are you using or is it bluetooth?



I meant to say , the built in speakers on the GT80s.

My wireless headphone works great. But no effect on the built in speakers. Is there a way to re-optimized or I have to reinstall everything all over again?



Strange, what's device manager showing the software components section.

Seems weird that inbuilt speakers are not having any effects applied.

Sent from my LLD-L31 using Tapatalk



I have the same problem! My internal GS63VR speakers do not receive any effect. In the earphone (P1) the effects are applied normally.
This also happened in the previous version of the driver. (8627)
Any tips?



Try deleting all items in the audio section of device manager see if that helps.

Sent from my LLD-L31 using Tapatalk



All audio devices removed and reinstalled, however did not work, continues with no effect on the internal speakers.



Does any of the older ones work?

Sent from my LLD-L31 using Tapatalk



It worked before with the original drivers of other devices (8491). But at a certain point, NAHIMIC was updated and everything stopped working. At that moment, I resorted to its drivers and at least I had the effects returned to the headphone. But the internal speakers did not work. The first version I used was the 8627.
Will your older drivers work with the newer versions of NAHIMIC?



I see no reason why it shouldn't.

Sent from my LLD-L31 using Tapatalk



Realtek_UAD_6.0.1.8652_MSI_Nahimic_UWP_mod ( ONLINE! )

Made By: hacktrix2006

Disclaimer: This Driver Modification is for MSI Systems listed below! Myself nor NotebookReview will not be liable for any damage caused if this is installed on other branded systems!

Package includes:
Realtek UAD 6.0.1.8652
Nahimic 1.2.11.0 UWP
Realtek Audio Console 1.2.172.0 UWP

UAD *299* MSI supported models
Nahimic 3 280+

SHA1: FA669145D24E78D85B2A401DCE5A06F8C43250AA

For Windows 10 Build: 1803/1809

Code:

GT76_Titan_8SE                          GE73VR_7RE                              GL72MVR_7RFX                             GP72MVR_7RFX                           GS73VR_6RF                              GV62VR_7RF
GT76_Titan_8SF                          GE73VR_7RF                              GL72M_7RDX                               GP72MVR_7RGX                           GS73VR_6RG                              GV62_7RC
GT76_Titan_8SG                          GE73_7RC                                GL72M_7REX                               GP72M_7RDX                             GS73VR_7RF                              GV62_7RD
G25VR_7RE                               GE73_7RD                                GL72VR_7RFX                              GP72M_7REX                             GS73VR_7RG                              GV62_7RE
GE62MVR_6RF                             GE73_Raider_8SF                         GL72_6QE                                 GP72VR_6RF                             GS73_6RE                                GV62_8RC
GE62MVR_6RG                             GE73_Raider_8SG                         GL72_6QF                                 GP72VR_7RFX                            GS73_7RE                                GV62_8RD
GE62MVR_7RG                             GE73_Raider_RGB_8RE                     GL72_6RD                                 GP72_6QD                               GS73_Stealth_8R                         GV62_8RE
GE62VR_6RF                              GE73_Raider_RGB_8RF                     GL72_6RE                                 GP72_6QE                               GS73_Stealth_8R                         GV72VR_7RF
GE62VR_7RF                              GE75_Raider_8RE                         GL72_7QF                                 GP72_6QF                               GS73_Stealth_8R                         GV72_8RC
GE62_6QC                                GE75_Raider_8RF                         GL72_7RDX                                GP72_6RD                               GS73_Stealth_8R                         GV72_8RD
GE62_6QD                                GE75_Raider_8SE                         GL72_7RD                                 GP72_6RE                               GT62_6RD                                GV72_8RE
GE62_6QE                                GE75_Raider_8SF                         GL72_7REX                                GP72_7QF                               GT62_6RE                                P65_Creator_8RD
GE62_6QL                                GE75_Raider_8SG                         GL72_7RE                                 GP72_7RDX                              GT63_Titan_8RE                          P65_Creator_8RE
GE62_6RD                                GF62VR_7RFX                             GL72_8RE                                 GP72_7RD                               GT63_Titan_8RF                          P65_Creator_8RF
GE62_6RE                                GF62_7RD                                GL73_7RD                                 GP72_7REX                              GT63_Titan_8RG                          PE60M_6RD
GE62_7RD                                GF62_7RE                                GL73_7RE                                 GP72_7RE                               GT65_Titan_8SE                          PE60M_6RE
GE62_7RE                                GF62_8RC                                GL73_8RC                                 GP73_7RD                               GT65_Titan_8SF                          PE60M_7RD
GE63VR_7RE                              GF62_8RD                                GL73_8RD                                 GP73_7RE                               GT65_Titan_8SG                          PE60M_7RE
GE63VR_7RF                              GF62_8RE                                GL73_8RE                                 GP73_Leopard_8RC                       GT72VR_6RD                              PE60_6QD
GE63_7RC                                GF63_8RB                                GP62MVR_6RF                              GP73_Leopard_8RD                       GT72VR_6RE                              PE60_6QE
GE63_7RD                                GF63_8RC                                GP62MVR_7RFX                             GP73_Leopard_8RE                       GT72VR_7RD                              PE60_6RD
GE63_Raider_8SF                         GF63_8RD                                GP62MVR_7RF                              GP73_Leopard_8RF                       GT72VR_7RE                              PE60_6RE
GE63_Raider_8SG                         GF72VR_7RFX                             GP62MVR_7RGX                             GP73_Leopard_8SF                       GT72_6RD                                PE60_7RD
GE63_Raider_RGB_8RE                     GF72_7RD                                GP62M_6RD                                GS43VR_6RE                             GT73VR_6RE                              PE60_7RE
GE63_Raider_RGB_8RF                     GF72_7RE                                GP62M_6RE                                GS43VR_7RE                             GT73VR_6RF                              PE62VR_7RF
GE72MVR_6RG                             GF72_8RC                                GP62M_7RDX                               GS63VR_6RF                             GT73VR_7RE                              PE62_7RD
GE72MVR_7RG                             GF72_8RD                                GP62M_7RD                                GS63VR_6RG                             GT73VR_7RF                              PE62_7RE
GE72VR_6RF                              GF72_8RE                                GP62VR_6RF                               GS63VR_7RF                             GT75VR_7RE                              PE62_8RC
GE72VR_7RF                              GF73_8RC                                GP62VR_7RFX                              GS63VR_7RG                             GT75_Titan_8RF                          PE62_8RD
GE72_6QC                                GF73_8RD                                GP62VR_7RF                               GS63_6RE                               GT75_Titan_8RG                          PE70_6QD
GE72_6QD                                GL62M_6RD                               GP62_6QD                                 GS63_7RE                               GT83VR_6RE                              PE70_6QE
GE72_6QE                                GL62M_6RE                               GP62_6QE                                 GS63_Stealth_8RC                       GT83VR_6RF                              PE70_6RD
GE72_6QL                                GL62M_7RC                               GP62_6QF                                 GS63_Stealth_8RD                       GT83VR_7RE                              PE70_6RE
GE72_6RD                                GL62M_7RDX                              GP62_6QG                                 GS63_Stealth_8RE                       GT83VR_7RF                              PE70_7RD
GE72_6RE                                GL62M_7RD                               GP62_6RD                                 GS63_Stealth_8RF                       GT83_Titan_8RF                          PE70_7RE
GE72_7RD                                GL62M_7REX                              GP62_6RE                                 GS65_Stealth_Thin_8RE                  GT83_Titan_8RG                          PE72_7RD
GE72_7RE                                GL62M_7RE                               GP62_7QF                                 GS65_Stealth_Thin_8RF                                                          PE72_7RE
GL62_6QE                                GL62VR_7RFX                             GP62_7RDX                                GS65_Stealth_Thin_8SE                                                          PE72_8RC
GL62_6QF                                GP62_7RD                                GP63_7RE                                 GS65_Stealth_Thin_8SF                                                          PE72_8RD
GL62_6RD                                GP62_7REX                               GP63_Leopard_8RC                         GS65_Stealth_Thin_8SG                                                          PL60_6RD
GL62_6RE                                GP62_7RE                                GP63_Leopard_8RD                                                                                                        PL60_6RE
GL62_7QF                                GP62_8RC                                GP63_Leopard_8RE                                                                                                        PL60_7RD
GL62_7RDX                               GP62_8RD                                GP63_Leopard_8RF                                                                                                        PL60_7RE
                                        GP63_7RD                                GP63_Leopard_8SF                                                                                                        PL62_7RC
                                        GL62_7RD                                                                                                                                                        PL62_7RD
                                        GL62_7REX                                                                                                                                                       PL62_7RE
                                        GL62_7RE                                                                                                                                                        PS42_8M
                                        GL62_8RE                                                                                                                                                        PS42_8RB
                                        GL63_7RD                                                                                                                                                        PS42_Modern_8RC
                                        GL63_7RE                                                                                                                                                        PS63_Modern_8M
                                        GL63_8RC                                                                                                                                                        PS63_Modern_8RC
                                        GL63_8RD                                                                                                                                                        PS63_Modern_8RD[/CENTER]

- Uninstall Realtek UAD, including Nahimic UWP app then reboot.

- BIOS -> disable secure boot.

- Disable driver signature enforcement. Hold down the Shift key while you click the “Restart” option -> Select “Troubleshoot” -> Advanced options -> Startup Settings -> select “Disable driver signature enforcement” option.

- Temporarily disable AV software.

- Copy to desktop then Right-click/Run as administrator "Realtek_UAD...mod.exe".

- When prompted (2x) select "Install driver software anyway"

- Realtek installer, select "No, I will restart my computer later" to continue with RTK Audio Console & Nahimic installation

- Check Start Menu to ensure Realtek Audio Control UWP and Nahimic 3 has been installed.

- Finally, reboot.

***[IMPORTANT]****
If your Headphones are not picking up, disable Auto-Jack Detection in the Realtek Audio Control Panel UWP application and re-enable it. This is a known bug.
***[IMPORTANT]****

**USE Windows Auto Driver Update.zip Only if you have drivers being over wrote by Microsoft**
** Else its not needed, Download for driver is right at the top


I would like to thank the following people for whom have helped

J95, for firstly getting me back into the modding scene and showing me the new ropes, i love you bro for that (Bromance)

LeftEyeNine, Falkentyne, felix3650, asm1, Bazgrim, ixende, mnomaanw, MrBeer, arke yyci, Beemo, senso, Eflatun,
HitZ2976, Ivan994, For testing and putting trust in me.

epguy3, For testing as well as suggesting improvements.

JeanLegi, For testing as well as putting the word out their.

Now i can't forget thanks to MSI and Nahimic for causing me to get someone to hold my beer after putting the challenge forward!



A very nice and well written guide, thank you hacktrix2006.



@Kevin@GenTechPC no need to thank me, most of the guide was from j95 just like his other teachings. @asm1 would you be able to link the latest driver thread to the OP thread please bud, makes it easier for everyone rather then them having to look through all the thread posts to get there, thanks in advance.



Good Idea - done, I will do that everytime you update.. or shortly after



Nahimic 3 wont show any effects tabs for speaker as well as headphones for me. I have auto driver updates disabled. Everything was fine until there were 3x "install driver anyway" prompts instead of 2x. I think the inf file you have been excluding lately is causing this. I have attached the image, as you can see, no tabs for different effects.
https://i.gyazo.com/8afdf791117423c28ce444bcfeb4bb07.png
I'm on gt72s 6qe with the following hID
HDAUDIO\FUNC_01&VEN_10EC&DEV_0899&SUBSYS_14621180&REV_1000



Thanks for letting me know, next update will have the file I stopped editing edited again. You can still use an old driver that was modded with all 3 files prior and still use the new Nahimic 3 UWP and RTK Console UWP. Thanks for testing, is anyone else having issues similar to this?


@mnomaanw if you can pm me will do a beta build for you when I get time today.

You seem to enjoy testing these drivers might as well take advantage of it.

Sent from my LLD-L31 using Tapatalk



Sorry I posted too quickly. I just tried the 8642 build with 3x prompts, and even with Driver updates disabled, its getting overwritten by 8117 driver(?). I ran the .reg again and tried again. So must be something on my end since. Do you think a previous nahimic 2 installation would be causing problems as i was using Nahimic 2+ before i tried 8652 then 8642? I have uninstalled nahimic 2+ before trying this.



@mnomaanw Check PM's, Also make sure you uninstall all Nahimic software, Realtek Audio drivers as well as Realtek Console UWP. I have gave you a beta link which was just made 10 seconds after your first reply on the new drivers.

Your best thing to do is uninstall the Nahimic 2+ software and Audio drivers reboot, then uninstall Nahimic 3 UWP and Realtek console UWP and reboot again, then follow the instructions in the Driver install thread, as i have kept both 8652 drivers separate your able to test both versions freely and post your results.

As for Windows Update updating the drivers make sure you use the .reg file before rebooting after installing the new drivers to block WSUS from auto driver updating.

Thank you for testing, your input like others is valued.


Edit: just noticed what system you using which is a gt72s 6qe which uses the same ID"s as my gt72-6qd and don't have issue but still test away!



Same here hacktrix i installed the new driver because with the former driver i had even no differnce when i change in the last driver. i'm sure that this occurs with one of the last windows 10 updates. And i had only 2 instead of 3 warnings if i want to install this driver



Will invite you to the convo.

Sent from my LLD-L31 using Tapatalk



Right it has been noticed that if your having issues with Nahimic 3 installing with my drivers the issue is with Skype running so in order to Kill skype please open a CMD windows as admin and run the following command:

cmd /C taskkill /IM SkypeApp.exe /T /F && taskill /IM SkypeBackgorundHost.exe /T /F && taskkill /IM SkypeBridge.exe

then reinstall via the executable again, but when driver goes to install hit cancel and let it continue to install RealTek Audio Console and Nahimic 3. This will be added directly to the installer from now on.



Driver is working on GS63VR 6RF.
Weekend i get the GE73 and try the installation again.



Thanks for confirming will be release the driver later tonight. It has the fixes for Skype issue included.

Sent from my LLD-L31 using Tapatalk



Realtek_UAD_6.0.1.8656_MSI_Nahimic_UWP_mod (ONLINE!)

Made By: hacktrix2006

Disclaimer: This Driver Modification is for MSI Systems listed below! Myself nor NotebookReview will not be liable for any damage caused if this is installed on other branded systems!

Package includes:
Realtek UAD 6.0.1.8656
Nahimic 1.2.11.0 UWP
Realtek Audio Console 1.2.172.0 UWP

UAD *299* MSI supported models
Nahimic 3 280+

SHA1: F222EB4E89F853400093AB6880B025B81DFED466

For Windows 10 Build: 1803/1809

Change Log:

Code:

Changed the way Realtek Audio Control and Nahimic 3 UWP applications installs by killing
Skype as this was causing install issues.

Also Updated Driver from 8652 to 8656

Code:

GT76_Titan_8SE                          GE73VR_7RE                              GL72MVR_7RFX                             GP72MVR_7RFX                           GS73VR_6RF                              GV62VR_7RF
GT76_Titan_8SF                          GE73VR_7RF                              GL72M_7RDX                               GP72MVR_7RGX                           GS73VR_6RG                              GV62_7RC
GT76_Titan_8SG                          GE73_7RC                                GL72M_7REX                               GP72M_7RDX                             GS73VR_7RF                              GV62_7RD
G25VR_7RE                               GE73_7RD                                GL72VR_7RFX                              GP72M_7REX                             GS73VR_7RG                              GV62_7RE
GE62MVR_6RF                             GE73_Raider_8SF                         GL72_6QE                                 GP72VR_6RF                             GS73_6RE                                GV62_8RC
GE62MVR_6RG                             GE73_Raider_8SG                         GL72_6QF                                 GP72VR_7RFX                            GS73_7RE                                GV62_8RD
GE62MVR_7RG                             GE73_Raider_RGB_8RE                     GL72_6RD                                 GP72_6QD                               GS73_Stealth_8R                         GV62_8RE
GE62VR_6RF                              GE73_Raider_RGB_8RF                     GL72_6RE                                 GP72_6QE                               GS73_Stealth_8R                         GV72VR_7RF
GE62VR_7RF                              GE75_Raider_8RE                         GL72_7QF                                 GP72_6QF                               GS73_Stealth_8R                         GV72_8RC
GE62_6QC                                GE75_Raider_8RF                         GL72_7RDX                                GP72_6RD                               GS73_Stealth_8R                         GV72_8RD
GE62_6QD                                GE75_Raider_8SE                         GL72_7RD                                 GP72_6RE                               GT62_6RD                                GV72_8RE
GE62_6QE                                GE75_Raider_8SF                         GL72_7REX                                GP72_7QF                               GT62_6RE                                P65_Creator_8RD
GE62_6QL                                GE75_Raider_8SG                         GL72_7RE                                 GP72_7RDX                              GT63_Titan_8RE                          P65_Creator_8RE
GE62_6RD                                GF62VR_7RFX                             GL72_8RE                                 GP72_7RD                               GT63_Titan_8RF                          P65_Creator_8RF
GE62_6RE                                GF62_7RD                                GL73_7RD                                 GP72_7REX                              GT63_Titan_8RG                          PE60M_6RD
GE62_7RD                                GF62_7RE                                GL73_7RE                                 GP72_7RE                               GT65_Titan_8SE                          PE60M_6RE
GE62_7RE                                GF62_8RC                                GL73_8RC                                 GP73_7RD                               GT65_Titan_8SF                          PE60M_7RD
GE63VR_7RE                              GF62_8RD                                GL73_8RD                                 GP73_7RE                               GT65_Titan_8SG                          PE60M_7RE
GE63VR_7RF                              GF62_8RE                                GL73_8RE                                 GP73_Leopard_8RC                       GT72VR_6RD                              PE60_6QD
GE63_7RC                                GF63_8RB                                GP62MVR_6RF                              GP73_Leopard_8RD                       GT72VR_6RE                              PE60_6QE
GE63_7RD                                GF63_8RC                                GP62MVR_7RFX                             GP73_Leopard_8RE                       GT72VR_7RD                              PE60_6RD
GE63_Raider_8SF                         GF63_8RD                                GP62MVR_7RF                              GP73_Leopard_8RF                       GT72VR_7RE                              PE60_6RE
GE63_Raider_8SG                         GF72VR_7RFX                             GP62MVR_7RGX                             GP73_Leopard_8SF                       GT72_6RD                                PE60_7RD
GE63_Raider_RGB_8RE                     GF72_7RD                                GP62M_6RD                                GS43VR_6RE                             GT73VR_6RE                              PE60_7RE
GE63_Raider_RGB_8RF                     GF72_7RE                                GP62M_6RE                                GS43VR_7RE                             GT73VR_6RF                              PE62VR_7RF
GE72MVR_6RG                             GF72_8RC                                GP62M_7RDX                               GS63VR_6RF                             GT73VR_7RE                              PE62_7RD
GE72MVR_7RG                             GF72_8RD                                GP62M_7RD                                GS63VR_6RG                             GT73VR_7RF                              PE62_7RE
GE72VR_6RF                              GF72_8RE                                GP62VR_6RF                               GS63VR_7RF                             GT75VR_7RE                              PE62_8RC
GE72VR_7RF                              GF73_8RC                                GP62VR_7RFX                              GS63VR_7RG                             GT75_Titan_8RF                          PE62_8RD
GE72_6QC                                GF73_8RD                                GP62VR_7RF                               GS63_6RE                               GT75_Titan_8RG                          PE70_6QD
GE72_6QD                                GL62M_6RD                               GP62_6QD                                 GS63_7RE                               GT83VR_6RE                              PE70_6QE
GE72_6QE                                GL62M_6RE                               GP62_6QE                                 GS63_Stealth_8RC                       GT83VR_6RF                              PE70_6RD
GE72_6QL                                GL62M_7RC                               GP62_6QF                                 GS63_Stealth_8RD                       GT83VR_7RE                              PE70_6RE
GE72_6RD                                GL62M_7RDX                              GP62_6QG                                 GS63_Stealth_8RE                       GT83VR_7RF                              PE70_7RD
GE72_6RE                                GL62M_7RD                               GP62_6RD                                 GS63_Stealth_8RF                       GT83_Titan_8RF                          PE70_7RE
GE72_7RD                                GL62M_7REX                              GP62_6RE                                 GS65_Stealth_Thin_8RE                  GT83_Titan_8RG                          PE72_7RD
GE72_7RE                                GL62M_7RE                               GP62_7QF                                 GS65_Stealth_Thin_8RF                                                          PE72_7RE
GL62_6QE                                GL62VR_7RFX                             GP62_7RDX                                GS65_Stealth_Thin_8SE                                                          PE72_8RC
GL62_6QF                                GP62_7RD                                GP63_7RE                                 GS65_Stealth_Thin_8SF                                                          PE72_8RD
GL62_6RD                                GP62_7REX                               GP63_Leopard_8RC                         GS65_Stealth_Thin_8SG                                                          PL60_6RD
GL62_6RE                                GP62_7RE                                GP63_Leopard_8RD                                                                                                        PL60_6RE
GL62_7QF                                GP62_8RC                                GP63_Leopard_8RE                                                                                                        PL60_7RD
GL62_7RDX                               GP62_8RD                                GP63_Leopard_8RF                                                                                                        PL60_7RE
                                        GP63_7RD                                GP63_Leopard_8SF                                                                                                        PL62_7RC
                                        GL62_7RD                                                                                                                                                        PL62_7RD
                                        GL62_7REX                                                                                                                                                       PL62_7RE
                                        GL62_7RE                                                                                                                                                        PS42_8M
                                        GL62_8RE                                                                                                                                                        PS42_8RB
                                        GL63_7RD                                                                                                                                                        PS42_Modern_8RC
                                        GL63_7RE                                                                                                                                                        PS63_Modern_8M
                                        GL63_8RC                                                                                                                                                        PS63_Modern_8RC
                                        GL63_8RD                                                                                                                                                        PS63_Modern_8RD[/CENTER]

- Uninstall Realtek UAD, including Nahimic UWP app then reboot.

- BIOS -> disable secure boot (Important for Unsigned Drivers as it blocks the next step).

- Disable driver signature enforcement. Hold down the Shift key while you click the “Restart” option -> Select “Troubleshoot” -> Advanced options -> Startup Settings -> select “Disable driver signature enforcement” option.

- Temporarily disable AV software.

- Copy to desktop then Right-click/Run as administrator "Realtek_UAD...mod.exe".

- When prompted (2x) select "Install driver software anyway"

- Realtek installer, select "No, I will restart my computer later" to continue with RTK Audio Console & Nahimic installation

- Check Start Menu to ensure Realtek Audio Control UWP and Nahimic 3 has been installed.

- Finally, reboot.

***[IMPORTANT]****
If your Headphones are not picking up, disable Auto-Jack Detection in the Realtek Audio Control Panel UWP application and re-enable it. This is a known bug.
***[IMPORTANT]****

**USE Windows Auto Driver Update.zip Only if you have drivers being over wrote by Microsoft**
** Else its not needed, Download for driver is right at the top


I would like to thank the following people for whom have helped

The Master for his teachings and pointing me down the right path: J95

The Beta Testers, Without them issues wouldn't be found: mnomaaw, JeanLegi

Community whom has trusted my work: LeftEyeNine, Falkentyne, felix3650, asm1, Bazgrim, ixende, MrBeer, arke yyci, Beemo, senso, Eflatun,
HitZ2976, Ivan994, epguy3

For Posting this in another Languge on other threads: JeanLegi

For Honest Feedback: epguy3

Finally and Most importantly, Thank you to Alanfox2000 for making the drivers easy to access.



Beep only knows why but his breaks my post on the front page where I quote you. It wont post unless I remove this from the quote.

Not proposing you change your updates but would you be ok with me adding the "Compatibility List" in a .txt file on the first post? Would be much easier to maintain....



@asm1 you could just link the post like

Latest Driver Update

Using the link from the # number in case of this driver is #240 then at least its not going to have a quote issue.



Ahhh ok cool will do that (didn't know you could)

Done

Very Simple



No problem, just makes things alot easier for you, all you do know is simply change the Link each time.



8666 drivers are out. there's even an 8666 UAD Gigabyte driver there that includes Nahimic 3 support. yup, Nahimic 3 is not just for MSI systems anymore as Realtek sometimes develops UAD drivers that integrate Nahimic 3 onto Gigabyte machines as well.

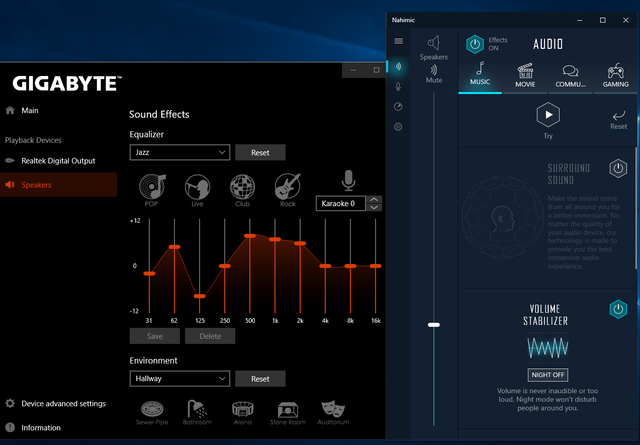

since Nahimic 3 has no EQ (equalizer), I use the equalizer and environment "sound effect" options from Realtek Audio Control (as seen in this pic below, I have the gigabyte oem version of realtek audio console)



I hope the MSI version of the Realtek Audio Console UWP app has those EQ and environment options available while running Nahimic 3



@epguy why is the image showing Gigabtye??? Also there will be a link in the Beta chat soon enough.
Yes i also know Nahimic is on a few OEM systems now (No longer exclusive to MSI) however i only own currently an MSI Device and thus will only mod for MSI systems.
I will send a link when it is up on Beta Folder. Its Manual install for each step so you install the driver then RTK then Nahimic UWP will explain more in the convo.

@epguy you have been invited to test new driver.



Confirmed working on GT83VR 7RF. Both wireless headphone and laptop speakers.



Which driver version? as there is a new one soon tm on the way.



Realtek_UAD_6.0.1.8656_MSI_Nahimic_UWP_mod



8666 will be release soon once some bugs have been squashed with Windows UWP apps.

Sent from my LLD-L31 using Tapatalk
