    MSI GT75 TITAN 8RG-094 Review by Ultra Male

    Discussion in 'MSI Reviews & Owners' Lounges' started by Spartan@HIDevolution, May 2, 2018.

  1. flake90

    flake90 Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    15
    Trophy Points:
    6
    So is there a way to make all cores work all the time to get stable 3.9? Or should i let it be as it is now? Thanks!

  2. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    put your laptopspecs in your signature so we know what CPU you have or no one can help you :rolleyes:

    Last edited: Jul 2, 2018
    Vasudev and raz8020 like this.
  3. flake90

    flake90 Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    15
    Trophy Points:
    6

    MSI GT75 8RG-053RU Titan, Black


    Intel i7-8750H / RAM 32GB DDR4 / HDD 1TB + SSD 256GB / 17.3" Full HD LED / GF GTX1080(8192) / WiFi / BT / WebCam / Win10H /

    To be honest i am inspecting a strange thing. I like to play Fortnite, but it starts to freez and stutter after 2 gours of gameplay when i play at home with my TV with 60 hz\60fps. When i play somewhere else i play on the laptop screen with 120hz\120fps. And those freezes starts within an hour or so. If restart the game or reboot the computer i have another lag free time. Same amount. Any thoughts what it could be?

    I did a clen windows install with Phoenixes guide, added 16 gb more ram - still the same. I am confused. I did a furmark test and there are no lags there after hour two or three. I suppose it is the Fortnite is a problem. But i am afraid that it is my laptop aswell.

    So i am learning things and try to do something, thanks to you guys :)

    Sorry if i flood the thread by the way.

    Last edited: Jul 2, 2018
    raz8020, Vasudev and Pedro69 like this.
  4. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,045
    Messages:
    11,278
    Likes Received:
    8,815
    Trophy Points:
    931
    Put that specs in signature. You can find it Under your Name/Nickname. Just hover on it and click Signature to add ur specs.

    Vistar Shook likes this.
  5. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    1) Please tell me which nVIDIA Driver are you using right now. There has been a bug in the latest nVIDIA Drivers that causes these random stutters which I experienced as well so I went back to the latest nVIDIA Driver by MSI and all was good. nVIDIA GeForce Driver v391.48

    3) Regarding your CPU clock speeds, if you enter BIOS, do you see anything called VR Current Limit in the OC Menu? If you do find it, can you tell me what's your VR Current limit say? I'm not sure that non-HK CPUs have that setting but it's worth a shot to check

    Vistar Shook, raz8020 and Vasudev like this.
  6. flake90

    flake90 Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    15
    Trophy Points:
    6
    driver 398.11 - ill try the version you suggest with DDU. Thanks.

    VR Current Limit 512.

  7. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    Try the driver that'll fix the stuttering.

    Now, to keep your CPU clocks stable, increase your VR Current Limit to 800. It's safe, the system will only pull what it needs

    Vasudev and raz8020 like this.
  8. flake90

    flake90 Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    15
    Trophy Points:
    6
    Ok, thank you. I'll do that. My version of the laptop have only one power adapter instead of yours btw.

  9. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    The first thing you need to find out is what laptop you have.
    Your post and signature do not make sense.
    You said that you have a GT75 8RG, but the 8RG has the i9 8950HK model, NOT the 8750H.
    And the lower model, 8RF, has a 8850H, not a 8750H.
    Yet your signature says gt75 8rg AND 8750H, which is not a valid configuration.

    I believe the GS65 stealth has the 8750H.
    So you need to check your configuration and list exactly what you have.

    The thermal velocity boost (x50) multiplier "Feature" only applies to the i9 8950HK model also. Not to the lower end ones.

    Assuming you are not reaching 99C and thermal throttling, if you want to stop downclocking, you need to:
    1) uninstall dragon center.
    2) reset your system bios (going to load bios defaults should be enough. If this does NOT work, as it failed to work sometimes for a few users, hold down the power button for 60 seconds, release it and wait 2 minutes for the boot loops and full reset).

    3) Set ICCMAX (VR Current Limit) to a value of 800 in the bios.

    Do not skip any of these steps. Dragon Center causes bad stuff to happen to your bios settings, and the settings it messes up are hidden to the user unless those options are manually unlocked.

    Then do whatever undervolting or whatever you need.

    Personally I recommend you manually unlock your bios, Set IA AC DC loadline to 1 (both values) in CPU VR Settings->Core I/A Domain, and then forget about undervolting (setting IA AC DC loadline to 1 prevents any MSI overvolting so your voltages will already be tuned properly, and you won't be getting low CPU Cinebench scores or WHEA correctable errors or idle BSOD crashes from those -200mv undervolts being discussed), and then you can manually OVERVOLT (by using positive offsets) if you are doing manual overclocking past 4.3 ghz or just use a static override set voltage and find what you need, based on your CPU heat and power. Make sure you stay under 90C at any setting and ideally, under 85C if possible. I am not going to help you with unlocking bios settings. You can find the thread by Paloesco yourself in the main MSI section and do your own research. There are two methods to doing it, both are proven safe, provided you do your own research. If you use the FPTW64 + AMIBCP 5.02 method, make sure the FPTW64 version supports your laptop (the last time I checked you needed the "cannon lake" version or whatever one was listed as the highest version on win-raid.com.

    Vistar Shook and raz8020 like this.
  10. flake90

    flake90 Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    15
    Trophy Points:
    6
    [Current Computer]
    Computer Brand Name: MSI GT75 Titan 8RG
    [Operating System]
    Operating System: Microsoft Windows 10 Home Single Language (x64) Build 17134.137 (1803/RS4)
    UEFI Boot: Present
    Secure Boot: Present

    Central Processor(s) ------------------------------------------------------

    [CPU Unit Count]
    Number Of Processor Packages (Physical): 1
    Number Of Processor Cores: 6
    Number Of Logical Processors: 12

    Intel Core i7-8750H -------------------------------------------------------

    [General Information]
    Processor Name: Intel Core i7-8750H
    Original Processor Frequency: 2200.0 MHz
    Original Processor Frequency [MHz]: 2200
    CPU ID: 000906EA
    CPU Brand Name: Intel(R) Core(TM) i7-8750H CPU @ 2.20GHz
    CPU Vendor: GenuineIntel
    CPU Stepping: U0
    CPU Code Name: Coffee Lake-H

    Its from HWINFO, so the model is right. Thank you for your suggestions and replies.

    Vasudev and Vistar Shook like this.
  11. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    Who did you buy this laptop from?
    8RG is supposed to have 8950HK.
    http://www.hidevolution.com/msi-gt75-titan-094.html

    8RF is supposed to have 8850H.
    http://www.hidevolution.com/msi-gt75-titan-057.html

    Maybe I'm wrong.
    But hey I'm wrong quite often these days.

  12. flake90

    flake90 Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    15
    Trophy Points:
    6
  13. JeanLegi

    JeanLegi Notebook Evangelist

    Reputations:
    308
    Messages:
    525
    Likes Received:
    424
    Trophy Points:
    76
    MSI GT75 8RG-033 Titan - Intel i7-8850H 2.60GHz (GTX1080)
    Found this in the shop where I bought my gt75vr 7rf. Location is Germany.

  14. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    That's still not a 8750H, though.
    MSI and their model name shenanigans .....I swear....

    At least the 45W TDP limit can be removed on ALL MSI GT75 laptops.
    You can set IMON SLOPE to 50 and IMON OFFSET to -31999 (negative),
    And if you get "power limit 1" flag with only 5W being used by the CPU, then hack the EC Via EC RAM register E3.
    Change the value in EC RAM register E3 to match the GTX 1080 + i9 8950HK value (which i do not know what that is, someone will have to post their EC RAM screenshot dump with a 8950HK).
    Since MSI uses the same mainboard on all of their laptops, it has to respect the ability to exceed the TDP on the unlocked SKU's. (which is why the 7700HQ version of the GT73VR Can also exceed 45W TDP while the GE62 cannot apparently).

    Vasudev and raz8020 like this.
  15. flake90

    flake90 Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    15
    Trophy Points:
    6
    Unfortunatly the driver did not help. After 2 hours of 1 play session stutters suddenly appeared. And as far i play the much seriouse they are. Restart the game. And they are gone for about 2 hours again. Magic.

  16. JeanLegi

    JeanLegi Notebook Evangelist

    Reputations:
    308
    Messages:
    525
    Likes Received:
    424
    Trophy Points:
    76
    deactivate v-sync in the nvidia software for all. same ingame when it is activated.
    had this issues with AC:O and after doing this everything was fine.

    raz8020 and Spartan@HIDevolution like this.
  17. flake90

    flake90 Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    15
    Trophy Points:
    6
    Thank you, i tried that, but it didnt help. At the 120 fps i have an hour lag free, at the 60 fps i have 2 hours lag free. I am confused...

    Temps are okay, about 70-80, clocks are fine, i did a memtest, furmark test and intel extreme cpu test. nothing seemed wrong. What else...

    Last edited: Jul 3, 2018
  18. Pedro69

    Pedro69 Notebook Evangelist

    Reputations:
    84
    Messages:
    572
    Likes Received:
    221
    Trophy Points:
    56
    8RG, the letter "G" means that come with:

    GeForce® GTX 1080 with 8GB GDDR5X

    8RF, the letter "F" means that come with:

    GeForce® GTX 1070 with 8GB GDDR5
    GeForce® GTX 1070 with 8GB GDDR5 SLI

    From what i saw, you have models with 8750H+GTX1080 or 8850H+GTX1070 or 8950HK with GTX1080.

    Vistar Shook likes this.
  19. Jakeya

    Jakeya Notebook Enthusiast

    Reputations:
    16
    Messages:
    38
    Likes Received:
    16
    Trophy Points:
    16
    I think i have seen that model before, to be exact it is msi gt75 8rg 001PH, with the lowest end processor 8750 and gtx 1080. My country has the same name with those specs, whereas the 1070 version is 8rf 006Ph.

  20. UncleMysh

    UncleMysh Notebook Geek

    Reputations:
    50
    Messages:
    85
    Likes Received:
    75
    Trophy Points:
    26
    @Phoenix Hello, my 8RG has finally arrived. Could you please be so kind to configure it for me? Could you please add me, so I can PM you?

    Thank you so much!

  21. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    PM Sent

    Vasudev and UncleMysh like this.
  22. bionicfreeze

    bionicfreeze Notebook Enthusiast

    Reputations:
    21
    Messages:
    30
    Likes Received:
    7
    Trophy Points:
    16
    @Phoenix can you please add me id like to pm you so we can setup my system together as you offered before. ill be reloading my clean install + drivers or would you prefer me to use the factory image? i'd be willing to pay you for your time

  23. AWD75

    AWD75 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    @Phoenix Badass purchase and laptop, congrats. I've recently fetched up the ASUS G703 with the i9 etc. and I was wondering if you can reach out to me to help me optimize it better. I'm not that great or anything at overclocking stuff.

  24. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    Sorry, it's only for the HIDevolution Gaming Team.

    Last edited: Jul 29, 2018
  25. AWD75

    AWD75 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I understand, do you have any pointers on where might be a good place to look for

  26. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
  27. AU4U

    AU4U Notebook Evangelist

    Reputations:
    85
    Messages:
    377
    Likes Received:
    47
    Trophy Points:
    41
    I have 3 m.2's in the notebook, I replaced the blue 1mm TP with 1.5mm TP as stock only had enough for 2 m2's.
    I noticed that the contact area is mostly on the OS m2, somewhat on my game m2 and not touching on the storage m2.
    Should I be running this notebook without the passive heat sink as the m2's will get better airflow?

  28. JeanLegi

    JeanLegi Notebook Evangelist

    Reputations:
    308
    Messages:
    525
    Likes Received:
    424
    Trophy Points:
    76
    for me 1.5mm is a little bit to thick.
    change it back to 1mm and check it again.
    on my gt75vr i have contact to all ssd's and it is the same passive cooling.

  29. AU4U

    AU4U Notebook Evangelist

    Reputations:
    85
    Messages:
    377
    Likes Received:
    47
    Trophy Points:
    41
    I had even less contact with the 1mm.
    This is my temps after 1hr gaming, maxed out settings.
    The 2.5" SATA cover is repurposed from the GT73, it has the wrong markings on it for the m.2 slots.
    Is this passive heat sink a repurposed item as well?

    There are mounts on the base for 4 tabs, mine only has 3. The one that is missing is directly across from the point of most contact. Its lifted.
    Do you have 3 or 4 screws holding the HS in place?

  30. JeanLegi

    JeanLegi Notebook Evangelist

    Reputations:
    308
    Messages:
    525
    Likes Received:
    424
    Trophy Points:
    76
    your temps are fine. test it without the heatsink should be a little hotter.
    the complete GT73 = GT75VR = GT75.
    I have 3 screws.

  31. AU4U

    AU4U Notebook Evangelist

    Reputations:
    85
    Messages:
    377
    Likes Received:
    47
    Trophy Points:
    41
    I'm going to order Ultra Soft 2mm.
    One side adhesive, to the heat sink.
    Cut to fit the M.2 only.

    Will report back.

  32. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    Nice

  33. Plinius

    Plinius Notebook Enthusiast

    Reputations:
    0
    Messages:
    24
    Likes Received:
    1
    Trophy Points:
    6
    I dont understand the heatsink for the m.2. flash memory wants it warm. its enough to leave the sticker from the manufactors plus additionally adding to the controller chip a thermal pad for example on the underside before mounting.

    I like the back of this laptop. great and great review. thanks

  34. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    @Papusan

    Forgot to add this to the benchmarks: :rolleyes:

    [​IMG]

    Last edited: Jan 2, 2019
    Vasudev and Papusan like this.
  35. Wild Turkey

    Wild Turkey Notebook Consultant

    Reputations:
    129
    Messages:
    199
    Likes Received:
    129
    Trophy Points:
    56
    How are your temps holding up? Also are you using a cooling pad or just ambient air?

  36. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    temps are perfect, they are still the same as I posted in the benchmarks in the first post, check them out.

    [​IMG]

    The laptop is literally silent all the time unless I open up 50 tabs in chrome in one shot then they spin up a little bit then go back to being quiet. Never had a laptop that operates this quiet in normal day to dy usage and holds the temps perfectly during gaming.

    Vasudev likes this.
  37. Pedro69

    Pedro69 Notebook Evangelist

    Reputations:
    84
    Messages:
    572
    Likes Received:
    221
    Trophy Points:
    56
    What is the max overclock in Ghz that you can get in 6 cores with 8950HK?

  38. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    Never tried as the temps with the stock clocks are about as high as I would like them to be so don't wanna push it to the limits and have my fans spinning.

    the stock Turbo boost is enough for me

    Vasudev likes this.
  39. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931

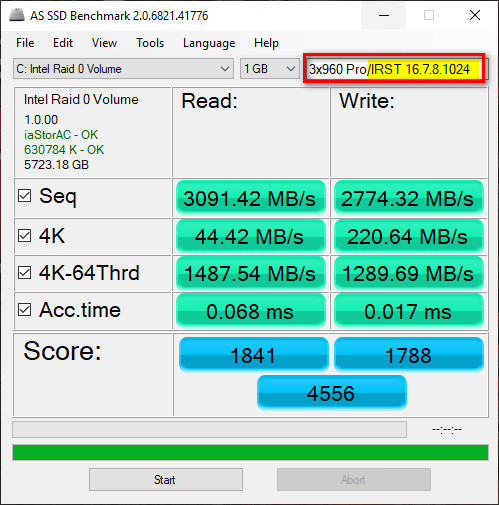

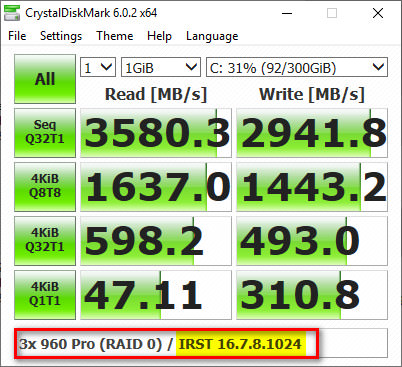

    Benchmarks after installing the latest IRST Drivers:

    [​IMG]

    [​IMG]

    JeanLegi, hmscott and Pedro69 like this.
  40. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    New AS SSD Benchmark/CrystalDiskMark record achieved with the new IRST 16.8.0.1000:

    [​IMG]

    [​IMG]

    Last edited: Dec 10, 2018
  41. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,045
    Messages:
    11,278
    Likes Received:
    8,815
    Trophy Points:
    931
    Why does AS SSD and CDM show different free space?

  42. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    Where do you see AS SSD Benchmark showing the free space?

  43. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,045
    Messages:
    11,278
    Likes Received:
    8,815
    Trophy Points:
    931
    Sorry I mean, disk space is 6TB on AS SSD and 300GiB in CDM.

  44. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    Might be that CrystalDiskMark is showing the space of the C: Partition individually whilst AS SSD Benchmark is showing the space of the entire volume that is part of the RAID 0 Array [​IMG]

  45. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,045
    Messages:
    11,278
    Likes Received:
    8,815
    Trophy Points:
    931
    Okay.

  46. JeanLegi

    JeanLegi Notebook Evangelist

    Reputations:
    308
    Messages:
    525
    Likes Received:
    424
    Trophy Points:
    76
    Bro why don't you use powershell command?
    Get-WmiObject -Class Win32_WinSAT

    Vasudev and thattechgirl_viv like this.
  47. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931

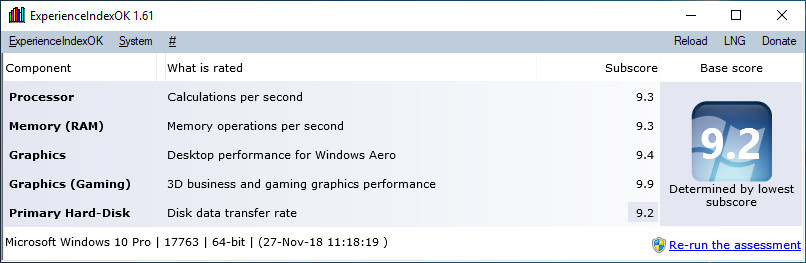

    New slightly improved Windows Experience Index, better Primary Hard Disk score after setting up my RAID 0 Array in a 64K Data Stripe vs the old 128K

    [​IMG]

    Atma, Papusan, Dr. AMK and 1 other person like this.
  48. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281
    Nice score bro, never saw this score before. How about the 16K Data Stripe, do you think it will make any difference?

    Spartan@HIDevolution and Vasudev like this.
  49. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,604
    Messages:
    23,562
    Likes Received:
    36,865
    Trophy Points:
    931
    From my benchmarks, 64K provided the best and fastest results. 16K is great for workloads which deal with small random files, 128K is good for large files like videos or people who work with large database files or large photo. 64K is the best balance for performance between small and large files.

    Dr. AMK, Vasudev and Papusan like this.
  50. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281
    Good to know, but I think it will consume more space since the small files with 1~64 will always take 64kb.

    Vasudev likes this.
← Previous pageNext page →
