Dell Inspiron 7559

Lol. I've forgotten, which one?

I just found out that the Samsung LTN156HL01-102
100% sRGB
72% NTSC
And an amazing response time of 16ms.

Now that is something to think about

Sent from my D6603 using Tapatalk



The lg panel has a display color of 262k while the samsung I've told u earlier has 16.7M. See the difference? In terms of IPS, samsung has the best. Samsung's IPS is called PLS, and I think for LG AH-IPS.



LTN156HL01-C01



It's very hard typing here on my tab.



Lol. Aha! 6 bit and 8 bit. Yes?
I read something about Samsung screens are IPS but not called IPS so yeah.

Okay i think I've made up my mind on a Samsung display. Not the AU Optronics one anymore. I have long ago, cancelled the idea of an LG screen. Now the question is which Samsung screen?

1. LTN156HL01-102
2. LTN156HL02-201
3. LTN156HL06-C01
4. LTN156HL01-C01

Sent from my D6603 using Tapatalk



Okay. But how come these displays didn't make it to the 25 best notebook displays by Notebookreview here - http://www.notebookcheck.net/The-Best-Notebook-Displays-As-Reviewed-By-Notebookcheck.120541.0.html

However LTN156HL01-102 mentioned about 3 or 4 times. Something to think about. No?

Sent from my D6603 using Tapatalk



Typo. Sorry. Here: http://www.panelook.com/LTN156HL06-C01_SAMSUNG_15.6_LCM_overview_24666.html
This model s d 8bit



I think it's because there are no laptops that manufacture laptops with this screen. So it'll be hard for notebookcheck to know. It's like finding a needle in a hystack. Lol



4 is a typo, 3 is d 8 bit



Ok. I understand. Is this the screen you have? If yes, how is it?

Sent from my D6603 using Tapatalk



Ok. I understand. Is this the screen you have? If yes, how is it?

Sent from my D6603 using Tapatalk



My laptop will be delivered this week, hopefully. And I'm planning to replace the screen with the said panel. I chose this because it is the best screen theoretically. Lol



Lol. U don't even have the laptop xD
Well, I'm about to order the screen. I don't know if it's available yet. If it isn't. I'll find an alternative.

Sent from my D6603 using Tapatalk



Guys I really need your help. I did something stupid (installed windows 10 login wallpaper chnager) and now my Dell gets a black screen when I turn it on.

It says on the internet that to fix it I need a bootable windows 10 on a USB?? I didn't make a back up of it so how would I get the windows 10 files for this???
Also how do I get to BIOS?

Please need your help



Here - Uploaded for you. Installed on 2 7559 computers now, no problems -http://d-h.st/id0x

Btw, that's why i didn't try changing that pic. I hate those type of apps. Anyways. If you want to get the Windows 10 actual ISO. Just set Mozilla firefox to open in Windows XP compatibility mode.
Then visit this link - https://www.microsoft.com/en-us/software-download/windows10ISO and you will get the download link for the ISO of the latest windows 10. Get the 64bit one of course.



Onimusha11,
You can download the Windows recovery Image from Dell Drivers & Download site.
In that way you can get the drivers too...although you might need to update them afterwards.

Also, to get into BIOS you have to press the F2 key continuously at startup.



Thanks again guys a managed to fix it.

I aint doing that crazy sh*t again!



Have you seen this?
http://laptopmedia.com/news/asus-fi...ung-ips-panels-on-rog-g551-notebooks-with-lg/

That's a strike for the 156HL01-102, but the question is do the other panels suffer from the same flickering issue? Keenly following this as I want to replace the subpar screen once mine arrives (yet another buyer who hasn't received it yet).



I already saw this link a few hours ago. I am considering getting the LTNHL06-C01 now. If not the said display is still good. I am still checking. It's not an easy decision. I also saw an Acer Nitro review praising the LP156WF6-SPB1. So confusing lol.



Also, I am having problems finding sites that will actually sell you a LTN156HL01-102 for example.

It looks like all the sites are only selling COMPATIBLE screens, so they might not be legit Samsung screens, just an AUO equivalent etc.

Panelook.com lists the HL06-C01 as zero stock.



I'm in Nigeria and I'm buying from China. Afterall they are all manufactured in China

Sent from my D6603 using Tapatalk



Where are you buying it from? If you don't mind me asking. I'm actually undecided between the AUO and Samsung. I would prefer the Samsung naturally but I haven't found anywhere that has it in stock, and it's a legitimate Samsung panel.



Haha mate! I'm also confused and no. I don't mind you asking. PM me and I'll give u more info on getting the screen. I'm paying only $50 if i want AU Optronics B156HAN01.2 or $55 if i want the Samsung LTN156HL01-102.
I haven't got the price for the LTN156HL06-C01 yet but i think it's $65 at MAX!

Shipping not included. Depends on ur country, can get it shipped for Free or you have to pay. But since it's a screen and needs to be handled with extra care... Yeah. Fees should apply.

It's from Aliexpress.com however, u need to know a legit seller or else you buy a bad product or they just send you a 'compatible screen'. I know a great seller. Just PM me bro. Cheers!

Sent from my D6603 using Tapatalk



Cheers, PM Incoming



Incoming PM from me as well, getting this laptop soon

Edit: Nvm, apparently a new member can't send a PM without sufficient post counts.



Replied Sorry it was 4am at time of my last post. Slept off.

I fired you one instead

Sent from my D6603 using Tapatalk



Well, I've ordered the LTN156HL06-C01. Apparently it's supposed to be better thab the LTN156HL01-102. As it has more colours. Seller says its's scarce in the market. The more scarce, the better. I hope he actually has it tho. He says he does. Haha! xD



From where? From the link I've provided?



Be sure to chek the lcd dimension.



I think u should buy from the link I've provided for they have the cheapest price since all panels are delivered to them. They're what you can call wholesalers. I've also tried looking at other sellers with that panel but the specs don't match the one I've seen from panekook.



Yes mate. Which link? The Panelook link? Well, i have a seller in China. Been chatting with him on whatsapp. He will send me the picture of the tag behind the screen before shipping it out. So i will confirm. And i paid only $60 then $12 for 24 to 48hrs express shipping to Nigeria.

Take a look at the panelook comparison here for the my top 4 choice displays.
http://www.panelook.com/modelcompare.php?ids=24180,19049,24666,24053



Which LTN156HL06-C01 version did you order? Matte or Glare?



Hello everyone, I am also looking to buy the Samsung LTN156HL06-C01 panel for my 7559. I am in the UK. Nobody seems to have it in stock, or they say they will send you a "compatible" panel. Stuff that. Can anybody help? Don't mind having it shipped from the EU.



The only place I've found till now is from the link which was posted by Tensai47:
http://www.laptopscreen.com/English/screen-part-number/LTN156HL06-C01/
They have some matte versions in stock in Seattle and Vancouver, but they ships worldwide.
The glare version is not in stock at all.

I 'm searching myself too at this moment. If I find other place to buy I'll report it back to this forum.



This monitor seems to be a fairly mythical beast. I looked for it to see what I could find, and I found a few Chinese sellers on eBay that were charging over $100 USD. The pictures did show the exact model number, and the listing said that screen model. If you got something else you can return the item for a full refund, and the seller has to pay for shipping back. I returned 2 screens to a seller on eBay because twice they sent me the wrong screen. I used the argument that the item wasn't as described, and had my money back very quick. The only pain was going to the post office and dropping off the delivery.

I eventually went with a different seller that showed the actual model number in a picture, the price was almost half of the first seller, but it was "used". The item arrived exactly as described, and the screen was perfect in every regard. The seller I used on eBay was PMVision. I highly recommend them. Fast shipment, and they actually ship the correct item in the listing and not some "compatible" screen.



It says "Compatibility" right on that page. I would highly recommend you call them, email them or get some sort of proof that they are going to ship that exact model. This way if the item arrives and isn't the correct screen you can use PayPal protections or your credit card protections and get your money back.



Thanks. I've contacted www.laptopscreen.com already. They say 4-6 weeks for next UK stock of the LTN156HL06-C01



sorry to brings up old topic.

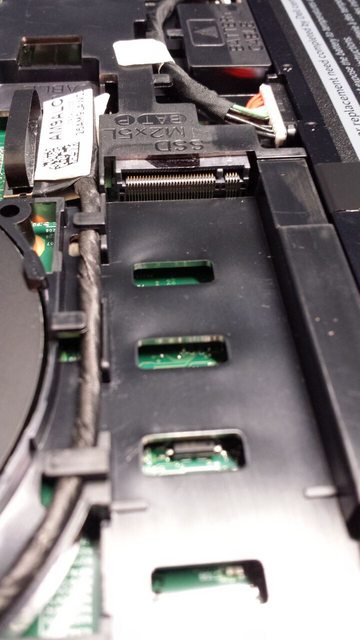

that M.2 slot looks like M.2 PCIe instead M.2 Sata III.
am i right?

M.2 Sata looks like this (three pins):




M.2 PCIe looks like this (two pins):



the M.2 slot on Dell Inspiron 5779 looks like it has 2 pins, instead 3.

so does Inspiron 5779 supports M.2 PCIe SSD?



Thank you, I will do the same.



All I can say is I used this ( http://www.amazon.com/gp/product/B00TGIW1XG?psc=1&redirect=true&ref_=oh_aui_detailpage_o04_s00) and it works and the one person I can remember who tied a PCIe SSD said it did not.



okay then.. thank you.
but how 3 pins M.2 card could fit into 2 pins slot?



Hahaha! And suddenly everybody wants an LTN156HL06-C01. xD
Buy from China. Best option. Gets to you in less than 2 weeks if you are in Europe and 1 week to US i think. Cheers.

If you asking me bro, I ordered the matte. I'm not a lady i don't need my laptop to act as a mirror too
This is my first matte screen and i don't like glossy already.

I have NO IDEA why you would want the Glossy one. When the matte one is even cheaper. Get the Matte one.



It's just different keying (the notches). Basically M.2 devices can be B key, M Key or both. The SSD is both so it will fit into either the B or M key slots. See this graphic:
https://upload.wikimedia.org/wikipe...g.svg/2000px-M2_Edge_Connector_Keying.svg.png



SATA III only no PCIe.
Read the review - http://laptopmedia.com/review/dell-...he-gaming-arena-became-even-more-spectacular/
It's the second con mentioned besides the screen. SATA III mate.



This link. http://www.laptopscreen.com/English/screen-part-number/LTN156HL06-C01/



http://www.laptopscreen.com/English/screen-part-number/LTN156HL06-C01/



This exactly. The top notch is present on both, but all that says is the top one (Evo 850) is a B&M key. The laptop itself is an M key but can take both (it doesn't matter about the missing pins on the B&M key SSD).

The connector sadly has nothing to do with it, it's the way it's pinned and to what chipset. SATA only in this case.

I suspect even though the 7559 is a skylake CPU, the internal chipset is an older model that dell has lifted straight into this laptop model, thus saving on design costs and able to offer the laptop cheaper.

Most proper PCI X4 lane'd NVMe capable laptop are DDR4 as well, so much newer chipset. Can someone fire up CPU-Z and confirm what chipset the 7559 is running?



thank you guys for the confirmation.

well I guess we have to stick with SATA III M.2 SSD (6 Gb/s or 750 MB/s) speed then.

it's still fast enough, though.

thank you.

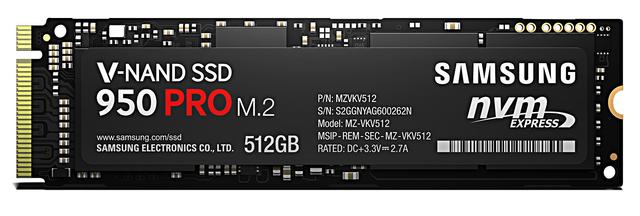

Yeah I was hell bent on getting something with PCIe so I could throw a 950 pro at it, but ultimately here in Australia there's nothing around that isn't worth the value of getting, or is marginally out of my price range (XPS 15).

There's a few contenders in the Asus range but they are very regional specific, not global models with very few reviews on them, so I don't have as much confidence buying them for support.



Hey bro,
Can u plz provide the Chinese website from where u ordered the samsung screen?
I'm thinking to change my screen too once my dell arrives...
Cannot PM u due to new member restrictions
