Precision 7550 & 7750 Owners' Thread

Discussion in 'Dell Latitude, Vostro, and Precision' started by SlurpJug, May 30, 2020.

Page 13 of 83
  1. SlurpJug

    SlurpJug Notebook Consultant

    Reputations:
    20
    Messages:
    115
    Likes Received:
    85
    Trophy Points:
    41
    That reminds me of this..


    SlurpJug, Jun 21, 2020
    #121
  2. SRom

    SRom Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    6
    Trophy Points:
    16

    I didn't think to change the whole heat sink. I do understand that the whole assembly is different. My thought was:

    1. Get extra 7540 heat sink and 7550 heat sink
    2. Swap just fans (just the motor and blades part) from 7550 heat sink to 7540 heat sink
    3. Put modified 7540 heat sink into 7540 system
    4. Hope it to work

    SRom, Jun 21, 2020
    #122
  3. Aaron44126

    Aaron44126 Notebook Prophet

    Reputations:
    879
    Messages:
    5,549
    Likes Received:
    2,071
    Trophy Points:
    331
    I was wondering about this too. You might just be able to swap the fan blades piece... if the size is right. Not sure how much work it would take to disassemble the heatsinks to that part.

    Aaron44126, Jun 21, 2020
    #123
    SRom likes this.
  4. SlurpJug

    SlurpJug Notebook Consultant

    Reputations:
    20
    Messages:
    115
    Likes Received:
    85
    Trophy Points:
    41
    I don't think this will work either. I have opened up the fan assembly before and the fan housing / ducting is completely different since there are openings for the air to blow through the side vents. The motor and bearing assembly are glued to the housing so unless you can get them off, I don't think it's possible.

    The best bet is to swap the impeller but I'm also not sure if the z-height will be correct, and if there will be any actual benefit.

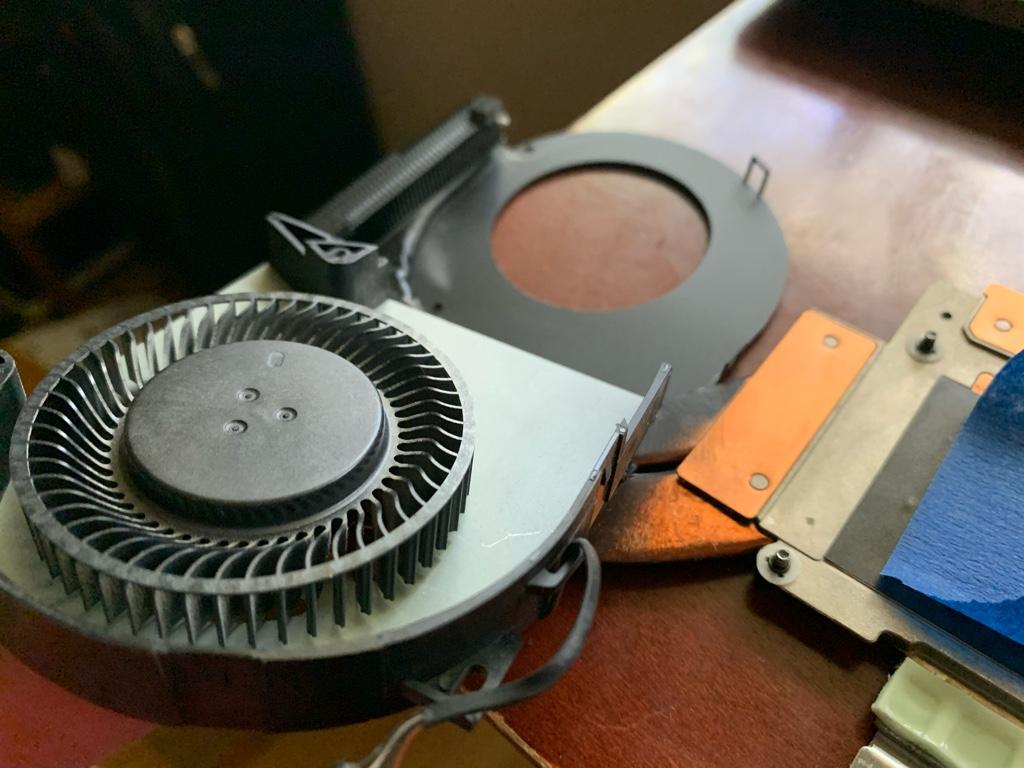

    Here is the fan assembly for the 7540.

    [​IMG]

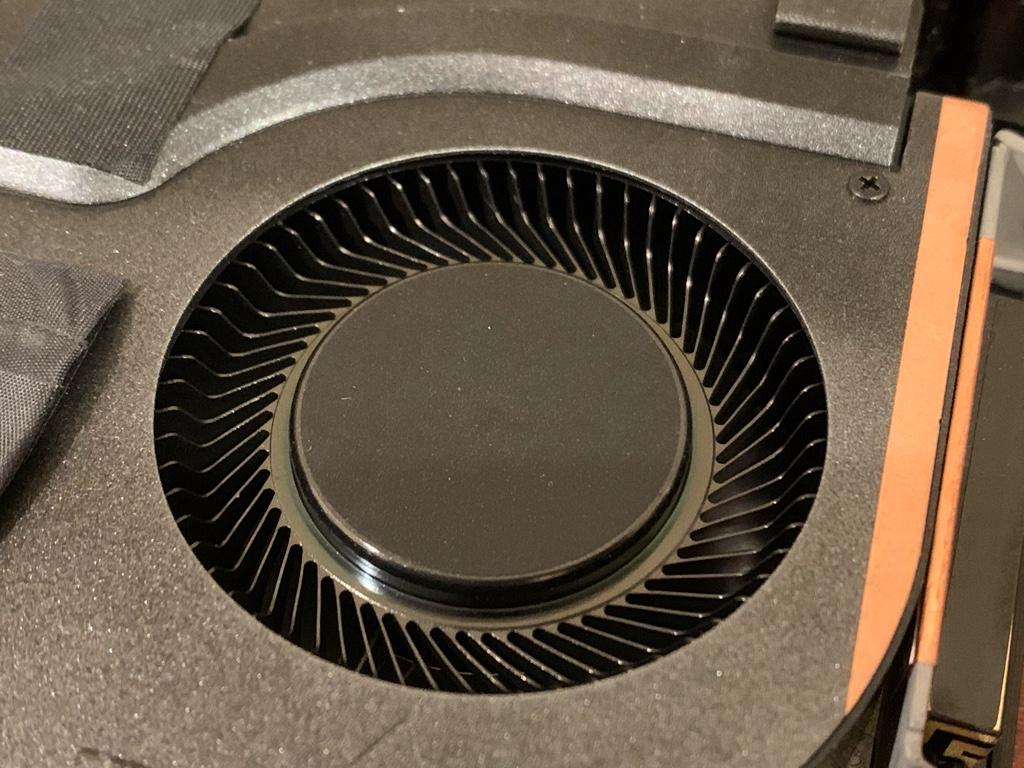

    Here is a partial view of the fan assembly for the 7550.

    [​IMG]

    SlurpJug, Jun 21, 2020
    #124
    SRom likes this.
  5. Kyle

    Kyle JVC SZ2000 Dual-Driver Headphones

    Reputations:
    1,758
    Messages:
    992
    Likes Received:
    575
    Trophy Points:
    106
    Are you using the laptop on a table?
    I'm wondering if putting the laptop on some risers so that there is more airflow beneath the laptop might help?

    Last edited: Jun 22, 2020
    Kyle, Jun 22, 2020
    #125
  6. SlurpJug

    SlurpJug Notebook Consultant

    Reputations:
    20
    Messages:
    115
    Likes Received:
    85
    Trophy Points:
    41
    I'm using it on a table. What concerned me was the paste failing. There's plenty of airflow in the standard configuration.

    EDIT: So after repasting with an extremely thin layer of KPx using the spread method and then applying about 1kg worth of pressure to the heatsink in the areas above the contact points (but not the heatpipes), I have gotten some much better temps. Still have about 36+ hours to go of continuous stress testing before I can call this method of application successful. It appears that reducing the thickness of the thermal paste as much as possible is the best way to go. Viscous pastes tend to hold up better.


    Last edited: Jun 22, 2020
    SlurpJug, Jun 22, 2020
    #126
    Kyle, Evahum and NelBro78 like this.
  7. SRom

    SRom Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    6
    Trophy Points:
    16
    Thank you very much for clarification and the pictures!

    7550 fan definitely looks more robust.


    SRom, Jun 22, 2020
    #127
  8. NelBro78

    NelBro78 Notebook Enthusiast

    Reputations:
    2
    Messages:
    21
    Likes Received:
    5
    Trophy Points:
    6
    NelBro78, Jun 22, 2020
    #128
  9. asalcedo

    asalcedo Notebook Consultant

    Reputations:
    1
    Messages:
    111
    Likes Received:
    3
    Trophy Points:
    31
    SlurJug, can you please send a picture or pictures of the full keyboard, including the numbers keypad and power button.

    Thank you for your great info

    asalcedo, Jun 22, 2020
    #129
  10. SlurpJug

    SlurpJug Notebook Consultant

    Reputations:
    20
    Messages:
    115
    Likes Received:
    85
    Trophy Points:
    41
    SlurpJug, Jun 22, 2020
    #130
    ov_Darkness, Kyle and NelBro78 like this.
