    *** Official Clevo P870TM-R Owner's Lounge - Phoenix 5 ***

    Discussion in 'Sager/Clevo Reviews & Owners' Lounges' started by Spartan@HIDevolution, Jan 9, 2019.

  1. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Nah, it's just down to knowing likely moves with design.

    Meaker@Sager, Oct 26, 2020
    #901
  2. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    jc_denton, Oct 27, 2020
    #902
    electrosoft, rzrwolf and Papusan like this.
  3. DarkGamer97

    DarkGamer97 Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hello,
    I'm new to the forum and would like to upgrade my p870tm-gs Notebook.
    Got it from ebay and wanted to upgrade to a I9 9900K and a RTX 2080.

    Since i dont know anything about bios updating and probably flashing i thought it would be better to ask around here. I havent found anything about this model supporting that kind of upgrade. I know that the P775TM1 is supporting it without flashing the bios.

    I also would like to know the diffrence between the p870tm, p870tm1 p870tm-gs and the p870tm-r.
    Would be nice if someone could help me with it, dont wanna rush it and brick the machine.

    thank you

    DarkGamer97, Oct 31, 2020
    #903
  4. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Read the dsanke bios mod thread.

    Meaker@Sager, Oct 31, 2020
    #904
  5. DarkGamer97

    DarkGamer97 Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Does that mean it needs to be flashed or just need to update the bios ? And what about the diffrent models ? I'm new here i never have done this before sorry about that

    DarkGamer97, Nov 1, 2020
    #905
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Read through the thread, it has a great introductory post.

    Meaker@Sager, Nov 1, 2020
    #906
  7. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    I would wait and see whether the 30x0 cards are compatible, since you will be doing driver mods either way.

    jc_denton, Nov 15, 2020
    #907
    Papusan and DreDre like this.
  8. Dmitry Zyabko

    Dmitry Zyabko Notebook Guru

    Reputations:
    6
    Messages:
    67
    Likes Received:
    6
    Trophy Points:
    16
    hey guys, do's someone know what is the width of the thermal pad for the cooling system for GPU and CPU, and if somebody has an idea for the free space in betwen radiator to cooler ? and what thermal pad is best for this system?

    Dmitry Zyabko, Nov 19, 2020
    #908
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    I've always used a set of 0.5mm, 1mm and 1.5mm pads and eyeballed it to get the perfect fit (stack where necessary) thermal grizzly pads worked well.

    Meaker@Sager, Nov 19, 2020
    #909
    jc_denton likes this.
  10. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    0.5mm and 1mm is a solid way to have everything fit, one thing to keep in mind is the hardness (shore), fujipoly tend to be much harder but offer superior thermal caabilities. But that doesn't help much if you don't get any contact between surfaces :)

    jc_denton, Nov 24, 2020
    #910
    electrosoft, Donald@Paladin44 and Papusan like this.
  11. Dmitry Zyabko

    Dmitry Zyabko Notebook Guru

    Reputations:
    6
    Messages:
    67
    Likes Received:
    6
    Trophy Points:
    16

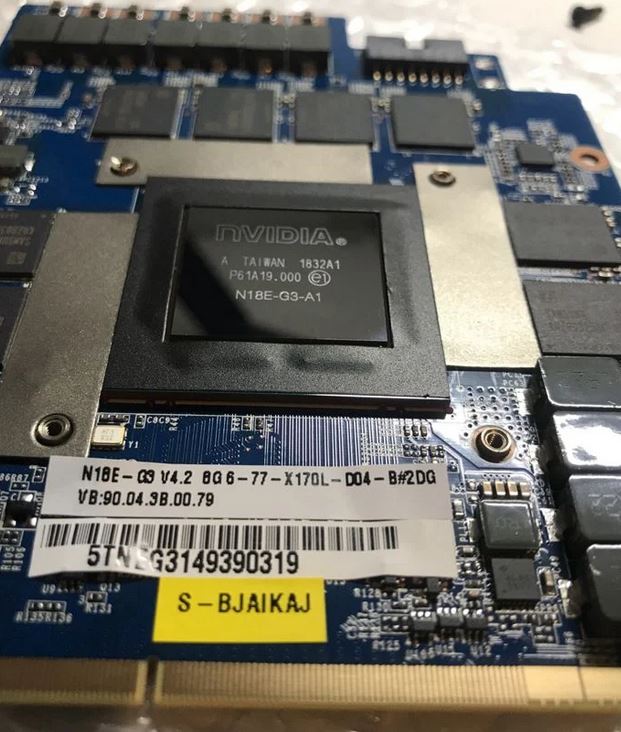

    and what can be done about it ?


    Attached Files:

    Dmitry Zyabko, Nov 24, 2020
    #911
  12. senso

    senso Notebook Deity

    Reputations:
    560
    Messages:
    1,645
    Likes Received:
    788
    Trophy Points:
    131
    Aluminium tape used to seal air ducts, its common in hardware stores, a bit expensive, but its the best thing to seal those gaps.

    senso, Nov 24, 2020
    #912
    electrosoft and Papusan like this.
  13. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    I've had ductape on it for a long time, hasn't deteriorated after +1 year and I've disassembled it a bunch if times with the same strip.
    [​IMG]

    jc_denton, Nov 24, 2020
    #913
    DreDre, electrosoft, Donald@Paladin44 and 1 other person like this.
  14. Dmitry Zyabko

    Dmitry Zyabko Notebook Guru

    Reputations:
    6
    Messages:
    67
    Likes Received:
    6
    Trophy Points:
    16
    that's why I asked about the thickness of the pads for this laptop

    Dmitry Zyabko, Nov 24, 2020
    #914
  15. electrosoft

    electrosoft Perpetualist Matrixist

    Reputations:
    2,766
    Messages:
    4,106
    Likes Received:
    3,942
    Trophy Points:
    331
    I've used both before and even electrical tape has worked fine.

    electrosoft, Nov 24, 2020
    #915
  16. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    The last 0.5mm is best done hand tweaked from system to system.

    Meaker@Sager, Nov 24, 2020
    #916
  17. varunreeves

    varunreeves Notebook Consultant

    Reputations:
    54
    Messages:
    233
    Likes Received:
    66
    Trophy Points:
    41
    Hello Everyone, Posting after a while. While everything else is ok with my machine the nvidia 2080rtx is still not that stable. Of late the system was crashing often with bsods and whea errors. My current driver is DCH 452.06 and am not sure if it is very stable. Can anyone who has actually installed a new driver on this laptop with rtx2080 tell me the latest stable driver and also the exact steps to install.

    In the past I tried to install a driver from the premamod site but even after trying quite a few times and spending a week on it, it didn't install so I then went for installing the driver after downloading from nvidia site. So if there is a better method available can someone please advice

    varunreeves, Nov 26, 2020
    #917
  18. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,710
    Messages:
    29,843
    Likes Received:
    59,629
    Trophy Points:
    931
    Check out the software and the guide in my post http://forum.notebookreview.com/thr...s-owners-lounge.795090/page-650#post-11056090

    Papusan, Nov 26, 2020
    #918
    Donald@Paladin44 likes this.
  19. Dmitry Zyabko

    Dmitry Zyabko Notebook Guru

    Reputations:
    6
    Messages:
    67
    Likes Received:
    6
    Trophy Points:
    16

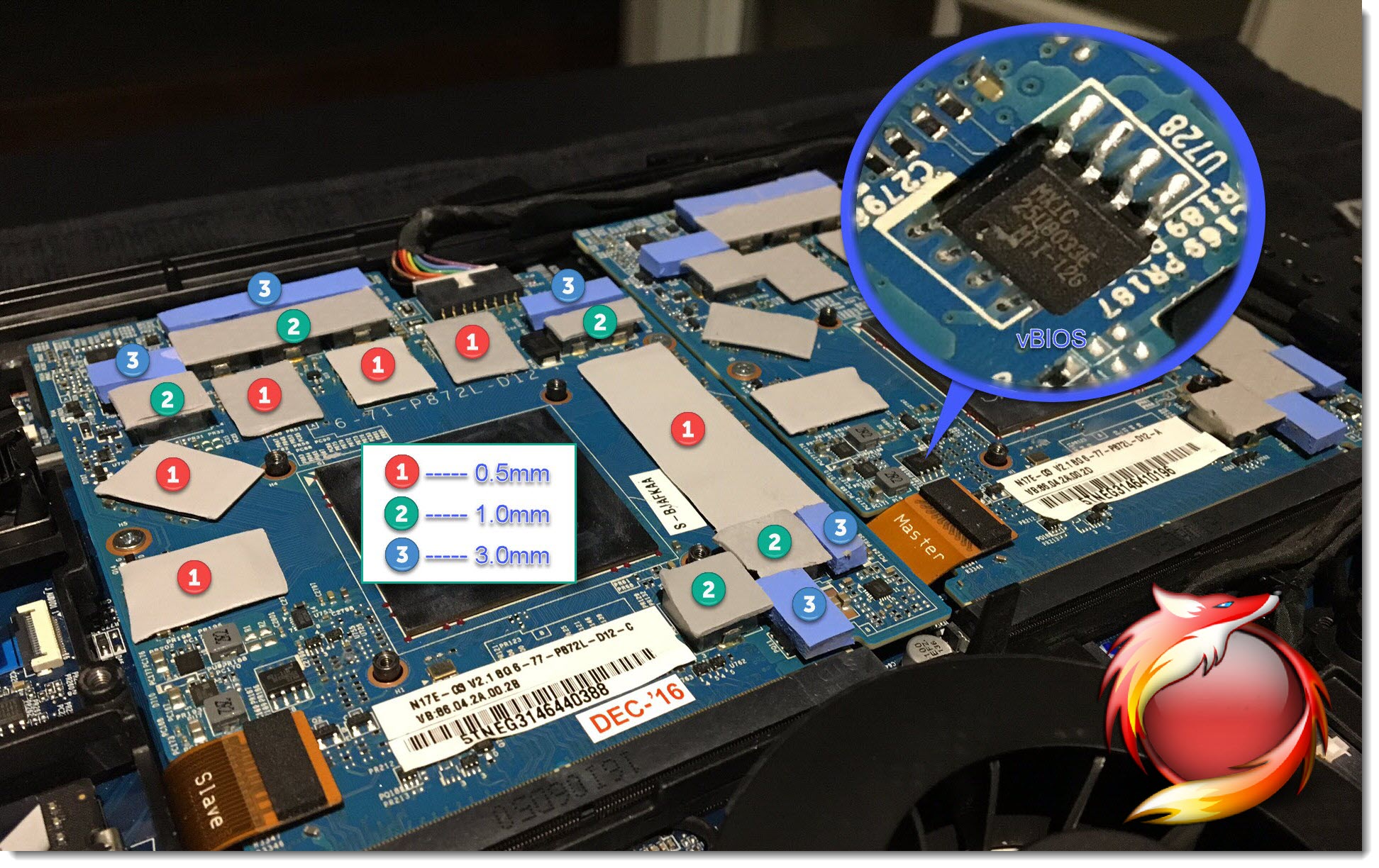

    this photo is for gtx 1080. maybe someone has one for the RTX 2080


    Attached Files:

    Dmitry Zyabko, Nov 26, 2020
    #919
  20. rzrwolf

    rzrwolf Notebook Consultant

    Reputations:
    41
    Messages:
    101
    Likes Received:
    79
    Trophy Points:
    41
    After a lot of reading about mods for the cooling I liked one with the additional cooler for cpu.

    Due to the fact, that there's no metal connecting plate for vapor chamber to cpu heatsink, like it was on p870km vapor, to increase total thermal capacity of cooling system, Temps for 9900k are a bit of pain and constant high cpu rpm is annoying..

    Have someone figured the best fitting additonal cpu cooler? What is part number or at least from which laptop can I get it?

    The reversed pins and 5v voltage is well noted, though)

    rzrwolf, Nov 26, 2020
    #920
  21. rzrwolf

    rzrwolf Notebook Consultant

    Reputations:
    41
    Messages:
    101
    Likes Received:
    79
    Trophy Points:
    41
    Same question here, can someone elaborate?

    rzrwolf, Nov 26, 2020
    #921
  22. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    So the only retailer doing modifications to accommodate the vaporchamber a 2080 in P870 is HID, you can reach out to them and ask. The DIY users who have done the mod likely grabbed some 0.5mm and 1mm pads and stacked where necessary.

    jc_denton, Nov 27, 2020
    #922
    Spartan@HIDevolution likes this.
  23. rzrwolf

    rzrwolf Notebook Consultant

    Reputations:
    41
    Messages:
    101
    Likes Received:
    79
    Trophy Points:
    41
    What were the stock pads on single 115w heatsink - 0.5 or 1mm?

    I have got mine from eurocom, and from all the looks of it - they just used stock pads..

    Looked like 1mm pads, however I may be wrong. I used 1mm on t-shaped modded heatsink for memory and others - stock

    Any info on p/n of the additional cooler used for cpu 5v pin?

    rzrwolf, Nov 27, 2020
    #923
  24. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    My aim is always if 1mm is the smallest is to replace them with 0.5mm and adjust down the rest.

    Meaker@Sager, Nov 27, 2020
    #924
    jc_denton likes this.
  25. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    As long as it's 5v and ~60mm, and you need to wire it up correctly. HY60Q05AP or BSB05505HP-SM.
    http://forum.notebookreview.com/thr...ounge-phoenix-4.809589/page-290#post-10858089

    jc_denton, Nov 30, 2020
    #925
    rzrwolf likes this.
  26. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581

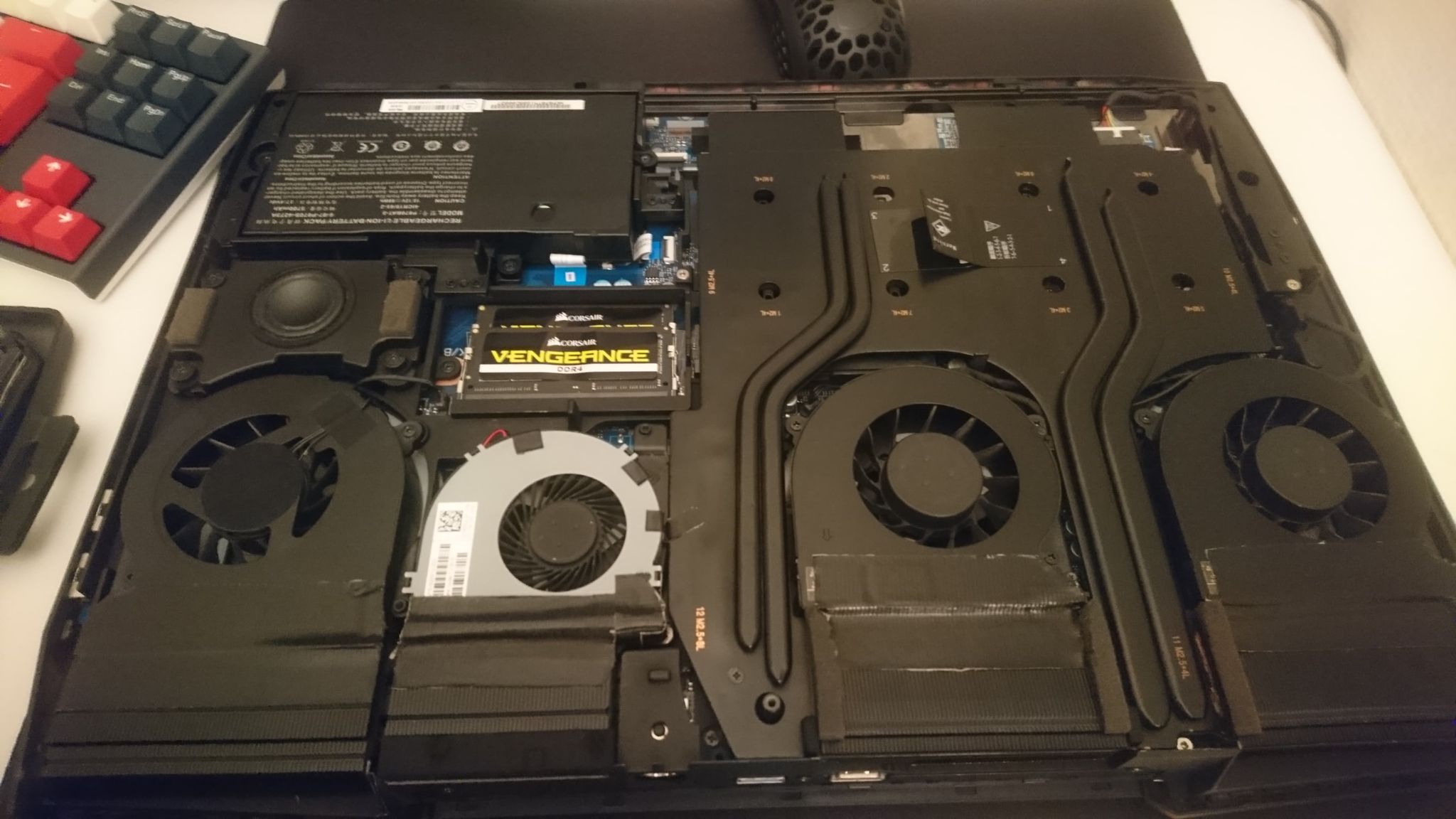

    I recently pulled a 70mm 5v fan out of an old Hp laptop and threw it into the machine, it does perform better in terms of cooling due to bigger size and more blades. However, since it's 70mm and the radiator is 60mm, I blocked off a part of it to increase the pressure.
    [​IMG]

    Last edited: Dec 4, 2020
    jc_denton, Dec 4, 2020
    #926
    Spartan@HIDevolution, cfe and Papusan like this.
  27. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    What's the model and make of the fan?

    Meaker@Sager, Dec 5, 2020
    #927
  28. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    jc_denton, Dec 6, 2020
    #928
    Papusan likes this.
  29. Dmitry Zyabko

    Dmitry Zyabko Notebook Guru

    Reputations:
    6
    Messages:
    67
    Likes Received:
    6
    Trophy Points:
    16
    hey guys

    help to solve the problem
    I bought two Hyperx RAM 32GB 3200 MHz for my laptop
    now the laptop has Hyperx 8 gb 2600 MHz (x2)
    the problem is this:
    if I put two of my own and one new boot of the laptop, for a long time and with a BIOS error (a7 me fw request to downgrade the mespilock version failed)
    if you put two new ones, it does not load at all
    also if i put only new ram it doesn't load


    sorry for my English

    Dmitry Zyabko, Dec 8, 2020
    #929
  30. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Does it run with one stick?

    Meaker@Sager, Dec 8, 2020
    #930
  31. Dmitry Zyabko

    Dmitry Zyabko Notebook Guru

    Reputations:
    6
    Messages:
    67
    Likes Received:
    6
    Trophy Points:
    16
    does not work

    Dmitry Zyabko, Dec 8, 2020
    #931
  32. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    What happens if you put one slower stick with one faster stick?

    Meaker@Sager, Dec 8, 2020
    #932
  33. Dmitry Zyabko

    Dmitry Zyabko Notebook Guru

    Reputations:
    6
    Messages:
    67
    Likes Received:
    6
    Trophy Points:
    16
    works, but takes a long time to load, shows a7 BIOS error during boot

    Dmitry Zyabko, Dec 8, 2020
    #933
  34. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Go into your BIOS and tune the memory timings and see if it works better.

    Meaker@Sager, Dec 8, 2020
    #934
  35. Dmitry Zyabko

    Dmitry Zyabko Notebook Guru

    Reputations:
    6
    Messages:
    67
    Likes Received:
    6
    Trophy Points:
    16
    put the old ram, change the timings, restart, put the new ram ?
    what timings to set ?

    Dmitry Zyabko, Dec 8, 2020
    #935
  36. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Match the slower speed timings and see if that's more stable.

    Meaker@Sager, Dec 9, 2020
    #936
  37. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    Clear nvram (fn+d) and let it retrain with just the new kit.

    jc_denton, Dec 17, 2020
    #937
    Spartan@HIDevolution and Papusan like this.
  38. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    It should detect the different modules and do that when you plug them in.

    Meaker@Sager, Dec 17, 2020
    #938
  39. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    Yeah, but sometimes something funky happens and some of the old timings/settings or w/e are kept and end up in errors. If nothing else its worth a try.

    jc_denton, Dec 19, 2020
    #939
    Spartan@HIDevolution likes this.
  40. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    I keep a random stick of slow speed ram around as sometimes that works better than the reset methods.

    Meaker@Sager, Dec 19, 2020
    #940
    jc_denton likes this.
  41. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    Memory tweaking is the sole reason I will forever keep the tape tabs under the keyboard on this machine.

    jc_denton, Jan 14, 2021
    #941
    electrosoft, Papusan and Donald@Paladin44 like this.
  42. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Fn + D has been my friend and pretty reliable for the most part.

    Meaker@Sager, Jan 14, 2021
    #942
    Papusan and Donald@Paladin44 like this.
  43. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    It's a classic beside the Fn + 1.

    jc_denton, Jan 14, 2021
    #943
    Spartan@HIDevolution, Donald@Paladin44 and Papusan like this.
  44. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,710
    Messages:
    29,843
    Likes Received:
    59,629
    Trophy Points:
    931
    We hadn’t this luxury the first years with DM1 :) Only the old school cmos battery swap and the legendary KB tape mod :D + the old Dm1 board was more picky on ram oc’ing.

    Last edited: Jan 14, 2021
    Papusan, Jan 14, 2021
    #944
    jc_denton, Spartan@HIDevolution and Donald@Paladin44 like this.
  45. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Mine has been pretty picky on speed, a bit more forgiving on timings.

    Meaker@Sager, Jan 15, 2021
    #945
  46. rzrwolf

    rzrwolf Notebook Consultant

    Reputations:
    41
    Messages:
    101
    Likes Received:
    79
    Trophy Points:
    41
    Guys, how do i differ the g-sync enabled RTX2080 card from non g-sync card on these machines?

    I have one and have no idea if it is g-sync enabled and would like to avoid hassle of disassembling two laptops to switch displays, cards and bioses in order to find out)

    Maybe anyone can elaborate?


    Attached Files:

    rzrwolf, Jan 16, 2021
    #946
  47. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    It's a small resistor network I think but I'm not sure where on the 2080.

    Meaker@Sager, Jan 16, 2021
    #947
  48. rzrwolf

    rzrwolf Notebook Consultant

    Reputations:
    41
    Messages:
    101
    Likes Received:
    79
    Trophy Points:
    41
    So far only difference i have found is vbios version difference of the cards, which were supplied with non g-sync LCD displays - "90.04.3b.00.79" VS "90.04.3b.00.7A"

    The last letter being "A" is for supposedly g-sync enabled RTX2080 systems.. However havent seen even a single one p870tm1 with g-sync actually working.. Correct me if i am wrong)

    By the way, can someone guide me a little bit at shunt modding of RTX2080? Which resistors should i order?

    Last edited: Jan 17, 2021
    rzrwolf, Jan 17, 2021
    #948
    jc_denton likes this.
  49. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    I haven't seen any power modded mxm 2080 here, but you would need to either short or mod the two resistors labeled RS1 & RS2 on the top back of the card. I don't recall their resistance.

    jc_denton, Jan 17, 2021
    #949
    Papusan likes this.
  50. Michael Tarr

    Michael Tarr Notebook Enthusiast

    Reputations:
    5
    Messages:
    16
    Likes Received:
    5
    Trophy Points:
    6
    rtx compare.JPG rtx compare.JPG x9c heatsink.JPG
    Hi please correct me if I am wrong I have noticed that with this heatsink
    P870DM2 6-31-P872N-401 and a RTX 2070 you don't need to modify the heatsink for the 2070 as it does not have the chip let's like the 2080 on the bottom right
    View attachment 190914 View attachment 190914 x9c heatsink.JPG View attachment 190914 x9c heatsink.JPG

    Last edited: Jan 17, 2021
    Michael Tarr, Jan 17, 2021
    #950
← Previous pageNext page →
