    Official Coffee Lake Refresh Thread/BIOS for ALL Clevo Laptops - RTX CARDS NOW SUPPORTED

    Discussion in 'Sager and Clevo' started by DaMafiaGamer, Oct 25, 2018.

  1. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    Can you share the link for that heatsink please?

  2. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,148
    Trophy Points:
    931
    yeah im familiar with that heatsink. ohno, im using a different machine P751DM but i also got a unified heatsink. maybe your tolerance might be tighter than mine.

    cope123abc and joluke like this.
  3. cope123abc

    cope123abc Notebook Evangelist

    Reputations:
    190
    Messages:
    556
    Likes Received:
    334
    Trophy Points:
    76
    Will pm you

    joluke likes this.
  4. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    Thanks my friend

  5. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181
    Lapping would be possible since the ihs is thick enough.

    I tried to find the actual info but couldn't. I'm annoyed since I did all this checking including measuring the two chips at the same time as I swapped them. I could find was the 9900k pcb was thicker, and so was the actual silicon (der8auer actually ground a DIE down by 0.2mm with a minor temp gain) compared with 8700k (not 6700/7700k) but couldn't find a direct comparison

    Wikichip says the 9900k package is 4.4mm height.
    I measured a 6700k and it was 4.2mm from bottom of chip pcb (not including the underside capacitors), but this chip is delidded with the adhesive scraped off which could be reducing the height a bit. I'd be surprised if 100 or 200um made a difference but that is lappable if it does

    cope123abc and jaybee83 like this.
  6. Tryner

    Tryner Notebook Consultant

    Reputations:
    28
    Messages:
    188
    Likes Received:
    99
    Trophy Points:
    41
    hello, for a future the upgrade of my p775dm3 with 9900k is it compatible with ram 4000mhz bios version 1.07.26.
    Thanks

  7. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,148
    Trophy Points:
    931
    for RAM speed, the CPU IMC, as well as the RAM sticks and the mainboard traces are important. So far, the highest I've seen in a laptop were 3700 Mhz for one user, with some others reaching 3400 Mhz (either with 3800 or 3200 Mhz rated sticks).

    Papusan and joluke like this.
  8. mirt81

    mirt81 Notebook Guru

    Reputations:
    11
    Messages:
    55
    Likes Received:
    10
    Trophy Points:
    16
    hello . . . jaybee83 . . . see you use an p751dm like i to . . . will do question about function of Ds@nke-Bios .

    have your Computer the Isue thats shutdown per power-button and with shutdown-function from 0s the Computer restarts after little Time ?

    can it be Fixed !

    My p751dm runs Ds@nke-Bios from Date 08.08.2019 included in 128GB_RAM_20190808.7z package .

    Th@nks

    Im on i7-6700t/gtx980m@1228mhz/5500mhz and some better 60hz1080pTN-panel as f*ck IPS :)

    Last edited: Aug 26, 2019
    Tryner likes this.
  9. Tryner

    Tryner Notebook Consultant

    Reputations:
    28
    Messages:
    188
    Likes Received:
    99
    Trophy Points:
    41
    I try this Week 128Go ram with p775dm3

    jaybee83 and joluke like this.
  10. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    Please post if it did work and which brand and ram speeds you used

    Tryner likes this.
  11. Tryner

    Tryner Notebook Consultant

    Reputations:
    28
    Messages:
    188
    Likes Received:
    99
    Trophy Points:
    41
    Yes of course ! The ref of this module : brand samsung; frequency 2666; model m471a4g43mb1

    For overclocking to 2933 =》 http://koolshare.cn/thread-150988-1-1.html

    jaybee83 and joluke like this.
  12. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,691
    Messages:
    29,824
    Likes Received:
    59,553
    Trophy Points:
    931
    @jaybee83 use @Prema Mod bios.

    Arrrrbol, jaybee83 and joluke like this.
  13. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    @dsanke can you help him?

  14. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,148
    Trophy Points:
    931
    hey buddy, unfortunately i dont have any experience with dsanke bios :)

    Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk

    Arrrrbol and joluke like this.
  15. mirt81

    mirt81 Notebook Guru

    Reputations:
    11
    Messages:
    55
    Likes Received:
    10
    Trophy Points:
    16
    *THX for Replays !

    Ok nice to know ( thx@prema). . . hmm bought 8700es will try Self modded Stock Bios with WinRaidTools or ds@nke-bios and maybe its have one good turn.

    Is right that ds@nke-bios so modded that using an 10xx/20xxCard can be used without inf modding or is that only my Phantasy;-)

  16. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    Yes you can use nvidia driver normally and Realtek ones too

    jaybee83 likes this.
  17. mirt81

    mirt81 Notebook Guru

    Reputations:
    11
    Messages:
    55
    Likes Received:
    10
    Trophy Points:
    16
    MayBe for ds@nke´s ( th@nks) impression how his BiosMod works on p751dm : i7-6700t-gtx980m-16gbDDR4-1x4xPcieNVME-2xSataSSD .

    OverAll its Smoother ! - ShutDown with plugt in AC lets do Restart - by plug in an HeadPhone to its old Jack the 0ptical Jack are Actvived i mean that the RedLight gos On but dont know if working dont have 0ptical-Speackers for full test .

    Will Replay whats happend next days with a rigt CoffeeLake .

    Last edited: Aug 29, 2019
    jaybee83 likes this.
  18. Tryner

    Tryner Notebook Consultant

    Reputations:
    28
    Messages:
    188
    Likes Received:
    99
    Trophy Points:
    41

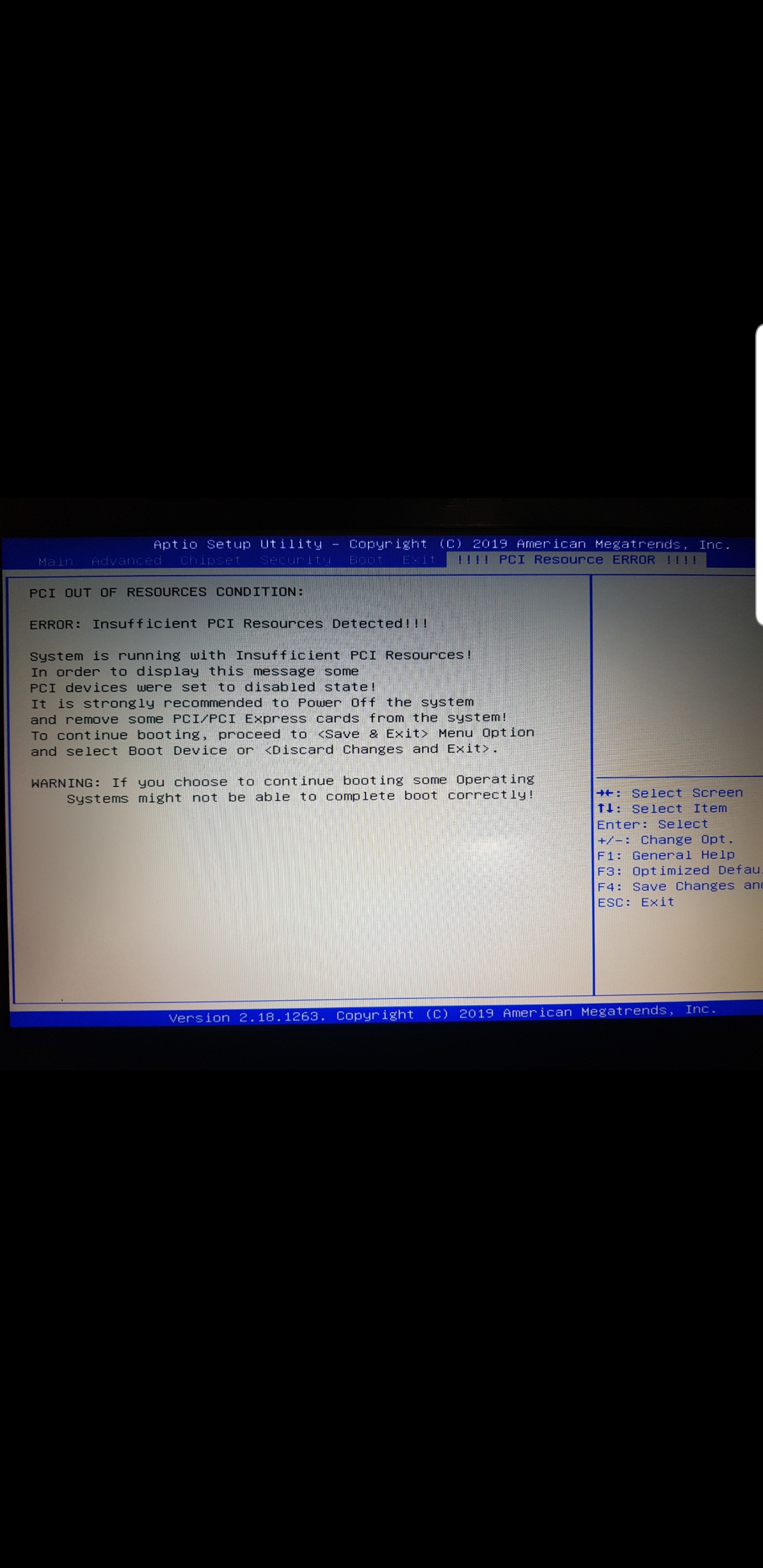

    I have a big probleme with 128Go ram on my p775dm3 with bios mod.
    My laptop reboot again and again i can't boot in windows.


    Attached Files:

  19. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,201
    Messages:
    39,332
    Likes Received:
    70,612
    Trophy Points:
    931
    Does it work normally if you remove 2 sticks?

    Why on earth would you need 128GB of RAM?

  20. Tryner

    Tryner Notebook Consultant

    Reputations:
    28
    Messages:
    188
    Likes Received:
    99
    Trophy Points:
    41
    yes is work if i remove 2 sticks. I buy 4 sticks of 32Go ram. the bios is normaly compatible.

    Mr. Fox likes this.
  21. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,201
    Messages:
    39,332
    Likes Received:
    70,612
    Trophy Points:
    931
    It will be interesting to learn what the issue is. I wonder if it has something to do with the amount of available NVRAM after cross-flashing firmware from another laptop model. (Perhaps not enough space is being allocated in NVRAM.) I wonder if @Prema has encountered this in all of his firmware modding adventures.

    joluke likes this.
  22. Tryner

    Tryner Notebook Consultant

    Reputations:
    28
    Messages:
    188
    Likes Received:
    99
    Trophy Points:
    41
    I think this is a bypass check because I have access to the bios is I can see my 128GB of RAM

    jaybee83 likes this.
  23. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    It could depend on the base version the mod uses.

    jaybee83 likes this.
  24. Tryner

    Tryner Notebook Consultant

    Reputations:
    28
    Messages:
    188
    Likes Received:
    99
    Trophy Points:
    41

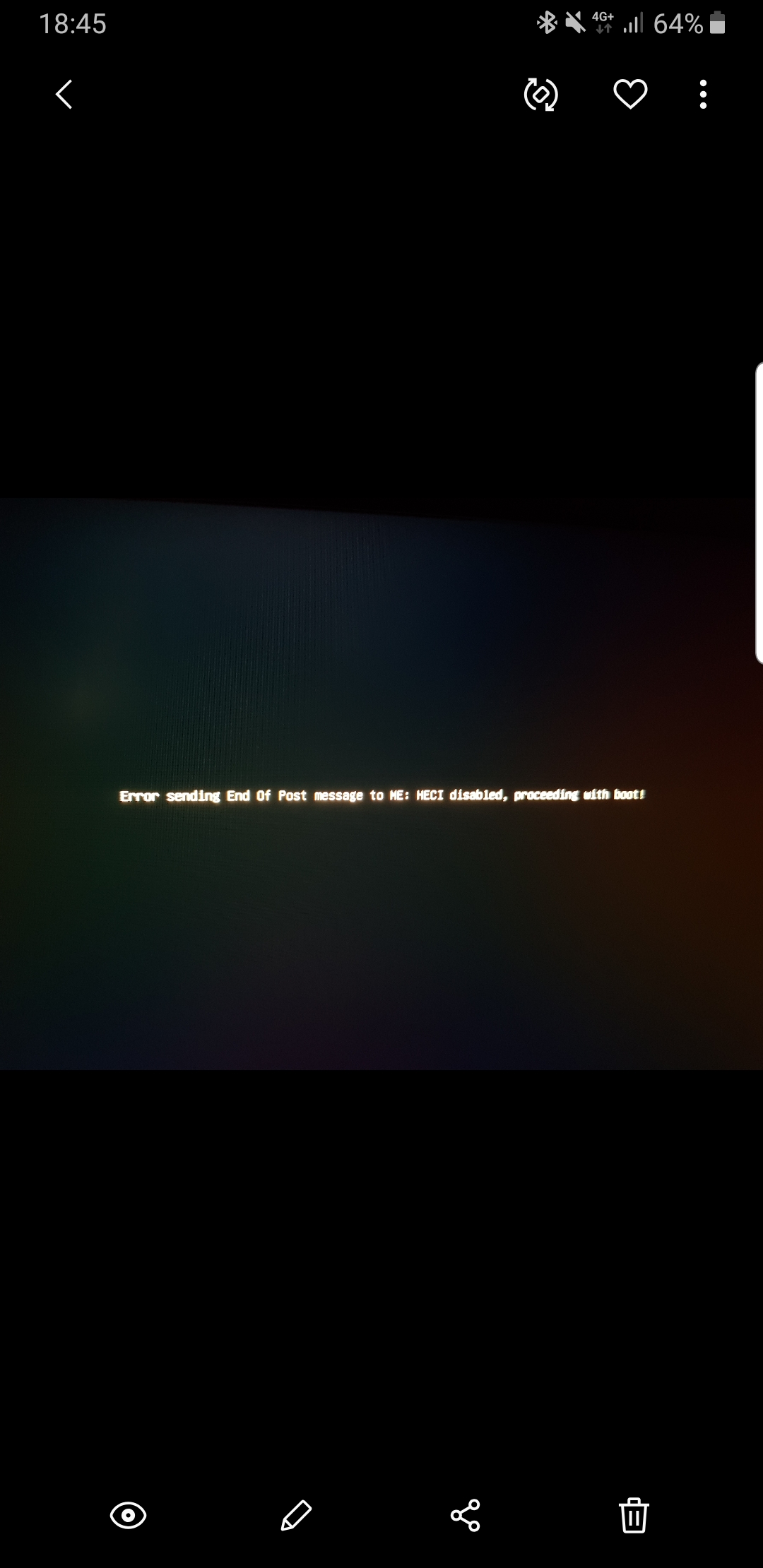

    after several tests I managed to start without my ssd nvme (pci error) but I still have another problem.


    Attached Files:

  25. mirt81

    mirt81 Notebook Guru

    Reputations:
    11
    Messages:
    55
    Likes Received:
    10
    Trophy Points:
    16
    Had same mesage afterplugt USB-stick with Debian0s but booting once from preinstalled Debia0s on NVME now with 8700es . . . after multi reboot is gone . . .

    But Win10 want install !

    8700ES is shown as B4-Stepping and KabyLake maybe Normal . . . ES-version ?

  26. mirt81

    mirt81 Notebook Guru

    Reputations:
    11
    Messages:
    55
    Likes Received:
    10
    Trophy Points:
    16
    Hello . . . can you help me to become acces to Prem@Modedbios . . . maybe can you ask Prem@ if She or He if want help me to Power my P751DM(no-G) with a I7-8700ES or if 0k that maybe you can Help me with your Files ! ?

  27. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    Prema doesn't sell or share his BIOS in public. Need to buy a laptop from a partner of his

  28. mirt81

    mirt81 Notebook Guru

    Reputations:
    11
    Messages:
    55
    Likes Received:
    10
    Trophy Points:
    16
    Hmm as now General not like before years ago ? Not in Privat case . . . damn mean where i can get @ current time a Prem@partner Laptop with Win7 support ;-)

    Dont know but P751DM is nice Handy a great Part @ Computer . . . 0h no it will be Horror not PowerUp the Specs of Good Clevo Hardware :)

  29. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    https://premamod.com/partner/

    Here you have a list of Prema's partners that sell Clevos and his BIOS.

    Cannot buy it seperatly sadly

    Last edited: Aug 31, 2019
  30. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    Remember official support for 7 is ending so it could become quite vulnerable.

  31. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    I’m not too worried. I’ve dual booted Windows 8.1 as a contingency plan, but realistically I expect to ride out Windows 7 until Windows 10 or DX12 gets a killer app if it ever does.

    joluke likes this.
  32. mirt81

    mirt81 Notebook Guru

    Reputations:
    11
    Messages:
    55
    Likes Received:
    10
    Trophy Points:
    16
    Impression . . . no turn with 8700es ( PinMod was good) yet special UEFI s*cks feels like there something interchanged and there is compatible mode always present

    Had dualboot on NVMEx4 for Windows and Debian both with own UEFI-Partition to chose over "Bi0s" wich 0s starts Up . . . deleted howl Windows stuff and would Clean install . . . for that i have to hide the DebianUefiPartition otherwise Windows will Push his StartEntrys in this and i have chose 0s after DebianBootloader is run . . . because i cant hide this Partition i Installed Unhiden and Windows ignored the DebianUefiPartition ( Surprising :) but Windows install crash and Debian crash also running Short time .

    After MultiFlashing different "Self" moded bi0s with WinRaidTools i Flashed back to Stock Skylake Bi0s . . . Normal after NVFlash clean and that Stuff the stock Bi0s start in Pure uefi but yet it was in CompatibleMode ? All done with Programmer.

    EC-eeprom ?

    Hoply ds@nke find in my text some Ideas

    Without using ds@nke Bi0s it can happen that by missing DS@NKE Bootlogo something is missing . . . muhaha :)

  33. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    Why the h€l1 are y0u wr1t1ng like tHis@ @mirt81?

    Type normally. Can't understand half of what you wanna say...

    mirt81 likes this.
  34. electrosoft

    electrosoft Perpetualist Matrixist

    Reputations:
    2,766
    Messages:
    4,094
    Likes Received:
    3,915
    Trophy Points:
    331
    His replies look normal to me. I’m not sure why you’re seeing some type of bastardized leet speak.

  35. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,148
    Trophy Points:
    931
    joluke likes this.
  36. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    Well, not completely. In the Beyond3D forums one of the Microsoft employees on the DirectX team (Max McMullen I think his name was) clarified that it would be on a game by game basis, and it’s only partial support, so the best performance/visuals will still be seen on DX12 running in W10.

    mirt81 and jaybee83 like this.
  37. mirt81

    mirt81 Notebook Guru

    Reputations:
    11
    Messages:
    55
    Likes Received:
    10
    Trophy Points:
    16
    Helpfull good Member i think ( Notebookreview - TechInferno)

    Moloby: P870DM-G DSANKE BIOS | 4k | [email protected] (-150 uv) | Nvidia GTX 970m | HyperX 16GB 2667 CL15 | Samsung 850 EVO 256gb

    can i ask if you using a modded EC-Firmware because i think P870DM-G is same SkylakeGeneration like P751DM-G and see your nice with an 8086 ? ! ?

  38. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    P870DM-G isn't the same. Don't mix firmwares.

    The EC is not moddable. Don't mess with the EC else you'll end up with a hard brick. EC isn't recoverable with a spi programmer. You need to desolder it and replace the chip.

  39. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    Yeah flashing that will give you s nice paper weight/door stop to block a door open with.

  40. mirt81

    mirt81 Notebook Guru

    Reputations:
    11
    Messages:
    55
    Likes Received:
    10
    Trophy Points:
    16
    joluke likes this.
  41. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
  42. snowy88

    snowy88 Notebook Enthusiast

    Reputations:
    15
    Messages:
    18
    Likes Received:
    12
    Trophy Points:
    6
    FTW_260 and joluke like this.
  43. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    @dsanke what changed in this version that is on Baidu?

  44. dsanke

    dsanke Notebook Consultant

    Reputations:
    98
    Messages:
    116
    Likes Received:
    229
    Trophy Points:
    56
    for 128GB RAM PCI Error , try edit this option:
    Chipset
    System Agent (SA) Configuration
    Above 4GB MMIO BIOS assignment
    Disabled

    jaybee83, Tryner and joluke like this.
  45. dsanke

    dsanke Notebook Consultant

    Reputations:
    98
    Messages:
    116
    Likes Received:
    229
    Trophy Points:
    56
    some readme file to avoid possible issues.

  46. matyee

    matyee Notebook Deity

    Reputations:
    254
    Messages:
    861
    Likes Received:
    430
    Trophy Points:
    76
    @Guys
    @dsanke

    do I understand correctly that with this modified bios for 870km1 I can put a 2080RTX in the laptop?
    Will I loose gsync with the 2080rtx? :(
    Thx

    Last edited: Sep 17, 2019
  47. Tryner

    Tryner Notebook Consultant

    Reputations:
    28
    Messages:
    188
    Likes Received:
    99
    Trophy Points:
    41
    Yes exactly

  48. matyee

    matyee Notebook Deity

    Reputations:
    254
    Messages:
    861
    Likes Received:
    430
    Trophy Points:
    76
    Thx. the gsync is an issue :(

  49. joluke

    joluke Notebook Deity

    Reputations:
    1,008
    Messages:
    1,796
    Likes Received:
    1,188
    Trophy Points:
    181
    Depends on your LCD and if cpu supports it. Need to test it. In my case g-sync didn't work in stock BIOS with the AUO HAN173B031 but started working with this BIOS. So test it... Better way of knowing there is

  50. matyee

    matyee Notebook Deity

    Reputations:
    254
    Messages:
    861
    Likes Received:
    430
    Trophy Points:
    76
    You are right, but in case of RTX is not that easy, as you need to modify the heatsink. Furthermore in your case the 775dm3 I assume has got a modified TM1 bios, which is fully working with AUO3.1 as the TM1 was certified with AUO3.1 and 1080. In my case the 870TM1 was never assembled with 20XX cards and If i do it there is no way back :( so for this decision it would be good to know what I can expect...

← Previous pageNext page →
