    [Guide] How to take full control of the i7-8750H (Advanced version)

    Discussion in 'MSI' started by hackness, Sep 19, 2018.

  1. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
    You are certain you don't have your TDP in bios set to 35W?

  2. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    As i said itd called configurable tdp got level 0 and level 1 level 0 is normal running one caller normal where cpu runs at 45W level 1 is called down and sets cput to 35W when gpu runs i set custom limit on everything to 70W and still same issue

  3. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Quick updatw pl2 rarely kicks in now and i got no more power throttle thanks for all the people who helped❤️
    The only issue i am getting is edp other under ring

  4. xLima

    xLima Notebook Evangelist

    Reputations:
    132
    Messages:
    567
    Likes Received:
    280
    Trophy Points:
    76
    Try lowering iGPU frequency. For i7 8750, dropping by 50 MHz solved EDP other (I think I was 1100 -> 1050 MHz)


    Also please post what you did to solve the PL issue, I would like to try on an Asus TUF FX I have laying around. Thank you!

    Sent from my BLA-L09 using Tapatalk

  5. senso

    senso Notebook Deity

    Reputations:
    560
    Messages:
    1,645
    Likes Received:
    788
    Trophy Points:
    131
    I have a TUF FX705GE and I dont have any PL problems, just keep in mind that the latest BIOS disables undervolting, so block it on Windows(Disable the Firmware device in Device Manager) and flash version 305 of the BIOS.

  6. xLima

    xLima Notebook Evangelist

    Reputations:
    132
    Messages:
    567
    Likes Received:
    280
    Trophy Points:
    76
    The FX504 lock down to 35W or 25W if CPU and GPU is on, regardless of temperature. Its horrible, and BIOS is locked right.

    Sent from my BLA-L09 using Tapatalk

  7. senso

    senso Notebook Deity

    Reputations:
    560
    Messages:
    1,645
    Likes Received:
    788
    Trophy Points:
    131
    Oh, yeah the FX50x models from what I have read have some atrocious BIOS and EC limits.
    I was able to unlock my BIOS with help from Lost_N_Bios over at win-raid forums, maybe request his help.

  8. NeXt3R

    NeXt3R Notebook Evangelist

    Reputations:
    72
    Messages:
    656
    Likes Received:
    109
    Trophy Points:
    56
    your IMON set not works
    90W real -- 12W prim95 on aida get 5w :D

    IA/core domain
    31999
    negative
    slope 50
    and must disable all LOCK or send bios name/notebook name "i check all in FILE --LOCK" for better correct setup :confused:


    edit
    only need IMON not more

    custom VR -- TDC is enabled defaults
    and total power is 195w /hybrid power ? --PSYS

    Last edited: Jul 24, 2020
  9. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    The 1050MHz trick gave me constand edp other

    And here is what i did
    Disable TDC VR for cpu/IA core
    Set VR current limit to 928 in bios = 232amps in ts
    Set AC and DC loadline to 1 "make sure you remove your undervolting before doing that first"
    Set cpu core imon slope to 50
    And imon offset to 31999 and dont forget the negative sign
    Go to TDP power limits set PL1 and PL2 to 70Watts everywhere for me i had to levels i set 70W in both.

    Now in throttle stop my cache ratio was 8-39 i changed it to 8-30 no effect on performance but massive heat and power improvment.
    Click TPL in TS and uncheck clamp at the power limits and set long and short to 70W.
    Now go to fivr and at cpu cache increase its icc max current to 232amps like the core.
    These are all the stuff i did and seems like this combination made my life easier.
    Keep in mine these srr on i5 8300H not i7

    Last edited: Jul 24, 2020
  10. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
    EDP OTHER under ring shows when the min on your cache ratio is below the base clock rate of the processor. For your processor it's 2.3Ghz base clock, so setting cache ratio min to 23 will stop that.

  11. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    I think that is not a big issue then if EDP other appears i mean it will not cause any frequency drops or anything its just like a warning or a limit popup right?

  12. DimitriosMSI

    DimitriosMSI Notebook Consultant

    Reputations:
    12
    Messages:
    146
    Likes Received:
    46
    Trophy Points:
    41
    How to Go to TDP power limits in bios and set PL1 and PL2 to 70Watts.
    Can u pls explain? Tnx

  13. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    I dont remember names exactly since i am not in front of my laptop
    But
    Advanced > power and performance > cpu power > Config TDP configurations
    Set power limit 1 and 2 to 70000

    In my case as you will see there is nominal and down and whatever value i put there it still gets to the 35W limit of down when dgpu starts running but in HWinfo you will see the power limit is actually 70W after set in bios

  14. DimitriosMSI

    DimitriosMSI Notebook Consultant

    Reputations:
    12
    Messages:
    146
    Likes Received:
    46
    Trophy Points:
    41

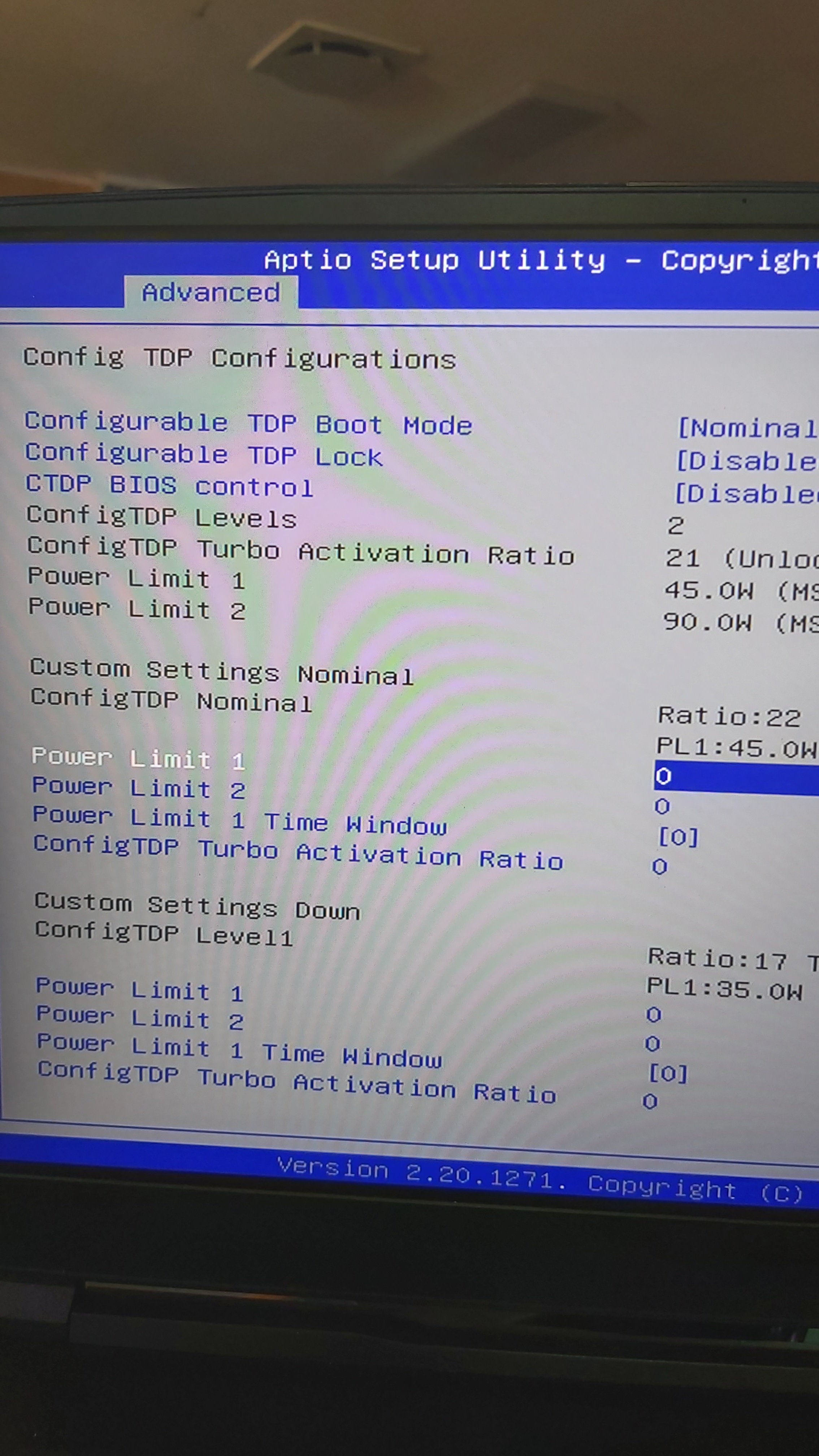

    Tnx for yr reply but here I have 2 different custom settings. Which one should I change? Check pls the screenshot


    Attached Files:

  15. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Thats exactly our main issues over here
    Set both pl1 and pl2 at two options under 45w and 35w but frankly setting them to 70000 would still make cpu lock at 35W
    Also your maximum limit is 90W so set both pl1 and pl2 to about 85W would be perfect

    DimitriosMSI likes this.
  16. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
    It should only pop up when your cpu is in idle, it just means that the cache to cpu ratio has dropped below base clock. It does this for the reason of saving battery, like an efficiency type of thing. You can always go into bios and change the default minimum if it bothers you.

  17. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Is it the ring ratio in overclock menu?

  18. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41

  19. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
  20. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Is that how i properlt set the pl1 and pl2 to a working 70 Watts?

  21. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
  22. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
    Yes

    You will also need to change the time window if you are getting PL1 problem.

  23. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
    you shouldn't need to change PL1 though. Is PL3 giving problems to?

  24. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Ok i set them to 70000 and i will test

  25. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
    If it still gives you power limit problem, there's one more thing to change.

  26. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    None shows any problems throttle stop only reports pl2
    And in hw info

    Its ring max voltage, iccmax, pl4 yes
    And IA pl2,pl3 yes
    So its kinda confusing but i think by using the fixes combination i mentioned earlier i no more get that and pl throttle only occurs when running aida64 for stress testing nothing more so i think the pl throttle aida64 causes is the actual chip design limit maybe

  27. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Tell me i am trying all things now :D

  28. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
    does it still limit package power to 35w?

  29. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Yes

  30. NeXt3R

    NeXt3R Notebook Evangelist

    Reputations:
    72
    Messages:
    656
    Likes Received:
    109
    Trophy Points:
    56
    power limits override not works on locked H cpu
    send info BIOS Name 10C ?
    and imon not works - not see any different after this ?

    no need 200amp ++ why :D

  31. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Yes bios is 10C

  32. DimitriosMSI

    DimitriosMSI Notebook Consultant

    Reputations:
    12
    Messages:
    146
    Likes Received:
    46
    Trophy Points:
    41
    Ok mate. I'll do 70000 at first and then I'll try the 85w in bios and in TS too.

  33. NeXt3R

    NeXt3R Notebook Evangelist

    Reputations:
    72
    Messages:
    656
    Likes Received:
    109
    Trophy Points:
    56
    on this notebooks not works PL overdrive only IMON
    tested 9rcx ,,some 8th H cpuS
    only way is IMON -not works ,..,,.,not possible help
    some controls EC - need full battery + AC all time

    remove all app for cpu \\dragon\\TS\XTU all ,,restore bios defaults ,,and set ONLY IMON

  34. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
    Haha yes i agree... but let them at least try and see for themselves. I've told already why set 200 amp? :confused:... It does nothing. I've told him that PL2 code will show up when both cpu and gpu are underload because the gpu needs power too. :p

    This is only happening for him on a benchmarking program, not normal use. :rolleyes:
    He is hitting no thermal throttle and is able to sustain all cores at 3.9Ghz.
    That's excellent, and i think he is done. So now just be happy and play some video games. :D

    Muddii_yasser and DimitriosMSI like this.
  35. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Yeah thats what im doing now if thr issues only appears in benchmarking then its not a big deal

  36. Divinated

    Divinated Notebook Consultant

    Reputations:
    5
    Messages:
    103
    Likes Received:
    30
    Trophy Points:
    41
    You are very fortunate, not many people have been able to squeeze the max out of their cpu without throttling eventually.

    Now time to run msi afterburner and use its overclock scanner to squeeze the max out of your gpu. I actually find that it lets the gpu run with higher clock rates at lower voltage then stock... o_O the cards in these laptops have to be modulated, just to save energy... like who is actually going to game on laptop battery, 45 mins and it will be dead :rolleyes:

  37. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Thanks to msi their turbo mode in dragon center allows me to overlock the card by 200MHz for core and 250 for memory which msi claims it is within their safe limits

  38. DimitriosMSI

    DimitriosMSI Notebook Consultant

    Reputations:
    12
    Messages:
    146
    Likes Received:
    46
    Trophy Points:
    41
    Dragon center is a joke to me. It messing with the bios settings and makes the performance worst. If you really like to overclock yr gpu, use afterburner instead. For fan curves there is also the "silent option" software. My opinion....

  39. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    They fixed it into later versions it doesnt affect the bios anymore

  40. chinoquezada

    chinoquezada Notebook Enthusiast

    Reputations:
    0
    Messages:
    35
    Likes Received:
    6
    Trophy Points:
    16
    Dragon Center feels like training wheels on a performance bike.

    Afterburner + Silent Option is more appropriate.
    Btw, when did ThrottleStop stop being the go-to for undervolting? Just found out from screencaps here about QuickCPU. (I know, Intel XTU too, but TS was/is much better)

  41. Muddii_yasser

    Muddii_yasser Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    I used ts for everything i am not familiar with quickcpu and its option so i didnt want to try new stuff

  42. MoeAmen

    MoeAmen Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Hey what is the difference between chapter 2 and 6? i want to limit the cores active on battery from 6 to 4, should i using chapter 2 or just stick to 6?

  43. haleskinn

    haleskinn Notebook Enthusiast

    Reputations:
    0
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    so i read the whole thread and i am using pretty much every knowledge there is on this forum, imon slopes etc, got my ge75 8se cinebench r15 scores up to 1260 and r20 to 3075, now i am left wondering is there any way i can go to 4ghz or 4.1 on all cores? any bios mods? i am not thermal limited as i have modded cooling alot and only maxing @75c when running constantly benchmarks, so getting that extra .1-.3 ghz would be nice extra, any help is appreciated

  44. xLima

    xLima Notebook Evangelist

    Reputations:
    132
    Messages:
    567
    Likes Received:
    280
    Trophy Points:
    76
    There is a more advanced BIOS you can get from Svet that allows you to raise the BCLK (maybe FCLK, I forget). You can maybe get that extra 100 mHz.

    Sent from my BLA-L09 using Tapatalk

  45. senso

    senso Notebook Deity

    Reputations:
    560
    Messages:
    1,645
    Likes Received:
    788
    Trophy Points:
    131
    Impossible to change the CPU multipliers.
    You can MAYBE create an ICC profile to allow BCKL overclocking, but the maximum is 103Mhz, and not all systems are stable at that, and that gains you 100Mhz at the max multiplier..

  46. Vegettoex

    Vegettoex Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    1
    Trophy Points:
    6
    Hello everyone, I just want to say thanks for all the info in this thread. But for the love of god I can't make my I7 9750H run stable with AC/DC Loadline 1, Windows keeps giving me bsod for no reason.. I can't make it stable, and before it was.

  47. xLima

    xLima Notebook Evangelist

    Reputations:
    132
    Messages:
    567
    Likes Received:
    280
    Trophy Points:
    76
    Are you UVed? The other option is to set positive voltage offset.

    Sent from my BLA-L09 using Tapatalk

    Vegettoex likes this.
  48. Vegettoex

    Vegettoex Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    1
    Trophy Points:
    6
    I'm not aplying any UV to the cpu, and how about the positive voltage offset??
    I'm using AC / DC Loadline at 50 each, if I go to 1 I get BSOD playing games or even in the desktop during idle.

  49. senso

    senso Notebook Deity

    Reputations:
    560
    Messages:
    1,645
    Likes Received:
    788
    Trophy Points:
    131
    With AC/DC loadline at 1 you might need to give the CPU more voltage, TBH doesn't seem to be all that usefull instead of just using the stock values and undervolting.

    Vegettoex likes this.
  50. Vegettoex

    Vegettoex Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    1
    Trophy Points:
    6
    I guess my only option is to try stock settings at least on AC/DC Loadline and unvervolt with throttleStop

← Previous pageNext page →
