MSI GE63VR / GE73VR Raider Laptops

Has anyone run Linux (Ubuntu specifically) on one of the Raiders? What works and doesn't work?



I will try to install Ubuntu soon on a separate partition.



these guy doing repasting on GE73VR (GTX1070) i think he's using thermal grizzly kryonaut, if i don't wrong, the result he got is increase the temperature compare to stock paste ? LOL anyone can translate from korea ?



I didn't watch the video, just responding to your text. Kryonaut takes 24 hours to cure, and if the temperature difference is small enough the first temps can look higher than original.

Use your CPU / GPU repasted for 24 hours and check again before panicking and repasting again



just want to ask, in that period of "cure (24hrs for kryonout)" i can't stress my CPU and GPU during that time ?



Why would you think that? Just run like normal. The heat / pressure / air contact will cure the paste over 24 hours.

If you thermal throttle at first, the CPU / GPU will detune themselves, so it's not going to overheat. If the temps get too high the CPU / GPU will shutdown. That's unlikely to happen.

Again, don't waste time re-pasting unless you are still thermal throttling after undervolting the CPU.

Try -100mV first, that's usually enough. You can spend more time going -5mV at a time until unstable, then back off +10mV to get the CPU voltage tuned optimally.

A 10c drop in temps under load isn't unusual, and some see even more of a drop with better undervolting CPU's.



i dont know the means of cure time from a new paste, that's why i m asking ...

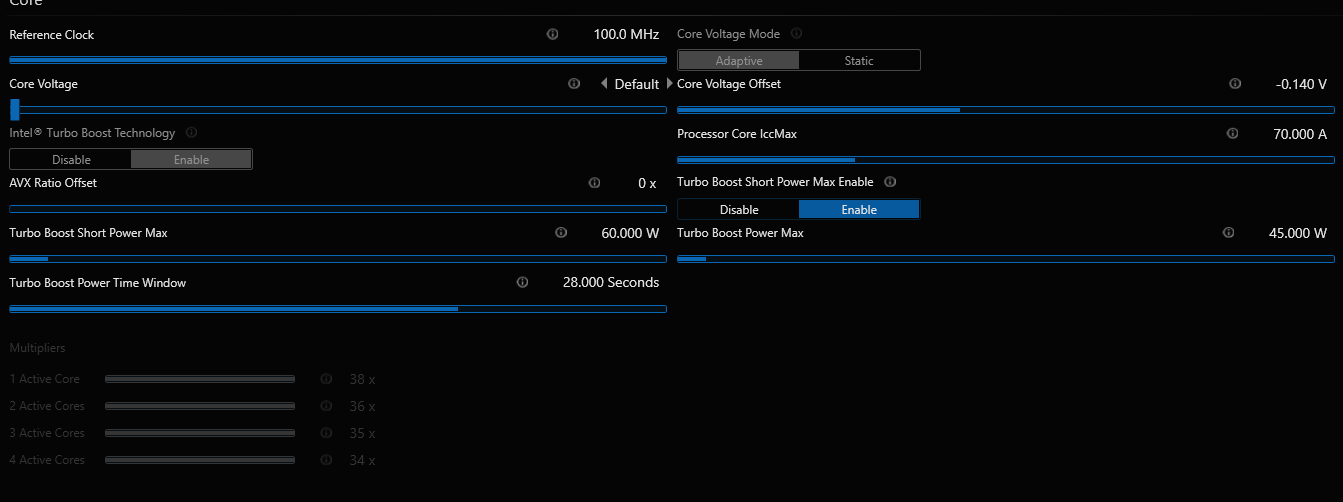

I was really happy with my -0.140v undervolt and didn't go above 89 degrees, up until a few days ago..

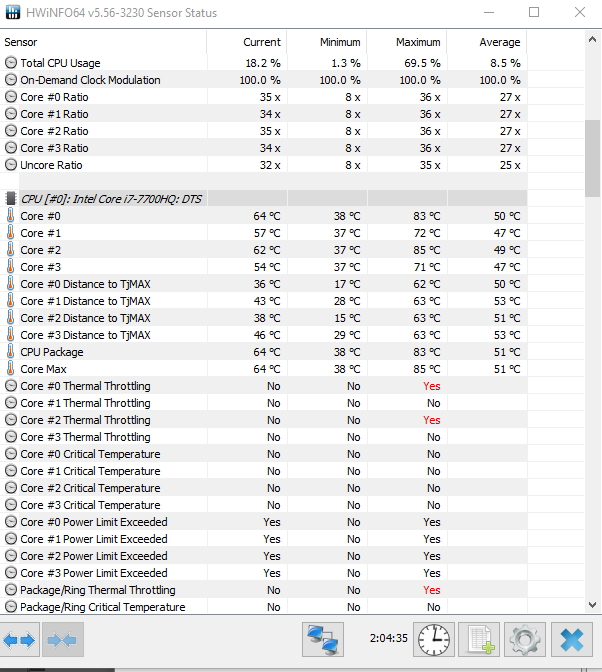

Since a few days I noticed my maximum core temp went up to 96 degrees! I only noticed after gaming and needed to go somewhere.
Will actively monitor it and stress test tonight with GTA V (can't now because at work)
Have also noticed that I had some throttling pop up in hwinfo :/



This is at work by the way. Some graphical programs open, nothing insane (photoshop, indesign, illustrator)



Check to make sure that xtu is still applying the undervolt.

Xtu will stop applying the Profile at boot if there was a crash or power off without shutdown.

You would need to open xtu and select the saved profile again, Apply and then xtu will apply that Profile at boot, until the next crash or improper shutdown.

Also, turn on hwinfo64 logging so you can see the temp of the core when it thermal throttles, it's supposed to be 93c, but I don't see a temp that high...odd.

You can also reset the readings. When starting a hard hitting CPU 100% on all cores benchmark, the fans may not spin up fast enough quick enough, and it will register thermal throttling for a few seconds, and then not again as the fans maintain higher speed.

I usually click the reset readings button in the dialog of hwinfo after the fans are ramped up, and then see if there is any thermal throttling. Or, even better, with some laptops there is a button / key combination to turn on 100% fans, I do that for a minute before starting the benchmark, same effect.

If your temps are back up, it's most likely the undervolt isn't getting applied at boot



MSI newbie question:

It is possible to "lock" the gpu into the intel 630 mode? And doing so would be possible to just plug the laptop with a smaller/lighter 120w psu?



Thermal throttling with temp low as 83C



Yes just go into nvidia settings and choose integrated gpu only. May also be a bios setting as well. If the psu provides the right voltage you can. It will just charge slower or drain battery if you are doing something demanding



I re-pasted using Thermal Grizzly Kryonaut, and with -0.115 undervolt, my CPU temps rarely ever go over 80 C. The before and after temperatures were huge. On the package the Thermal Grizzly Kryonaut says it doesn't need curing, I also saw the huge temp. difference right away.

Stock paste, no undervolt playing Rocket League max settings, sometimes 92 C. Stock paste -0.115 undervolt, around 83-85 C.
Kryonaut paste with undervolt, only 1 core ever reaches 80-81 C.



I picked up a few accessories for the new system and wanted to pass them along as working with the GE73VR. 2 take advantage of the USB 3.1 type-c connection and the other for passive cooling.

Steklo - X-Stand for MacBook and PC Laptop - a aluminium stand that is portable and insures the fans to have sufficient air flow from the bottom. https://www.amazon.com/gp/product/B00VIZ60QY/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

Belkin USB-IF Certified USB 3.0 Type-C to Type-A Adapter and Charger - allows you to use the USB 3.1 type-c port for type-a USB 2.0 and 3.0 devices. It has a short wire that moves things away from the USB 3.0 port that is right next to it. https://www.amazon.com/gp/product/B010NCX2WM/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

Belkin USB-IF Certified USB 3.0 4-Port Hub with 1-Meter USB Type C (USB-C) - you can never have too many available USB ports. If your devices do not need much power it is a "take with" hub. If connecting devices need additional power though .... the wall-wart size is rather large. I just keep it at my desk and use the cable above on the road.

https://www.amazon.com/gp/product/B013P0JU66/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1

There are many comparable items you may find that work better for you or are cheaper. Just thought it may benefit someone to know these work and are in use daily.



Thank you for your helpful feedback. Just what I need when my +2000 euros brand new gaming laptop overheats and I'm asking for help.

@hmscott

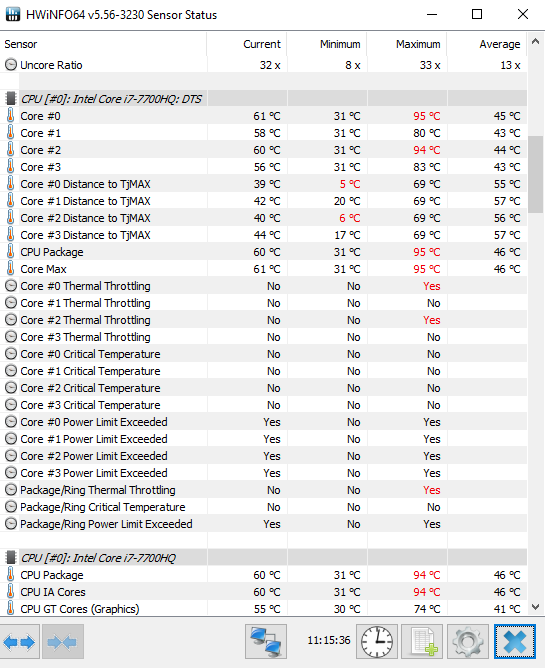

This new test is with the undervolt of -0.140 (I checked) and after playing GTA V for only 5 minutes. (was recording for 11 hours but these 11 hours before GTA V I never went over 86 or any throttling)



How do I proceed? :/ Don't want to fry this laptop so I'm holding of on gaming for now... which was the reason I bought this laptop in the first place.. FML



If you did just get it, and it thermal throttles without undervolt (stock) you can test and log it like you did with the undervolt - it'll be a lot worse - and then you can tell the seller your test results and ask for a new laptop from your seller - return for a refund or a new laptop swap.

I don't recommend you taking on the risk of re-pasting / re-padding / fixing it yourself, it's not your responsibility it's the seller / MSI's responsibility to deliver a working laptop.

It takes a while to get an MSI Repair RMA done, so if you are still within the return period to the seller it makes more sense to return for refund or new unit swap.

Sorry to hear about the trouble, please come back and let us know how it works out with the new unit



Refund needs to happen within 30 days, now at 36 days...
It's still in warranty of course, but I don't want them to send the laptop to MSI so I can wait for 5 weeks until it gets back..
Gonna call the reseller in a bit.



Yup, give it a shot, 6 days out from 30 days is right on the border, but if you are nice and emphasize how you want to buy your laptop and accessories from them you have a good chance of them letting you return / swap it for another laptop.

IDK how long your regional MSI service center takes for an RMA, but usually it's 2 weeks or less here in the US. It can take longer if there is a part involved, but just repasting should be about the quickest turn around.

If you do RMA to MSI for repasting, when you file the ticket be sure and attach the thermal throttling test logs at stock that show the large overtemps, and if you briefly describe the test with links to the tests MSI might just do the same tests after repasting



Thanks Silverwolfo! So this confirm there is a "work around" to practically use 2 different power supplies? If that's the case we're talking about an all purpose system leaving a big "brick" psu at home and later using a portable smaller and lighter psu for: office, browsing internet, etc..

So it is there a BIOS gpu/reboot switch? Like I believe there was in the past with some MSI notebooks? Please everybody who already have a GE63/GE73 with the 1070 gpu, I would like to go on exploring this subject; so please confirm if that's possible.

Many thanks!



After toting the older 8+ pound GT series plus power brick for many years... this new system is a joy for me but can understand your concern.

For the GE73 I do not know of a BIOS setting and the system does not have a manual switch like previous GT systems. I understand your not wanting to carry "the brick" but that is the trade off for having the 1070 gpu. Your options as I see them and previously mentioned by Silerwolfo:

Option 1
Change the nvidia control panel "Manage 3D Settings" under the "Global" tab to "integrated graphics". You should then go to the "Program Settings" and modify or add any program you may use to "integrated graphics". This would insure the nvidia is not auto-selected by the system. Under-volt both your CPU and GPU per instructions already provided in this thread. You then " might" be able to get by with a more portable 90w adapter. The 90w adapter combined with the laptops battery may work for you.

Option 2
Combine all the the above with a 1060 or 1050 gpu in the system. Not ideal but would make it easier to get by with the lower power.



Yeah, I can see it overheats. But the situation hasn’t been much better if cpu temp maxed out with lower 83/85c, and all you get is still thermal throttling. Return for refund.



Not sure what you mean. It's just a setting in the nvidia control panel. No need to reboot. Also msi alienware etc ship multiple configurations of a laptop with different power requirements so they will all come with different sized power bricks but they are all interchangeable. Just make sure the voltage is about the same. Oh and the plug fits of course. You can even try finding a dinky ultrabook 45-60w if you don't plan on doing more than web surfing or docs.



I just got this comp. I am getting 84c in cpu after 15min in bf1 which is much better than the p670hs and about the same as the ge72vr. The left side of the keyboard does get a bit warm.

I'm used to my old clevo having a screen off/on function button. I noticed msi's have a function button for different screen setups but does it have a similar option of turning off the screen and awaking it with any keystroke or mouse movement?

I will try an undervolt and gaming for extended period of time.



Thanks for the input..Yes indeed carrying a 90w psu for light office/browsing task would be a dream come true but it will be also be happy with a 120w or 135w PSU. I just fantasise with a dual PSU notebook, as I explained before. And yes having the 1070 as a minimum in mind for this project



So the red lines on the outside come right off. I am actually pleased with this, I preferred a cleaner look anyway. I rubbed the glue right off, easy clean up.



Like they peeled off or what? So so so pleased with this!



I like picked at it with my finger nails, realized they moved, then picked at it harder and it came off with no considerable effort.



Any news?



Hello:

First of all, thanks to everyone. This thread convinced me to buy a GE63VR 7RE.

I really like the laptop but i have found a little problem. When I change the shift mode to "sport" from the Dragon Centre, the resource monitor of the windows task manager shows 100% CPU ussage while Dragon Center shows 5% CPU usage.

If I return to comfort shift the problem dissapear. Did anyone noticed something similar?



I also just got my GE63VR 7RE some days ago and I am very happy with it. I have looked in Dragon Center and compared the CPU usage which is quite the same like in windows task manager. If you really got 100% CPU usage, do you run a game or something performant in the background? Because my average CPU usage while writing this is around 5-8%.

One small thing on my side though, is that my CPU fan is always pulsing between 2360 and 2412 RPM which I don't get why. I already tried different gear modes but does not really change anything. Does someone observe a similar behavior?



I have nothing in background. Thats the problem.

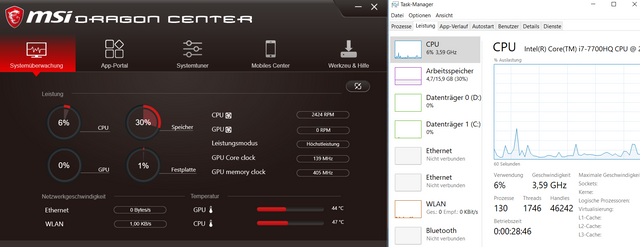

I start the computer, task mánager and Dragon Center. If comfort shift mode, cpu ussage from Dragon Center and task mánager are the same (4-8%). If I Change to sport shift mode, cpu ussage in dragon Center shows 4-8% while windows task mánager shows 100%



I just tested Sport Gear Mode in Dragon Center but cannot see any difference in CPU usage under task manager:



CPU usage is not related to Shift mode. What shift mode does is actually allow Windows services and apps to maximize CPU usage while running tasks. Stuff like Windows defender scan or Windows updates can easily maximize the CPU usage if you're using an SSD (which I'm 100% sure everyone with a GE63 does). I've had these "little" issues as well before returning my unit. Use o&o shutup10 and disable Defender, updates and telemetry after updating everything.

Sent from my SM-N900 using Tapatalk



Well my GE63VR is coming in the mail this weekend. Ended up getting mine from HIDevolution from Donald because of all the help he's given me with helping decide which laptop best suited me. I have less than 2 weeks to test and sort out any problems before I head overseas for work and cannot RMA.

Anyone have any decent guides handy on clean install, which drivers to reinstall, calibrations, and stress test for this laptop. I want to put it through all the hoops as soon as I can. Thanks!

=Jason-



What I did for my ge73vr:

You can use built-in Windows 10 reset, but I made a USB bootable Windows 10 and use that. It's easy to make/prepare, Microsoft has a program you can install called Media Creation Tool. Need like 4 GB USB.

After clean install, I let Windows Update run before I install any drivers or programs, and restart it a few times to make sure all updates up-to-date. Some drivers will be pre-installed for you and more up-to-date than the MSI Driver Support page.

Then I updated my BIOS and EC Firmware. When you download these files, they have PDF instructions how to do them. Your BIOS and EC Firmware might already be up-to-date, you can check in BIOS settings when you boot up.

Then under the Utility tab, I installed everything except: TriDef SmartCam, Nahimic VR, TriDef VR, Battery Calibration, Sizing Options, Help Desk (the Nahimic with Audio Driver was listed already under the Drivers tab). I didn't install those things because I wouldn't use them.

Then under the Drivers tab: I installed the Killer Wifi/Ethernet and Bluetooth packages from the website directly, and I've been having no issues.

My Realtek audio drivers were already installed through Windows update. The Nahimic drivers allows some extra sound profile modification, so it's kind of cool to play around with that. This is where it was listed before in addition to the Utility tab. So yea I installed it.

Intel Management Engine, I don't think most users need or use this. You can google it, it's to check your system or whatever.

Bluetooth I installed from the Killer website, since I'm using a Killer card, but maybe drivers from Windows update is good enough? You can check.

I installed Card reader drivers.

For graphics drivers, I installed Nvidia Geforce Experience. It's a desktop program that just handles driver updates. For actually managing your graphics settings and preferences, go to Control Panel, Hardware, then Nvidia Control Panel.

Wireless LAN, went to Killer website for their drivers. I think I saw in this thread people not even using any Killer drivers and still doing okay.

Intel Rapid Storage Tech, I don't think you need this.

I installed TouchPad drivers, Chipset drivers, and I didn't bother with Radio Switch.

Some of the drivers from above were actually already up-to-date, I checked in device manager and the component settings, I just don't remember which ones. This is just what I did, and it's been working fine.



You can press windows key + L which locks the computer. Everything in the background will continue to run. The screen will turn off after a minute or two. Not exactly the same thing but it has the benefit of not turning back on, for long any way, if you accidentally brush up against the mouse/touchpad or tap a key.



Imei is more importent than yoo think.



Thanks! I had already installed it, but I wasn't sure what it did exactly.



Anyone else has this pulsing CPU fan? It is quite audible especially while surfing or doing office tasks. Seems like it switches always between 2 RPM states within 1 second (around 60 RPM difference).



Solved the problem updating Dragon Center software from MSI website. In fact it was not an update (I didn't find that option). I uninstalled and reinstalled the Dragon Center software and now the use of CPU is the same in both softwares even if I'm in Sport Shift Mode. Thanks!



Good to hear!

Do you have slightly pulsing fans on your GE63VR?



for those who complaining about the speaker sound, i hope MSI will add more speakers in next year model, they've wasted too many space left empty

Spoiler: speakers

sory for bad editing LOL, just doing it in paint.

what do you think @hmscott i know they will hear u guys from @Donald@HIDevolution , @GenTechPC give them some feedback to improve that sound experience.



The Nahimic tuning can't help enough to correct the limits of the laptop "box" holding the speakers and make them liveable?

I use headphones, and rarely rely on laptop speakers.

Desk speakers or room speakers are easy to setup when desk bound, and for mobile the headphones can't be beat - it helps to stop interfering with other peoples space.

A nice Marantz NR1605 under the desk to control various inputs and output to external speakers worked best for me.

There are newer models now:
http://www.us.marantz.com/us/products/pages/ProductDetails.aspx?CatId=AVReceivers&ProductId=NR1605

A cheap low budget receiver can do well too, but they are full sized and a little bulky, the low profile Marantz NR boxes fit easily under the desk, and I can use the hand remote or software app remote to control everything sight unseen.

Like bad TV speakers, laptop speakers are even worse, and it's not their fault, they just don't have the physical space, volume, or layout to promote good sound. Some are better than others, but even the best of them sound anemic next to real speakers.



The issue is not the volume. Its pretty loud with the help of nahimic software. What we were complaining was the bass. Its not good enough even though the laptop has two woofers(2x3W). Like i said i have this old samsung laptop with jbl speaker and 1x5W woofer and sounds exactly the same. Raider speaker is pretty loud though.



You can't raise the bass profile with the Nahimic software?

But really, a subwoofer in a laptop?, that's the height of folly.

There's no way a thin cabinet is going to have the resonant cavity needed to support bass, it's just not possible.

It's a thin and light laptop, it's not a speaker cabinet, and certainly not a bass speaker capable box.

For a few bux you can get an external 2.1 or 3.1 desk system and get some real sound speakers, L/R (+ Center) + Sub.



I just tried plugging in my external speakers into the raider and I get a ton of static, hissing feedback when any sound is played. I've downloaded and installed the latest sound drivers. What could be causing this?



Bad cable? Dirty connector? Try washing / wiping off the connector with alcohol. You might need to dip it in and out of the connector now to get any grit out that got in there...

It could also be a "wrong" spacing plug / connector mating for stereo / mono / mic. You should have a stereo plug / connector but if the laptop combines the mic in the same connector, you need a different plug.

Check the other end too... what is the cable connecting to on the other end? If there is a volume control on the amp / speaker, make sure it's clean too - run it up / down a few times to clean out the carbon - is it new or aged?

Is there a built-in or otherwise connected mic causing feedback? Disable the mic and see if that helps.



News!

I got my new replacement today. Will start the tests today and spend a whole week fine-tuning the laptop. I'm really hoping the previous panel issue isn't widespread and is just a rare flaw. Will let y'all know how it goes.

Sent from my SM-N900 using Tapatalk



Raising the bass bar in nahimic makes no difference. I aint complaining though, with two mini-woofer, i expected more. But speakers are damn loud. After using it for 1 month i think i can hear some improvement in bass, or my ear is playing mind games? I am loving my laptop. No physical defects whatsoever, some software glitches solved with updates. And the only problem of high temperature reduced with undervolting CPU with your help. Yea pretty good laptop.



Just pulled the trigger on a GE63VR 1070, with lots of help from @Donald@HIDevolution, and this thread has a helped me quite a bit.

Quick question though - does anyone know what panel is used on the 15.6'' version? Assuming it's like the 17.3'', it should be a Chi Mei panel, and the 17'' inch version of the Chi Mei is also used on other laptops with gsync - so you'd think there might be a mod/way to make it work with gsync.
