    7700HQ Power Limit Throttling

    Discussion in '2015+ Alienware 13 / 15 / 17' started by koharatx, Jun 9, 2017.

  1. judal57

    judal57 Notebook Deity

    Reputations:
    274
    Messages:
    1,164
    Likes Received:
    650
    Trophy Points:
    131
    http://laptopmedia.com/highlights/i...assembly-internal-photos-and-upgrade-options/
    that laptop is really easy to repaste

    judal57, Apr 13, 2018
    #101
    Vasudev and hmscott like this.
  2. GreatD

    GreatD Notebook Consultant

    Reputations:
    64
    Messages:
    279
    Likes Received:
    103
    Trophy Points:
    56
    GreatD, Apr 13, 2018
    #102
  3. GreatD

    GreatD Notebook Consultant

    Reputations:
    64
    Messages:
    279
    Likes Received:
    103
    Trophy Points:
    56
    GreatD, Apr 13, 2018
    #103
  4. judal57

    judal57 Notebook Deity

    Reputations:
    274
    Messages:
    1,164
    Likes Received:
    650
    Trophy Points:
    131
    judal57, Apr 13, 2018
    #104
    VICKYGAMEBOY and Vasudev like this.
  5. GreatD

    GreatD Notebook Consultant

    Reputations:
    64
    Messages:
    279
    Likes Received:
    103
    Trophy Points:
    56
    I'm experiencing PL2 flags on TS at very low frequencys and low TDP W and my max frequency is stuck at 2.8 GHz. Turbo isn't disabled and I have undervolted to 85 -mV. What else can I try to stop the CPU from TDP throttling PL2 at such a low frequency and TDP W?? Thanks guys

    GreatD, May 2, 2018
    #105
  6. InvoluntorySoul

    InvoluntorySoul Notebook Consultant

    Reputations:
    14
    Messages:
    145
    Likes Received:
    63
    Trophy Points:
    41
    CPU performance mode also forces the fans at 2300rpm even when the system is idol and around 40C, it is very annoying during the night when i leave the computer on for torrents. Turning off CPU performance the fans stays at 0rpm on idol

    InvoluntorySoul, May 2, 2018
    #106
  7. UjinKuzmenko

    UjinKuzmenko Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    2
    Trophy Points:
    6

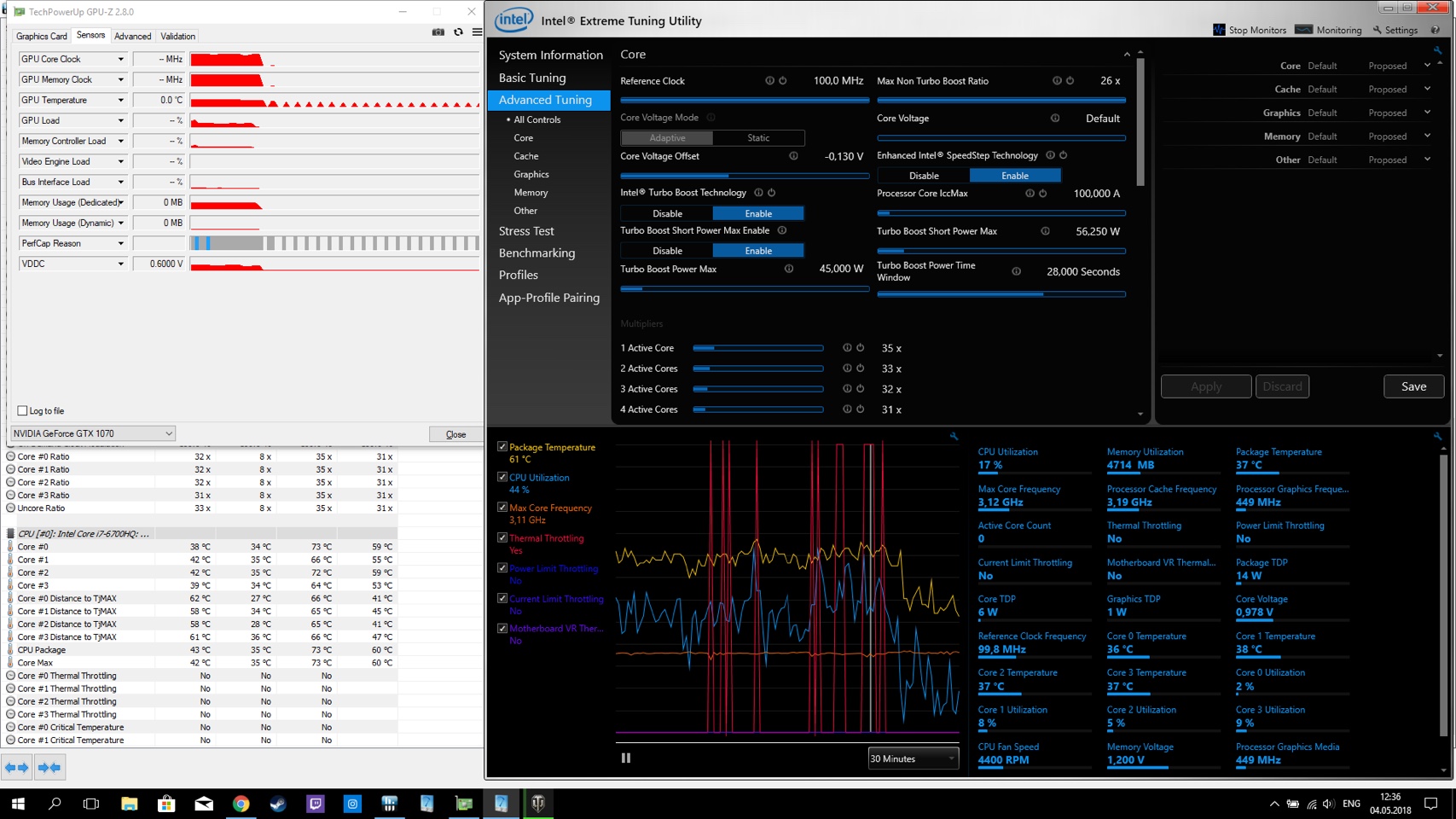

    Hello! Help me plz guys to understand what’s wrong with my laptop! AW 17 r4 6700hq/gtx1070. [​IMG]


    Отправлено с моего iPhone используя Tapatalk

    UjinKuzmenko, May 4, 2018
    #107
  8. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,035
    Messages:
    11,277
    Likes Received:
    8,814
    Trophy Points:
    931
    from XTU it looks like your cpu reached beyond 95C temps and in GPUz Intel GPU is used instead of nvidia since you have optimus.

    Vasudev, May 4, 2018
    #108
  9. UjinKuzmenko

    UjinKuzmenko Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    2
    Trophy Points:
    6
    Hello!!! Guys plz can you explain me what wrong with my PC AW 17 r4 6700hq/gtx 1070. Thremal throtling while gaming!
    But on HWinfo you can see that my temperarures of cpu do go more then 73C on hottest core cos of undervolting on 130mVolts, but its still throttle!

    UjinKuzmenko, May 4, 2018
    #109
  10. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,035
    Messages:
    11,277
    Likes Received:
    8,814
    Trophy Points:
    931
    Uninstall XTU and install throttleStop. Uncheck BD PROCHOT after you open TS. Make sure you turn TS ON.

    Vasudev, May 4, 2018
    #110
    Papusan and UjinKuzmenko like this.
  11. UjinKuzmenko

    UjinKuzmenko Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    2
    Trophy Points:
    6
    Vasudev MR plz, before i Uncheck BD PROCOT can plz explaine me what is it, couple words, plz!

    UjinKuzmenko, May 4, 2018
    #111
  12. UjinKuzmenko

    UjinKuzmenko Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    2
    Trophy Points:
    6
    After all setings can i install and launch TS and XTU for check? or only TS or XTU?

    UjinKuzmenko, May 4, 2018
    #112
  13. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,035
    Messages:
    11,277
    Likes Received:
    8,814
    Trophy Points:
    931
    Kills off firmware based throttling and nearby component's thermal monitoring if it is set below 90C and will throttle CPU speed if it hits more than 95C.

    Vasudev, May 4, 2018
    #113
    UjinKuzmenko likes this.
  14. UjinKuzmenko

    UjinKuzmenko Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    2
    Trophy Points:
    6

    THX a lot man it helps but how i understand somthing in my system heating, not cpu and this somthing throtlling my Laptop! thx a lot now i undrestand what is problem, i will adjust heattshink till it helps!!

    UjinKuzmenko, May 4, 2018
    #114
    Vasudev likes this.
  15. FastMover

    FastMover Notebook Consultant

    Reputations:
    70
    Messages:
    151
    Likes Received:
    102
    Trophy Points:
    56
    You should also create a task in task scheduler to start TS when users log on. You need to give highest rights in order for the program to start.

    FastMover, May 7, 2018
    #115
    Papusan and Vasudev like this.
  16. GreatD

    GreatD Notebook Consultant

    Reputations:
    64
    Messages:
    279
    Likes Received:
    103
    Trophy Points:
    56
    Good Morning/Afternoon/Evening all. I have a intermittent dilemma, my CPU i7 7700HQ is PL2 (power limited exceeded-Yes) intermittently and goes away after a few days after shutting down the laptop and starting it up again. It does it every 3 or 4 days I get Power limited exceeded in HWINFO and PL2 in Throttlestop. This happens at idle and not even on load when stressing the CPU out. My CPU is limited to 2.8Ghz and max 20 Watts TDP on load while playing a game. Is this hardware related fault or just firmware/ BIOS related and it wont help to RMA? Please advise. Like I said its intermittent and doesnt do it all the time. Thanks all.

    GreatD, Sep 3, 2018
    #116
    Vasudev likes this.
