    Utility to access to allmost all hardware

    Discussion in 'Windows OS and Software' started by 9800xpv, Jul 29, 2011.

  1. 9800xpv

    9800xpv Notebook Evangelist

    Reputations:
    83
    Messages:
    433
    Likes Received:
    0
    Trophy Points:
    30
    Hello,

    I found in a French forum a software which makes the fans spinning at full speed on laptops.
    But it can also give you access to almost all the hardware in your computer.

    Link to the utility's site : RW - Read & Write


    Here you are how to get the fans running at full speed on ASUS G73JH-A1, G73JW, G72, G53SW, G53JW, G51JX, G51VX, C90S.
    Other ASUS notebooks ? Please have a try, sorry if it doesn't work.
    Other notebooks brands ? Please have a try, I dont know more.


    1°/ download the software, => RW - Read & Write, Download tab.
    2°/ unzip and instal.
    3°/ run "rw.exe" .
    4°/ now RW-Read & Write Utility is running,
    5°/ Go to Access and start Embedded Controler , if it has not yet started up.
    So you should be at this point :
    [​IMG]

    6°/ Highlight and open this cell :
    [​IMG]

    7°/ So you are here :
    [​IMG]

    8°/ Change "00" to "01" => Done.

    If you have any G73, G53, ... the fans instantly start to run.

    9°/ To stop the fans you must power off your pc, and wait some seconds untill to boot.


    That's all about fans, but this software is able to get access to almost everywhere in your pc.
    You may have some tries to change other values, but at your own risk. I don't know more.


    Link to the french forum : P4G / [TUTO] Augmenter la vitesse des ventilateurs sur les ASUS G-series


    Sorry for my poor english,

    @+ ;)

    9800xpv, Jul 29, 2011
    #1
  2. zafota

    zafota Notebook Geek

    Reputations:
    0
    Messages:
    85
    Likes Received:
    0
    Trophy Points:
    15
    i tried maxing out the fan speed. It does work but i can't seem to reverse it. unless i shut down my laptop it wont slow down. any ideas?

    ohh and maxing it all the time shortens the life span of the fans right?

    zafota, Jul 30, 2011
    #2
  3. eXpert

    eXpert Notebook Consultant

    Reputations:
    21
    Messages:
    254
    Likes Received:
    1
    Trophy Points:
    30
    i didnt understand a word i dont even know how to do it, everything in french .... if you can translate it would be great !

    eXpert, Jul 30, 2011
    #3
  4. 9800xpv

    9800xpv Notebook Evangelist

    Reputations:
    83
    Messages:
    433
    Likes Received:
    0
    Trophy Points:
    30
    Sorry for my poor english.
    So I edit my first post with more explanations and picts.

    @+ ;)

    9800xpv, Jul 30, 2011
    #4
  5. eXpert

    eXpert Notebook Consultant

    Reputations:
    21
    Messages:
    254
    Likes Received:
    1
    Trophy Points:
    30
    i am having the same question for you, will it effect the life span of my laptop ? are you sure it will be okay if i shutdown my computer it will go back to the same level (like i didn nothing {default}) ?

    eXpert, Jul 30, 2011
    #5
  6. 9800xpv

    9800xpv Notebook Evangelist

    Reputations:
    83
    Messages:
    433
    Likes Received:
    0
    Trophy Points:
    30
    If you have always, all the time, the fans running at full speed, I think their life (the fans) should be shorten, I don't know more.
    But in the same time, GPU and CPU's lives should increase, especially for the GPU.
    A fan cost many less money than a video card.

    If you are often playing, this software should be useful.

    I urge you to make a try to compare the temperatures.


    Yes, you must shutdown (power off) your computer to stop the software.
    Wait about 5 seconds, and started it up. It will be at standard level.

    @+ ;)

    9800xpv, Jul 30, 2011
    #6
  7. eXpert

    eXpert Notebook Consultant

    Reputations:
    21
    Messages:
    254
    Likes Received:
    1
    Trophy Points:
    30
    thank you !

    eXpert, Jul 30, 2011
    #7
  8. tommyb13662

    tommyb13662 Notebook Enthusiast

    Reputations:
    0
    Messages:
    39
    Likes Received:
    0
    Trophy Points:
    15
    Another suggestion for those with the g72. There is only one fan, find the blue wire on the plug to the fan. Make sure you have enough wire to do this first (may have to add wire). cut it in the middle and connect a on/off switch to the wire. I also cut a very small hole in the bottom of the cover and mounted the switch inside on the back of the memory cover. I mounted it from the inside so that it was below the surface of the rest of the cover so it would not get bumped. It is a small switch I used that slides and I have to use a pen or something small to flip it. when you flip it off the fans will run full speed until you turn the switch on again. It did alot for reducing my temps and since I can control when it goes full power it is quiet if I want to watch a movie.

    Hope it helps
    Tom

    tommyb13662, Jul 30, 2011
    #8
  9. 9800xpv

    9800xpv Notebook Evangelist

    Reputations:
    83
    Messages:
    433
    Likes Received:
    0
    Trophy Points:
    30
    9800xpv, Jul 30, 2011
    #9
  10. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931

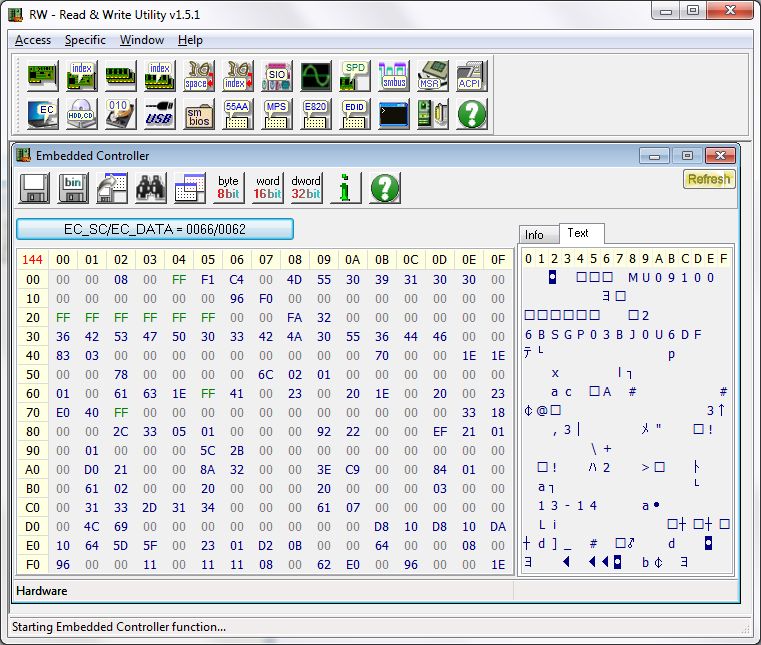

    What are the chances this would be the same with an HP? Here's my Embedded Controller:

    [​IMG]

    The EC_SC/EC_DATA = 0066/0062 is the same if that means anything.

    HTWingNut, Sep 8, 2011
    #10
  11. 9800xpv

    9800xpv Notebook Evangelist

    Reputations:
    83
    Messages:
    433
    Likes Received:
    0
    Trophy Points:
    30
    I don't know at all, but just have a try ?
    Try if others cells should work ? ie 04 F0, 0F 10, ...

    9800xpv, Sep 8, 2011
    #11
  12. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    I'm just afraid of bricking my laptop, that's all. It's two weeks old. :eek:

    HTWingNut, Sep 8, 2011
    #12
  13. Fishon

    Fishon I Will Close You

    Reputations:
    8,383
    Messages:
    1,335
    Likes Received:
    9,061
    Trophy Points:
    531
    Lots of information, but what is useful which I don't already have is unknown. Going through my BIOS characteristics now. Can anyone tell what little gems this software may have?

    Fishon, Sep 8, 2011
    #13
  14. Q3gun

    Q3gun Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue: :tongue:

    Works on asus NV76VM with i7-3610qm , GT 630m that i boutght yesterday.

    GJ man! The Rebublic of Gamers needs you clearly !! ;)

    :) :p ;) :D :cool: :eek2: :eek2: :spinny: :spinny: :laugh: :laugh: :tongue: :tongue: :wink: :wink: :wub: :wub: :notworthy: :notworthy: :yes: :yes: :radar: :radar:

    Q3gun, Jul 14, 2012
    #14
  15. TheAnon88

    TheAnon88 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hi! Any chance you could re-upload the screenshots? I just recently inherited Asus G53JW, and I really would need this fix. Thanks!

    Last edited: Apr 13, 2015
    TheAnon88, Apr 13, 2015
