    what is the Max ram capacity for NP530U4C-S01IN

    Discussion in 'Samsung' started by Ripcord999, Mar 4, 2015.

  1. Ripcord999

    Ripcord999 Notebook Geek

    Reputations:
    5
    Messages:
    93
    Likes Received:
    11
    Trophy Points:
    16
    Hello all,

    I am thinking of upgrading RAM on my Samsung NP530U4C-S01IN

    I right now have 6 GB RAM (came with laptop)

    How much is the max this model supports? I couldn't find the info

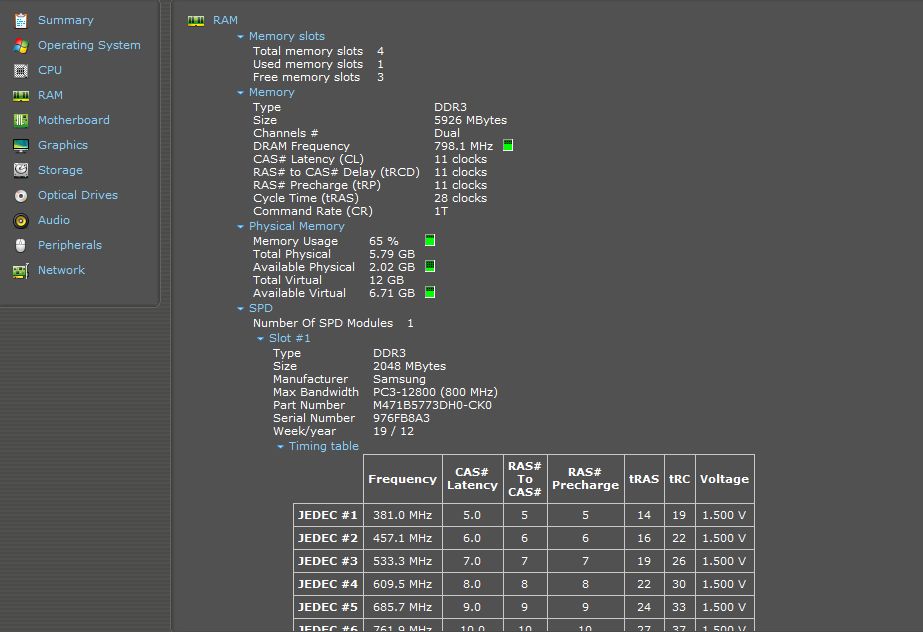

    Also when I run Speccy it says there are 4 slots available and only one used with 6GB RAM (DDR3-PC3-12800)
    Could this be true? I've never seen a single 6GB RAM!
    of course I could open but wanted to ask before I do

    [​IMG]

    I have Windows 8.1 x64 Professional editon

    any recommendations for RAm?

    thank you

    Last edited: Mar 4, 2015
    Ripcord999, Mar 4, 2015
    #1
  2. MeGuinness

    MeGuinness Notebook Enthusiast

    Reputations:
    25
    Messages:
    38
    Likes Received:
    7
    Trophy Points:
    16
    Just open the bottom door and look ,if the memory isn't there it mean that the 6gb memory in soldered on the board. Just have a look

    MeGuinness, Mar 4, 2015
    #2
    Ripcord999 likes this.
  3. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,165
    Trophy Points:
    581
    Given that there's only SPD data for one 2GB module then there is 2GB in the slot and 4GB soldered (which doesn't have SPD data). You can get a second opinion using CPU-z or, even better, look inside (as already suggested).

    I believe the notebook has the Intel i5-3317U CPU which, according to Intel, can support up to 32GB RAM in 2 channels (ie 16GB modules but these are very rare and expensive). Therefore your effective maximum RAM is the 4GB soldered + 8GB in the slot = 12GB.

    John

    John Ratsey, Mar 4, 2015
    #3
    Ripcord999 likes this.
  4. Ripcord999

    Ripcord999 Notebook Geek

    Reputations:
    5
    Messages:
    93
    Likes Received:
    11
    Trophy Points:
    16
    I opened and found only one slot with 2G. Guess the Max I can afford would be 8GB which would make it to 12 GB

    The other 4G seem to be soldered!!

    Thanks John & MeGuinness

    Ripcord999, Mar 8, 2015
    #4
  5. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,165
    Trophy Points:
    581
    Thanks for confirming what is inside. You are slightly better off than if it was the 2GB that was soldered.

    12GB should be enough for most uses unless you want to run multiple virtual machines.

    John Ratsey, Mar 8, 2015
    #5
    Ripcord999 likes this.
  6. Ripcord999

    Ripcord999 Notebook Geek

    Reputations:
    5
    Messages:
    93
    Likes Received:
    11
    Trophy Points:
    16
    I ordered a 8 GB RAM and expecting it today

    In the meantime i ran Curcialscan and found out the following

    memory
    • Maximum memory: 8192MB
    • Slots:2 (2 banks of 1)
    Does that mean I can use only 8 GB of max memory?

    Ripcord999, Apr 8, 2015
    #6
  7. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,165
    Trophy Points:
    581
    The Crucial scanner may have only detected the empty slot and ignored the soldered RAM.

    Anyway, you will soon find out. Please report back on whether the 12GB works.

    John

    John Ratsey, Apr 8, 2015
    #7
  8. Ripcord999

    Ripcord999 Notebook Geek

    Reputations:
    5
    Messages:
    93
    Likes Received:
    11
    Trophy Points:
    16
    Well I wanted to find out before opening so that I can send it back! :)

    Anyway I ran the test again with SysInfo.exe and it said 32GB is the max.

    Eagerly awaiting for the DHL

    Will surely report

    thank you!

    Merged

    OK. installed 8GB and works fine now

    I have 12 GB RAM ..

    Thank you John

    Last edited by a moderator: Apr 8, 2015
    Ripcord999, Apr 8, 2015
    #8
  9. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,165
    Trophy Points:
    581
    Thanks for the update and confirming that 12GB works. :)

    Whoever wrote the Crucial scanner software probably didn't think about how to allow for soldered RAM.

    John

    John Ratsey, Apr 8, 2015
