    Upgrade laptop screen to IPS panel

    Discussion in 'Samsung' started by mesharyHD, Feb 29, 2016.

  1. mesharyHD

    mesharyHD Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    1
    Trophy Points:
    5
    Upgrade laptop screen to IPS panel​

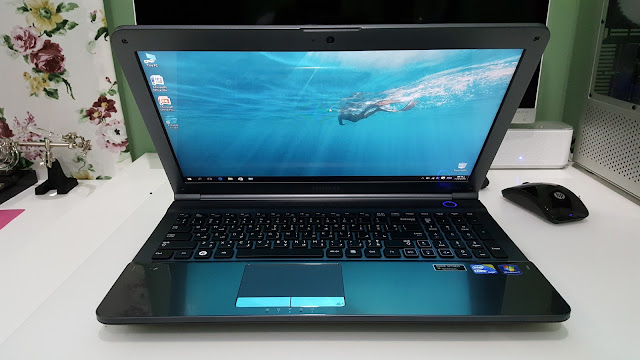

    [​IMG]​

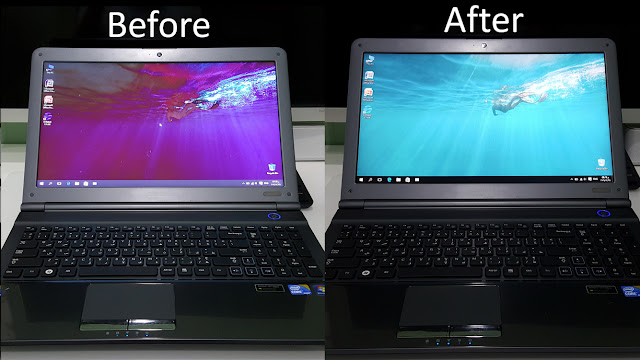

    Don't let any professional laptop repair shop convince you this is impossible
    ​

    You can upgrade your old laptop screen successfully from TN panel to IPS panel, but first you need to know your old screen specs and match it with the new screen specs.

    This screen swap will work with the listed models from Samsung
    E3511 E3520 RC508 RC510 RC512 RC520 RV509 RV511 RV515 RV512 RV520
    and any laptop with this screen model number LTN156AT15


    My old screen specs:
    Samsung Panel Model No LTN156AT15
    15.6"
    1366x768
    LVDS
    WLED
    40pin connector
    TN Panel
    side mount screws

    My new screen specs:
    LG Panel Model No LP156WHA SLL1
    15.6"
    1366x768
    LVDS
    WLED
    40pin connector
    IPS Panel
    side mount screws

    Tools needed for this job:
    -Precision screwdriver set
    -Pry tool or a plastic ruler

    This website will help you to determine your laptop screen specs
    www.panelook.com

    The new screen shop from Aliexpress
    http://www.aliexpress.com/item/15-6...SLL1-SL-L1-LCD-suit-for-E520/32346281201.html

    Here is my YouTube videolink
    www.youtube.com/watch?v=h2rIkLcecbU

    note:

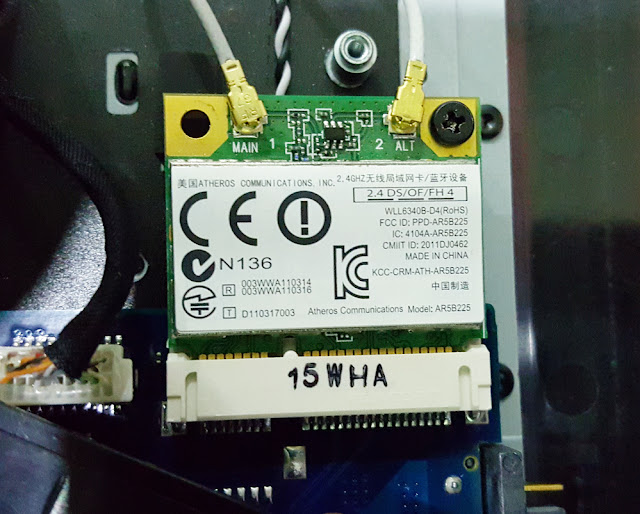

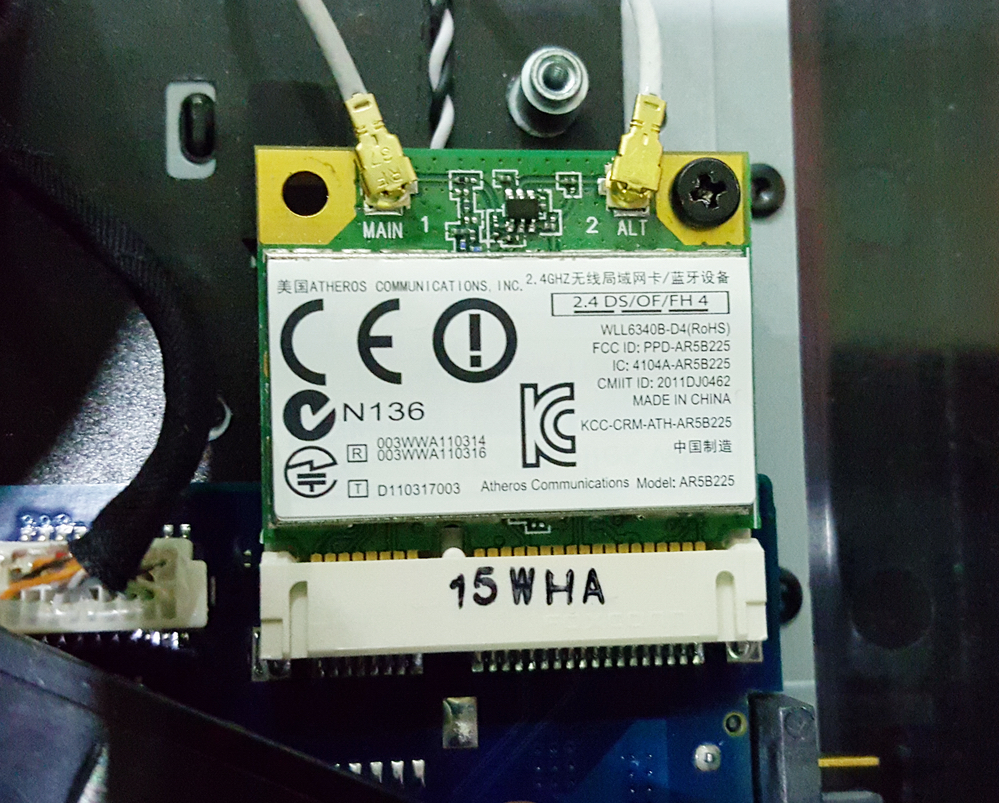

    To upgrade your old Samsung laptop to windows 10 you need to replace the wifi card because the old one will not boot to windows 10 you will get boot Erorr.
    Intel cards will not work get
    Atheros

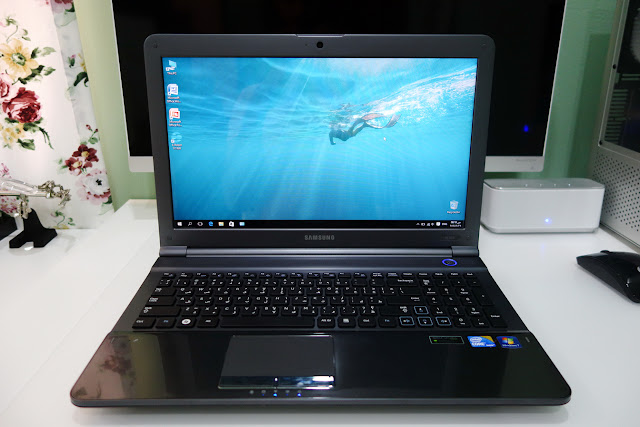

    [​IMG]






    Gallery:


    [​IMG]

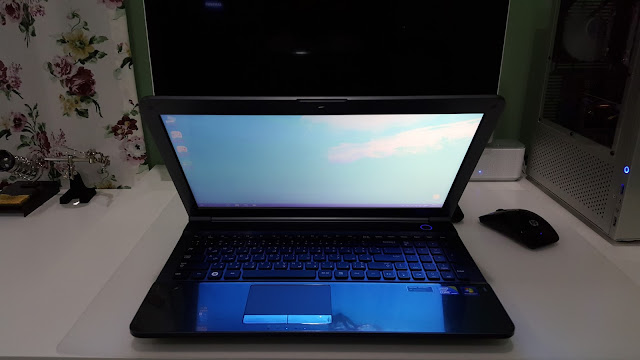

    before


    [​IMG]

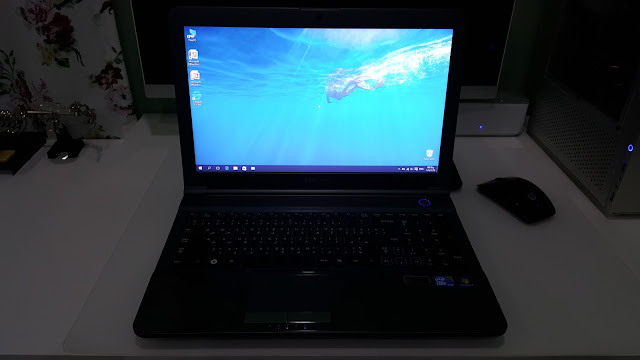

    before




    [​IMG]

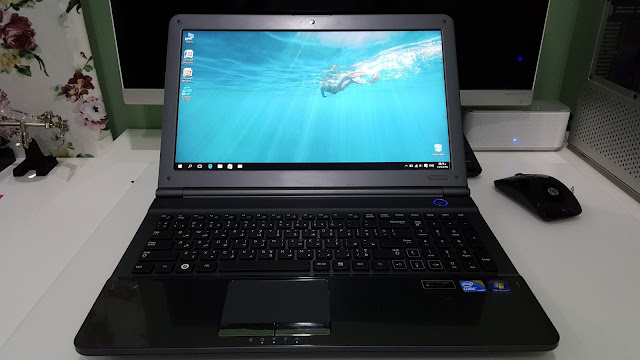

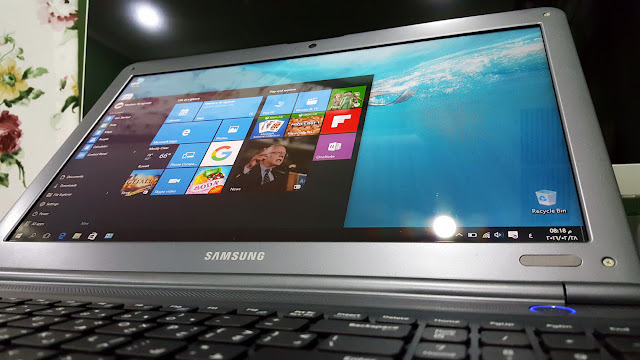

    after



    [​IMG]

    after



    [​IMG]


    [​IMG]



    [​IMG]





    [​IMG]

    mesharyHD, Feb 29, 2016
    #1
    slimmolG likes this.
  2. Harmanjot Singh

    Harmanjot Singh Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Harmanjot Singh, May 7, 2017
    #2
  3. alavena

    alavena Notebook Guru

    Reputations:
    0
    Messages:
    63
    Likes Received:
    4
    Trophy Points:
    16
    Hello. I'm looking for a display upgrade. My laptop is a Samsung NP300E5A. It has a mediocre display, but I don't know the model number and googling only gets me replacement displays that are similar to the one it already has.

    How could I get it? Thanks.

    alavena, May 25, 2017
    #3
  4. Orof

    Orof Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    1
    Trophy Points:
    6
    after searching for 6 months, i found that this is the only store left selling the original LG IPS LP156WHA-SLL1 display:
    https://www.lcd-display.cz/en/lp156wha-sll1-15-6-laptop-display-ips-screen.html
    iv'e just intalled it on my Samsung NP355V5C, and put on a matte screen protector. works really good! :D

    i dont think the lp156wha-sll1 will fit you unfortunatly. mabey this
    https://www.aliexpress.com/item/NEW...7264-4e05-84bf-a17997911773&priceBeautifyAB=0
    but i cant be sure. it's not 100% the same.

    Orof, Feb 11, 2018
    #4
