    Samsung 3 series NP350U2B 12.5

    Discussion in 'Samsung' started by montesomma, Dec 15, 2011.

  1. montesomma

    montesomma Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Does anybody have a tutorial or pictures of how to replace The Hard disk inside the laptop.
    Thanks!
    Robert

    montesomma, Dec 15, 2011
    #1
  2. Calivi

    Calivi Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5

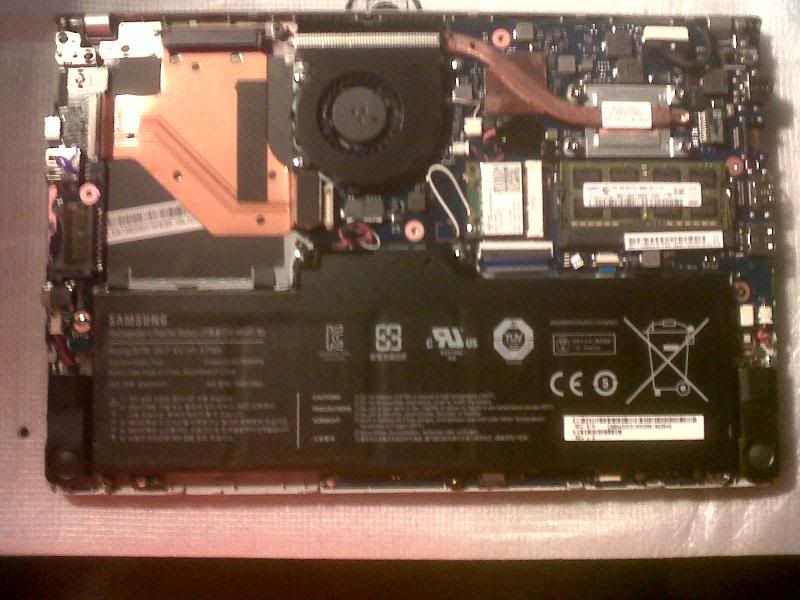

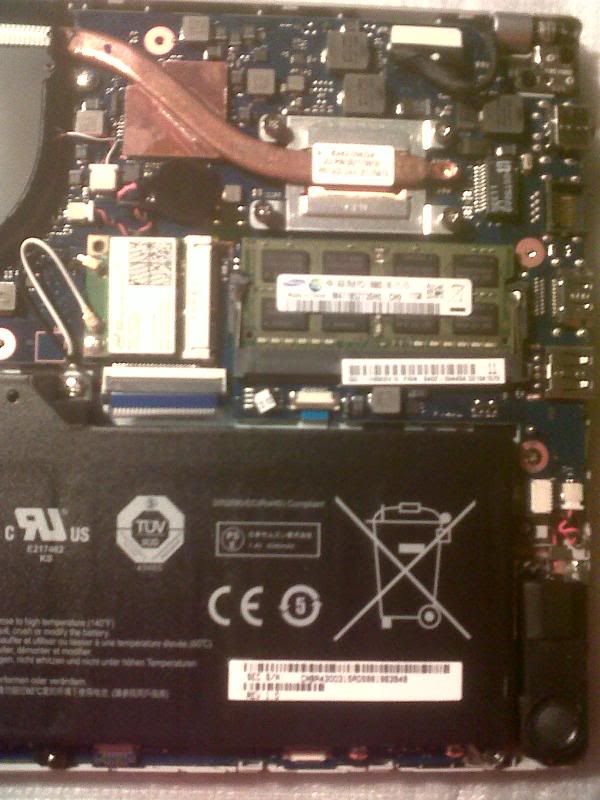

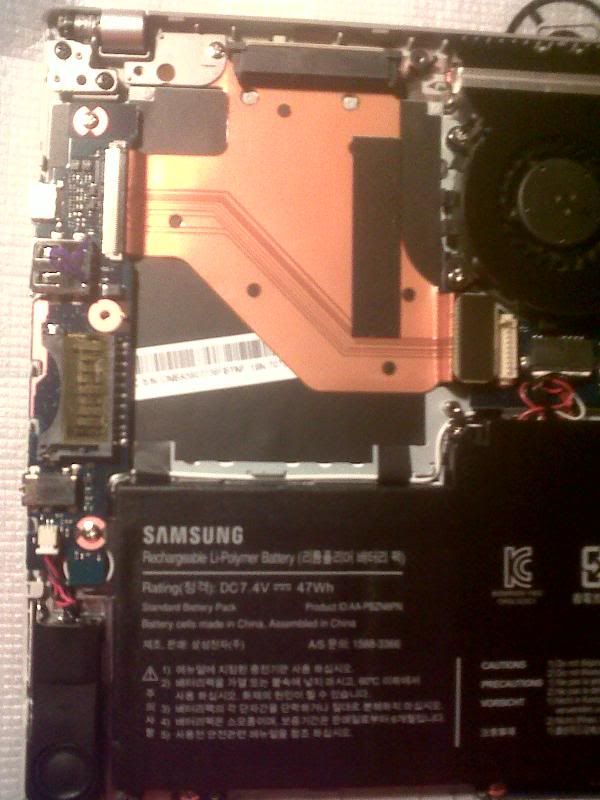

    I've replaced the hdd with an ssd and took some pictures with my mobile during the process. Sorry that the photos are not that good, but will give you some idea how to access to the hdd bay.


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    You have to remove the whole bottom cover in order to access hdd. The bottom cover is one peace, covering the grey part where the cpu vents are. There are a few screws to remove which are visible, and then there are two additional screws under the back rubber feet. You have to remove these 2 rubber feet in order to remove these screws. Rubber feet will stick back without any problem.

    Calivi, Dec 21, 2011
    #2
