    Authenticity of Series 7 THREE Speakers Claim: 2W x 2 Stereo Speakers+2W Embedded Woofer?

    Discussion in 'Samsung' started by yknyong1, Dec 29, 2011.

  1. yknyong1

    yknyong1 Radiance with Radeon

    Reputations:
    1,191
    Messages:
    2,095
    Likes Received:
    8
    Trophy Points:
    56
    Proof



    from

    Samsung Singapore - New Showroom | Facebook



    Pictures from disassembly of the model in question.

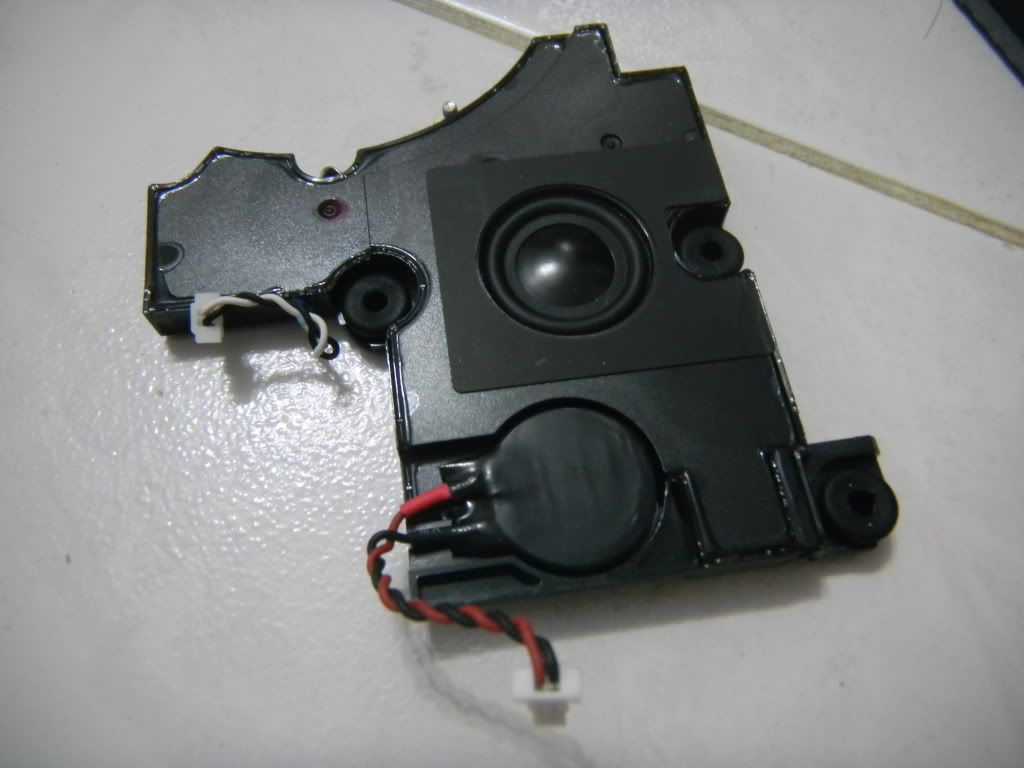

    Is this a speaker with a subwoofer?

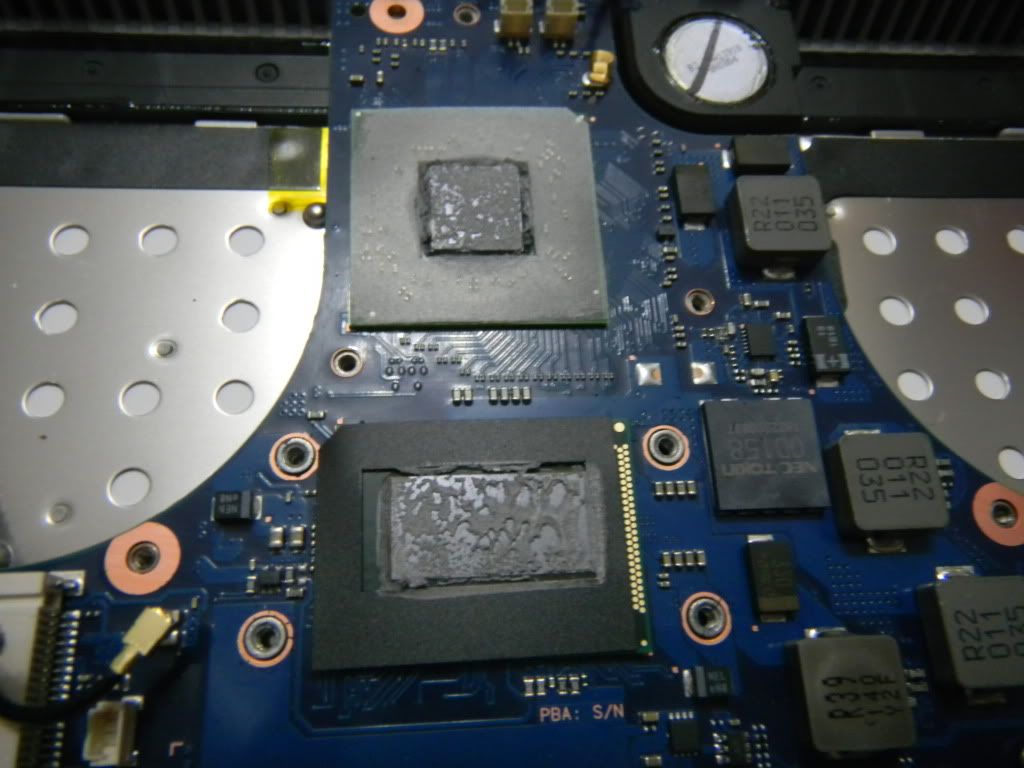

    Speaker on top left and another near heatsink


    Only TWO speakers found - Where's the subwoofer?

    Question: Validity of Claim?

    OT: Post 444, unlucky and inauspicious! :rolleyes:

    Last edited by a moderator: May 8, 2015
    yknyong1, Dec 29, 2011
    #1
  2. duffyanneal

    duffyanneal Notebook Deity

    Reputations:
    539
    Messages:
    981
    Likes Received:
    0
    Trophy Points:
    30
    So what is this (red arrow)? I believe that is a speaker.

    [​IMG]

    This picture from the disassembly guide shows it even better. Definitely a speaker.

    [​IMG]

    duffyanneal, Dec 29, 2011
    #2
  3. yknyong1

    yknyong1 Radiance with Radeon

    Reputations:
    1,191
    Messages:
    2,095
    Likes Received:
    8
    Trophy Points:
    56
    I disassembled earlier. The two speakers are at the hinge. The lone one is the subwoofer.

    BNM-NIKE15L
    BNM-NIKE15R
    BNM-NIKE15W

    Anyone heard of BNM speakers? Are these 1.5W or 2W?

    yknyong1, Dec 30, 2011
    #3
  4. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,166
    Trophy Points:
    581
    Audio power ratings can be manipulated. Does Samsung mention peak or RMS power and the level of distortion when used at that power rating. Ignore the ratings. The important consideration is the audio quantity and quality. Is there a hint of bass?

    John

    John Ratsey, Dec 31, 2011
    #4
