*** Official Clevo N950KP6 Owner's Lounge ***

Clevo N950KP6 / N957KP6

http://www.clevo.com.tw/clevo_prodetail.asp?id=1058&lang=en








Key Features

• 7th generation Intel® Core™ processor
• High performance Desktop CPU in mobile chassis
• Expandable DDR4 memory up to 32GB (depends on RAM module)
• Support XMP (depends on CPU SKU)
• Built in the NVIDIA® GeForce GTX 1060 graphics card + 6GB GDDR5
• 4 simultaneous display
• Expand to MAX. Dual M.2 SSD SATA or One PCIe
• SOUND BLASTER™ Cinema 3
• White-LED illuminated full size keyboard
• Full color keyboard with numeric pad (Option)
• 2 x USB 3.1 Gen 2 ports (share with USB 3.0 port) (1 x Type A + 1 x Type C) (Option)
• M.2 LTE or UMTS/HSPA+
• Support Virtual Reality ready

Internals


Reviews



Resellers
https://www.eluktronics.com/N950KP6
https://www.gentechpc.com/product-p/sager-np7950.htm



https://www.multicom.no/multicom-kunshan-n950-156-full-hd/cat-p/c100475/p10637971

https://www.multicom.no/multicom-kunshan-n950-156-full-hd/cat-p/c/p10638015



What is the difference between this and N850KP6 ?



EDIT: Sorry, scrap that - thought you were asking something else!



It should be the same but I'm not sure



Yes it looks like a name change.



its been renamed to n950kp6



Hi! @clevo-extreme
Do you have photos of the cooling system for this model?



@Meaker@Sager
http://www.sagernotebook.com/NP7950-N950KP6/



Is it just me, just the pictures or does the back of that chassis look cheap as hell?

Sent from my SM-G955U using Tapatalk



@GenTechPC
https://www.gentechpc.com/product-p/sager-np7950-build.htm

do you have photos of the cooling system?



@Tanner@XoticPC
http://www.xoticpc.com/sager-np7950-clevo.html



Haven't seen one in person yet but I asked if I could get a few photos when next one goes through over here.



Thanks!



Added it to noteb.com , but hell this thing is thick! 3.7 cm ? Most people want laptops 1 inch thick. But it's the price you pay for a desktop CPU. What impressed me is that they managed to implement Optimus with a desktop CPU. The P750 series don't have Optimus.



https://www.pro-star.com/customview/index/index/id/260



To be honest, the price is outstanding.



Does look pretty good, CPU makes a big difference in price.



So does this mean the GPU is swappable or is that built into the board? Same with CPU, will it be swappable as well? This looks like my go-to if CFL1 laptops don't have an upgrade path.



From what little I can see on it, the CPU will be changeable but not the GPU.



Damn. Was hoping for a 1070 if that was the case.



Something fully socketed at that base price would indeed be amazing.



That's more the job of the bigger units.



Sure does! It will be interesting to see which CPU SKUs end up trending and which ones get opted out of, too.



When an h370 and a coffee lake cpu?



I'd also like to see how a coffeelake version would shake down, since the i3-8100 will be quad core.



The K I3 adds a lot but the non-k does look like very good value. A consistent 3.6GHz on 4 cores 4 threads is very decent.



Is that i3-8xxxk compatible with z170? Or z270?



Anandtech did a good article on the 8th gen information that can be currently released:

https://www.anandtech.com/show/1186...ation-coffee-lake-hex-core-desktop-processors



Doesn't look like it, I think they're enforcing it across the board, not just on higher end chips.



http://www.hidevolution.com/evoc-clevo-n950kp6-custom-built-gaming-desktop-replacement-laptop.html



Yep, pretty much everyone should have it in now.



N950KP6 Specification

Processor
• Intel® Core™ i7-7700 processor (14nm, 3.6GHz, DDR4 2400MHz, 8MB Smart cache, TDP: 65W)
• Intel® Core™ i5-7500 processor (14nm, 3.4GHz, DDR4 2400MHz, 6MB Smart cache, TDP: 65W)
• Intel® Core™ i5-7400 processor (14nm, 3.0GHz, DDR4 2400MHz, 6MB Smart cache, TDP: 65W)
Core Logic
• Intel® H270 Express Chipset
Display
• 15.6” (39.62cm) FHD (1920x1080) 16:9 panel, 3.2mm
Memory
• Dual channel DDR4
• Two 260 pins SODIMM sockets, support DDR4 2400 MHz (Real operation frequency depends on processor)
• Expandable memory from 8GB to 32GB, depends on 4GB/8GB/16GB SODIMM module
Video Controller
• Intel® HD Graphics 630
- Dynamic frequency
- Intel Dynamic Video Memory Technology
- Microsoft DirectX® 12 compatible
• NVIDIA® GeForce GTX 1060 (N17E-G1)
- 6GB GDDR5 Video RAM
- Support PCIe x16
- Microsoft DirectX® 12 compatible
- NVIDIA® PhysX®
- GeForce CUDA™ technology
• Microsoft Hybrid Graphics mode
• Support 4 active displays
Storage
• One changeable 2.5” 7mm/9.5mm(H) HDD / SSD, SATA interface
• (Factory Option) One M.2 2280 SSD SATA or Two PCIe Gen3 x4 interface (RAID 0/1)
Audio
• High Definition Audio
• Built in array microphone
• Built in two 2W speakers
• Sound Blaster™ Cinema 3
Keyboard and Pointing Device
• Multi languages white-LED illuminated full size keyboard with numeric pad
• (Factory Option) Multi languages full color illuminated full size keyboard with numeric pad
W/A/S/D gaming key on full color illuminated keyboard
• Built in touch pad with Microsoft PTP multi-gesture and scrolling function
I/O ports
• 1 x USB 2.0 port
• 2 x USB 3.0 (USB 3.1 Gen 1) ports (Type A)
• 1 x USB 3.0 (USB 3.1 Gen 1) port (Type C)
• (Factory Option) 1 x USB 3.1 Gen 2 port (share with USB 3.0 port) (Type A) and
1x USB 3.1 Gen 2 port (share with USB 3.0 port)(Type-C)
• 1 x Mini Display 1.3 port
• 1 x Mini Display 1.2 port
• 1 x HDMITM output port (with HDCP)
• 1 x Headphone jack
• 1 x Microphone jack
• 1 x RJ-45 LAN port
• 1 x DC-in jack
Card Reader
• 6-in-1 Push-Push Card reader
- MMC / RSMMC
- SD / mini SD / SDHC / SDXC
Slot
• Three M.2 card slots
-1st for WLAN Combo M.2 2230 Card with PCIe and USB interface (A key)
-2nd for SSD M.2 2280 Card with SATA / PCIe Gen3 x4 interface (M key)
-3rd for SSD M.2 2280 Card with PCIe Gen3 x4 interface (M key)
Communication
• Built-in 10/100/1000Mb Base-TX Ethernet LAN
• (Factory Option) Intel® Dual Band Wireless-AC 8265, 2x2 AC +BT M.2 2230 (Windstorm Peak)
• (Factory Option) Intel® Dual Band Wireless-AC 3168, 1x1 AC +BT M.2 2230 (Sandy Peak)
• (Factory Option) Qualcomm® Atheros Killer™ Wireless-AC 1535 Dual Band 2x2 AC +BT M.2 2230
• 1.0M HD video camera
• (Factory Option) 2.0M FHD video camera
Power Supply
• Full Range AC adapter, AC in 100~240V, 50~60Hz, DC output 19.5V, 11.8A, 230W
• Removable 6 cells Smart Lithium-Ion battery pack, 62WH
• Battery life: 360 minutes (UMA mode with 62WH Battery) (TBC)
Security
• Security (Kensington® Type) Lock Slot
• Intel® PTT for system without Hardware TPM
Others Design
• Shipping Mode
• FlexiCharger
• Virtual Reality ready via HDMI or miniDP from dGPU
• Support Windows®10 Cortana with Voice
• (Factory Option) USB drive
O.S. Support
• Windows®10 (64-bit)
Certificate
• Windows® 10 (64-bit) Logo
• HDMITM Logo
Dimension
• 378 (W) x 267 (D) x 30 (H) mm (TBC)
Weight
• 2.5 kg,including Barebone and 62 WH Battery (TBC)
Specification
Remark:
*Battery life may vary depending on applications and configuration.
*Weight tolerance is +/- 5%.
*The content is subject to change without notices. Other brand and product names are trademarks and/or register trademarks of their respective companies.



couldnt find GPU cooling system.

Here review in Chinese.
http://www.noteforum.co.kr/news/index.htm?nm=44027



I signed up as i picked up one of these to test out and see how well it is so far no complaints my version was the Sager NP7950 Version which drivers were a bit tricky at first as i opted for no windows on my build. In the last few hours i have gotten it all set up and so far everything is pretty sound i planned on benchmarking it tommorow



I'm really curious about your tests



Nice, I look forward to your results



Cinebench results are in an I tested it on a handful of titles that I had
i opted for an Intel Core i5 7400 for the time being with the intention of updating it to a core i7 later on

OpenGL held at 87.65 FPS
CPU got a 549 CB

Bioshock Infinite held a stable 75 FPS
Doom held a stable 79 FPS
Fallout 4 held a stable 72-75FPS

Overall even with the desktop i5 I'm impressed with what it can handle so far.



I forgot to mention under 1080 game loads the temps held in the 68-72 degree threshold and there was no thermal throttling either



https://valid.x86.fr/ag0er7



Do you have a photo of the gpu heat sink?



Sounds like you are all set for nice performance across the board



I'll get one in the coming days the heat sink is below the plastic frame visibly see that it has two heat pipes similar to the cpu heatsink



Yes it could be quite hard to reveal, I would just take a shot of how you see it now.



what about noise under load? is it loud?



Coming from my Alienware 15 R3 this thing is much more quiet in comparison

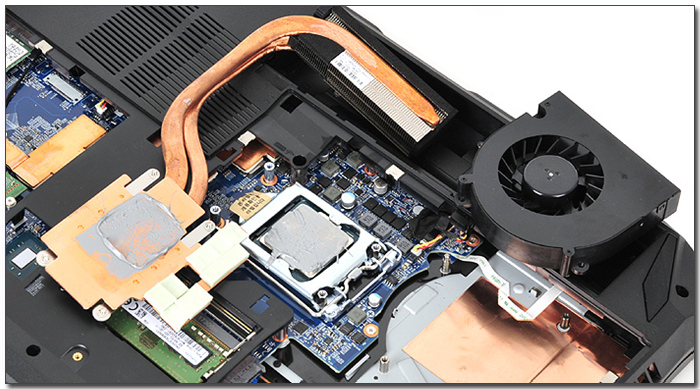

Here is some pics of the bottom chassis unfortunately the GPU heatsink is hidden under plastic but i tried to get a pic slightly sideways showing where it is hiding at.



Nice pictures



Hello. I want to buy this laptop as well. Should i go for cheaper i5-6600k or the more expennsive i5-7400 ? They are around 80 euro diff on ceg hardcore.
