Official Coffee Lake Refresh Thread/BIOS for ALL Clevo Laptops - RTX CARDS NOW SUPPORTED

I have already done 3 775dm3 mods, all went fine. 2 out of the 3 went without programmer, for the last one I needed programmer, but after that it was fine.

My question is, anyone has made a 751dm2 mod?

thx for the info, I will check that version, however I prefer the rtx versions, If I make a mod, I am not going backwards to 6/7 gen.

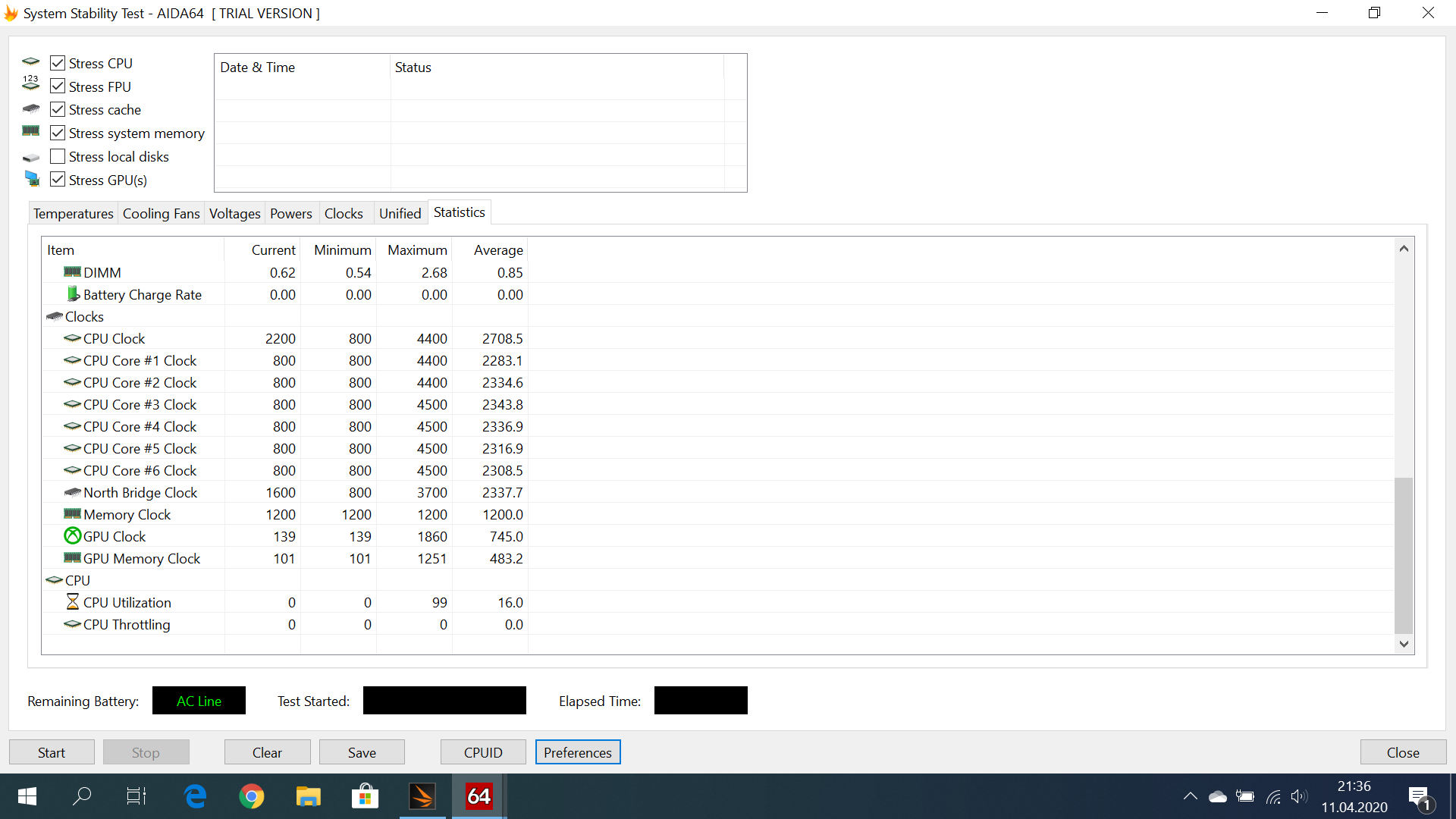

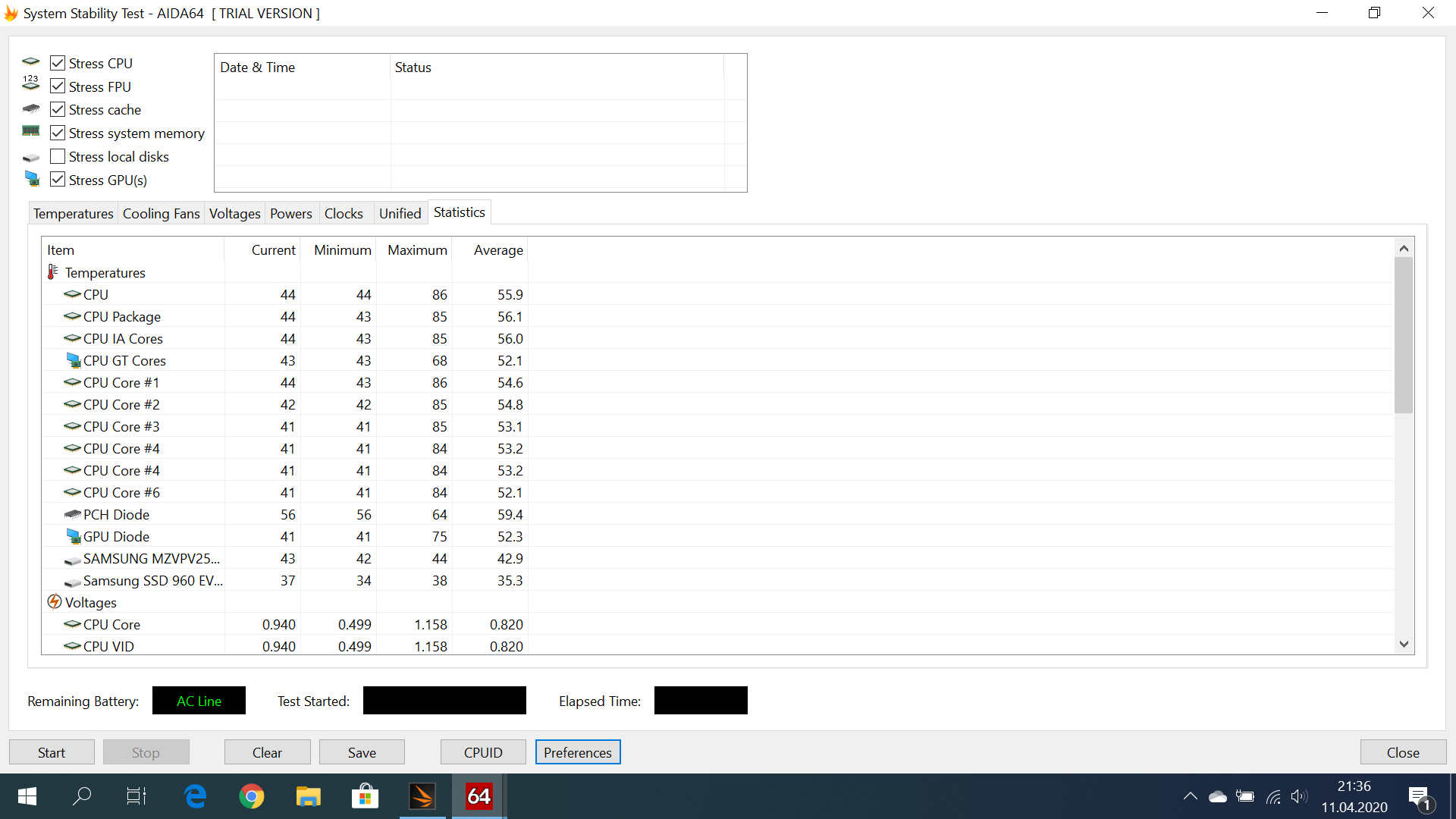

Sorry my friend unfortunately I don't have this model, but i have this:
Clevo P775DM3-G
dsanke biosmod 1.07.24

GTX 1080
8700K -150mV
16GB DDR4 2400mhz
SSD 256GB
Fans on AUTO
G-sync work on CMN N173HHE-G32

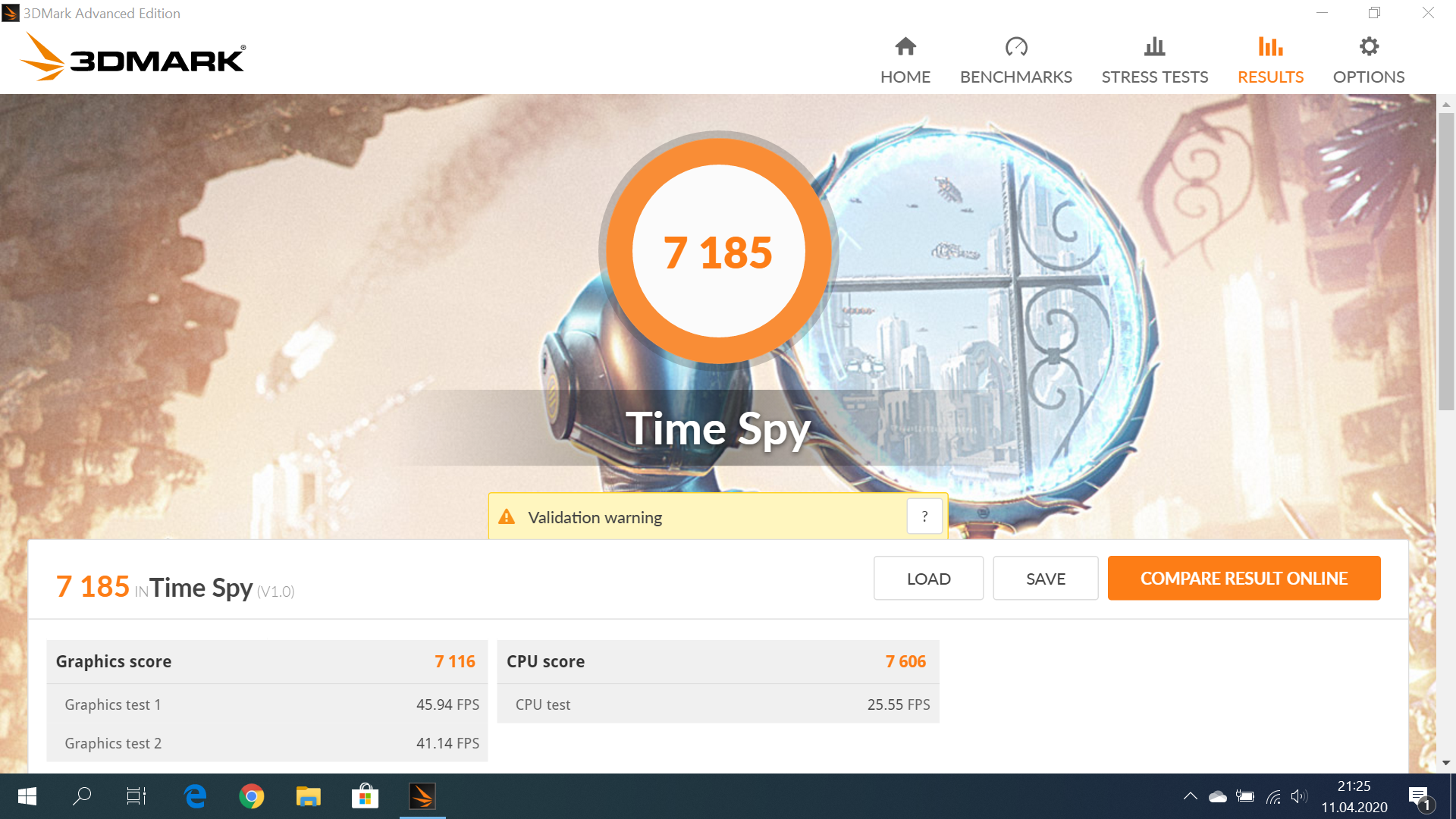

Time Spy

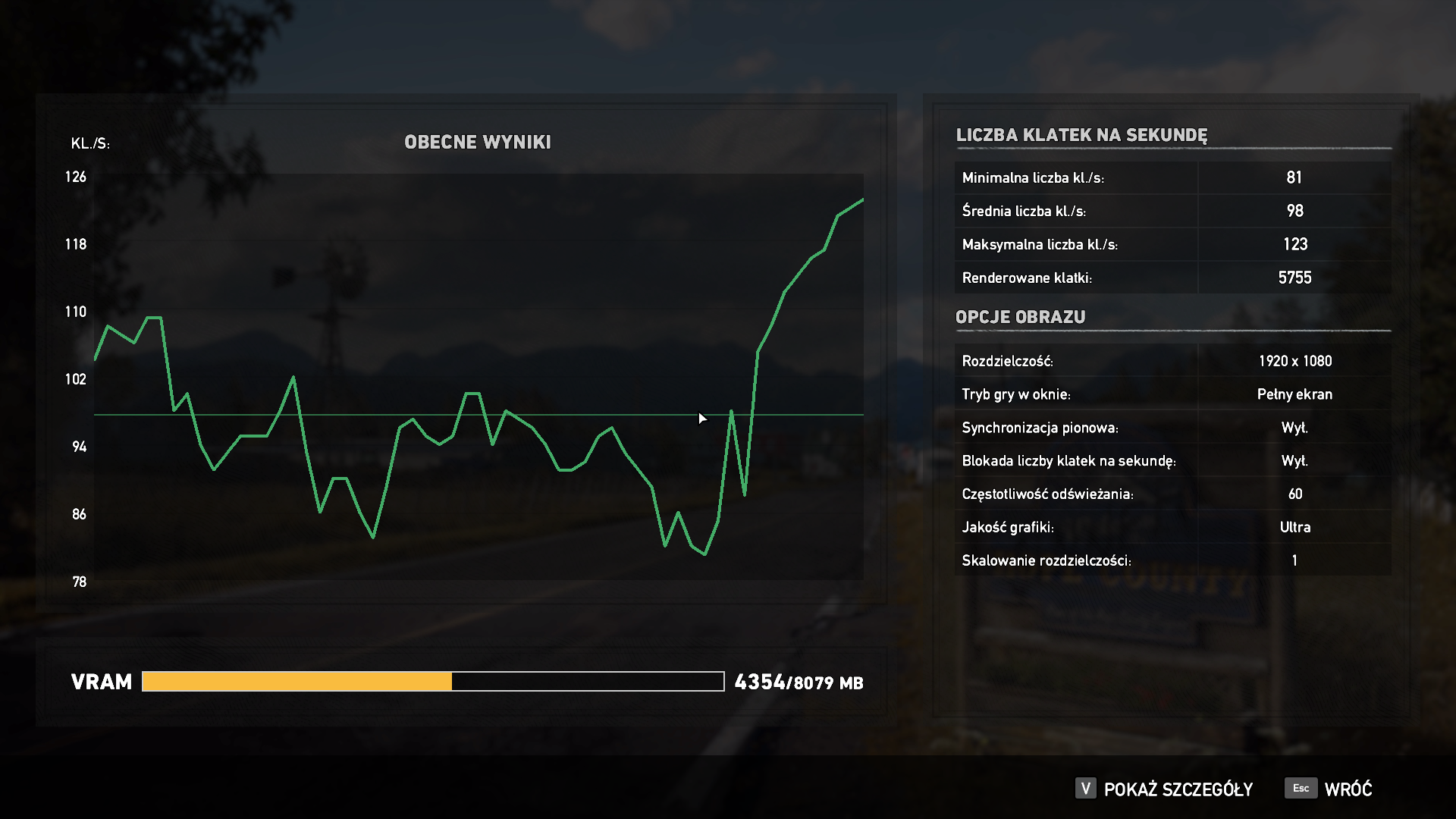

Farcry 5



What is the setup? gpu/cpu clevo? 775dm3 with 8700k?

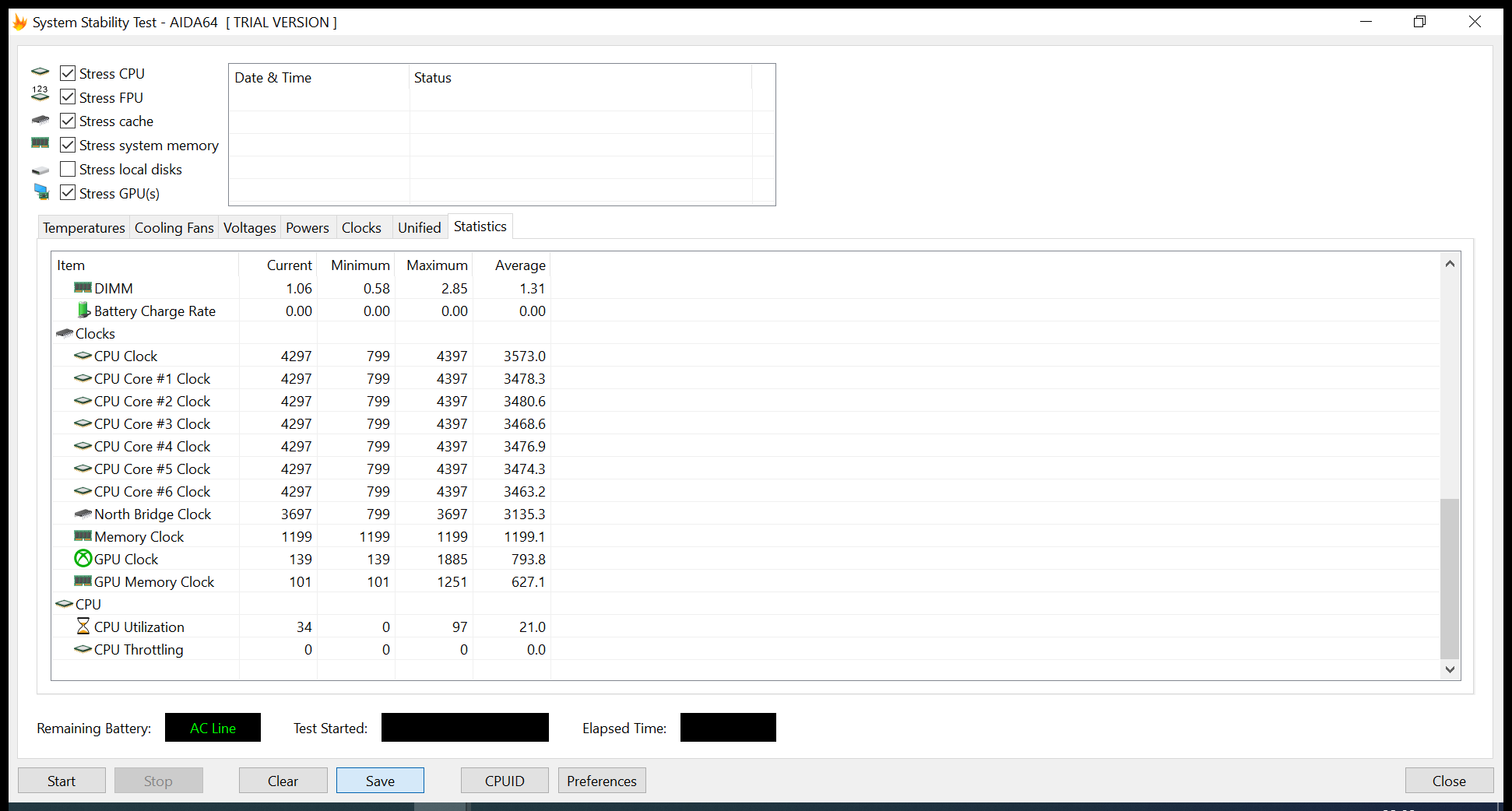

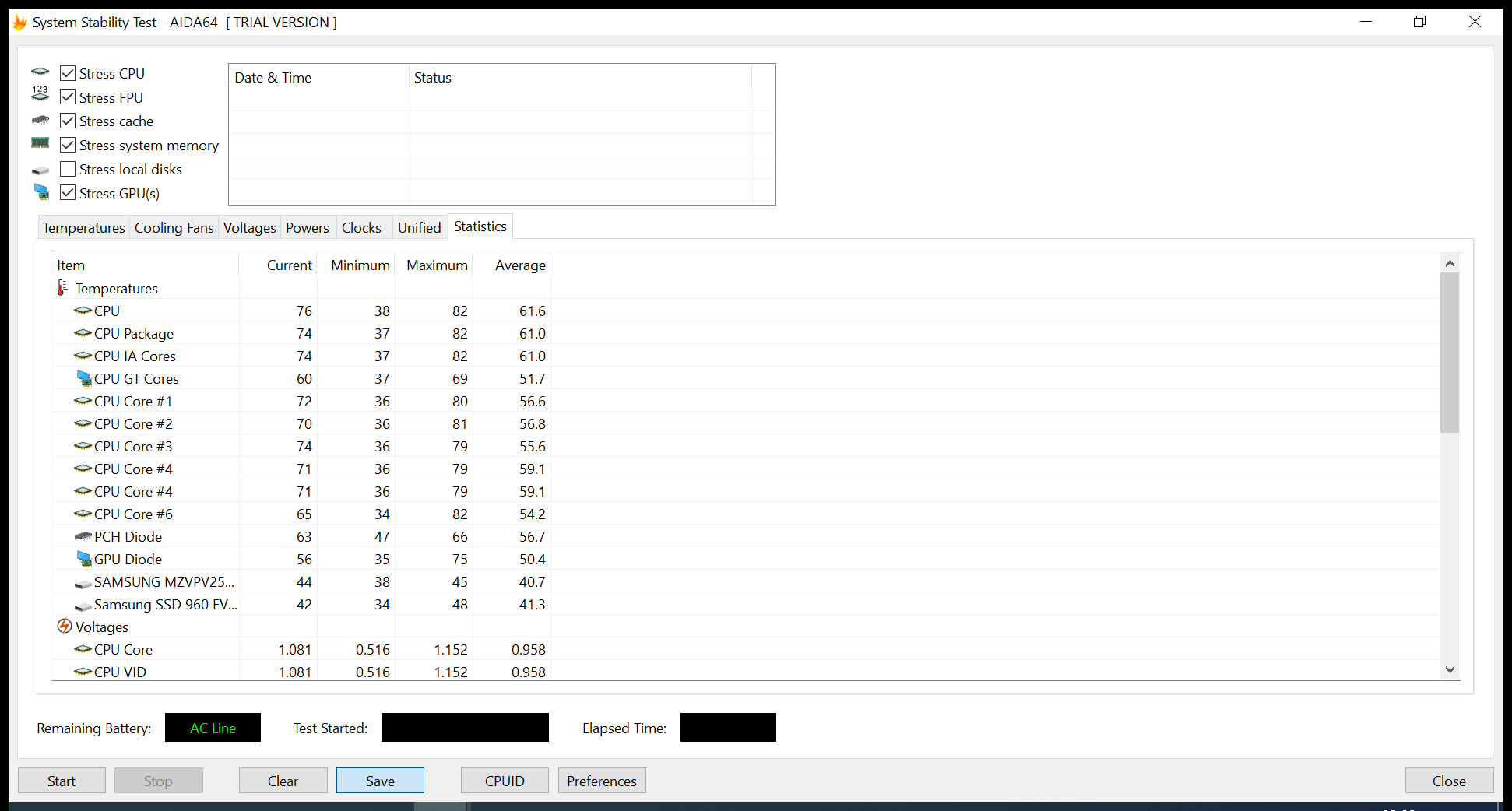

Clevo P775DM3-G
dsanke biosmod 1.07.24

GTX 1080
8700K -150mV
16GB DDR4 2400mhz
SSD 256GB
Fans on AUTO
G-sync work on CMN N173HHE-G32



I had the very same Chi-Mei 120hz gsync the best laptop screen for FPS games EVER!



Did you try the xmg EC we talked about? The 1.06.06? Thanks



How i said, custom EC .06 from XMG unlock CPU FAN speed in auto fan mode ... is cooler but louder. I stay with original EC .01 from palkeo because i hate when is loud
Before i was using CCC, now i'm Obsidian-pc app user


PS: I had problems with flash EC when EC was controlled by Obsidian app.....luckily it didn't break the laptop

PS2: in HWINFO you can check FANS RPM



To go for .24 BIOS. you used the SPI programmer? Or flashed inside EFI?



Only from basic Clevo bios I flashed to .27 by SPI. From .27 to .26 and than .24 i was flashed in EFI

Joluke if you still have a .27/.26 bios version can u check and confirm this bug in your laptop? Just plug in usb type c device.
If will be bug, than restart system with plugged in and check again.



Hey guys. The mobo in my Sager NP9873 needs to be replaced. It has a 9700k and dual gtx 1080's. I'm having that done at a laptop shop. They guy knows what he is going in terms of general repairs, but is unfamiliar with the pin modification on the CPU. Is there anything he needs to know in swaping the CPU to the other MOBO? I'll handle the BIOS flash. Is there anything odd either of us needs to know before we do our tasks?
Also, since this will be open I'm wondering about swaping to an RTX 2080. Can I keep the other 1080 in the second slot if I do this? Does the MOBO have to be removed for this to work or could I do it later if I wanted? Anything else to know?
Thanks!



In .26 whenever I connect a device and 27 too, it only passes power. Can't see the device on windows . I will try the reboot trick and post feedback



ok, I did it !
My laptop: P751DM2-G: i7 6700K + GTX 1070; 15,6 FHD TN 120Hz, G-Sync
Was using:
-P7xxDMx_RTX.rom- with SPI programmer
-vbios, from folder "Non-Sli/GTX_1070_with_G-Sync_86.04.2A.00.27_N17E-G2_G/vbios - with programmer

Conclusion:
-G-Sync does not work- I assume that I should take LCD from P751 TM, right?
-USB-C does work
-my 8 pin clips is disaster- should have gone with Pomona like people recommenede here



Thx for the info. You might need to try the non-RTX bios version. I think the 751tm1-g was launched with the 120hz panel with gsync. However good to know that this bios version works, I will also try to make it soon and check with the AUO BTN 7.0 144hz IPS gsync panel.



well, I've tried flash to P7xxDMx.rom- still no g-Sync, so what can I do now? Search for G-sync panel from original P751TM?
What doesmit mean: P7xxDM_Old_Graphic.rom--> which GPUs? 970m/980m?



can you tell me what is exact model number of lcd?



Sure, by heart

auo b156han07.0

I have a 751tm1-g at home (used to have 2 more) all had this panel. GSYNC, 144hz, IPS

I have one spare here, I bought for my EUROCOM Tornado F5, but the nvidia driver switched off the backlight, so I needed to replace with a 7.1 model.

Next week I will try if I have gsync with that, so you will have fixed feedback. Beside the panel you will need a 40pin edp cable, as your panel has 30 pin.



I guess it is the old DM model (not Dm2, Dm3) with 9XX series gpu. I flashed this version actidently to my 775dm3, worked but I did not have sound



does cable always come with display or should I get it separately?



Usually you need to buy separately.



I've never heard of a panel coming with a cable apart from a touch one.



Does anyone have that picture that shows which pins have to be covered? I need to do this but cant see the information.

EDIT: nevermind, the image is in the download!



Guys
We flashed the 751dm2 with dsanke mod but it starts with black screen
We tried with different gpu same (1060)
We tested my gpu (1080) in a tm1 works like charm
What could be the issue? Could it be ec or something. The machine worked woth 7700k without problem so with stock bios the 751dm2 worked.
Thx



If you flash it back is it working?



did you use programmer?



Good day.

please my notebook is clevo p870dm-g - CPU intel core 9700kf -mb ist chipset z170 -gpu 2x 970m sli. -is working.

I need to install 1x rtx 2080. i need update bios / vbios ..

I recorded bios P870DMx_RTX.rom, but it doesn't work internal sound and rtx no runing..

...Can you help me thank you



The DMx (x) is for the dm3, you need the normal DM model. (I guess, I also had this issue)



Flashed the 1060 vBIOS with updated GOP?



hi,
is only available P870DM.rom --does not RTX
so i don't have a bios for P870DM_RTX.rom ... it exists ?

thanks



1. For clevo pascal/rtx you will need the mxm wire mod + power aux + moded heatsink (follow this like the bible otherwise will not work http://forum.notebookreview.com/thr...ix-gets-an-8700k-and-gtx-1080-upgrade.814711/ )
2. P870DMx_RTX.rom (that is for P870DM2/3 laptop not for the original DM)



I does not exist because the original DM needs hardware modifications to work with Clevo Pascal/RTX
http://forum.notebookreview.com/thr...ix-gets-an-8700k-and-gtx-1080-upgrade.814711/



i can't upload mGPU Vbios to disconnected card .. normal is possible ?



You could direct flash the chip with a programmer.



Hi

thank you so much.
I did not know edit the mxm wire mod ....done today

my clevo p870dm is working RTX 2080..

thanks !!!

see you



Pls post pics, from inside the laptop, from bios first page. Is the card recognized in bios with stock one? Did you need to inf mod? Is Gsync working?


Maybe some ongoing ones showing the process.



Ok if I have P775Dm3G with I7 7700K GTX 1080 ( GOP 0x30009) and In few days I want to upgrade on I7 8700K its posible to work in this laptop ? I read this theard and I must upgrade GOP ? I have higher than 30006 ?



I don`t see why not



What file from google drive I must use ? I can update the bios on I7 7700K work on new bios and in few days put I7 8700K ?



read the txt and the excell included in the archive from google drive



Guys,
I managed to refresh my 751dm2 with dsanke bios! Finally with an older bios version (DM not RTX) it works like a charm with 8600k. Could you tell my what display cable I need exactly to use my AUO BTN156HAN07.0 panel? (it is the same as in the 751tm1). It turned out that the 4k igzo panel has special connection, not 40pin.
Thank you



did you mean: b156han07.0 ?

Sorry, I don’t understand- which panel do you have in P751dm2 at the moment?



I have a Sharp Igzo 4k. I also have a b156han07.0 but I do not have cable, as the sharp has special one. So I need a original tm1 cable.



try to find in this service manual, it’s from Prema site:
https://mega.nz/file/PE1FVLAY#hA3fMtewFpdQcJHY3S9qTgi0P0so-Z_FnKP1KnsbLU0



mod clevo rtx p870dm -mb ich z170

i don't know web upload photo ...

silly interface

I would like to provide my info mod



Upload them on imgur.com (for example), and post the link here



Hey can anyone send me a picture of the back side of the motherboard of a p775dm3-g, near the charging slot? a close-up or a good resolution picture please?



This all bios on files is full unlocked ?



Yes



@joluke you mod your bios from this, with file you use to P775DM3-G ? I can upload this bios if I have I7 7700K + 1080 GPO 0x30009

I send PM to you



Ok i make like this manual but when i put Now type "fpt -f BIOS.bin -rewrite -y" i have error Image file "BIOS.bin" not found. Where is the problem ? I put to the Boot folder file with bios name P7xxDMx.rom to my P775DM3G laptop.



BIOS.bin is the name of the file:

fpt -f P7xxDMx.bin -rewrite -y (or .rom)

when you type fpt -f AFTER P7 push tab and it fills out with your file. GL
