    Razer Blade 14 2014 Kepler 870m vs Clevo W230SS 860m Stock and Overclock

    Discussion in 'Razer' started by HTWingNut, Aug 20, 2014.

  1. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    I've been meaning to publish these, just never took the time. I got my hands on a Razer Blade 14 2014 with GTX 870m and ran some benches... so what the heck, here goes...

    Compared with GTX 860m Maxwell in a Sager NP7338 based on Clevo W230SS 13.3" notebook.

    (1) GTX 860m Stock (W230SS - Maxwell)
    Core: 1029MHz / 1097MHz Boost
    vRAM: 5000MHz
    vCore: 1.15V

    (2) GTX 860m OC (Prema Mod on W230SS - Maxwell)
    Core: 1309MHz / 1377MHz Boost (equates to +250MHz over stock)
    vRAM: 5850MHz (equates to +425MHz over stock)
    vCore: 1.20V

    (3) GTX 870m (Razer Blade 2014)
    Core: 941MHz
    vRAM: 5000MHz
    vCore: ?


    ARTIFICIAL BENCHMARKS:

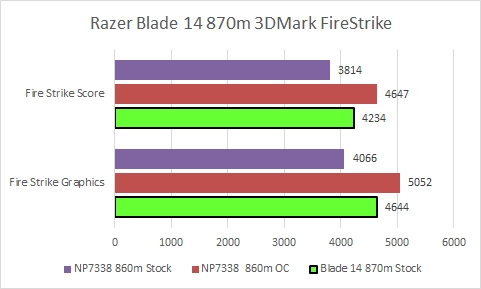

    3DMark Fire Strike
    [​IMG]

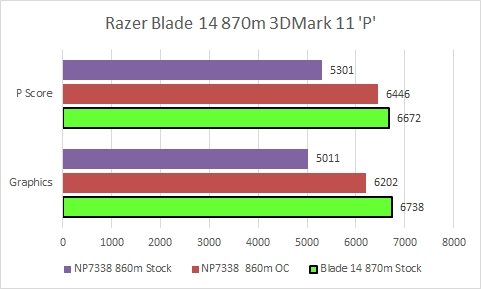

    3DMark 11 'P'
    [​IMG]

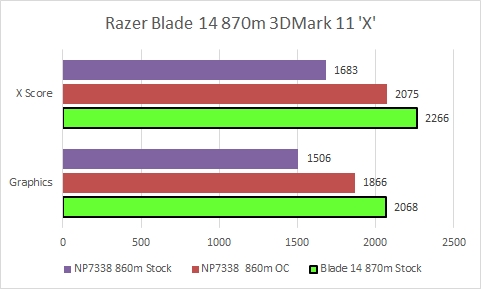

    3DMark 11 'X'
    [​IMG]

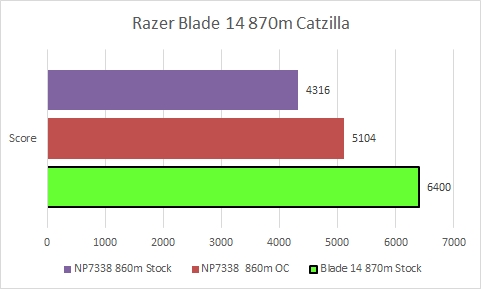

    Catzilla
    [​IMG]

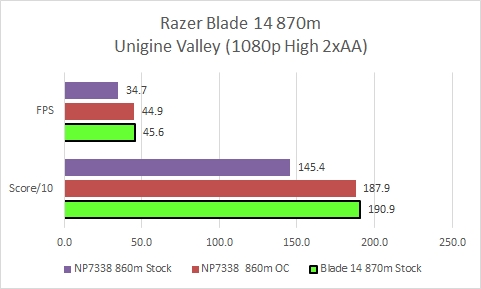

    Unigine Valley
    [​IMG]



    GAME BENCHMARKS @ 1080p:

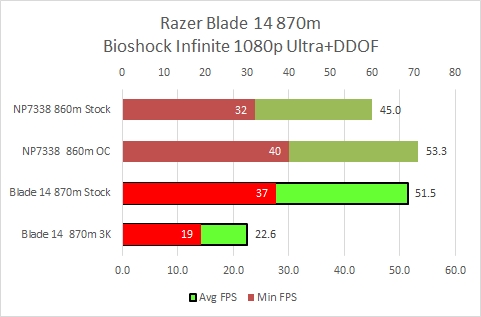

    Bioshock Infinite
    [​IMG]

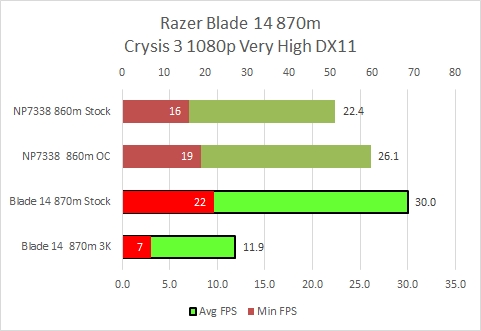

    Crysis 3
    [​IMG]

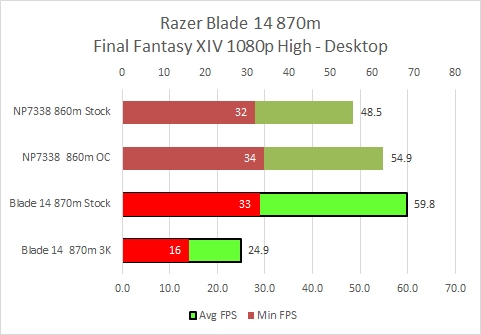

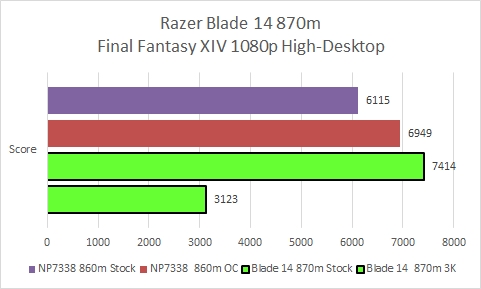

    Final Fantasy XIV
    [​IMG]

    [​IMG]

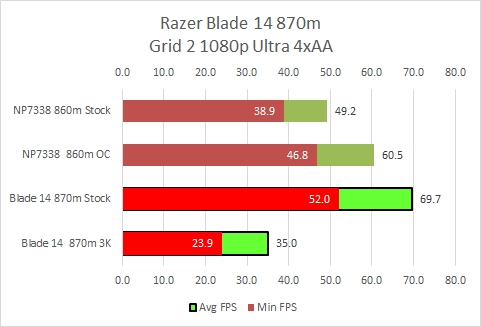

    Grid 2
    [​IMG]

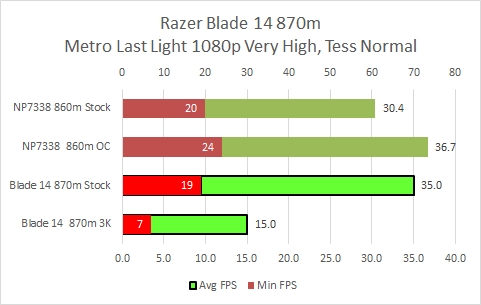

    Metro Last Light
    [​IMG]

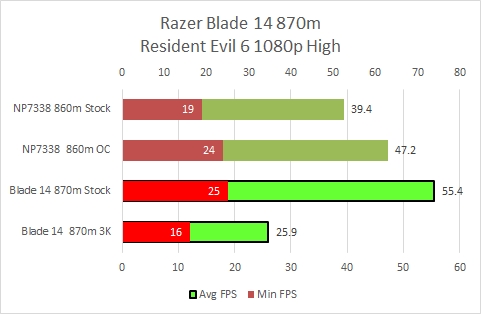

    Resident Evil 6
    [​IMG]

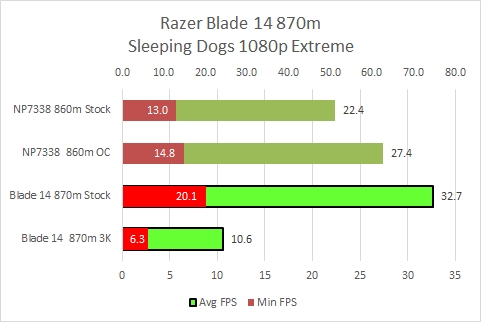

    Sleeping Dogs
    [​IMG]

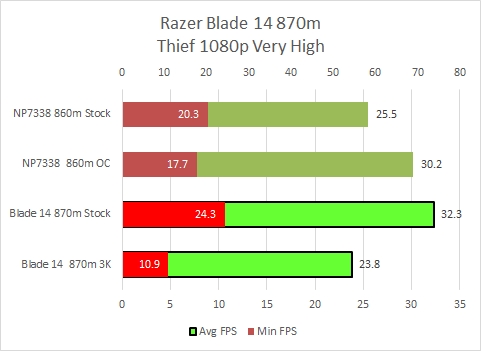

    Thief (2014)
    [​IMG]

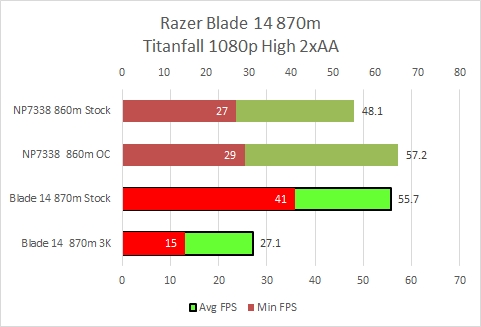

    Titanfall
    [​IMG]

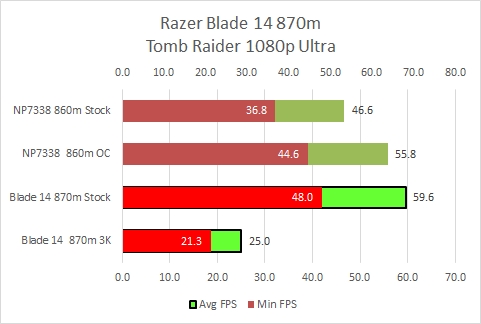

    Tomb Raider (2013)
    [​IMG]

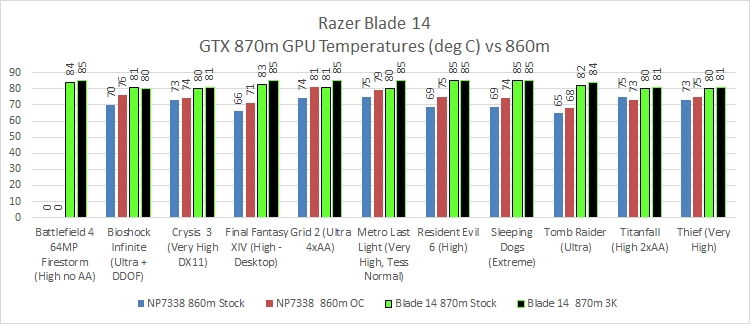

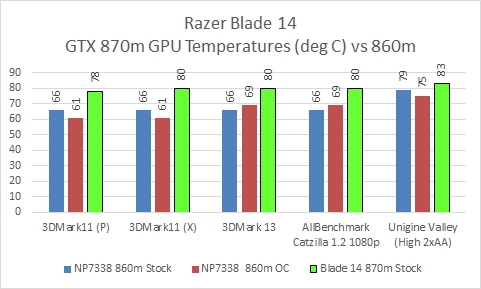

    TEMPERATURES:

    [​IMG]

    [​IMG]

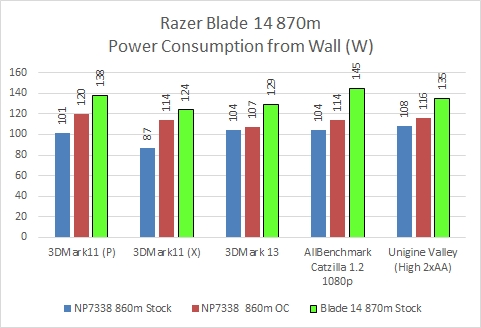

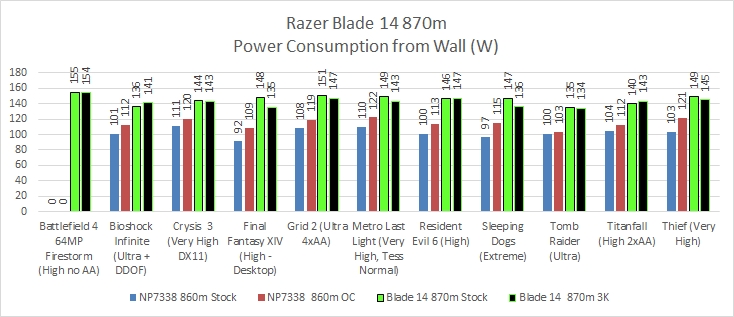

    POWER CONSUMPTION:

    [​IMG]

    [​IMG]

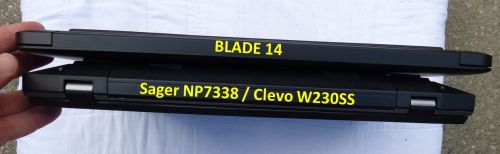

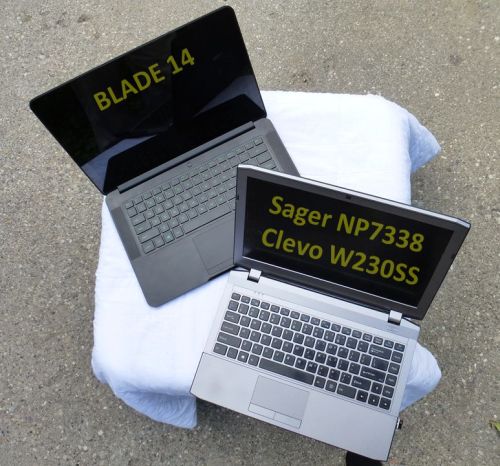

    SIZE COMPARISON:

    [​IMG]

    [​IMG]

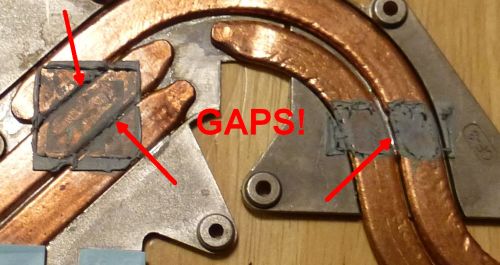

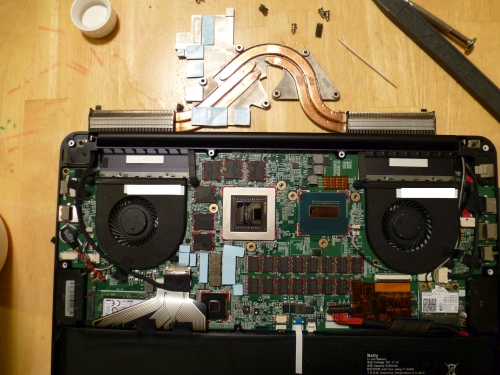

    BLADE 14 2014 COOLING SYSTEM:

    [​IMG]

    [​IMG]

    HTWingNut, Aug 20, 2014
    #1
    pau1ow, Marksman30k, Nachyo24 and 1 other person like this.
  2. Marksman30k

    Marksman30k Notebook Deity

    Reputations:
    2,080
    Messages:
    1,068
    Likes Received:
    180
    Trophy Points:
    81
    Wutttt? Razer doesn't even bother sanding down the heatpipes flat?
    If you're going to do direct contact at least do it right. This might have been heaps better with the traditional copper heatplate soldered to the heatpipes.

    Marksman30k, Aug 20, 2014
    #2
  3. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    HTWingNut, Aug 21, 2014
    #3
  4. wB`

    wB` Notebook Consultant

    Reputations:
    241
    Messages:
    124
    Likes Received:
    6
    Trophy Points:
    31
    awesome work!

    wB`, Aug 22, 2014
    #4
  5. reed1

    reed1 Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    3
    Trophy Points:
    6
    Superb Report! I'm now convinced to but w230ss. Thanks

    reed1, Nov 12, 2014
    #5
  6. Splintah

    Splintah Notebook Deity

    Reputations:
    278
    Messages:
    1,948
    Likes Received:
    595
    Trophy Points:
    131
    Man Razer really is the Gucci of laptops

    Sent from my Nexus 5 using Tapatalk

    Splintah, Nov 12, 2014
    #6
