    6224w - 2 unknown devices...

    Discussion in 'Other Manufacturers' started by simple-screen, Sep 29, 2007.

  1. simple-screen

    simple-screen Notebook Enthusiast

    Reputations:
    0
    Messages:
    49
    Likes Received:
    0
    Trophy Points:
    15
    Hi all,

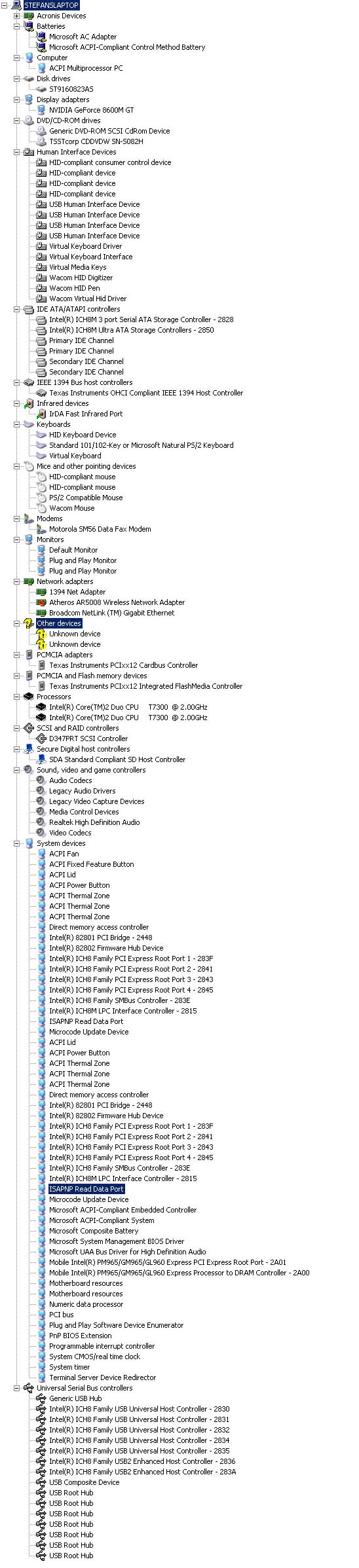

    After installing XP myself and all of the drivers, I get two unknown devices in device manager. Attached is a screenshot of the DM with all of the devices.
    My built in microphone doesn't seems to work, may be that's one of the devices?
    Also, for some strange reason I can't establish a VPN connection... does anybody else had this problem with a 6224?


    Attached Files:

  2. odin243

    odin243 Notebook Prophet

    Reputations:
    862
    Messages:
    6,223
    Likes Received:
    0
    Trophy Points:
    205
  3. Sprint

    Sprint DTR Super Mod

    Reputations:
    20
    Messages:
    1,011
    Likes Received:
    0
    Trophy Points:
    55
    try right-clicking and reinstall drivers, repair and every other option there is

  4. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,842
    Likes Received:
    2,173
    Trophy Points:
    581
    1. Go into the BIOS and make sure TPM is disabled on the security page. That gave me an unknown device.

    2. You haven't got the Synaptics touchpad driver loaded and there is some more infra-red functionality. Look for the CIR driver. Also, did you install the QL button driver?

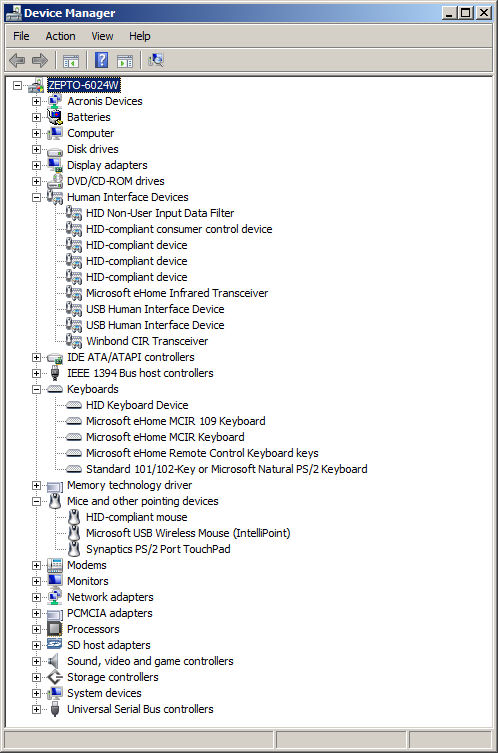

    I attach a listing of some of my devices where they are different.

    John


    Attached Files:

  5. simple-screen

    simple-screen Notebook Enthusiast

    Reputations:
    0
    Messages:
    49
    Likes Received:
    0
    Trophy Points:
    15
    Thanks John, that removed one of the devices, but there's still one more :(

    the red cross on the atheros is because I have disabled it, because I'm using it very rarely and it's just annoying me in the tray with the popup msgs

  6. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,842
    Likes Received:
    2,173
    Trophy Points:
    581
    Which action got rid of one of the devices? I suggested 4 things.

    John

  7. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,842
    Likes Received:
    2,173
    Trophy Points:
    581
    Possible, but only if Fn+10 is used to turn on the Bluetooth device (a useful feature).

    John

  8. eeperman

    eeperman Notebook Consultant

    Reputations:
    2
    Messages:
    127
    Likes Received:
    0
    Trophy Points:
    30
    I was the poster in the other thread referred to earlier. Turning off TPM security cleared one error, but one still remains.

  9. simple-screen

    simple-screen Notebook Enthusiast

    Reputations:
    0
    Messages:
    49
    Likes Received:
    0
    Trophy Points:
    15
    my above post was reffering the TPM, but actually after installing the CIR driver it solved my other unknown device - so thanks John, you solved both unknowns ;)
    eeperman - try to "update" the driver of your unknown device and point it to the cir driver t should work...

  10. eeperman

    eeperman Notebook Consultant

    Reputations:
    2
    Messages:
    127
    Likes Received:
    0
    Trophy Points:
    30
    Yay - all fixed!! Thanks guys....
