by John Ratsey, England

Overview and Introduction

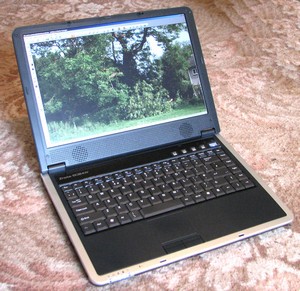

The 14.1&quot; Zepto Znote 6024W is a sibling of the 8600M GT-enabled 6224W and has the Intel X3100 GPU for those customers who do not need 3D GPU power and prefer more battery run time. Zepto is based in Denmark but are now selling their notebooks in several countries. The company is best known for packing a lot a gaming performance into their notebooks but also offer a wide range of configuration options. The ODM (original design manufacturer) of this notebook is Inventec.

(view large image)

Reasons for Buying

I was almost content with my Samsung Q35, particularly its ability to run for about 5 hours away from a power socket. However, the 12.1&quot; display is a little small for my old eyes. The Q35 was bought for the occasions when I don’t want to carry the 2.5kg 15.4&quot; Samsung X60plus. I looked at the Samsung Q70 but, while the display was excellent, the battery life was no match for the Q35. I considered the Rizeon S37E but it wasn’t available so, in early July 2007, I ordered the Dell M1330. I was assured at the time of order I would receive by 20^th July. When, on 18^th July, the M1330’s estimated delivery date was delayed by four weeks (and most likely would have been more than that) I decided to cancel that order and review my requirements and options. I decided that, instead of having two notebooks, one large and one small (with all the associated operation and support issues) it would make sense to get one medium sized notebook. This pointed to 14.1&quot; size.

(view large image)

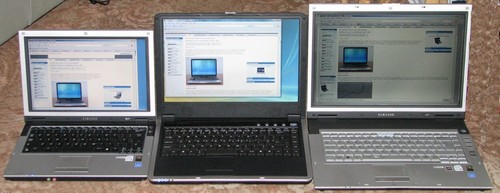

The 14.1&quot; Zepto 6024W between the 12.1&quot; Q35 and the 15.4&quot; X60plus. The Zepto is the brightest

I was about to go on a two-week business trip which would be an excellent opportunity to test a new notebook and see whether I could live with it. I didn’t want to permanently forego the extra real estate provided by a big display, so I wanted WXGA+ resolution. I didn’t want 3D graphics power with its associated increased power drain. The Intel X3100 GPU would meet my graphical needs. The combination of 14.1”, WXGA+ and the X3100 resulted in a short shortlist: Dell (Latitude D630 or Vostro 1400) and the Zepto 6024W. I talked to Dell but they couldn’t promise delivery in my required timeframe. I then contacted Zepto to clarify some aspects and confirm whether the estimated delivery time shown on their website was correct. I was assured that their delivery periods were conservative. I customised my 6024W and placed the order on a Thursday afternoon expecting to see the computer within a week. In fact, it reached me the following Tuesday afternoon. The total value of my order was just over £1,000: buying from Zepto involves a relatively high delivery charge from Denmark to UK (£35) and a surcharge for paying by credit card.

What’s in the Box?

The box contents comprised:

• The computer, in a plastic bag and held between two plastic foam spacers
• The PSU, two mains cables (European plug and UK plug) and battery
• A Zepto OEM DVD Vista Business
• A Zepto Znote 6024W Driver CD

Plus extra items I had included in my order:

• A Zepto notebook sleeve
• A spare 6 cell battery
• Nero Express 7 Essentials (a zero-cost option)
• Cyberlink DVD solution

Hardware Specs: Zepto Znote 6024W

My configuration comprised the following hardware and specifications:

• CPU: Intel T7300 (2.00Ghz) with Intel 965PM chipset
• Display: 14.1&quot; WXGA+ &quot;UltraCrisp&quot; matte LCD (CMO 1430)
• Memory: 2GB (2 x 1024MB) &quot;Zepto&quot; (it is actually A-Data) PC5300 RAM (667MHz)
• Hard Disc: 120GB 5400rpm SATA HDD (Hitachi HTS541612J9SA00)
• Graphics: Intel X3100 GPU
• Optical Drive: Toshiba-Samsung SN-S082H tray loading Super-Multi Dual Layer
• Network: Broadcom Netlink Gigabit
• Bluetooth: Cambridge Silicon Radio Bluetooth
• Modem: Motorola SM56 Data/Fax modem
• Wireless: Intel 4965 802.11a/g/n wireless
• Ports: 4 x USB 2.0, 1 x 4 pin Firewire, 1000Mb/s network (RJ45), modem (RJ11), VGA, microphone, headphone / SPDIF, 1 x Express Card 34 / 54mm, infra-red transceiver
• Media reader: Texas Instruments FlashMedia controller and 3-in-1 media card slot supporting SD, MMC, Sony Memory Stick
• Audio: Realtek high definition audio with 7.1 digital sound, two ~30mm speakers
• Touchpad: Synaptics touchpad 60mm x 47mm
• 6-cell battery (10.8V, 4800mAh = 51.84Whr)
• Liteon 90W (19V, 4.74A) power supply with 3-pin connector
• Dimensions: published:- 341 x 247 x 27mm, actual 341 x 243 x 32~40mm (13.43 x 9.57 x 1.26~1.58&quot; (including feet)
• Weight (published and actual are the same) : 2.35kg (5.18lb)
• Travel weight including PSU and cables 2.94kg (6.48lbs)
• Two-year collect and return warranty
• Vista Business 32 bit
• Microsoft Office 2007 trial

With the exception of the standard Vista Quick Start Guide, no paper documentation was provided with the computer. A simple 69-page User Guide is provided as a PDF file on the driver CD. I was disappointed that Zepto provide a 90W PSU for this notebook. A 65W PSU should be sufficient for the integrated GPU and would reduce the travel bulk and weight. Zepto has followed many other notebook manufacturers and quoted the minimum thickness (at the front) and excluded the feet.

Design and Build

(view large image)

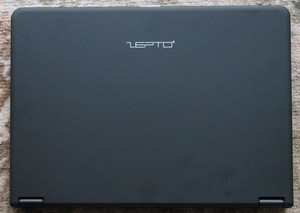

Top view of the 6024W with the Zepto logo

The 604W’s colour scheme is matte black (or perhaps it is a very dark grey, depending on the lighting) with the exception of the silver edging to the keyboard / palm rest area. The display back / cover is also matte black. Styling is not high on Zepto’s list of priorities. The beauty has to be considered to be internal. The silver edging has icons for the indicator lights and the microphones. It would have been very useful to have icons on the edging to indicate the locations of all the ports around the sides and this would give the edging more purpose in life. A very distinctive feature of the design is the loudspeakers being mounted below the LCD panel.

(view large image)

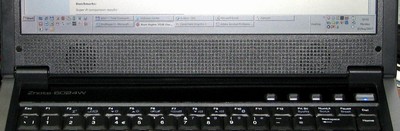

The speakers below the LCD panel

The chassis is primarily plastic but has some metal (aluminium?) reinforcement. It is possible to pick up and carry the open computer by holding one front corner without any significant flex. A further indication of the good rigidity is that any slight unevenness on a desk and the computer will wobble slightly – it is too rigid to flex and sit comfortably. The display back is very rigid and it is difficult (but not impossible) to cause any rippling by pressing on the back. The display looks to be quite thick (it is 9mm) but the apparent thickness is caused by the square edges without any rounding or tapering. In reality, the display thickness is average. The hinges are firm with a hint of wobble. During travel the display is held closed by two catches operated by a single sliding latch. The front of the palm rest is a reasonably low 20mm above the table level.

(view large image)

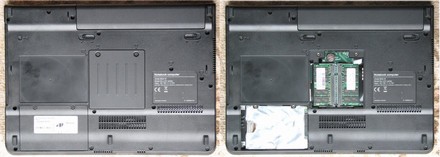

Underside of the 6024W: left = covers on, right = covers off to expose the HDD and RAM

The bottom of the computer is slightly stepped, with small protruding feet about 3mm (1/8&quot; long). These feet help provide airflow under the computer although part of the underside is very close to the table surface. The bottom of the 6024W has two removable covers. The screws for the RAM slot, the keyboard and the optical drive are labelled. The RAM slot also contains the backup battery for the CMOS (removing the battery will reset the CMOS in the event of a user locking themselves out of their computer). The HDD is wrapped in metal foil. This is the first time I have seen such an arrangement and I was told it was for screening. The foil does help reduce the noise from the Hitachi hard disk! There are also two air vents on the underside as can be seen in the photos and two more air vents on the front edge. The standard 6-cell battery fits flush at the back of the computer and is held securely by two latches, one of which is spring-loaded to facilitate one-handed removal. There is an optional 12-cell battery which protrudes from the back.

(view large image)

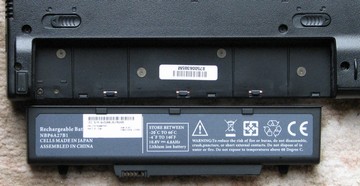

The 6 cell battery and the battery bay

The Keyboard

The front edge of the palm rest is a reasonably low 21mm from the table surface. The keyboard on the 6024W has an almost standard layout. The Fn key occupies the front left corner which suits me fine but will cause other people to run away. There are 88 keys which have very clear, large white markings on a black background. There are dedicated navigation keys along the right side, which I like. As always, there is scope to improve the layout. For example, I am used to the Insert key being near to delete and not next to the space bar. There are two Windows keys. The right hand one could be more usefully replaced by another Ctrl key (which can be done by remapping software).

(view large image)

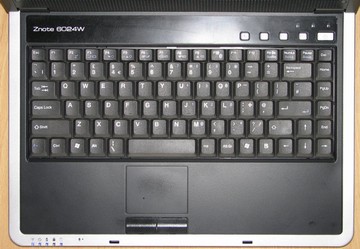

The 6024W’s keyboard

The key travel is good but the keys have to be pressed hard to register. I am used to keyboards which accept a lighter touch so I keep getting words with missing characters. One well-discussed feature of the keyboard is that the right side is poorly secured and tends to bounce. The cause is the absence of any fixing screws because the optical drive is underneath. I did a DIY fix for this by removing the keyboard and putting some loops of adhesive tape underneath. The Fn keys include the usual options for brightness and volume controls. Fn+F6 toggles the touchpad while Fn+F10 toggles Bluetooth.

The touchpad is almost square, which is an unusual arrangement for a widescreen notebook. There is plenty of space for a wider touchpad. An unusual feature is that the surface of the touchpad is flush with the palm rest with only a small groove to delineate the touchpad area. I needed to set the motion sensitivity to maximum in order to get acceptable cursor movement. As far as I can see, the palmrest is a self-coloured plastic so there is no paint to wear off. There were no stickers cluttering the palmrest.

(view large image)

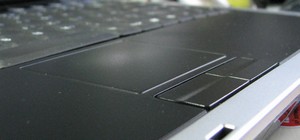

The flush touchpad

There are five indicator lights on the edge at the front left of the palm rest so they are visible from above and from the front. The lights are very bright but are normally hidden under my left wrist. From left to right the lights are: Wireless (blue) / Bluetooth (orange) / both (purple); power on; battery power (blue) / battery charging (orange); hard disk activity (blue); and memory card in slot (blue). The memory card light is an unusual feature.

(view large image)

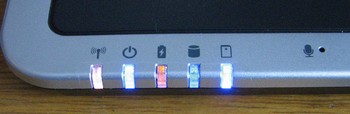

Five bright indicator lights, plus microphone

There are three further indicator lights near the power button (which itself has a blue light when the computer is on), for Caps Lock, Scroll Lock and Num Lock. These are also blue. To the left of the power button are four other buttons. Two are pre-set to internet and email and two are user-definable. It would have been useful to have one of the keys pre-set to eject the optical drive (it’s on my list of things to set up).

(view large image)

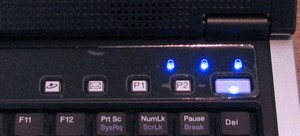

The keyboard indicator lights, power button and quick start buttons

A Tour of the Sides

Overall, the ports are quite well laid out. There is a total of four USB ports, one on each side and two on the back (an unusual feature is that these ports have power whenever the computer is plugged into mains power, even when off). The fan exhaust is at the back of the left side where the hot air is least likely to cause a problem and the optical drive is on the right. So far, the worst port location seems to be the power socket, also near the back on the left side, because the power plug is straight and the cable is doing a U-turn round the back of the computer. The tray loading optical drive is very close to the table surface and the slot loading option is easier to use. Let’s have a tour of the sockets, clockwise starting at the front.

(view large image)

The front has little to offer except the infra red port

(view large image)

Left side from back to front: Power socket, modem, fan exhaust, wireless switch, USB 2.0, Firewire, ExpressCard socket with 3-in-1 media card socket below

(view large image)

Back from left to right: 2 x USB 2.0,VGS, S-video, network, battery

(view large image)

Right side from front to back: Audio ports (including optical out), USB 2.0, optical drive, security slot

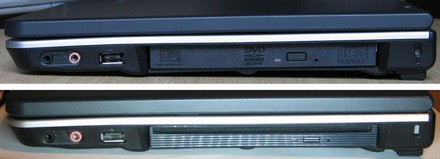

The upper photo shows a tray loading optical drive and the lower photo shows a slot loader

The Engine Room

The CPU, GPU and cooling system for the 6024W are located under the keyboard. This is less convenient than having a cover on the bottom of the notebook when the time comes to clear the dirt out of the cooling system. Also under the keyboard are two mini PCIe slots. One is occupied by the wireless card and the other is available for other cards such as Turbo Memory (which is now standard on one of the 6024W configurations). Looking under the keyboard explains two of the 6024W’s features: (a) Having only a thin keyboard between the fan and the user makes the fan noise more audible than on most notebooks; (b) the right side of the keyboard rests on a thin metal housing for the optical drive so it is difficult to fix and the keyboard base bouncing on the housing makes the keyboard noisier (as already noted, some adhesive tape will fix this).

(view large image)

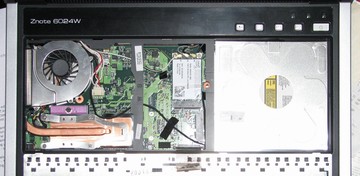

Under the keyboard: cooling system, two mini PCIe slots and the optical drive bay

The Display

The display is 1440 x 900 (WXGA+) “Ultracrisp”matte LCD. The device ID is CMO 1430 although the Zepto datasheet indicates that they normally use Samsung. It is brighter than the Samsung notebooks I have used and has excellent contrast with no serious light bleed. I was concerned about having a matte display after nearly 3 years of using glossy screens. Initially the display appeared to be slightly grainy but I soon concluded that this was the dispersion caused by the anti-glare coating.

(view large image)

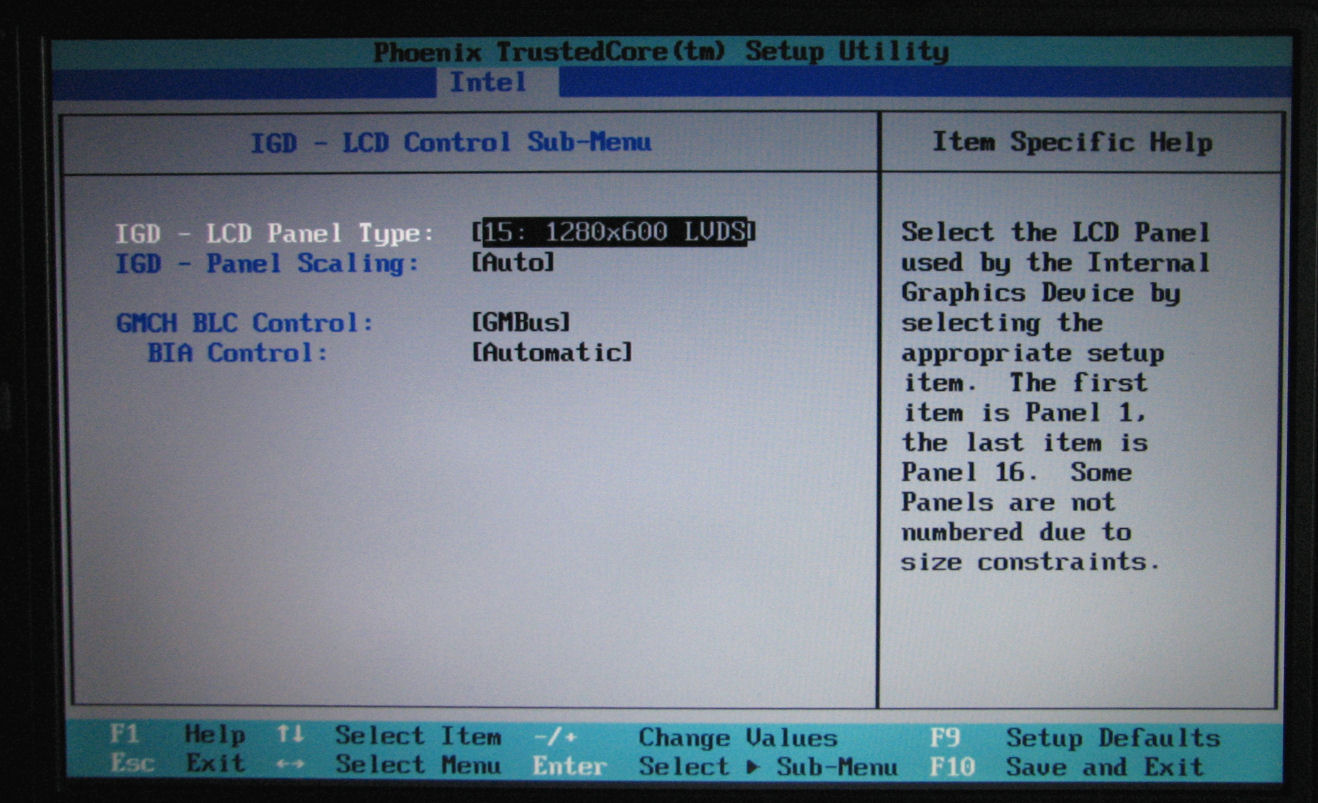

This BIOS setup screen shows relatively uniform lighting

The minimum brightness is too dark to use but a brightness of 3/8 is usable although full brightness is the default setting on mains power. My eyes are happy with the default size of text and graphics which is a fractionally bigger than on the notebooks this is replacing. Viewing angles are typical for displays of this type. The horizontal viewing angle range is good and the vertical range moderate for text work. However, colour images are best viewed at 90°. They become darker when the top of the screen is pushed back and lighter if it is pulled forward.

(view large image)

The display viewed from left, centre, right, above and below

The benefit of the matte screen is a much reduced problem of annoying reflections. However, one does not see this benefit unless the computer is put alongside another computer with a glossy screen.

(view large image)

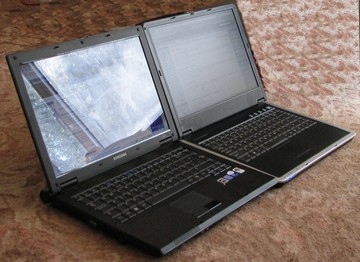

On the left, Samsung R20 with glossy screen, on the right the 6024W with matte screen

Audio Quality

The two ~30mm speakers below the display give adequate audio quality but bass response is lacking. I wonder whether some breather holes in the display panel to allow free movement of air behind the speaker diaphragms would improve the quality. The Realtek HD Audio Manager has plenty of options but selection of anything with significant bass boost results in painful distortion once the audio volume is increased. “Living Room” environment and “Dance” equalisation is the best configuration I could find for the internal speakers. Fortunately, the digital audio out has a separate set of equalisation options.

(view large image)

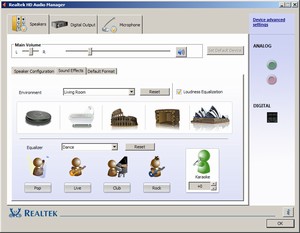

The Realtek HD Audio Manager

Processor and Performance

This version of the 6024W came with the Intel Core 2 Duo T7300 CPU (2.0GHz) and 2GB of DDR2-533 RAM.

(view large image)

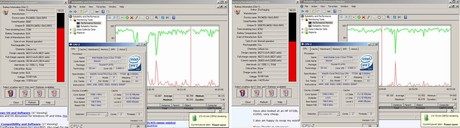

CPU-Z reports for the 6024W CPU in four operating modes, mainboard and memory.

This T7300 CPU has a normal voltage range of 1.0V at 6x to 1.25V at 10X. In addition there is the Super Low Frequency Mode (800MHz) 8x at 0.90V and the Dynamic Acceleration Mode of 11x at 1.275V (for one core only when the other is idle). However, seeing the dynamic acceleration in action requires patience.

The GPU

The GPU is the Intel X3100 and can use between 8MB and 358MB of system RAM. At the moment no power management options are enabled, although I hope that this may be changed by a BIOS update. There is said to be hardware features in this GPU which are not enabled by the driver I am using (I tried using driver 15.6 but 3DMark05 crashed so I rolled back).

(view large image)

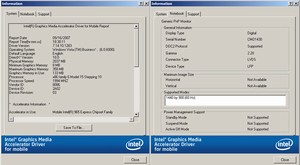

Information for the Intel GPU

Hard Disk

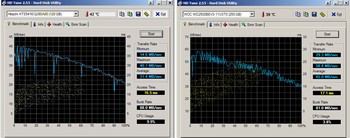

The supplied hard disk is a Hitachi HTS541612J9SA00 (120GB 5400RPM SATA). The performance is average for the current generation of 5400RPM 2.5” HDDs with a maximum transfer rate of 40MB/s dropping down to 20MB/s. HD Tune’s results for this disk are below. The CPU usage is relatively low and the maximum burst transfer rate is little over half the theoretical interface capacity of 150MB/s. I find the Hitachi HDDs to be slightly noisy, but this can be reduced using the Feature Tool software. I had actually ordered a relatively small HDD because I already had a bigger HDD – the 250GB Western Digital WD2500BEVS. The HD Tune result for that is also provided for comparison.

(view large image)

Optical Drive

Zepto offer two options for the optical drive: The Toshiba-Samsung SN-S082H tray loader and the SN-T082 slot-in burner. I opted for the tray loader because I wanted 8cm disc compatibility.

The BIOS

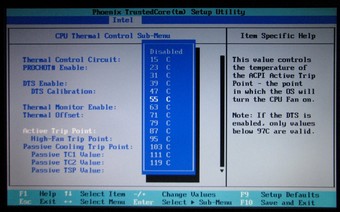

Somewhere I need to mention the Zepto BIOS. This notebook uses a Phoenix BIOS which contains innumerable options. Unfortunately, there is no documentation except for simple descriptions for some of the BIOS options. F9 resets the defaults if anything goes wrong. An undocumented feature is that pressing F10 when the Zepto splash screen is displayed will bring up a menu of boot devices.

As supplied, the BIOS in the 6024W was lacking support for various CPU features such as the C3 sleep state and the new features included in the Santa Rosa chipset. I contacted Zepto about these omissions. They checked and agreed that these features were absent and, after a few weeks, an updated BIOS was published which included these features and had other minor improvements and bug fixes.

Benchmarks for Zepto 6024W (Core 2 Duo T7300)

Windows Vista Experience Index

(view large image)

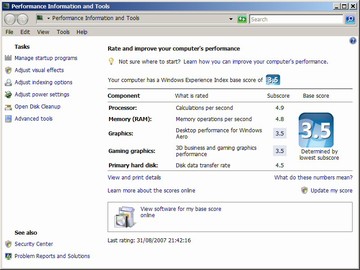

The 6024W scored 3.5 on the Windows Experience Index. The weak link was the graphics. All the other results are quite good (for the record, the WD2500BEVS pushes the HDD score to 5.2). By comparison, the Samsung R20 (with ATI 1250M integrated GPU) scored 3.8 while the Samsung Q70 (with the 8400M G GPU) managed 3.2 and the Samsung Q35 with the Intel 950GM integrated GPU managed 2.3. Since I find that Windows looks better without most of the graphic effects, the graphical performance is fine for me. Perhaps Intel optimised the X3100 for the WEI because it scores better for the desktop graphics than the low end of the Nvidia 8400M range.

SuperPi

SuperPi is often used as a test for raw CPU performance. The T7300 in the 6024W needed 59 seconds to complete the calculation to 2 million digits. This is 3 seconds faster than the T7200 in my X60plus and typical for this CPU. The speed boost over the T7200 is probably attributable to the Intel Dynamic Acceleration allowing one core to run at 2.2GHz, although the faster FSB may also be a factor.

The table below compares the 6024W’s SuperPi score with some other notebooks

Notebook	Time
Zepto 6024W (2.0GHz Core 2 Duo T7300 with 800MHz FSB and 667MHz RAM)	0m 59s
Dell Latitude D830 (2.2GHz Core 2 Duo T7500, 800MHz FSB, 667MHz RAM)	0m 53s
Samsung Q70 (2.0GHz Core 2 Duo T7300 with 800MHz FSB and 667MHz RAM)	0m 57s
Dell XPS M1330 (2.0GHz Intel Core 2 Duo T7300)	0m 58s
Lenovo ThinkPad T61 (2.00GHz Core 2 Duo Intel T7300)	0m 59s
Samsung X60plus (2.0GHz Core 2 Duo T7200 with 667MHz FSB & memory speed)	1m 02s
Dell Vostro 1500 (Intel T5470 1.60GHz)	1m 16s
Samsung Q35 (1.83MHz T5600 with 667MHz FSB and 533MHz RAM)	1m 16s
Samsung R20 (1.73GHz T2250 with 533MHz FSB and memory speed)	1m 23s
Toshiba Satellite P205-S6287 (1.73 GHz Core 2 Duo Intel T5300)	1m 24s
Samsung X60 (1.66GHz Core Duo (T2300) with 533MHz memory speed)	1m 29s

It has been suggested that SuperPi should be superseded by wPrime which is multi-threaded. The T7300 completed the 32M calculation in 42.385s. This is faster than the T7200 with the same clock speed. However, it is interesting to note that the 6024W with the original BIOS (ie without enabling the Santa Rosa enhancements) scored 44.632s.

Notebook / CPU	wPrime 32M time
Zepto 6024W (Core 2 Duo T7300 @ 2GHz)	42.385s
Lenovo T61(Core 2 Duo T7500)	37.705s
Alienware M5750 (Core 2 Duo T7600 @ 2.33GHz)	38.327s
Hewlett Packard DV6000z (Turion X2 TL-60 @ 2.0GHz)	38.720s
Samsung Q70 (Core 2 Duo T7300 @ 2.0GHz)	42.218s
Acer Travelmate 8204WLMi (Core Duo T2500 @ 2.0GHz)	42.947s
Samsung X60plus (Core 2 Duo T7200 @ 2.0GHz)	44.922s
Zepto Znote 6224W (Core 2 Duo T7300 @ 2.0GHz)	45.788s
Samsung Q35 (Core 2 Duo T5600 @ 1.83GHz)	46.274s
Samsung R20 (Core Duo T2250 @ 1.73GHz)	47.563s
Dell Inspiron 2650 (Pentium 4 Mobile 1.6GHz)	231.714s

SiSoftware Sandra from http://www.sisoftware.co.uk/ is another software package which contains benchmarking modules and includes a database of test results.

The results graphs for the CPU tests are given below. These results suggest that the T7300 is slightly faster than the T7200. The CPU results are very similar to those I measured for the T7300 in the Samsung Q70.

(view large image)

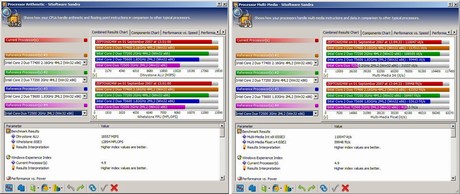

SiSoftware Sandra CPU test results

It is also worth checking up the memory performance of the 965GM chipset using Sandra’s memory bandwidth benchmark. The measured speed is over just over 4000MB/s. This is about 700MB/s faster than I have personally measured for the 945PM chipset so it appears that the new chipset offers better memory bandwidth without increasing the bus speed. However, this bandwidth is about 300MB/s than I measured for the 965PM chipset (dedicated GPU) which may be the result of the integrated GPU sharing the memory bandwidth.

(view large image)

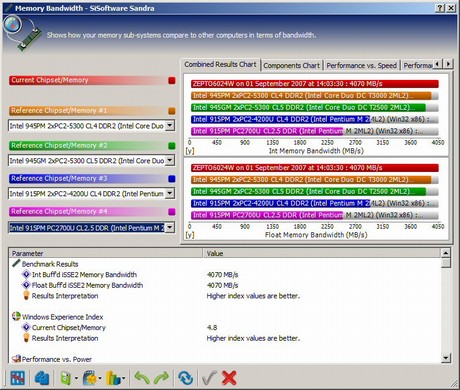

Sandra’s memory bandwidth test result

PCMark05

The PCMark05 score for the 6024W was 4,063 PCMarks. The table below compares the PCMark05 test result with some other notebooks. The result is in the same range as other notebooks with similar hardware.

Notebook	PCMark05 Score
Zepto 6024W (2.0GHz Core 2 Duo T7300 and Intel X3100 GPU)	4,063 PCMarks
Zepto 6625WD (2.4GHz T7700, Nvidia Geforce 8600M GT 512MB)	5,123 3DMarks
Dell XPS M1330 (2.0GHz Core 2 Duo T7300, 8400M GS)	4,571 PCMarks
Samsung X60plus (2.0GHz Core 2 Duo T7200, ATI X1700)	4,555 PCMarks
Samsung Q70 (2.0GHz Core 2 Duo T7300 and 8400M G GPU)	4.491 PCMarks
Lenovo ThinkPad T61 (2.00GHz Core 2 Duo Intel T7300)	4,084 PCMarks
Samsung R20 (1.73GHz T2250 and ATI 1250M chipset / GPU)	3,498 PCMarks
Samsung X60 (1.66GHz Core Duo T2300, ATI X1400)	3,456 PCMarks
Samsung Q35 (1.83GHz Core 2 Duo T5600, Intel 945GM)	3,059 PCMarks
Fujitsu Lifebook A6010 (1.66GHz Core 2 Duo T5500, Intel GMA 950)	2,994 PCMarks
Lenovo Thinkpad R60 (1.66 Core Duo T2300E , Intel 950)	2,975 PCMarks

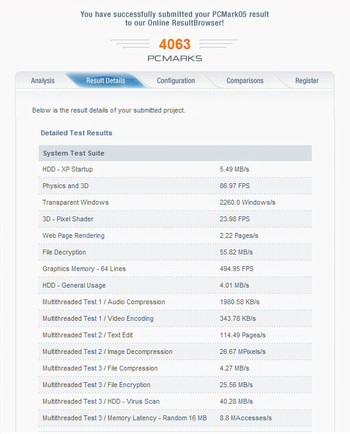

The detailed PCMark05 test results for the 6024W are:

(view large image)

3DMark05

The 6024W managed a score of 910 3DMarks for 3DMark05. The test was run at 1024*768 resolution with no anti-aliasing. This result is typical for the Intel X3100 GPU and is about double the score for the previous generation of Intel GPUs (945GM) although it is behind the 1151 3DMarks which I measured for the Samsung R20 with the ATI 1250M integrated GPU. It is possible that a future driver will unlock additional hardware features and improve performance.

Notebook	3DMark05 Score
Zepto 6024W (2.0GHz Core 2 Duo T7300 and Intel X3100 GPU)	910 PCMarks
Zepto 6625WD (2.4GHz T7700, Nvidia Geforce 8600M GT 512MB)	6,047 3DMarks
Samsung X60plus (2.0GHz Core 2 Duo T7200, ATI X1700 256MB)	4,150 3DMarks
Dell XPS M1330 (2.0GHz Core 2 Duo T7300, NVIDIA 8400M GS)	3,079 3DMarks
Samsung X60 (1.66GHz Core Duo, ATI X1400)	2,264 3DMarks
HP dv6000t (2.16 GHz Intel T7400, nVidia GeForce Go 7400)	2,013 3DMarks
Samsung Q70 (2.0GHz Core 2 Duo T7300 and nVidia 8400M G GPU)	1,939 3DMarks
Samsung R20 (1.73GHz T2250 and ATI 1250M chipset / GPU)	1,151 3DMarks
Lenovo ThinkPad T61 (2.00GHz Core 2 Duo Intel T7300, X3100 GPU)	911 3DMarks
IBM Thinkpad T43 (1.86GHz Pentium M, Mobility Radeon X300)	727 3DMarks
Samsung Q35 (1.83GHz Core 2 Duo T5600, Intel 945GM)	447 3DMarks
Fujitsu C1320 (2GHz Pentium M, Intel 915GM)	410 3DMarks

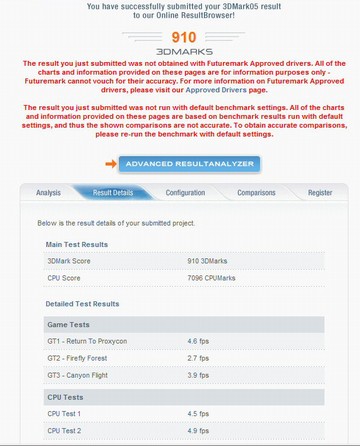

The detailed results for 3DMark05 are:

(view large image)

3DMark06

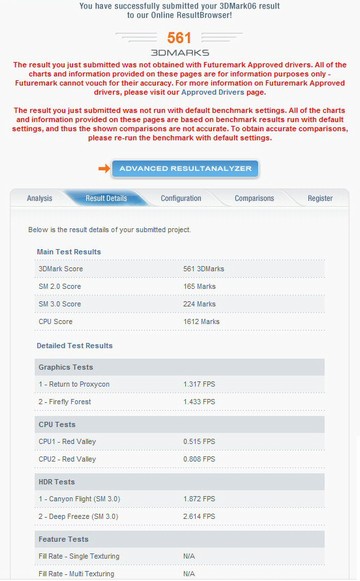

The 3Dmark06 score for the 6024W was 561 3DMarks. This test was run at 1280*768 with no anti-aliasing. This is slightly faster than the ATI1250M GPU in the Samsung R20 and much faster than the previous generation of Intel GPUs. However, it is only about half the performance of the Nvidia 8400M G.

Notebook	3DMark06 Score
Zepto 6024W (2.0GHz Core 2 Duo T7300 and Intel X3100 GPU)	561 PCMarks
Zepto 6625WD (2.4GHz T7700, Nvidia Geforce 8600M GT 512MB)	3,017 3DMarks
Asus F3sv-A1 (Core 2 Duo T7300 2.0GHz, Nvidia 8600M GS 256MB)	2,344 3DMarks
Alienware Area 51 m5550 (2.33GHz Core 2 Duo, nVidia GeForce Go 7600 256MB	2,183 3DMarks
Fujitsu Siemens Amilo Xi 1526 (1.66 Core Duo, nVidia 7600Go 256 MB)	2,144 3DMarks
Samsung X60plus (2.0GHz Core 2 Duo T7200, ATI X1700 256MB)	1,831 3DMarks
Asus A6J (1.83GHz Core Duo, ATI X1600 128MB)	1,819 3DMarks
Samsung Q70 (2.0GHz Core 2 Duo T7300 and nVidia 8400M G GPU)	1,069 3DMarks
HP dv6000t (2.16 GHz Intel T7400, NVIDA GeForce Go 7400)	827 3DMarks
Samsung R20 (1.73GHz T2250 and ATI 1250M chipset / GPU)	476 3DMarks
Samsung Q35 (1.83GHz Core 2 Duo T5600, Intel 945GM)	106 3DMarks

(view large image)

Cinebench

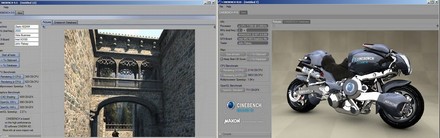

Cinebench is a good rendering benchmark tool based on the powerful 3D software, CINEMA 4D. Its rendering tasks can stress up to sixteen multiprocessors on the same computer. It is a free benchmarking tool, and can be found at http://www.cinebench.com. It has been recently updated from version 9.5 to 10 and I have included some results below for both versions. Cinebench also includes an OpenGL benchmark which will be of interest to those people who use software which uses OpenGL.

(view large image)

Cinebench 9.5 Benchmark	Zepto 6024W (2.0 GHz Core 2 Duo)	Samsung Q70 (2.0GHz Core 2 Duo)	Samsung R20 (1.73GHz Core Duo)	Samsung X60plus (2.0GHz Core 2 Duo)	Samsung Q35 (1.83GHz Core 2 Duo)
Rendering (Single CPU)	349 CB-CPU	335 CB-CPU	256 CB-CPU	322 CB-CPU	299 CB-CPU
Rendering (Multiple CPU)	623 CB-CPU	624 CB-CPU	474 CB-CPU	582 CB-CPU	528 CB-CPU
Cinebench 10 Benchmark
Rendering (Single CPU)	2116 CB-CPU		1520 CB-CPU	1976 CB-CPU
Rendering (Multiple CPU)	3903 CB-CPU		2851 CB-CPU	3623 CB-CPU
OpenGL Benchmark	711 CB-GFX		543 CB-CPU	3227 CB-GFX

Battery, Power Supply and Cooling System

The power supply is a large 90W (19V, 4.74A) unit made by Liteon. It is larger than the equivalent PSUs provided with Samsung notebooks and is less efficient. There is a power drain of 5W from the mains socket when the PSU is plugged in but not connected to the notebook. The Samsung PSUs drain no more than 2W under the same conditions. I suspect that the same inefficiency applies under use – I see a power drain from the wall socket of around 35W under light usage. 90W is an unnecessarily large PSU for a notebook with integrated graphics and it adds to the travel weight. The good news is that the power connector is a standard size. I have another PSU which worked with my Asus W3A and it also works with the Zepto.

The 6-cell battery is rated at 10.8V, 4.8AH, 51.84WHr which is quite low by current standards. I purchased two batteries and the internal battery data of neither reflects the capacity on the label. What is worse, the nominal capacity (as reported by RMClock) is declining with use. I have asked Zepto about this but not received any explanation. It appears that the battery is either not fully recharging or is getting erroneous calibration data.

(view large image)

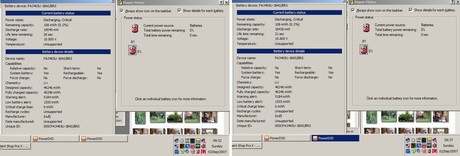

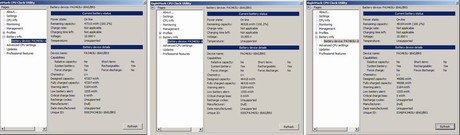

Left to right: Battery 1 mid August; battery 1 mid-September, battery 2 (hardly used)

Zepto’s datasheet for the 6024W indicates a battery life of up to 3.5 hours, which should not be impossible for a notebook with an integrated GPU. However, I have been unable to get to 3 hours in real use. At the moment I can see three possible factors for the missing battery time: (a) I suspect that the bigger cache of the T7300 causes higher CPU power leakage (assuming Zepto tested with a CPU with 2MB cache); (b) Zepto tested with the backlight on the minimum setting which is designed for owls, not humans; and (c) 10% of my battery capacity has disappeared already. The charts below show power drain at a reasonable (3/8) brightness and at the minimum brightness. Under light usage and adequate brightness the power drain is normally between 16 and 17W. On minimum backlight the drain can go below 15W. I am planning to install Turbo Memory which should add a few minutes by allowing the hard disk to power down.

(view large image)

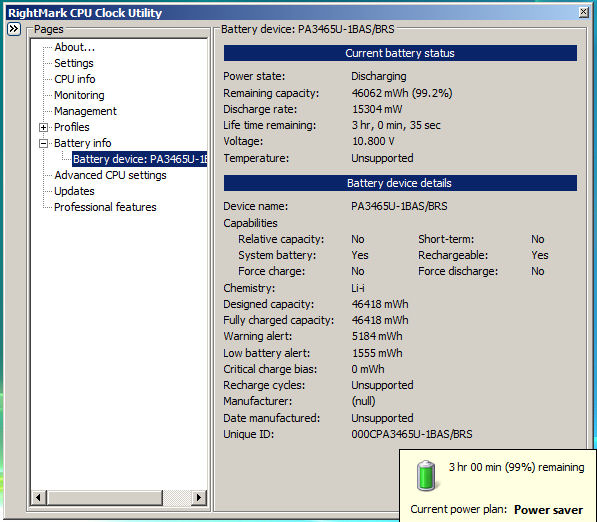

A further interesting feature is the battery has significant capacity remaining when it has 0% charge remaining. The screen shots below were taken five minutes apart and the computer ran for another minute or two before stopping. However, running a fuel tank on empty is never to be recommended and Zepto need to sort out the battery calibration.

(view large image)

What about heat and fan noise? Heat is not a problem in this notebook. It has integrated graphics but a generous cooling system designed for a powerful GPU. However, the fan is noisier than on the Samsung notebooks I have been using although it is only noticeable in a quiet room. I think this is because the fan is just under the keyboard with no intermediate material to block the noise. An intermediate soundproofing layer would be desirable. At higher temperatures the fan speeds up and the noise gets obtrusive. The default fan operation is to start at 55C and stop at 45C with at least two higher fan speeds available.

Warranty and Customer Support

Zepto provide a one year collect and return warranty as standard. This can be increased to 2 or 3 years for reasonable cost at the time of order. Zepto are a small enough company to maintain close contact with users and three of the Zepto staff are active particpants in the notebookreview Zepto forum. As a result, problems and possible improvements get acknowledged and discussed. At the moment further improvements to the BIOS for the 6x24W series is in progress. There have been a few instances of people having problems with their Zepto notebooks.

Conclusion

The 6024W is, overall, a well-designed and well-built notebook. The keyboard and audio need improving while the fan could do with some soundproofing. Overlook those niggles and you have a good performance in a strong chassis with a bright WXGA+ display.

So where does the 6024W fit in the market? The Zepto website suggests school, office and professional use, which sums it up quite well. I can’t be the only person who wants a medium-sized notebook with above-average screen real estate and not too heavy. However, if you don’t want the WXGA+ display then there is much better value to be found elsewhere in the same size range.

Pros

• Solid and rigid construction
• A good display with bright, uniform illumination and contrast
• Effective cooling system
• Reasonably light for the class
• A good choice of operating systems (or none at all)
• A powerful range of BIOS options (if only they were documented)

Cons

• Poor keyboard action and looseness
• Noisy fan at times
• Heavy power supply
• Mediocre audio
• Battery life not meeting expectations



Nice and solid review John!



Yes, thanks for the nice and comprehensive review.

One little comment: Under the 'Processor and Performance' section you wrote that the machine comes with DDR2-533 RAM. I know that it is a typo, but thought I'd let you know anyway



Great review!



good review, very detailed.

I wonder how you managed to measure PSU's power drain when not connected to notebook.

overall this review has much usefull info. thanx...



One of these meters tells me how much power is being drawn from the mains socket.

Since it says that I'm currently drawing 45 to 48W on light load (the fan isn't on) I think it is providing a good indication of an inefficient power supply.Ah! The fan has come on and the power drain dropped to 39W. I'm confused Maybe the PSU is as well.

John



Thanks for this review, I thought it was a very good read. I appreciated the glossy vs matte screen and just the general size comparison of the other laptops.

Since I am getting a 6224W with t7250 that has a 2mb cach, I can check to see if the battery use is the similar to amount shown on the site. Hopefully that can clarify a bit on the battery life.



interesting toys... should get one myself.

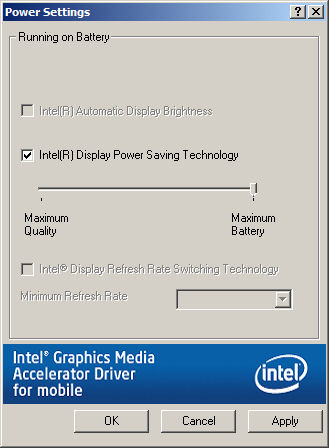

An update on the power management / battery life issue since I have reinstalled Vista and got Turbo Memory working. I've also loaded Avira AntiVir PE instead of McAfee. Also, I visited the BIOS and set the BIA (whatever that means) control for the LCD to Automatic. Coincidentally, I now have a power management control for the GPU.

It takes several reboots to become effective but Turbo Memory does seem to cut back on the HDD activity under light usage, which saves about 1W of power. As a result of that (and maybe not having all my other software installed), three hours looks easily achievable under light usage and the backlight on half brightness. Indeed, with the backlight on an unreadable minimum, 4 hours is in sight. The fan almost stays off under these conditions.

John
