by Kevin O'Brien

Many of us avid notebook users know that once we upgrade to a newer laptop, we tend to tear apart the old machine in hopes that we can salvage some value from it. One part that holds up well in this special afterlife is the old 2.5” PATA drive from a notebook one or more generations ago. This drive, depending on its size, could be used for extra storage or backup. One external enclosure that makes it as easy as possible for notebook users to make use of that old PATA drive is the Vantec NexStar SX 2.5” Enclosure.

(view large image)

Specifications for NST-285U2-BK (black) or NST-285U2-SL (silver):

• Easy Installation without screws
• USB 2.0 Interface
• Compatible with 2.5&quot; IDE Hard Drives
• Aluminum Casing That Cools Down Your Hard Drive
• Dimensions: 128mm x 75mm x 15mm
• Weight: 3.7oz (w/o HDD), 6.9oz (w/ HDD)
• Supports: Window 98SE / ME / 2000 / XP, Mac OS 8.6 &amp; Above

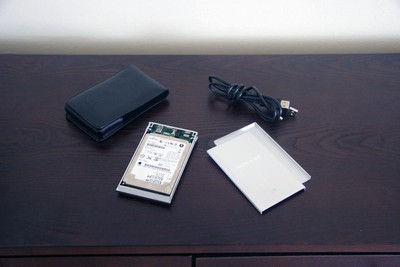

• Includes: 2.5&quot; HDD Enclosure, Driver Disc, User Manual, USB Cable, Leather Carrying Case, Screws, Screwdriver
• MSRP: Around $20.00

(view large image)

Enclosure setup

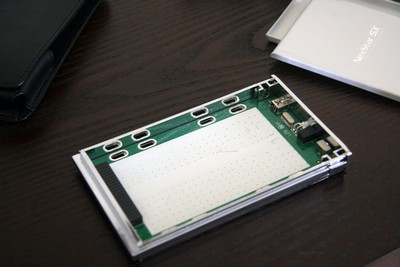

The NexStar really shines in making it easy for almost any user to set it up for use with a spare 2.5” HD. No screwdriver is required to open the case, and but one is supplied if you feel you need to screw the drive to the circuit board (I didn’t). Pressing the spring loaded release buttons on either side of the case is all that is required to slide the top and bottom covers off. Next, you need to remove any attached pieces from the old HD like a caddie for example, and slip the drive into place. The only speed bump I came upon with installing then drive into the enclosure was a pad glued to the circuit board that prevented the drive from seating correctly. I peeled that off, and didn’t look back. After the drive is securely pressed in the IDE connector, you can flip the holder over and use the supplied screws to further hold the drive in place. Once that is completed, slide the covers back onto the top and bottom to complete the install.

(view large image)

Computer Installation

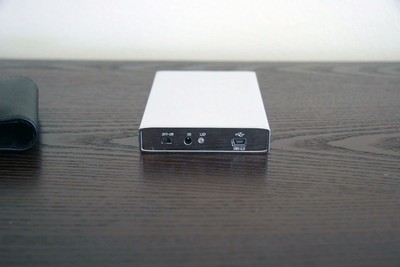

Verify that the on/off switch on the back is set to its off position. Now connect the power and data side of the USB cable to your computer, and the mini-USB connector to the drive. Flip the switch to ON at this time, and let the device be found by your system. Your computer may prompt you to restart now that it had found and setup the new device, so a restart may be required. Congratulations, it should now be fully working with your system and ready for the drive to be formatted, or if already formatted, allow you to access your old files.

(view large image)

Performance

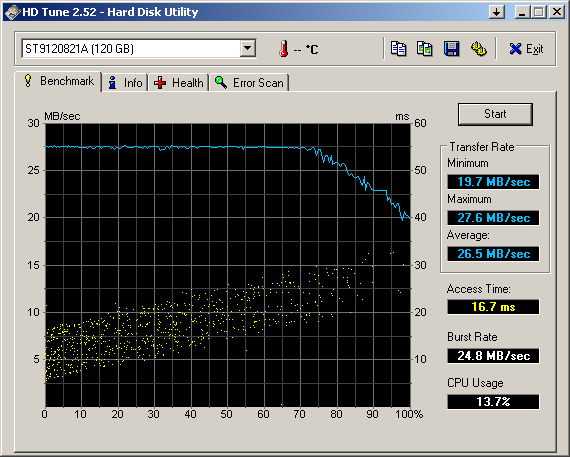

Transfer speeds were very consistent with the USB2 enclosure, getting around 27.8MB/s peak (the USB2 upper limit). I found these speeds to be similar across many text machines including a Lenovo X61 and T60, as well as my custom built desktop. If you have a slower 4200rpm drive installed in your enclosure, you may see lower transfer speeds. While all of the 5400rpm drives tested in the enclosure were able to max out the USB2 transfer speeds, a 4200rpm Fujitsu drive out of an Apple TV would only reach 21.2MB/s. These speeds were very similar with other USB2 enclosures that I had on hand to test.

Conclusion

The Vantec NexStar SX 2.5” enclosure is great for notebook users who want to reuse a drive from a decommissioned laptop, or save money by building their own external hard drive. It is very easy to work with, requiring no screwdriver for most uses, and also looks good in your laptop bag.

Pros:

• No screwdriver needed to open case
• Good build quality, durable paint
• Included leather case

Cons:

• USB2 Interface, so faster drives will be bottlenecked in this enclosure



Nice review Kevin. I have a Vantec enclosure very similar to this except mine requires screws . . . still works great though. Vantec makes a very nice product.

I also have the NexStar 3 2.5" (NST-260U2-BK) drive, it's a higher-end enclosure that has e-SATA. It is more suited for desk use.



I have 3 Vantec Enclosures, love them! I'm looking into buying one more, trying to decide if I should get the Nexstar II or try Cooler Master.

Thanks for the review!



Nice, but could we get more Firewire 800 and eSATA reviews, preferably head-to-head? Pretty please?



I will see. I would need to pickup a FW800 control and drive enclosure.



With firewire ones, wouldn't you need a power adapter? Most notebooks, with the exception of apple ones, use 4 pin firewire which only has the data connectors(the 5th pin is the power bus).

You might get faster transfer speeds, but I don't think most people would be willing to get that 5% bump in performance at the cost of having to carry around another adapter.



Most Firewire 2.5" drive enclosures are FW400 (in addition to USB 2.0). And from what I've seen, if you use the FW400 port, you can also plug in the USB cable to draw power.

e.g. http://www.newegg.com/Product/Product.aspx?Item=N82E16817146604



This work with Vista?



No, only compatible with 9x/Me/2000

edit: yes it is compatible with vista and almost everything under the sun with a USB port. My PS3 sees it, and I am pretty sure if my TV was looking for it, it would work with it too



Oh, snap. You made my heart stop there for a minute...I already ordered it.

I thought it was probably compatible...but the specs were unclear.

Update:

I got it, and it's very nice. Works with Vista and all. Initially I was having some trouble getting the HD to fit into the connectors, but it worked. :smile:
