Sony VAIO TZ Review

<!-- Generated by XStandard version 2.0.0.0 on 2007-09-19T23:12:41 -->

by Kevin O'Brien

The Sony TZ is the latest offering from Sony in the ultra portable market. With its small size and extreme low weight, it is a must on any business traveler's notebook list. The Sony TZ combines a new LED backlight display, solid state drive, over-sized battery, and ultra low voltage processors from Intel to make it an all around extended battery performer. Read on to find out how the paper specs stack up in real world use.

The Sony TZ (VGN-TZ191N) we are going over today has the following configuration:

• Windows Vista Business (32-bit)
• Intel Core 2 Duo Processor U7600 (1.20GHz, 2MB L2, 533MHz FSB)
• Mobile Intel 945GMS Express Chipset
• Intel Wireless WiFi Link 4965AGN (802.11a/g/n)
• Sprint Mobile Broadband (EV-DO Rev. A)
• 2GB PC2-5300 DDR2 SDRAM (1 slot, maximum capacity 2GB)
• 32GB Samsung SSD Ultra-ATA HD
• 8x DVD (+/-R double layer) drive
• 11.1&quot; diagonal widescreen XBrite TFT LCD display at 1366x768 (WXGA, Glossy, LED Backlit)
• Premium Carbon-Fiber Casing
• Intel GMA950 w/ up to 224MB
• MOTION EYE camera and microphone
• Bluetooth version 2.0 plus Enhanced Data Rate (EDR)
• ExpressCard slot (ExpressCard/34)
• 5-in-1 media card reader
• Memory Stick PRO (with MagicGate functionality) Secure Reader
• VGA, Modem, 1Gb LAN, IEEE 1394, Dock, and Mic/Headphone connectors
• IEEE-1394s (FireWire)
• Two USB 2.0 ports
• Dimensions (WxDxH Front/H Rear): 10x7.8x0.9/1.2
• Weight: 2lbs 10.5oz actual, 3lbs 4oz travel weight
• 60W (19V x 4.62A) 100-240V AC adapter (10oz)
• Standard Lithium Ion battery (11.1oz)
• 1-Year Standard Limited Warranty

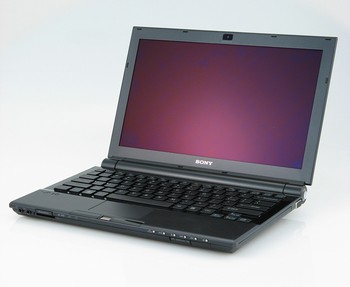

(view large image)

Build and Design

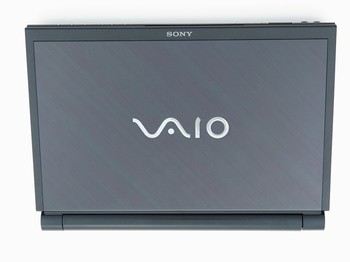

Sony's designers worked overtime to make the TZ not only an ultra portable notebook, but to make it an ultra portable notebook that looks good. Lines match up, panel thicknesses stay the same, hinges are molded into body with the battery, AC plug, and power button integrated, and it's topped off with a carbon fiber lid to seal the deal. Lifting the display cover you find the glossy keyboard surface reflecting the world around you with keys standing out like ripples on a pond. This notebook could be perfectly described in one word; glamorous.

(view large image)

The build quality of this notebook is excellent. Having such thin panels merging together across various parts of the notebook you would almost expect to see uneven panel spacing or gaps, but this notebook has none. Panels merge together with razor thin clearances, and even flexing the notebook doesn't make the parts squeak or groan from plastic rubbing together. Support is excellent around the base of the laptop, leaving just the screen with some amount of flex. I can't really place too much blame on Sony for that, since it is only 4.75mm thick. Overall I found the Sony TZ to be of excellent quality, only lacking on allowing certain parts to be upgraded by the user.

Screen

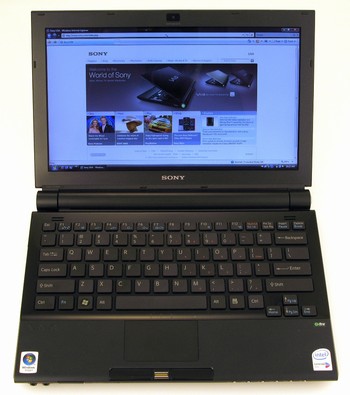

Sporting a new LED backlight screen, a first for a Sony ultra-portable, the laptop is able to achieve great color reproduction and backlight distribution. Watching movies, editing pictures, or just browsing the web was very enjoyable. I only wish this laptop had the performance of a gaming machine, so that the screen could be used for more recreational purposes. Comfortable brightness levels on the TZ were around midrange, with anything above too bright for my poor eyes. As is common with most notebook displays, viewing angles were excellent horizontally, but poor vertically. The purple anti-glare screen coating combined with the poor viewing angles helped make dark colors invert at shallow angles.

(view large image)

Protection of the screen from the display cover is on the weak side, since it is extremely thin. Throughout the review procedure, the only damage I was able to inflict were key marks left on the screen from the LCD pressing on the dirty keys. These were only temporary marks, I was able to rub them off with a soft cloth (which Sony included with the notebook). Besides flexing the screen into a taco shape or accidentally sitting on it, I don't see most users having any problem with the screen.

Speakers
The speakers on the Sony TZ are located right below the pivot point of the display, providing a clear path to your head for maximum listening pleasure. They worked quite well for watching movies, playing games, or listening to some music around the office. With the volume set to max, the decibel meter registered ~64dB at one foot. The audio was only slightly distorting on high notes, but stayed mostly clear. During normal use high and upper midrange came through well, but don't expect any lower notes from speakers this small.

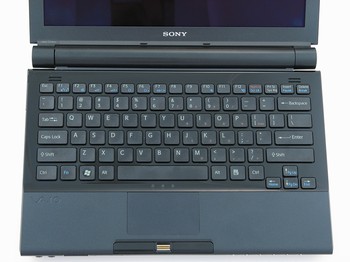

Keyboard and Touchpad
The keyboard on the Sony TZ is very compact, and takes a bit to get used to typing on. It took a few hours of use before I could type without peaking at the keys. Passwords were mangled, friends were confused with my typing, and websites locked me out for too many login attempts. Once I got used to it the typing was fairly comfortable, but this keyboard is not ideal as a primary machine used during an entire work week. For users who would buy this machine as the main computer in their office, a docking station with full-size keyboard would be highly recommended.

(view large image)

The touchpad was easy to use, and very stable with finger tracking. It did not appear to have any lag moving across the screen, nor did it have any pause when it sat idle. My only complaint with the touchpad was the upper boundary was flush with the keyboard tray, making it easy to slide your finger right off the surface. The soft texture made the touchpad easy to control, as well as very comfortable on the fingertips.

Performance and Benchmarks
The only modern game I found to work at decent frame rates was Half Life 1 as mentioned in my first look. Watching movies, editing photos, and using productivity software worked out much better. The beautiful LED backlit screen really made those activities enjoyable. Below are the standard benchmarks to see how this laptop stacks up against others notebooks. Keep in mind that the TZ compares favorably to other notebooks in the ultra portable notebook class.

PCMark05 comparison results:

Notebook	PCMark05 Score
Sony VAIO TZ (1.20GHz Intel Core 2 Duo U7600, Intel GMA 950)	2,446 PCMarks
Toshiba Portege R500 (1.2GHz Intel Core 2 Duo U7600)	1,839 PCMarks
Fujitsu LifeBook P7230 (Core Solo CPU U1400, 1.20GHz, Integrated graphics)	1,152 PCMarks
Toshiba Satellite U200 (1.73GHz Core Duo, Intel Integrated graphics)	3,113 PCMarks
Fujitsu LifeBook N6420 (2.00GHz Core 2 Duo, ATI X1600)	4,621 PCMarks
Fujitsu LifeBook N6410 (1.66GHz Core Duo, ATI X1400)	3,487 PCMarks
Sony Vaio SZ-110B in Speed Mode (Using Nvidia GeForce Go 7400)	3,637 PCMarks
Asus Z84Jp (2.16GHz Core 2 Duo, Nvidia Go 7600)	4,739 PCMarks
Asus V6J (1.86GHz Core Duo T2400)	3,646 PCMarks
Alienware M7700 (AMD Athlon FX-60, Nvidia Go 7800GTX)	5,597 PCMarks

3DMark06 comparison results:

Notebook	3DMark06 Score
Sony VAIO TZ (1.20GHz Core 2 Duo U7600, Intel GMA 950)	122 3DMarks
LG R500 (2.0GHz Intel Core 2 Duo T7300, NVIDIA GeForce 8600M GS 256MB)	2,776 3DMarks
HP dv2500t (2.0GHz Intel Core 2 Duo T7300, NVIDIA GeForce Go 8400M GS 128MB)	1,055 3DMarks
Dell Inspiron 1420 (2.2GHz Intel Core 2 Duo T7500, NVIDIA GeForce Go 8400M GS 128MB)	1,329 3DMarks
Sony VAIO FZ (2.0GHz Intel Core 2 Duo T7300, Intel X3100)	532 3DMarks
Dell XPS M1330 (2.0GHz Intel Core 2 Duo T7300, NVIDIA GeForce Go 8400M GS 128MB)	1,408 3DMarks
Samsung Q70 (2.0GHz Core 2 Duo T7300 and nVidia 8400M G GPU)	1,069 3DMarks
Asus F3sv-A1 (Core 2 Duo T7300 2.0GHz, Nvidia 8600M GS 256MB)	2,344 3DMarks
Alienware Area 51 m5550 (2.33GHz Core 2 Duo, nVidia GeForce Go 7600 256MB	2,183 3DMarks
Fujitsu Siemens Amilo Xi 1526 (1.66 Core Duo, nVidia 7600Go 256 MB)	2,144 3DMarks
Samsung X60plus (2.0GHz Core 2 Duo T7200, ATI X1700 256MB)	1,831 3DMarks
Asus A6J (1.83GHz Core Duo, ATI X1600 128MB)	1,819 3DMarks
HP dv6000t (2.16 GHz Intel T7400, NVIDA GeForce Go 7400)	827 3DMarks

wPrime comparison results:

Notebook / CPU	wPrime 32M time
Sony VAIO TZ (Core 2 Duo U7600 @ 1.20GHz)	76.240s
Zepto 6024W (Core 2 Duo T7300 @ 2GHz)	42.385s
Lenovo T61(Core 2 Duo T7500)	37.705s
Alienware M5750 (Core 2 Duo T7600 @ 2.33GHz)	38.327s
Hewlett Packard DV6000z (Turion X2 TL-60 @ 2.0GHz)	38.720s
Samsung Q70 (Core 2 Duo T7300 @ 2.0GHz)	42.218s
Acer Travelmate 8204WLMi (Core Duo T2500 @ 2.0GHz)	42.947s
Samsung X60plus (Core 2 Duo T7200 @ 2.0GHz)	44.922s
Zepto Znote 6224W (Core 2 Duo T7300 @ 2.0GHz)	45.788s
Samsung Q35 (Core 2 Duo T5600 @ 1.83GHz)	46.274s
Samsung R20 (Core Duo T2250 @ 1.73GHz)	47.563s
Dell Inspiron 2650 (Pentium 4 Mobile 1.6GHz)	231.714s

Port Selection

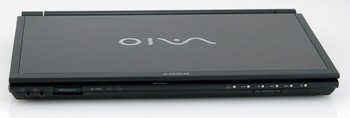

Front:

Headphone, microphone, memory card readers, and media controls. (view large image)

Right:

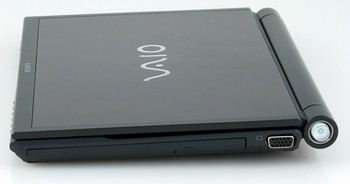

Optical drive and VGA (view large image)

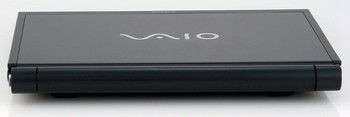

Rear:

Battery (view large image)

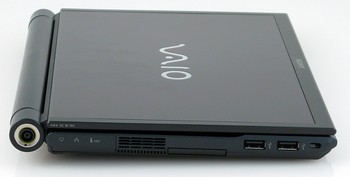

Left:

(Under Cover) Ethernet/Lan, Modem, Firewire, ExpressCard slot, two USB ports and a security lock slot. (view large image)

Software
Once you dig deep past the bountiful bloatware, and get a chance to uninstall most of it, the TZ really becomes different machine. Power usage drops, programs load faster, startups and shutdowns speed up ... I can't recommend enough that users clean off all of the bloatware before they start using the notebook. If you add up all the preinstalled software, by far the most has to do with specific Sony notebook features like backlight adjustment or eject functions. If you take off too many, you start to lose vital functions. I really wish Sony incorporated all system functions into one software package.

Battery
Under normal use, backlight at 80 percent, Sony Optimized power profile set, and using wireless for web browsing, the TZ pulled off six hours and 43 minutes. I was hoping for more, as the preproduction model seemed to go more than seven hours, but it was still very good. Watching movies on the laptop got just less than four hours, meaning you could get through even the longest movies on a flight without a recharge.

Charging the battery took quite long compared to what I have been used to. More than five hours to get a complete charge was not out of the question, and two hours to get over 50 percent. Most other laptops will charge at a faster rate up to the 75-80 percent level, but the TZ had no such feature.

Heat and Noise
Even with the low voltage processor and SSD drive, the Sony TZ could produce heat with the best of them. The bottom of the notebook got quite hot even under normal use, and the fan was always running after the notebook had been on for over 20-30 minutes. Fan noise was minimal, and the only way to tell it was blowing would be sticking your hand next to the outlet, and feeling the warm air blow past.

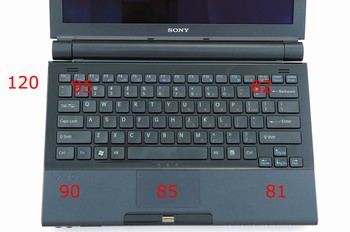

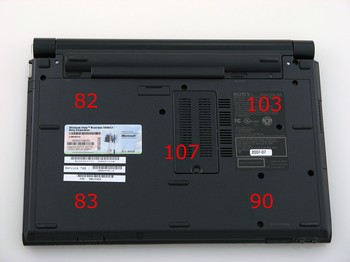

Below are heat overlay images showing where the Sony warmed up (in degrees Fahrenheit) during normal extended use.

(view large image)

(view large image)

Conclusion
Compared against every other ultra portable notebook I have worked with, the Sony TZ was by far the brightest, lightest, and smallest of the bunch. The screen was gourgeous, battery life was excellent, and the notebook barely weighed anything. I would recommend this notebook to anything considering a portable laptop, especially those who demand the lightest possible items for travel.

Pros

• Amazing LED backlit screen
• Almost seven hours of battery life
• SSD Hard Drive

Cons

• Bottom gets very hot, pants required.





Thanks for this review. The TZ of the best of the ultra-portables. Sony is still in the top league when it comes to design. Who makes the optical drive?

You mentioned that your poor eyes didn't like the screen too bright, but how about the size of the text?

Is that actually a 60W PSU? I thought these came with something smaller (which would help explain the slow battery recharge rate).

John



Great Review on this spiffy little Kevin, I love how you still manage to sneak in some of your humor. This notebook is truly beautiful to behold in person and one of the highlights of my recent trip to the big mall was playing with about 7 of these in the Sony Style store. The gold lidded one is particularly spiffy.



The TZ is an incredible machine, I have seen it in person. I would go so far as to call it a work of art.

I personally love the keyboard on it - I found it to be more than usable for everyday use. For those with big hands though, I can see the problems.



Nope its 60w, actually 64w at 4x16v



Thanks for the final review. I agree with most of the comments except the ones about the keyboard.

I second that. Having used the keyboard extensively I had no problems with it. In fact I was pleasantly surprised by the usability and the touch and feel of it, despite its relatively small form factor. So to potential buyers out there: I wouldn't worry too much unless you have very big hands. But in general people should not expect a regular size keyboard on an ultraportable. Needless to say, ultraportables by nature would entail a small form factor keyboard. With the most usable probably being the one on the Lenovo ThinkPad X60/61.



I wouldnt consider the keyboard uncomfortable, but it is pretty condensed compared to regular keyboards. That alone stressed my fingers out since the typing pattern completely changed, and it felt pretty crowded.

I still think you would have to be insane to use it as your main computer as-is. Proper mouse, keyboard, and larger LCD would be required for day to day office use.



just got one of these from a friend of my dad's. unfortunately he bought the vaio in china so it has a simplified chinese copy of vista. i called up sony direct accessories and ordered an english recovery disc and that should help. funny thing is, my system is currently installed with vista home premium, but the recovery disc will give me vista business. $28.50 for an upgrade to business isn't bad, don't ya think? well here's my question: what type of ram do i need for my tz? I'm looking on newegg and i see different numbers of pins. i'm guessing i need 200-Pin DDR2 SO-DIMM, am I right? would it also support DDR2 667??



I would say it depends on the size of your hands. for someone with smaller hands, I think it would take a few days to get acustomed to the size of the keyboard, it definitely felt a little strange to me at first, but it was a quick adjustment, not having big hands definitely helped. Also, if you're coming from a 15.4 or even larger screens, it would be a big adjustment going to an 11.1 screen, and due to the very high res for a small screen, you better have some good eye sight.

and regarding ram to the above poster's question, its 533MHz since its the FSB speed. So even if you get RAMs that are 667, it will default back to 533.



ohh nooo
because of this review my girlfriend keeps nagging to get her one of this
:cry: :cry: :cry: :cry: :c



Demanding girlfriend you got there then



Kevin omitted to mention the big con on this machine: the cost.

John



Way to incorporate humor into your review. Made it much more interesting to read!



Yeah, umm. The cost of this guy is a bit much, isn't it? I mean, it's Sony, but still...haha.

And yeah. Girls rock until they start expecting things. Well, short of love, honesty, and respect. xD



The keyboard reminds me of the Macbook.

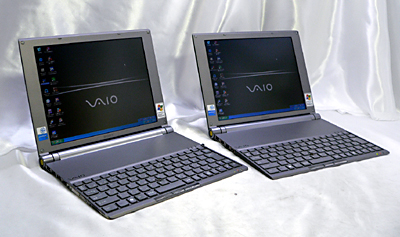

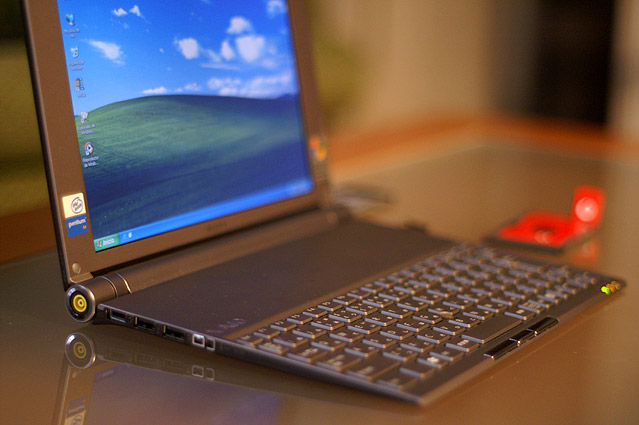

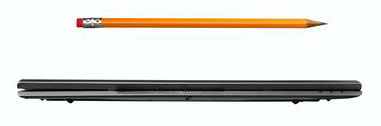

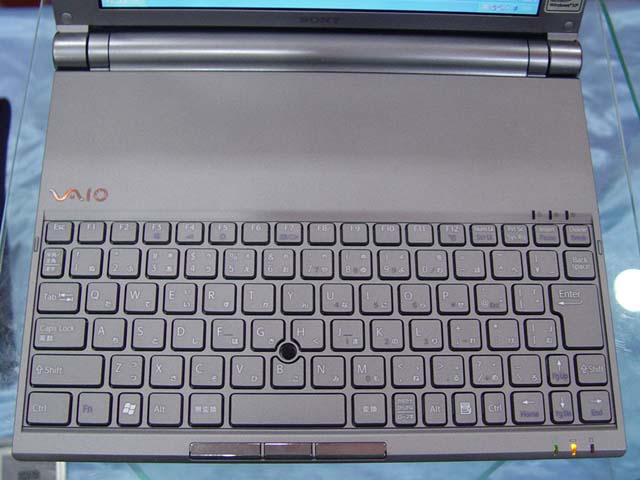

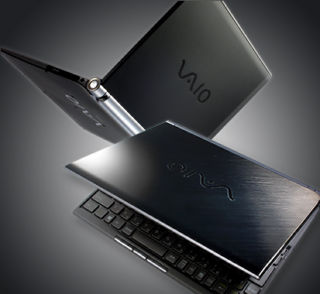

The keyboard on the Macbook reminds me of the X505, released by Sony in 2003.
