HP nc6230 Laptop Review (pics, specs)

by Kevin O'Brien

Overview and Introduction:

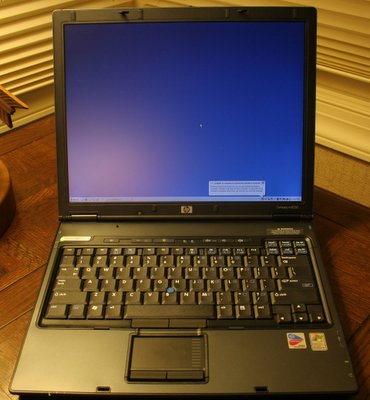

HP nc6230 (view larger image)

This is a review on my new Hewlett Packard NC6230. This is a thin and light laptop for the most part, and is intended to compete with the IBM T series. The version I purchased is the nc6230 (PZ517UA). It is on the higher up scale of this model series with the 1 gig of ram and the sxga+ (1400x1050) screen.

• Microsoft Windows XP Professional
• Intel Pentium M processors 1.86ghz
• Sleek industrial design starting at 4.69 lb/2.13 kg and 1.04-inch/26.5-mm thin
• 14.1-inch SXGA+ display
• Mobile Intel 915PM Express Chipset on nc6230 model
• 1024-MB DDR2 SDRAM, upgradeable to 2048-MB maximum
• 60-GB 5400 rpm, user-removable hard drive
• ATI MOBILITY RADEON X300 graphics controller with 64 MB of video memory (on nc6230)
• 802.11 b/g wireless LAN module
• Support for optional Intel Centrino mobile technology
• Integrated Bluetooth
• Integrated Secure Digital (SD) flash media slot
• Security features including integrated Smart Card Reader and optional Trusted Platform Module (TPM) Embedded Security Chip
• NetXtreme Gigabit PCI Express Ethernet Controller
• Dual pointing devices
• Support for ultra-slim MultiBay II devices
• Protected by a three-year standard parts and labor warranty

Reasons for Buying:

I purchased this laptop because of its more rugged features. It has a internal magnesium chassis, with metal for the keyboard face, and screen cover. This gives you a setup that almost never bends or creaks. I also liked the thought of the 3 year warranty.

Where and How Purchased:

This laptop was purchased through the Small Business section of HP.com. At the time there were no true Dell style sales on it, and it ended up being a pretty steep price ($1,700, ouch). When trying to find a decently built laptop, you end up having to trade off features for durability in some cases if you want to be in a certain price range.

Build & Design:

The metal structure of the laptop gives it a very sturdy feeling. With the unit closed it is very hard to bend, and really helps protect it inside a backpack or other carrying case. Kind of gives some hope that it might survive on your trip wherever you are going. Once opened, the main body of the laptop keeps its rigidity, but the screen slightly gets more flexible. Since it is a 14" laptop, the screen is only around 1cm or so thick, and has some mild flex twisting the top of the screen frame. Pressing down on the cover with your fingers takes a LOT of pressure to get ripples out of the screen. It doesn't bend down anywhere near as easily as a Latitude D610 for example. The screen hinges also feel very nice and look quite strong. The tension is very high, and only when you start to toss the laptop back and forth does the screen tilt downwards.

The build is very nice. Every single surface on the laptop besides the bottom is a smooth almost polished painted metal. This includes the typing area, and the screen cover. Almost all buttons are flush with this surface, so its almost flat going across the keyboard. All of the keys and buttons feel very sturdy and precise. Almost no part on top of the laptop bends or flexes when you are tying or resting your hands on the laptop. This can be quite the opposite when compared to other laptops with plastic overused where everything creaks or bends when you lay your hands down on it.

The only part of the body that has some flex is the thinner plastic on the underside near the drive bay, which without the drive in place has almost no structure inside of it. If you go without the cd-drive for some travel, it is almost required that you have the blank insert in place to retain the strength of the laptop. All of the pieces work together in a laptop of this size.

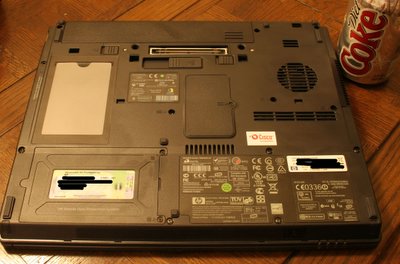

HP nc6230 under side view (view larger image)

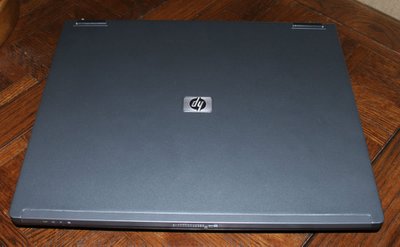

HP nc6230 above view (view larger image)

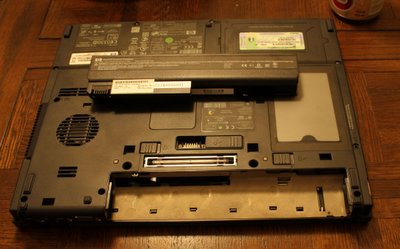

HP nc6230 under side with battery out (view larger image)

Screen:

My screen only had one flaw; a stuck white pixel on the far right edge. Since the resolution is so high, the size of it is pretty small and can't be noticed unless you are looking for it.

Brightness is decent, but nothing to brag about. The brightest setting on the laptop is still less than the lowest setting on my Sony desktop LCD. The main reason for this is the amount of power those things suck down. For example, the difference in battery life on the laptop between the lowest setting and the highest setting is over 45 minutes. Put something 3 times as bright on, and you lose a massive chunk of battery life. You compensate you would need a larger battery, a heavier laptop, the list goes on.

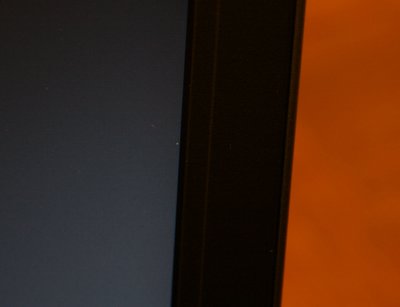

HP nc6230 screen edge (view larger image)

The key downside to this screen is the lack of gloss finish. Going from my glossy desktop really shows off the downsides of the non-gloss screens. Text isn't as clear, blacks aren't as black, and whites end up having a slightly dirty look to them. The screen is still clearer than a CRT, but it isn't as good as the more modern displays you see on laptops these days. If anything, this will probably be the biggest choice for me if I will keep the laptop or not, because the screen is one of those things that you notice the most out of any other part.

Speakers:

The speakers are pretty decent. While they don't have any bass, they are quite clear for voices when playing movies. The headphone output is quite clear, without any static and sounds pretty good with my headphones. It's a perfectly fine setup for any casual user who isn't expecting surround sound with a subwoofer on the bottom.

Processor and Performance:

The unit ends up being pretty damned fast. Programs load and close faster than my main desktop (over clocked Northwood 2.8 running at 3.5ghz), and overall feels very peppy. Boot times are very fast, and shutting down times are quick when you need to pack up at the end of class. The hard drive in this unit is a 5400 Fujitsu 60gb. Copying files and everything is right on par with my desktop, and not "slow" just because it's a portable computer.

One really nice feature of this laptop is the cooling that it has. Even under heavy load the keyboard area will only be mildly warm. The idle temperature of the computer's cpu and motherboard rest around 35-40C, with the hard drive around 38C. The fan slowly goes once it goes into the 40 range, and is amazingly quiet. You need to stick you hand next to the air output to feel the fan to see if it's on. I have never heard it ever kick on faster than that, so I am guessing it is one speed.

Benchmarks:

The Pi calculation averages at 1 minute and 40 seconds at full speed, and around 2 minutes and 40 seconds with the unit forced into best battery life mode.

Notebook	Time
HPnc6230(1.86 GHz Pentium M)	1m 40s
Dell Inspiron 9300 (1.86 GHz Pentium M)	1m 39s
Sony VAIO FS680 (1.86 GHz Pentium M)	1m 53s
IBM ThinkPad T43 (1.86 GHz Pentium M)	1m 45s
Asus Z70A (1.6GHz Pentium M)	1m 53s
Fujitsu LifeBook N3510 (1.73 GHz Pentium M)	1m 48s
Dell Inspiron 6000D (1.6 GHz Pentium M)	1m 52s
Dell Inspiron 600M (1.6 GHz Pentium M)	2m 10s
Sony VAIO S360 (1.7 GHz Pentium M)	1m 57s
HP DV4170us (Pentium M 1.73 GHz)	1m 53s
Sony VAIO S380 (1.86 GHz Pentium M)	1m 45s

Using Everest Ultimate, the memory read speed is 3025MB/s, write speed of 825 MB/s and latency of 102.1ns.

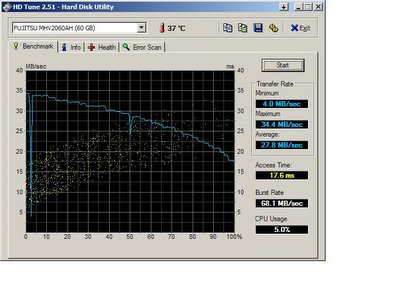

HDTune hard drive benchmark results (view larger image)

3dmark05 score: 736

Keyboard and Touchpad:

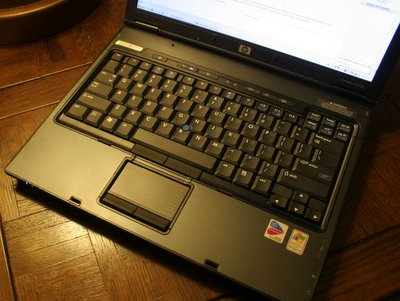

HP nc6230 keyboard view (view larger image)

The touchpad and keyboard on this computer seem much nicer than the equivilant Toshiba laptops I was using last year. The keyboard structure has much less flex when pressing down on keys, and overall feels much nicer. They have a interesting texture to them pictured below.

The touchpad also kind of has the same texture, but a bit smoothed out. The buttons to go along with the touchpad and trackpoint are rubber buttons that give nice positive feedback clicks. The touchpad seems to be very sensitive and has a tendancy to click on things if you graze it slightly with your finger.

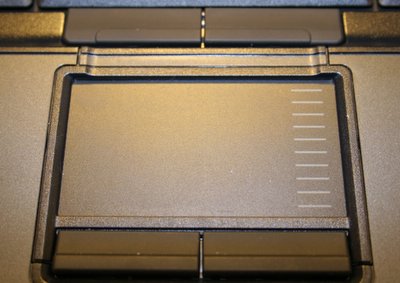

HP nc6230 touchpad (view larger image)

While the keyboard feels very nice, one thing that just seemed to start today (2nd day), is the keys squeak. The spacebar is the main culprit, but they are all starting to squeak it seems. Not sure if this is normal or "breaking in" but it might drive me nuts if it doesn't stop. If I were to try and write a term paper right now on this keyboard I would have probably jumped out the window after the 4th page from insanity.

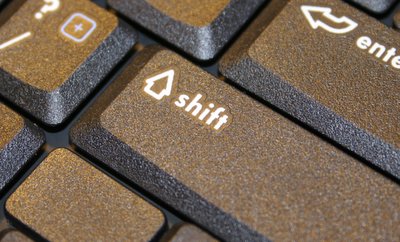

HP nc6230 keys (view larger image)

Input and Output Ports:

This laptop has a nice array of ports. 3 USB ports, 1 serial port, 1 svideo port, 1 vga, headphone/mic, modem, LAN, power port, and 3 card readers. The card readers inside this unit are a SD/MMC slot, SmartCard slot, and a type II card slot for adapters and whatnot.

HP nc6230 left side1 USB, LAN, Modem, PC Card, SmartCard, SD/MMC, Lock port (view larger image)

HP nc6230 back side view Svideo, VGA, Power Connector (view larger image)

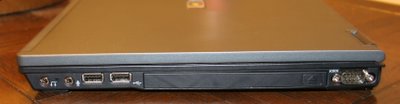

HP nc6230 right side:Serial Port, Optical media bay, 2 USB Ports, and the headphone and microphone hookup (view larger image)

HP nc6230 front side: Fast IrDA Port, Speakers and I *think* the hidden microphone(view larger image)

Wireless:

The builtin wireless is provided by a intel centrino compatible 2200BG 802.11b/g card. Also included is a Bluetooth receiver. Both of these can be enabled or disabled to save power. I have yet to have any issues with connecting to wireless routers yet, besides having router issues, or being too far away. I have connected to netgear, linksys, cisco, dlink, and Motorola routers without problems. All seemed to stay connected for as long as I was using the net, not counting times of reception from something blocking a really weak signal for example.

Battery:

The battery that HP provides with this laptop is quite small. It doesn't stick out the back of the laptop, or protrude in any way. This has its downsides though in less battery like than the other portable business laptops out there. With most of the excess devices turned off and LCD brightness at about midway I average just a tad over 3 hours. I am guessing that you might be able to get around 2:30 watching a movie if the screen backlight was turned down. To get any decent runtime from this machine it would probably be best to get the additional external battery pack that clips on the bottom.

Operating System and Software:

Compared to other laptops out there this unit comes with a pretty minimal install of software. To unclutter the system to run my own preferred software, it took about 30 minutes uninstalling stuff from the computer settings menu. Not too hard, and much easier than wiping the entire system and starting from scratch. All of the programs included on the computer (Norton AV, PowerDVD) are full versions, and not trial. The rest of the software deals with computer function like the security features, touchpad, and other quickbuttons.

Customer Support:

Talking to the phone rep before I purchased the computer went pretty well. I probably waited 3-4 minutes and was connected to a man on the other line. He answered all the questions I had regarding this laptop, and also helped me track down technical things about the system like removing the Bluetooth card or upgrading the wireless internet card. I am guessing it would take a lot more to find out that type of information talking to a Dell drone.

Complaints:

My main complaints are as follows:

• Outdated LCD- Non glossy, low contrast, and not that bright. Can be ok in a bright classroom, but not sure if you would stand a chance sitting out in the open on a sunny day.
• Battery life- To save space and weight HP went with a really small battery. This shows with battery life barely over 3 hours of normal use. I would have gladly taken to lbs more of weight if it gave me 2-3 hours more battery life.
• Keyboard that squeaks- Not sure if it is bad luck, but the keys are squeaking on me. My desktop keyboard I bought on clearance from dell squeaks, and I have never had any others do this. Besides the squeaks it feels great typing

Praises:

• Great sturdy design- Lots of metal in the areas that count give this laptop a very nice feel. The metal feels very nice and smooth, and goes great with the laptop. Its paint doesn't really show fingerprints or smudges, so you aren't going crazy trying to make it look nice.
• Very fast- Boots very fast so you aren't waiting around all day for the machine to do its thing. Programs run very fast, and are never lagging. When you need to packup when you class ends, or the meeting is done it shuts down very fast.

Conclusion:

This laptop's main consumer is a business user, or someone more interested in the overall build of the laptop instead of the latest features. It doesn't have firewire, a glossy screen, or the top of the line video card. What you do get is a machine that can hold up to your daily routine and not fall and creak apart when you are bringing it in and out of your laptop case.

Pricing and Availability: Hewlett Packard NC6230
