    HP Compaq nx6325 Turion X2 Business Notebook Announced

    Discussion in 'Notebook News and Reviews' started by Andrew Baxter, Jun 6, 2006.

  1. Andrew Baxter

    Andrew Baxter -

    Reputations:
    4,365
    Messages:
    9,029
    Likes Received:
    55
    Trophy Points:
    216

    HP today announced a new addition to its business line of notebooks, the HP Compaq nx6325 15-inch screen notebook. Last month HP announced a slew of new business notebooks powered by the Intel Core Duo processor, but this latestnx6325 releaseis powered by the new AMD Turion X2 dual core 64-bit processor.

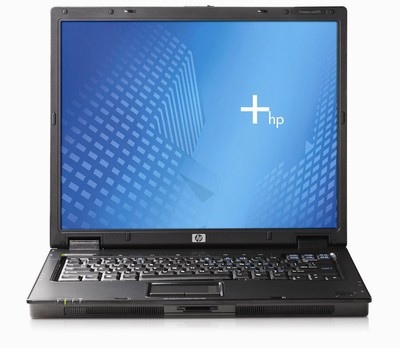

    [​IMG]
    (view large image)

    The nx6325 will come with a 7-in-1 media card reader (Secure Digital, MultiMediaCard, Memory Stick, Memory Stick Pro, Memory Stick Duo, Smart Media and xD memory cards), 15-inch screen with option of XGA or SXGA+ resolution, shared graphics via the ATI XPress 1150 card and will come in at a weight of about 6.0lbs.

    Full Specs for the nx6325 are as follows:

    • Processor Options:
      • AMD Turion 64 X2 Mobile Technology Processor TL-60 (2.0-GHz, 512KBx2 L2 cache)
      • AMD Turion 64 X2 Mobile Technology Processor TL-56 (1.8-GHz, 512KBx2 L2 cache)
      • AMD Turion 64 X2 Mobile Technology Processor TL-52 (1.6-GHz, 512KBx2 L2 cache)
        AMD Turion 64 X2 Mobile Technology Processor TL-50 (1.6-GHz, 256KBx2 L2 cache)
      • Mobile AMD Sempron Processor 3500+ (1.8-GHz, 512KB L2 cache)
      • Mobile AMD Sempron Processor 3400+ (1.8-GHz, 256KB L2 cache)
      • Mobile AMD Sempron Processor 3200+ (1.6-GHz, 512KB L2 cache)
    • Memory: DDR2 SDRAM, 533- or 667-MHz, two SODIMM slots supporting dual channel memory, 256/512/1024/2048-MB, supports up to 4096 MB
    • Hard drive(s): 40/60/80/100-GB 5400 rpm
    • Removable media12.7-mm optical drives: LightScribe SuperMulti DVD+/-RW with Double Layer , DVD+/-RW SuperMulti with Double Layer, 24X DVD/CD-RW combo, 24X CD-ROM
    • Display15.0-inch XGA (1024 x 768 resolution and 16M colors), 15.0-inch XGA BrightView display (1024 x 768 resolution and 16M colors), 15.0-inch SXGA+ wide viewing angle (1400 x 1050 resolution and 16M colors)
    • Graphics:ATI Radeon Xpress 1150, up to 128-MB shared system memory
    • Operating system options:
      • Microsoft Windows XP Professional Edition
      • Microsoft Windows XP Home Edition
      • Microsoft Windows 2000
    • Audio:premierSound High Definition Audio w/24-bit DAC, headphone jack, microphone jack, integrated microphone
    • Wireless support:Broadcom 4311AG 802.11a/b/g WiFi Adapter, Broadcom 4311BG 802.11b/g WiFi Adapter, Bluetooth 2.0
    • CommunicationsBroadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000), 56K v.92 modem
    • Expansion slots1 Type I/II PC Card slot supports 32-bit CardBus and 16-bit cards; Express Card slot
    • 7-in-1 Media Reader (Secure Digital, MultiMediaCard, Memory Stick, Memory Stick Pro, Memory Stick Duo, Smart Media and xD memory cards)
    • Ports and connectors3 USB 2.0 ports, VGA, mic in, line out, integrated mic, IEEE 1394a, AC power, RJ-11, RJ-45, lock slot, S-video TV out, docking
    • Input deviceFull-sized keyboard; Touchpad with scroll zone and HP Biometric Fingerprint Sensor
    • Dimensions (h w d)1.2 in (at front) x 12.9 in (w) x 10.5 in (d) / 30.3 mm (at front) x 328.6 mm x 266.7 mm
    • Weight:starting at weight 6.0 lbs and 2.7 kilograms
    • Power6-cell (55 WHr) Lithium-Ion battery, secondary HP 8-cell (52 WHr) Extended Life Battery, 65W HP Smart AC Adapter, HP Fast Charge Technology
    • WarrantyThree-year or one-year limited parts and labor warranty, depending on country and model; one-year limited warranty on primary battery
    • Product Page: http://h10010.www1.hp.com/wwpc/us/en/sm/WF05a/321957-64295-89315-321838-f33-1849082.html

    [​IMG]
    1. Volume Mute Button with LED 14. ExpressCard Slot
    2. Volume Down Button 15. PC Card Slot (or optional Smart Card Reader)
    3. Volume Up Button 16. Microphone Jack
    4. Integrated Microphone 17. Headphone Jack
    5. HP Biometric Fingerprint Sensor 18. 2 USB 2.0 Ports
    6. 7-in-1 Media Reader 19. VGA/External Monitor Connector
    7. Stereo Speakers 20. RJ-45 Port (NIC)
    8. Touchpad with Scroll Zone 21. Power Button with LED
    9. Hard Drive Activity LED 22. HP Info Center Button
    10. Battery Charging LED 23. Wireless On/Off Button with LED
    11. Power/Standby LED 24. Presentation Mode Button
    12. Wireless On/Off LED 25. Dual-band Wireless LAN Antennas
    13. PC Card Eject Button
    <RSPAGEBREAK></RSPAGEBREAK>
    [​IMG]
    1. 1 USB 2.0 Port 5. Optical Drive
    2. IEEE 1394a Port 6. S-Video TV Out
    3. RJ-11 Port (Modem) 7. DC Power Connector
    4. Optical Drive Button 8. Kensington Lock Slot


    Last edited by a moderator: May 12, 2015
  2. lappyhappy

    lappyhappy Notebook Deity

    Reputations:
    624
    Messages:
    1,149
    Likes Received:
    0
    Trophy Points:
    55
    Looks nice except for the Integrated graphics. When is HP going to get a clue and put something other than integrated graphics in their AMD laptops?

  3. Spare Tire

    Spare Tire Notebook Evangelist

    Reputations:
    18
    Messages:
    459
    Likes Received:
    0
    Trophy Points:
    30
    If only they made it 14"

  4. strikeback03

    strikeback03 Notebook Deity

    Reputations:
    62
    Messages:
    742
    Likes Received:
    0
    Trophy Points:
    30
    7-in-1 media reader and no CF support. I could understand more except that they support smartmedia, which is a lot more dead than CF. High-end photography still primarily uses CF.
