ASUS UL30 Review

The ASUS UL30 series is a thin and lightweight 13.3" notebook powered by the Intel Core 2 Duo ULV processor. Aiming to compete against the Acer Timeline series, this model boasts an impressive 12 hours of runtime, for true all-day computing. Offering a brushed aluminum lid and sturdy construction, it is designed to look great, but keep looking good day after day. In this review we put the 12-hour battery life claim up to the test, and find out just how well this notebook performs.

ASUS UL30A-A1 Specifications:

• Intel Core 2 Duo SU7300 (1.3GHz, 3MB L2 cache, 800MHz FSB)
• Microsoft Windows Vista Home Premium (w/ SP1)
• 13.3-inch glossy LED-backlit 16:9 display (1366x768)
• Intel Graphics Media Accelerator 4500MHD
• 4GB DDR3 800MHz RAM (2GB x 2)
• 500GB Seagate 5400.6 HDD
• Atheros AR9285G/N WiFi, 10/100 Ethernet
• 8-Cell 15V 5600mAh 84WHr Battery, 19V 2.1A 40W AC Adapter
• Limited 2-year Global Warranty
• Dimensions 12.9" x 9.28" x 0.6"-0.98" (W x D x H)
• Weight: 3lbs 14.8oz
• Price as configured: $799

Build and Design
The ASUS UL30A-A1 at first glance looks very sleek, with a low profile designed to make it look as thin as possible. The color scheme shifts between silver and black, with the exterior being brushed aluminum and the interior being glossy painted plastic. The keyboard is a Chiclet-style model, with matte black keys and silver lettering. I think the design looks excellent, working for both the average consumer and business professional alike. The finish is also designed to look great over time, with the aluminum cladding resisting smudges and scratches.

One aspect of a notebooks design that is sometimes overlooked on models with extended battery life is the battery itself. ASUS managed to fit a flush mount 84Wh battery into the back of the chassis. It sits flush with the rear of the notebook and sticks down a fraction of an inch from the bottom. For the average consumer this means form-fitting slip cases are easy to fit into and a notebook with a more polished look to it.

Build quality is above average, with the overall construction feeling pretty solid. The bottom of the notebook has one soft spot, where a panel has some mild flex, but besides that there is very little flex anywhere on this notebook. The aluminum screen cover does a good job of protecting the screen from impacts, showing little or no color distortion as you press firmly on the back of the screen. Inside, the palmrest and keyboard have excellent support, having no flex at all. Even though the front profile is very thin, ASUS still manages to provide a well-built internal structure for a solid typing platform. Another surprising quality is the very strong screen hinges, which have no wiggle and actually show a good deal of resistance.
Users looking to upgrade some of the components will like that there are still two access panels on the bottom. Because of space or strength concerns, the panels are only sized for RAM and HD access, but it is better than no panels at all.

Screen and Speakers
The screen offered on the UL30-series is a 13.3" LED-backlit 16:9 WXGA panel. The display rates slightly above average, with good color saturation and contrast thanks to the glossy surface. Black level s are good with no apparent backlight bleed at high brightness levels. The area that doesn't really shine with this panel are the viewing angles. Vertical viewing angles show a good amount of distortion with as little as 10-15 degrees movement forward or back. Horizontal viewing angles are better, but still show signs of mild color inversion past 45 degrees. Backlight brightness levels were very good, even at the 70% level we like to use for battery tests. I usually had the screen set at 70% in the office and 40-50% at home with less overhead lighting.

Most thin and lightweight notebooks sacrifice speaker location for other more important aspects of the design. The ASUS UL30-series offers lap-firing speakers, which sound tinny at best, muffled at worst. When you have the notebook sitting up on a stand or on a flat desk surface they sound average compared to other notebooks of this size, but once you put it on your lap or a soft surface they are completely muffled. Headphones would be highly recommended for this notebook.

Keyboard and Touchpad
The ASUS UL30-series offers a large Chiclet-style keyboard that is very comfortable to type on. The palmrest seems to be sized perfectly even for my large hands with a soft edge on the front that prevents any pressure to your wrist. The keys are very responsive with a nice springy action on each press. The individual keys appear to be almost flat, but a straight edge over the surface shows a very small cup to the center of each key. The texture is a rough matte finish, and doesn't attract finger prints or smudges.

The touchpad is an ELAN model, built into the palmrest, offering limited multitouch capabilities. The included drivers support two-finger scrolling for horizontal and vertical movement, but nothing else. I actually found it to be almost too responsive, scrolling both vertically and horizontally at the same time as you moved down a page. Disabling the horizontal scroll seemed to improve things in that regard. The touchpad worked quite well, having no discernable lag and equal speeds on both axis's of movement. The dimpled surface felt smooth and once it had some oils from my hand built up on it, allowed fingers to glide across it very well. The touchpad button is seesaw style, with a fixed center pivot point. Each side took a moderate strength push to trigger, with a small click given off when pressed.

Ports and Features
Port selection was good with three USB ports, HDMI and VGA out, LAN, and audio in/out. One feature missing that was a Kensington lock slot, but in its place was a lanyard-style attachment point. The notebook also sports a spring-loaded flush-mount SD-card slot, handy for expanding storage without needing to remove the card when putting the notebook in a carrying case.

Front: Activity lights

Rear: Battery

Left: VGA, HDMI, and USB

Right: SD-card slot, audio in/out, two USB, LAN, and AC-power

<!--nextpage--><!--pagetitle:ASUS UL30A-A1 Benchmarks and Conclusion-->

Performance and Benchmarks
System performance was quick once the notebook was cleared of all bloatware, but not before giving us one of the longest initial boot sequences we have ever seen. It took almost 15 minutes to go from out of the box pressing the power button, to finally at the desktop. This process was filled with initial configuration processes and many waiting screens. Once the system was ready, the first thing we did was remove the included system security software. After a few power cycles the OS stopped activity pinging the hard drive, and it became a rather speedy CULV notebook. Boot and shutdown times felt quick, and the rather snappy Seagate 5400.6 hard drive kept access times to a minimum without sacrificing battery life. The system had no problem handling 720P or 1080P HD video, showing a good amount of leftover overhead for other applications while the movies were playing. 3D gaming was out of the question unless the settings were heavily tweaked, or if the games were many generations old. For normal everyday uses, like typing documents, browsing the web, or watching streaming HD video the system performed beautifully.

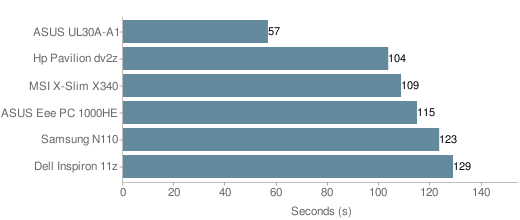

wPrime Processor Performance Benchmark (lower scores mean better performance):

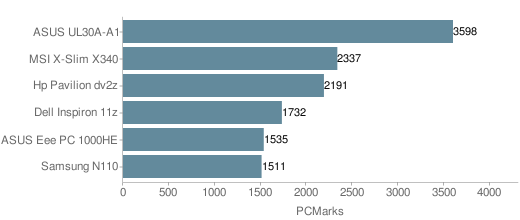

PCMark05 Overall Performance Benchmark (higher scores mean better performance):

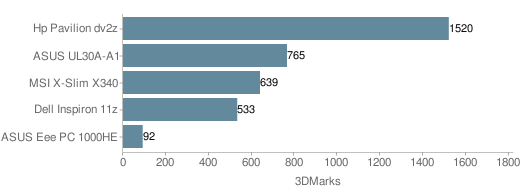

Synthetic Gaming Performance using 3DMark06 (higher scores mean better performance):

HDTune Hard Drive Performance Benchmark:

Heat and Noise
Under a light to moderate load the ASUS UL30A-A1 stayed quiet with only a few hot spots forming. Fan noise was minimal, with it defaulting off under most conditions. When the fan was on, your ear had to be next to the case to hear it. With the system on for the entire morning, the case warmed up about 10-15 degrees over room temperature, with all the keyboard and palmrest staying the coolest.

Battery Life
One of the most important features of this notebook is its 12-hour battery life claim. Packing a CULV processor, LED-backlit screen, and gigantic 84Wh battery, ASUS has the right stuff inside the notebook for extended battery life, but just how well does it perform? In our tests with the screen brightness set to 70%, Vista in the balanced profile, and wireless active the UL30A-A1 stayed running for 9 hours and 43 minutes before it went into sleep mode with 2% remaining. While it is less than the claimed 12 hours, if the wireless was disabled or the screen brightness was reduced further, it should come close.

Generally we only talk about the AC adapters on notebooks when something strikes us as impressive or odd. The ASUS UL30A includes a 40W AC adapter, which felt undersized and stressed during our review. With the computer running in high performance mode there was little overhead left for charging the battery, which extended the charging times. Another issue was it would get very hot, upwards of 130F. While a small power brick is nice to travel with, a 65W one wouldn't be too much larger, but wouldn't be as stressed.

Conclusion
The ASUS UL30A-A1 is a very nice 13" ultraportable notebook. The design is attractive and the construction of the body is great; with high quality materials used throughout. The keyboard is comfortable to type on, with excellent support to resist any flexing. Our battery test fell 2 hours short of the 12-hour claim, but it was still impressive at right under 10 hours. With a starting price of $799 it is priced above the Acer Timeline, but offers a faster processor and better battery life. Overall if you are looking for a super slim and lightweight 13.3" notebook with great battery life, the ASUS UL30A is well worth checking out.

Pros:

• Excellent battery life
• Solid build and good looking design
• Great keyboard

Cons:

• Display has limited viewing angles
• Small AC adapter gets hot under stress
