    custom notebook cooler with lcd fan controller and temperature sensors

    Discussion in 'Notebook Cosmetic Modifications and Custom Builds' started by __-_-_-__, Jun 16, 2020.

  1. __-_-_-__

    __-_-_-__ God

    Reputations:
    337
    Messages:
    1,864
    Likes Received:
    10
    Trophy Points:
    56
    was going through some old pics and realised I never had posted about it

    so I made this notebook cooler a very long time ago.

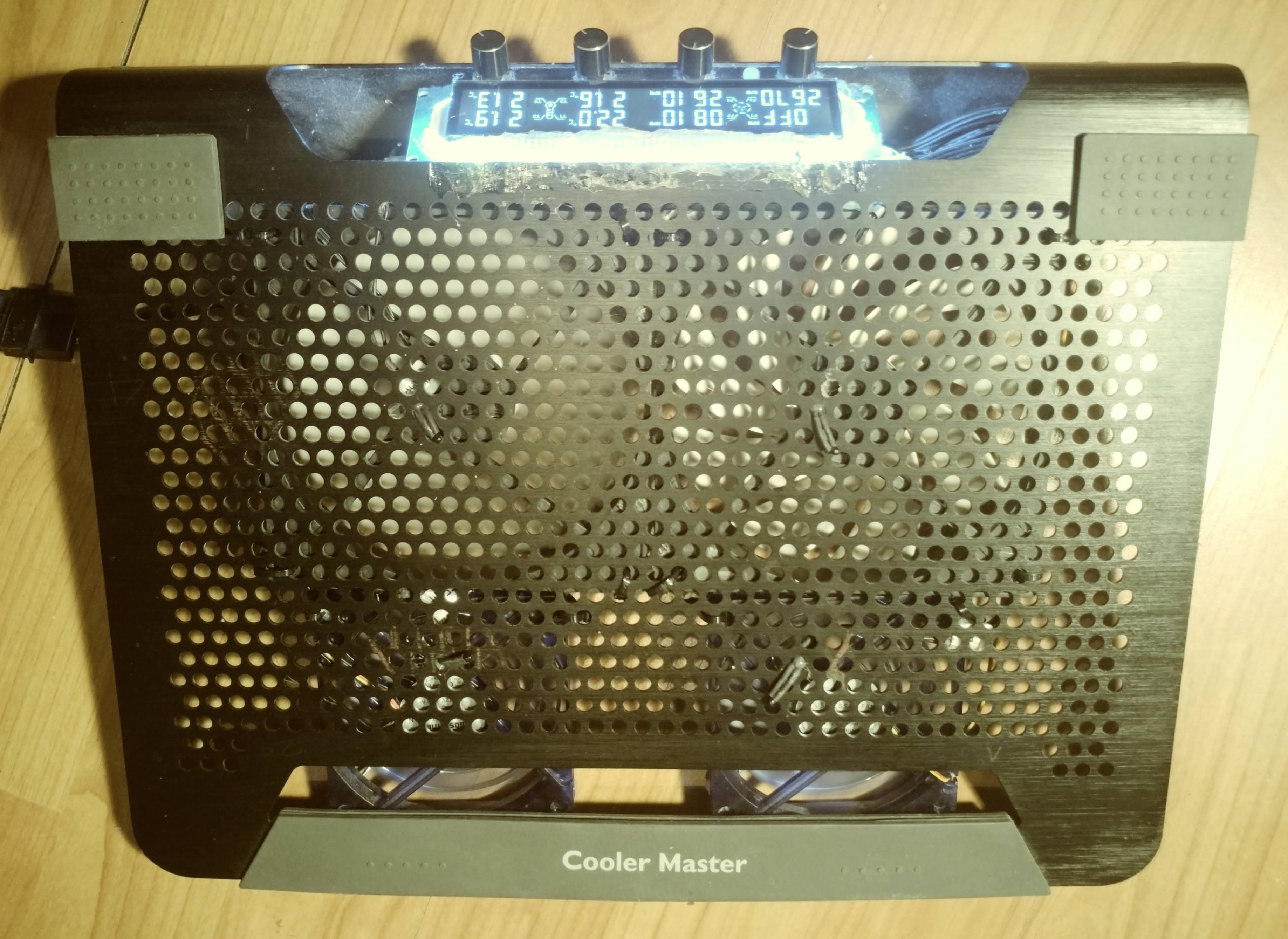

    I used a coolermaster notepal because it has an aluminium surface with lot's of holes (more airflow) and rubber feet.
    it can be easily moved around. I've a small molex psu to power it. I considered usb but it doesn't have enough power to power all the fans and the controller and if I'm using it then the notebook is also plugged so it's not an issue.

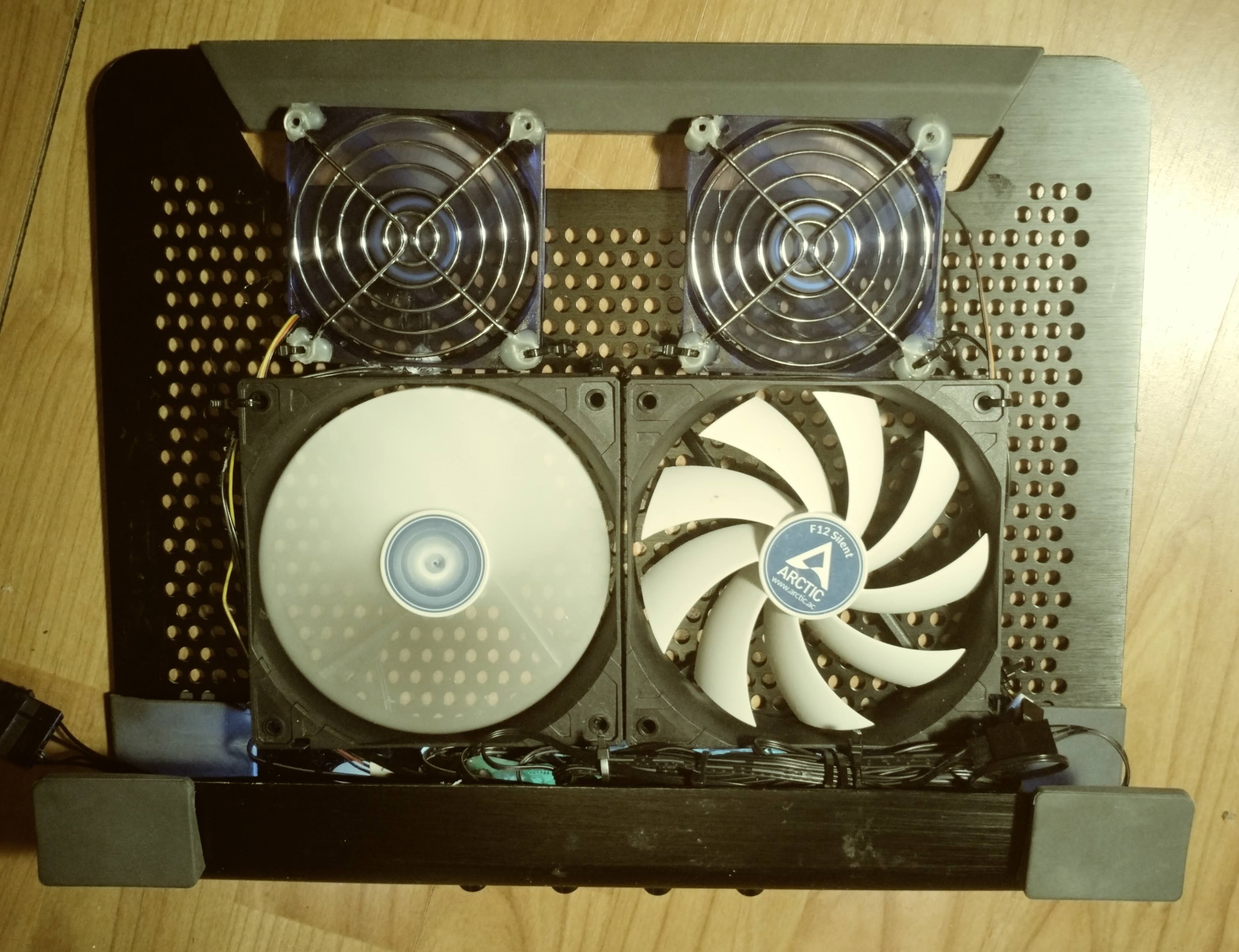

    it has 2x 120mmx25mm + 2x 80mmx10mm fans, easily replaced by different ones of the same size if I want.

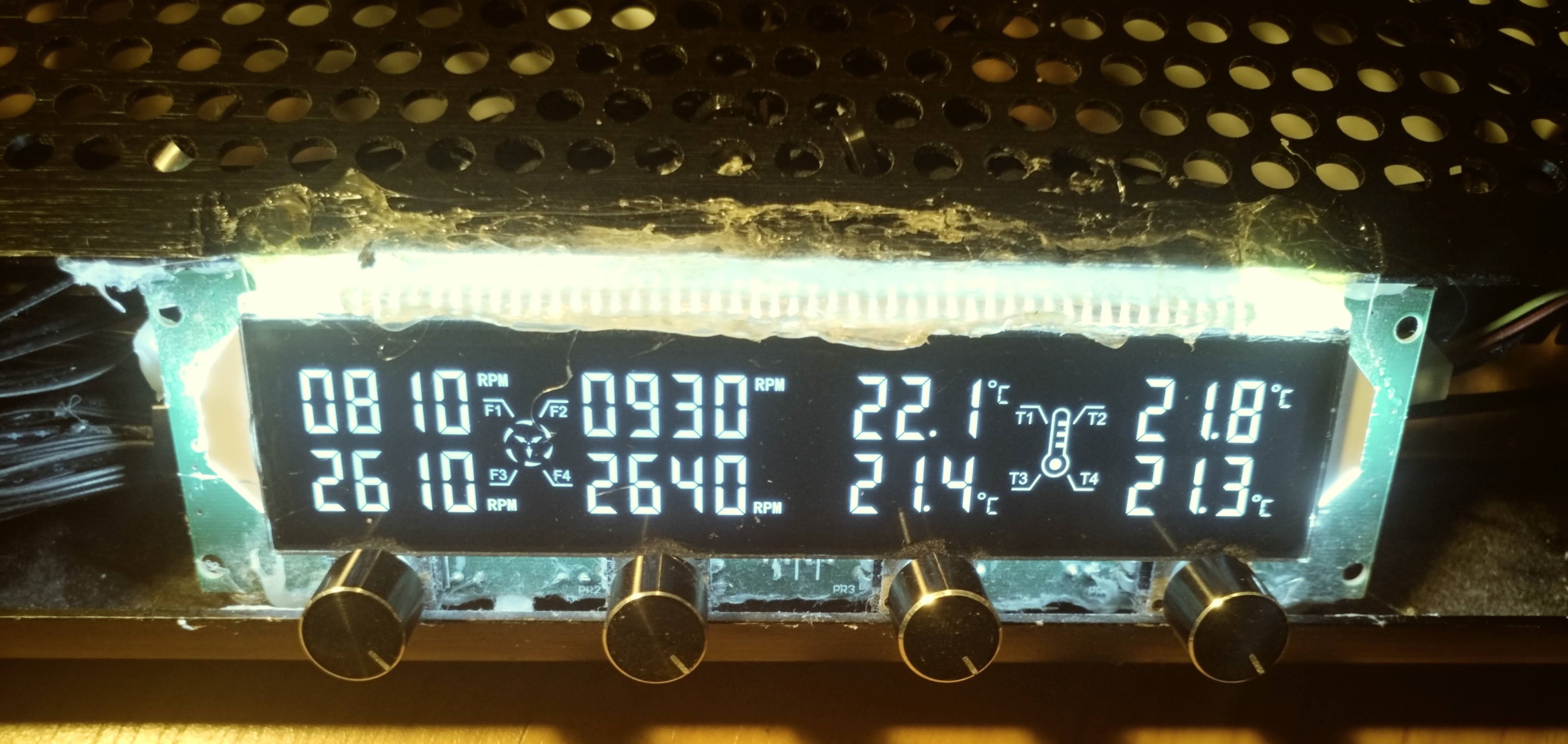

    I positioned the fans according to my notebook air intakes and then added a fan controller with built in temperature sensors.
    if I want to change the notebook I can easily reposition the fans. If I'm not using an HDD I might use magnets as they are easier to move around. works quite good. having the speed control and temperature is quite nice. noise and temperatures are easily controlled.
    I'm 3d printing some plastic parts to improve cosmetics near the lcd.
    it was quite easy and fast and fits very nicely. I used hot glue and cable ties for positioning and cable management. (tons of cables but they fit nicely behind the lcd.

    [​IMG]
    [​IMG]
    [​IMG]

    __-_-_-__, Jun 16, 2020
    #1
    Starlight5 and seanwee like this.
  2. seanwee

    seanwee Father of laptop shunt modding

    Reputations:
    666
    Messages:
    1,920
    Likes Received:
    1,110
    Trophy Points:
    181
    I got a cheap 10 buck cooling pad and modified it.

    Kept the stock fans, removed the grate as it was blocking 80% of the airflow. Then I added two 80mm fans on top of the 120mm fans.

    The stock mount didn't fit the 80mm fans so I moved them down and hot glued them into place.

    Then, I wired a voltage booster to the 120mm fans so they can operate from 6-15v depending on the dial.

    End result? Massive amounts of airflow for about 15 bucks. Best of all, it works with usb power. No need for a power supply. Just need a USB to USB cable which can be stowed into the cooling pad itself.


    seanwee, Jun 19, 2020
    #2
    Starlight5 and __-_-_-__ like this.
  3. __-_-_-__

    __-_-_-__ God

    Reputations:
    337
    Messages:
    1,864
    Likes Received:
    10
    Trophy Points:
    56
    and usb is enough to power all that?!

    __-_-_-__, Jun 21, 2020
    #3
  4. seanwee

    seanwee Father of laptop shunt modding

    Reputations:
    666
    Messages:
    1,920
    Likes Received:
    1,110
    Trophy Points:
    181
    Yup, works fine on all my laptops. Guess usb ports are pretty overbuilt.

    I measured that it draws 12w when supplying 15v to the fans, 10w when at 12v.

    seanwee, Jun 21, 2020
    #4
