Oldskool toothpaste to Liquid Metal + MSI MS-1762 tray mod

So just established this thread as a placeholder for me as I sort through all the pictures for the repaste and mod.

Unfortunately I kept losing overview and forgot to take pictures at certain important events.. but anyways.

Let the sorting begin.

P.S. Overall a success (thus far)

---

Okay so let's start.

I've had my MS 1762 since I bought it @pau1ow in late 2012.

Trying to compete with the absurd benchmarks and overclocks I see on the forums, my MX-2 toilet paste couldn't really keep up anymore, especially with newer titles pushing the GPU and CPU like never before. This was especially confirmed once I repasted and the temps only dropped by a minimal margin.

Not in a position to upgrade my hardware as of yet, I decided to see if I can make my current gaming station stay cool to last longer. Maybe even OC even more (the current OV's are stable and can barerly be pushed more).

SO - after reading the @iunlock thread(s) such as: http://forum.notebookreview.com/thr...dm2-3-g-p75xdm2-g-sager-np9152-np9172.795911/ and etc I went for it.

WARNING: I am not a smart man, but lucky, I am.

Spoiler: Before MX 2 repaste

1

The temps I got were ... bad, especially with my setup, I could feel the heat melting my right knee.

Spoiler: After MX-2 repaste

2

It helped a bit.. but still sh**!


Then I made the U3 mod.. reverted back to another nVIDIA driver - but it only helped a bit

Spoiler: Previous setup

3

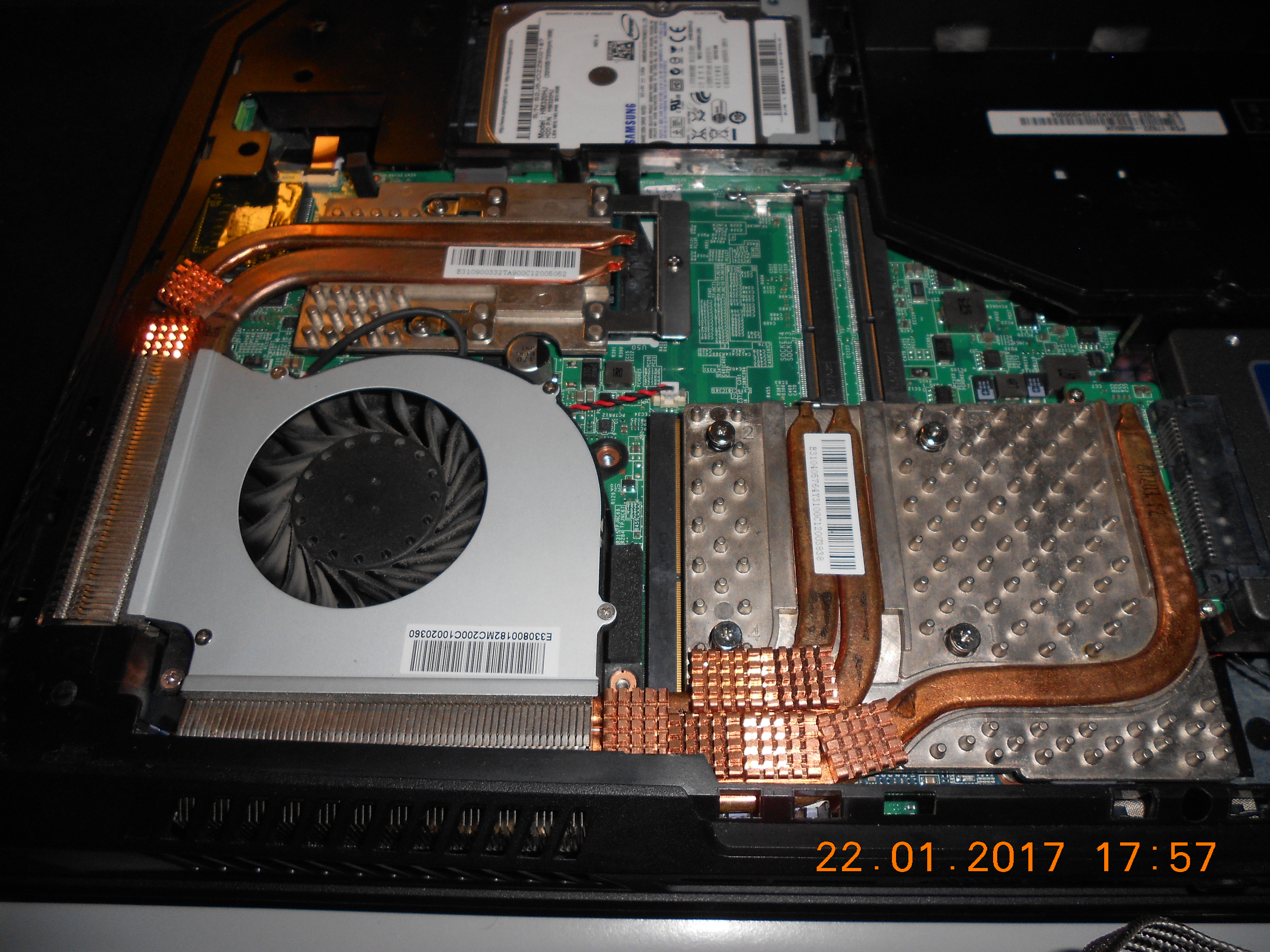

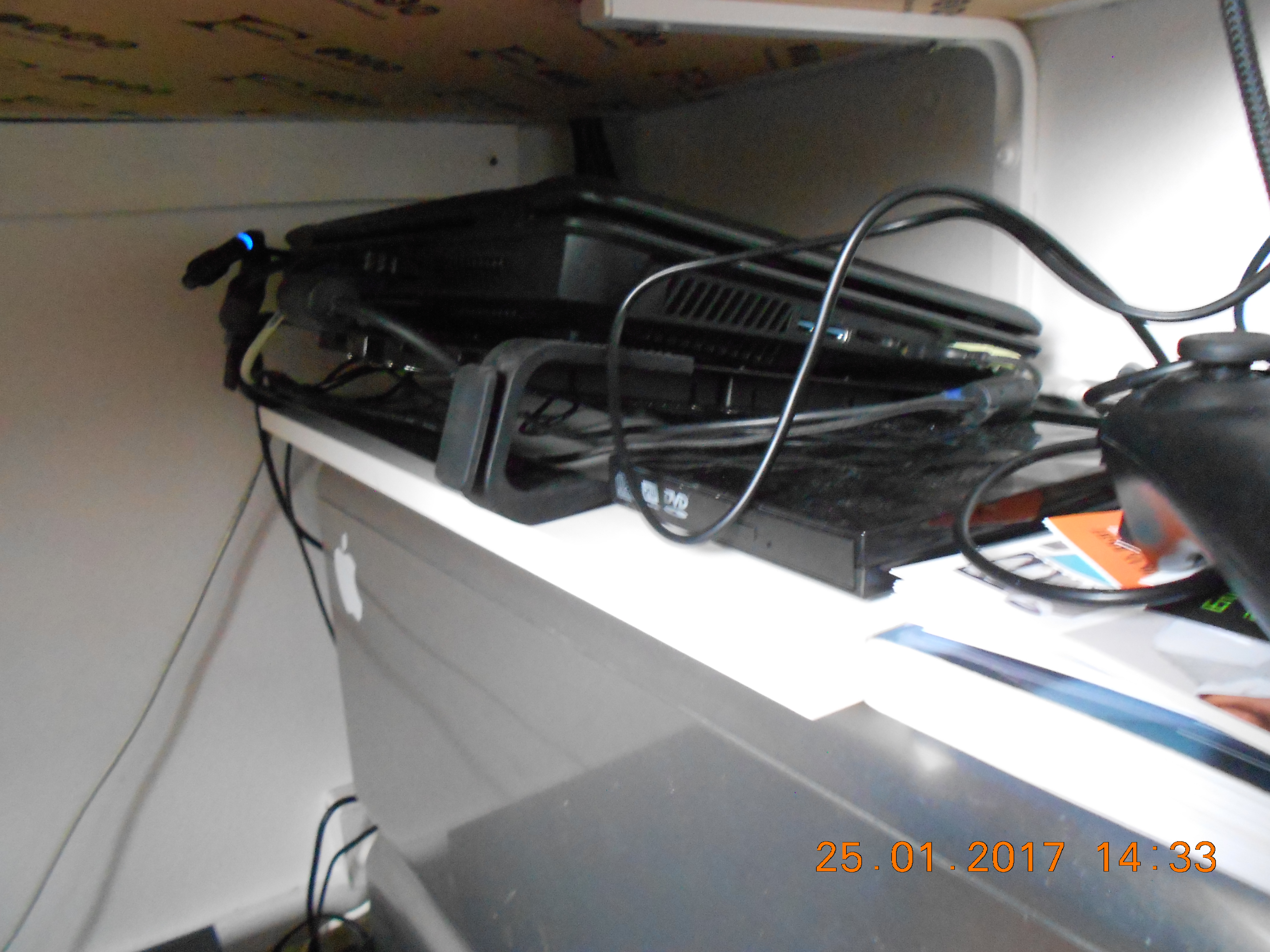

So here is what my "old" setup looked like (still looks like this more or less)

Spoiler: Thermal Grizzly Conductonaut TIME (HOW NOT TO DO IT LOL)

4

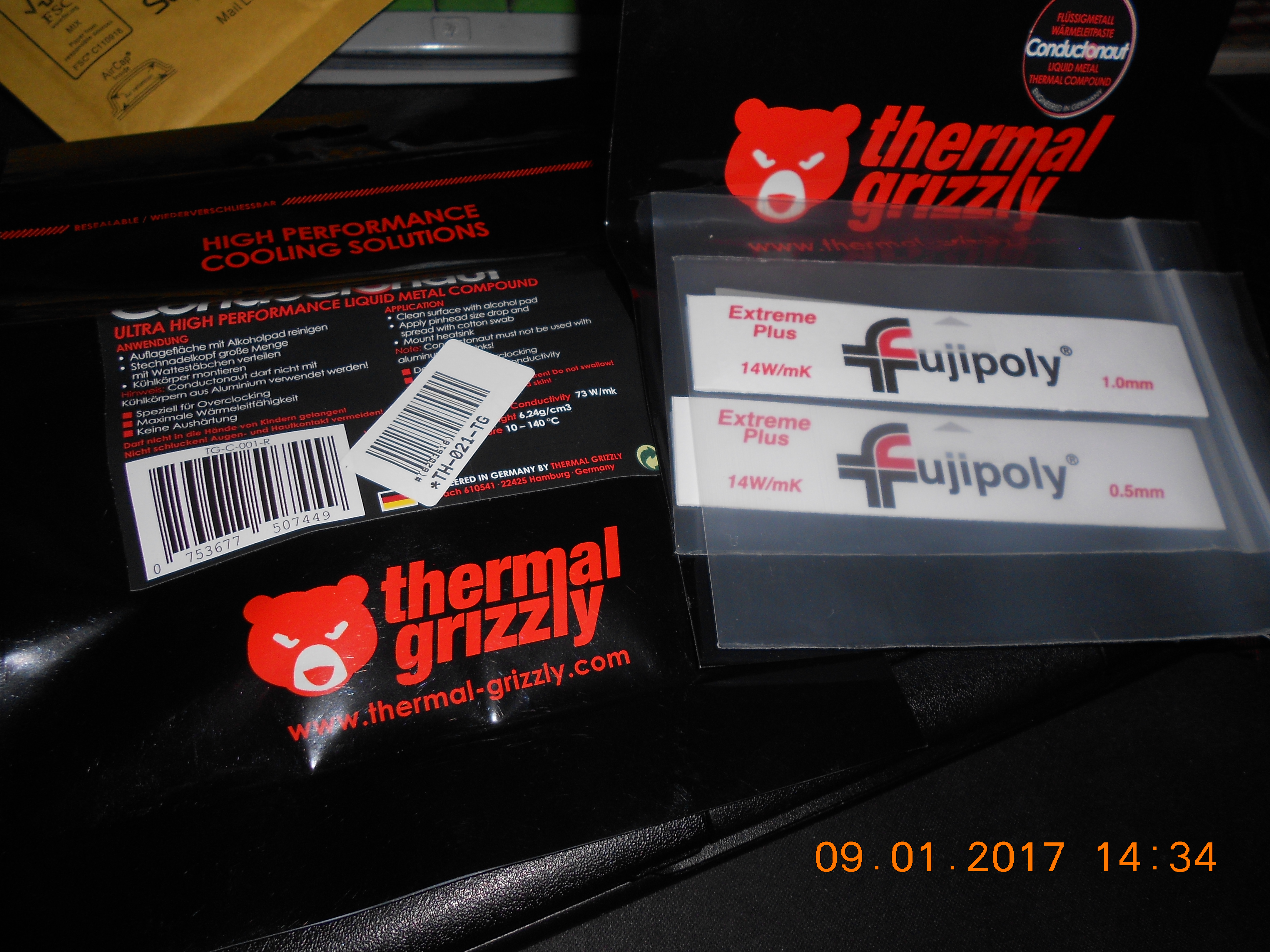

So here we are, look what came in the mail!

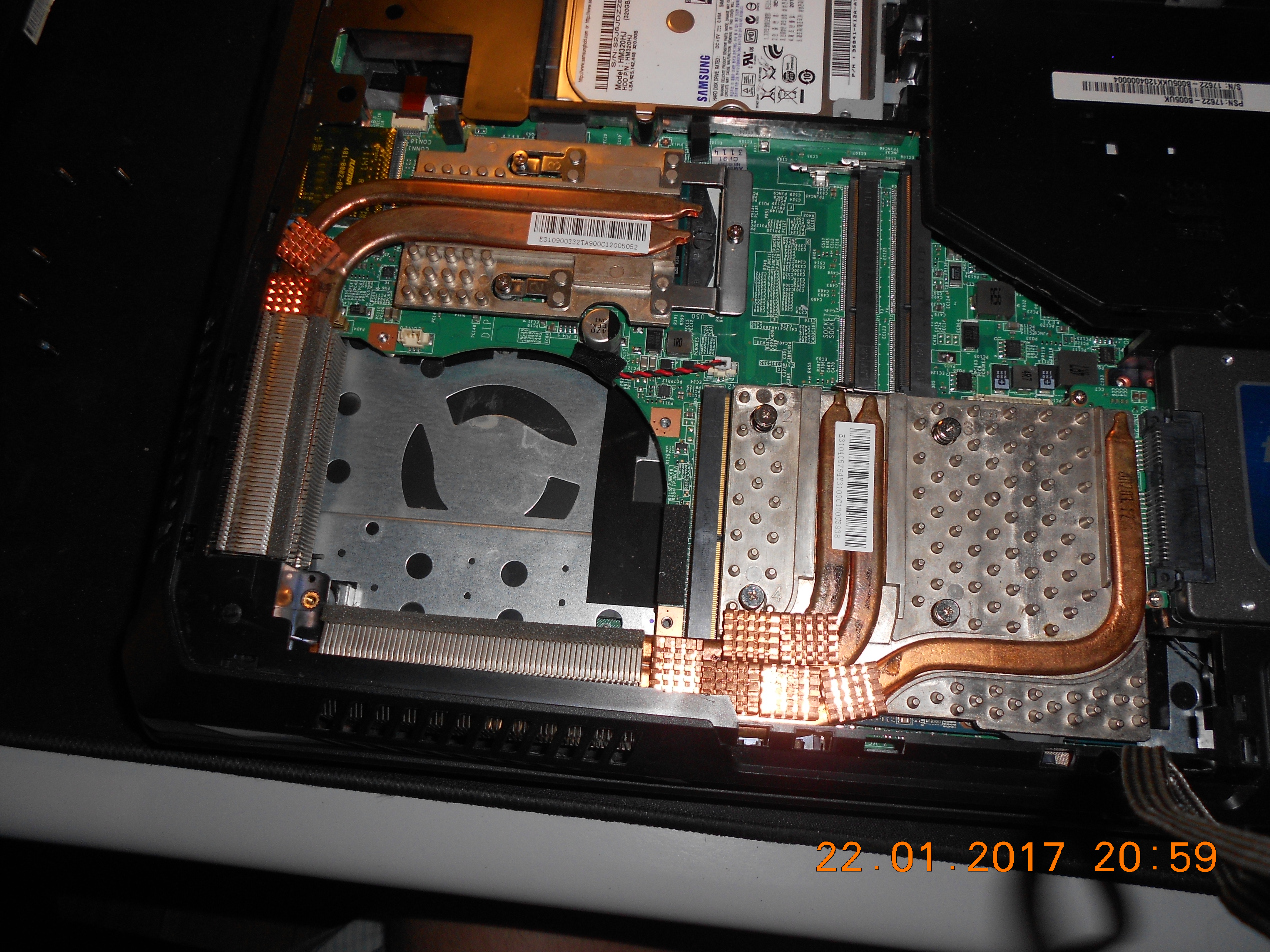

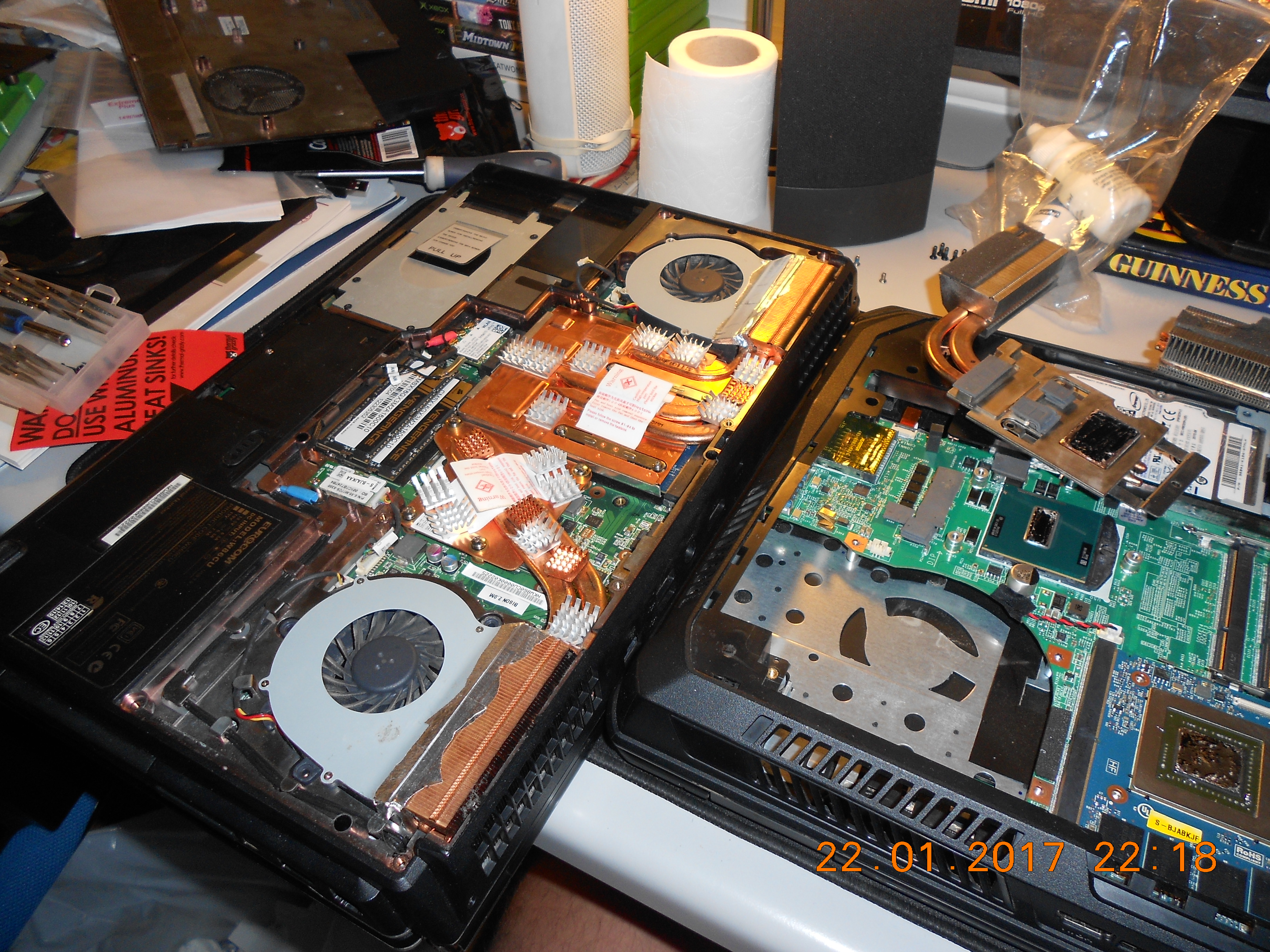

lets open this fat old sucker up


I have never been a good repaster (sorry for the techsupportgore guys)

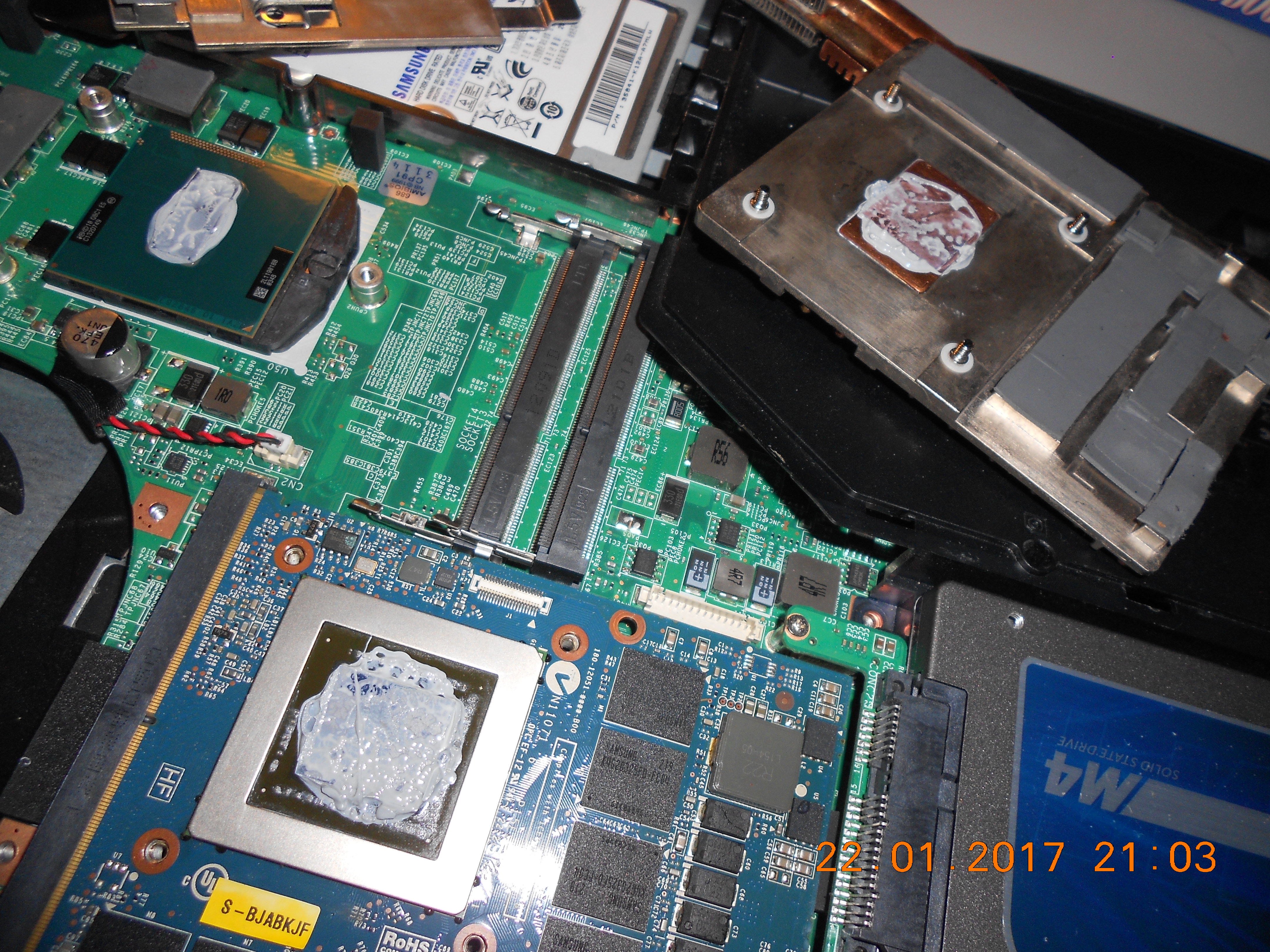

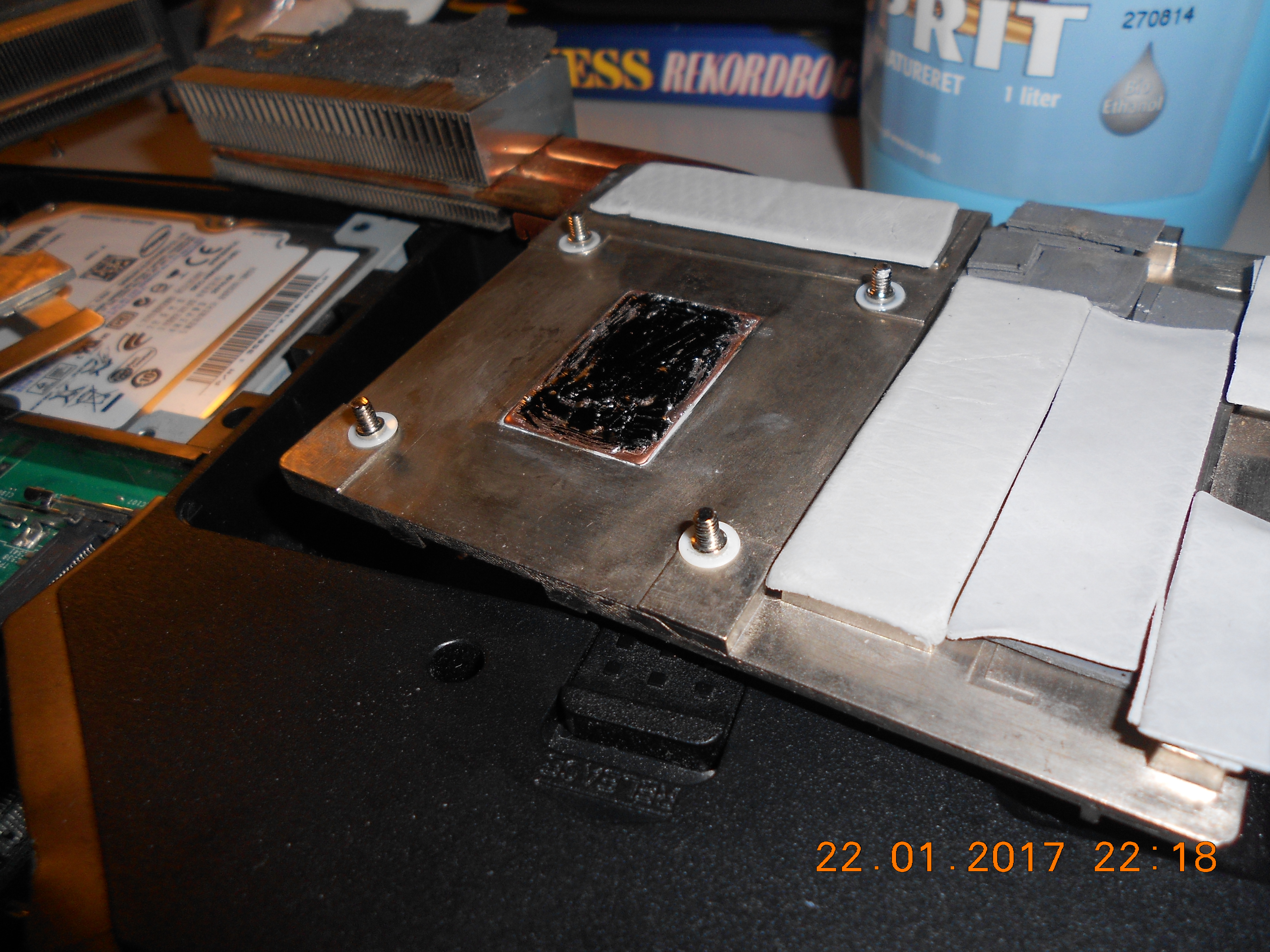

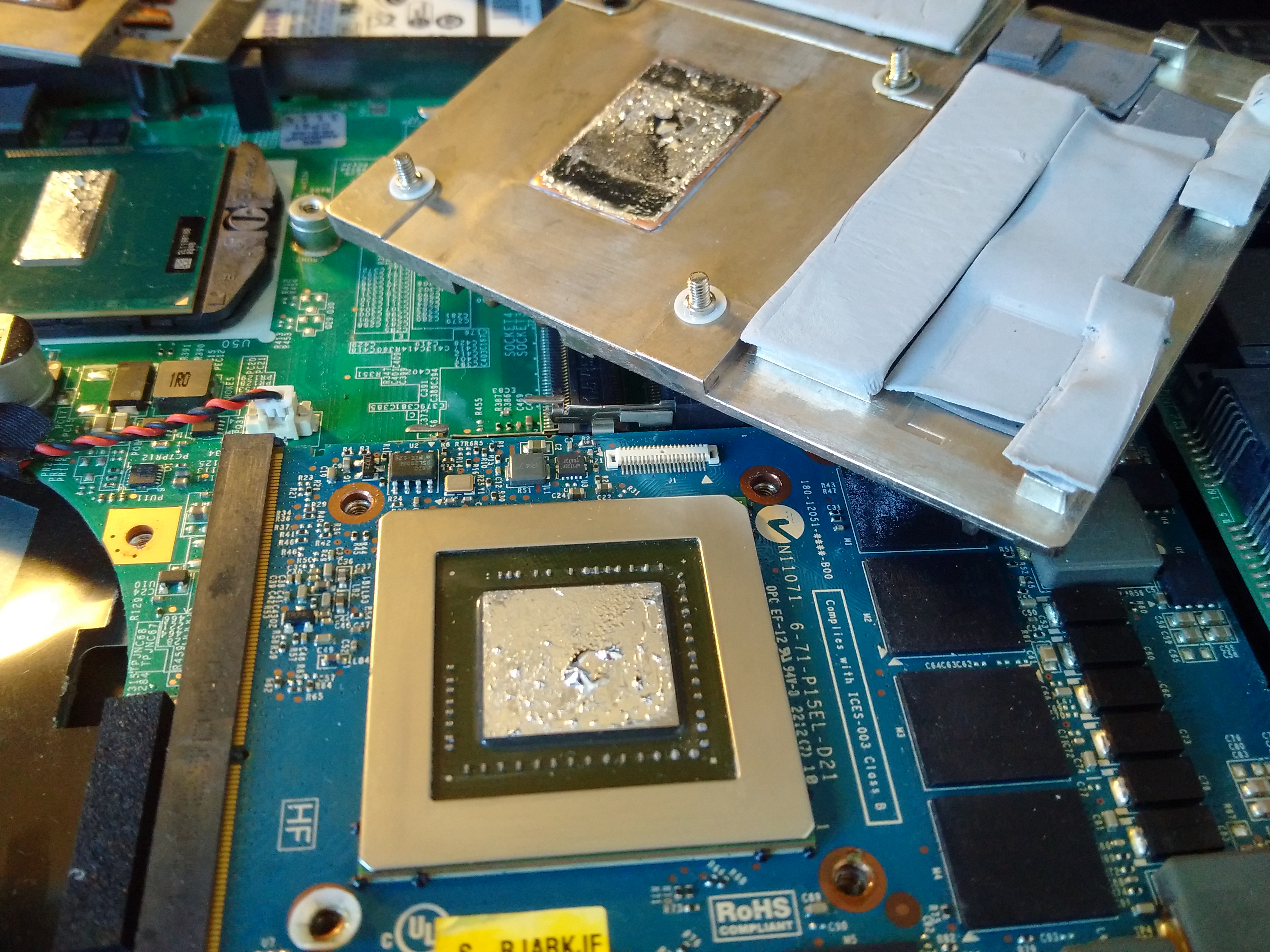

lets just get all of this disgusting gunk away and repaste those old dried out thermal pads

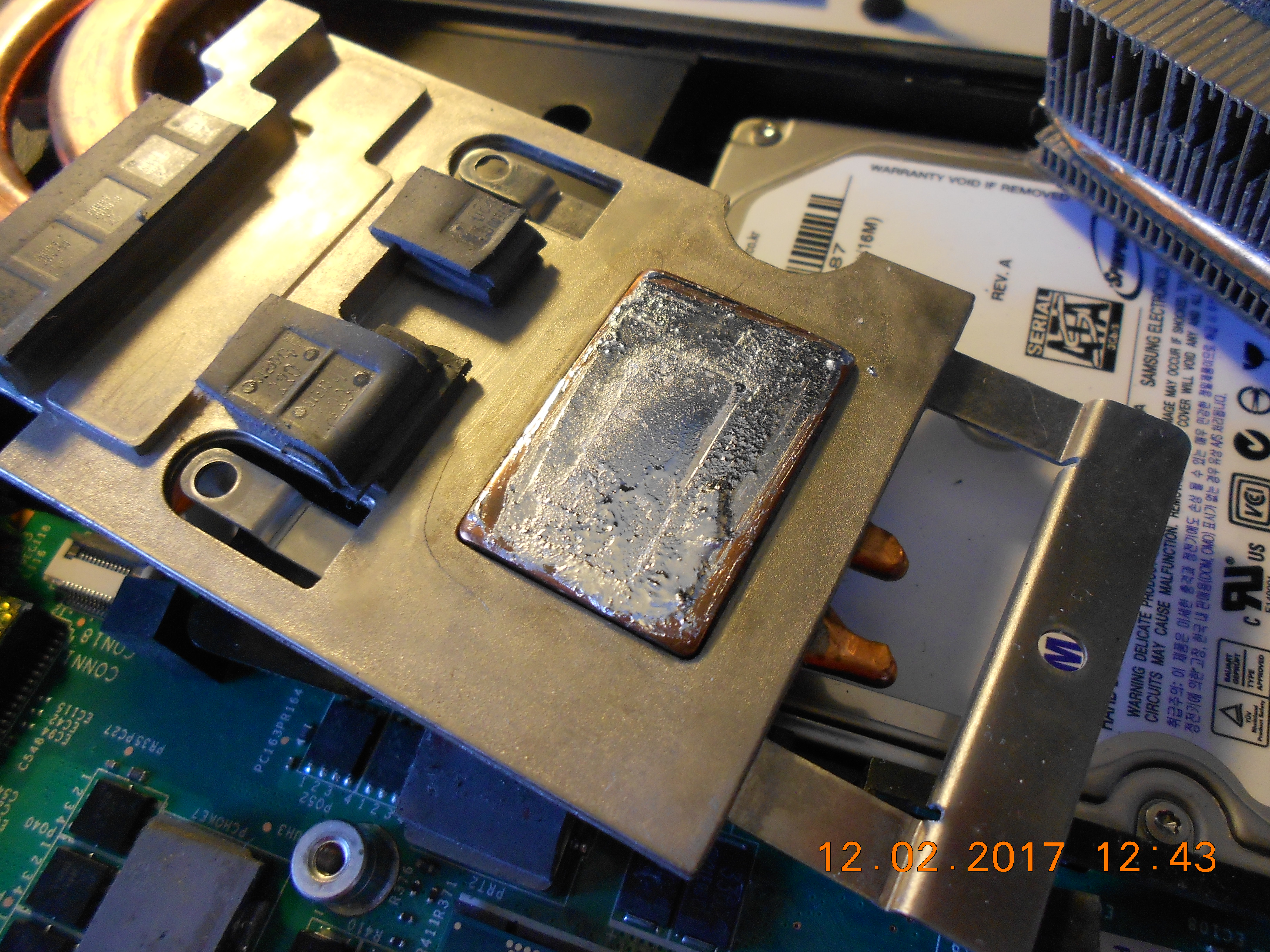

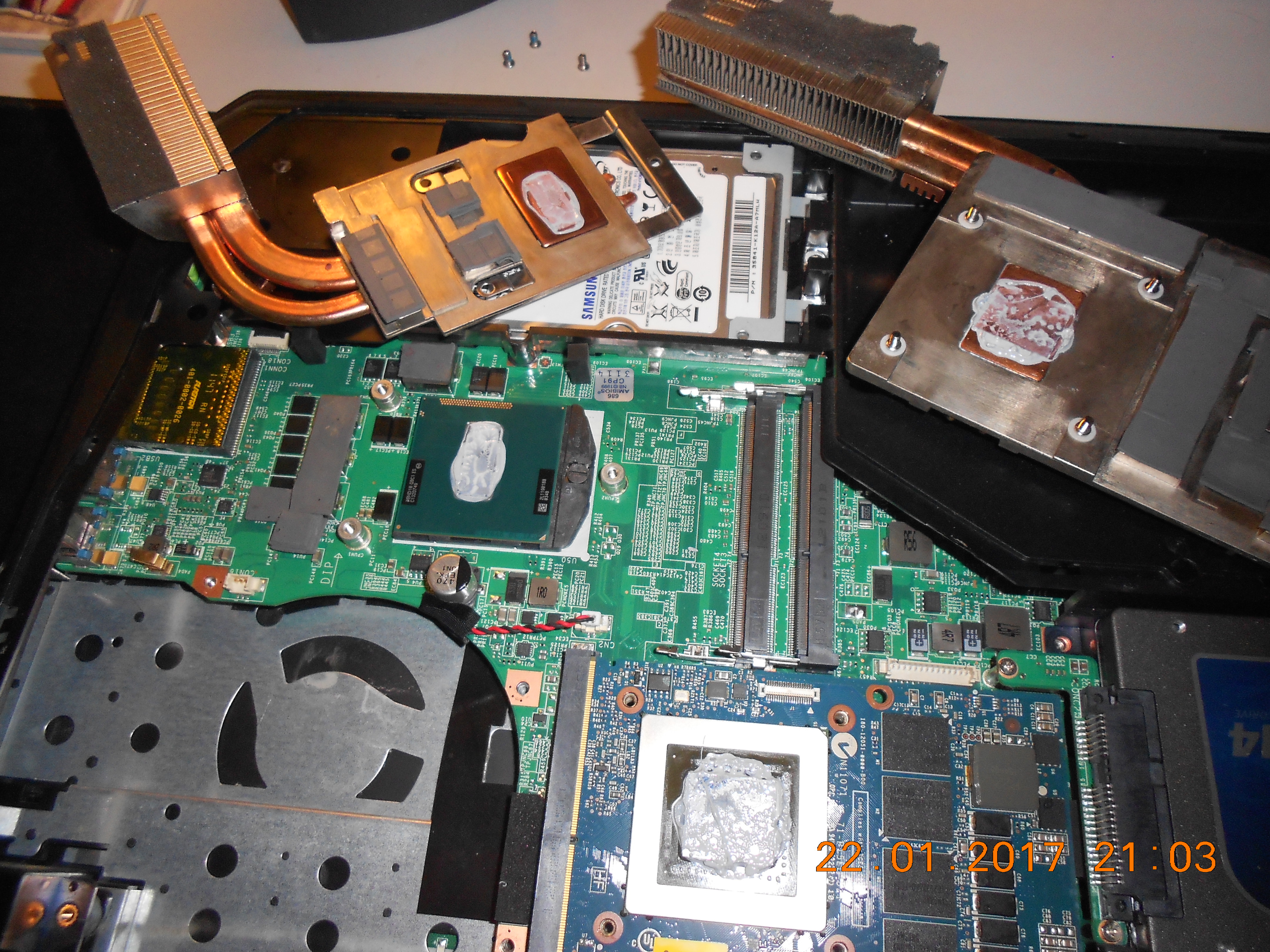

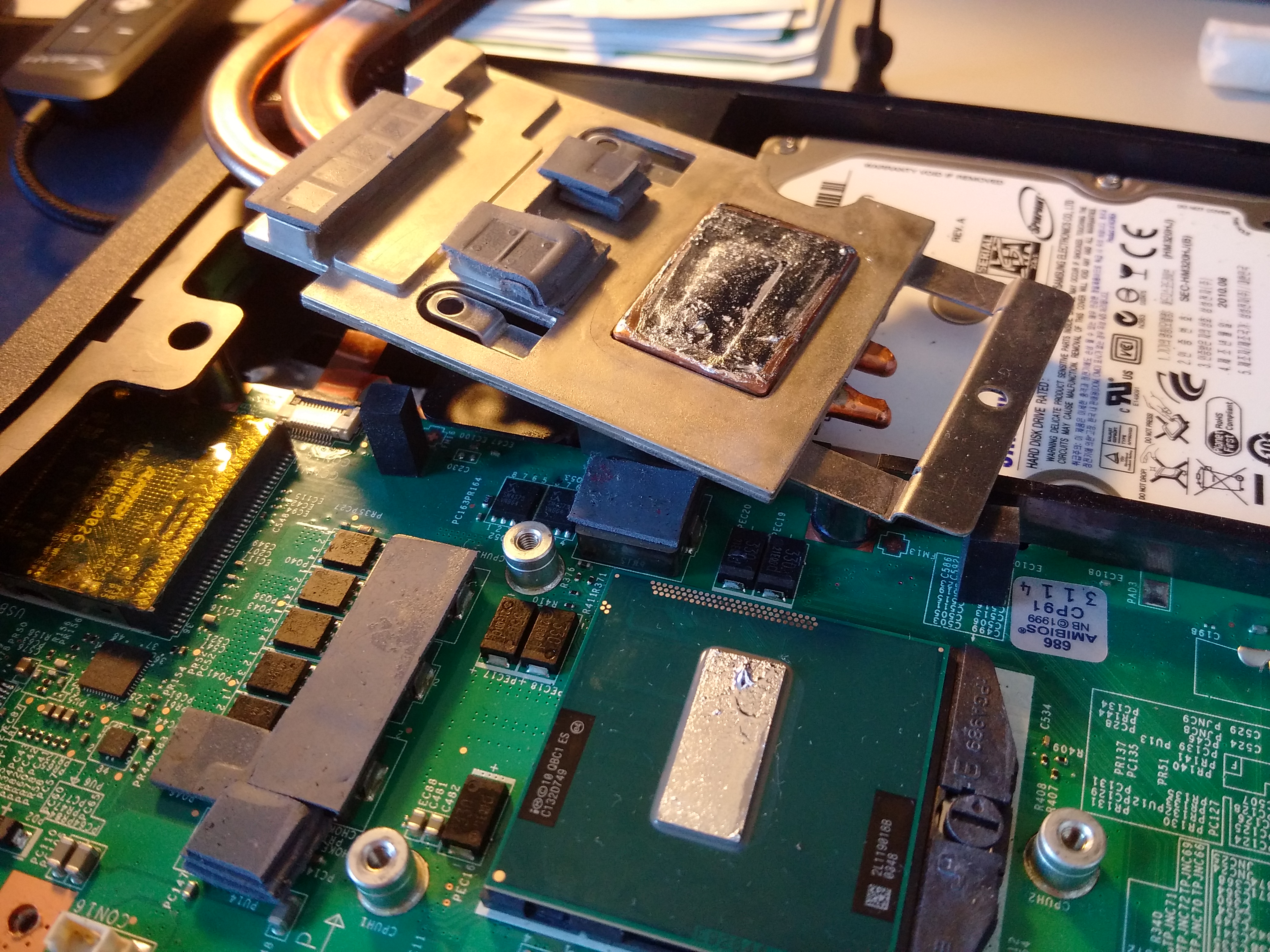

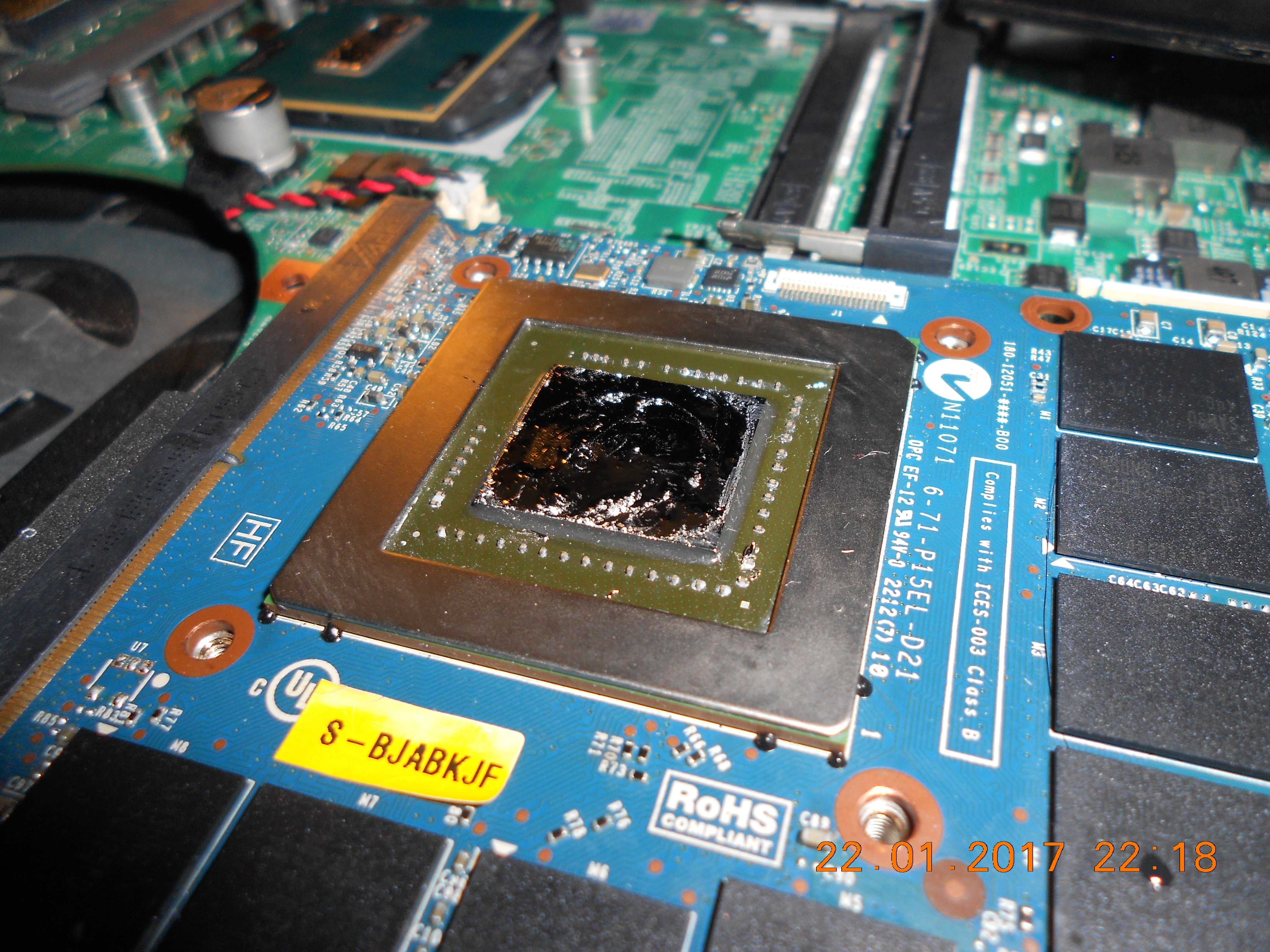

on to the liquid metal painting (yes I failed horribly, if you zoom in you can see the liquid metal outside the die FML, this was taken before I cleaned the GPU 3 times after no post)

on to the next one (CPU BABY)


being the idiot I was, and using too much liquid metal, I LITERALLY had enough to repaste my W860CU too (have not benched it at all, but the temps are 15-20 degrees lower, insane)

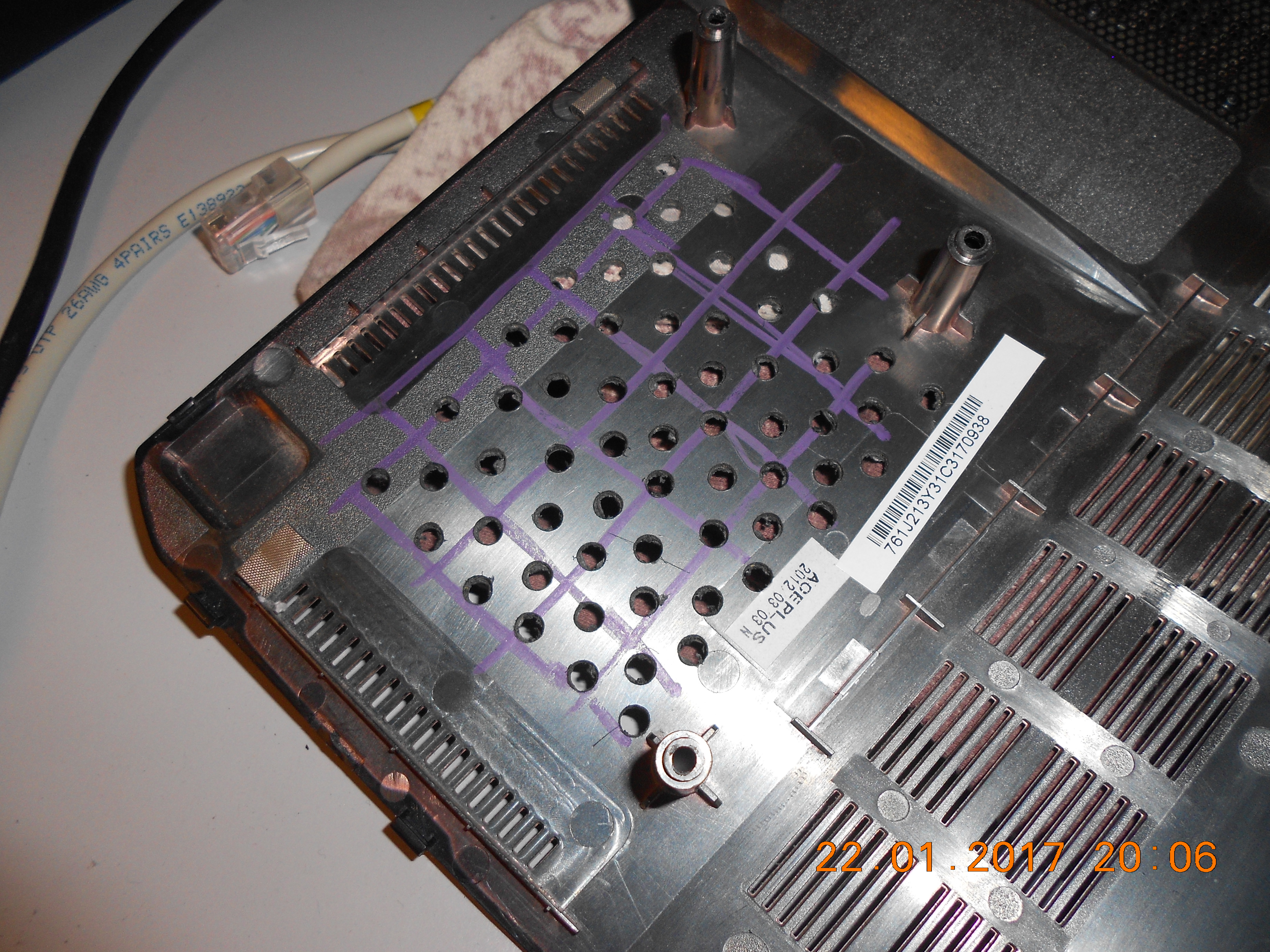

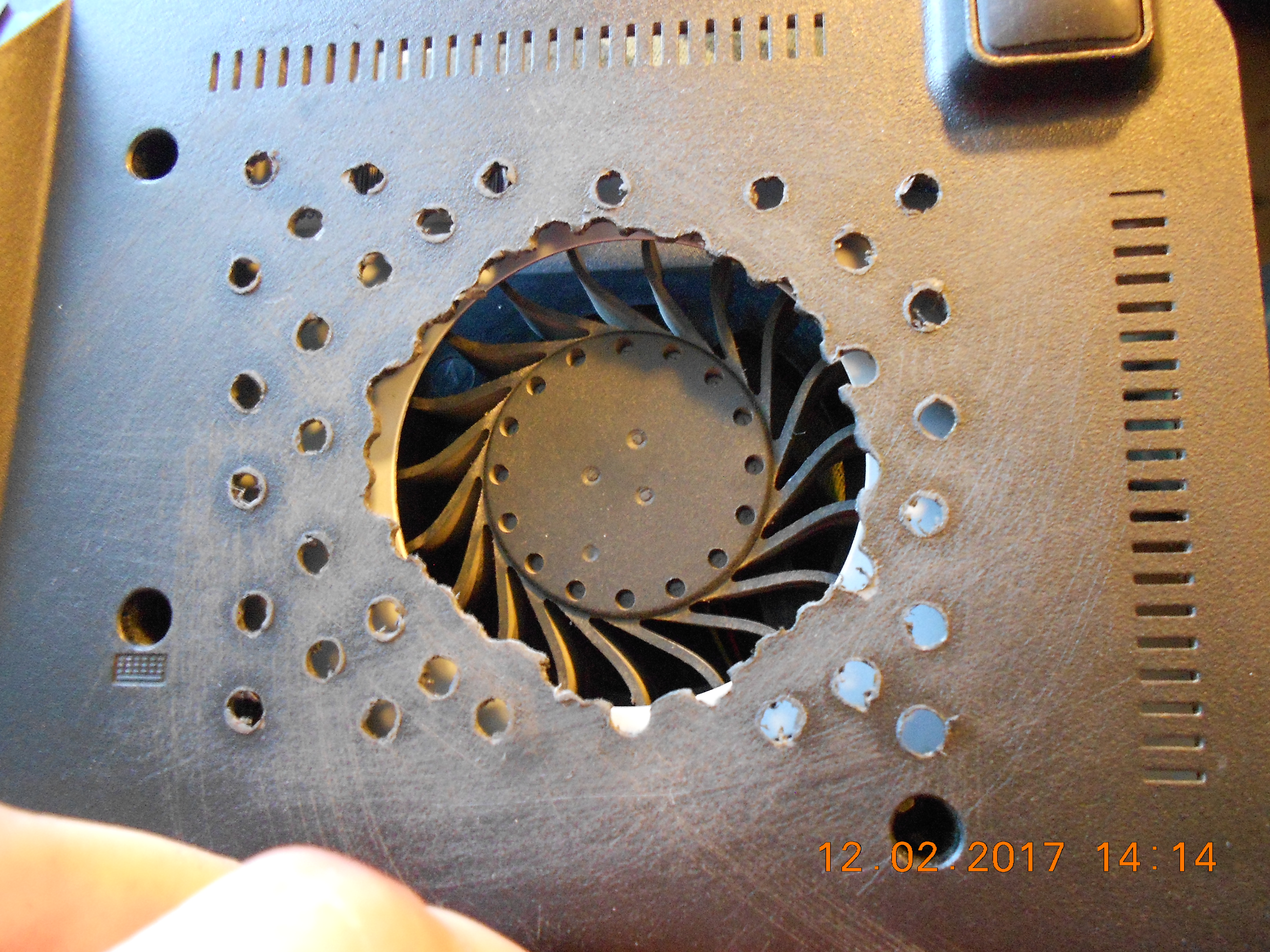

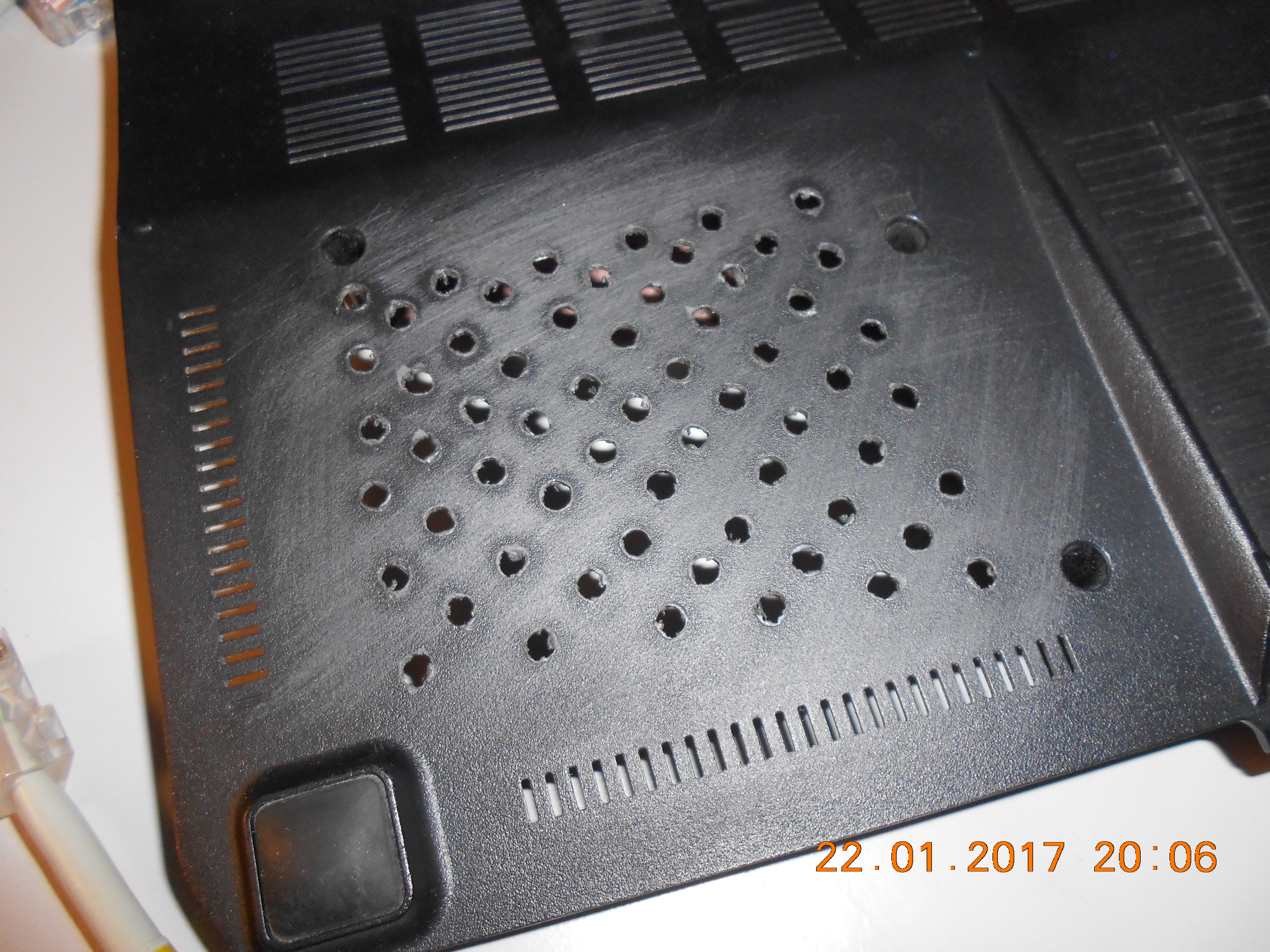

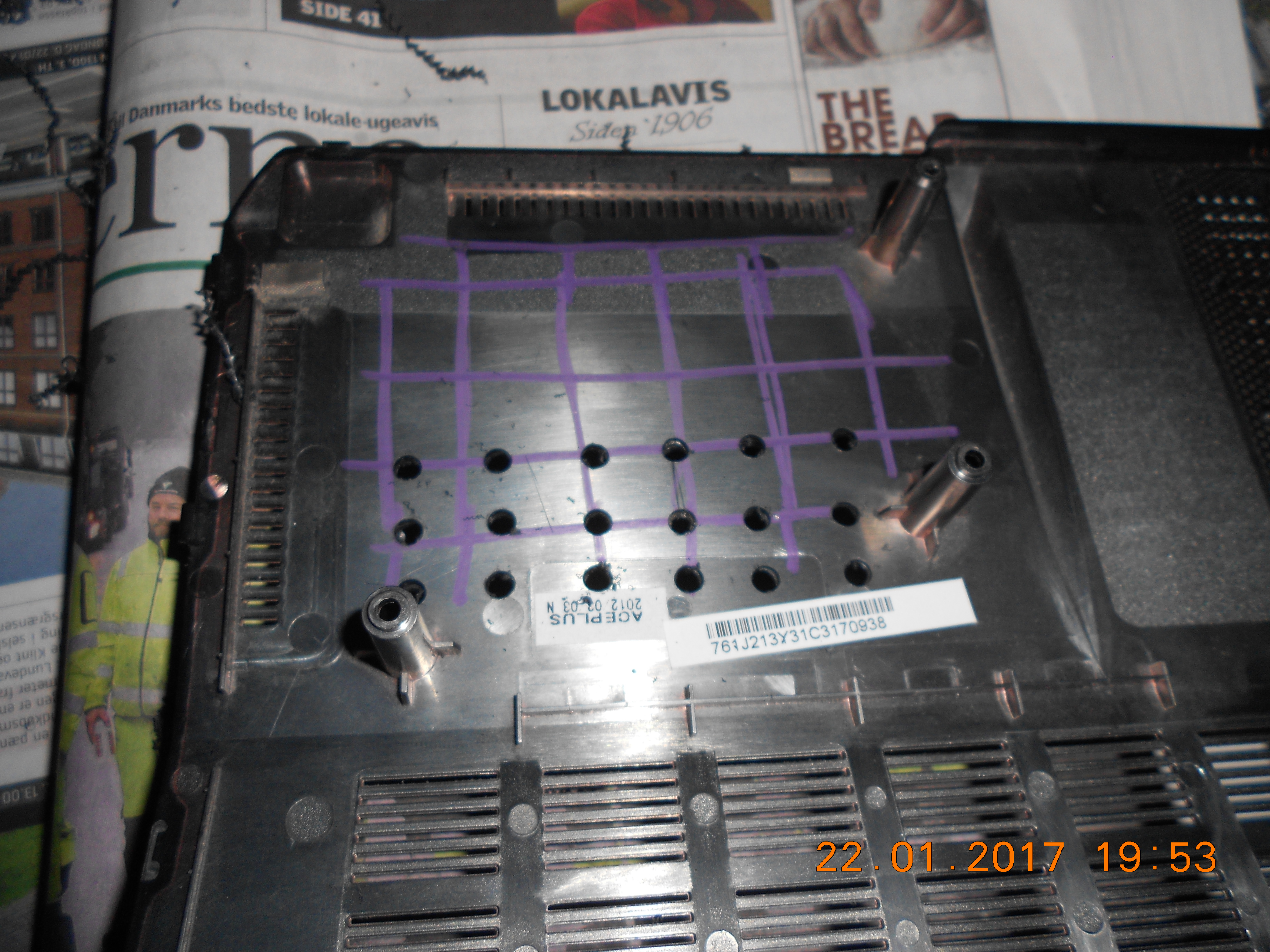

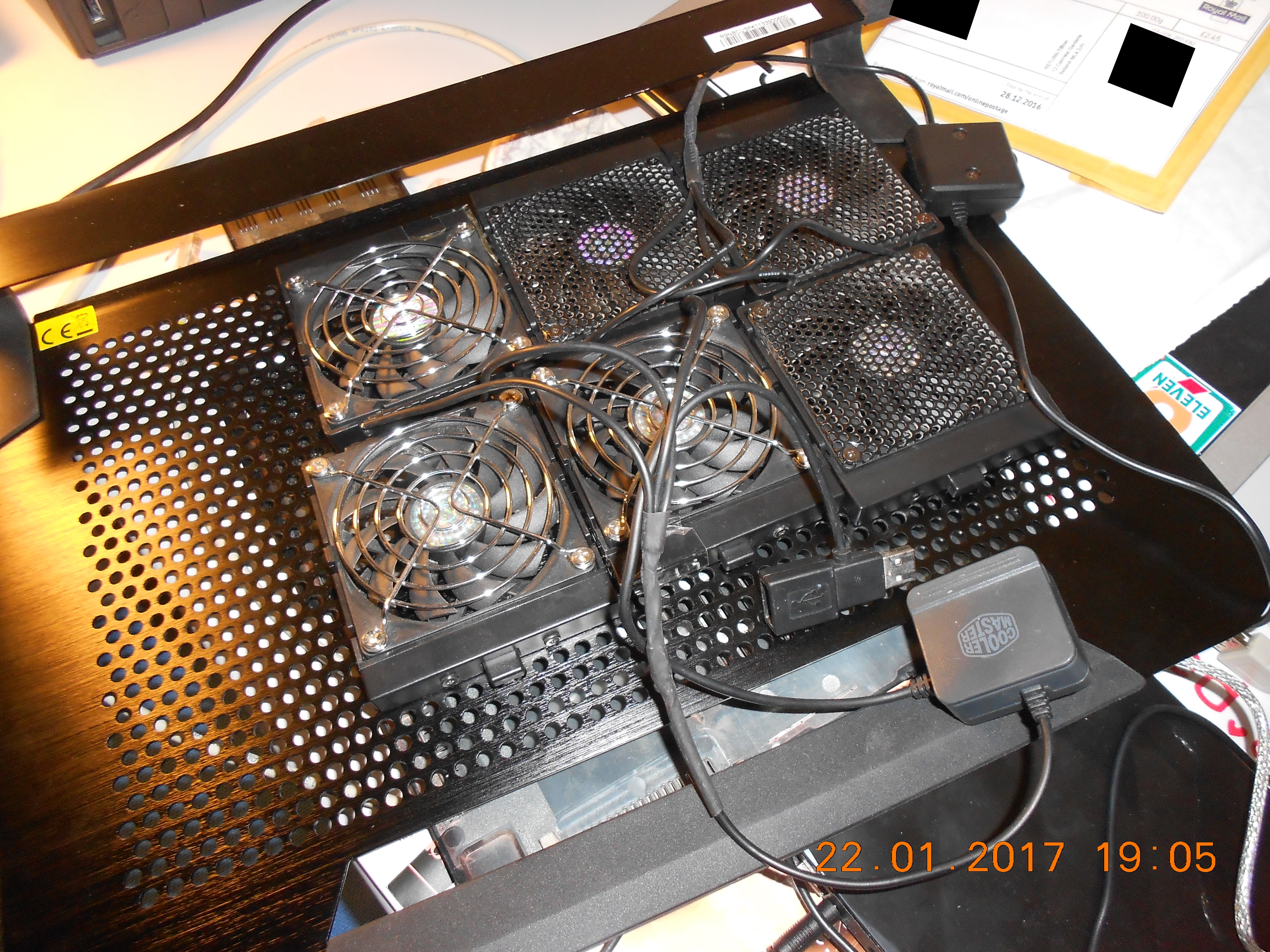

Spoiler: Bottom tray mod

5

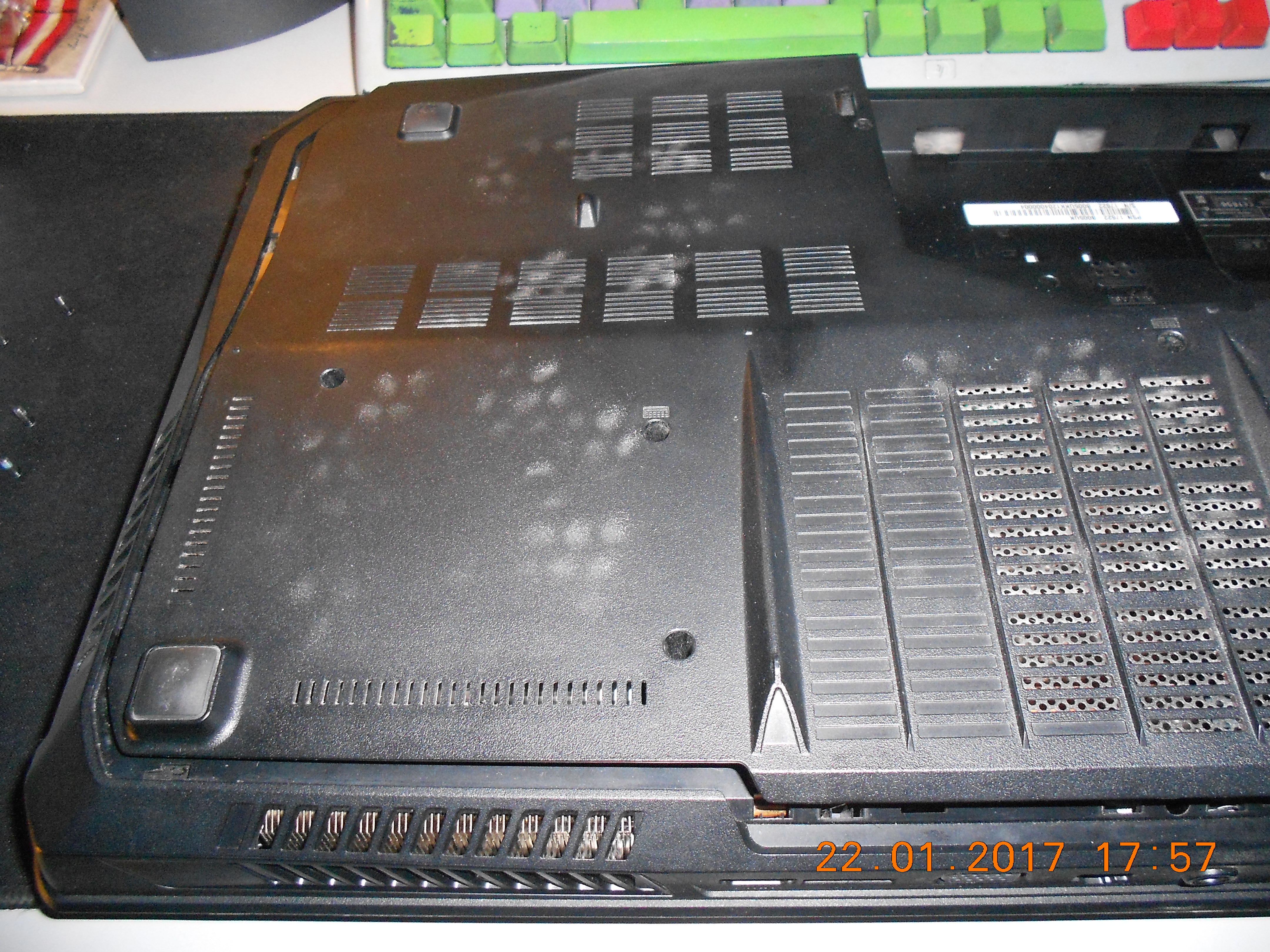

Before I touched it, you could clearly see where the air was pulled from and was cooled, the rest that is marked with dust is where the heat didn't acculuminate properly.

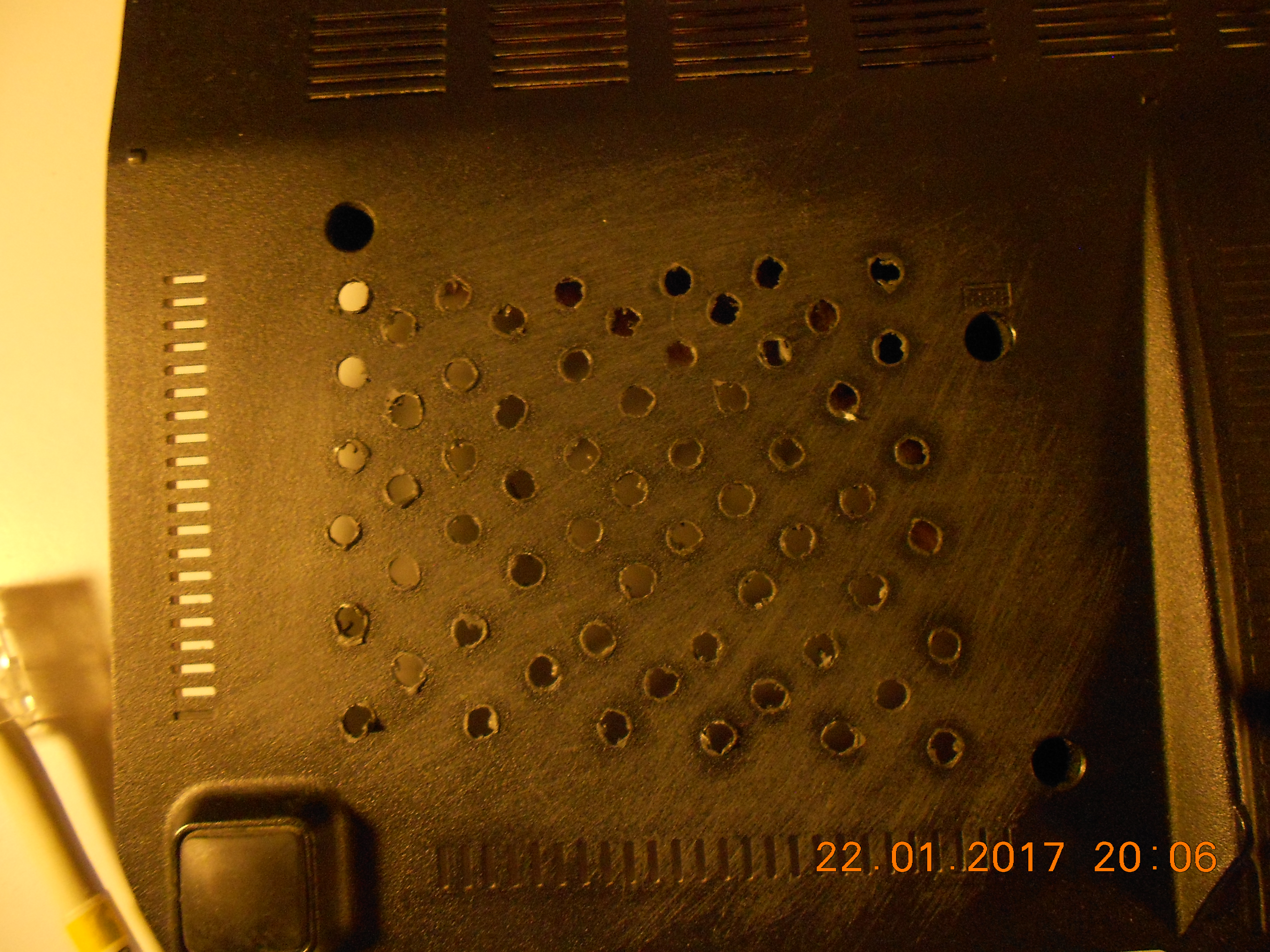

sanded it down a bit so it at least was soft and seamless

no flash, only artificial background light

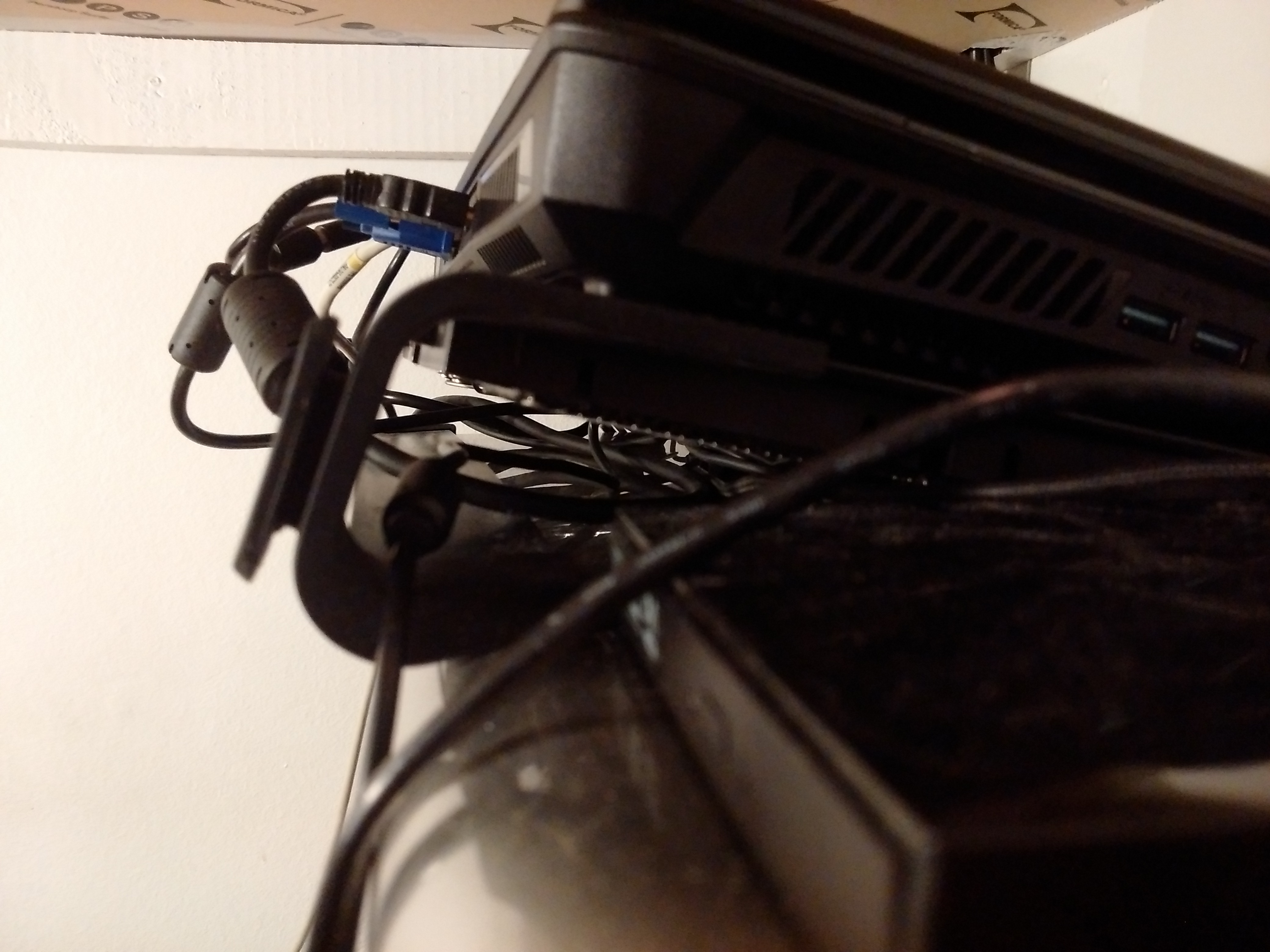

Spoiler: U3 cooler extra setup

6

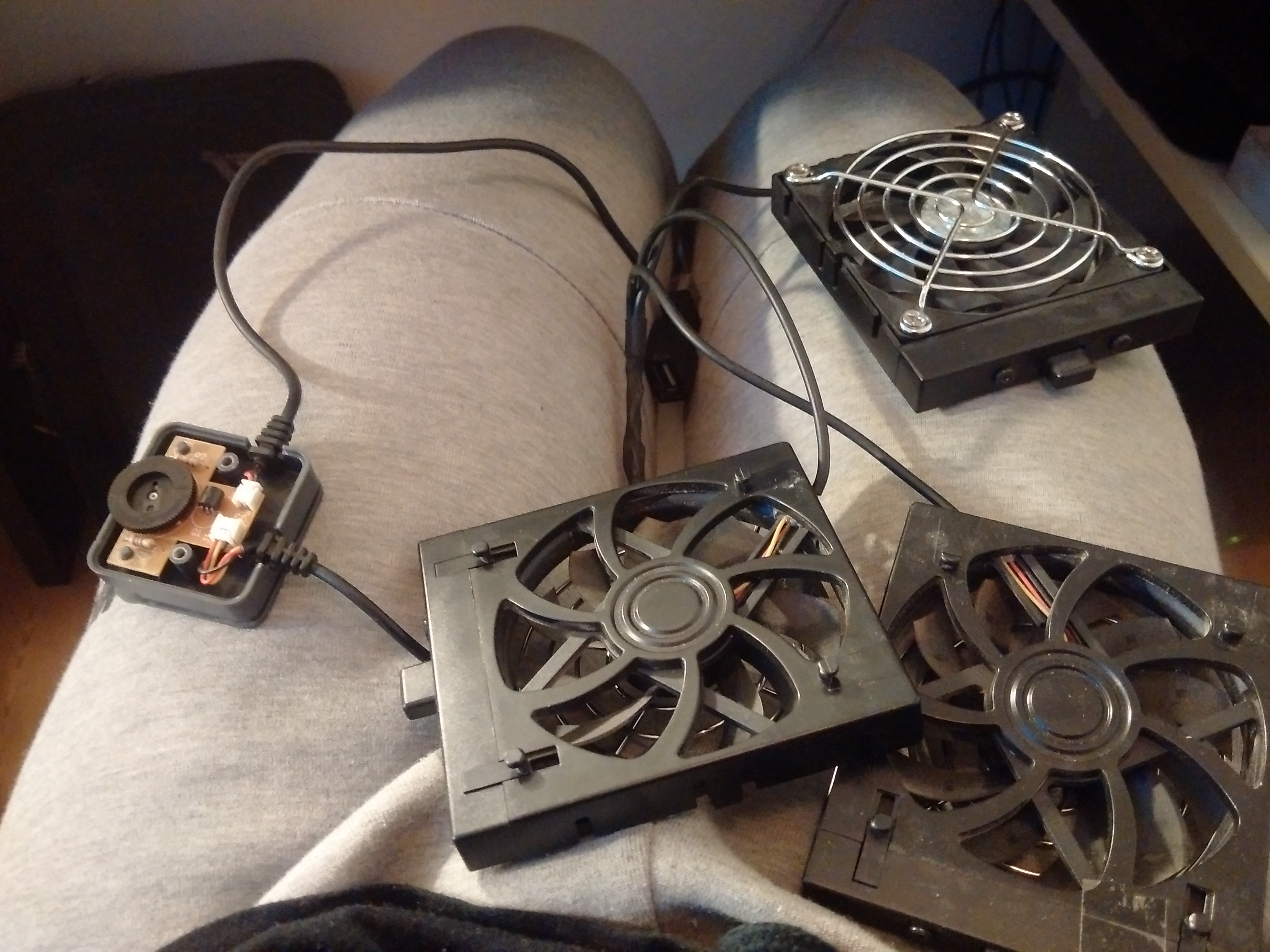

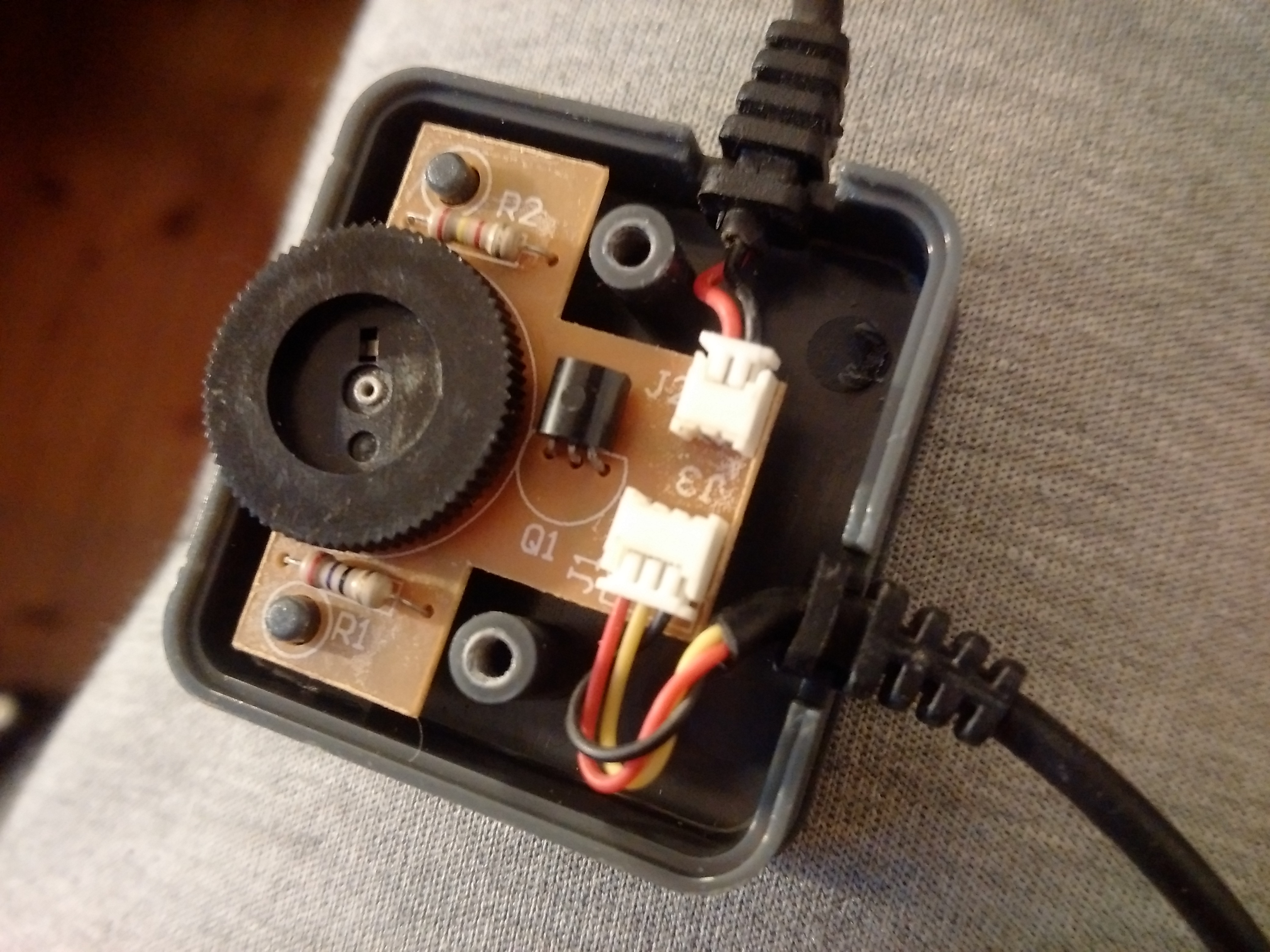

So lucky me, I found some cheap and apparently broken older U2 or U3 coolers - sold for 5€ on the Danish craigslist (DBA.dk) -so I went to pick them up and hope for the best.
As a matter of fact, they were not broken, but the connection was loose, nothing a bit of hot glue didn't solve.



They work! Eureka!!


Final result

Spoiler: The Liquid Metal aftermath

7

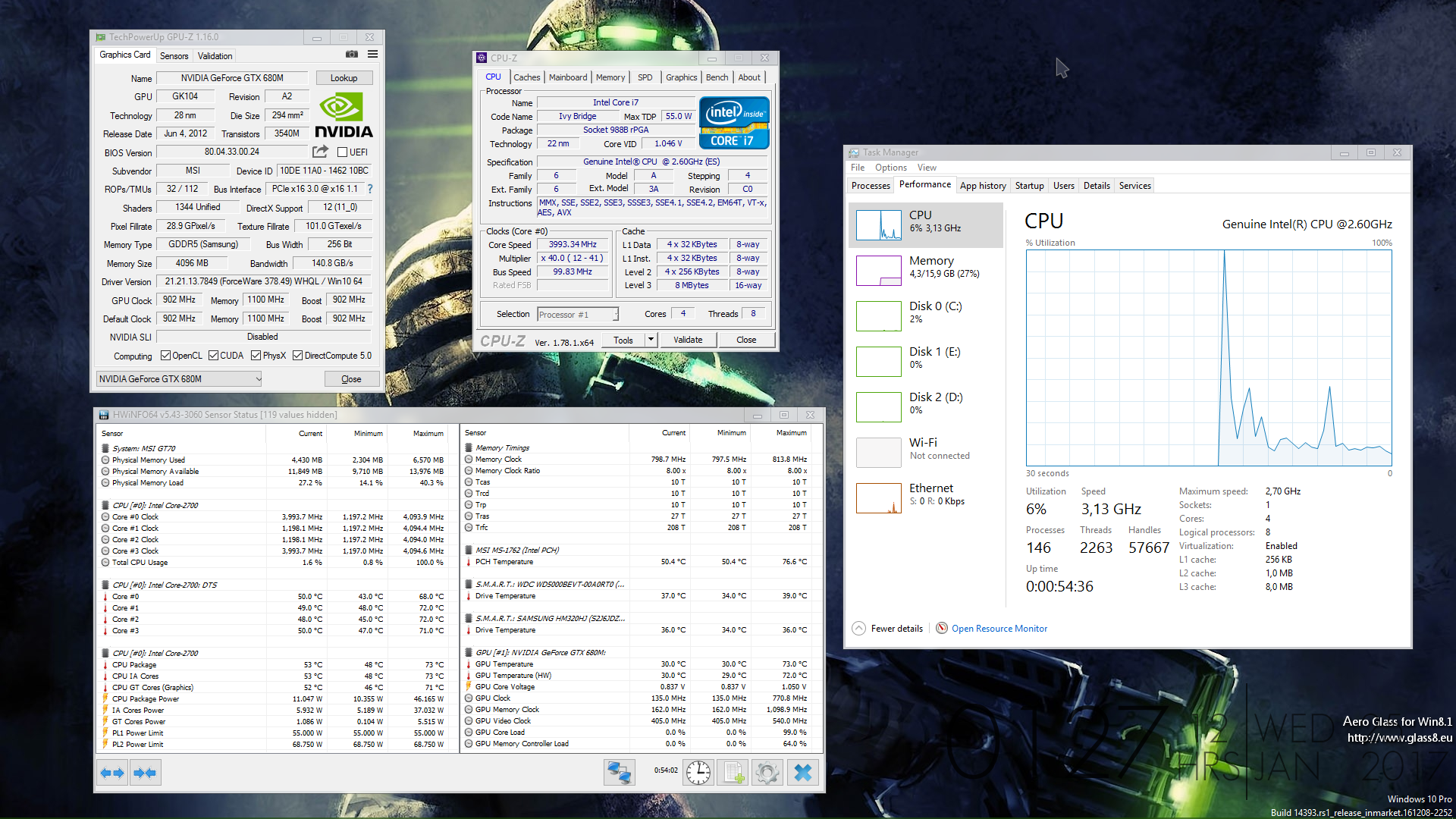

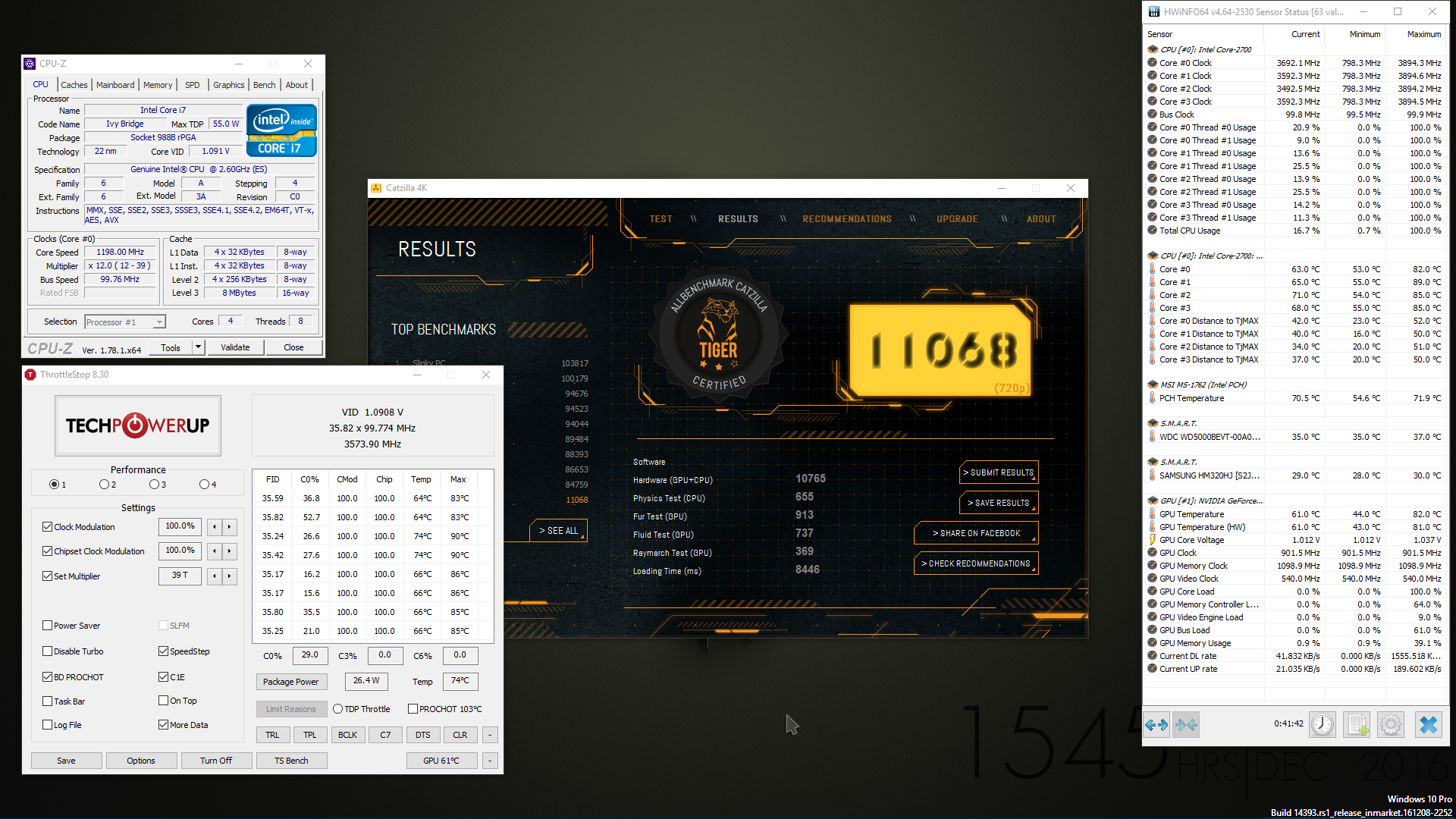

So I went straight ahead and started benching after the repaste. (this was with the lower GPU vBIOS tho)

Spoiler: Current setup

8

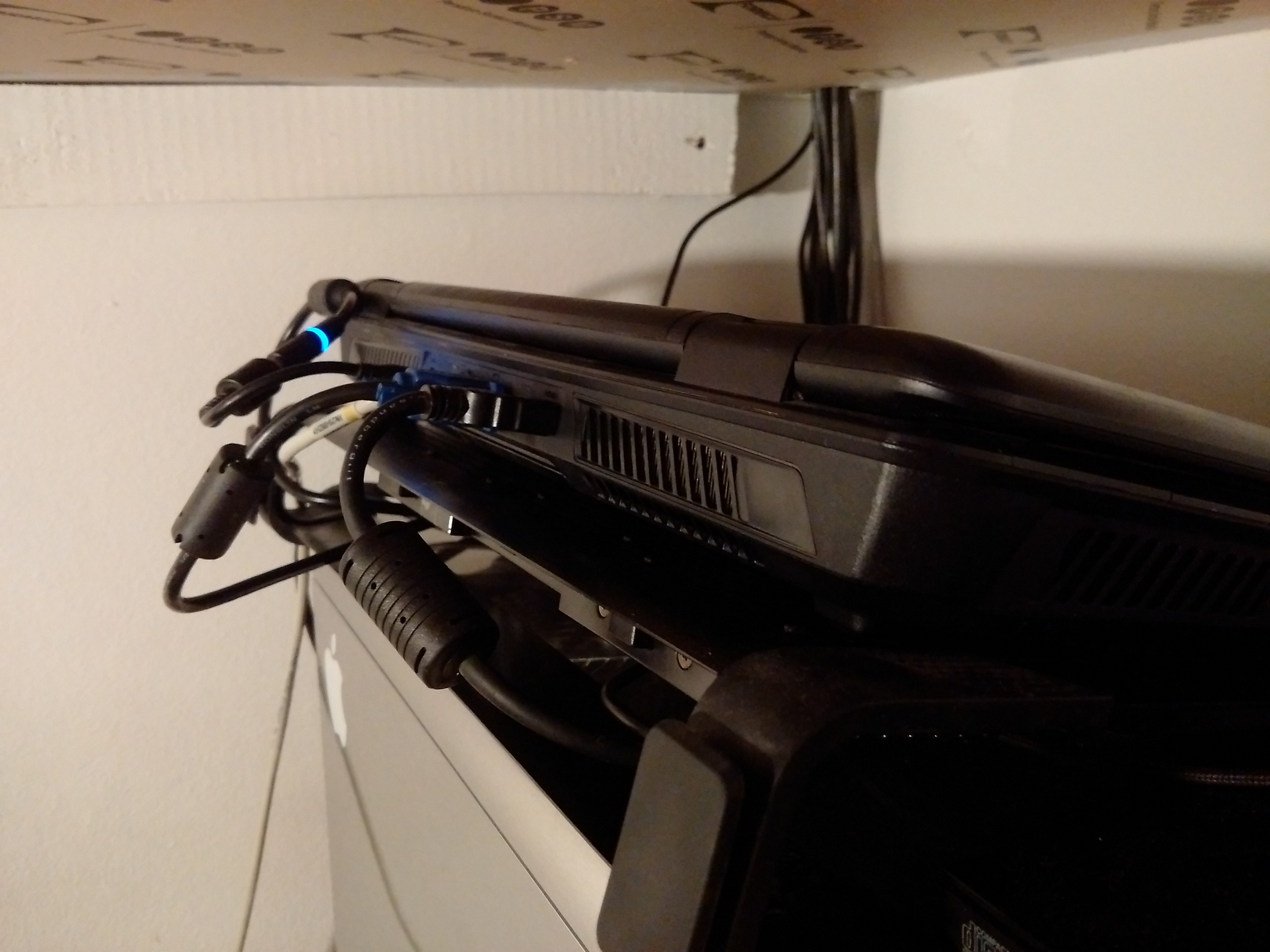

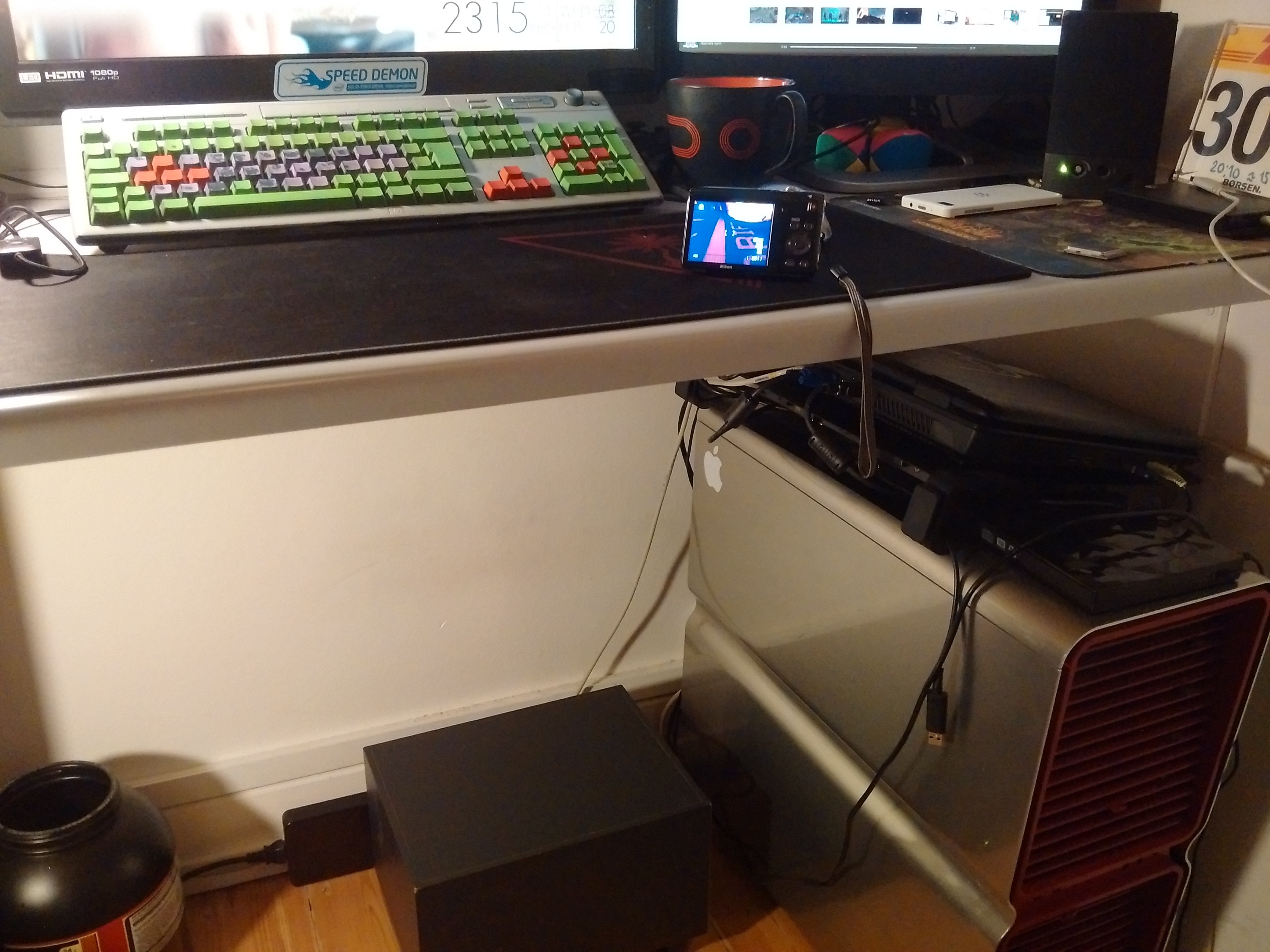

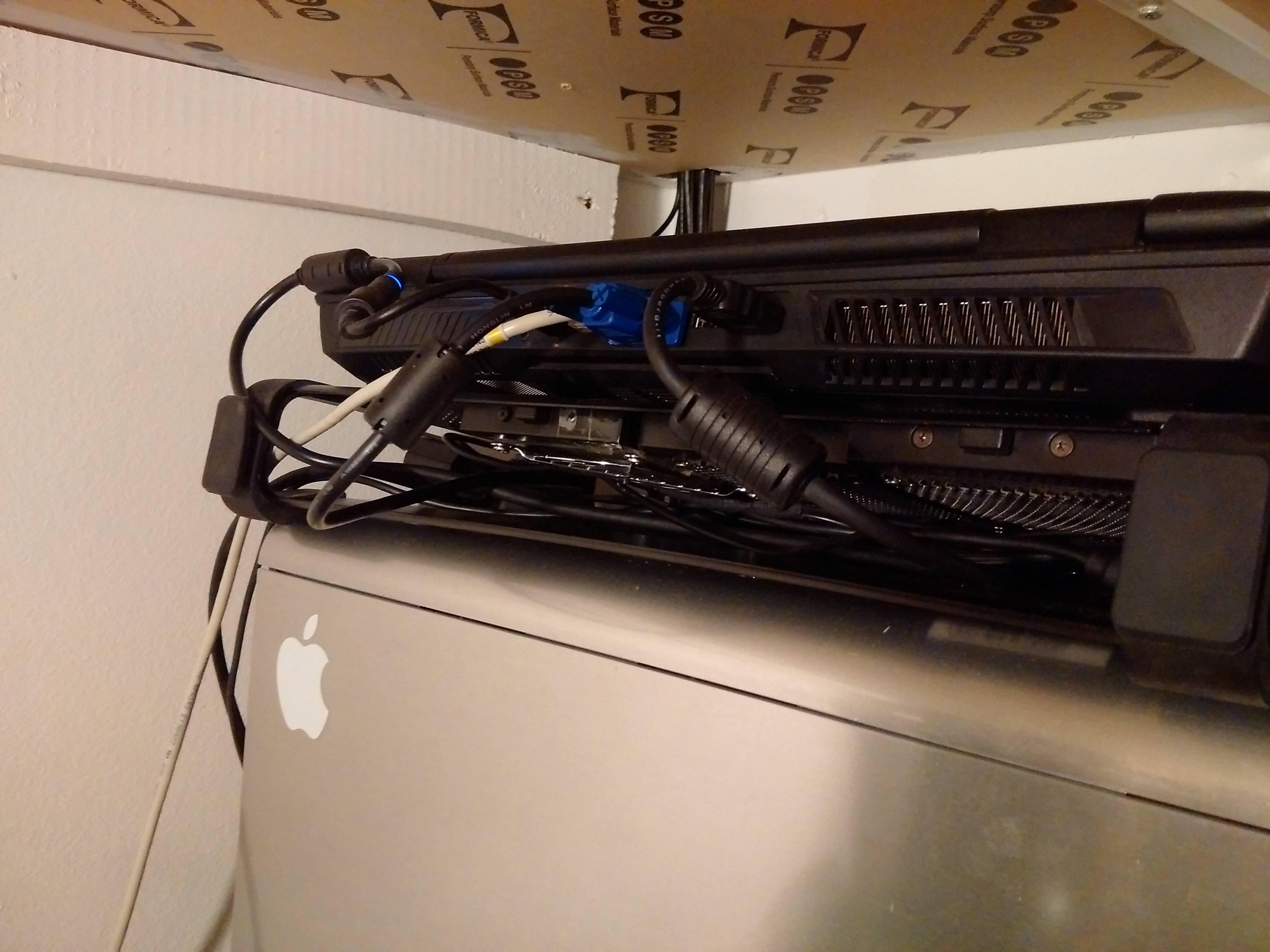

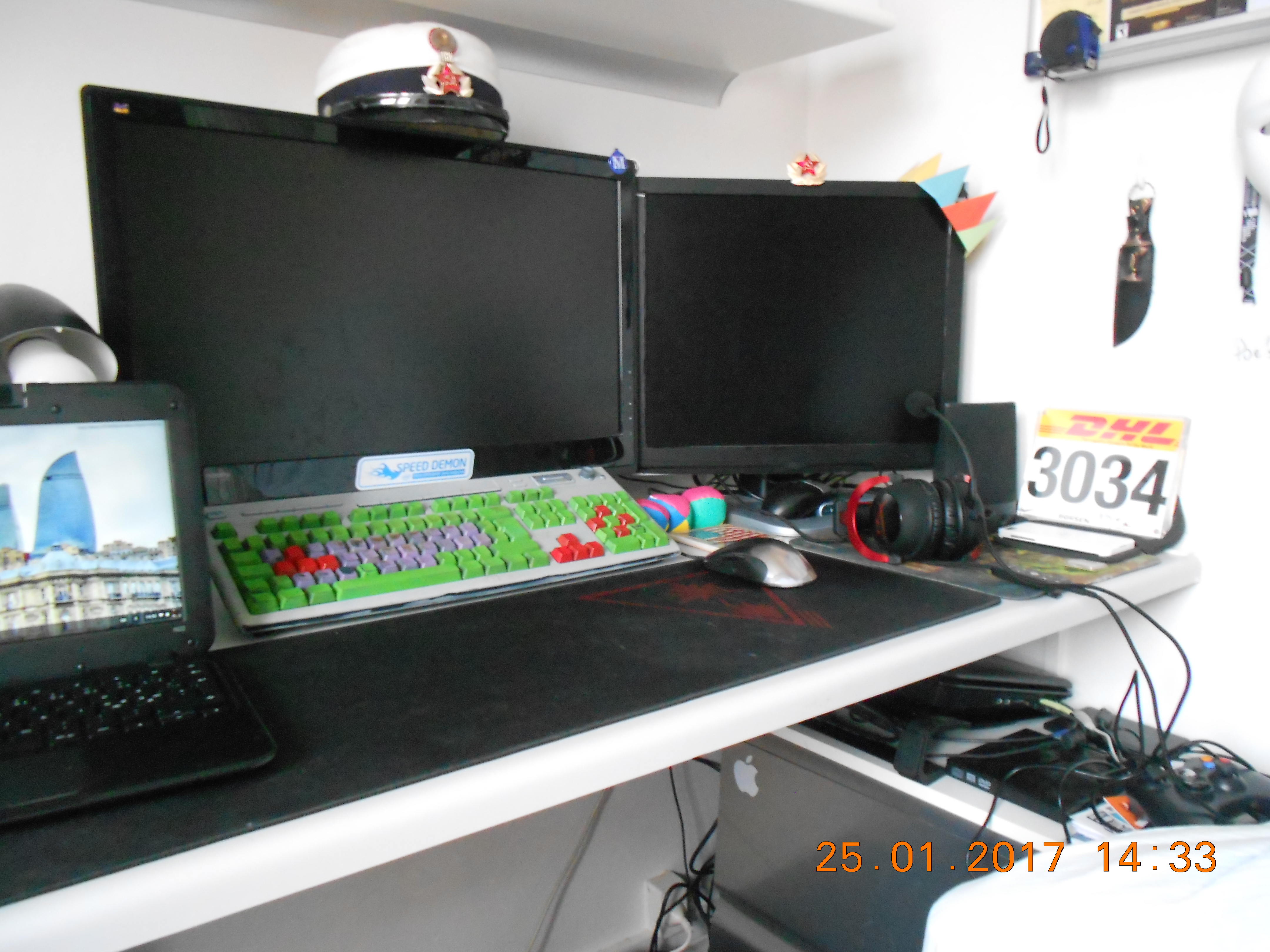

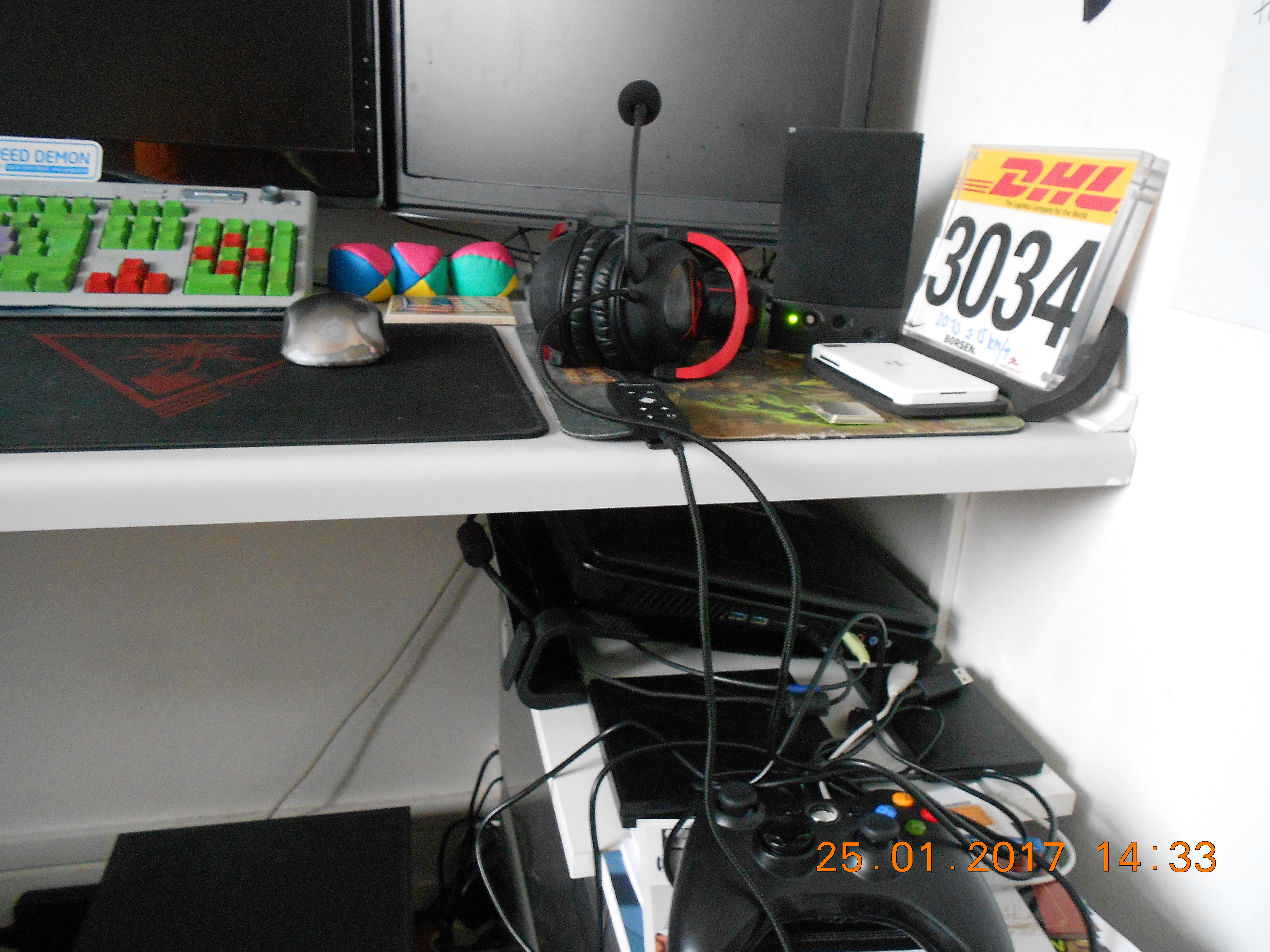

So as seen earlier in the previous setup, I adjusted and remove the wooden block that had the perfect length for the U3 support.. what I did is now I just placed the U3 on the older XPS desktop top aluminum case. It spreads heat way better and helps cool the laptop even more! The wooden shelf/block got heated and didn't dissapate any heat at all.
The W860CU works (will do some benches ASAP for it)

and on to my baby

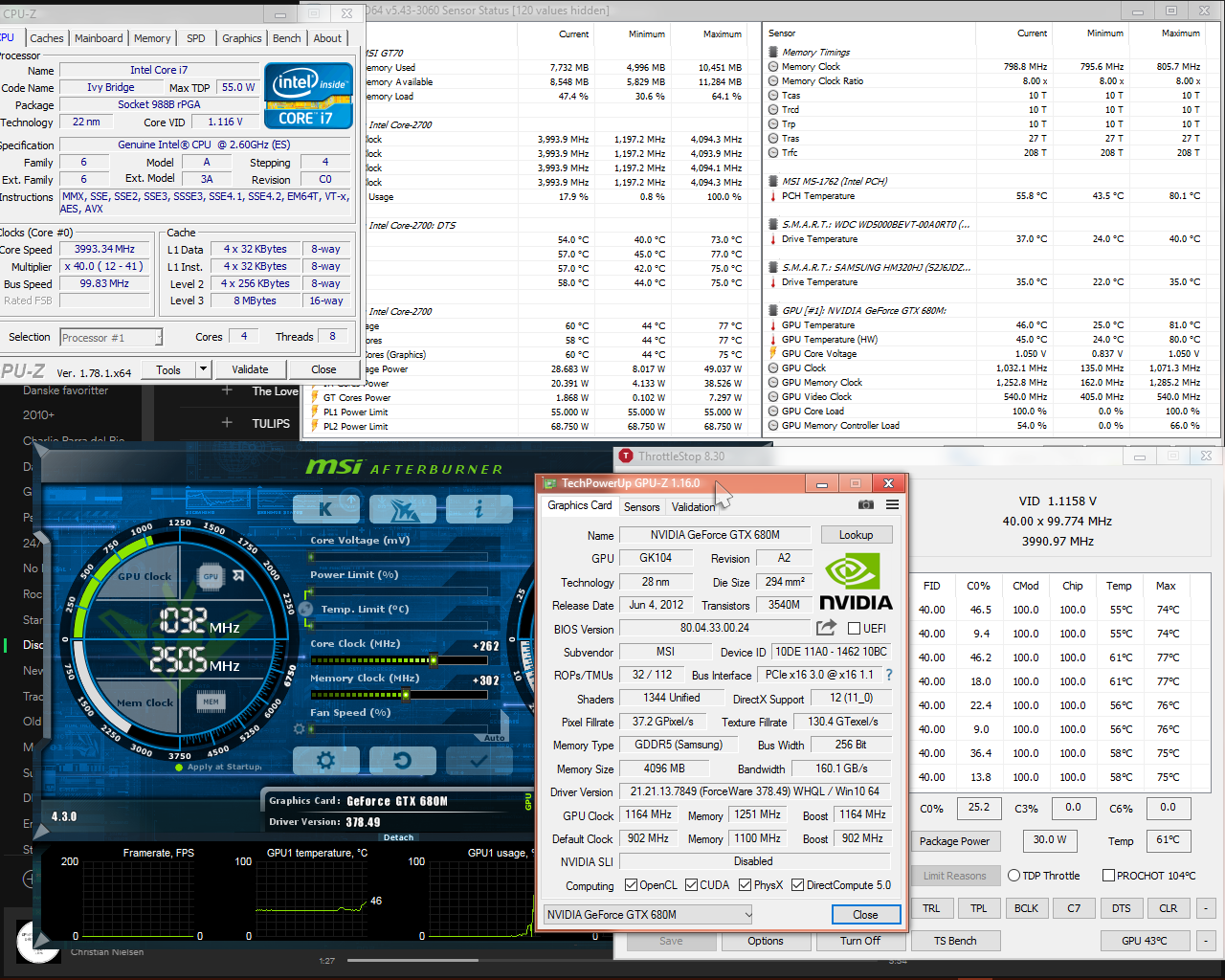

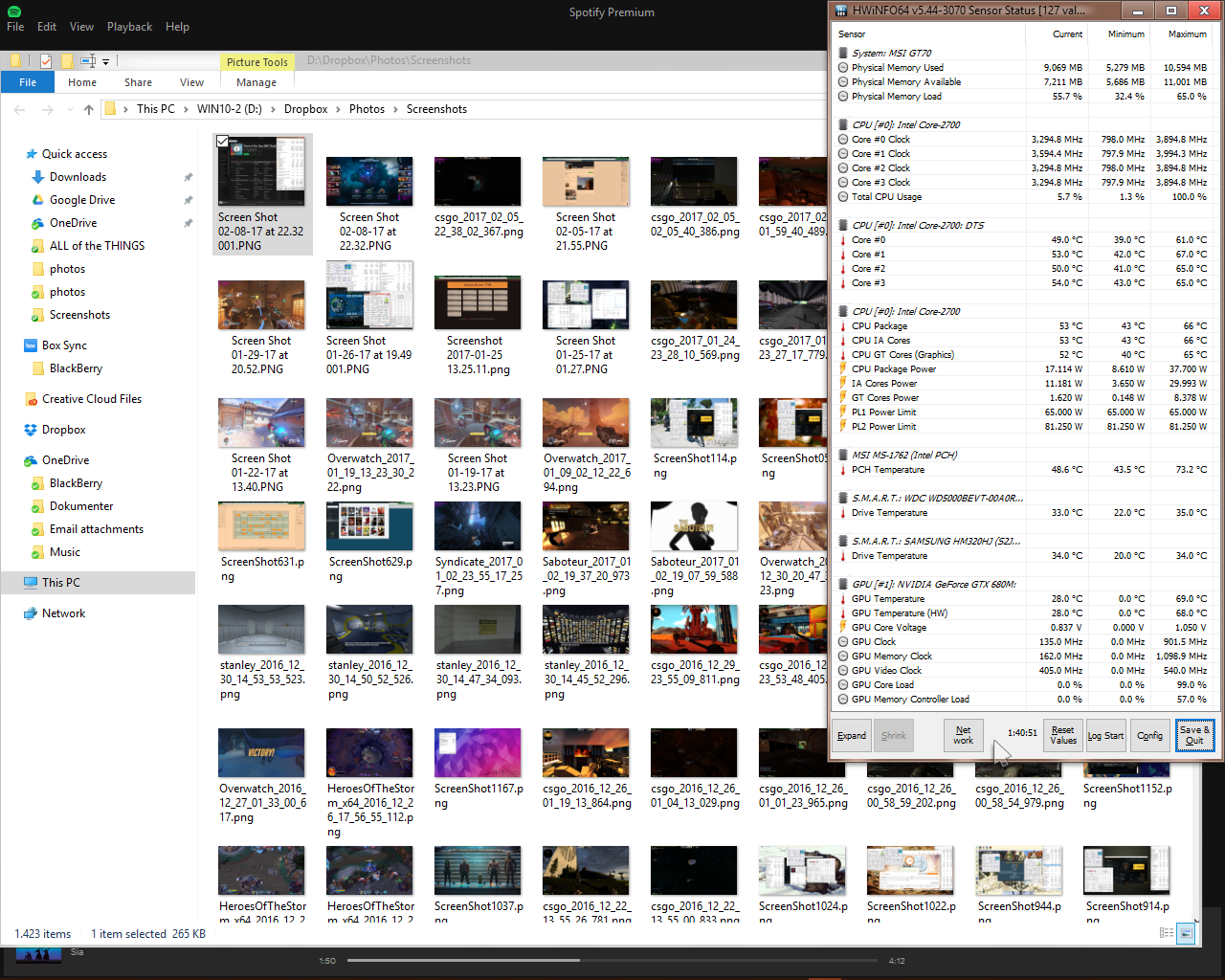

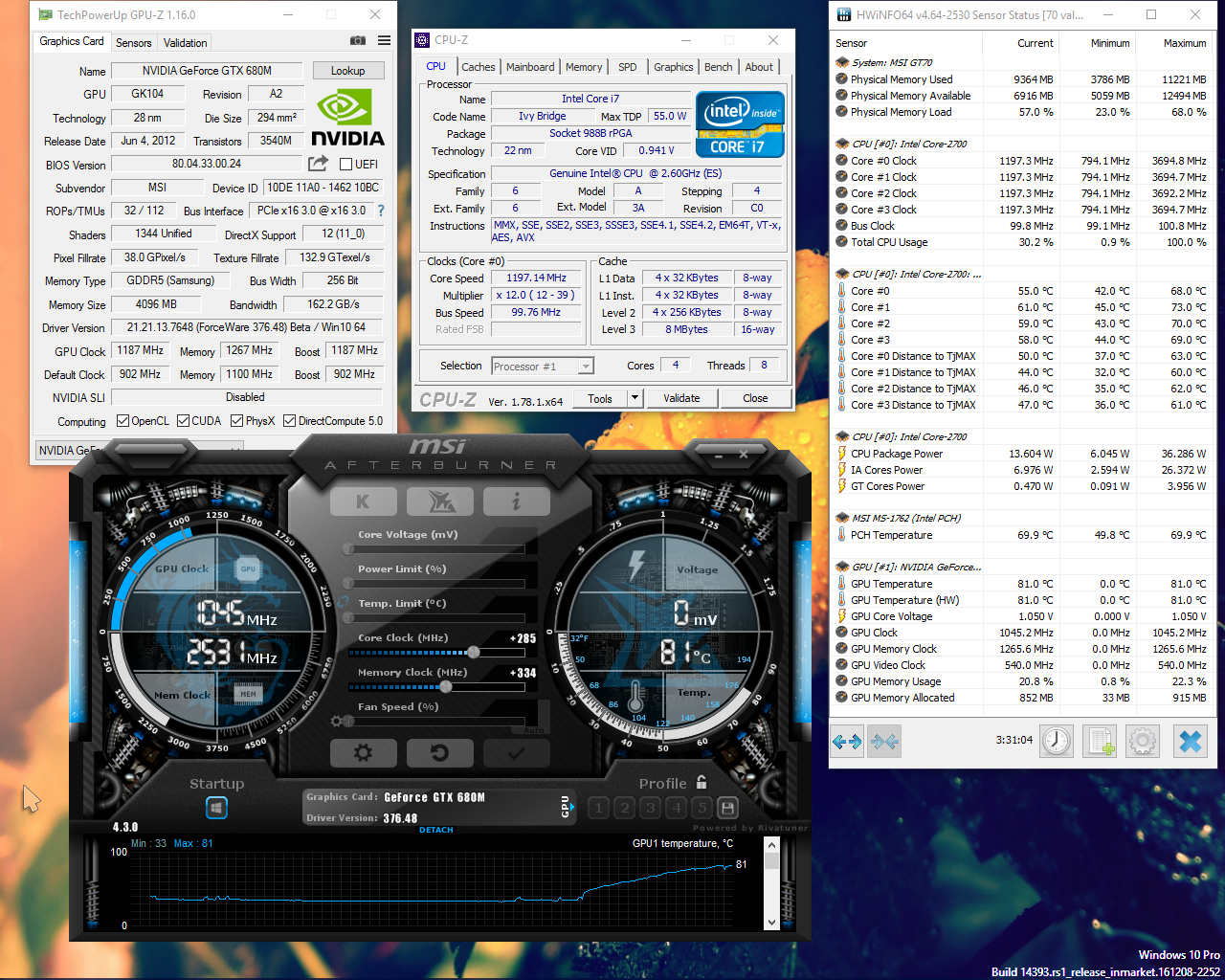

Spoiler: Temps when gaming

9

These are my final temps as of now, I am not sure if the liquid metal maybe spread out now or leaked somewhere........ but the temps fell even lower and this is my current temps (notice I did underclock my CPU a little bit, as I barerly benefitted of the higher clocks in the games I play anyways)

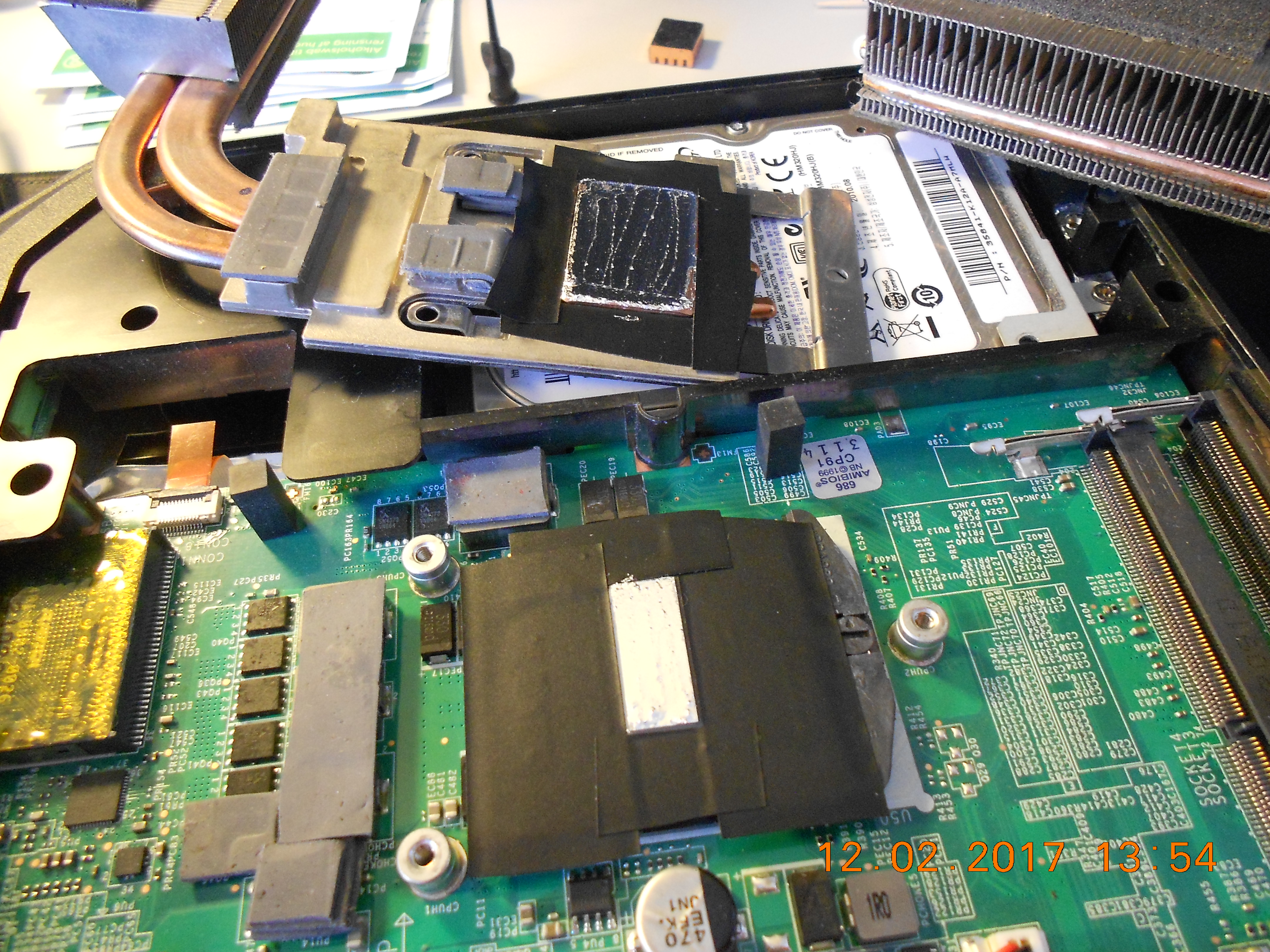

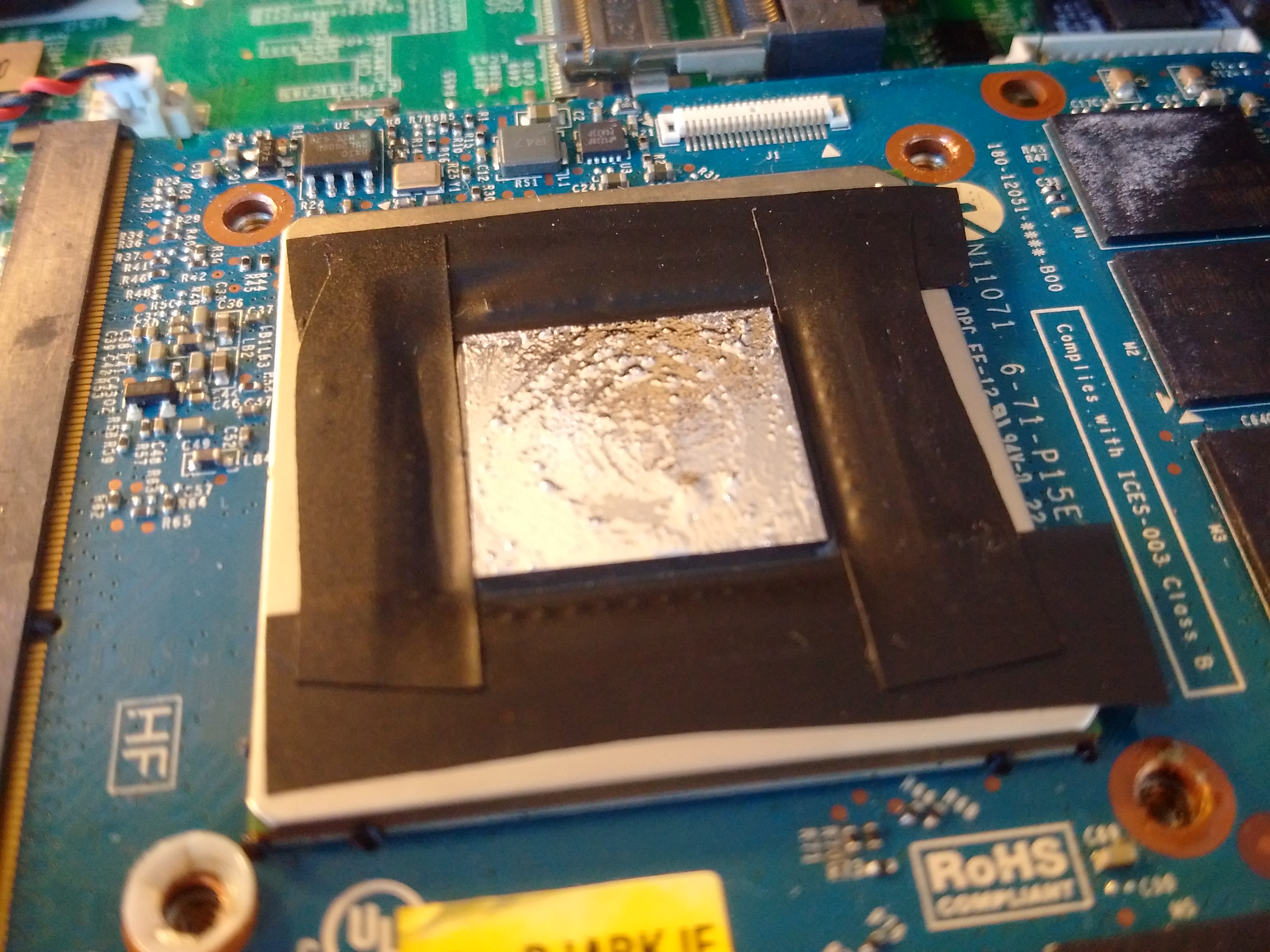

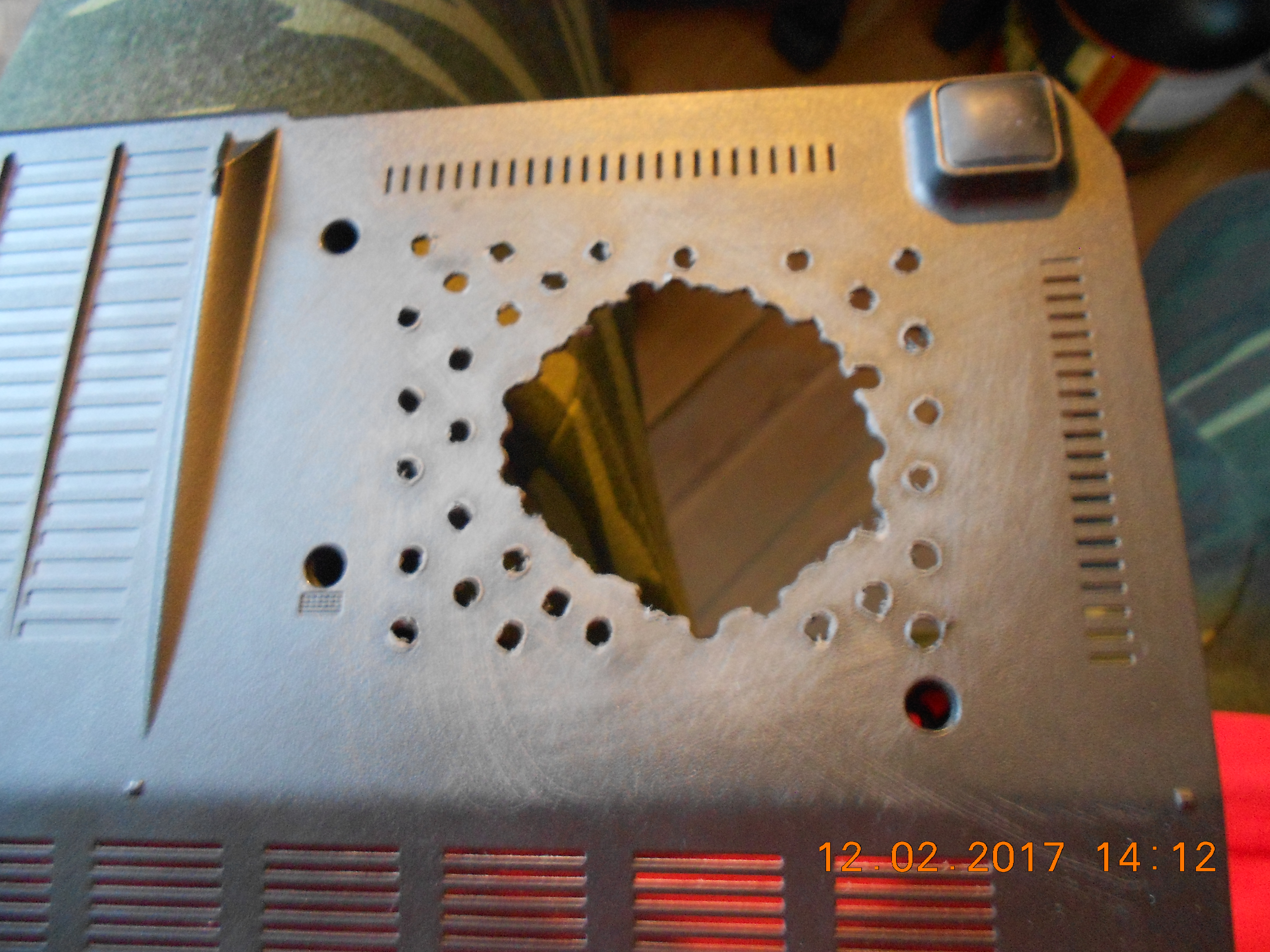

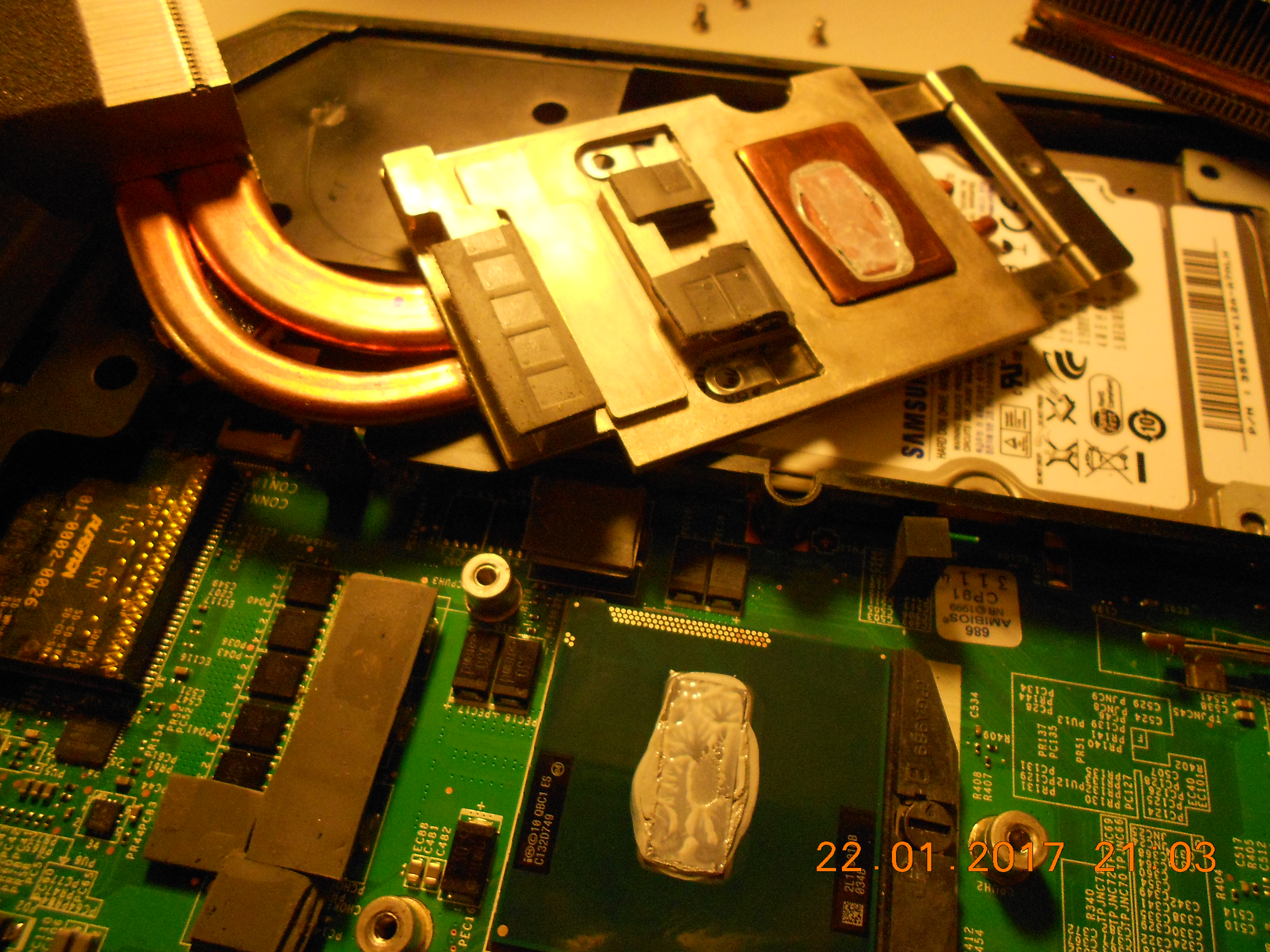

Spoiler: Before and after 2nd Liquid Metal repaste +taped around CPU/GPU die and isolated aluminium heatsink parts ++ ALSO MODDED THE BAY TRAY COMPLETE ugly AF atm

I mean it does the job... so I can't complain


Now for the opening ceremony

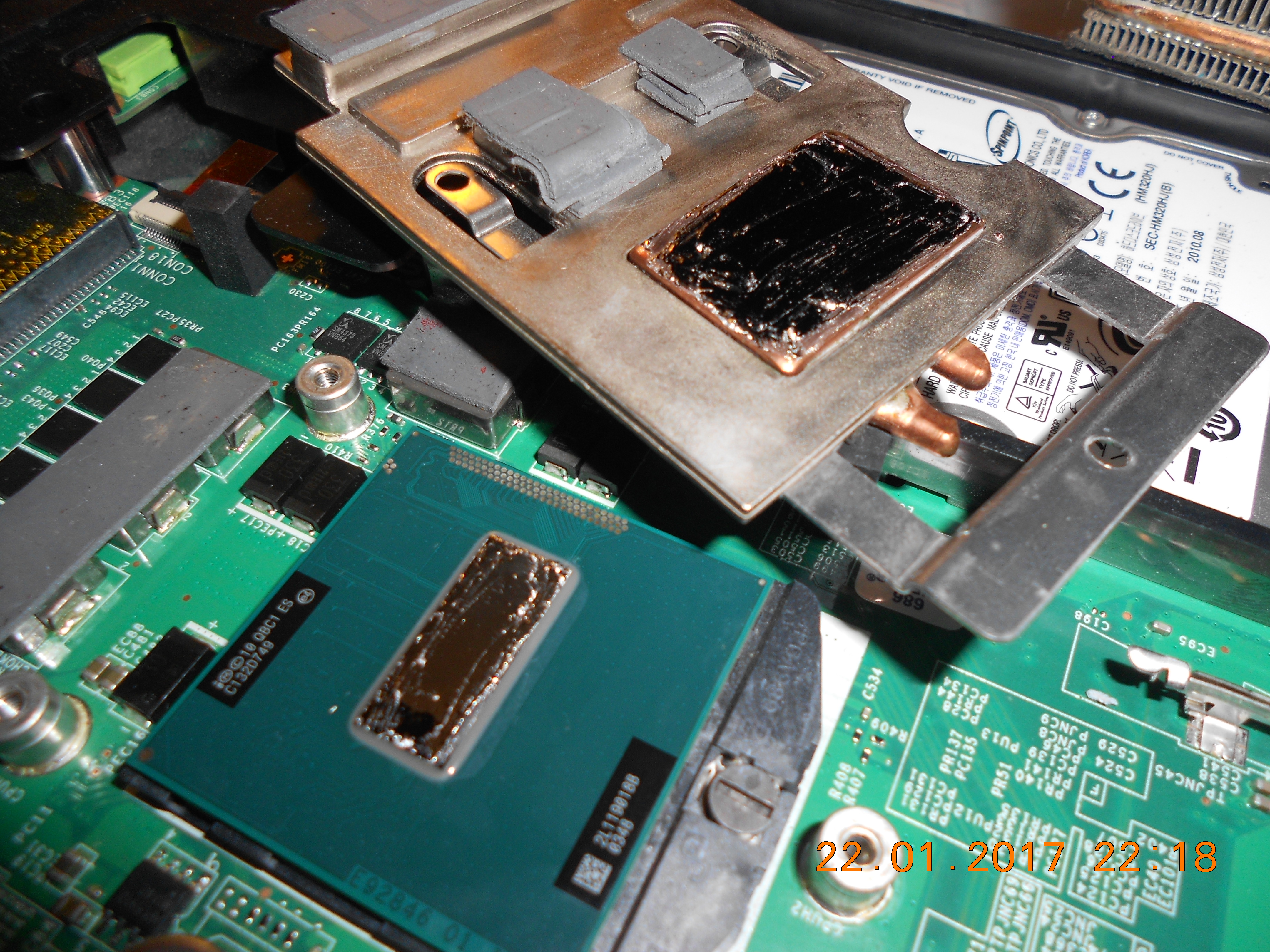

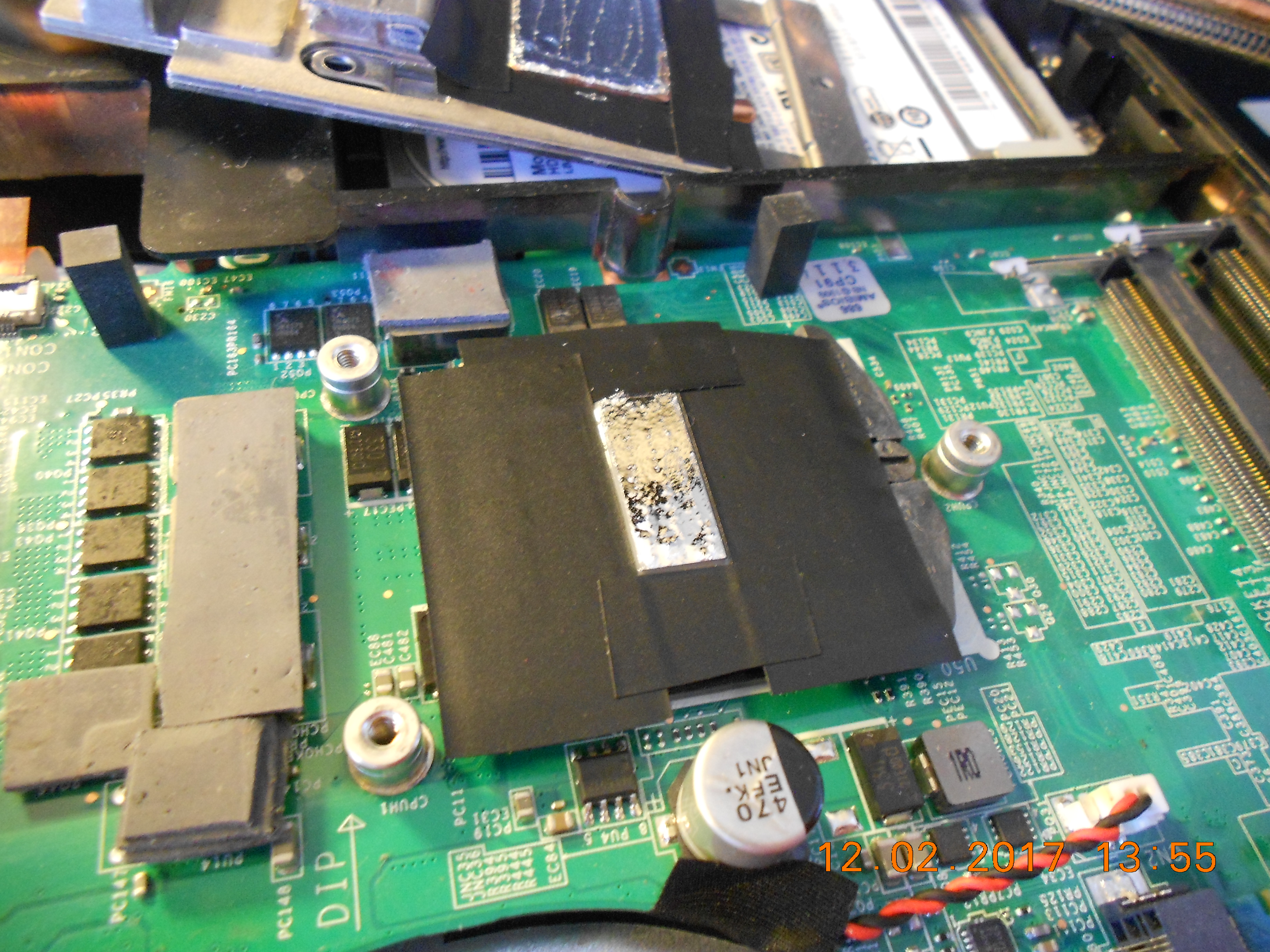

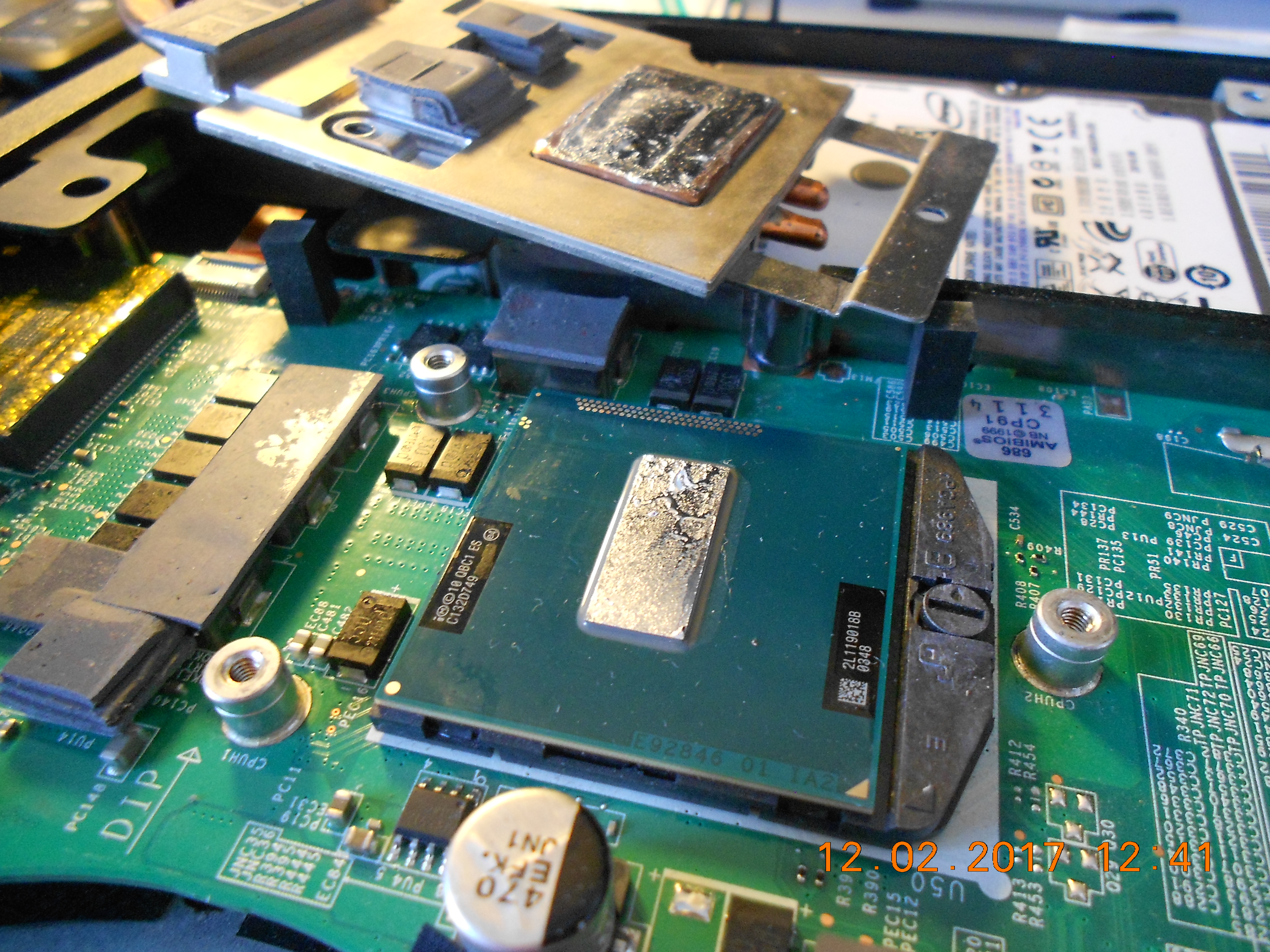

The fingerprint of the CPU is clearly visible

Yes yes I know... too much used the 1st time

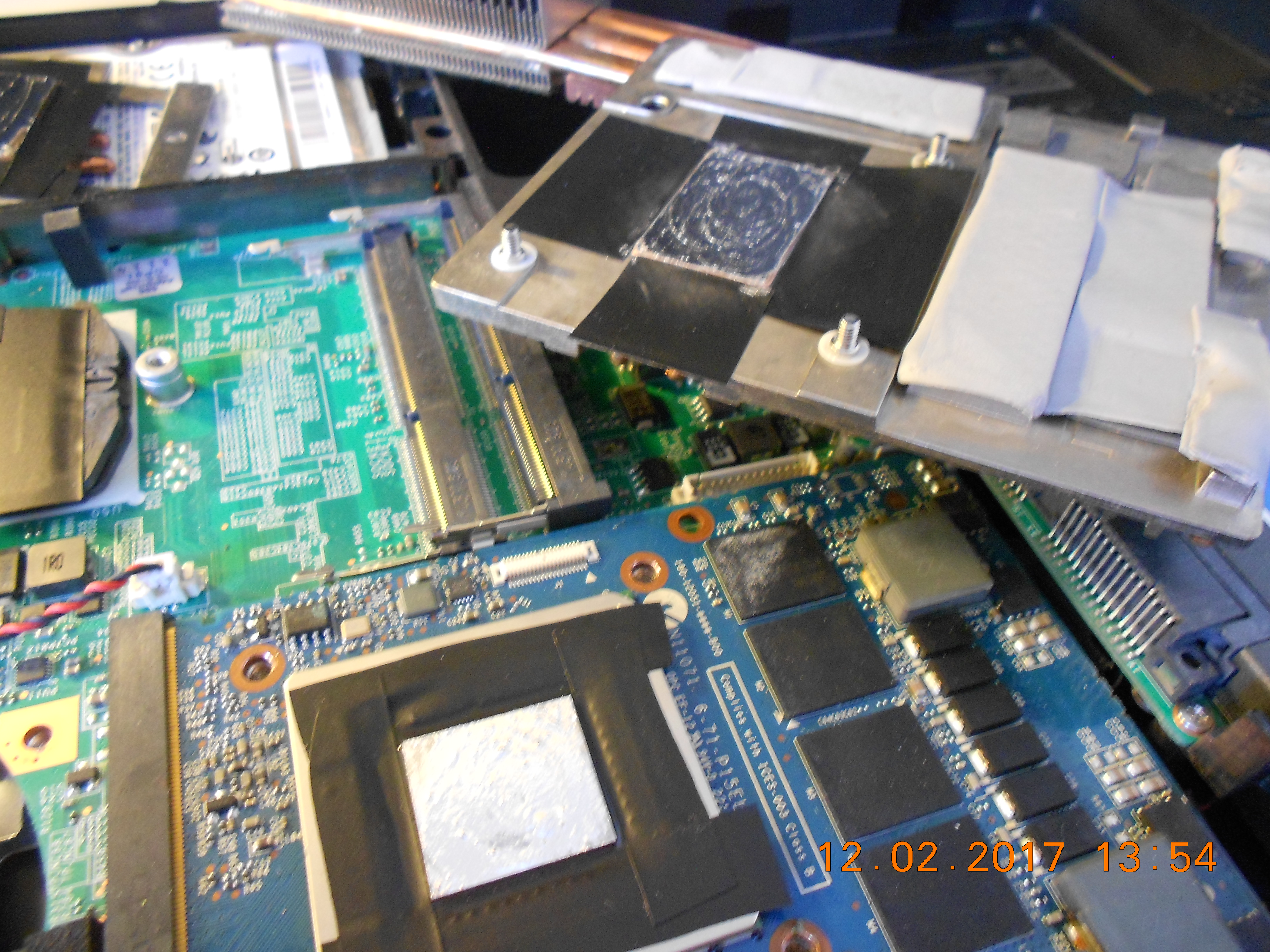

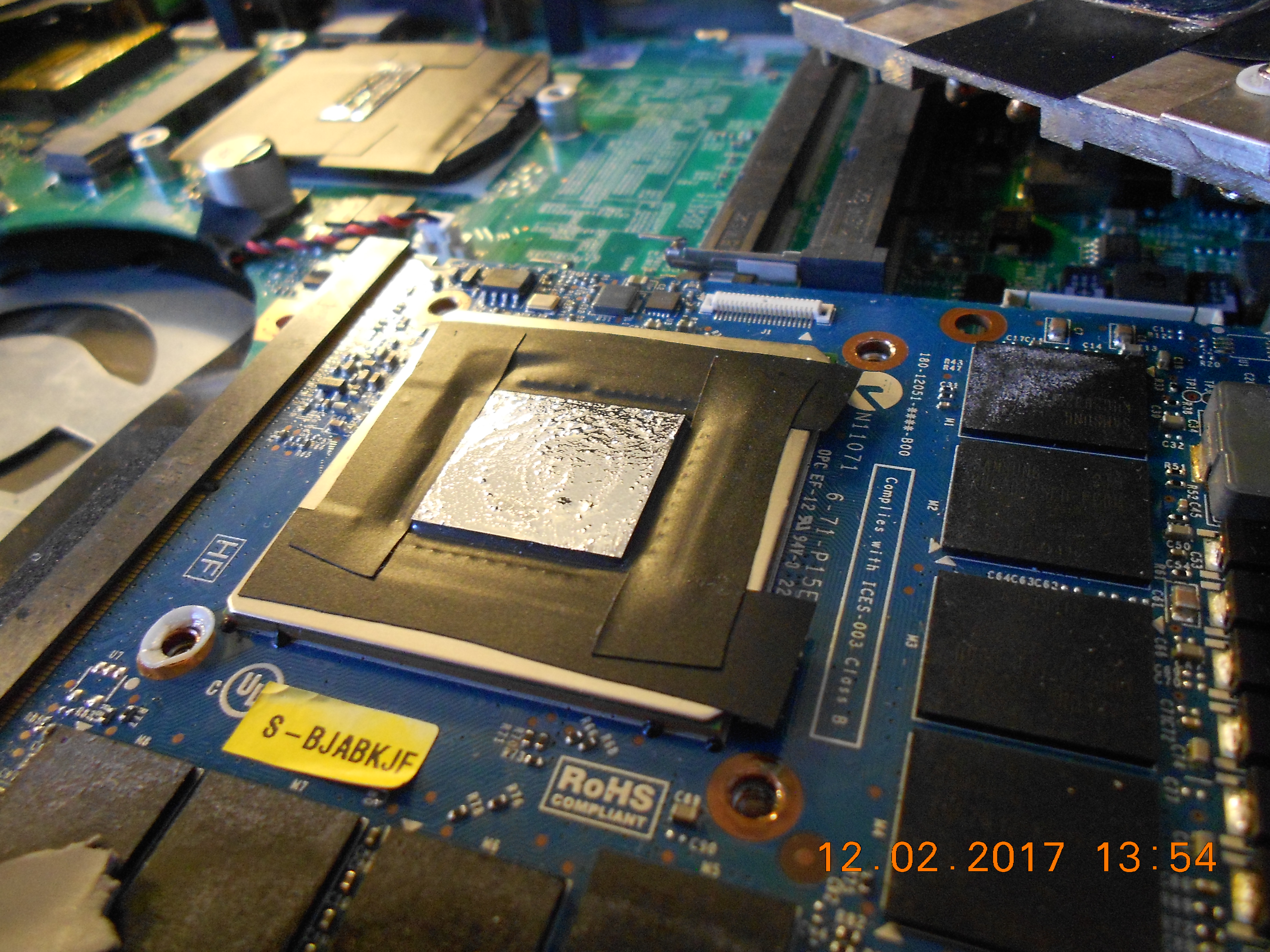

Now 2nd time around.... I used too much again, singnificantly less than the 1st time, but good lord I can't seem to squeeze out a pin sized amount, my fingers are too damn fat! at least I taped it this time around



I'm even bad at placing the tape evenly, oh god why am I this useless

Spoiler: NSFW: Bonus picture from my golden CS:S days

10

Found this badboy when looking through my screenshots haha don't judge

WORK IN PROGRESS ATM

Feel to tell me if you want more info or I did something wrong



Liquid metal outside the die (too much on the heatsink as in your pict) is not very wise. The degradation of liquid metal will occur much faster also on the pure die. + Bigger chance for a leak as you know. Only put liquid metal on the heatsink part who hit the cpu/gpu die



Would you advice me to repaste only the CPU? or go and repaste it all?



I would clean up the mess and re-apply new liquid metal at least on the heatsink(But thats me). If you still want liquid metal on gpu. Maybe use eletrical tape around the GPU die. But biggest advantage with liquid metal is on the processor.



What would you advice me to clean the liquid metal off with?

Also I keep hearing that, why is it better on the CPU?



A lint-free rag. Isopropanol of high enough % or similar types as http://www.arcticsilver.com/arcticlean.htm Thermal Material Remover. There are also spirits based small handkerchiefs you get at the pharmacy. See also http://www.frozencpu.com/products/1..._-_30mL_XC-01.html?tl=g8c123s1486&id=uzrm5A76

Gpu have a more powerful - bigger heatsink than processor. The Gpu die is also bigger vs. Cpu. Aka easier dissipate heat to the heatsink.



So I either go with MX-2 on my GPU or Cond.. I'm going full Cond.

Going to do a re-paste tomorrow then, and throw some electrical paper along the die on both CPU and GPU.

edit: now since I will be at it, should I maybe also completely cut out a hole instead of several small holes in the bottom tray? or would it get filled with dust quickly? thinking of it.



If you go for conventinal paste for gpu... Aka MX-2 is Junk. Either Gelid Extreme, ICD or Grizzly Kryonaut. But you get best results with liquid metal.



Ain't going to wait for shipping and ain't got more money left for new paste.

So liquid metal it is once again.



I'm still using AS Ceramique 2 paste, it will take some time to get accustomed to metal paste. I'll transition to Kryonaut and next to metal paste. I lack some experience in using metal paste. My temps are similar to OP after repaste with MX4



Similar as in after my Cond. repaste?

I JUST repasted again, and put up some electrical tape around the dies and aluminium heatsinks to avoid spillage issues.

I'd just like to say that if I CAN DO IT, anyone can, I am the clumsiest IT man alive.

I will provide a new set of pictures later today



My Temps are similar to MX2 repaste. On idle it stays between 28C and 34C, on lite load 38-55C and on high load 78-85C and sometimes 90C( just a peak for some millisecond).



I would definitely recommend a repaste... I mean hardware really can be durable, but for me, I want to have it last as long as possible with the highest OV/OV possible to maximize my investment!

Still can't edit the OP... so I'll post here.

Sorry for potato quality pictures, I guess my camera forgot it had autofocus.

Oh and sorry @Papusan my OCD got to me and I had to fill the whole copper heatsink with TIM once again, couldn't let that little sh**ty rectangle lie all alone is this better @iunlock ? not god-tier level like yours, but I hope its alright

Spoiler: Before and after 2nd Liquid Metal repaste +taped around CPU/GPU die and isolated aluminium heatsink parts ++ ALSO MODDED THE BAY TRAY COMPLETE ugly AF atm

I mean it does the job... so I can't complain


Now for the opening ceremony


The fingerprint of the CPU is clearly visible

Yes yes I know... too much used the 1st time

Now 2nd time around.... I used too much again, singnificantly less than the 1st time, but good lord I can't seem to squeeze out a pin sized amount, my fingers are too damn fat! at least I taped it this time around



I'm even bad at placing the tape evenly, oh god why am I this useless

The new temps are off the charts. Apparently less is more.

I will try to post new benchmark temps for the MSI and some for the Clevo ASAP thanks for reading folks



@jaug1337: I already repasted. Stock Dell paste was idling at 50-60C and on medium loads @70-94C.



Just made an additional modification.

Figured out that the fans too close to each other start to vibrate and shake each other, so shifting them a small bit made them practically silent. (and probably placebo effect: COOLER )

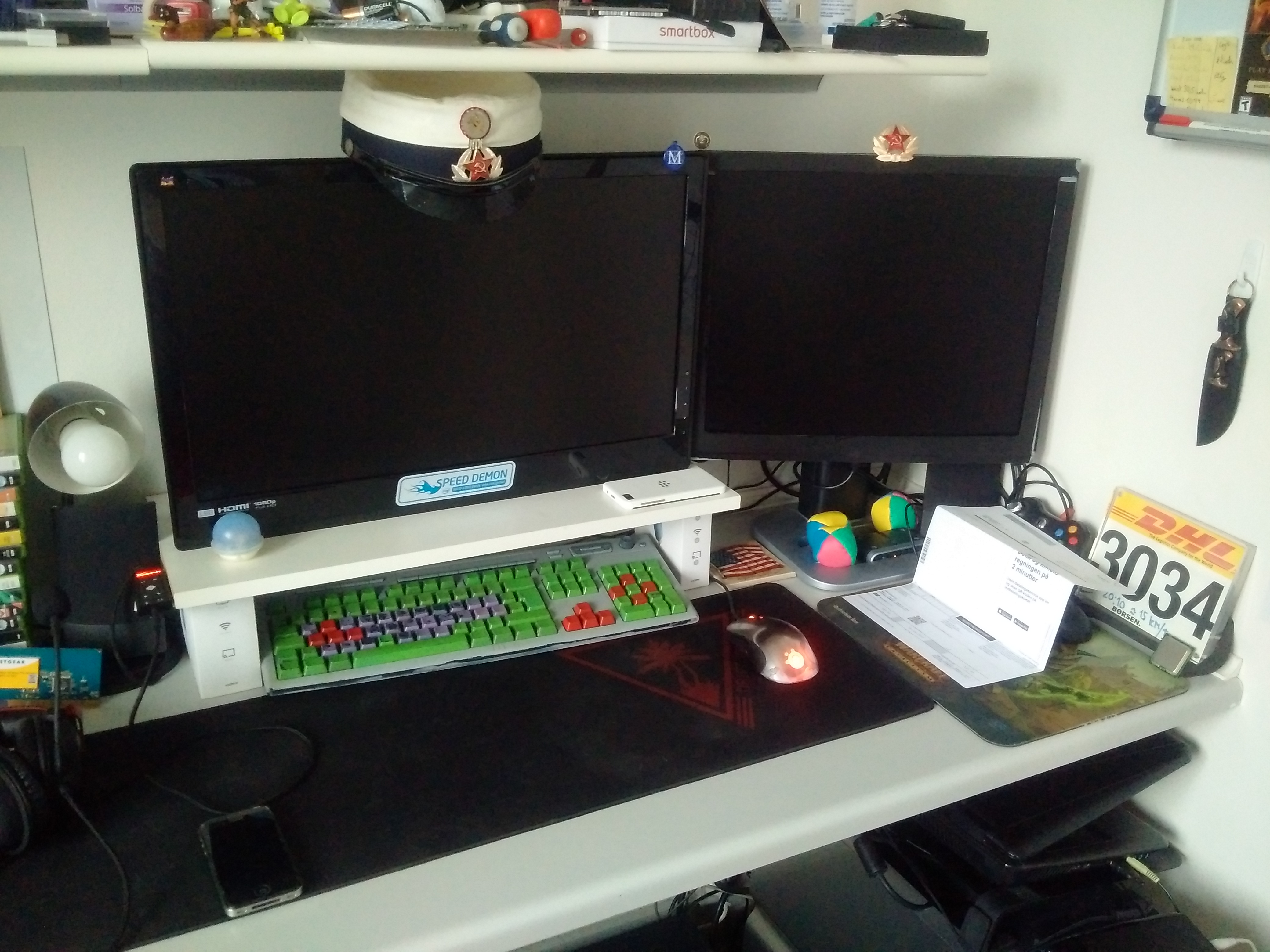

To futher clean up all of the clutter on my desk, I made a small shelf for my monitor thus removing the legs on it. The shelf is a regular white one, with a perfect depth and width. If anyone noticed.. it is held up by two Chromecast boxes

Spoiler: sorry worst quality high resolution picture ever, my BlackBerry is showing its age
