    (vaio) internal usb webcam - guess the pins!

    Discussion in 'Notebook Cosmetic Modifications and Custom Builds' started by niffcreature, Mar 25, 2010.

  1. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    so, i came across a internal usb webcam. ive decided to make it a normal usb webcam.

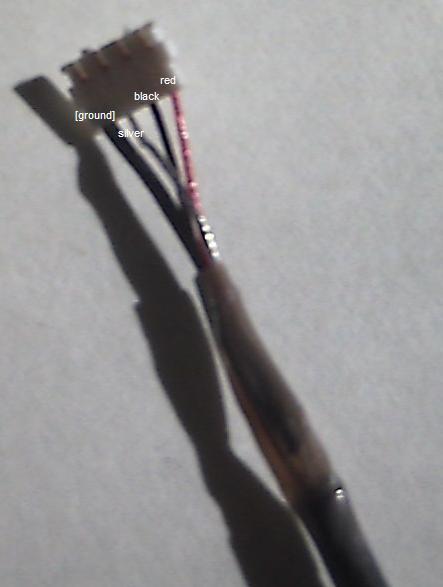

    only problem is of course the wires are all kinds of colors.
    the ground seems pretty obviously the big black one, also i cut the cable and it was uninsulated surrounding the others.
    the others are:
    -silver (transparent insulation)
    -black (thinner than ground)
    -red

    obviously its not too big a deal, but im curious as to what everyones guess is. im thinking that the black and red are - & + data, silver being 5v. what do you think?


    Attached Files:

    niffcreature, Mar 25, 2010
    #1
  2. crayonyes

    crayonyes Custom Title! WooHoooo !!

    Reputations:
    705
    Messages:
    1,098
    Likes Received:
    0
    Trophy Points:
    55
    crayonyes, Mar 26, 2010
    #2
  3. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    thanks guys! it was the first one. its really working out.
    lol maybe i should tape it better or something.



    niffcreature, Mar 29, 2010
