    Wifi Antenna - I did it

    Discussion in 'Networking and Wireless' started by sutheep, Mar 13, 2006.

  1. sutheep

    sutheep Notebook Evangelist NBR Reviewer

    Reputations:
    98
    Messages:
    364
    Likes Received:
    0
    Trophy Points:
    30
    The best thing i ever did. The wifi antenna, now i hve wireless alll over my house. Those who have been grumbling about their signal try this. took me an hour to do it.
    http://www.freeantennas.com/projects/template/

    just adjust the size of it make sure the square stays a square.

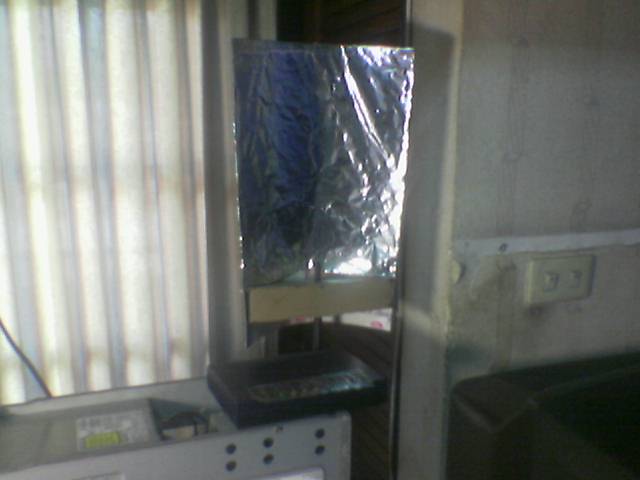

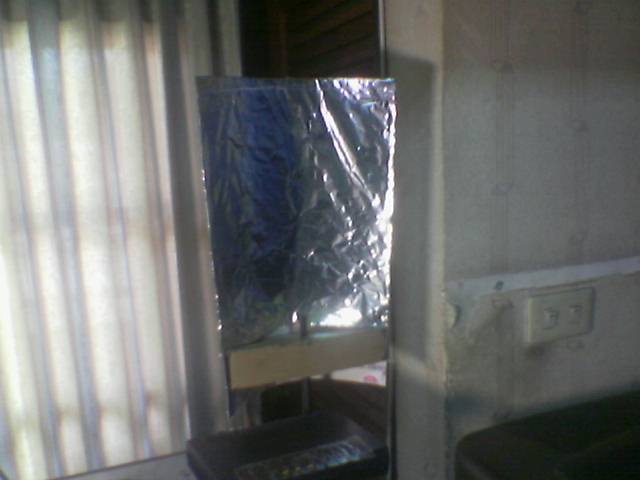

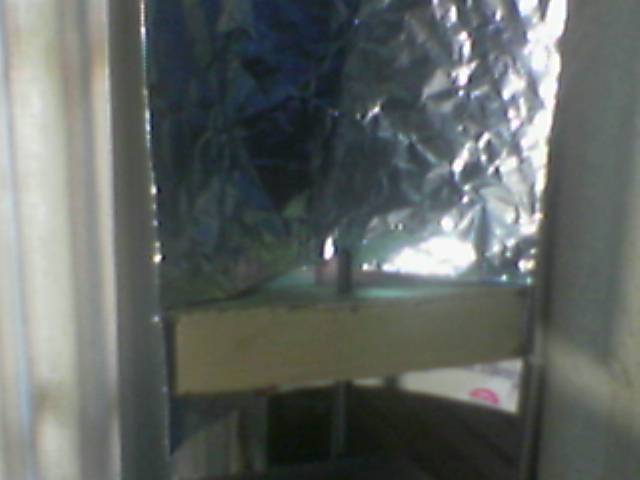

    and what i did was i print 2 copies, put 1 on the the cardboard and chopped do the same w/ the other. then make a small rectangle cardboard to hold them together. and then use brown paper covered in foil for the back. attached pic..

    PS> sorry for the ****py pictures.. and the hideous look, but it works awesome. i used to get -70db to -60db in myroom next to the router. Now i get as high as -30db to -20db. imagine that!!!


    Attached Files:

    sutheep, Mar 13, 2006
    #1
  2. Chutsman

    Chutsman Notebook Evangelist

    Reputations:
    6
    Messages:
    609
    Likes Received:
    1
    Trophy Points:
    31
    Nice going Sutheep. What size foil did you use and what make is your wireless router?

    Chutsman, Mar 13, 2006
    #2
  3. BudgetKid

    BudgetKid Notebook Geek

    Reputations:
    -5
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    15
    * Cancel My Account Please *

    BudgetKid, Mar 13, 2006
    #3
  4. lmychajluk

    lmychajluk Notebook Evangelist

    Reputations:
    31
    Messages:
    595
    Likes Received:
    0
    Trophy Points:
    30
    Laptops with built in WiFi usually have pretty good antennas (better than PC cards, anyway). If you're using a PC card, see if it supports an external antenna first.

    lmychajluk, Mar 13, 2006
    #4
  5. sutheep

    sutheep Notebook Evangelist NBR Reviewer

    Reputations:
    98
    Messages:
    364
    Likes Received:
    0
    Trophy Points:
    30
    Just normal cardboard, covered in alumnium foil. my router is a Zyxel Prestige 660HW-61. My router is on the 2nd floor of the house. I can recive signal on the first floor all around the house w/ at least -70db - -60db. huge improvements :p

    budgetkid, there's an antenna for the laptops as well, do a google search, you'll find it.

    sutheep, Mar 13, 2006
    #5
  6. Chutsman

    Chutsman Notebook Evangelist

    Reputations:
    6
    Messages:
    609
    Likes Received:
    1
    Trophy Points:
    31
    Sutheep, based on your astounding success, I decided to make the reflector (two) for my daughter's Linksys wireless router. However I can't say I see much of a difference. Maybe just a teensy weensy :) bit, but wasn't worth the effort.

    BudgetKid, for around $25 to $35 you can get a better pcmcia wireless adapter or a usb wireless adapter (the kind with a cord, not the one that is like a flash drive that plugs directly into the port). I can recommend the Orinoco Gold which has an internal antenna as well as a connector for an external one. Or go for the high power (200mW) EnGenius. Then there is the ParkerVision Signal Max. I have used all three. The EnGenius is my favorite one. Google for them for more info.

    For the USB kind, I use a Belkin F5D6050 which actually went up in price since I got mine about a year ago. It is small enough to fit in a shirt pocket.

    Chutsman, Mar 13, 2006
    #6
  7. Shampoo

    Shampoo Notebook Deity

    Reputations:
    208
    Messages:
    1,889
    Likes Received:
    0
    Trophy Points:
    55
    Wow great modding~!

    Maybe a little later when you have time you could customize your antenna addon. Make it look nicer somehow. I dunno.

    :D

    Great job~!
    Mike

    Shampoo, Mar 13, 2006
    #7
  8. nickspohn

    nickspohn Notebook Virtuoso NBR Reviewer

    Reputations:
    1,532
    Messages:
    2,742
    Likes Received:
    20
    Trophy Points:
    55
    Very nice, ill try it myself and see how it all goes.

    nickspohn, Mar 13, 2006
    #8
  9. BudgetKid

    BudgetKid Notebook Geek

    Reputations:
    -5
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    15
    * Cancel My Account Please *

    BudgetKid, Mar 13, 2006
    #9
  10. BudgetKid

    BudgetKid Notebook Geek

    Reputations:
    -5
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    15
    * Cancel My Account Please *

    BudgetKid, Mar 13, 2006
    #10
  11. sutheep

    sutheep Notebook Evangelist NBR Reviewer

    Reputations:
    98
    Messages:
    364
    Likes Received:
    0
    Trophy Points:
    30
    Chutsman, did you try moving it around what did you use to measure the signal? I use netstumbler, it does show improvements, major. try moving the "dish" around

    sutheep, Mar 13, 2006
    #11
  12. Chutsman

    Chutsman Notebook Evangelist

    Reputations:
    6
    Messages:
    609
    Likes Received:
    1
    Trophy Points:
    31
    Well, where the router is, there is not much room to move it around - cables too short. The most I can do is rotate the reflectors, which I have done. Still I'm not going to fuss with it. I get a pretty good signal in my bedroom anyway, with or without it.

    I measured the signal with the software that came with the built-in wireless adapter. It's a RaLink. The signal strength varies between 55% and 65%.

    Chutsman, Mar 14, 2006
