    WWAN antenna question

    Discussion in 'Networking and Wireless' started by zogthegreat, Sep 21, 2019.

  1. zogthegreat

    zogthegreat Notebook Guru

    Reputations:
    20
    Messages:
    59
    Likes Received:
    27
    Trophy Points:
    26
    Hi everyone!

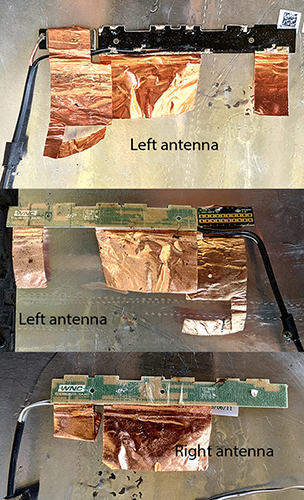

    I just received a new LCD back cover for a project that I'm working on. While I was preparing the cover, I removed the antenna's and noticed something about the WWAN antenna. If you look at the attached pics, three of the antenna's go to a regular fractal antenna like most laptops/ However, the forth antenna is a strange thin rectangular piece:

    [​IMG]

    Does anyone have any information on this antenna? Not necessary for my project, just curious.

    Thanks!

    zog

    zogthegreat, Sep 21, 2019
    #1
