    WRT160N and intel 5100 card

    Discussion in 'Networking and Wireless' started by burman, Jun 16, 2010.

  1. burman

    burman Notebook Consultant

    Reputations:
    0
    Messages:
    118
    Likes Received:
    0
    Trophy Points:
    30

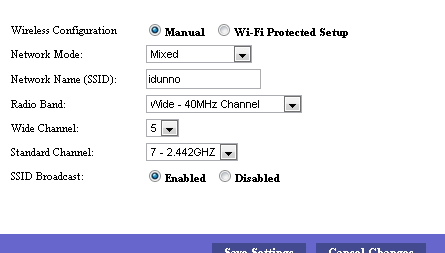

    looking for ideal speed on this as its been very inconsistent on every wide channel/standard channel i try:

    [​IMG]

    i have set the 5100 properties to the settings that enable the higher speed but if someone can pull up what everything should be set at just to doublecheck that could help. i used to get 135mbps but a lot of the time it's dropping to 18

    burman, Jun 16, 2010
    #1
  2. knightingmagic

    knightingmagic Notebook Deity

    Reputations:
    144
    Messages:
    1,194
    Likes Received:
    0
    Trophy Points:
    55
    N-only should theoretically improve speed. Try using a main channel such as one, six, or eleven. You might want to switch back to 20MHz mode as wide channel mode is susceptible to interference and hogs spectrum. Ironically, your speed issues might be caused by someone else's channel bonding router.

    With my E1000, 20MHz mode connects at 144Mb/s (actual throughput is 40-50). When 40MHz mode works, link speed is bumped up to 300Mb/s (actual thoughput is 70-80 for 5 glorious minutes before it automatically switches off channel bonding).

    knightingmagic, Jun 17, 2010
    #2
  3. burman

    burman Notebook Consultant

    Reputations:
    0
    Messages:
    118
    Likes Received:
    0
    Trophy Points:
    30
    i also skipped the fact that regardless of channel i use i always get a dropdown to about 1-5mbps where i'm frozen for several minutes and usually just go and unplug. is this a common problem for anyone else?

    burman, Jun 22, 2010
    #3
  4. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    What security mode and setting you using? Use WPA2/AES.

    Most draft 802.11n products will knock your throughput down by up to 80% if you use WEP or WPA/TKIP security

    Also as above, use InSSIDer to scan for wifi networks near your area. Deviate away from the busiest channels.

    flipfire, Jun 22, 2010
    #4
