So i have a hp laptop with an i7 5500u and it has a wifi 4 card and i want to upgrade the wifi card to wifi 6 but i do not know if it is compatible
Here is the model number of the laptop: hp 15-ac049ne
-
-
hacktrix2006 Hold My Vodka, I going to kill my GPU
It would be nice to have a picture or at least the model name and number for the current wireless card, so that we can assist you. Even a Device ID can be handy.
-
-
hacktrix2006 Hold My Vodka, I going to kill my GPU
Right so basically a Mini PCIe card (HMC).
So 2 issues seems to arise from this.
1) Does HP still use Whitelists (Which will block WiFi upgrades)
2) Finding a WiFi 6 card in HMC format. (Else you will need a NGFF m.2 to Mini PCI-e adaptor)
I have found one which seems to be a BGA AX200 mounted to a HMC PCB.
https://www.ebay.co.uk/itm/264772356660
Sent from my SNE-LX1 using TapatalkLast edited: Apr 27, 2021downloads likes this. -
-
hacktrix2006 Hold My Vodka, I going to kill my GPU
So that makes it easier.
Look for a Intel AX200NGW this is an AX Wifi card that will work in there so long there is no whitelist issues. -
-

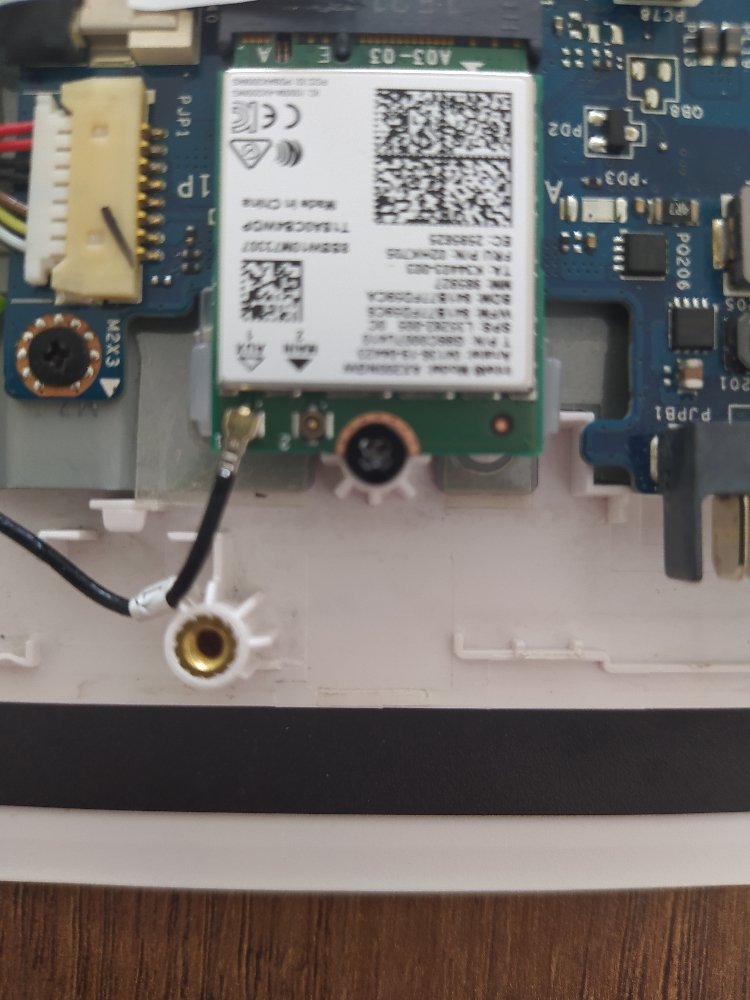

The card itself is working because after a while i touched the wifi card and felt some heat also the antenna areaLast edited by a moderator: Apr 27, 2021 -
Maleko48 likes this.
-
After that i restarted still didn't not see it in device manager
So, i downloaded the drivers for it from intel's website and installed them and yet it did not show up
After that i went to device manager and added it as a legacy hardware and got this error
https://drive.google.com/file/d/1ML8uKWkPIFJDwCmrwWkrF4pgmMcDgQP0/view?usp=drivesdk
And after it i did not know what else to do so i came to tell you everything hoping you would help and thanks in advance -
hacktrix2006 Hold My Vodka, I going to kill my GPU
Did you get the NGW version of the card? As there are two versions of the same card one is for systems without CVNI (For systems without CVNI support like yours) then theres one with CVNI which wouldn't work on your system.
Sent from my SNE-LX1 using Tapatalk -
-
Yes i did get get ngw one
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 Hold My Vodka, I going to kill my GPU
Failing that you might need to do the Tape pin 20 trick.
Although on NGFF its a different set of pins
https://www.google.com/amp/s/thecom...less-cards-the-old-mini-pci-pin-20-trick/amp/
Sent from my SNE-LX1 using Tapatalk -

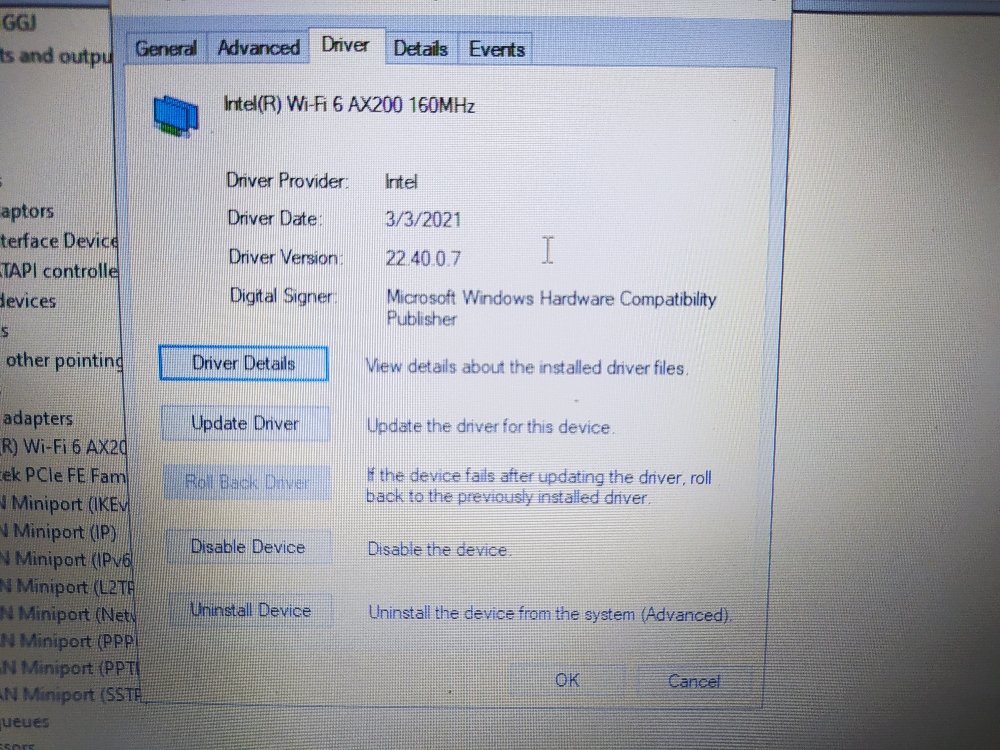

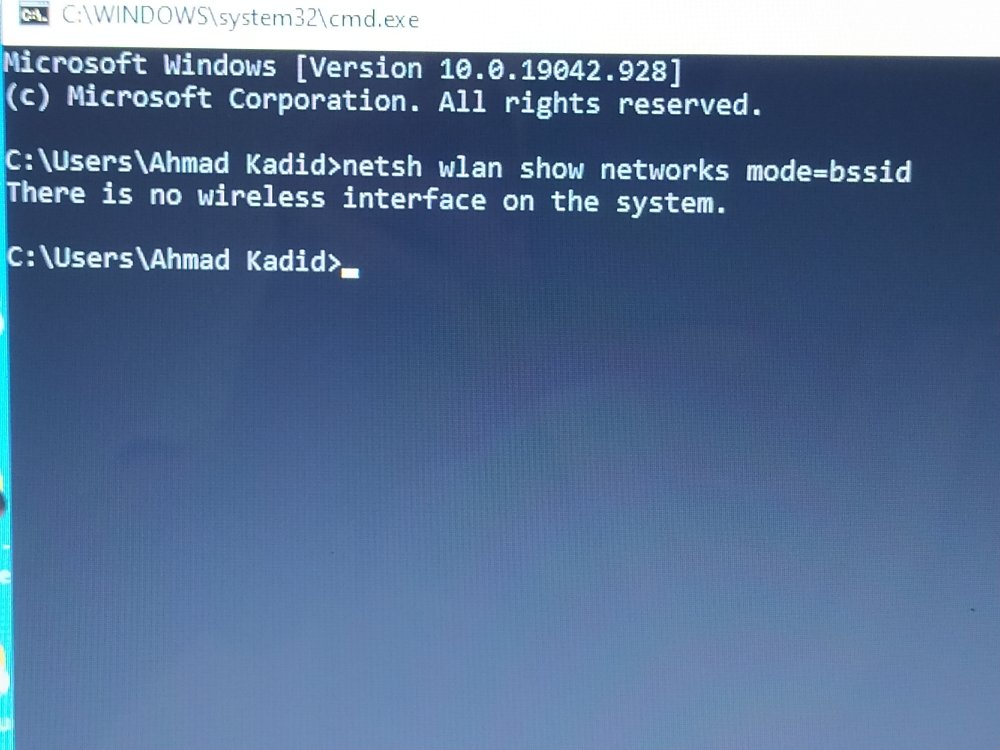

I figured that the card is just not detected in the system these are just the drivers installed
So is it whitelist thing??
Sent from my Redmi Note 8 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 Hold My Vodka, I going to kill my GPU
NGFF also has power pins.
Sent from my SNE-LX1 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 Hold My Vodka, I going to kill my GPU
Not sure, its handy to know just in case you need to use the trick.
Sent from my SNE-LX1 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 Hold My Vodka, I going to kill my GPU
Yes
Sent from my SNE-LX1 using Tapatalk -

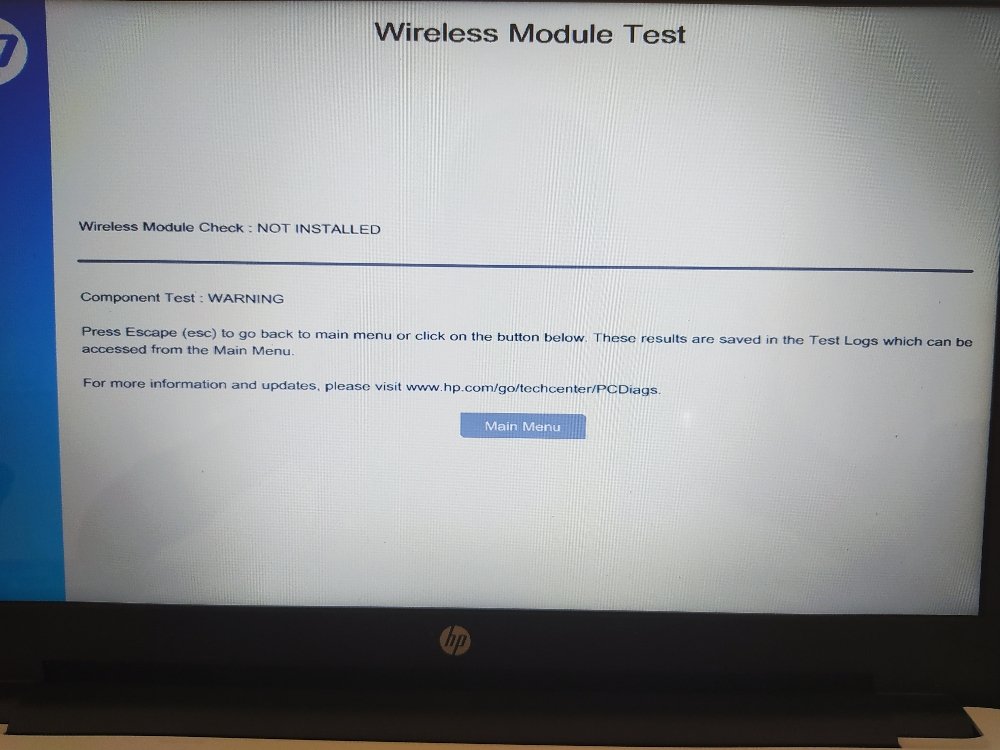

I ran a diagnose to see if it is running from the bios and this is what i got
Sent from my Redmi Note 8 using Tapatalk
Although it is installed it says thatLast edited: Apr 28, 2021 -
hacktrix2006 Hold My Vodka, I going to kill my GPU

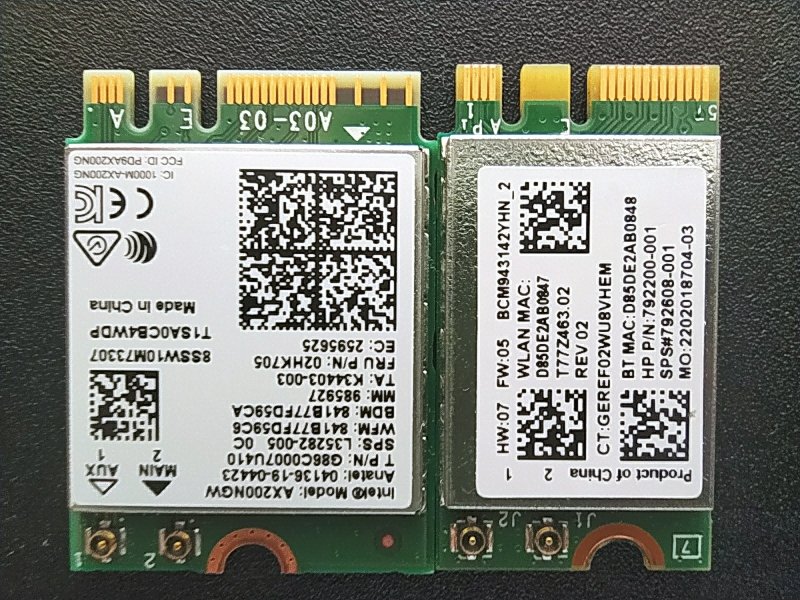

Right take a photo of both wireless cards side by side front and back.
As close as possible and clear as possible
Sent from my SNE-LX1 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 Hold My Vodka, I going to kill my GPU
It should work, are you able to test the card in another system?

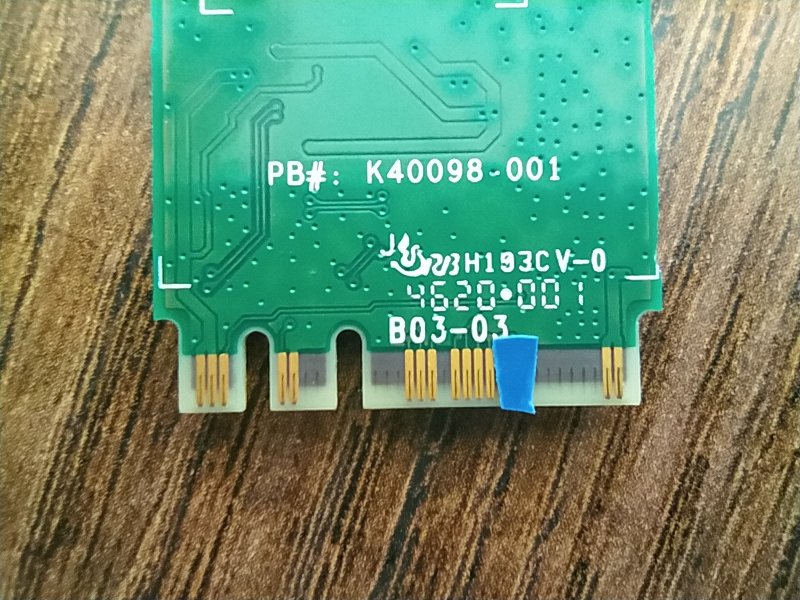

Try taping the inner pin on the E slice see if that helps.
Sent from my SNE-LX1 using TapatalkLast edited by a moderator: Apr 28, 2021 -
Sent from my Redmi Note 8 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 Hold My Vodka, I going to kill my GPU
-
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 Hold My Vodka, I going to kill my GPU
Last edited: Apr 28, 2021 -
Now I have six in the area which do i tape
Sent from my Redmi Note 8 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 Hold My Vodka, I going to kill my GPU
HANG ON!
-
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 Hold My Vodka, I going to kill my GPU
Waiting on GIMP to load on a Dual Core is a nightmare.
-
Sent from my Redmi Note 8 using Tapatalk -

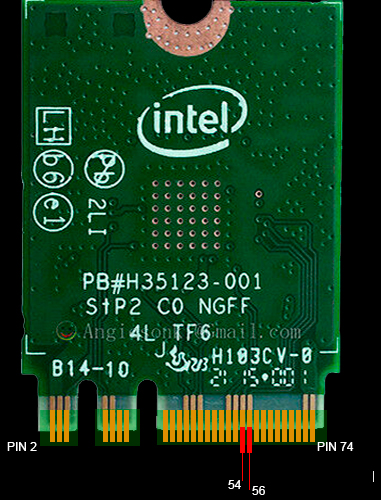

hacktrix2006 Hold My Vodka, I going to kill my GPU

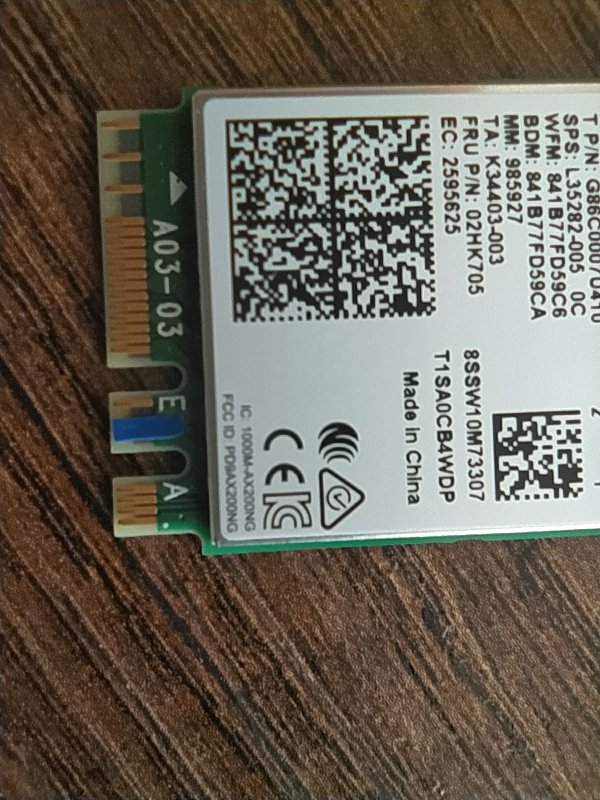

Give that a try, just note i accept no liability if cats fly and the world burns etc -
Sent from my Redmi Note 8 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk -

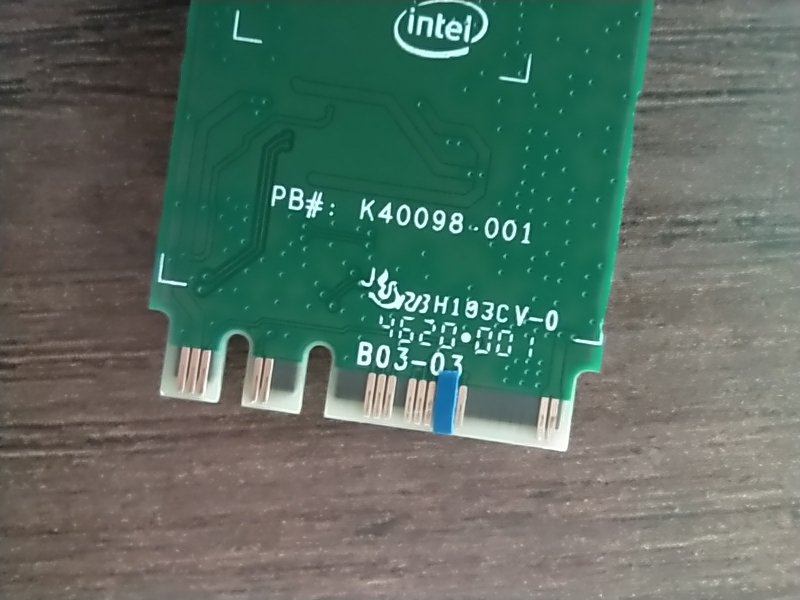

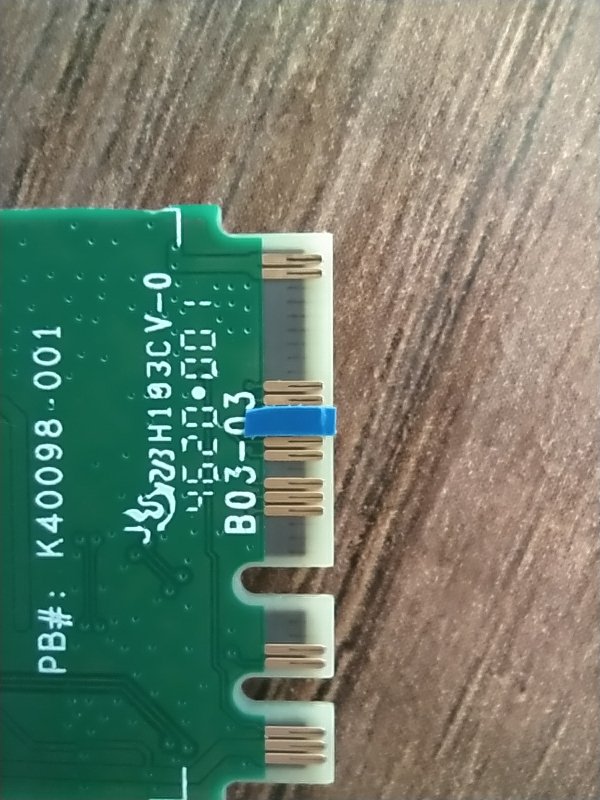

hacktrix2006 Hold My Vodka, I going to kill my GPU
Yes like that, it shouldn't cause any damage, however i put that in to cover my back.
-
Sent from my Redmi Note 8 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 Hold My Vodka, I going to kill my GPU
Do you have another laptop or system yo test the new card in to insure its a working card.
If not it looks like WiFi 5 is as far as you can go, although technically it should work.
Sent from my SNE-LX1 using Tapatalk -
Sent from my Redmi Note 8 using TapatalkLast edited by a moderator: Apr 28, 2021 -
hacktrix2006 Hold My Vodka, I going to kill my GPU
Put in your current one and make sure that is still working though.
Maybe some one else with more knowledge can help.
Sent from my SNE-LX1 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk -
hacktrix2006 likes this.
-
hacktrix2006 Hold My Vodka, I going to kill my GPU
Sorry I couldn't be of more help bud. Goodluck
Sent from my SNE-LX1 using Tapatalk -
Sent from my Redmi Note 8 using Tapatalk
İs it compatible please help
