    my new msi gt70 ms 1762 barebone 680m i7 laptop can it be overclocked?

    Discussion in 'MSI' started by dale350zman, Dec 17, 2012.

  1. dale350zman

    dale350zman Notebook Evangelist

    Reputations:
    100
    Messages:
    323
    Likes Received:
    3
    Trophy Points:
    31
    Hi guys iv just upgraded from the Dell xps m1730 and chosen to join the msi clan, so far I'm very impressed with my new msi monster. I chose to save myself £1500 and build my barebone myself with the parts I want without going through a shop that will pull my pants down.

    So here is what I got for just over £1200.
    Msi ms 1762 gt70 barebone
    Backlit keyboard, mouse pad and speakers
    Matt full hd led screen
    Nvidia 680m gtx gpu 4gb
    3720qm quad core ivy 3rd gen i7 2.6 boost 3.6 cpu
    Kingston hyper x 1600mhz 8gb ram
    2x ocz octane sata 3 ssd 256gb hdd
    Killer lan
    Intel wireless and Bluetooth
    Windows 7 professional
    Mx-4 paste

    Can I overclock anything if so which software with which settings?
    Thanks guys.

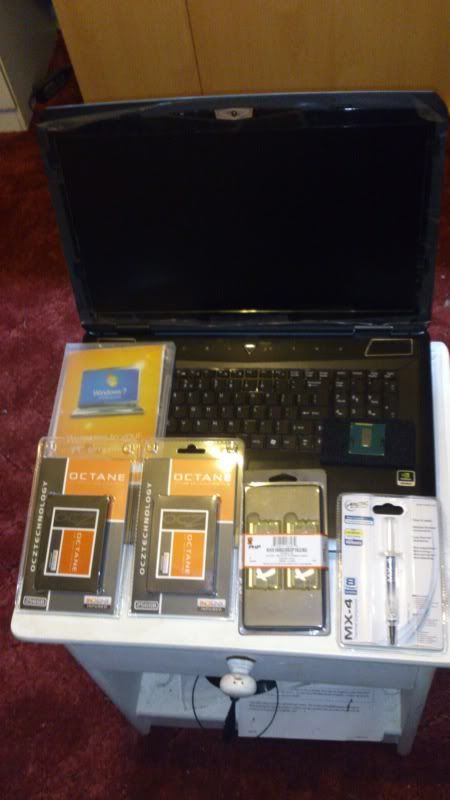

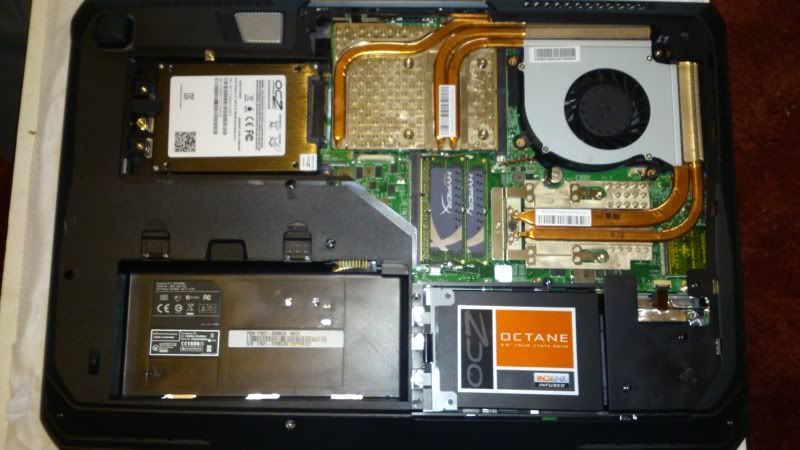

    Iv added some images of the build below:

    [​IMG]

    [​IMG]

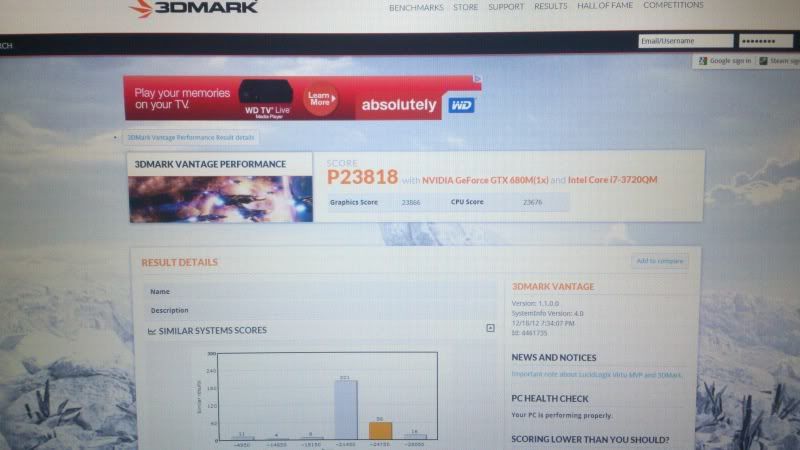

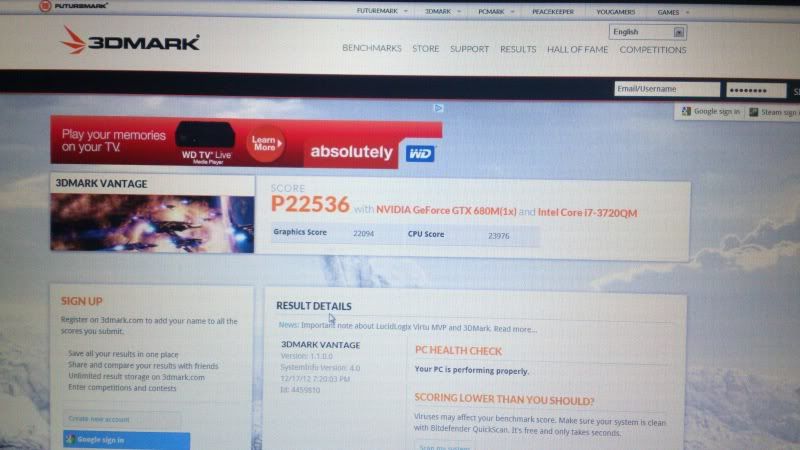

    Standard clocks score in 3dMark vantage:

    [​IMG]

    dale350zman, Dec 17, 2012
    #1
  2. Prostar Computer

    Prostar Computer Company Representative

    Reputations:
    1,257
    Messages:
    7,426
    Likes Received:
    1,016
    Trophy Points:
    331
    Prostar Computer, Dec 17, 2012
    #2
  3. dale350zman

    dale350zman Notebook Evangelist

    Reputations:
    100
    Messages:
    323
    Likes Received:
    3
    Trophy Points:
    31
    Any ideas what stable clocks I can do on the gpu and cup?

    dale350zman, Dec 18, 2012
    #3
  4. Prostar Computer

    Prostar Computer Company Representative

    Reputations:
    1,257
    Messages:
    7,426
    Likes Received:
    1,016
    Trophy Points:
    331
    Eh, for that hardware, I'm not certain. I've steered clear from OCing. I think it's considered "stable" as long as you don't have any BSODS or crashes of any sort. You just need to make sure that you can supply enough power to the system.

    Lots of people do it with little to no gripes/problems. Hopefully they give you their numbers and let you know what's considered "safe" by conventional overclocking standards.

    In the meantime: Blog - What is a 100 percent stable overclock? | bit-tech.net

    Prime95 can help you out in testing as well.

    Prostar Computer, Dec 18, 2012
    #4
  5. jaug1337

    jaug1337 de_dust2

    Reputations:
    2,135
    Messages:
    4,862
    Likes Received:
    1,031
    Trophy Points:
    231
    First test your max temps.

    Then you can install the modded BIOS for the GT70... loads of options.

    A vBIOS is possible to install for the 680M although it'll definitely shorten its life-span (by a little, imagine the life span of 7 years turning into 5 or 4)

    Intel XTU or ThrottleStop should help you OC your CPU :) due to you buying the 3720QM it gives you an extra 400MHz overclock :D enjoy

    jaug1337, Dec 18, 2012
    #5
  6. dale350zman

    dale350zman Notebook Evangelist

    Reputations:
    100
    Messages:
    323
    Likes Received:
    3
    Trophy Points:
    31
    Brilliant thank you what can I do with the modded bios then?

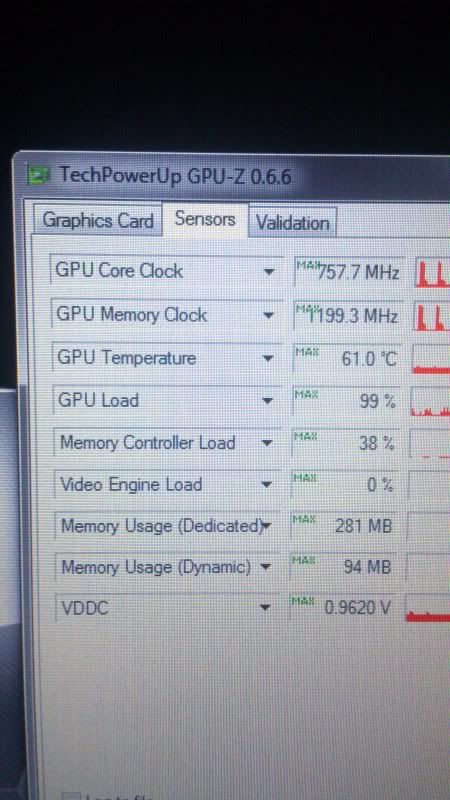

    I overclocked my gpu with msi after burner earlier at 760 core clock and 1200 memory clock, these are my bench scores and temps:

    Vantage:

    [​IMG]

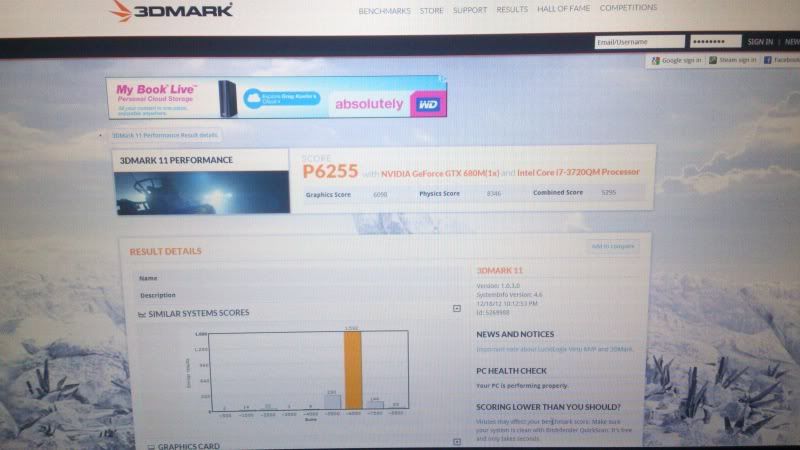

    3Dmark 11:

    [​IMG]

    [​IMG]

    dale350zman, Dec 18, 2012
    #6
  7. jaug1337

    jaug1337 de_dust2

    Reputations:
    2,135
    Messages:
    4,862
    Likes Received:
    1,031
    Trophy Points:
    231
    jaug1337, Dec 18, 2012
    #7
  8. dale350zman

    dale350zman Notebook Evangelist

    Reputations:
    100
    Messages:
    323
    Likes Received:
    3
    Trophy Points:
    31
    Hmmmm interesting, thank you for your knowledge wise one. I'll be applying this bios tonight. So where do I find the vbios and do you know of a safe stable oc?

    dale350zman, Dec 19, 2012
    #8
  9. jaug1337

    jaug1337 de_dust2

    Reputations:
    2,135
    Messages:
    4,862
    Likes Received:
    1,031
    Trophy Points:
    231
    I think you should take it step by step, and consider whether you actually need the vBIOS, before jumping into it.

    :p

    jaug1337, Dec 19, 2012
    #9
  10. dale350zman

    dale350zman Notebook Evangelist

    Reputations:
    100
    Messages:
    323
    Likes Received:
    3
    Trophy Points:
    31
    Thats true ill stick with msiafterburner for when I need a boost. What about my cpu shal I take that from 2.6 up to 3.0ghz? Or is that to much strain on it?

    dale350zman, Dec 19, 2012
    #10
  11. jaug1337

    jaug1337 de_dust2

    Reputations:
    2,135
    Messages:
    4,862
    Likes Received:
    1,031
    Trophy Points:
    231
    You can try, but no, it wont put strain on it, check it out with Intel XTU and see what your temps are :)

    jaug1337, Dec 19, 2012
    #11
  12. dale350zman

    dale350zman Notebook Evangelist

    Reputations:
    100
    Messages:
    323
    Likes Received:
    3
    Trophy Points:
    31
    Will do these i7 cpus are mad.

    dale350zman, Dec 19, 2012
    #12
  13. ykfdf

    ykfdf Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    ykfdf, Jan 4, 2013
    #13
  14. dale350zman

    dale350zman Notebook Evangelist

    Reputations:
    100
    Messages:
    323
    Likes Received:
    3
    Trophy Points:
    31
    Will I have any issues with anything if I install the modded bios?

    dale350zman, Jan 4, 2013
    #14
  15. rycyve

    rycyve Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    NVIDIA Optimus whether it works or not?

    rycyve, Mar 1, 2013
    #15
  16. januszzbych

    januszzbych Notebook Consultant

    Reputations:
    9
    Messages:
    131
    Likes Received:
    7
    Trophy Points:
    31
    don`t forget buy some more power full power supply, minumum 220W.

    januszzbych, Mar 1, 2013
    #16
  17. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    The best tool is the unlocked bios files for the motherboard and GPU.

    If you stick to low GPU voltages the stock adapter will cope.

    Any GPU must support optimus to work in this machine since it is forced on by the hardware layout.

    Meaker@Sager, Mar 1, 2013
    #17
  18. dale350zman

    dale350zman Notebook Evangelist

    Reputations:
    100
    Messages:
    323
    Likes Received:
    3
    Trophy Points:
    31
    Any suggestions on which power supply to get and I want to do the modded bios's but I heard that it will block my laptop because it's the barebone.

    dale350zman, Mar 1, 2013
    #18
  19. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    The OFFICIAL line is that it will ;)

    Meaker@Sager, Mar 1, 2013
    #19
  20. dale350zman

    dale350zman Notebook Evangelist

    Reputations:
    100
    Messages:
    323
    Likes Received:
    3
    Trophy Points:
    31
    I would have got the official one but I wanted a more powerful processor and a second ssd for my games. I know I could of changed it in the retail version but the laptop costs enough anyway never mind buyer better parts as well. The barebone is the same as the gt70 just no logo, multicolored keyboard or turbo button but let's be honest none of that is really to worry about.

    dale350zman, Mar 2, 2013
    #20
  21. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    Ok, yes it has worked so far, barebone to retail. However, if you flash it, you are on your own if something happens to the machine.

    The asus 230W power supplies are the easiest to modify, always come with 2 connectors on the PCB and no 3rd data pin getting in the way.

    Meaker@Sager, Mar 2, 2013
    #21
  22. dale350zman

    dale350zman Notebook Evangelist

    Reputations:
    100
    Messages:
    323
    Likes Received:
    3
    Trophy Points:
    31
    so the bios will work on my barebone and regarding the power supply so ill have to buy an asus power brick, take it apart and connect the msi cable?

    dale350zman, Jan 19, 2014
    #22
