    msi gt70 power button ribbon cable damaged

    Discussion in 'MSI' started by mizozizo, Oct 11, 2018.

  1. mizozizo

    mizozizo Notebook Enthusiast

    Reputations:
    0
    Messages:
    29
    Likes Received:
    3
    Trophy Points:
    6

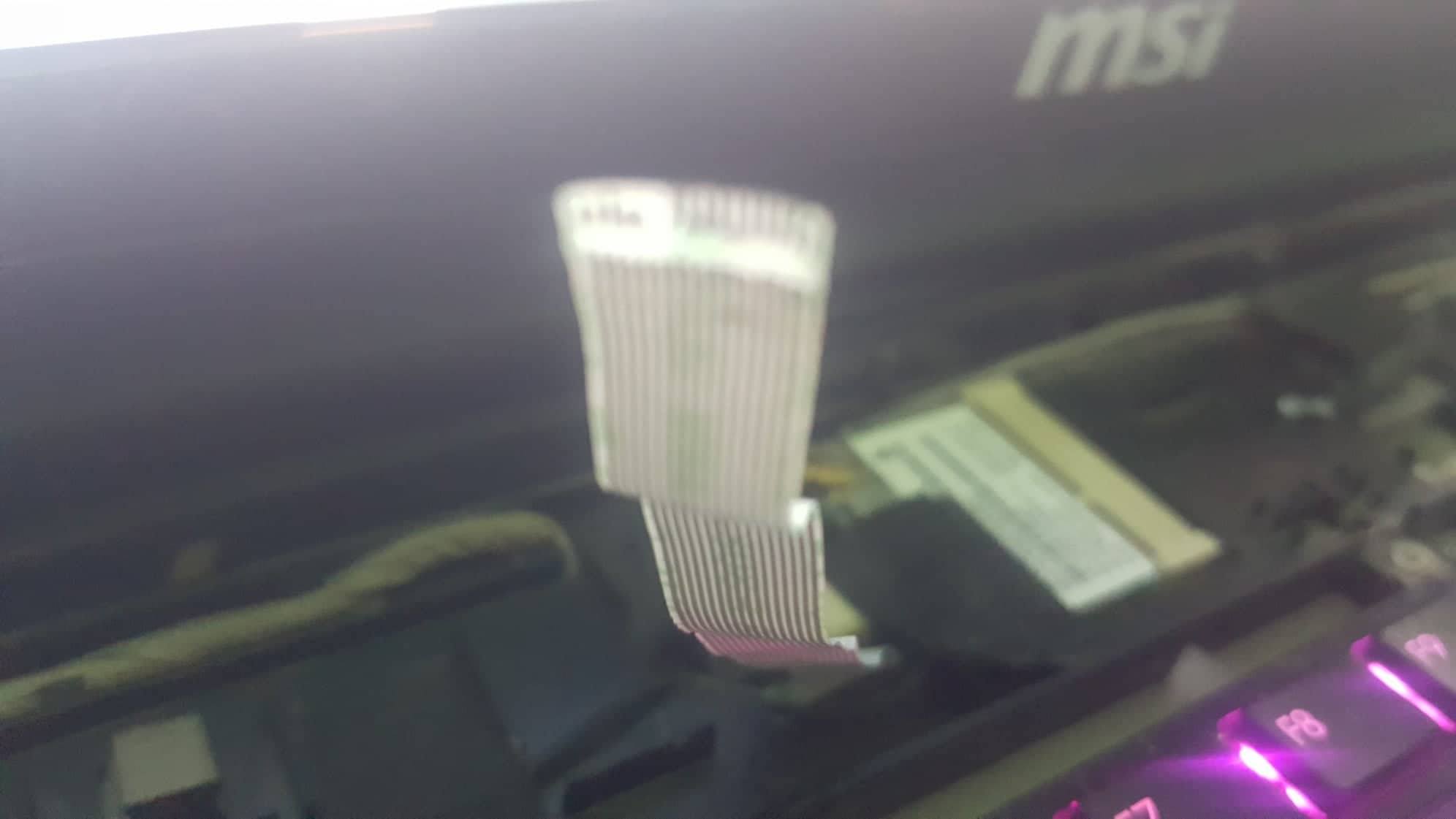

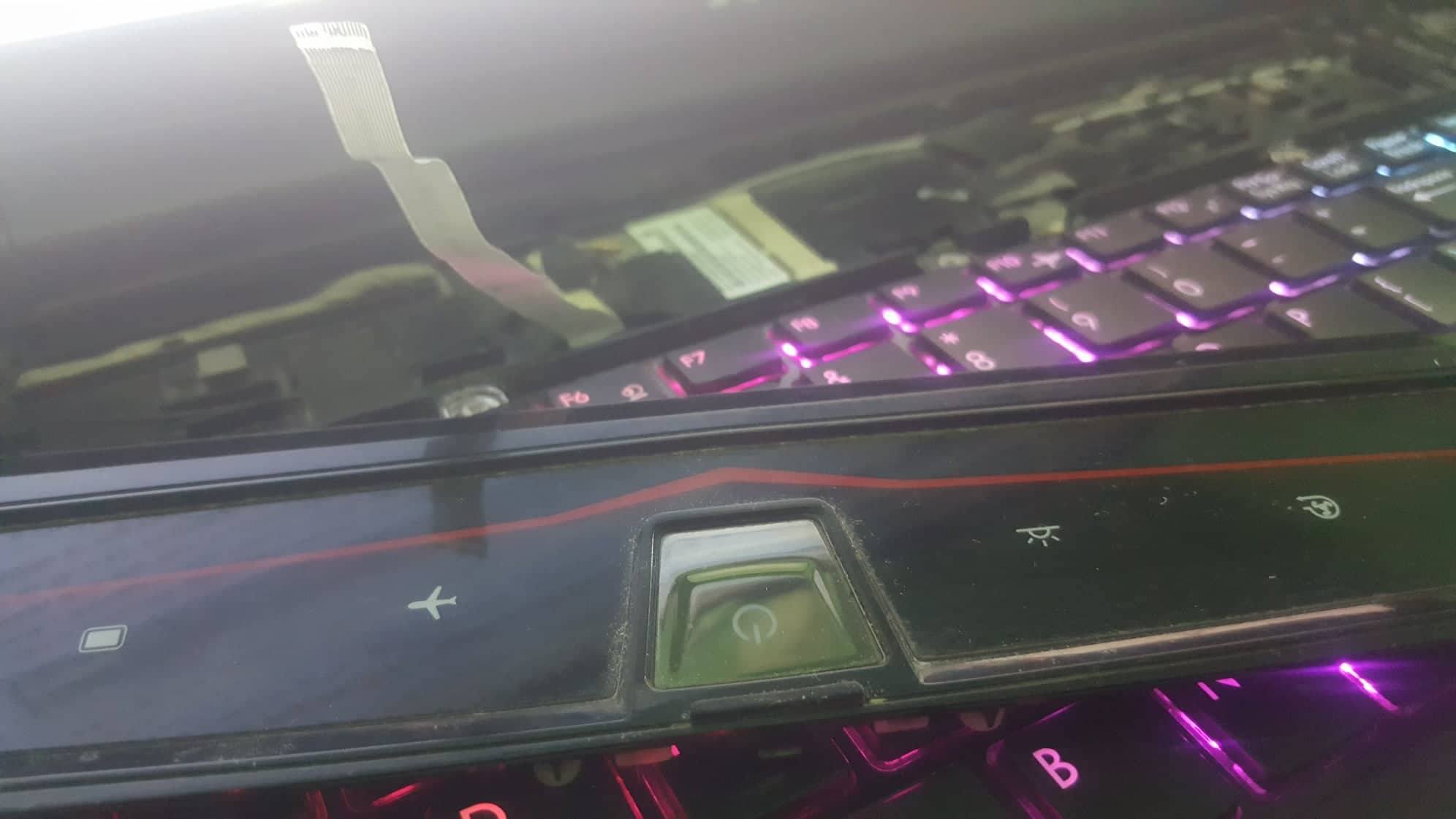

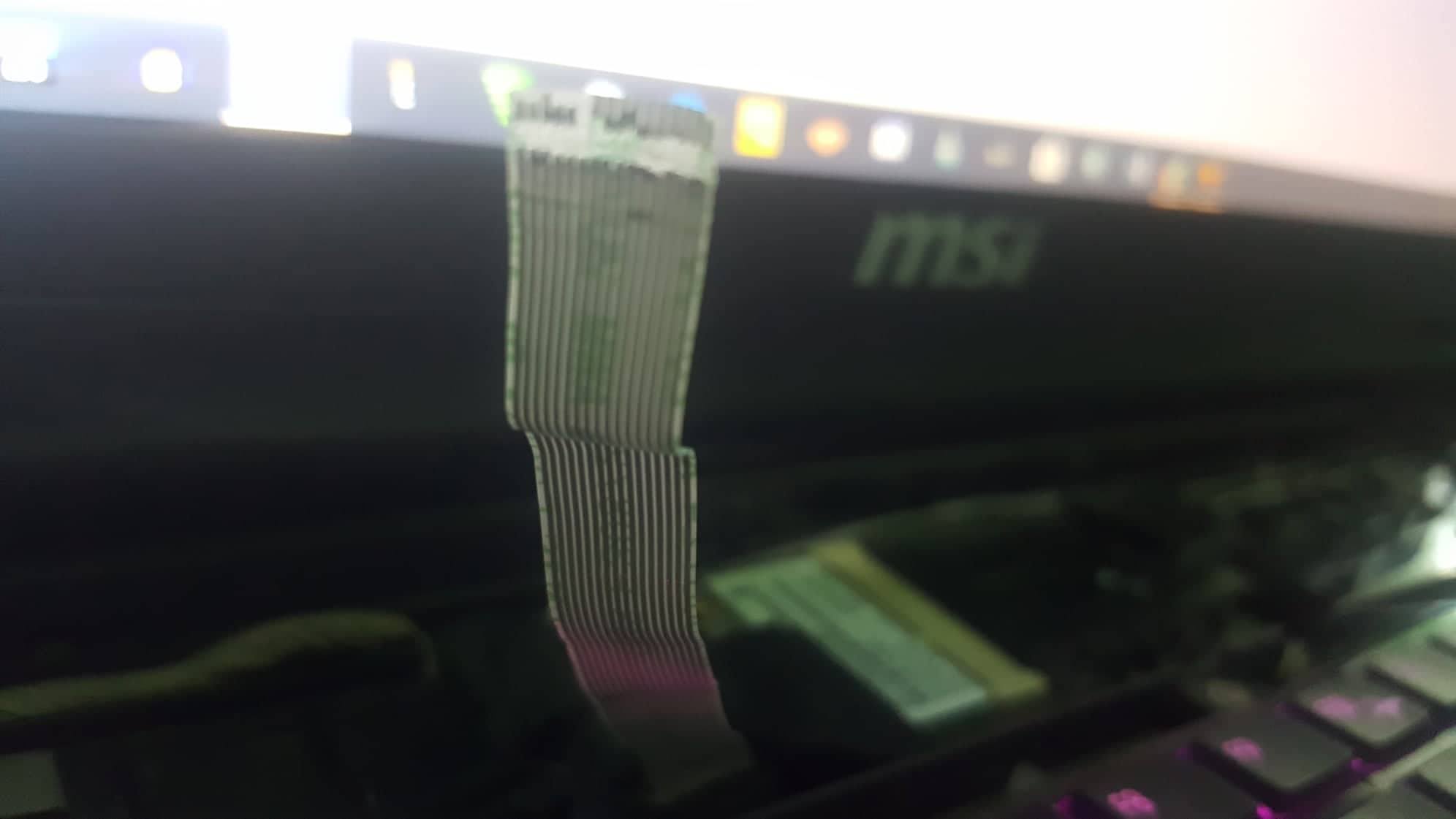

    My power button ribbon cable is damaged during me repasting/cleaning the laptop. now it won't connect to the power button in the upper panel and the laptop won't start unless i fiddle with the stripes on the cable with a screwdriver
    is there a way to fix it by stripping it's end like a normal cable? if not, where can i find one online?
    here are images

    [​IMG]


    [​IMG]


    [​IMG]

    mizozizo, Oct 11, 2018
    #1
  2. Kevin@GenTechPC

    Kevin@GenTechPC Company Representative

    Reputations:
    1,014
    Messages:
    8,500
    Likes Received:
    2,098
    Trophy Points:
    331
    It needs to be replaced and the best point of contact is MSI. Be careful with it next time because it is fragile.

    Kevin@GenTechPC, Oct 11, 2018
    #2
  3. mizozizo

    mizozizo Notebook Enthusiast

    Reputations:
    0
    Messages:
    29
    Likes Received:
    3
    Trophy Points:
    6
    there's no contact point in my country not there's a service center for msi . can you pint out somewhere online i can buy that cable from please ?

    mizozizo, Oct 11, 2018
    #3
  4. t456

    t456 1977-09-05, 12:56:00 UTC

    Reputations:
    1,959
    Messages:
    2,588
    Likes Received:
    2,048
    Trophy Points:
    181
    Any generic flat ribbon cable will do. They're the same cables MSI's ODM bought when assembling the device.

    You need to measure pin pitch, length, count the pins and check whether it's 'forward' (same-side exposed) or 'reversed' (flipped). Could also check the cable for a part nr., of course; that could point to the right type.

    t456, Oct 11, 2018
    #4
