    Well while I wait for the 7970M....

    Discussion in 'MSI' started by Meaker@Sager, May 30, 2012.

  1. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    I got my new CPU today, 2820QM.

    Been optimising it ready for the 7970M:

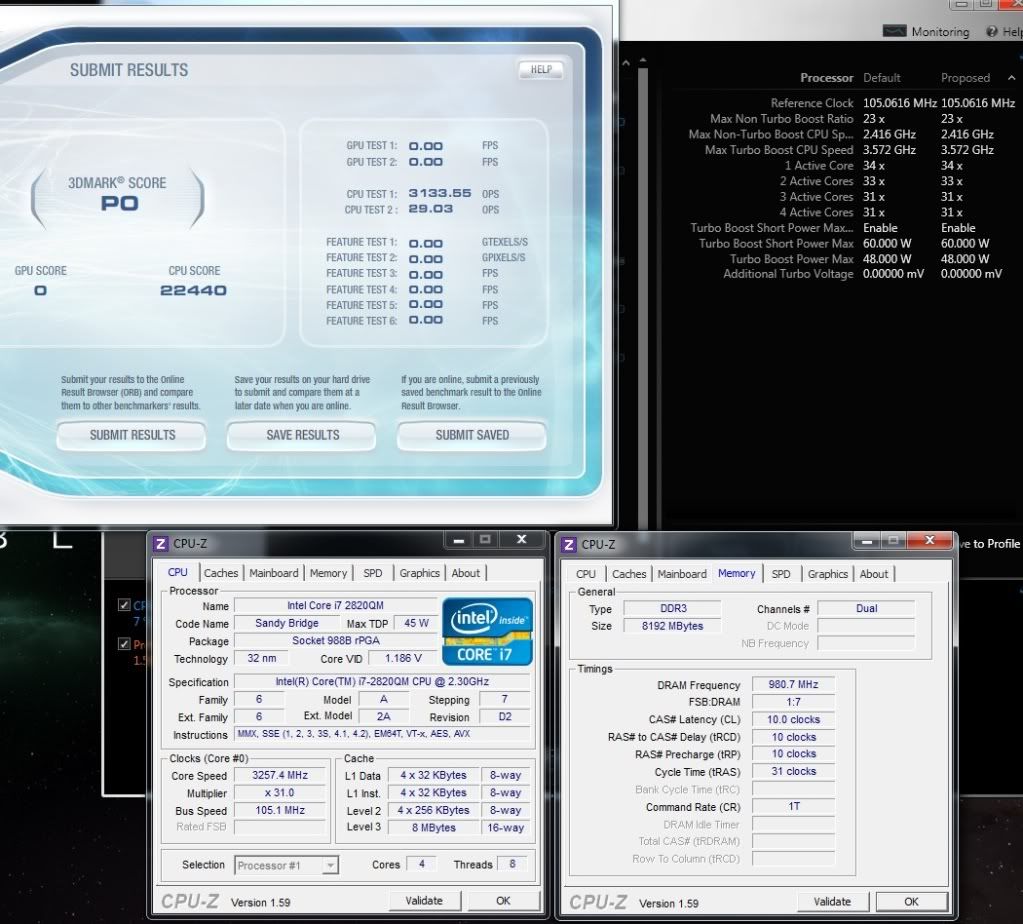

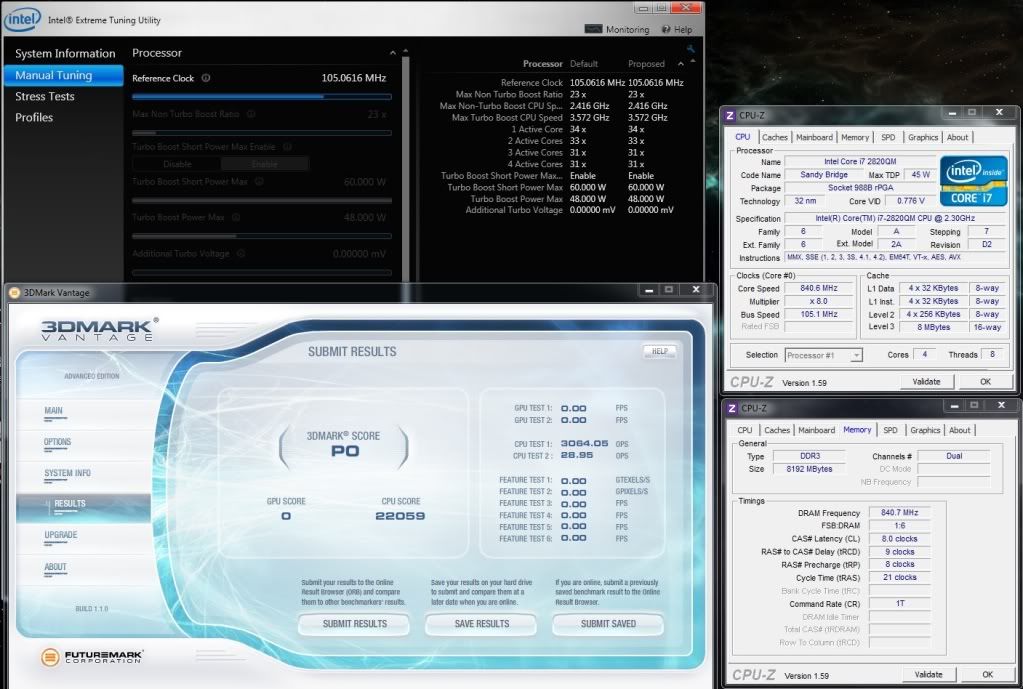

    [​IMG]

    Thoughts?

    Meaker@Sager, May 30, 2012
    #1
  2. filipcombat

    filipcombat Notebook Consultant

    Reputations:
    0
    Messages:
    151
    Likes Received:
    0
    Trophy Points:
    30
    Okey, I think I will get a 920xm to my MSI or is a 720qm enough to a 7970m?

    filipcombat, May 30, 2012
    #2
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    You can, and you can overclock that.

    Unless cash is not an issue, you might be best getting the card and comparing benchmarks to others and seeing if you need more CPU power.

    I'm doing this mostly for fun.

    Meaker@Sager, May 30, 2012
    #3
  4. pau1ow

    pau1ow Notebook Deity

    Reputations:
    1,336
    Messages:
    1,181
    Likes Received:
    84
    Trophy Points:
    66
    Wow that's great !

    Why do you have a TDP of 48 and a Short limit duration TDP of 60W (instead of 45 an 56.5W respectively) ? :p

    Can't you flash your hyperx to 1866 as well ? Impressive though ;) Much better than my 2720ES by the looks of it !

    pau1ow, May 30, 2012
    #4
  5. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    I upped the TDPs in the bios. I tried 1866mhz but the ram was not co-operating so I decided to tighten it up at 1600mhz. I've modified most of the sub timings too.

    Meaker@Sager, May 30, 2012
    #5
  6. pau1ow

    pau1ow Notebook Deity

    Reputations:
    1,336
    Messages:
    1,181
    Likes Received:
    84
    Trophy Points:
    66
    How did you up the TDP ??? I wasnt aware of that ! What bios do you use (don't tell me still the 1st unlocked one lol) and where is that option matey ! (also I suppose you can't increase is as much as you want :))

    pau1ow, May 30, 2012
    #6
  7. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    305, and no, that's as high as i can make it go. Second page at the bottom. 0 = default

    Meaker@Sager, May 30, 2012
    #7
  8. Mr_Mysterious

    Mr_Mysterious Like...duuuuuude

    Reputations:
    1,552
    Messages:
    2,383
    Likes Received:
    15
    Trophy Points:
    56
    Wait...how and why would you optimize a CPU for a GPU?

    Mr. Mysterious

    Mr_Mysterious, May 30, 2012
    #8
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    Because i get the most out of my system and the gpu deserves a good cpu.

    Meaker@Sager, May 30, 2012
    #9
  10. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    More bandwidth sir?

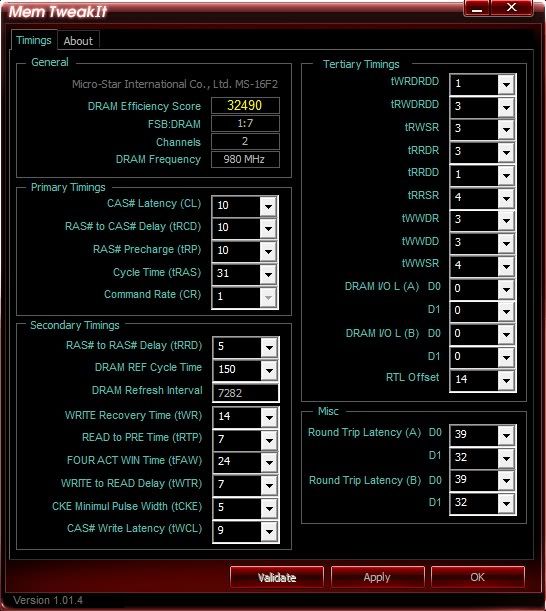

    [​IMG]

    No Jeeves, I have quite enough.

    Meaker@Sager, May 31, 2012
    #10
  11. pau1ow

    pau1ow Notebook Deity

    Reputations:
    1,336
    Messages:
    1,181
    Likes Received:
    84
    Trophy Points:
    66
    LOL how did you do that againnn ?

    Which spd have you flashed ? (looks like the Corsair 1866 CL10 but it wasnt stable for me and Geo - the HyperX 1866 CL11 is though)

    pau1ow, May 31, 2012
    #11
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    2133k profile forced to run at 1866mhz.

    This was added to the kingston 1866mhz profile.

    Yes 2133 boots at cl12 but I can't then increase the base clock lol.

    [​IMG]

    Meaker@Sager, May 31, 2012
    #12
  13. pau1ow

    pau1ow Notebook Deity

    Reputations:
    1,336
    Messages:
    1,181
    Likes Received:
    84
    Trophy Points:
    66
    Would you mind providing me the link for this spd ?

    Did you just force on the BIOS (XMP 1866) then ?

    pau1ow, May 31, 2012
    #13
  14. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    Its one of the standard spds listed in the editor under DDR3 speed bins. I used the "improved kingston 1866mhz" as a base.

    I've attached the final result.

    I am not using XMP for this, XMP off and then selecting 1866mhz under the bios.


    Attached Files:

    Meaker@Sager, May 31, 2012
    #14
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    Awww drat, it failed a intel burn test run :(

    I've moved to 11-11-11-31 and it never fails.

    Meaker@Sager, May 31, 2012
    #15
  16. hizzaah

    hizzaah Notebook Virtuoso

    Reputations:
    1,672
    Messages:
    2,418
    Likes Received:
    289
    Trophy Points:
    101
    Wow, that's awesome! When are you expecting your 7970M?

    hizzaah, May 31, 2012
    #16
  17. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    End of next week, getting a Dell card now.

    Going to be testing it on a 2 heatpipe heatsink with some extra copper attached, then a 3 heatpipe version if I run into issues.

    Meaker@Sager, Jun 1, 2012
    #17
  18. hizzaah

    hizzaah Notebook Virtuoso

    Reputations:
    1,672
    Messages:
    2,418
    Likes Received:
    289
    Trophy Points:
    101
    Pics of the heatsinks? You just reusing older ones? Can't imagine the dell one would fit in the machine. Assuming it comes with one that is.. I'd imagine there wouldn't be a problem as the 7970M seems to run a bit cooler than previous high end cards which is good.

    hizzaah, Jun 1, 2012
    #18
  19. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    Look up the 7970M heatsink mod project thread for details. Its here under the MSI forum.

    Meaker@Sager, Jun 1, 2012
    #19
  20. pau1ow

    pau1ow Notebook Deity

    Reputations:
    1,336
    Messages:
    1,181
    Likes Received:
    84
    Trophy Points:
    66
    Even though that's in French, you'll be able to see the key points which are installation (heatsink mod), temps and few benchmarks:
    P4G / [REVIEW] ATI HD7970M + Medion X6813

    This card runs pretty cool indeed - a 150W PSU should also do the job.

    pau1ow, Jun 1, 2012
    #20
  21. micahmatthew

    micahmatthew Notebook Deity

    Reputations:
    98
    Messages:
    766
    Likes Received:
    0
    Trophy Points:
    30
    Isn't a Ivy Bridge 3610 plenty for the 7970m though? From what I've seen the CPU is almost NEVER a bottleneck on the GPU; the CPU could even be dual core and run pretty much anything maxed out in 90% of cases.

    It is good to squeeze the most from your CPU though; I mean why not :p

    micahmatthew, Jun 2, 2012
    #21
  22. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    Well i have a 2820qm. Optimising the cpu/mem will help raise minimum frame rates.

    Meaker@Sager, Jun 2, 2012
    #22
  23. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,200
    Likes Received:
    17,914
    Trophy Points:
    931
    Tweaking complete and stability tested:

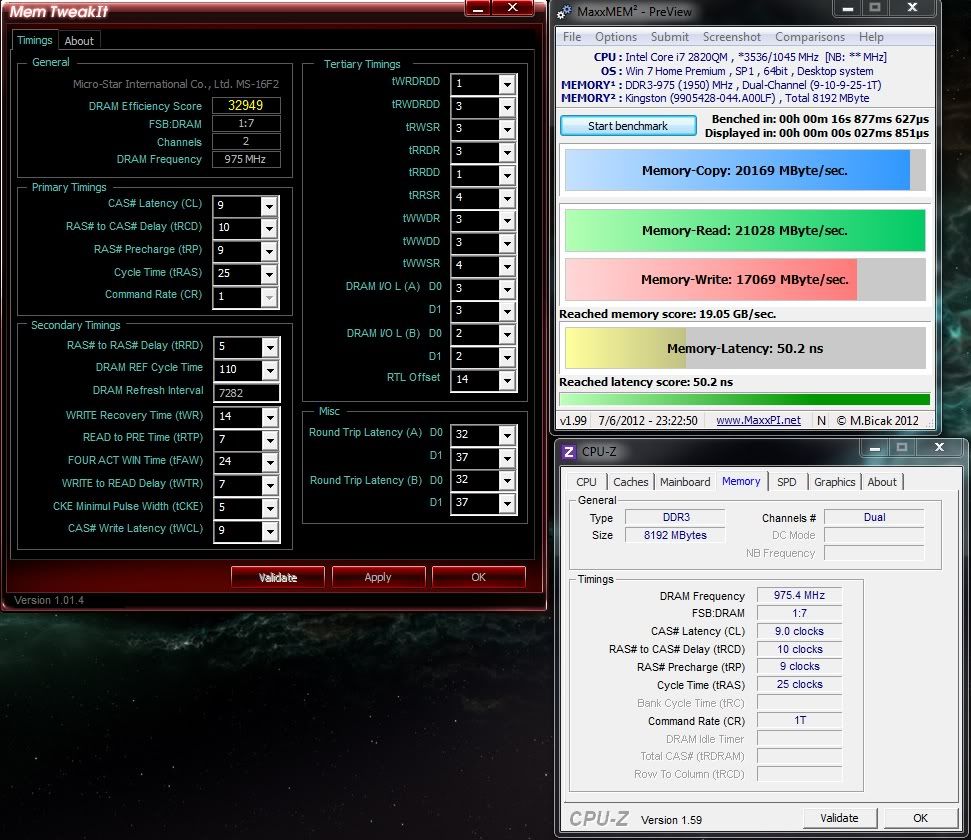

    [​IMG]
