Unleashed. 16F2 now with 2720QM.

2720QM came today.

First benchmarks: (All done at game stable 900/1800/3600)

3dmark 11:

NVIDIA GeForce GTX 560M video card benchmark result - Intel Core i7-2720QM Processor,Micro-Star International Co., Ltd. MS-16F2 score: P2393 3DMarks

3dmark vantage:

NVIDIA GeForce GTX 560M video card benchmark result - Intel Core i7-2720QM Processor,Micro-Star International Co., Ltd. MS-16F2 score: P11128 3DMarks

3dmark 06:

NVIDIA GeForce GTX 560M video card benchmark result - Intel Core i7-2720QM Processor,Micro-Star International Co., Ltd. MS-16F2 score: 18023 3DMarks



My congrats!! Pretty nice scores you have there! So, the project is complete?



My projects are never REALLY complete.

I would love a pair of 128GB SSDs in raid 0, but that's going to be a LONG way off lol.

I do have a choice however:

Run with 8GB of 1600mhz 9-9-9-27

or

Run with 12GB of 1066mhz 5-5-5-18

Hmz.



I'd run 8Gb of of 1600Mhz. IMO you will never use all 8GB, not speaking of 12Gb. But 1600MHz will give you nice performance boost.



Ah but the latencies per clock are lower at 1066mhz. I will have to run some tests.



Hey Meaker, how easily do you think the GPU could be upgraded in this model? I'm still sad that there aren't any plans for the 16F2 to get the Geforce 570m (officially at least), whereas its flashier cousin the GX680 series is getting it.

I wonder what's the most powerful GPU it could handle?



Well the GPU heatsink might need a little modding (though the 5870 heatsink from the GX660 fits easier or so I hear) but the performance of the cooler seems to have room.

I think the performance of the current card is fine however and that I wont be looking at an upgrade until the next gen arrives.



i still dont understand why some 1 yr younger laptops performs worse in games than mine gx740 and they cost twice as much.... somebody explain ?



I doubt mine cost twice as much.

I have the advantage of battery life and CPU power.



Oh and sorry I used the wrong drivers:

NVIDIA GeForce GTX 560M video card benchmark result - Intel Core i7-2720QM Processor,Micro-Star International Co., Ltd. MS-16F2 score: P2619 3DMarks

So actually I am a couple of points ahead.



Its a gaming laptops lets see some games <.<



yes and you oced your 560m more...but you have lost in most gfx tests anyway do you want me to run 3dmark with my cpu at 3.33ghz @ all 4 cores ?
ATI Mobility Radeon HD 5870 video card benchmark result - Intel Core i7-950 Processor,MICRO-STAR INTERNATIONAL CO., LTD MS-1727 score: P2601 3DMarks

in this moment you have throwed the glove before me haha



Hah, my 2720QM stays locked at 3ghz on all 4 cores You are going to have to go further with yours to get near that.

As for games benchmarks, this is true, I shall have to come back to that tomorrow



cant wait

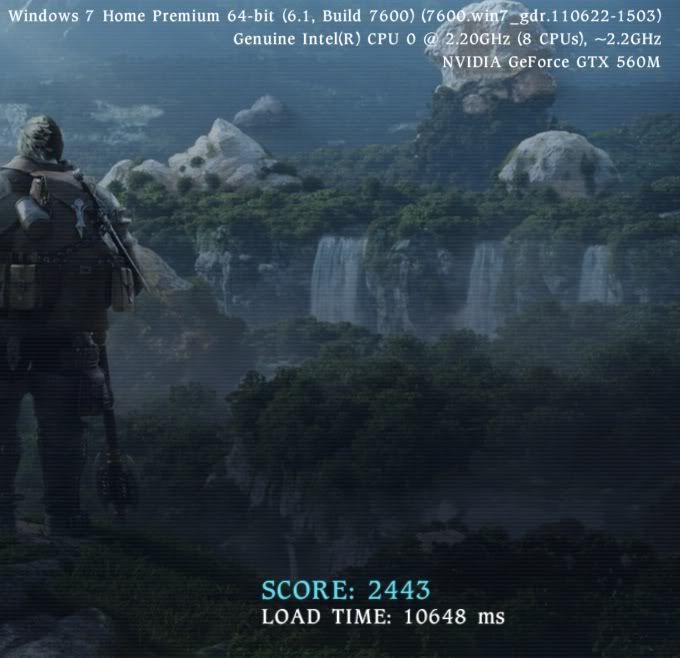

final fantasy XIV bench (1080p)

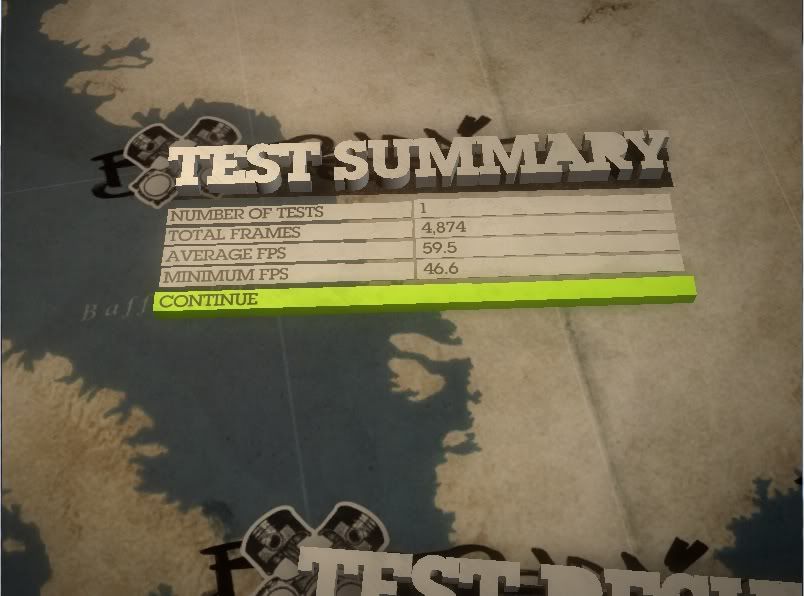

Dirt2 (1080p, no AA, ultra details)



What drivers did you switch to?



Are you kidding me?
You have the advantage of
-LED LCD technology
-Newer 16:9 aspect ratio
-Better cooling in a smaller chassis
-Better overall chassis strength
-2nd HDD + ODD
-4 ram slots?

-FUNCTIONAL hinges.

LOL



Latest from laptopvideo2go.

Lol Niff, I was being nice



I have noticed your sig. Welcome to the club!



Tim4, did you swap the GFX in yours?



Yep! I really like my 5870.



Has anyone tried running with 16GB RAM and turning of file swap in WIN 7 ? Let the RAM do the job it's suppose to and use all the RAM available in this unit?



http://3dmark.com/3dm11/1738497;jse...11/1738497?key=5EEHH8DqeAAd4sukdR5jwzxKdfL9H4

CPU stock settings. I don't understand why it doesn't recognize my CPU.

Max GPU temp with fan on 61C.

The reason why I can't justify upgrading to anything new from MSI. Feel like I need a 6990m or 580m.



Well there are advantages in heat and battery life, just not performance.

Can't wait to see if it's easy to add a card from the next gen in.



I'd say the biggest advantage is in the heat of the CPU, besides that my laptop stays nice and cool. My 920xm games in the mid to high 70s. The improve battery life is nice, but not necessary for me yet since it sits on my desk all day connected to a power supply. That might change for me soon, and I will be looking for some better battery life.

Better score --->>>

ATI Mobility Radeon HD 5870 video card benchmark result - Intel Core i7-950 Processor,Micro-Star International MS-16F1 score: P2647 3DMarks



Oh and I still get a higher CPU score lol.



Can the 2720 OC? What speed are you running it at?



No it can't.

It runs:

3.3ghz (1 thread)
3.2ghz (2 threads)
3.0ghz (4-8 threads)

It only goes below 3ghz when power saving or running a silly load like lin-X, though being an ES it seems it's 8 thread turbo speed may be higher than the normal version (plus I have the full 8MB of cache).



Hi guys,

I would like to upgrade my CPU as well for an i7 (currently have a i5-2410m) but I am concerned by the difficulty to replace it. I have a Medion X6813, HM67 chipset which I think could easily fit a 2720 up to 2920xm ES from Ebay.

Is this task straight forward ? What advices would you give me ?
(I might open a thread for that)

Meaker,
What CPU did you have at first ?

Where did you get this 2720qm ES from ? For how much ?


Medion X6813 - i5-2410m - 2x2go Hyundai@1333 - GTX460m@830/1640 v285.27 - M4 128go SSD



The machine was a barebone, but I installed a 2310M as a temp before.

It's easier than a desktop a awkward cooler. Look up a guide.

I got it off ebay for around £115.



Wow really quick answer!

I'm quite lucky as you have exactly the same model as mine, just Medion supplied it.

You have Intel HM67 or 65 tho ?

I already replaced the HDD->SSD but I think replacing CPU is a bit more difficult.
Tried to look up for some guides but couldnt fine one any where.

Have you done it on your own without looking at some guide or tutorial ?

Thanks bud!

Medion X6813 - i5-2410m - 2x2go Hyundai@1333 CL9 - GTX460m@830/1640 v285.27 - M4 128go SSD



Mine is HM67.

Well you know how to open the hatch then.

Make sure you have some decent thermal paste (I recommend arctic silver MX-4)

Just remove the fan cable and screw holding down the fan (right in the corner) and take the fan out. Remove the 3 screws holding down the heatsink, lift it up to an angle and then pull it out.

Turn the lock on the socket to release the CPU and take it out, pop the new one in and turn the lock back on (very important to remember that).

Clean your heatsink and apply a very small (grain of rice) sized blob on the CPU of thermal paste.

Put the heatsink back in the reverse of the actions to take it out. Screw the screws in the order they are listed, half of 1, half of 2, half of 3, finish screwing 1, then 2 then 3 (better contact if you do half of each first).



Thank you very much !

Will try that when get the new CPU !

Btw, you get the ES version, on CPU-Z, what is it shown 1st and 5th line ?
From what I read in this thread, it seems your 2720qm is quite great.

Any 3dmark 2006 or other benchs tests?

Medion X6813 - HM67 - i5-2410m - 2x2go Hyundai@1333 CL9 - GTX460m@830/1640 v285.27 - M4 128go SSD



You need to read the first post, there are a few other benchmarks too.



Just had a look at your 3dmark scores and was wondering about your 560m overclock: what is your voltage ? 0.95V? How hot do you get at the maximum after playin games ? If you could post your GPU-Z it would be helpful !

Thanks

X6813/16F2 - HM67 - i5-2410m - 2x2go Hyundai@1333 CL9 - GTX460m@830/1660/1660 v285.27 - M4 Crucial 128Go SSD



GTX560M default voltage is 1V (part of why it clocks higher than the 460M)

I have since found 900/1800/1800(3600) is not quite stable for games (no crashing but some artifacts) so have dropped to 875/1750/1800(3600)

It does however run furmark fine at 900 core clocks though, so just goes to show you need to test several apps to be sure. My sample is a little poor compared to others, though I have no idea how much stability testing they have done. My max temps in furmark are the very low 80s.



Haha, can't wait to get my 920xm to challenge you At least my HD5870m is still flexing it's muscles, despite my puny CPU so when I get my new cpu I shall OC even further to break the 10K vantage GPU score haha.

And those are very nice speeds for the 2720, I thought it had lower speeds than what you got, so you have quite a beast!

And didn't you buy an HD5870m or something like that, that could be OCd a lot?



I did but it was DOA

My 2720QM is an ES, it has the full 8MB of cache and stays at 3ghz even up to 8 threads!



hey do you keep your score with the stock CPU? I just want to see the gap between the stock one and the ES 2720QM



Awesome, I know ES CPUs have different specifications so at least you got a powerful version. I thought there were still a couple of issues with current ES cpus, like bugs etc.

at any rate, 3ghz quad core with full 8MB cache is a great thing. Let's see if I can compete with my (hopefully soon) 920xm.



There will be a bug or two, but they are not likely to be show stoppers and it's not doing any important work.

I am just slightly sad my 560M does not clock better....

I did not have a stock CPU since my unit is a barebones. I had a 2310M for a little while but comparisons with it are a bit unfair.



Oh my bad, i was under the impression that your laptop come stock with a 2630QM



Sure the bugs aren't really that important specially since this isn't a cpu that will run 24/7 with nuclear missile calculations haha.

And your 560m clocks well enough, you have 900mhz core from 775mhz stock right? That's good. You basically mached my 900mhz scores of my HD5870m!



I have to drop it to 875mhz to be 100% stable.
