    Tornado F5 + Zotac 1080 + Water-cooling

    Discussion in 'MSI' started by deathwingbg, Feb 13, 2021.

  1. deathwingbg

    deathwingbg Notebook Consultant

    Reputations:
    31
    Messages:
    108
    Likes Received:
    106
    Trophy Points:
    56
    Presenting you my "almost" finished project
    Tornado F5 + Zotac 1080 + Water-cooling

    I have the Terrans Force bios by dsanke
    EC: 16L1ED61.113

    BIOS1: MSI vBios (86.04.2B.00.1B) 200W seems to work and installs drivers without inf modification, even G-Sync works. It changed the device code from 1BA0 to 1BE0. I think this one is modified.
    However it artifacts even in windows under moderate load. The colors become distorted as well. It recovers after a few seconds I suppose when it drops the voltages or loads. Probably the power stages are the problem. Tested the Prema mod BIOS ... same issues.

    BIOS2: The Zotac bios (86.04.3D.00.0D) modded 185/215W installs latest drivers 461.40...
    by modifying the .inf file and disabling signature check following this guide: https://null-src.com/posts/nvidia-notebook-driver-inf-mod/post.php
    However this vBios does not work with internal monitor and the GPU is not fully recognized.

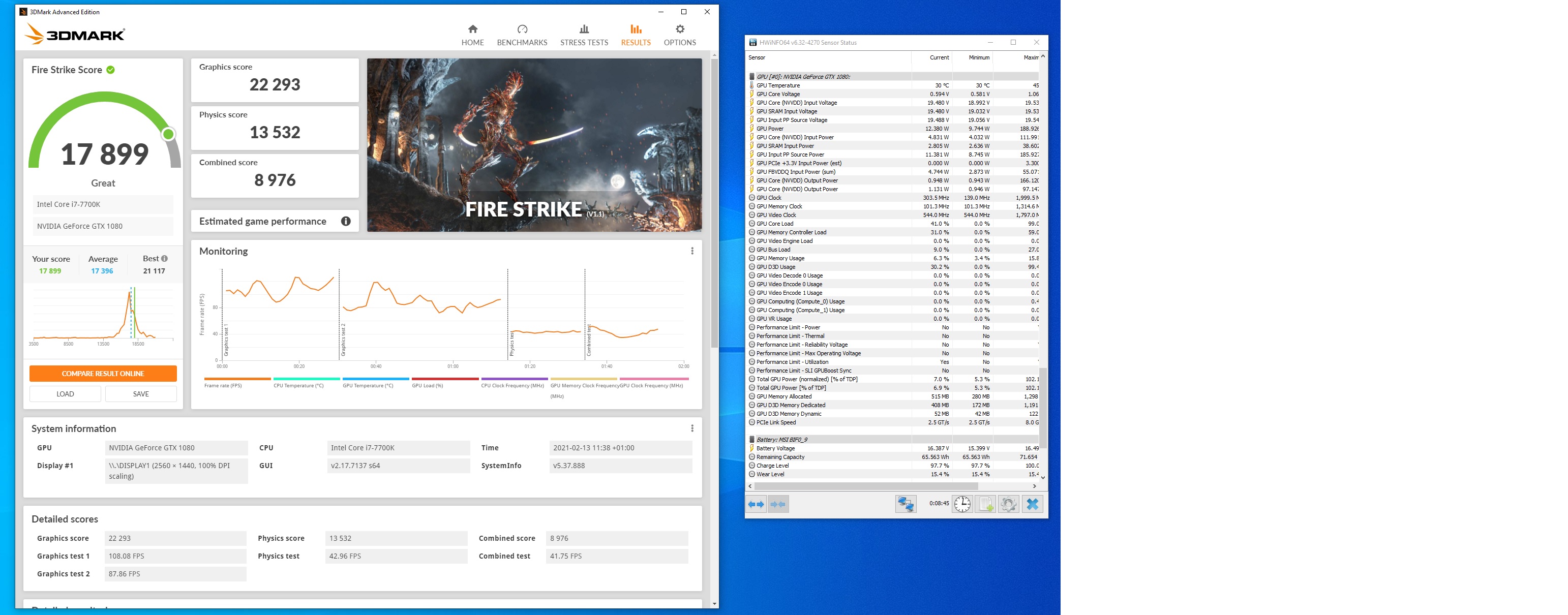

    Firestrike online results show the GPU as Unknown VGA, desktop version recognizes it.

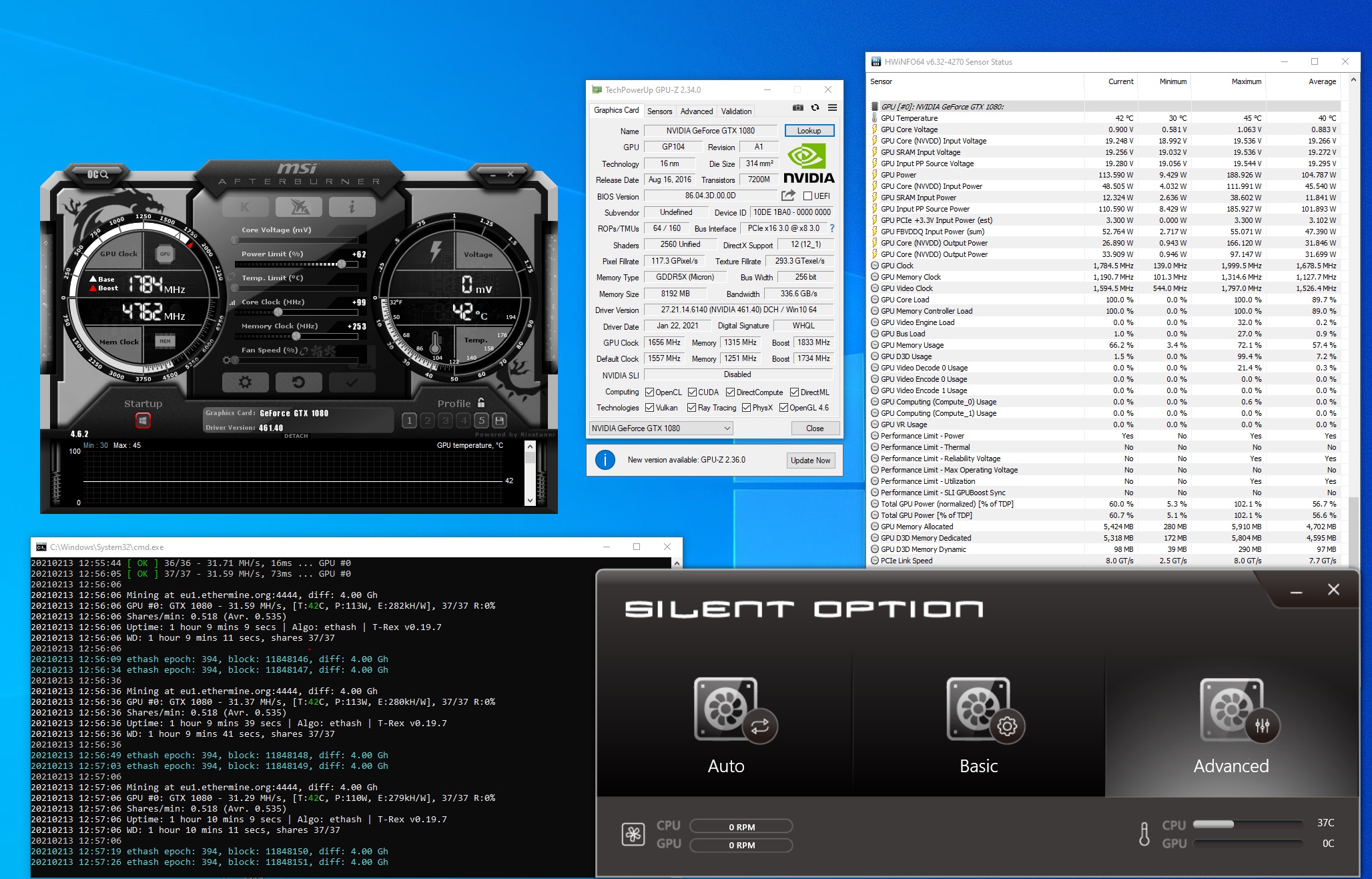

    The setup even mines Ethereum happily and silently as I sleep in the room (check screenshot). CPU is at stock settings.

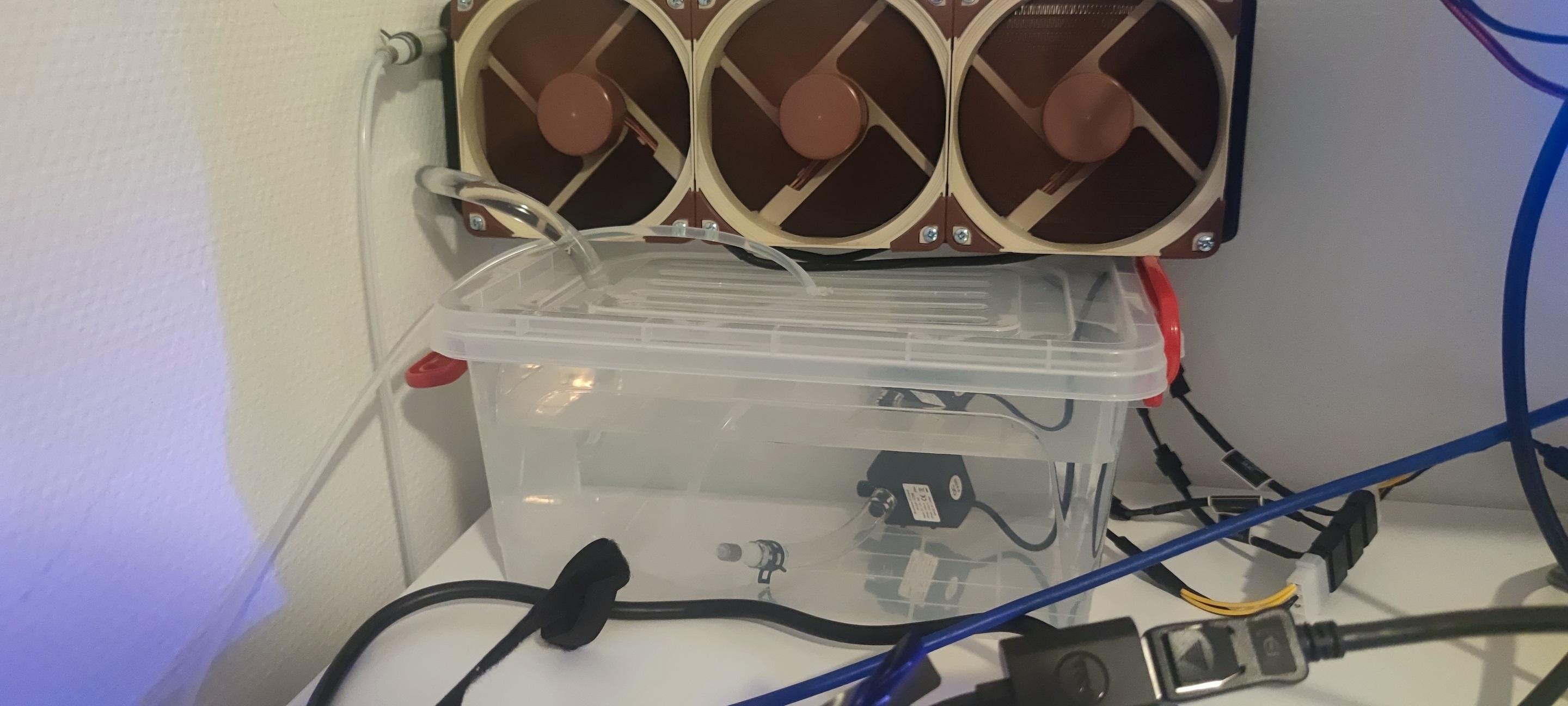

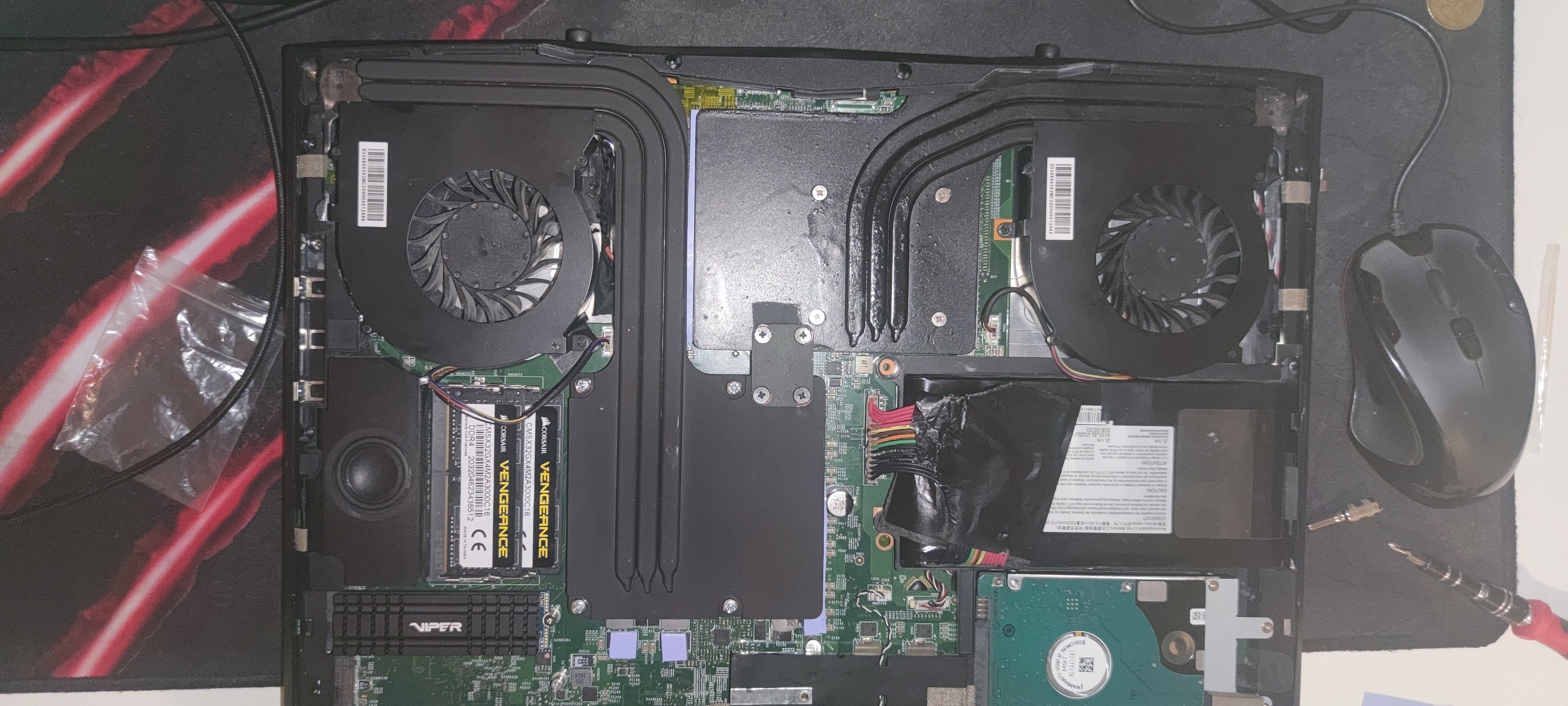

    For the water cooling I used the copper 3 heatpipe set for MSI 1070 (From taobao).
    Had to modify it to fit the Zotac 1080. Took me a long time to dremel it.

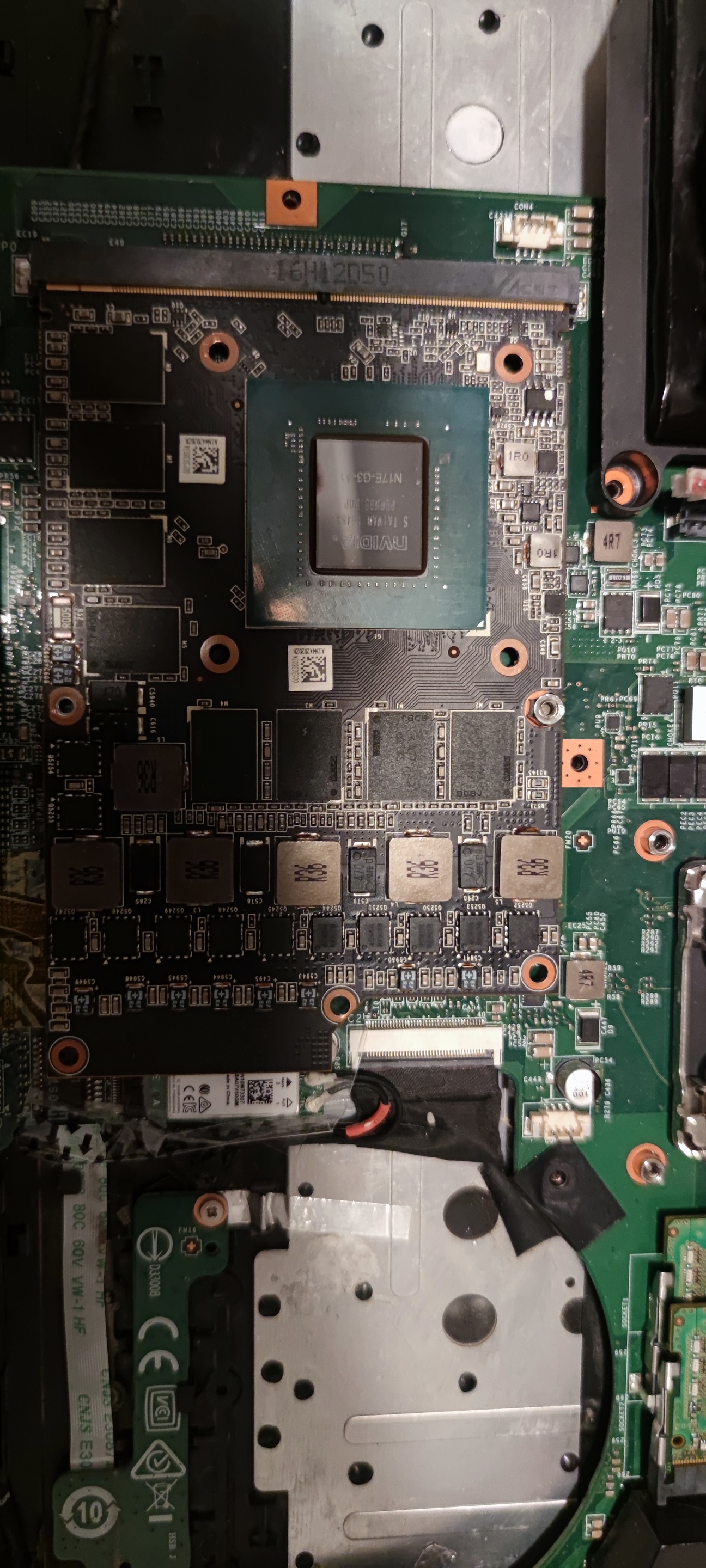

    The card fits firmly right above the Wi-fi, I don't think it bends or is under very high pressure over the wi-fi and under the heatsink.


    Attached Files:

    Last edited: Feb 16, 2021
    deathwingbg, Feb 13, 2021
    #1
    Semmy, thewizzard1 and Mr. Fox like this.
  2. Yevgeny Stalinsky

    Yevgeny Stalinsky Notebook Guru

    Reputations:
    15
    Messages:
    66
    Likes Received:
    26
    Trophy Points:
    26
    You could try to use your internal monitor with edp or lvds controller board, depends on your screen model
    purchase hdmi ribbon or tube cable, desolder the hdmi port on the control board, solder hdmi pins from the motherboard to the ribbon cable and to the control board hdmi, provide 12A to the control board from the 12A power rail from the motherboard to the controller board tuck all of that stuff nicely behind the panel and cables and you have a remote control working screen that takes signal from laptop hdmi directly to the laptop lcd and you control the brightness and stuff via a remote control, but that project will require time.

    Yevgeny Stalinsky, Feb 13, 2021
    #2
  3. TheQuentincc

    TheQuentincc Notebook Evangelist

    Reputations:
    86
    Messages:
    683
    Likes Received:
    222
    Trophy Points:
    56
    Do you have error in OCCT GPU memtest using MSI vbios ?

    TheQuentincc, Feb 21, 2021
    #3
  4. deathwingbg

    deathwingbg Notebook Consultant

    Reputations:
    31
    Messages:
    108
    Likes Received:
    106
    Trophy Points:
    56
    That I do not know but most probably I will :)
    I also suspect some issue whether with voltage at different power stages or with memory. But it is interesting that I have completed a Firestrike run once without any issues.

    deathwingbg, Feb 25, 2021
    #4
  5. nk4261

    nk4261 Notebook Guru

    Reputations:
    12
    Messages:
    58
    Likes Received:
    2
    Trophy Points:
    16
    Zotac card locked to stock VBIOS version with other show me Error 43. Only good works with optimus.

    nk4261, May 2, 2021
    #5
