    OverClocking CPU in MSI LAPTOPS AND RAM USED

    Discussion in 'MSI' started by flingin, May 19, 2011.

  1. flingin

    flingin M17x R2 Mafia

    Reputations:
    444
    Messages:
    1,173
    Likes Received:
    306
    Trophy Points:
    101
    Ram really does affect our overclocking. I have i5-430M in my GX740, on stock ram (2x2gb Asin DDR3 1333MHZcl9) i have OC'd my i5 to 3148MHz stable (168fsb) useing SetFsb.
    Tooday my new ram arrived - 2x4GB HyperX 1600MHz manuf. part number is KHX1600C9S3P1K2/8G - very nice looking....

    Straight away i tried to oc my cpu and see how it performs.

    I got a blue screen at 142Mhz bus (from 133 to 138->140->144->bluescreen)

    Dont you all think it is very wierd ? Why is that so ? is it becouse ram has pre programmed jedec's inside and they interfere with something ?
    IS it becouse My ram dont want to jump in to cl7 at fsb 144( cl7 begins from 622MHz according to jedec's) ? ant therefore - it just stops working ?

    Only gain i have right now is CL6 on stock, nothing really HUGE as i expected to OC CPU to the same 3.14GHz and benefit from quick 8GB ram. These ram is specially designed for sandy bridge, but it is backwards compatibile.

    It works nice on stock, but i want to OC, 920XM is on its way already, will see then.

    Share with me your thoughts, THX !!



    ---------------------------------------------------------------------------
    quick UPDATE- i am getting blue screens even at fsb set to 138 LOL

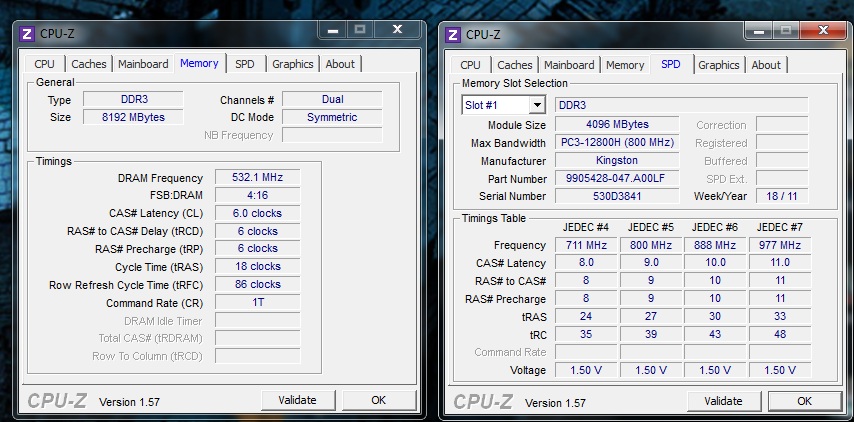

    Attached Files:

    • cpu.jpg
      File size:
      143.8 KB
      Views:
      273
    flingin, May 19, 2011
    #1
  2. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Try using thaiphoon burner to flash the SPD on the ram to change the timings.

    moral hazard, May 19, 2011
    #2
  3. Bearclaw

    Bearclaw Steaming

    Reputations:
    463
    Messages:
    1,615
    Likes Received:
    6
    Trophy Points:
    56
    The i5 doesn't even support 1600Mhz ram.

    Bearclaw, May 19, 2011
    #3
  4. AscheWandler

    AscheWandler Notebook Enthusiast

    Reputations:
    52
    Messages:
    45
    Likes Received:
    0
    Trophy Points:
    15
    i had the same prob on my 1600 Kingston...
    the old 1066 go till 158 FSB...the new ones not over 147 MHz!

    I think the controller cannot provide so much current for the 1600s

    btw 168??? wow thats high greetz :D

    AscheWandler, May 19, 2011
    #4
  5. flingin

    flingin M17x R2 Mafia

    Reputations:
    444
    Messages:
    1,173
    Likes Received:
    306
    Trophy Points:
    101
    i bought them to do some OC when my 720qm arrives, since it has 1333MHZ.

    Or should i return them and buy just normal crucial/patriot/corsair ddr3 1333mhz ram to juice more out of my new cpu ?

    flingin, May 19, 2011
    #5
  6. Linaa

    Linaa Notebook Enthusiast

    Reputations:
    0
    Messages:
    49
    Likes Received:
    0
    Trophy Points:
    15
    What are you guys using for OC CPU...?

    Linaa, Jun 10, 2011
    #6
  7. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    setpll or setfsb free version. Do some searching to find the PLL.

    niffcreature, Jun 11, 2011
    #7
  8. Linaa

    Linaa Notebook Enthusiast

    Reputations:
    0
    Messages:
    49
    Likes Received:
    0
    Trophy Points:
    15
    setfsb free version wouldn't work on my GX660, so thought you mabye were using the registred version..

    But i will try setpll

    Linaa, Jun 12, 2011
    #8
  9. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131

    920xm on it's way? Cool! But once you've installed it you'll notice that the 920xm and setFSB don't mix well at all. Throttlestop is the way to go in case you want to push a 920xm, setFSB will bring you to BSOD-heaven.

    svl7, Jun 12, 2011
    #9
  10. flingin

    flingin M17x R2 Mafia

    Reputations:
    444
    Messages:
    1,173
    Likes Received:
    306
    Trophy Points:
    101
    Yes, i heard about it :)
    I will stick to TS then, maybe i'll just check how it works with SF but ...ye.. i dont want to be in BSOD heaven :D

    MULTIPLIER FTW !!! :D

    920xm in my hands on th 20th june :D

    flingin, Jun 12, 2011
    #10
