    New 1727 / GX740 / Medion Akoya X7811 Vbios ! PowerPlay, Overdrive, etc. all working

    Discussion in 'MSI' started by Danteleet, Jun 21, 2010.

  1. Danteleet

    Danteleet Notebook Geek

    Reputations:
    20
    Messages:
    76
    Likes Received:
    0
    Trophy Points:
    15
    USE AT YOUR OWN RISK

    This vbios was Extracted from a Medion Akoya X7811 (french edition) which is a notebook based on the same chassis as the 1727 whitebook, and the GX740, which is why I'm posting this here.

    This vbios is the most recent that you will find at the moment for the HD5870 mobility, and it works flawlessly with all the catalyst center options (powerplay, overdrive, etc.)

    Many people have tested it in germany on their X7811 since @tilla told them about it. They had no issue so far and were able to undervolt their GPU and thus gain quite a few degrees.

    My current voltage settings are 0.8V on idle and 0.95V on load. I still have to understand why on sector while idle, I'm still getting 0.9V instead of 0.8V, but I think reinstalling ccc will figure this out.

    Update : Now that it works, here's what I get :

    Idle / Sector : 405/1000 @ 0.8V
    Load / Sector : 700/1000 @ 0.95V (see furmak stability test on picture below)
    Youtube video 1080p / Sector : 500/1000 @ 0.8V
    idle / battery (power saving mode) : 300/400 @ 0.8V
    Idle / Battery (high performance mode) this is where it gets weird : 405/1000 @ 0.8V

    I will undervolt and downclock my idle settings further since I'm still idling at around 58°

    So anyways. Here's a tutorial on how to edit an ATI bios, and then how to flash it on your machine :
    techPowerUp! :: Tutorial on how to use RBE (Radeon BIOS Editor)
    This is a tutorial that will explain how to overclock, but you can undervolt just the same way.

    Here's the bios info :
    Imageshack - biosinfo.jpg

    Here's the default settings :
    Imageshack - defaultvd.jpg

    And my current settings :
    Imageshack - currentsettings

    4minute Furmark stability test @ 0.95V :
    Imageshack - furmark82.jpg

    1minute Furmark bench O/C to 740/1000 @ 0.95V with CCC overdrive :
    Imageshack - 7401000bench.jpg

    Pm me if you want to have this bios, I'll give you the link for it.

    If I have missed something or if you would like to have more info on this, more tests or anything, I will try my best to fix my OP :)

    Update : After uninstalling ccc and cleaning registry with ccleaner + reboot, everything is working fine. 405/1000 @ 0.8 on idle, switches to 700/1000 @ 0.95 on load (yes, without powerplay, don't ask me how !!!) and switches to 300/400 @ 0.8 on battery, still with no powerplay. I will install catalyst again and see what happens then :)

    Danteleet, Jun 21, 2010
    #1
  2. ivanmn

    ivanmn Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    5
    Where to take this vbios?thanks)

    ivanmn, Jun 22, 2010
    #2
  3. Danteleet

    Danteleet Notebook Geek

    Reputations:
    20
    Messages:
    76
    Likes Received:
    0
    Trophy Points:
    15
    I said you can pm me to have :) I'll drop you a pm

    Danteleet, Jun 22, 2010
    #3
  4. ivanmn

    ivanmn Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    5
    black screen .((((. How can I restore the old vbios? He saved on the HDD.

    ivanmn, Jun 22, 2010
    #4
  5. catacylsm

    catacylsm Notebook Prophet

    Reputations:
    423
    Messages:
    4,135
    Likes Received:
    1
    Trophy Points:
    106
    Black screen, possibly bricked? Only a blind flash may work, however does the machine even boot properly at all?

    catacylsm, Jun 22, 2010
    #5
  6. Danteleet

    Danteleet Notebook Geek

    Reputations:
    20
    Messages:
    76
    Likes Received:
    0
    Trophy Points:
    15
    -_-
    Please tell us more about what you did and what happened.

    Danteleet, Jun 22, 2010
    #6
  7. ivanmn

    ivanmn Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    5
    I used a blind metod.I all correct.)). DOS forever !!!!). Thanks too all.Sorry for my english.Im from Russia.

    ivanmn, Jun 22, 2010
    #7
  8. ivanmn

    ivanmn Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    5
    Thx Thx im so haPPy.

    ivanmn, Jun 22, 2010
    #8
  9. catacylsm

    catacylsm Notebook Prophet

    Reputations:
    423
    Messages:
    4,135
    Likes Received:
    1
    Trophy Points:
    106
    Good job with the fix, nice to see the machine running good again.

    Good post OP..

    catacylsm, Jun 23, 2010
    #9
  10. Danteleet

    Danteleet Notebook Geek

    Reputations:
    20
    Messages:
    76
    Likes Received:
    0
    Trophy Points:
    15
    Ty =)
    Not getting much feedback but heh, maybe you guys don't need it after all.
    I should update with my new current settings when I get some time, currently running O/C to 740/1100 stable, I'm pretty happy with that :)

    Danteleet, Jun 23, 2010
    #10
  11. @tilla

    @tilla Notebook Evangelist

    Reputations:
    321
    Messages:
    528
    Likes Received:
    1
    Trophy Points:
    31
    OK, i'm the mentioned german X7811 owner, who tried out this new vBIOS from Danteleet with fully working powerplay.
    With the old stock (voltage modded) we had to switch the clocks manually.

    At first, powerplay works flawlessly and the clocks (8 different clocksettings!) are switching without flickering or any other issues.
    It's maybe the same source of the new GX640 vbios (Br35701.030).
    Remember the biosdate! (04/23 to 06/04)

    I'm gotten to the following settings:
    [​IMG]

    Info to clocks:
    00: 700/ 1000 3D (game)
    01: 100/ 150 2D (low)
    02: 500/ 1000 2D (high load, e.g. resize window)
    03: 300/ 400 UVD (Avivo hardware accel., e.g. youtube)
    04: max. batt. idle
    05: max. batt. load ???
    06: max. batt. 3D ???
    07: ?

    I've done some tests, posted it at nbj, but want to tell it here also.
    At the moment i haven't modded anything but the voltage and some clockrates. No nb cooler here.
    A backcover mod would be my next task. ;)

    100/ 150 @0,7V 46°C idle (flat table) -> fan lowest step!
    100/ 150 @0,7V 45°C idle (slightly jacked up) -> fan lowest step!
    100/ 150 @0,8V 48°C Idle (flat table, short test at 24°C ambient)

    300/ 400 @0,75V (UVD) 50°C youtube 1080p fullscreen (Call of Duty 5 WaW gameplay 9:05)

    700/1000 @0,95V 89°C furmark 1680x1050 FS PostFX 5 min (flat table)
    gpu tool comparison
    TSS_0 84,0 °C
    TSS_1 89,5 °C -> memIO
    TSS_2 84,5 °C

    shortly after:
    700/1000 @0,95V 88°C furmark 1680x1050 FS PostFX 5 min (flat table) >>> Catalyst A.I. disabled!
    shortly after (preheated :)):
    700/1000 @0,95V 87°C furmark 1680x1050 FS PostFX 5 min (slightly jacked up) >>> Catalyst A.I. disabled!
    gpu tool comparison
    TSS_0 81,5 °C
    TSS_1 87,0 °C -> memIO
    TSS_2 82,0 °C

    Next test will be the possible increased battery life with this setting.

    @Danteleet
    Again, thank you for this.

    Last edited by a moderator: May 8, 2015
    @tilla, Jun 23, 2010
    #11
  12. VlOXX

    VlOXX Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Please can you send the bios to me.

    VlOXX, Jun 27, 2010
    #12
  13. Danteleet

    Danteleet Notebook Geek

    Reputations:
    20
    Messages:
    76
    Likes Received:
    0
    Trophy Points:
    15
    I can't send you a private message yet. You don't have enough posts =)

    Danteleet, Jun 27, 2010
    #13
  14. tobias_r33per

    tobias_r33per Notebook Geek

    Reputations:
    1
    Messages:
    77
    Likes Received:
    0
    Trophy Points:
    15
    i would love to take a look at this, can you PM it?

    tobias_r33per, Jun 29, 2010
    #14
  15. Danteleet

    Danteleet Notebook Geek

    Reputations:
    20
    Messages:
    76
    Likes Received:
    0
    Trophy Points:
    15
    You've got mail ;) Be careful with it :)

    Danteleet, Jun 29, 2010
    #15
  16. tobias_r33per

    tobias_r33per Notebook Geek

    Reputations:
    1
    Messages:
    77
    Likes Received:
    0
    Trophy Points:
    15
    it is with great power comes great responsibility isn't it :p

    tobias_r33per, Jun 29, 2010
    #16
  17. emolitor

    emolitor Notebook Enthusiast

    Reputations:
    24
    Messages:
    39
    Likes Received:
    0
    Trophy Points:
    15
    How does this differ from the official July 2nd 2010 vBIOS updated located on the MSI Global Website?

    emolitor, Jul 29, 2010
    #17
  18. Ghola

    Ghola Notebook Evangelist

    Reputations:
    35
    Messages:
    395
    Likes Received:
    0
    Trophy Points:
    30
    this one doesn't send subliminal msgs to kill your family, i really should have uninstalled the MSI Global Website's bios earlier......

    Ghola, Jul 30, 2010
    #18
  19. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    is anyone able to over clock the cpu on this model?

    Johnksss, Aug 11, 2010
    #19
  20. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,836
    Likes Received:
    583
    Trophy Points:
    131
    not that I know of, Asus/Alienware are the only ones that work

    Zero989, Aug 11, 2010
    #20
  21. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    Johnksss, Aug 11, 2010
    #21
  22. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,836
    Likes Received:
    583
    Trophy Points:
    131
    where is that picture from?

    Zero989, Aug 11, 2010
    #22
  23. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    Johnksss, Aug 11, 2010
    #23
  24. barnabe619

    barnabe619 Notebook Geek

    Reputations:
    0
    Messages:
    97
    Likes Received:
    0
    Trophy Points:
    15
    Overclock is possible in russian version ?

    barnabe619, Aug 11, 2010
    #24
  25. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    it sure looks like it...and im pretty sure...that pll is the exact same one in the english version.
    but the bios....i have no clue

    Johnksss, Aug 11, 2010
    #25
  26. souvak

    souvak Notebook Guru

    Reputations:
    0
    Messages:
    67
    Likes Received:
    0
    Trophy Points:
    15
    Intense...

    souvak, Aug 11, 2010
    #26
  27. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    indeed!

    so im thinking....
    you guys are over here slackingggggggggggggggggg!
    time to pick it up!
    lol

    just kidding!

    but seriously, you really do...lol

    Johnksss, Aug 11, 2010
    #27
  28. barnabe619

    barnabe619 Notebook Geek

    Reputations:
    0
    Messages:
    97
    Likes Received:
    0
    Trophy Points:
    15
    barnabe619, Aug 12, 2010
    #28
  29. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    yep. found that out about an hour ago.

    have you tried the pll with setfsb yet?

    Johnksss, Aug 12, 2010
    #29
  30. barnabe619

    barnabe619 Notebook Geek

    Reputations:
    0
    Messages:
    97
    Likes Received:
    0
    Trophy Points:
    15
    yes but it didn't worked. (I have the gx640 so that's maybe why it don't work)

    barnabe619, Aug 12, 2010
    #30
  31. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,836
    Likes Received:
    583
    Trophy Points:
    131
    Updating information 7/27/2010[Tuesday]

    7/27/2010 - SetFSB information : Included MSI MegaBook X340(ICS9LPRS113AKLF), Packard Bell TJ-75("ASUS N61JQ").

    this was added on the day of StarCraft 2's release.

    I can confirm that it works though:

    CPU-Z Validator 3.1

    3dmark 06 went up by 400 points :)

    Zero989, Aug 12, 2010
    #31
  32. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    now your talking!!!
    so it works on yours
    can you try like 145 to 150?
    just to see if it takes??

    Johnksss, Aug 12, 2010
    #32
  33. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,836
    Likes Received:
    583
    Trophy Points:
    131
    it crashed @ 3050Mhz, blue screen. I'm not sure if it's ram or cpu voltage.

    Zero989, Aug 12, 2010
    #33
  34. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    probably cpu voltage....darn!

    Johnksss, Aug 12, 2010
    #34
  35. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,836
    Likes Received:
    583
    Trophy Points:
    131
    146FSB stable aka 1.9Ghz on all four cores!

    I ran intel cpu burn test utility and it passed 5 runs, the highest temperature was 86c. No game will ever put that much stress. I'm happy now :).

    Zero989, Aug 12, 2010
    #35
  36. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    146 huh?
    now
    have you downloaded throttle stop?
    http://www.softpedia.com/get/System/Benchmarks/ThrottleStop.shtml
    and can you go any higher...you dont need to bench or run anything. all your doing is trying to find the highest bclk

    reason im asking is..im stuck between a few computers, but i need one that over clocks fairly decent.
    thanks

    Johnksss, Aug 12, 2010
    #36
  37. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,836
    Likes Received:
    583
    Trophy Points:
    131
    Zero989, Aug 12, 2010
    #37
  38. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    1: to stop your cpu from throttling
    2: to raise the watts to your cpu
    3: to raise the amps
    and a few other things....

    or you can reverse it to lower temps...

    Johnksss, Aug 12, 2010
    #38
  39. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,836
    Likes Received:
    583
    Trophy Points:
    131
    TDP and AMPS are greyed out, oh well.

    Zero989, Aug 13, 2010
    #39
  40. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931

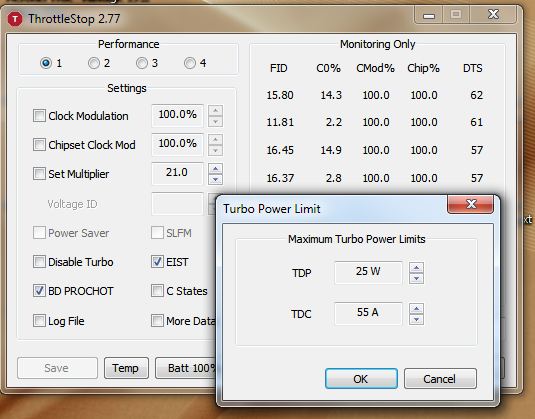

    dang!
    cant win for loosing...grrrrrrrr!
    mine dont change on this laptop either. they aren't grayed out, but the settings dont change.


    Attached Files:

    Johnksss, Aug 13, 2010
    #40
  41. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,836
    Likes Received:
    583
    Trophy Points:
    131
    I can however reach 4,000 marks on the FF XIV benchmark @ 720P :D.

    720QM @ 1.9Ghz & ATI 5870 @ 850/1040 (hit 81c)

    For some reason my core can overclock extremely high (the memory severely sucks :(), and I'm still testing, I think it can go higher. I'm also still using the latest BIOS which undervolts the card. I bet I can do over 900 w/ 1.1v.


    EDIT:

    bios max is 860... MSI :mad: :mad: :mad:

    edit nm, I enabled unofficial overclocking in the AfterBurner config file. I can now pass 860Mhz.

    Zero989, Aug 13, 2010
    #41
  42. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,462
    Likes Received:
    12,847
    Trophy Points:
    931
    great job zero!!

    Johnksss, Aug 13, 2010
    #42
  43. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,836
    Likes Received:
    583
    Trophy Points:
    131
    Zero989, Aug 17, 2010
    #43
  44. mikmak

    mikmak Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    sorry danteleet, I can t figure how to send you a pm :)
    how is it possible guys?
    thanks

    mikmak, Mar 17, 2011
    #44
  45. mikmak

    mikmak Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    guys, someone of you can upload this bios on the techpowerup site?
    thanks!

    mikmak, Mar 17, 2011
    #45
  46. Danteleet

    Danteleet Notebook Geek

    Reputations:
    20
    Messages:
    76
    Likes Received:
    0
    Trophy Points:
    15
    Has anyone ever found newer versions for this vbios ?

    Danteleet, Jul 26, 2011
    #46
  47. sasa123

    sasa123 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    what resolution have you ? 1440 x 900 or 1650 x 1080? i have the first, with 1440x 900, and i need vbios 5870m, can send it to me? my email is [email protected], thanks :) i m sorry for bad english .

    sasa123, Jun 7, 2013
    #47
  48. piotr2000

    piotr2000 Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    I have the 1st Gen Akoya X7811 with a Vertex 2 SSD & 8 GB 1333 Mhz ram and 1440x900 screen. Could you send the VBios to [email protected]
    Thank you

    piotr2000, Jan 21, 2014
    #48
  49. Goschi

    Goschi Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Hi, I flashed the NB EC Firmware from the msi gx740 too -.-, can anyone tell me how I cen get an original file from medion?

    Goschi, Jun 13, 2014
    #49
