MSI S12T Owners' Lounge

MSI S12T
Now selling in the US and overseas etailers. Take caution where you purchase from.

http://www.valleyseek.com/msi-micro-star-s12t-3m-006us-msi-nb-s12t-3m-006us-11-6inch-amd-a4-5000-4g-750g-w8-touch-silver-white-retail/store/show_item/369037/?source=prod_ads&gclid=CJi9ytmuyrsCFUtp7AodkiMAKg
MSI S12T 3M-006US
AMD A4-5000
750GB SATA HDD

http://www.x-kom.pl/p/164120-notebook-laptop-11-6-msi-s12t-3m-009pl-a4-5000m-4gb-128-win8.html
MSI S12T 3M-009PL
AMD A4-5000
128GB SATA SSD
Backlit Keyboard?!

http://detail.zol.com.cn/ultrabook/index363726.shtml
MSI S12T 3M-005CN
AMD A4-5000

http://www.techbuy.com.au/p/230172/NOTEBOOKS_11.3SCREEN/MSI/S12T_3M-003_AU.asp
MSI S12T 3M-003AU
AMD E1-2100

http://m.heureka.cz/notebooky/msi-s12t-3m-010pl/
MSI S12T 3M-010PL
AMD E1-2100

http://24h.pchome.com.tw/m/prod/DHAK28-A80775948.htm
MSI S12T 3M-002TW
AMD E1-2100

http://www.stolica.ru/query/nb/msi.s12t3m016ru.htm
MSI S12T 3M-016RU
AMD E1-2100


AMD A4-5000 Specifications (cpu-world)

Spoiler

General Information
Type: CPU / Microporessor
Market Segment: Mobile
Family: AMD A4 Series for notebooks
Model number: A4-5000
CPU part number: AM5000IBJ44HM
Frequency: 1500 MHz
Package: 769-ball lidless BGA
Socket: BGA769 (FT3)
Size: 0.96" x 0.96" / 2.45cm x 2.45cm
Introduction date: May 23, 2013

Architecture / Microarchitecture
Microarchitecture: Jaguar
Processor core: Kabini
Core stepping: KB-A1
CPUID: 700F01
Manufacturing process: 0.028 micron
Data width: 64 bit
The number of cores: 4
The number of threads: 4
Floating Point Unit: Integrated
Level 1 cache size:
4 x 32 KB 2-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size:
2 MB 16-way associative shared cache
Pipeline: 16-stage
Multiprocessing: Uniprocessor
Features:
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4a
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
F16C / 16-bit Floating-Point conversion instructions
BMI1 / Bit Manipulation instructions 1
F16C / 16-bit Floating-Point conversion instructions
AMD64 / AMD 64-bit technology
VT / Virtualization technology
Low power features:
C1, CC6 and PC6 processor states
S3, S4 and S5 sleep states

Integrated peripherals / components
Integrated graphics:
GPU Type: Radeon HD 8330
Shader cores: 128
Base frequency (MHz): 500
Memory Controller:
The number of controllers: 1
Memory channels: 1
Supported memory: DDR3-1600, DDR3L-1600
DIMMs per channel: up to 2
Other peripherals:
PCI Express 2.0 interface
High Definition Audio
SD controller
USB 3.0 controller
Serial ATA 3.0 controller
LPC bus
General Purpose I/O

Electrical / Thermal parameters
Maximum operating temperature: 90°C
Thermal Design Power: 15 Watt

AMD E1-2100 Specifications (cpu-world)

Spoiler

General Information
Type: CPU / Microporessor
Market Segment: Mobile
Family: AMD E1 Series for notebooks
Model number: E1-2100
CPU part number: EM2100ICJ23HM
Frequency: 1000 MHz
Package: 769-ball lidless BGA
Socket: BGA769 (FT3)
Size: 0.96" x 0.96" / 2.45cm x 2.45cm
Introduction date: May 23, 2013

Architecture / Microarchitecture
Microarchitecture: Jaguar
Processor core: Kabini
Core stepping: KB-A1
CPUID: 700F01
Manufacturing process: 0.028 micron
Data width: 64 bit
The number of cores: 2
The number of threads: 2
Floating Point Unit: Integrated
Level 1 cache size:
2 x 32 KB 2-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size:
1 MB shared cache
Pipeline: 16-stage
Multiprocessing: Uniprocessor
Features:
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4a
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
F16C / 16-bit Floating-Point conversion instructions
BMI1 / Bit Manipulation instructions 1
F16C / 16-bit Floating-Point conversion instructions
AMD64 / AMD 64-bit technology
VT / Virtualization technology
Low power features:
C1, CC6 and PC6 processor states
S3, S4 and S5 sleep states

Integrated peripherals / components
Integrated graphics:
GPU Type: Radeon HD 8210
Shader cores: 128
Base frequency (MHz): 300
Memory Controller:
The number of controllers: 1
Memory channels: 1
Supported memory: DDR3-1333, DDR3L-1333
DIMMs per channel: up to 2
Other peripherals:
PCI Express 2.0 interface
High Definition Audio
SD controller
USB 3.0 controller
Serial ATA 3.0 controller
LPC bus
General Purpose I/O

Electrical / Thermal parameters
Maximum operating temperature: 90°C
Thermal Design Power: 9 Watt

Sent from my XT1049 using Tapatalk



Nice.... you scored the first post for it, lol.



Will you be carrying it? If so, would it be possible to find out when it would become available? Just curious.



Unfortunately, we will not be carrying this product.

Thank you for asking.



Aw shucks! Thanks again.



Looking forward to the US release as well. The A4-5000 is a must for me. I'd also greatly prefer the 500GB drive over the SSD as I already have a spare SSD and could use the extra HDD. Backlight keyboard sounds cool too.

I guess there's no update on US availability then huh?



I will provide some details later once it becomes available, but here's general spec info for your reference.
S12T Spec



Well I've been asking around and haven't heard anything from MSI as to availability in the US. I don't think we'll see it in store shelves by Christmas, unfortunately.



I contacted MSI directly through two different emails they provide on their USA website and never got a response. I don't think we'll be seeing the S12/S12T in the USA this year either.

Sent from my XT1049 using Tapatalk



It is shipping but seems like the target region varies.
I will try to ask for some images to post on here later.



That's the reaction I got as well. Pretty crappy.

I did notice that Lenovo has begun selling their x140e with an A4-5000. I think the S12T is the cooler option, though.



Thanks Kevin! Keep us posted.

Yeah MSI is not saying anything. :cry:

The Lenovo ThinkPad X140E with A4-5000 looks like a decent alternative but that $550 price tag puts me off. Lenovo is pretty good about releasing coupons and their Barnes and Noble Gold discount store usually discounts it even further. It's also heavier (probably more durable), comes with Windows 7 Professional and doesn't have touch or an mSATA port. However, ThinkPads are generally very good in terms of durability and quality and they have GREAT warranty support. It would be cool to see a head-to-head review of these two machines. I'll probably go with the MSI S12T as it has the features I really want plus its a little lighter.

Spoiler

DESCRIPTION THINKPAD X140E NOTEBOOK
Processor
AMD Quad-Core™ A4-5000 (1.5 GHz, 15W)
Operating System
Windows 7 Professional 64
Display
11.6" HD LED Anti-Glare (1366 x 762)
Graphics
AMD Radeon™ HD 8330
Memory
4.0GB PC3-12800 DDR3 SDRAM 1600 MHz
Webcam
720p HD
Storage
500GB (7200 rpm)
Dimensions (W X D X H)
11.55" x 8.50" x 1.27"
Weight
3.92 lbs with 6-cell battery
Input / Output (I / O) Ports
HDMI 1.4
2 x USB 3.0
1 x USB 2.0 (powered)
VGA, 4-in-1 card reader
RJ45 (Gigabit Ethernet port)
Optical Drive & Fingerprint Reader
NO
Audio
Dolby® Advanced Audio™ v2
Keyboard
Island style ThinkPad® Precision Keyboard
Battery
6-Cell 63 Whr – 1-year Warranty
Battery Life
8.5 hours
Ethernet
Ethernet RJ45
WIFI
ThinkPad BGN BT Combo
Navigation
TrackPoint®
Bluetooth®
Version 4.0



I'm with you. Putting aside the the quality that comes with a ThinkPad I like the specs of the S12T better. I'm not expecting the S12T to be any cheaper, though.

I do find it odd that Lenovo is only shipping the x140e with 7 when the pictures have it running 8. It wouldn't bother me too much, though (especially since I have a spare 8 upgrade license).



This has been available in my neck of the woods since Nov 22nd.

MSI S12T-A4 Pirate Edition (Á¤Ç°) Á¾ÇÕÁ¤º¸ Çູ¼îÇÎÀÇ ½ÃÀÛ ! ´Ù³ª¿Í (°¡°Ýºñ±³) - Danawa.com

The base unit is 490,000 Korean Won that includes the VAT.

AMD APU A4 5000(1.5ghz)
Radeon HD 8330M
4GB DDR3
11.6" 1366x768 Display
500GB HDD
3cell battery
b/g/n wireless
BT 4.0

1yr warranty



Just a thought but perhaps MSI is waiting for CES before they push US availability?



That's a likely possibility, didn't even consider that. The sooner the better.

I hope the US model has the optional IPS display mentioned in the service manual and the backlit keyboard stated in the first retailer link in the OP (maybe a typo?!). Since I'm dreaming maybe we'll get the 6 cell battery too! Cmon MSI do it!

Sent from my XT1049 using Tapatalk



Here's another link with more pictures from a different e-tailer with different options.

Scroll down the page to get past the seller's junk to see the pix with red red and blue color options.

G¸¶ÄÏ - [ÄõµåÄÚ¾îÅÍÄ¡499.000¿ø] MSI S12T-A4 Pirate Edition[HDD...

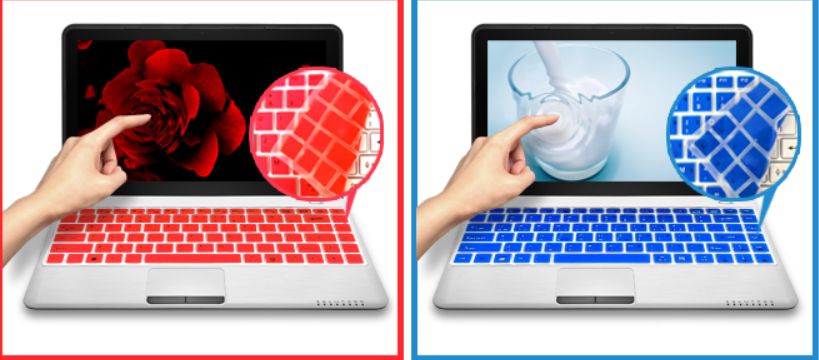

Keyboard skins?

Sent from my XT1049 using Tapatalk



Looks like its finally starting to show up in US etailers. Doing a search for 'msi s12t' in google shopping search yields some relevant searches anyway. Here's one of the links: ValleySeek.com: MSI (Micro Star) S12T 3M-006US MSI NB S12T 3M-006US 11.6inch AMD A4-5000 4G 750G W8 Touch Silver White Retail

Comes with an A4-5000 and a touch screen (probably IPS given what it says in the manual) for ~$500? Sold. :thumbsup:

I'm gonna see if it shows up at newegg first. I don't have the money due to Christmas anyway.



VallySeek reseller ratings.

ValleySeek Reviews - valleyseek.com/ Ratings at ResellerRatings

BBB Business Review
ValleySeek Business Review in Sunnyvale, CA - Serving the Silicon Valley BBB



Great find there! I've been checking for US retailers just about every day and haven't been able to find anything. That's very tempting but I'd like to buy it from Amazon and use my Prime 2-day shipping.

I hope its an IPS display!

Thanks for pointing these out. Wow!

If it wasn't for these negative reviews I would buy it now. That's a shame.

At least we now have a US part number and confirmation it will sell in the US. I'll add that to the OP and update the OP with relevant important information as it becomes available. I'm looking forward to the first hands-on reviews.


Sent from my XT1049 using Tapatalk



MSI Showcases Complete High Performance Computing Lineup during CES 2014 | techPowerUp

At least it looks like MSI hasn't forgotten about the S12T (even though it's clearly an after thought in this press release).



CES 2014 this week! Hope to see some decent coverage of the MSI S12 and MSI S12T. In the meantime, here's some high resolution pictures, including mass on a balance and a few other nice shots.
¡¾msi΢ÐÇS12T 3M-005CNͼƬ¡¿msi΢ÐÇ S12T 3M-005CN¸ßÇåͼ_Íâ¹Ûͼ_ϸ½Úͼ-ZOLÖйشåÔÚÏß

The wait is killing me, makes me wonder if I should just hold off until Mullins and Beema. Then again, those likely won't appear until the end of 2014 in actual consumer products.

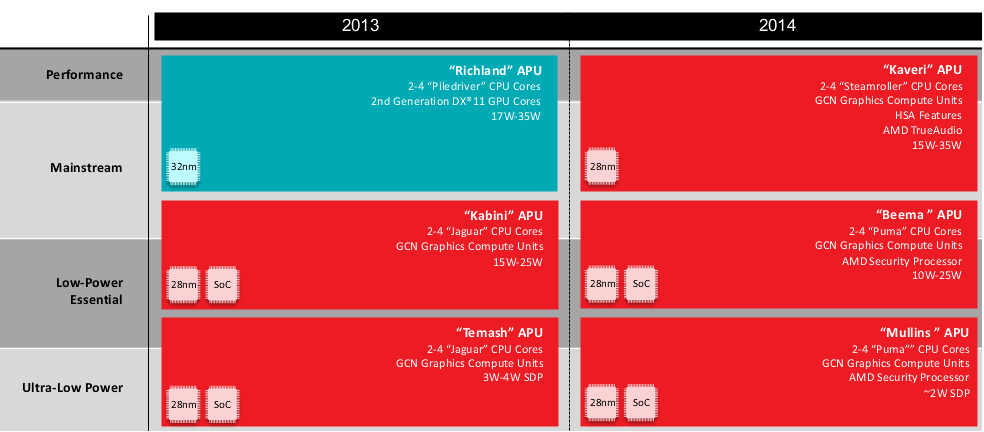

Have you seen what AMD is working on with its Discovery Project?
CE-4027, Sensor Fusion



I was about to say, you're probably looking at another year for Mullins/Beema based devices to come out.



By the by, I recommended newegg carry the S12T through this page a while back (and forgot to mention it): https://secure.newegg.com/FeedBack/ShallWeCarry.aspx



Thanks, I went ahead and submitted a suggestion too! Man, so far nothing from CES 2014...

Using these two numbers I was able to locate some other etailers
UPC # 824142016046 | Mfr. Part # 9S7-124K33-006


Here it is in stock for $492.01 with free shipping, some of the description say BLK (black?) while then stating silver/white
http://www.nothingbutsoftware.com/Product/277272-116-750GB-4GB-Ultrabook-Blk#

NeweggBusiness has 4 MSI S12T 3M-006US in stock for $496.99, too bad I don't have an account
http://www.neweggbusiness.com/product/product.aspx?item=9b-34-152-500&tpk=3m-006us

8 in stock and for $491.99, but UPS/USPS/FedEx Ground ($12.70) TOTAL: $504.69
http://www.antarespro.com/8187760-item-MSI-COMPUTER-9S7-124K33-006-824142016046.aspx

Some websites are calling it "MSI 9S7-124K33-006 11.6" ultrabook," in stock for $504.99
http://www.jr.com/msi-systems/pe/MS0_9S7124K3A00/#productTabDetails

This one says 6 in stock, $622.68 though
http://www.builderdepot.com/browse.ihtml?step=5&prodstoreid=12025&pid=1830878



Nice find on the newegg business entry! It must mean that newegg is getting it relatively soon.

I found an almost complete listing on excaliburPC.com: http://www.excaliberpc.com/629882/msi-s12t-3m-006us-11.6-touch.html

They have product pictures (thought they look stock) and even list the specs (though it says on backorder). The one thing I liked a lot was that Excalibur pc made mention that the system will come with 4GB of 1600MHz DDR3 (which is the max the APU supports) so you won't necessarily have to upgrade that further. I figured they were going to cheap out and go DDR3 1333.

It's a shame on the lack of CES coverage but as long as it's going to be in stock somewhere I'll be a happy camper.



And my suspicion was correct! Newegg.com - MSI S12T 3M-006US AMD A-Series A4-5000 (1.50GHz) 4GB Memory 750GB HDD 11.6" Touchscreen Notebook Windows 8

I purchased it just a few moments ago. Going to replace the hard drive and the WiFi with the SSD and Intel 6330 (I think?) that I have in my current notebook. I hope they're both compatible.

All the listings I've read have said the OS is Windows 8 (which doesn't matter too much since I'll be replacing it with a fresh install of Windows 8 Pro with media center) but it seems odd it just wouldn't come with 8.1.



ryun, you've worked too hard to channel this product over. :thumbsup:



Awesome man! Please post the display part number using Device Manager and HWiNFO64. I'm hoping this model comes with the IPS display. For $500 it would only seem fair. Also, take a picture of the insides with the access panel removed, I'm curious to see how everything is laid out in there.

At this point in time its very weird that it didn't come with 8.1.

Sent from my XT1049 using Tapatalk



Adding the SSD and 6300 are good ideas.

I'm using a 4 year old LG netbook with an SSD and Killer 1103 while my MSI GT780DX is at the service center getting the graphics card replaced and 2 bad memory modules covered by my 3 year extended warranty.

How to best get the 3rd antenna installed in the S12T is the unknown.

If you plan eventually upgrade your router to an AC model in the near future it may be well worth putting an Intel AC-7260 wireless card in it that needs only the 2 antennas.

Killer 1103 in LG Atom Powered Netbook
http://www.speedtest.net/my-result/3230345420



Got this puppy in the mail on Tuesday and only really had a small amount of time to play with it. To answer your question about the display panel type: definitely not IPS, unfortunately.

I'll have some serious time to play with it this weekend, so I'll be able to take some pictures of the more interesting bits then.



Congratulations ryun!!



I'm saddened to hear about the display panel definitely not being IPS. However, 11.6" IPS displays like in my Acer Aspire V5-122P exist so that could always be an upgrade possibility for the future.

Still I'm glad it got to you so quickly and can share your thoughts on it. I'm looking forward to your firsthand review.

Sent from my XT1049 using Tapatalk



I'd like to hear and see how you get the 3rd antenna installed.

The screen size is a bit too small for my liking....old eyes.

The Asus Transformer Book Duet TD300 shown at CES has my interest.It's a bit larger and dual boots both Windows 8.1 and Android.4.2.2



More bad news unfortunately:

1. To open the back panel to upgrade anything (save for the battery) you must void the warranty. There is a screw blocked by a "warranty void if tampered sticker".
2. The wireless card is no where to be found on the underside of the laptop (e.g. where the memory/hard drive are) and definitely not where the manual says.



Bit of good news: The underside panel is fairly easy to remove (compare to my last 11.6" notebook). You really only need to pry off the bottom after you remove all of the screws. and the only hidden one is the one under the warranty sticker. Also, found the wireless card. It's tucked away under the panel pretty much right behind the VGA port Going to replace the card with Intel one.

Oh and WhatsThePoint, I wasn't planning on adding the third antenna. Too much work for very little gain in my case as my router can only do 300Mbps max.



The WiFi card should be underneath the touch button panel if it wasn't on the D side (bottom chassis).



Sorry for the delay. Been busy with work.

Below is the underside of the laptop (unopened). Be sure to note the warranty void if tampered sticker. The red circle is where the screw to open the access panel is.


MSI is really tab friendly with this laptop which is nice because it reduces the screws. In fact, all of the screws are on the bottom and none of them are hidden (save for the one under the warranty sticker). The thing that sucks about this arrangement is all of the tabs are plastic. I was unlucky enough to already have one break off when I removed the whole bottom panel but luckily there aren't any negative aesthetic affects. I heavily suggest investing in a set of nylon plastic pry tools if you don't have any already.


Here's the inside under the access panel. Notice that the WiFi card is nowhere to be found from this position but the mSATA/mPCIE slot is easily accessible. There are two memory slots (which I was surprised to see).


Here's the whole underside panel taken off and you can finally see the WiFi/bluetooth card in the bottom left hand corner. Only two antennas, which isn't much of a surprise.


The Intel Centrino 6330 fit well and works great (even with 2 antennas). It also accepted the Patriot Pyro 60GB SSD I had and man is this thing flying.

I would love to give you guys a more formal review but work is picking up and I doubt I'll have time. With that said, if you would like to see something specific just let me know and I'll get around to answering it when I can.



I've got two requests.

1. Plug in your AC adapter and set the Windows Power Plan to High Performance. Open Task Manager, select the Performance tab and take a look at the CPU clock speed. What is the clock speed (the range)? Put the computer to Sleep. Then, wake it up and check the clock speed again. What is the clock speed (the range)?

In my Acer Aspire V5-122-0600, doing this 'sleep-and-wake' while using the AC adapter in High Performance will cause the A6-1450 CPU clock speed to become locked at 1.4GHz (Turbo Core/Turbo Dock), instead of normally fluctuating from 1.0-1.4GHz. I realize the A4-5000 does not have Turbo Core/Turbo Dock and its highest clock speed is 1.5GHz but I'm curious what clock speed (fluctuating) range you normal see. Is it always running at 1.5GHz?


2. Can you try overclocking the CPU/GPU?

The Radeon HD 8250 GPU's core clock in my A6-1450 can be overclocked from its normally maximum 400MHz to 497MHz using MSI Afterburner (I used 300 Beta 18). The difference is noticeable in gameplay (I only play Minecraft for now) and in most GPU benchmarks. On average the difference results in a 10-15% increase in performance. Its really unfortunate the A6-1450 doesn't support anything but DDR3-1066, DDR3L-1066 and currently there's no way of overclocking this either.

Your A4-5000's Radeon HD 8330's core clock operates at 500MHz and supports DDR3-1600, DDR3L-1600 RAM. Combined with the 1.5GHz clock speed of the CPU, it outpaces the A6-1450 even when both the CPU and GPU are overclocked (14.GHz/497MHz). I'm wondering if it can be overclocked?


Off topic

If anyone is thinking about getting the MSI S12T, you may want to consider this too:

Lenovo IdeaPad S215 59410732 (A4-5000)


Notebookcheck Lenovo IdeaPad S215 Review

Processor:AMD A4-Series A4-5000 Processor (1.50GHz 1600MHz 2MB)
Operating system:Windows 8.1
Graphics:AMD Radeon HD 8330 MHz
Memory:4.0GB PC3-12800 DDR3L SDRAM 1600 MHz
Display:11.6" HD AntiGlare with integrated camera 1366x768
Hard Drive:500GB 5400 RPM+8GB SSHD
Battery:3 Cell 36 Watt Hour Li-Cylindrical
Network Card:Lenovo BGN Wireless
Bluetooth:Bluetooth Version 4.0
Warranty:One year
Form Factor:Notebook
Productivity Software Preload:Office Home & Student 2013
Pointing device:Industry Standard Multi-touch 2 button touchpad

Pros: AMD A4-5000 Radeon HD 8330, dual-antenna WLAN card, 6hr 36 Whr battery, DDR3L 1600 MHz RAM, SSHD, Office Home & Student 2013, anti-glare display, 2.86 lbs., Windows 8.1 preinstalled, physical mouse buttons

Cons: HDMI-only video output, non-touch non-IPS TN display, 8GB DDR3 maximum single sodimm slot, no mSATA slot

https://shop.lenovo.com/SEUILibrary/controller/e/barnesnoblegold/StdAffinityPortal/en_US/Lenovo:EnterStdAffinity?affinity=barnesnoblegold
$389.00 + tax + free shpping
Use eCoupon: S215DEAL

/Off topic



The only one year MSI warranty is not a good thing.

I just got my out of warranty MSI notebook back from MSI service with a new "Waarrany Void If Removed"sticker on the bottom covering one screw.

This new sticker is different than previous stickers I've had on my MSI notebooks in that it's designed to come apart if you try to peel it off.

Previous stickers were easily peeled off using thin blade under 1 corner.

Consumers in the US have the Magnuson-Moss Warranty Act to protect them from companies denying a warranty claim when a consumer added their own hardware or or other action that didn't cause damage to the part being claimed under the warranty.

Breaking the sticker on a US MSI notebook under the Magnuson-Moss Act does not void your warranty.

If by chance you did damage something the warranty would only be voided on the part damaged and not the entire unit.

http://www.mlmlaw.com/library/guides/ftc/warranties/undermag.htm



1. Unplugged it fluctuates between 0.96 and 1.47GHz using the task manager. Plugged in it stays locked at 1.47GHz on the task manager so I didn't bother to do the wake sleep method. What's weird is that CPU-Z shows 1500MHz whereas task manager shows 1.47GHz. I wonder what that is about.

2. I'm going to pass on overclocking for now. Perhaps another user (and maybe that'll be me someday) will be more adventurous in the future, sorry.



Thank you for taking time out of your life to answer my questions. No worries, much appreciated and I completely understand your concern with overclocking. I hope to read more about your experiences with the MSI S12T in the future.

Cheers



If anyone was interested in buying another battery for the S12T just do a search for the following: BTY-S11 (3-cell) , BTY-S12 (6-cell) or BTY-S13 (9-cell).

I purchased this one here: http://www.amazon.com/Compatible-3715a-ms6837d1-14l-ms6837d1-6317a-rtl8187se-Tx2-rtl8187se/dp/B00IMYMKO0/ref=sr_1_1?ie=UTF8&qid=1396191452&sr=8-1&keywords=BTY-S12+5200

It brought my runtime up from 4-5 hours to 8-10 (depending on what I'm doing really, if it's pure gaming the 3 cell probably only provides 3 hours; 6 hours with the 6 cell). The battery linked doesn't perfectly match the underside finish, but it fits snuggly and securley and hasn't blown up on me -- which is always nice.



I think I may be the only one online that has purchased this laptop.

At any rate, I saw fit to upgrade the S12T with a mSATA SSD and everything installed without a hitch. I used this one in case anyone was interested: Plextor M6M PX-128M6M Mini-SATA(mSATA) 128GB SATA 6Gb/s Internal Solid State Drive (SSD) - Newegg.com

It goes into the mSATA port that's soldered next to the SATA ports (it'll be the first one you see when you open the laptop up).



Hey Ryun, I'm also getting the S12T Woohoo!! High 5

I am going to add a 32GB mSATA SSD to it as well, and I planned to use it together with the 500GB hdd came with the notebook, is it possible to do so?

Did u discard the original hdd came with the notebook, and just upgraded it with a mSATA? Or did you also combine the mSATA together with the hdd and made it a SSHD?



I am still wondering if there's method that I could actually combine the SSD and the HDD together, like what my other laptop (which is using Intel processor) does - using Intel SRT method to combine both the SSD and HDD together.

Anyone has any idea on how to deal with this?

Thanks in advance



It's called Intel Smart Response, which requires supported chipset to achieve.
You will need a HDD as your primary drive, and SSD as secondary.
Set SATA mode to RAID, but with no arrays created.
Load OS and load RAID driver via USB flash drive, then install Intel RST software.

Please refer to the guide here.



Hey Kevin, thanks for that.

I know the Intel Smart Response Technology will work well on my laptop if I'm having an intel processor.

The thing is, I'm trying to figure out if there's any software/drivers out there which will work well for a laptop that has an AMD processor.

I'm going to get this: MSI Global S12T

Not sure if I can do it like how the Intel SRT does, to RAID the SSD + normal HDD together?

Again, thanks in advance for your help, guys.



AMD doesn't have such technology, and if you have a 250GB SSD then you won't really need such technology.
S12T has 1 x 2.5" SATA bay + 1x mSATA bay.
