    MSI Gx620,gt627,gt628,1651 is raid possible if you put a HDD in the optical bay?

    Discussion in 'MSI' started by moral hazard, Feb 13, 2010.

  1. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Hi,

    I was thinking, since we have a sata optical drive and the ICH9M southbridge supports raid 0/1, would it be possible to set up raid?

    i.e. Buy a HDD caddy for the optical bay, stick in second HDD, would there be a raid option in the BIOS (under the SB option in the advanced menu, use old BIOS for this)?

    moral hazard, Feb 13, 2010
    #1
  2. zfactor

    zfactor Mastershake

    Reputations:
    2,894
    Messages:
    11,134
    Likes Received:
    3
    Trophy Points:
    455
    no the system does not support raid that we have even though normally the chipset does its not that way in the 620

    zfactor, Feb 13, 2010
    #2
  3. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Well thanks for the info, I guess I would have seen a raid controller in the device manager if we had one...

    moral hazard, Feb 14, 2010
    #3
  4. Darth Bane

    Darth Bane Dark Lord of the Sith

    Reputations:
    506
    Messages:
    2,103
    Likes Received:
    0
    Trophy Points:
    55
    You can still do software raid through windows, while not as fast as hardware raid, it's still faster then jabod.

    Darth Bane, Feb 14, 2010
    #4
  5. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Feb 15, 2010
    #5
  6. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216

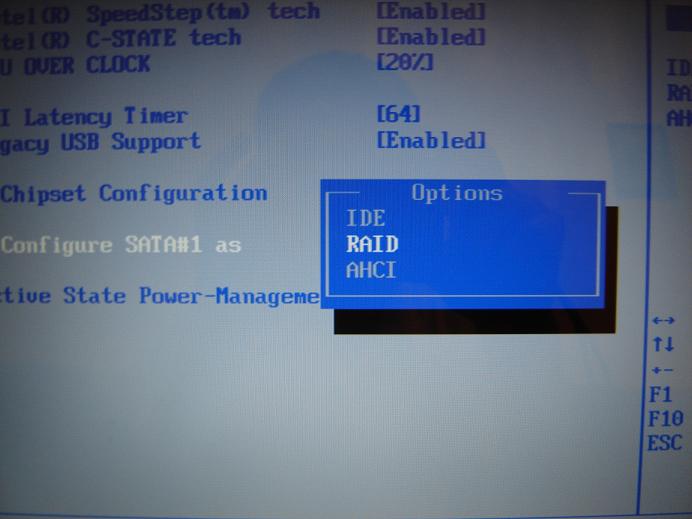

    Hmm, this makes me think raid is possible, as you can see there is an option for raid in my 1.0T BIOS:


    Attached Files:

    moral hazard, Apr 2, 2010
    #6
  7. Dead2th3world

    Dead2th3world Pure Hatred

    Reputations:
    360
    Messages:
    2,029
    Likes Received:
    0
    Trophy Points:
    55
    That's nice ! 2 7200rpm drive is better. Do you have 2 identical drive laying around or borrow so you could try ?

    Dead2th3world, Apr 2, 2010
    #7
  8. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    No, I wish i did...

    But someone must have two, just use the 1.0T BIOS, if you need it I can give a link.

    moral hazard, Apr 2, 2010
    #8
  9. Dead2th3world

    Dead2th3world Pure Hatred

    Reputations:
    360
    Messages:
    2,029
    Likes Received:
    0
    Trophy Points:
    55
    It won't work on 1722. Besides I would still need a 2nd HDD

    If it's there it should work , is it a modded one ?

    Dead2th3world, Apr 2, 2010
    #9
  10. catacylsm

    catacylsm Notebook Prophet

    Reputations:
    423
    Messages:
    4,135
    Likes Received:
    1
    Trophy Points:
    106
    Aye, just replace the ODD dead, put the disk drive in an external casing, i'd likesomeone to make this happen though :).

    catacylsm, Apr 2, 2010
    #10
  11. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    No, that's a BIOS I got straight from the MSI download page.
    It's an official BIOS, just an older one.

    moral hazard, Apr 2, 2010
    #11
  12. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    Have you tried selecting RAID and booting into the Intel matrix storage manager?

    Check the Intel matrix console in windows too. Should be ICH9M-E

    flipfire, Apr 2, 2010
    #12
  13. Dead2th3world

    Dead2th3world Pure Hatred

    Reputations:
    360
    Messages:
    2,029
    Likes Received:
    0
    Trophy Points:
    55
    That's weird as MSI Gseries don't come with twin HDD. Worth a try though :p

    Dead2th3world, Apr 2, 2010
    #13
  14. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Great idea, I'll try it now :D

    BTW it is the ICH9M-E/M controller.

    moral hazard, Apr 2, 2010
    #14
  15. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    I selected raid, then I just got a BSOD at the windows loading screen.

    I'm not sure, is there something I have to press to get into the storage manager?

    moral hazard, Apr 2, 2010
    #15
  16. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    of course youd get a BSOD, its not set up yet lol

    CTRL+F or I (if i recall correctly)

    EDIT: press CTRL+I repeatedly after it POSTS. Ref

    flipfire, Apr 2, 2010
    #16
  17. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Ok, thanks I'll try again.

    moral hazard, Apr 2, 2010
    #17
  18. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    CTRL+F didn't work, I forgot to try CTRL+I lol, I'll try it now.

    moral hazard, Apr 2, 2010
    #18
  19. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    CTRL+I didn't work either.

    moral hazard, Apr 2, 2010
    #19
  20. Dead2th3world

    Dead2th3world Pure Hatred

    Reputations:
    360
    Messages:
    2,029
    Likes Received:
    0
    Trophy Points:
    55
    Might do it by the end of this year ;) . I'm moving soon so no time for big project.

    Dead2th3world, Apr 2, 2010
    #20
  21. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Apr 26, 2010
    #21
