    MSI GT680r Memory Under The Keyboard

    Discussion in 'MSI' started by seabiscuit58, Jun 6, 2011.

  1. seabiscuit58

    seabiscuit58 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Guys, is there a guide on how to access the memory RAM slots under the keyboard in the MSI GT680r? I've tried looking it up but couldn't find any. Any help would be appreciated! :)

    seabiscuit58, Jun 6, 2011
    #1
  2. flingin

    flingin M17x R2 Mafia

    Reputations:
    444
    Messages:
    1,173
    Likes Received:
    306
    Trophy Points:
    101
    Hello, hello

    Take the battery off, unscrew all screws that battery normally covers when attached (i don't know witch one exactly) :) take a flat screwdriver and "tick" the keyboard up ( from the upper side ) this should relase it :D

    cheers

    flingin, Jun 6, 2011
    #2
  3. seabiscuit58

    seabiscuit58 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Thanks alot flingin! There's only one thing I'm not sure about. I'm not sure exactly which part of the keyboard do i tick. Because there's also another gap surrounding the keyboard which looks pull-able.

    seabiscuit58, Jun 6, 2011
    #3
  4. MrSeaBass

    MrSeaBass Notebook Evangelist

    Reputations:
    312
    Messages:
    399
    Likes Received:
    0
    Trophy Points:
    30
    YouTube - ‪MSI Notebook GT660 --- Disassembling‬‏

    This might help, It might be a little different, but should follow the general idea for yours. Starting around minute 3 is were it gets into the keyboard. Just remember that at that point in the video the screws from under the battery have already been removed.

    MrSeaBass, Jun 6, 2011
    #4
  5. flingin

    flingin M17x R2 Mafia

    Reputations:
    444
    Messages:
    1,173
    Likes Received:
    306
    Trophy Points:
    101

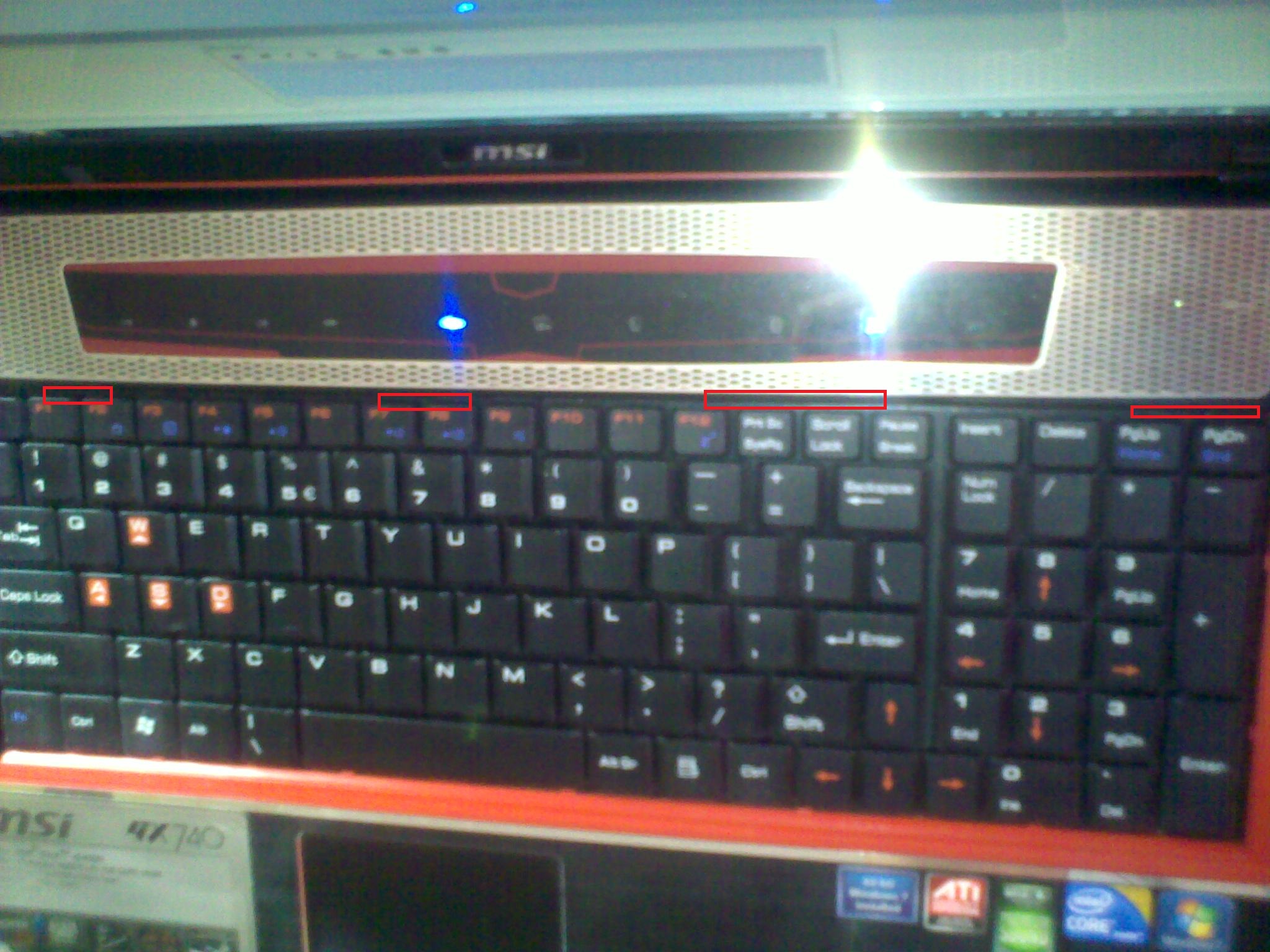

    Yes, try to put small screwdriver there, be gentle :D


    Attached Files:

    flingin, Jun 7, 2011
    #5
  6. Justin@XoticPC

    Justin@XoticPC Company Representative

    Reputations:
    4,191
    Messages:
    3,307
    Likes Received:
    0
    Trophy Points:
    105
    If not a small screwdriver you can also use a paperclip. As flingin stated be gentle. :)

    Justin@XoticPC, Jun 7, 2011
    #6
  7. seabiscuit58

    seabiscuit58 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Thanks guys! Will conduct surgery on my laptop when my ram arrives!
