MSI GS30 Revealed

You can get the sager np8652 for a little over 1500 shipped, from exotic pc, it comes with the 980m. That laptop is clevo/sager thinnest 15 inch and weighs just a little over 5 pounds. Of course it's a sager so build quality isn't going to be super high, I have a sager now with the 770m and build quality is lacking, however, they stay very cool. I still think the gs30 is really expensive for what you are getting, for me the price would be right with something better than Iris Pro 5200, as you said, the 960m or something similar.

But yeah, as you said maybe those things are just asking to much from the frame of the laptop. I heard from several people and I think even the OP that this isn't the only laptop that will be able to work with the dock. It would be a shame if MSI doesn't, I mean AW has three even though there release has been terrible. I THINK MSI really has the know how to do this right. I mean as the OP said, there haven't been really any serious problems with the dock.



yeah man, and the gs30 is what you want to go with if you want a solution for desktop graphics with a laptop. AW really isn't the one to go with, even the 13...PCIe V2 alone makes Alienware graphics amplifier not worth it over MSI. And it seems like the gs30 alone is a great little laptop, I seen Intel Iris Pro 5200 playing crysis 3 on lower settings, the game still looks decent, I also seen BF4 and same thing. I'm betting the high price is due partly to the PCIe connection on the back. I'm pretty sure I'm going with msi and the dock, but I've got some time so it'll be cool to see what they have in store.



For those of you that live in states where Amazon doesn't charge tax, its selling for $1800 there right now: http://www.amazon.com/MSI-GS30-SHADOW-001-13-3-Inch-Gaming/dp/B00RYZ6INW

Are there price drops elsewhere that Amazon is matching?

EDIT: Realized it is matching a Newegg $100 off coupon: http://www.newegg.com/Product/Product.aspx?Item=N82E16834152710



The next Meaker machine is here and it is based off the GS30.

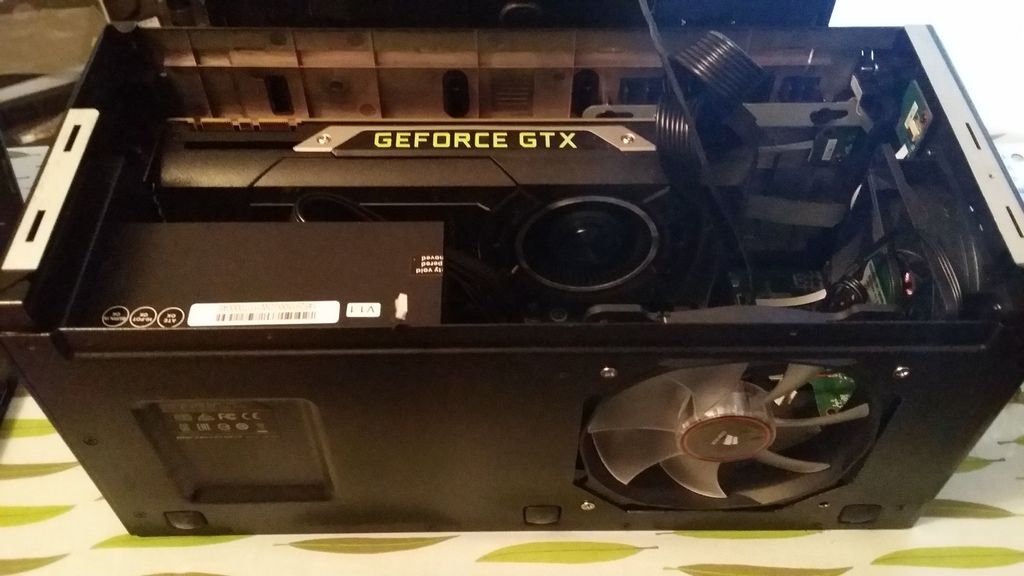

This machine has not had much love on the forum and that is a crying shame in my opinion. So I give you the GS30 Titan edition:

13.3" internal 1080p screen + 27" 1440p 144hz ROG swift
4870HQ with iris pro
16GB DDR3 1600mhz
2x 500GB samsung evo 850 SSD (raid 0)

Dock with:
450W 80 plus bronze SFF PSU
Nvidia Titan X 16GB GPU
92mm fan

This will be stage 1 and will go toe to toe with any notebook out there, even the P570WM

Step 2:

1600mhz ram to be swapped with 2133mhz impact.
450W PSU to be replaced with 500W 80 plus gold unit.

This step will help reduce noise and bolster the CPU as much as possible.

Step 3 (water dragon edition)

Get a full cover water block for the titan and go water with a double thick 92mm radiator and dual fans. This should help keep temperatures down and noise.

Step 1 should be in place in a week or two so keep an eye out for some results then



Are you going to be posting this?



I'll post up pictures and benchmarks



That would be awesome man. I'm trying to decide between this and the AW 13 still. I've got a couple months to decide.



What card will you put in it? If titan or 980 then the msi is the clear choice.



That could be a nice project, Meaker! Do you have the pictures of the rad you want to install? And how do you plan to setup a WC loop?

Sent from my Nexus 4 using Tapatalk



http://www.3dmark.com/fs/4531782

15k in 3dmark

I'm still planning exactly what I want to do cooling wise.



That score is crazy!!!!



Meaker, did you consider a gold fanless PSU for the buid? It seems like there's a good amount of space to install a rad on the bottom with the fans pulling air outside the case. But with such a setup you'd probably want to go with AIO and custom GPU bracket, of course the full GPU waterblock would be a plus)

In the reviews of the Titan it was said the memory chips can get toasty with an overclock, so it's better to cover them as well

P. S. Nice scores, BTW)



Will you list these setups in your website to buy? Oh pretty please.



If you ever need anything specific email in to sales or call to discuss anything custom.



Nice Meaker! i just saw your score! i wish i had a titan X to play with in a GS30.



Lovely Don't worry @MSIGeno I'll post up plenty of pictures and benchmarks of all the fun I am having.

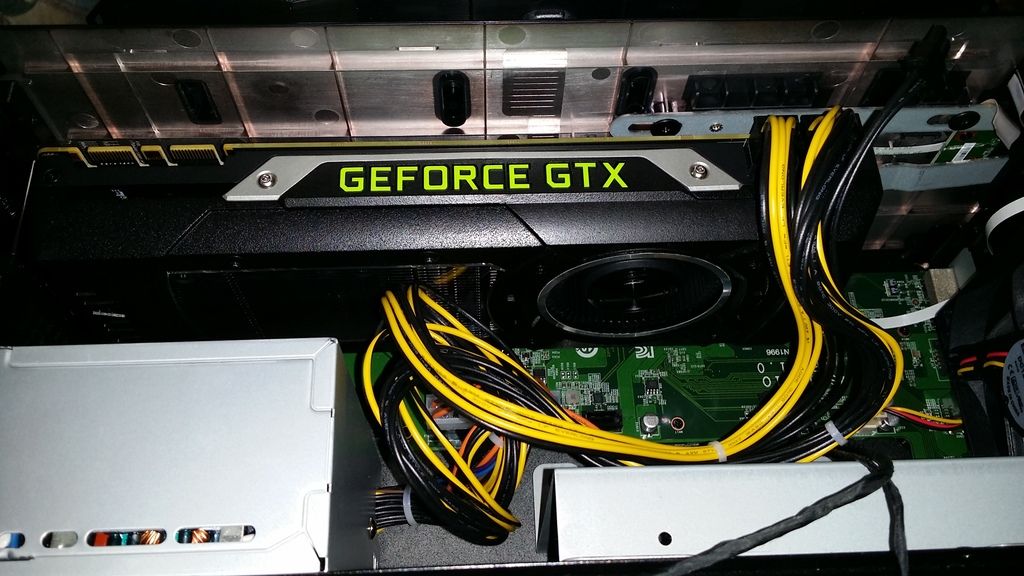

I've removed the HDD cage now.



PSA: Guys, since I stalk this amazing machine on newegg/amazon on a daily basis, just wanted to let you guys know that Newegg is having a bundle deal where they are including a MSI R9 290 ($300 value) into the $1900 price. Seems like a pretty solid deal.



Keep us posted Meaker!! Looking awesome.



http://www.3dmark.com/fs/4547883

That's as far as I can take it with my wife's system before mods



I love the combined performance! I suppose SLI has its limits compared to single GPU.



It's definitely not going to be 2X performance, more like 1.5X.



Yep, depending on the game, more or less.

What made me wonder was the combined score though. My graphics score is very similar to the OC'd Titan X, and both our CPUs are very close in performance, but the single GPU combined score is like 35% faster than mine.



The combined score loves GPU memory bandwidth and the Titan-X has a 384bit bus running at over 8ghz in that benchmark run

Remember due to more uneven frame times SLI has to work harder than a single card to give the same smoothness so it's pretty neck and neck in games (especailly at 1440p).

Of course in games that don't scale well in SLI the titan-X reigns supreme.



Yep! Too bad 980m doesn't OC so well memorywise to be able to compete anywhere near that level haha

That titan X looks like a great GPU. All in all, it shows that the GS30 is one capable gaming machine when using the external GPU, a nice niche desktop alternative.



Now I just need to work on it properly and get it benching a nice bit higher



Wow, saw front page ad for this and didn't even know eGPU existed... Often thought how cool that would be. Can't wait to see where technology goes and for other manufacturers to jump on the bandwagon so all laptops can benefit, and not just select brands. This actually changes the entire regime allowing the entire holy trinity of desires in a single laptop - portability, longevity, and performance. Usually you had to sacrifice one (Clevo's are bulky and not as portable, Razer and other thin notebooks overheat and lack longevity, and anything less doesn't perform).

...Anyway, just had to comment after seeing this. Exciting times ahead for sure, but still too early to bite on this new technology for me .



Hopefully my real fun can begin soon



Feel free to send that my way if you get bored with it ha

Keep us posted on results!



I have all the parts listed, i'll just need to get to ordering them. The dock is currently in the workshop



That's pretty dope.



Here are most of the parts.

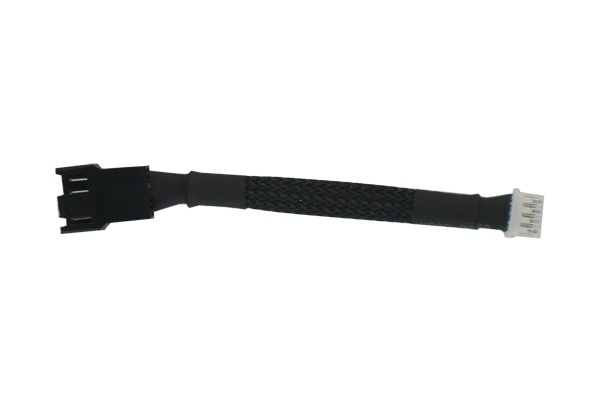

I'll be controlling this from the GPU so I got this as above:



and one of these:



So I need a stylish block that wont cover it ala:



Combined with the backplate:



I'm going for the EK pump too:



A nice dense radiator:



For splashes of red and high pressure fans for the dense radiator in push pull:



Also some red fittings as well to go with all the black:



I'll get some standard 10/13 tubing, clear.

Since space is tight I am going for a very small reservoir:




It's not going to happen over night but it's going to look very good when done



Somewhat similar but unusual mod for an ultrabook/desktop hybrid.



I usually run a modded notebook so not too odd for me to mod the dock as well



Another step

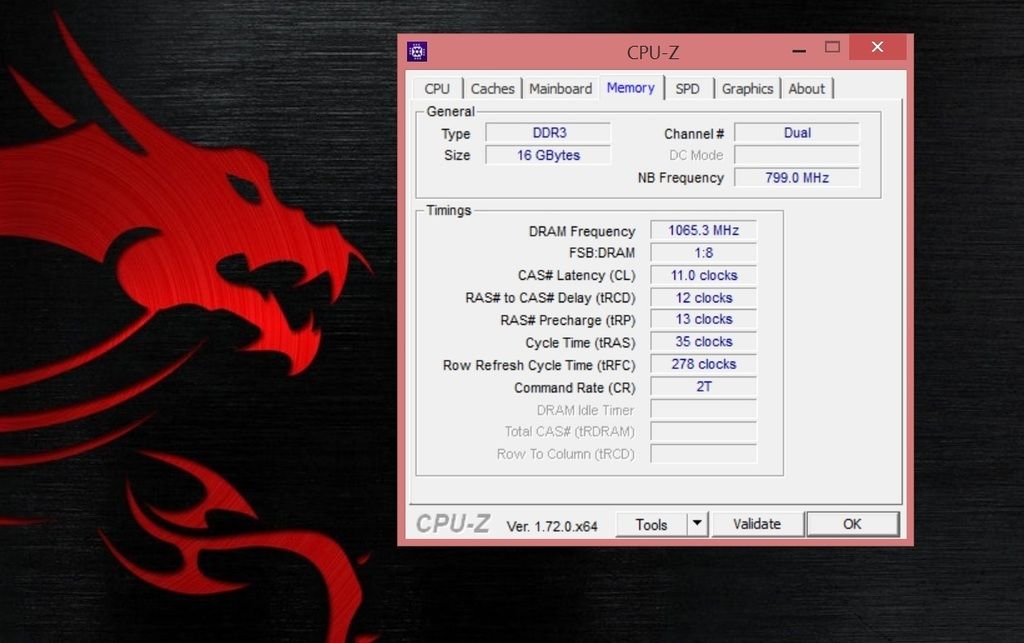

2133mhz impact black modules plug and play



15451 in firestrike

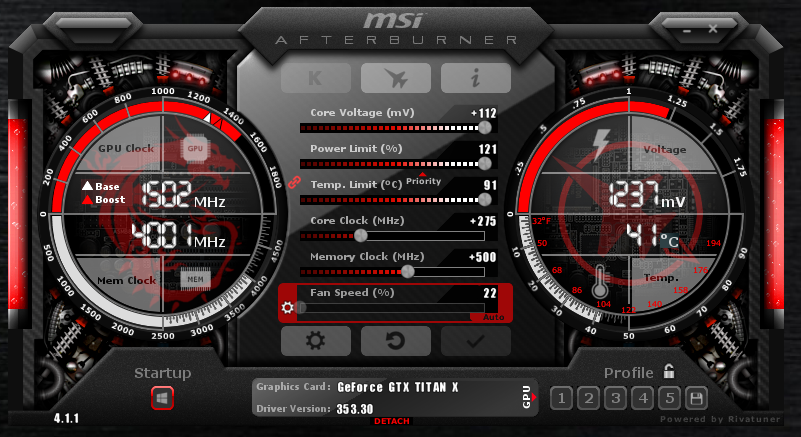

The last tweak for air scores, next step water cooling:



Over 16000 anyone?



Looking great! You going to be able to cram the entire cooling system inside the dock?



With some modifications yes. The metal brace and dock speakers have been sacrificed.



http://www.3dmark.com/fs/5019093

http://www.3dmark.com/fs/5018676

9383 in extreme and 5102 in ultra. over 1500mhz core clocks and 8ghz memory clocks sustained.



Very nice! What are your GPU temps (and ambient) during gameplay/benching?



Benching with the pump at 70 percent and the current single fan set to high was 48C. No gaming results yet, I'll move on to that next.



Here is the proof of concept build (Note the pump/res combo I decided to go for):

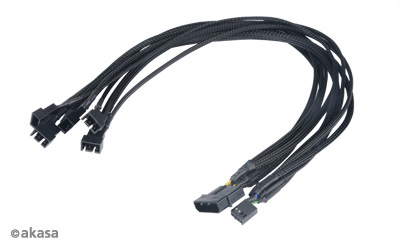

I'm getting the fianl functional parts over the next week. Included are some 90 degree and 45 degree rotary fittings to make the tube lengths a lot shorter, 3 PWM controlled fans (1 slim and 1 normal for radiator, 1 for the front), 1 LED light fitting for the resevoir with white dual LED, 1 black sleeved molex splitter (PSU has 2 molex and I need power for the fan splitter, pump and LEDs).

I've also got the red backplate for the GPU on order

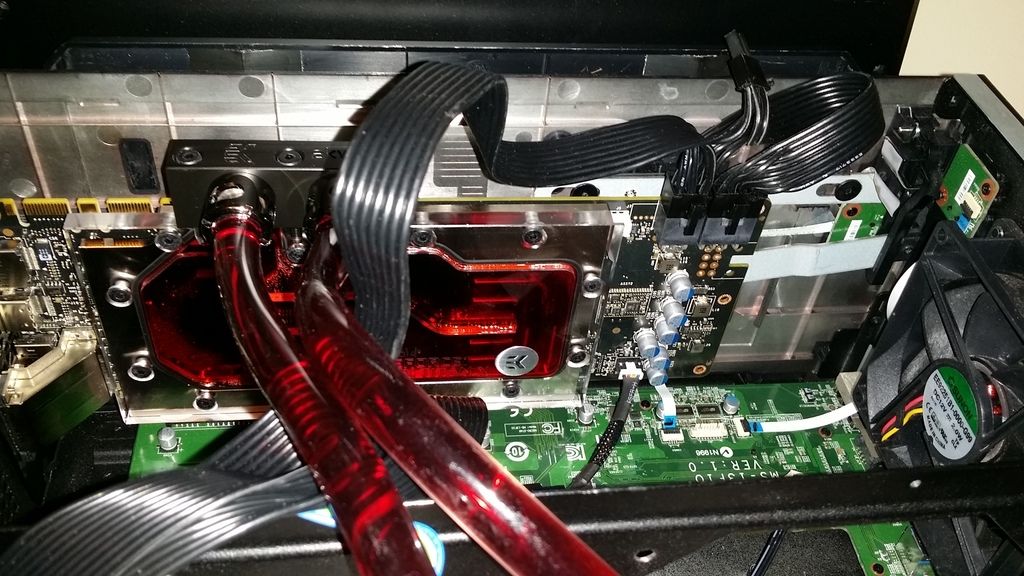

Well it's all in the box itself now after the liberal use of adapters to get the angles, i'll need to do some serious cable management to get it all looking nice.

The final modification is to the front panel to get the intake fan mounted and to allow space for the resevoir.

I will also be placing a socket on the motherboard for the bios so I can program the chip and then place it back in (the chip is hardware and software locked).



Look forward to seeing the final look inside... fun build for sure!

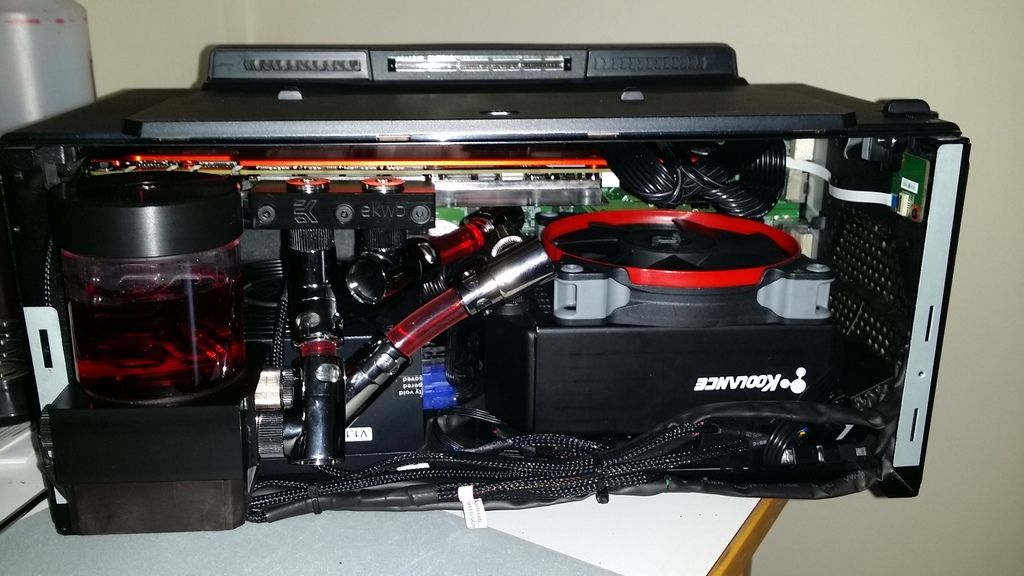

Well here you go, still got to do the front and sort the lighting out but that's about it



There we go, that should do for every day gaming

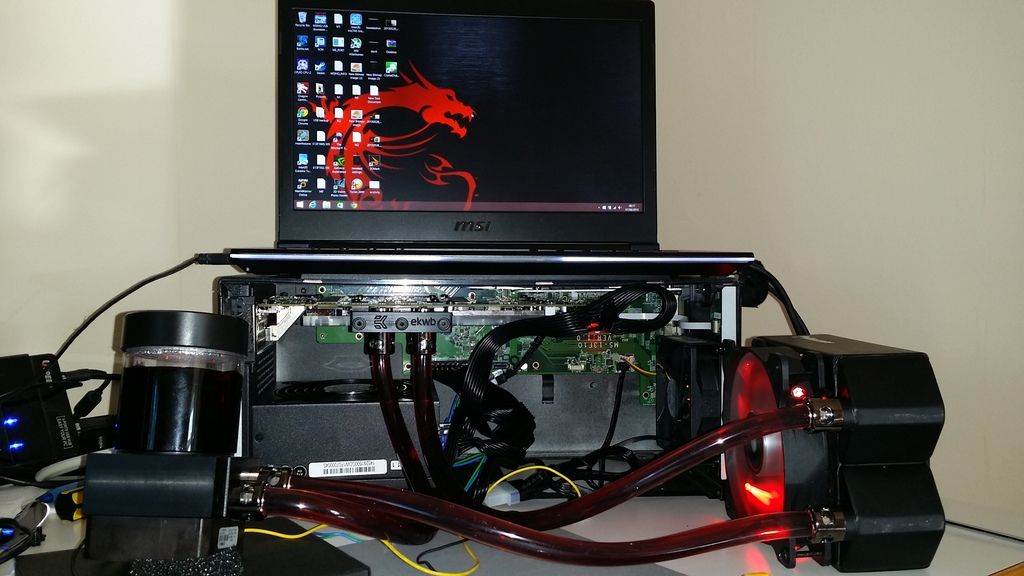

Here is some testing going on



Custom lighting installed

Now just to adjust the opening and get something for the front



Currently the GS30 is the only MSI laptop that can be docked to the gaming dock.
Will MSI keep this line? And launch future models with new processors and technology that can use the gaming dock?
I am thinking about pulling the trigger on one and use a Sapphire 290X 8gb on the dock.
But I don't want to get a dead end system where I will be able to upgrade the GPU, but then in time, the rest of the system will fade to obsolete status.
Granted the GPU must be upgraded like 3 times more frequently than the CPU, ram and storage, but still...
